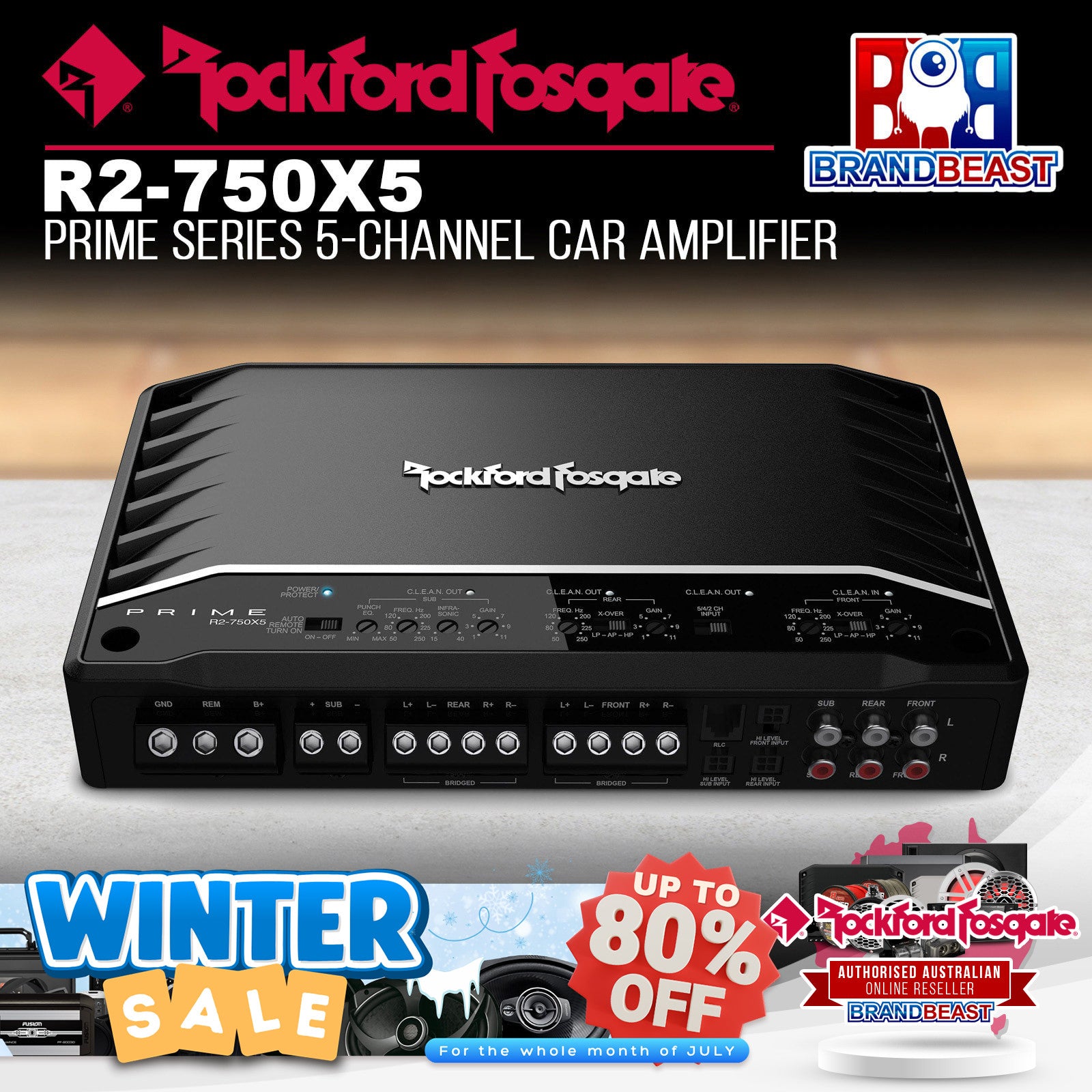

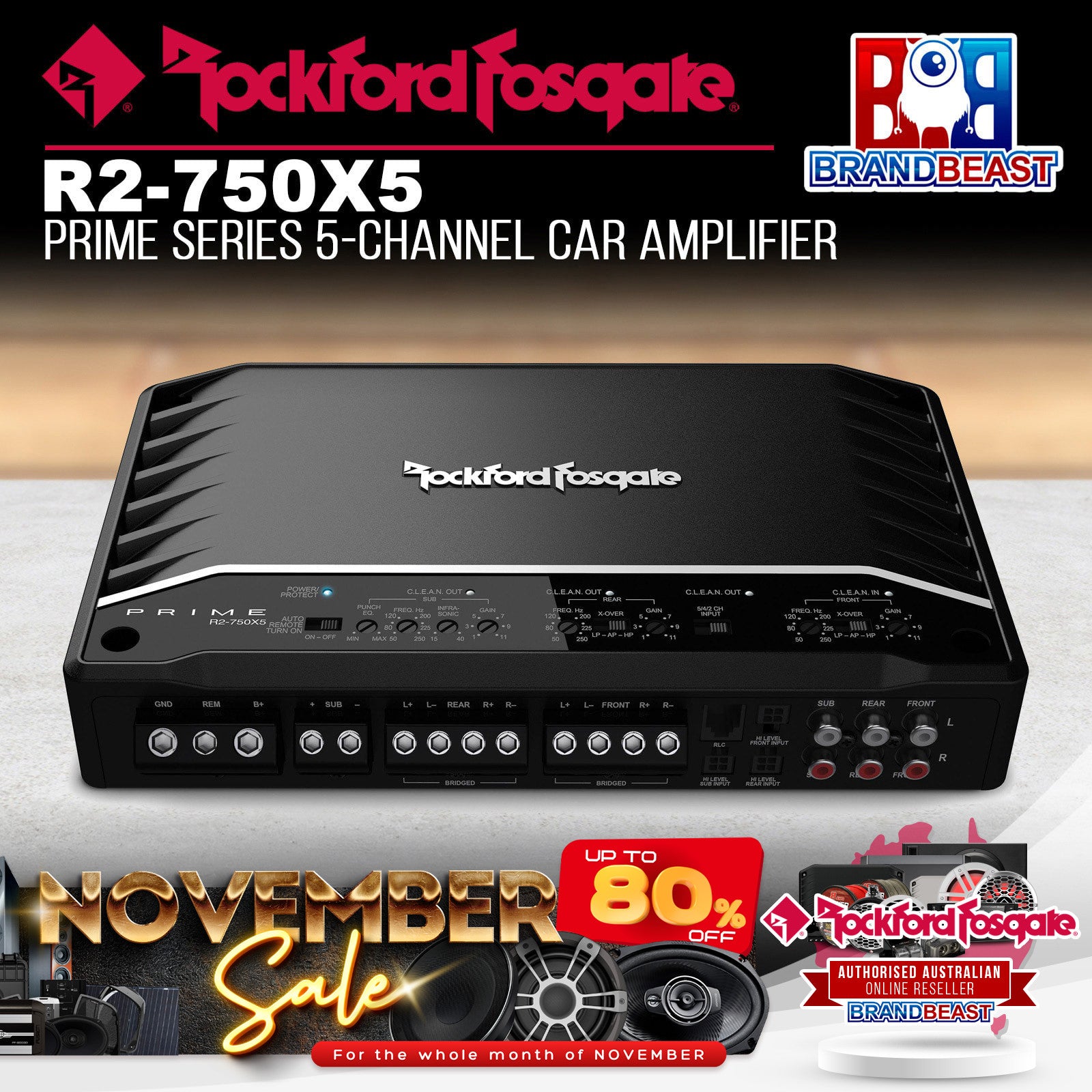

Rockford Fosgate R2-750X5 Prime 750 Watt 5-Channel Amplifier

Description

Rockford Fosgate Prime 750 Watt 5-Channel Amplifier: Primed for Performance

The R2-750X5 amplifier is a 750 watt, full-range class-D, capable of operating at 4Œ© or 2Œ© stereo, and 4Œ© bridged/mono with a subwoofer channel that can be run at 4Œ© or 2Œ©. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you've come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being ‚Äúunder rated,‚Äù easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems. Features:
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • High Level Input Capable
  • Defeat able Auto Turn On Circuit
  • Features C.L.E.A.N. Set-up
  • 2/4/5 Channel Input Selection Switch
  • R.L.C. Remote Level Control
  • Variable Infrasonic Filter
  • Front, Rear and Sub Variable Input Gain adjustment level
  • Continuously Variable On Board Punch EQ
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • CEA-2006 Compliant & CE Compliant
  • Cast aluminum heat sink
  • Full Range Class D
  • Rollback Protection
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Specifications:
  • CEA-2006 Compliant
  • CEA-2006 Power Rating
  • 50W x 4 + 200W x 1 @ 4‚Ѷ
  • ‚â§1.0% THD+N
  • Number of Channels 5
  • Total Power (Sum of Rated Power) 750 Watts
  • Rated Power (RMS Continuous Power) 50 Watts x 4 + 200 Watts x 1 @ 4Œ© / 100 Watts x 4 + 350 Watts x 1 @ 2Œ© / 200 Watts x 2 + N/A @ 4Œ© Bridged/Mono
  • Dynamic Power (PVC/PowerCube¬Æ) 70 Watts x 4 + 241 Watts x 1 @ 4Œ© / 114 Watts x 4 + 426 Watts x 1 @ 2Œ© / 234 Watts x 2 + N/A @ 4Œ© Bridged/Mono
  • Bridgeable Yes
  • Frequency Response 20 Hz - 20 kHz
  • Input Sensitivity Low-Level: 150 mV - 4 V / High-Level: 450 mV - 12 V
  • Circuit Topology Class Class D
  • Efficiency (average)
  • Total Harmonic Distortion (THD+Noise) Front/Rear 4Œ©: <1.0% / Front/Rear 2Œ©: <1.0% / Sub 4Œ©: <1.0% / Sub 2Œ©: <1.0%
  • Signal Input Front Low-Level: 2 RCA / Front High-Level: 4-Pin Molex / Rear Low-Level: 2 RCA / Rear High-Level: 4-Pin Molex / Sub Low-Level: 2 RCA / Sub High-Level: 4-Pin Molex
  • Signal Output N/A
  • Tone Controls 0 to +18 dB @ 45 Hz
  • Crossover Controls Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Sub Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
  • Remote Controls Yes
  • Visual Indicators Power/Protect / C.L.E.A.N. In / C.L.E.A.N. Out (front) / C.L.E.A.N. Out (rear) / C.L.E.A.N. Out (sub)
  • Power Wire Gauge 4 AWG
  • Power Input Connector Compression Terminal Block
  • Speaker Wire Gauge 8 AWG
  • Speaker Output Connector Compression Terminal Block
  • Cooling Convection
  • Operating Voltage 9 - 16 VDC
  • Recommended Fuse (not included) 120 A
  • Average Current Draw (13.8V Music)
  • Max. Current Draw (13.8V Sinewave) 71 A
  • Dimensions (H x W x D) 1.9" x 6.8" x 11.2" (4.9 cm x 17.3 cm x 28.5 cm)

Legendary Products & Support From Authorized Dealers

When you choose Rockford Fosgate, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Rockford Fosgate dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Rockford Fosgate's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Rockford Fosgate dealer today!
