Description
1/0 AWG Pure Crystal OFC Black Wire 51 Foot Spool, 53.5mm², 4,704 Strands, Frosted Flexible Outer Jacket. Full AWG Specification.
Product Overview

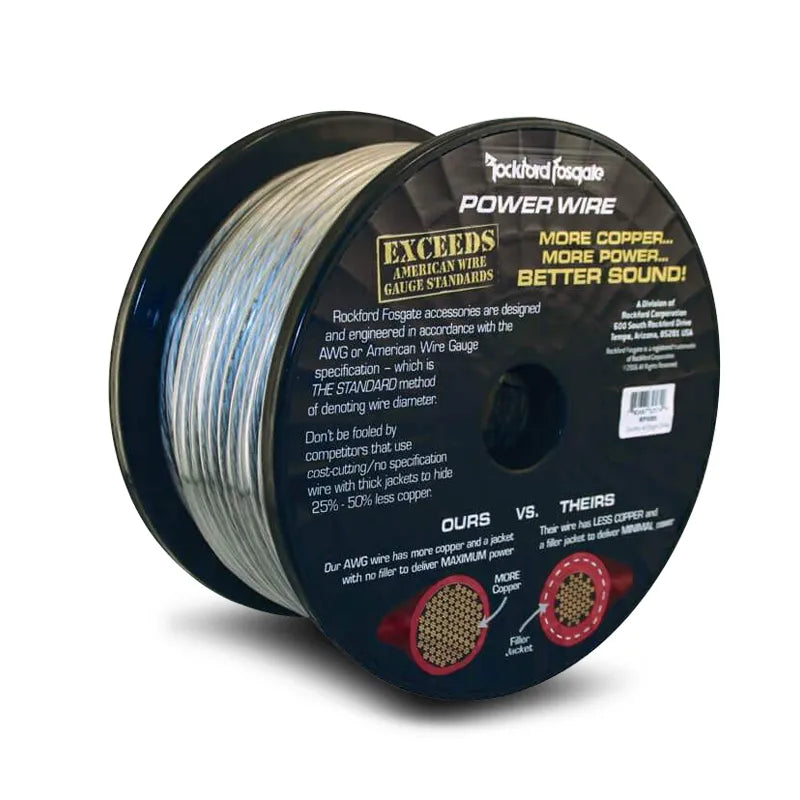

The Rockford Fosgate RFW1B-51 is a 51-foot spool of 1/0 AWG (53.5mm²) negative insulated multi-strand power cable Pure Crystal Oxygen-Free Copper (PC-OFC) construction with a frosted outer jacket for maximum flexibility. This is bulk wire for car audio installations requiring the heavy-gauge connections appropriate for high-power amplifier systems. The cable meets or exceeds full AWG (American Wire Gauge) specification.
At 1/0 AWG, this is among the heaviest gauges used in car audio wiring appropriate for main power and ground runs on amplifier systems rated at 1,000W RMS and above, or for shorter-run installations at very high power levels. The 51-foot spool provides sufficient length for a single vehicle run with working length included.
Key Specifications
- Part number: RFW1B-51
- Wire gauge: 1/0 AWG (American Wire Gauge) ✓
- Cross-section: 53.5mm² ✓
- Conductor: Pure Crystal Oxygen-Free Copper (PC-OFC) ✓
- Strand count: 4,704 ✓
- Jacket colour: Frosted black ✓
- Jacket type: Frosted, flexible outer jacket ✓
- Spool length: 51 feet ✓
- AWG compliance: Full AWG specification (meets or exceeds) ✓
- Outer jacket diameter: Not specified — confirm with Rockford Fosgate
- Weight: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
1/0 AWG — Heavy Gauge for High-Power Systems — 1/0 AWG at 53.5mm² is a heavy-gauge wire suitable for high-power amplifier installations. At 1/0 AWG, this cable can handle the current demand of high-output car audio amplifiers with minimal voltage drop over the run length. Appropriate for main power and ground connections on systems from approximately 1,000W RMS upward depending on cable run length.
-
Pure Crystal OFC — PC-OFC Conductor — PC-OFC (Pure Crystal Oxygen-Free Copper) uses large-crystal copper production to minimise the number of crystal grain boundaries in the conductor — each boundary introduces a small resistance increase. The result is a conductor with lower resistance and better signal conductivity than standard OFC copper of the same gauge. Oxygen-free processing prevents the copper oxidation that degrades conductivity over time.
-
4,704 Strands — High Flexibility — At 4,704 individual strands within 1/0 AWG, this cable is far more flexible than equivalent solid-core or lower-strand-count designs. High strand count allows the cable to bend around the tight corners and through the confined routing paths of vehicle installations without kinking or cracking the conductor bundle.
-
Frosted Outer Jacket — Maximum Flexibility — The frosted (translucent matte finish) PVC jacket provides flexibility across the temperature range found in Australian vehicle environments — preventing the cracking and stiffening that can affect standard jackets in heat-exposed under-bonnet or boot locations.
-
Full AWG Specification — Meets or exceeds the AWG (American Wire Gauge) requirements for 1/0 AWG conductor cross-section — a specification that some lower-cost "AWG-labelled" wires do not meet. The confirmed 53.5mm² cross-section is the full 1/0 AWG specification.
-
51 Foot Bulk Spool — 51 feet (approximately 15.5 metres) of bulk wire — sufficient for a complete vehicle installation power or ground run with working length and routing slack.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
RFW1B-51 |
| Wire Gauge |
1/0 AWG ✓ |
| Cross-Section |
53.5mm² ✓ |
| Conductor |
Pure Crystal OFC (PC-OFC) ✓ |
| Strand Count |
4,704 ✓ |
| Jacket Colour |
Frosted Black ✓ |
| Spool Length |
51 feet (approx. 15.5 metres) ✓ |
| AWG Compliance |
Full AWG specification ✓ |
| Outer Diameter |
Not specified — confirm with Rockford Fosgate |
| Weight |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable for:
- Main power (+12V) cable run from battery to amplifier — negative/ground run (this spool is black/negative rated but can be used as positive depending on installation practice — confirm polarity convention with installer)
- Ground runs from amplifier to chassis or battery negative
- High-power car audio systems requiring 1/0 AWG main power wiring
- Amplifiers rated at 1,000W RMS and above (confirm cable run length against voltage drop calculations)
Pairs well with:
- Rockford Fosgate T1000-1BDCP, T1500-1BDCP, or T2500-1BDCP mono amplifiers requiring 1/0 AWG supply wiring
- Matching Rockford Fosgate red 1/0 AWG positive wire (if available in the catalogue)
- Appropriate 1/0 AWG fuse holder and fuse within 450mm of the battery positive terminal
Weight
11.43 kg
Frequently Asked Questions
What is 1/0 AWG wire used for in car audio?
1/0 AWG is a heavy-gauge power cable used for the main power and ground runs between the vehicle battery and high-power amplifiers. It is appropriate for amplifier systems rated at approximately 1,000W RMS and above (depending on the cable run length). At shorter run lengths, 1/0 AWG may be sufficient for even higher power systems — always calculate voltage drop based on the actual run length and current demand.
What is PC-OFC copper and why is it better than standard OFC?
Standard OFC (Oxygen-Free Copper) removes oxygen from the copper during production to prevent oxidation. PC-OFC (Pure Crystal OFC) additionally uses a large-crystal growth process that minimises the number of crystal grain boundaries in the conductor. Each grain boundary adds a small resistance — fewer boundaries means lower overall conductor resistance and better conductivity. For high-current car audio power cables, this contributes to lower voltage drop across the run.
How long is the spool in metres?
The confirmed spool length is 51 feet, which is approximately 15.5 metres. This is typically sufficient for a single complete battery-to-amplifier power or ground run in most passenger vehicles, with routing and working length included.
What is the strand count and why does it matter?
4,704 individual copper strands make up the 1/0 AWG conductor. A higher strand count produces a more flexible cable that can navigate vehicle routing paths without kinking or cracking — important for long installation runs through door sills, firewall grommets, and under carpet.
Is this cable suitable for the positive power run as well as ground?
The RFW1B-51 is described as a negative (black) cable. While the conductor specification is identical regardless of polarity, conventional car audio installation practice uses red for positive and black for negative for clear identification and safety. If used for positive runs, label clearly or use a matching red positive wire.
