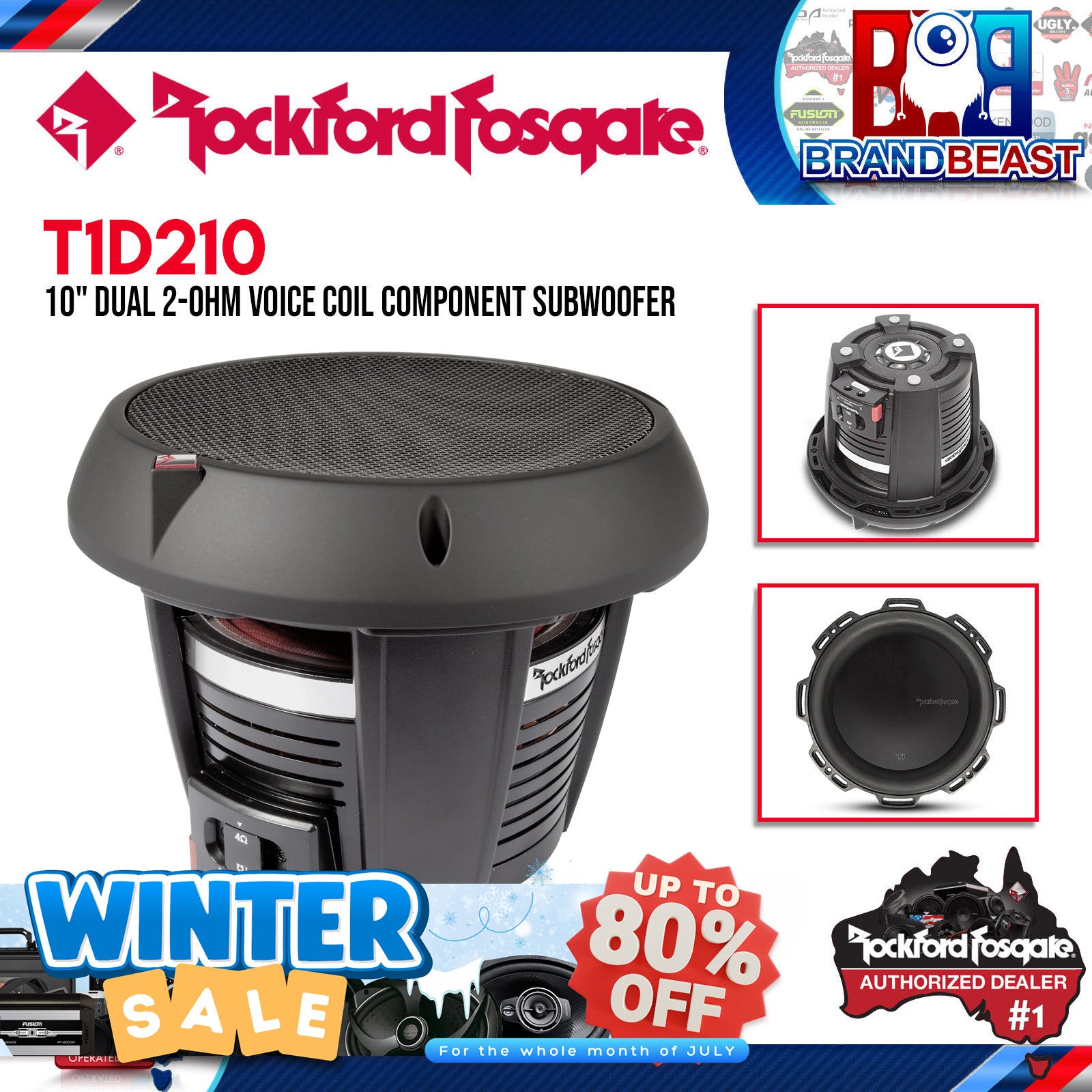

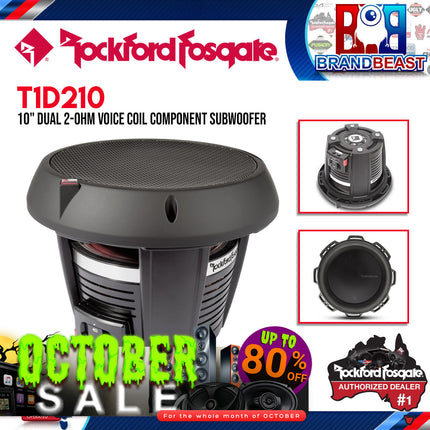

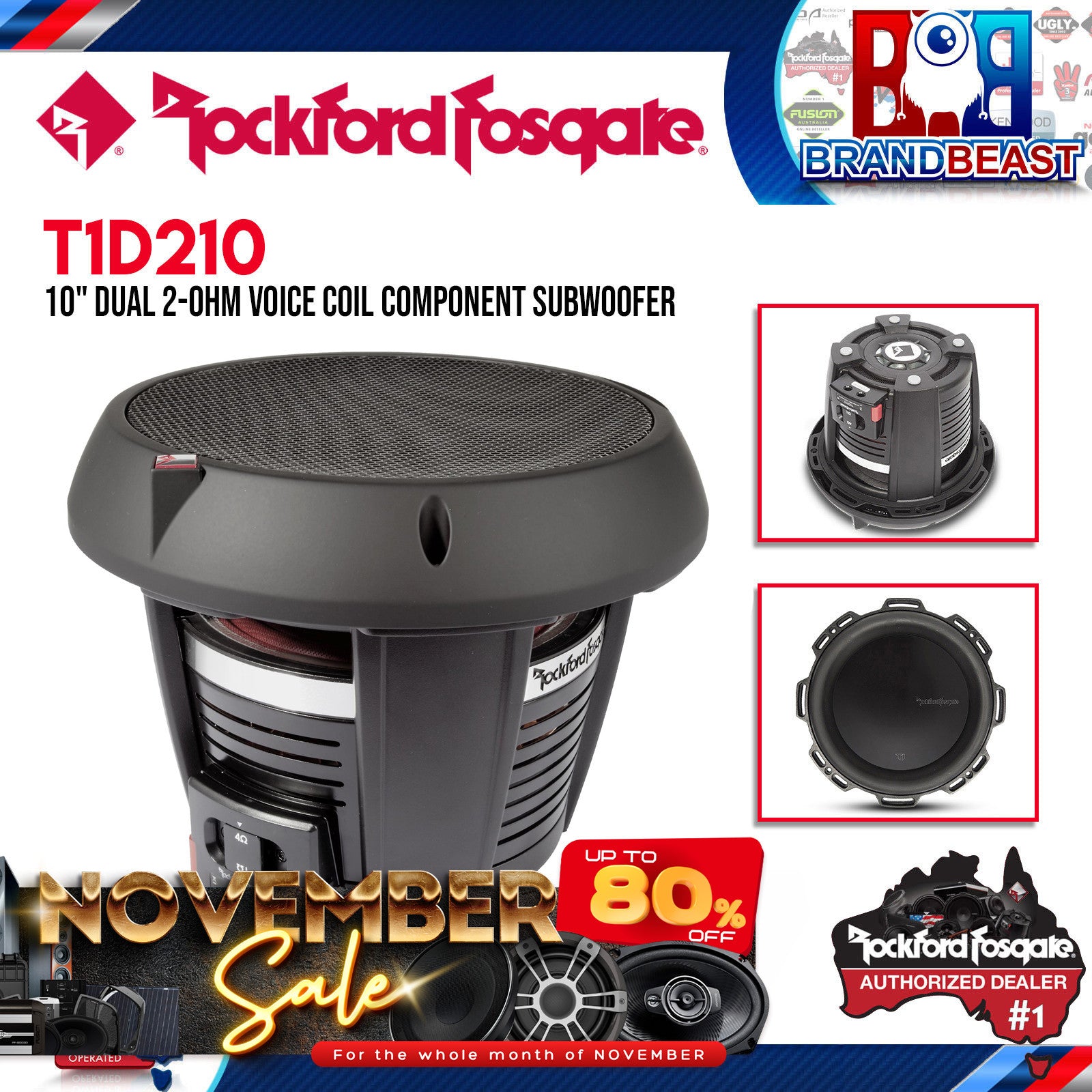

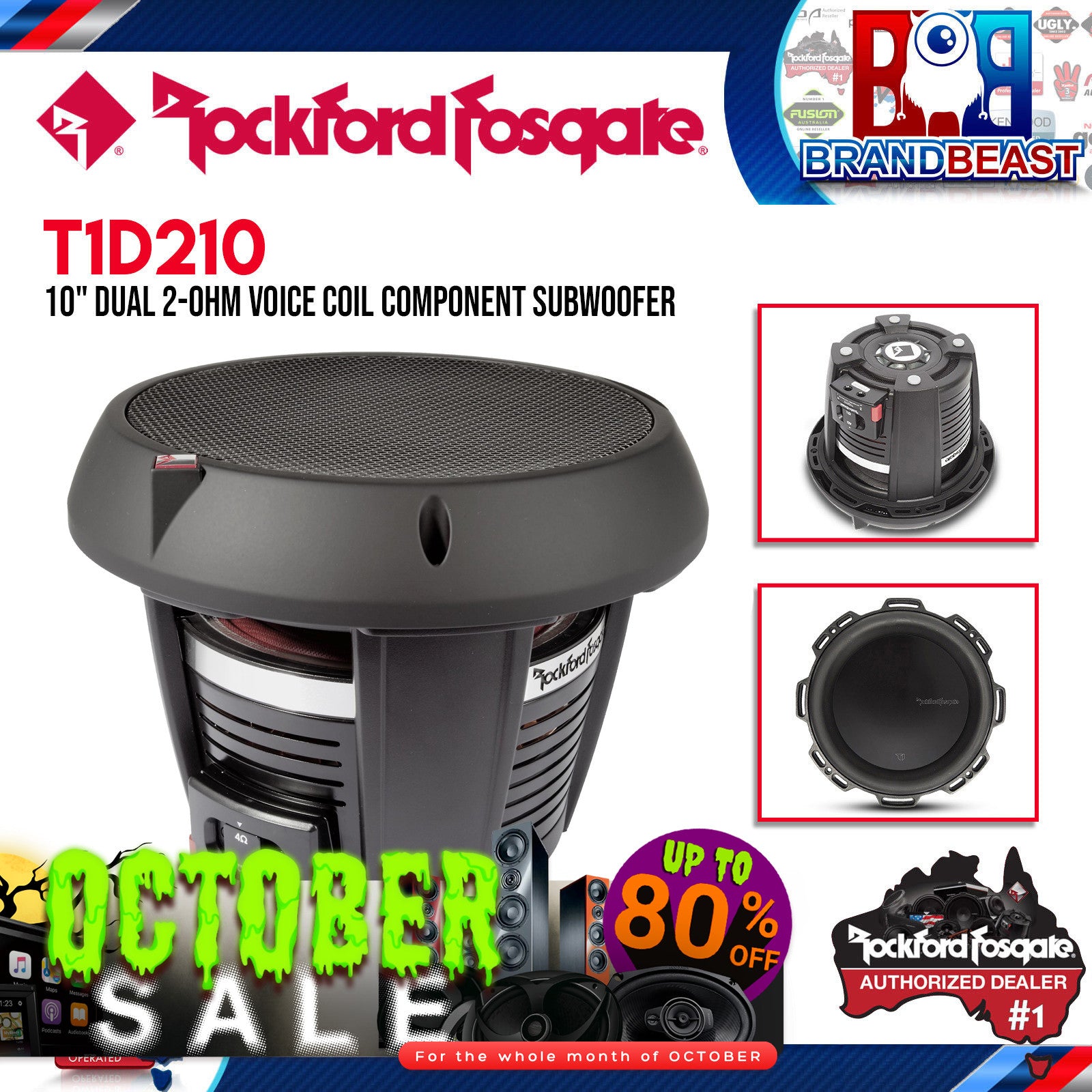

Rockford Fosgate T1D210 Power 10" T1 Dual 2-Ohm Subwoofer 600 Watts, VAST Technology, 1-Ohm Ready in 10"
Product Overview
The Rockford Fosgate T1D210 is a 10" dual 2-ohm voice coil subwoofer from the flagship Power T1 series, rated at 600 Watts RMS and 1200 Watts peak. The 1-ohm stable counterpart to the T1D410, the T1D210 carries the complete Power T1 technology package patented VAST cone technology, FlexFit die-cast aluminium basket, Kevlar fibre reinforced paper cone, Nomex-reinforced high-temp voice coil, and anodized aluminium construction in the most compact T1 driver size available, with dual 2-ohm voice coils that wire in parallel to a 1-ohm load for maximum power extraction from 1-ohm stable mono amplifiers.
For builds where a 1-ohm stable high-output mono amplifier is already specified and a 10" driver format is preferred for enclosure efficiency or vehicle fitment, the T1D210 is the direct T1 choice. All construction, technology, and performance specifications are identical to the T1D410 the sole differentiator is voice coil impedance and the resulting wiring options. Grille and integral trim ring included.
Key Specifications
- Driver size: 10"
- Voice coil configuration: Dual 2-ohm (DVC)
- Wiring options: 1 ohm (parallel) / 4 ohm (series)
- Power handling: 600W RMS / 1200W peak
- Technology: Patented VAST up to 25% increased cone surface area
- Basket: FlexFit rigid die-cast aluminium
- Cone: Kevlar fibre reinforced paper
- Voice coil former: Anodized aluminium with copper-clad aluminium wire
- Voice coil reinforcement: Spun-laced Nomex collar (high-temp)
- Dust cap: Anodized aluminium heat-sinking
- Input terminals: Proprietary 8 AWG insulated all-metal spring terminals
- Spiders: Symmetrical dual progressive roll tear-resistant poly-cotton
- Tinsel leads: Periodic-stitched fatigue-resistant
- Grille: Included with integral trim ring
- Frequency response: Confirm with supplier
- Sensitivity: Confirm with supplier
- Xmax: Confirm with supplier
- Mounting depth: Confirm with supplier
- Cutout diameter: Confirm with supplier
Features & Benefits
-
Dual 2-ohm voice coils 1-ohm parallel or 4-ohm series wiring: The key differentiator from the T1D410. Wiring the dual 2-ohm coils in parallel presents a 1-ohm load extracting maximum rated power from 1-ohm stable mono amplifiers. Wired in series, it presents a 4-ohm load for specific bridged or multi-driver configurations. Choose the T1D210 when your amplifier is 1-ohm stable and 1-ohm wiring is the system target.
-
Patented VAST technology up to 25% more cone surface area: VAST (Vertical Attach Surround Technique) repositions the surround attachment point to reclaim up to 25% of the cone area traditionally covered by the surround. In a 10" driver where piston area is at a premium, this technology is particularly impactful delivering meaningfully more output per watt and performing like a larger woofer from the same basket diameter.
-
FlexFit rigid die-cast aluminium basket: Precision-cast for structural rigidity with installation geometry flexibility for custom fabrication and compact vehicle builds where standard basket angles create clearance issues. Ideal for Australian hatchbacks, sedans, and utes where enclosure space is at a premium.
-
600W RMS / 1200W peak power handling: Identical to the T1D410, the T1D210 handles 600W RMS continuously in a 10" format the most powerful 10" T1 option available from Rockford Fosgate, suited to high-performance builds where compact enclosure size and high power handling are both required.
-
High-temp voice coil with spun-laced Nomex reinforcement collar: Nomex reinforcement at the critical former-to-cone junction prevents delamination under sustained 600W RMS, high-excursion use in compact sealed or ported enclosures where thermal stress is concentrated.
-
Anodized aluminium voice coil former with copper-clad aluminium wire: Superior heat dissipation versus paper or plastic formers, critical for a 600W RMS 10" driver operating in a compact enclosure where heat accumulates more rapidly than in larger enclosure volumes. Copper-clad aluminium winding reduces moving mass, improving transient response and punch.
-
Kevlar fibre reinforced paper cone: Stiffness and break-up resistance without excessive weight, maintaining accurate pistonic motion at the high excursion levels a 600W RMS 10" driver operates at.
-
Anodized aluminium heat-sinking dust cap: Active heat sink drawing thermal energy away from the pole piece and voice coil gap during sustained high-power use directly contributing to long-term reliability in compact enclosure environments where heat management is critical.
-
Optimised pole piece and spider venting: Internal air channels reduce compression behind the cone at high excursion levels, improving linearity and bass accuracy particularly beneficial in compact sealed enclosures where back-pressure management directly affects performance.
-
Proprietary 8 AWG insulated all-metal spring input terminals: Heavy-gauge terminals consistent with the Power T1 range standard, appropriate for the high current demands of a 600W RMS, 1-ohm system.
-
Symmetrical dual progressive roll poly-cotton spiders: Dual spider configuration provides linear restoring force symmetry, reducing harmonic distortion and maintaining voice coil alignment at high displacement levels.
-
Periodic-stitched fatigue-resistant tinsel leads: Periodic stitching distributes flex stress along a longer lead length, extending fatigue life at the sustained high-excursion levels the T1D210 is designed for.
-
Grille and integral trim ring included: Ships complete with protective grille and trim ring for a finished, professional installation appearance.
Technical Specs
| Specification |
Detail |
| SKU |
T1D210 |
| Brand |
Rockford Fosgate |
| Driver Size |
10" |
| Voice Coil Configuration |
Dual 2-ohm (DVC) |
| Wiring Options |
1 ohm (parallel) / 4 ohm (series) |
| Power Handling |
600W RMS / 1200W peak |
| Technology |
Patented VAST up to 25% increased cone surface area |
| Basket |
FlexFit rigid die-cast aluminium |
| Cone |
Kevlar fibre reinforced paper |
| Dust Cap |
Anodized aluminium heat-sinking |
| Voice Coil Former |
Anodized aluminium |
| Voice Coil Wire |
Copper-clad aluminium |
| Voice Coil Reinforcement |
Spun-laced Nomex collar (high-temp) |
| Spiders |
Symmetrical dual progressive roll tear-resistant poly-cotton |
| Tinsel Leads |
Periodic-stitched fatigue-resistant |
| Input Terminals |
Proprietary 8 AWG insulated all-metal spring terminals |
| Grille |
Included with integral trim ring |
| Frequency Response |
Confirm with supplier |
| Sensitivity |
Confirm with supplier |
| Xmax |
Confirm with supplier |
| Mounting Depth |
Confirm with supplier |
| Cutout Diameter |
Confirm with supplier |
| Shipping Weight |
Confirm with supplier |
| Warranty |
Confirm with supplier |
Compatible With
- High-output mono amplifiers stable at 1 ohm (parallel wiring) rated at or near 600W RMS
- Mono amplifiers stable at 4 ohms (series wiring) for specific system configurations
- Rockford Fosgate Power T1 and T2 series mono amplifiers
- Compact sealed and ported enclosures designed for the T1D210 confirm recommended enclosure specifications with Rockford Fosgate documentation before building
- Rockford Fosgate 8 AWG and heavy-gauge wiring kits for high-current 1-ohm installations
- Rockford Fosgate RCA cables and signal processors for high-output system integration
- Australian vehicles where 10" driver diameter is preferred for compact enclosure fitment and a 1-ohm stable amplifier is in the system
Frequently Asked Questions
What is the difference between the T1D210 and T1D410? Both are 10" Power T1 subwoofers with identical 600W RMS power handling, VAST technology, FlexFit basket, and construction. The T1D210 has dual 2-ohm coils (1-ohm parallel / 4-ohm series), while the T1D410 has dual 4-ohm coils (2-ohm parallel / 8-ohm series). Choose the T1D210 for 1-ohm stable amplifier pairings; choose the T1D410 for 2-ohm stable amplifier pairings.
What impedance does the T1D210 present to the amplifier? The T1D210 has dual 2-ohm voice coils. Wired in parallel, it presents a 1-ohm load the standard configuration for maximising power from a 1-ohm stable high-output mono amplifier. Wired in series, it presents a 4-ohm load. Confirm your amplifier's stable impedance rating before wiring.
How does the T1D210 compare to the T1 12" and 15" models? The T1D210 shares the same full T1 technology stack as the T1D412, T1D215, and T1D415. The differences are driver size and power handling 10" at 600W RMS versus 12" at 800W RMS and 15" at 1000W RMS. Choose the T1D210 when a compact 10" format and 1-ohm amplifier pairing are both required.
What enclosure does the T1D210 require? The T1D210 requires a custom or aftermarket enclosure. Rockford Fosgate publishes recommended sealed and ported enclosure specifications for the T1D210 confirm these with official documentation or a qualified installer before designing or building an enclosure.
Does the T1D210 include a grille? Yes. The T1D210 ships with a grille and integral trim ring included, providing a finished, professional installation appearance without requiring a separately purchased grille.
