Description

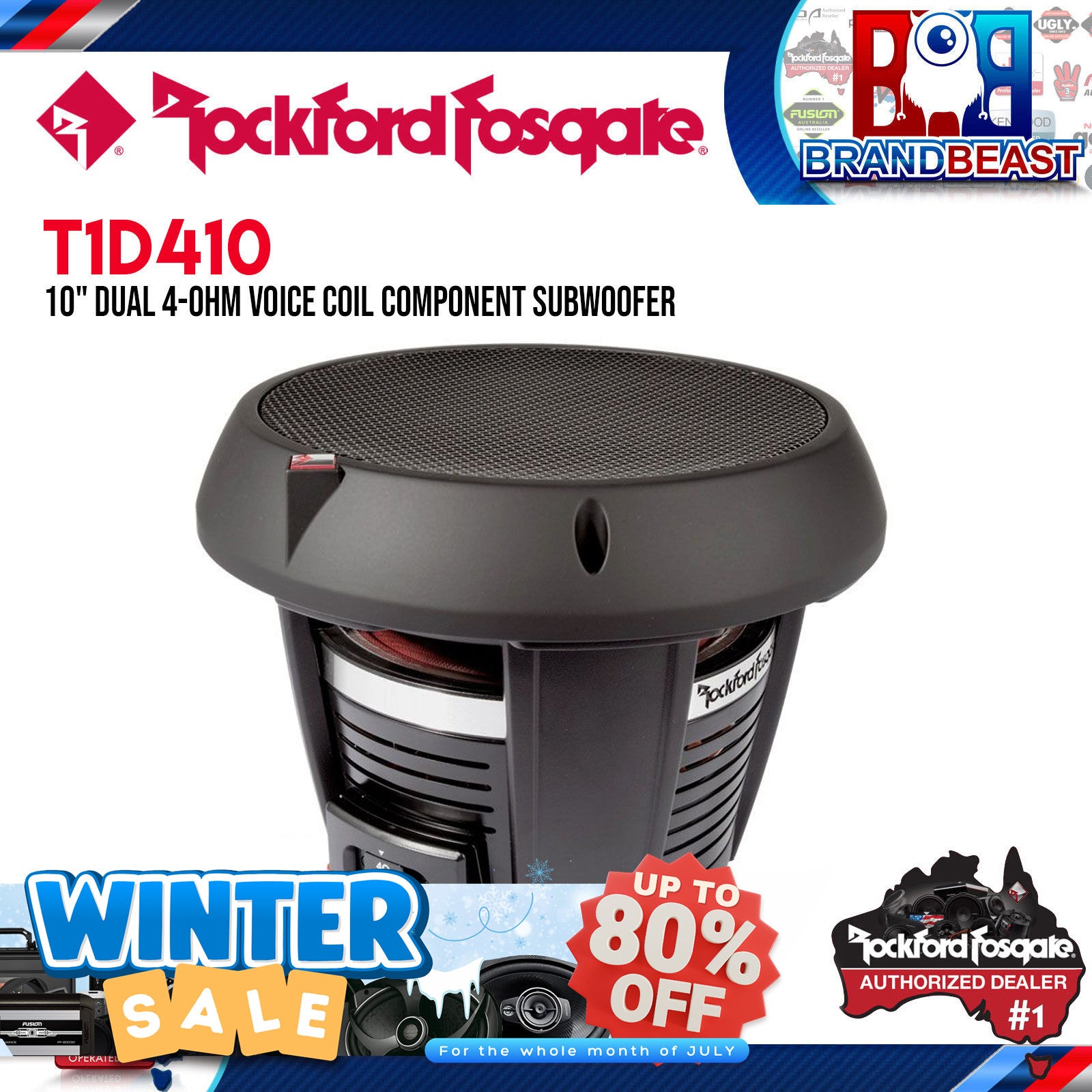

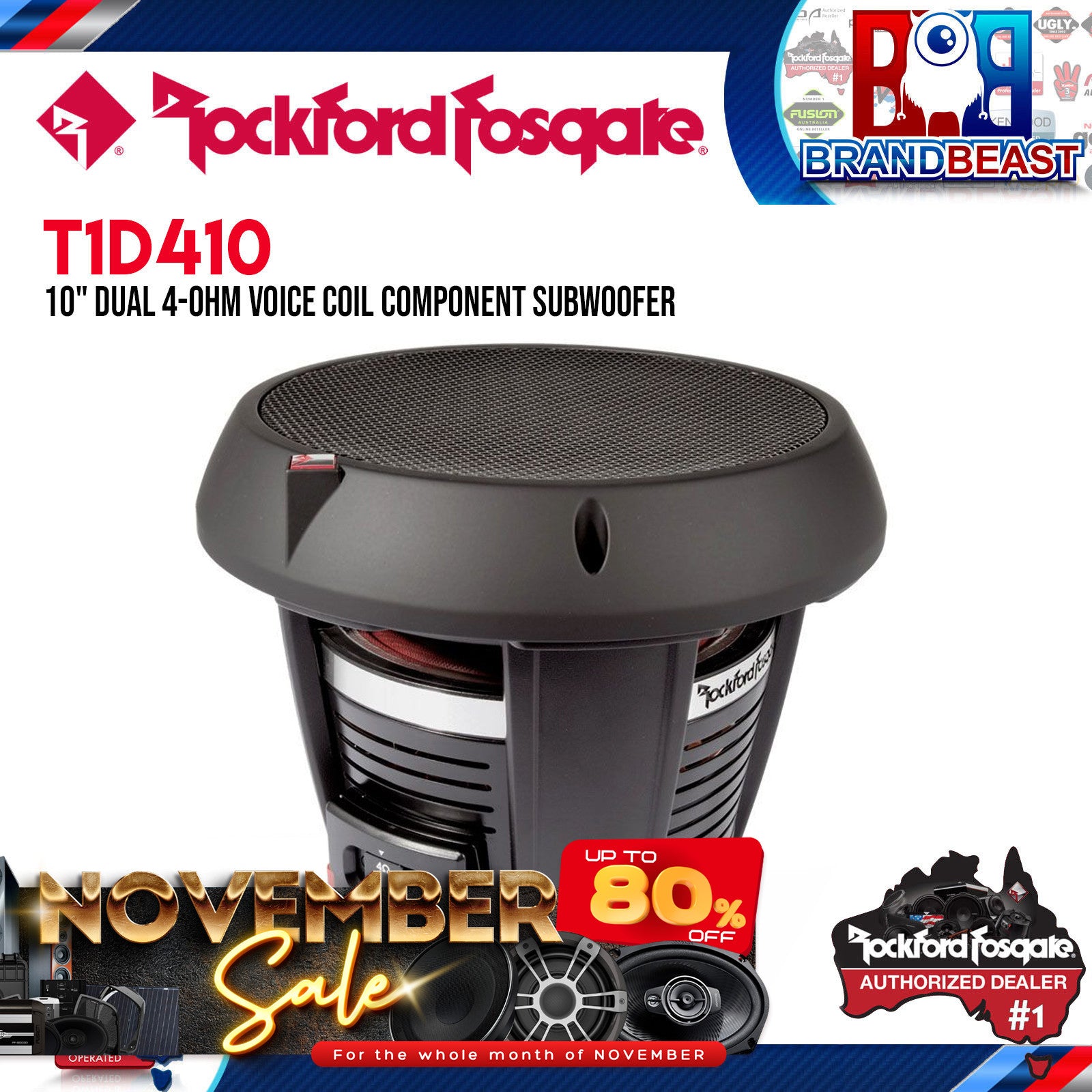

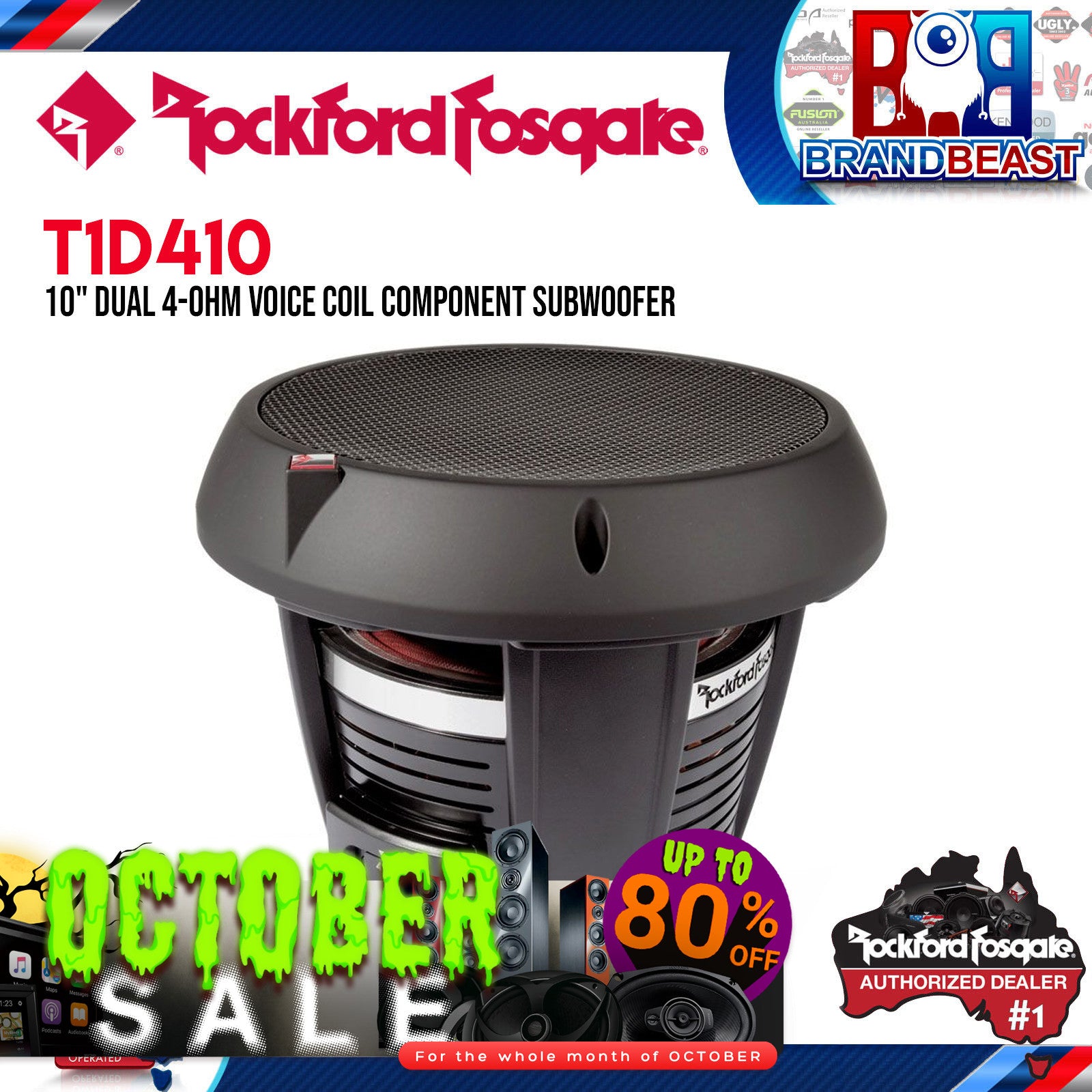

Rockford Fosgate T1D410 Power 10" T1 Dual 4-Ohm Subwoofer 600 Watts, VAST Technology, T1 Performance in 10"
Product Overview
The Rockford Fosgate T1D410 is a 10" dual 4-ohm voice coil subwoofer from the flagship Power T1 series, rated at 600 Watts RMS and 1200 Watts peak. Carrying the full Power T1 technology stack into the 10" format, the T1D410 delivers the same patented VAST cone technology, FlexFit die-cast aluminium basket, Kevlar fibre reinforced paper cone, Nomex-reinforced high-temp voice coil, and anodized aluminium construction as the T1 12" and 15" models in the most compact T1 driver size available, suited to enclosure and vehicle builds where 12" or 15" diameter is impractical.
Patented VAST (Vertical Attach Surround Technique) technology increases effective cone surface area by up to 25% over a conventional surround attachment, allowing the T1D410 to deliver more bass output per watt than a standard 10" driver punching well above its physical size. The dual 4-ohm configuration wires in parallel to a 2-ohm load for maximum power delivery from a compatible high-output mono amplifier, or in series for an 8-ohm load for specific system configurations. Grille and integral trim ring included.
Key Specifications
- Driver size: 10"
- Voice coil configuration: Dual 4-ohm (DVC)
- Wiring options: 2 ohm (parallel) / 8 ohm (series)
- Power handling: 600W RMS / 1200W peak
- Technology: Patented VAST up to 25% increased cone surface area
- Basket: FlexFit rigid die-cast aluminium
- Cone: Kevlar fibre reinforced paper
- Voice coil former: Anodized aluminium with copper-clad aluminium wire
- Voice coil reinforcement: Spun-laced Nomex collar (high-temp)
- Dust cap: Anodized aluminium heat-sinking
- Input terminals: Proprietary 8 AWG insulated all-metal spring terminals
- Spiders: Symmetrical dual progressive roll tear-resistant poly-cotton
- Tinsel leads: Periodic-stitched fatigue-resistant
- Grille: Included with integral trim ring
- Frequency response: Confirm with supplier
- Sensitivity: Confirm with supplier
- Xmax: Confirm with supplier
- Mounting depth: Confirm with supplier
- Cutout diameter: Confirm with supplier
Features & Benefits
-
Patented VAST technology up to 25% more cone surface area: VAST (Vertical Attach Surround Technique) repositions the surround attachment point to reclaim up to 25% of the cone area traditionally covered by the surround. In a 10" driver where every square centimetre of piston area counts, this technology delivers meaningfully more output per watt than a conventional 10" design performing like a larger woofer from the same basket diameter.
-
FlexFit rigid die-cast aluminium basket: Precision-cast for structural rigidity with installation geometry flexibility for custom fabrication and extreme builds where standard basket angles create clearance issues. The most practical basket design in the T1 range for compact enclosures and tight vehicle installations common in Australian hatchbacks, sedans, and utes.
-
600W RMS / 1200W peak power handling: High-output power handling in a 10" format. Suited to high-performance builds where 10" driver diameter is preferred for enclosure efficiency, vehicle fitment, or SPL output characteristics in smaller sealed or ported enclosures.
-
Dual 4-ohm voice coils 2-ohm parallel or 8-ohm series wiring: Wired in parallel, the T1D410 presents a 2-ohm load for maximum power delivery from a 2-ohm stable mono amplifier. Wired in series, it presents an 8-ohm load for specific bridged or multi-driver configurations. Choose the T1D410 when a 2-ohm stable amplifier pairing is the system target.
-
High-temp voice coil with spun-laced Nomex reinforcement collar: Nomex reinforcement at the critical former-to-cone junction prevents delamination under sustained 600W RMS, high-excursion use maintaining structural integrity at the power levels a T1 10" is designed to handle continuously.
-
Anodized aluminium voice coil former with copper-clad aluminium wire: Superior heat dissipation compared to paper or plastic formers. Copper-clad aluminium winding reduces moving mass while maintaining conductivity, improving transient response and efficiency particularly beneficial in a 10" driver where cone mass directly affects high-frequency bass extension and punch.
-
Kevlar fibre reinforced paper cone: Stiffness and break-up resistance without excessive weight. Maintains accurate pistonic motion at the high excursion levels a 600W RMS 10" driver operates at, where an unreinforced cone would distort and lose accuracy.
-
Anodized aluminium heat-sinking dust cap: Active heat sink during sustained high-power use, drawing thermal energy away from the pole piece and voice coil gap contributing directly to long-term reliability in compact, sealed enclosure environments where heat buildup is accelerated.
-
Optimised pole piece and spider venting: Internal air channels reduce compression behind the cone at high excursion levels, improving linearity and bass accuracy particularly important in compact sealed enclosures where back-pressure management is critical.
-
Proprietary 8 AWG insulated all-metal spring input terminals: Heavy-gauge terminals appropriate for the current demands of a 600W RMS, 2-ohm system. Consistent with the terminal standard across the entire Power T1 subwoofer range.
-
Symmetrical dual progressive roll poly-cotton spiders: Dual spider configuration provides linear restoring force symmetry across the full excursion range, reducing harmonic distortion and maintaining voice coil alignment at high displacement levels.
-
Periodic-stitched fatigue-resistant tinsel leads: Periodic stitching distributes flex stress along a longer lead length, extending tinsel lead fatigue life at the sustained high-excursion levels the T1D410 is designed for.
-
Grille and integral trim ring included: Ships complete with protective grille and trim ring for a finished, professional installation appearance.
Technical Specs
| Specification |
Detail |
| SKU |
T1D410 |
| Brand |
Rockford Fosgate |
| Driver Size |
10" |
| Voice Coil Configuration |
Dual 4-ohm (DVC) |
| Wiring Options |
2 ohm (parallel) / 8 ohm (series) |
| Power Handling |
600W RMS / 1200W peak |
| Technology |
Patented VAST up to 25% increased cone surface area |
| Basket |
FlexFit rigid die-cast aluminium |
| Cone |
Kevlar fibre reinforced paper |
| Dust Cap |
Anodized aluminium heat-sinking |
| Voice Coil Former |
Anodized aluminium |
| Voice Coil Wire |
Copper-clad aluminium |
| Voice Coil Reinforcement |
Spun-laced Nomex collar (high-temp) |
| Spiders |
Symmetrical dual progressive roll tear-resistant poly-cotton |
| Tinsel Leads |
Periodic-stitched fatigue-resistant |
| Input Terminals |
Proprietary 8 AWG insulated all-metal spring terminals |
| Grille |
Included with integral trim ring |
| Frequency Response |
Confirm with supplier |
| Sensitivity |
Confirm with supplier |
| Xmax |
Confirm with supplier |
| Mounting Depth |
Confirm with supplier |
| Cutout Diameter |
Confirm with supplier |
| Shipping Weight |
Confirm with supplier |
| Warranty |
Confirm with supplier |
Compatible With
- High-output mono amplifiers stable at 2 ohms (parallel wiring) rated at or near 600W RMS
- Mono amplifiers stable at 8 ohms (series wiring) for specific system configurations
- Rockford Fosgate Power T1 and T2 series mono amplifiers
- Compact sealed and ported enclosures designed for the T1D410 confirm recommended enclosure specifications with Rockford Fosgate documentation before building
- Rockford Fosgate 8 AWG and heavy-gauge wiring kits for high-current 2-ohm installations
- Rockford Fosgate RCA cables and signal processors for high-output system integration
- Australian vehicles where 10" driver diameter is preferred for compact enclosure fitment: sedans, hatchbacks, SUVs, and utes with limited boot depth
Frequently Asked Questions
What is the difference between the T1D410 and the T1 12" and 15" models? The T1D410 shares the same VAST technology, FlexFit basket, Kevlar cone, Nomex voice coil, and construction standard as the T1D412, T1D415, and T1D215. The key differences are driver size and power handling 10" at 600W RMS versus 12" at 800W RMS and 15" at 1000W RMS. Choose the T1D410 when a 10" format suits your enclosure design or vehicle fitment requirements.
What is the difference between the T1D410 and T1D210? Both are 10" Power T1 subwoofers with identical 600W RMS power handling, VAST technology, FlexFit basket, and construction. The T1D410 has dual 4-ohm coils (2-ohm parallel / 8-ohm series), while the T1D210 has dual 2-ohm coils (1-ohm parallel / 4-ohm series). Choose the T1D410 for 2-ohm stable amplifier pairings; choose the T1D210 for 1-ohm stable amplifier pairings.
What impedance does the T1D410 present to the amplifier? The T1D410 has dual 4-ohm voice coils. Wired in parallel, it presents a 2-ohm load the standard configuration for maximising power from a 2-ohm stable high-output mono amplifier. Wired in series, it presents an 8-ohm load. Confirm your amplifier's stable impedance rating before wiring.
What enclosure does the T1D410 require? The T1D410 requires a custom or aftermarket enclosure. Rockford Fosgate publishes recommended sealed and ported enclosure specifications for the T1D410 confirm these with official documentation or a qualified installer before designing or building an enclosure.
Does the T1D410 include a grille? Yes. The T1D410 ships with a grille and integral trim ring included, providing a finished, professional installation appearance without requiring a separately purchased grille.
