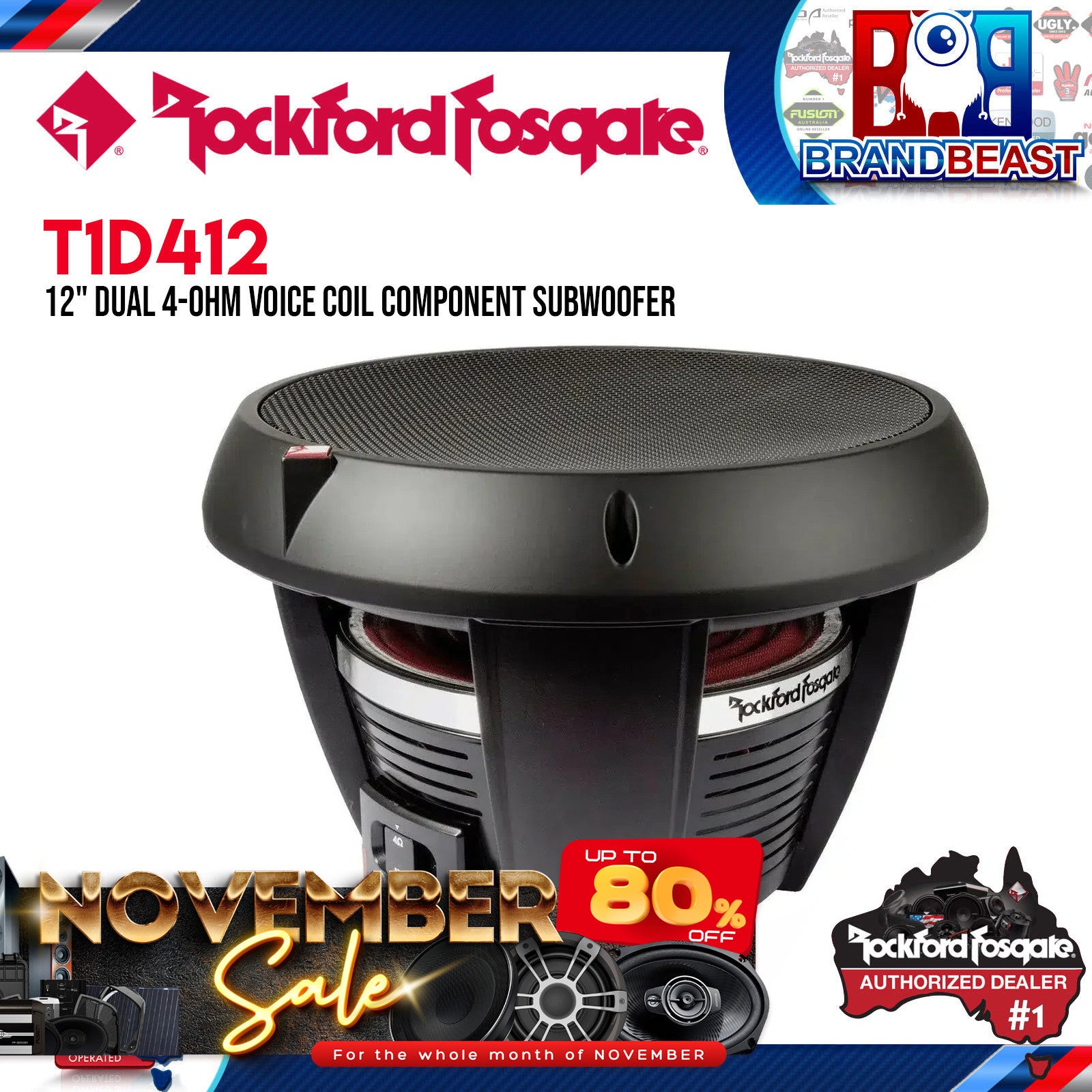

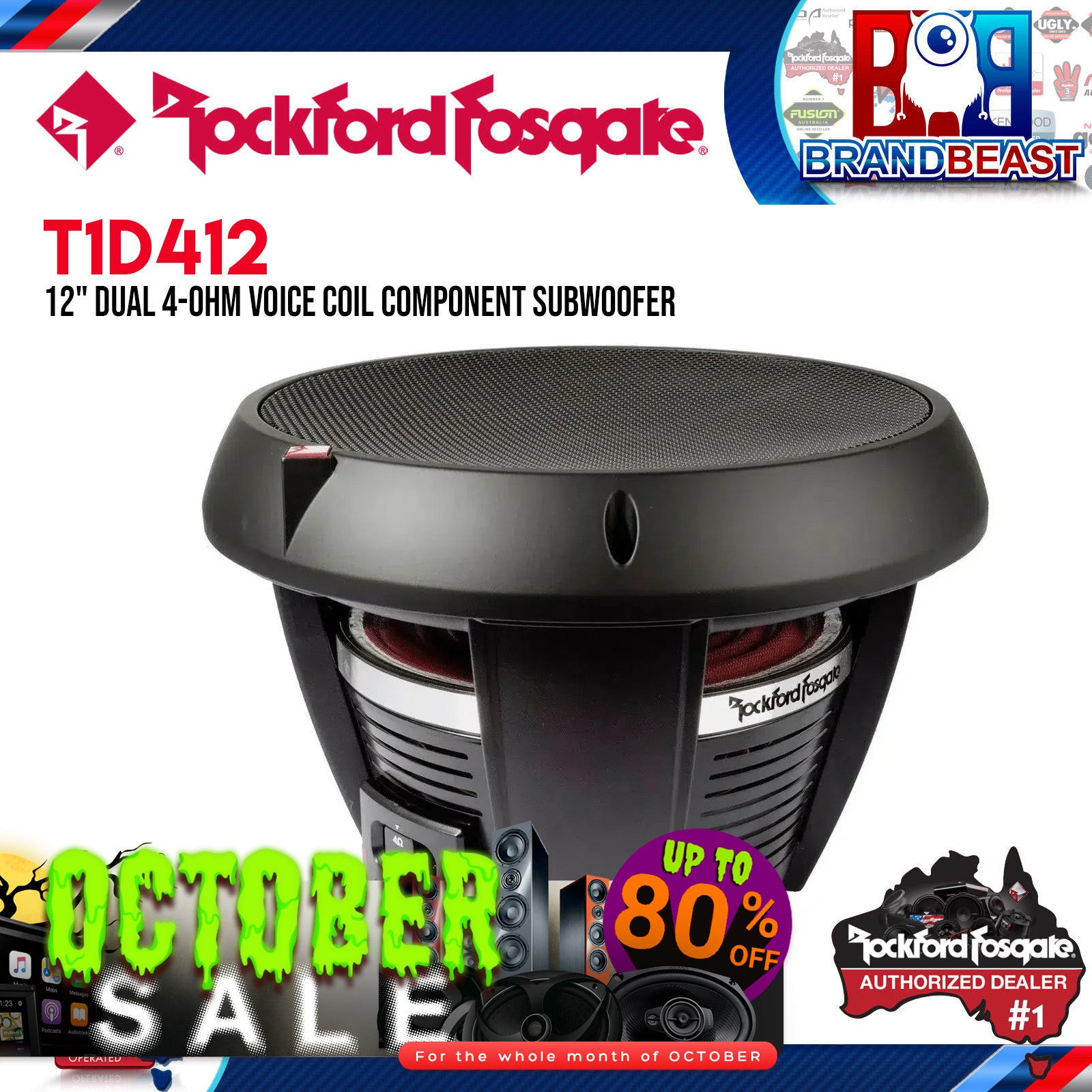

Rockford Fosgate T1D412 Power 12" T1 4-Ohm DVC Subwoofer

Description

Builds on Innovative New Rockford Fosgate Technologies

Innovative technologies allow the T1D412 Power subwoofer to perform like a larger woofer over the previous model. The T1 12” features dual 4-Ohm voice coils, 800 Watts RMS power handling, and includes a grille with integral trim ring. The Power Series T1D412 Dual 4-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. Built for cars and trucks, these bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D412 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D412 is here!

Features:
  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • High-temp voice coil with spun-laced Nomex¬Æ re-inforcement collar
  • Optimized and matched magnetic and complicance geometry
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
Specifications:
  • Size 12"
  • Power Handling (Watts RMS) 800 Watts RMS, 1600 Watts Max
  • Voice Coil Diameter 3" (75.4 mm)
  • Mounting Depth 6.75 in. (171 mm)
  • Fs (Hz) 29.2
  • Cutout Diameter 11.25 in. (285 mm)
  • Woofer Displacement 0.106 cu. ft. (3.0 Liters)
  • Sd (cm2) 548
  • Nominal Impedance Dual 4-Ohm
  • Speaker Connector Compression Terminal
  • Shipping Weight 33.3 Lbs. (15.10 Kg.)
  • Qts 0.61
  • Qes 0.71
  • Qms 4.50
  • Vas (Liters) 55.8
  • Xmax (mm) 16
  • Re (Ohms) 6.50
  • Le (mH) 2.4
  • Magnet Weight (oz) 123 oz. (3.48 kg)
  • SPL (dB @ 1w/1m) 85
  • CEA-2031 Compliant
  • Subwoofer Type Standard
  • Voice Coil Type Dual Voice Coil
  • Sealed Box Volume (Vb) 1.25 cu. ft. (35.3 Liters)
  • Vented Box Volume (Vb) 1.75 cu. ft. (49.5 Liters)

Legendary Products & Support From Authorized Dealers

When you choose Rockford Fosgate, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Rockford Fosgate dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Rockford Fosgate's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Rockford Fosgate dealer today!
