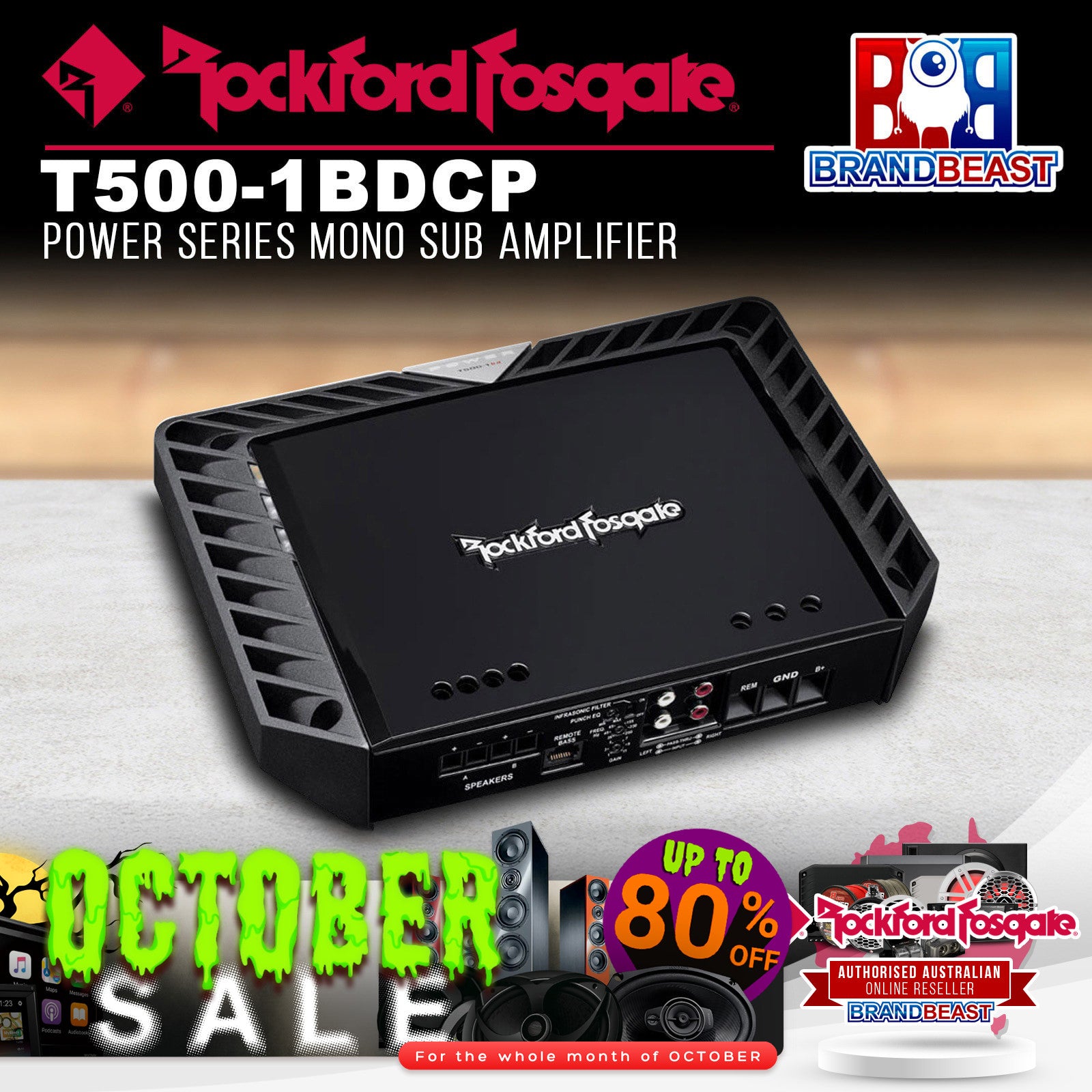

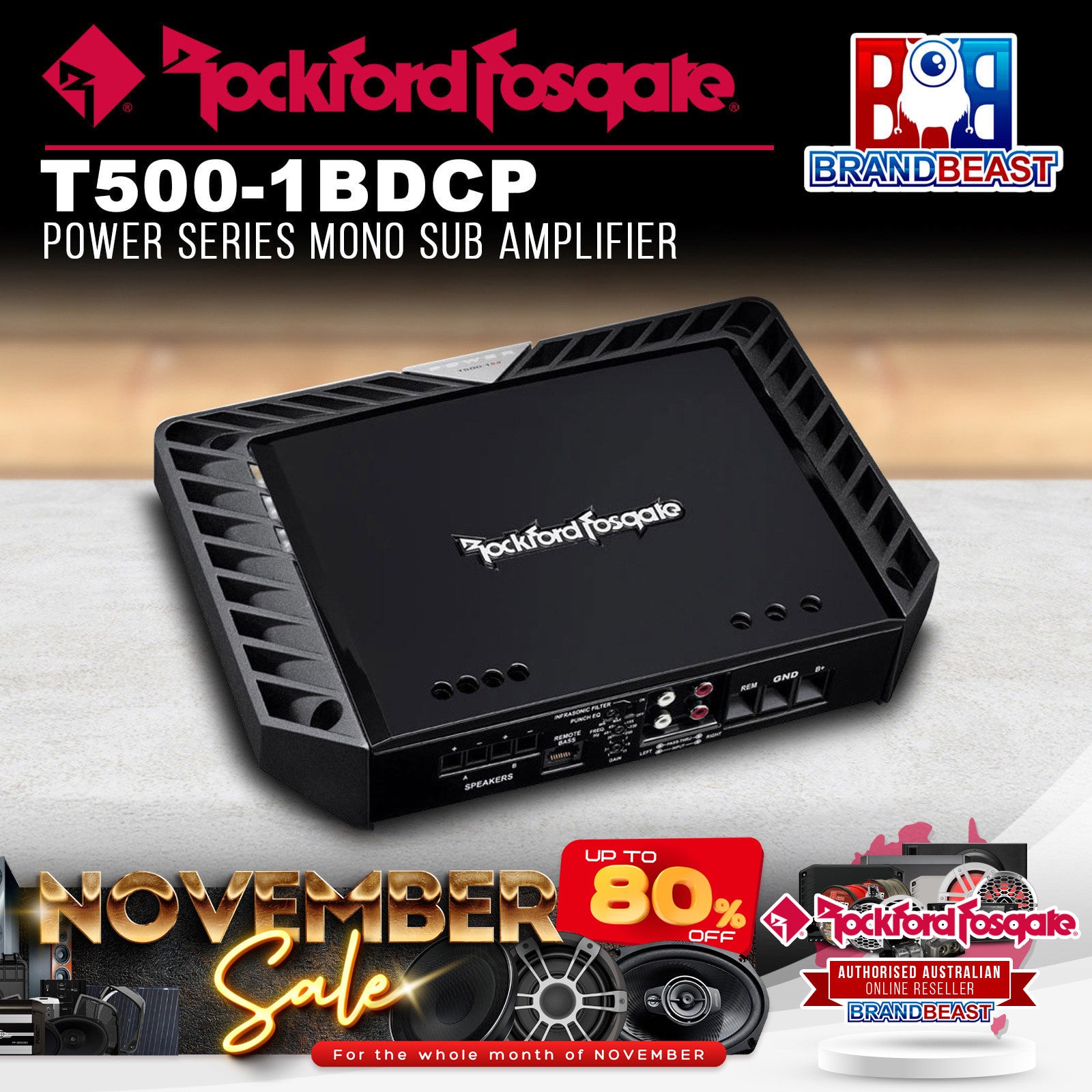

Rockford Fosgate T500-1bdCP Power 500 Watt Class-bd Constant Power Amplifier

Description

Experience a Cleaner, Louder and More Impressive Sound Than Before

The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers. The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks. Features:
  • 24dB/octave crossover
  • MOSFET power supply
  • MOSFET output stage
  • 4 Gauge power/ground connectors
  • Audiophile grade speaker connections
  • RCA pass-thru outputs
  • Infrasonic filter
Specifications:
  • CEA-2006 Compliant
  • Number of Channels 1
  • Total Power (Sum of Rated Power) 500 Watts RMS
  • Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4-Ohm, 500 Watts x 1 @ 2-Ohm, 500 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube¬Æ) 328 Watts x 1 @ 4-Ohms, 537 Watts x 1 @ 2-Ohms, 707 Watts x 1 @ 1-Ohm
  • Bridgeable No
  • Frequency Response 20Hz to 250Hz +/- 0.5dB
  • Input Sensitivity 150 mV to 4 V
  • Circuit Topology Class Class BD
  • Efficiency (average) 86.2% @ 4-Ohm, 82.3% @ 2-Ohm, 73.4% @ 1-Ohm
  • Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
  • Signal Input Low level: 1 RCA pair
  • Signal Output Low Level: 1 RCA pair
  • Tone Controls Bass: 0dB to +18dB @ 45Hz
  • Crossover Controls Low-Pass (LP): 35-250Hz 24dB/Octave Butterworth, Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
  • Remote Controls Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ)
  • Visual Indicators Power/Thermal/Protect
  • Power Wire Gauge 4 AWG
  • Power Input Connector Block
  • Speaker Wire Gauge 8 AWG to 18 AWG
  • Speaker Output Connector Screw terminal barrier strip
  • Cooling Convection
  • Operating Voltage 9 - 16 VDC
  • Recommended Fuse (not included) 80 A
  • Average Current Draw (13.8V Music) 35 A
  • Max. Current Draw (13.8V Sinewave) 70 A
  • Suggested Alternator 75 A
  • Dimensions (H x W x D) 2.14 x 8.14 x 11.41 (in)/5.42 x 20.68 x 28.97 (cm)
  • Shipping Weight 13.39 lbs. (6.07 Kg.)

Legendary Products & Support From Authorized Dealers

When you choose Rockford Fosgate, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Rockford Fosgate dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Rockford Fosgate's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Rockford Fosgate dealer today!
