Description
Power Marine 1000W RMS Class-ad 5-Channel Amplifier Constant Power, C.L.E.A.N. Clip Detection, Punch EQ, Dual Fan Cooling, Element Ready, CEA-2006 Compliant.
Product Overview

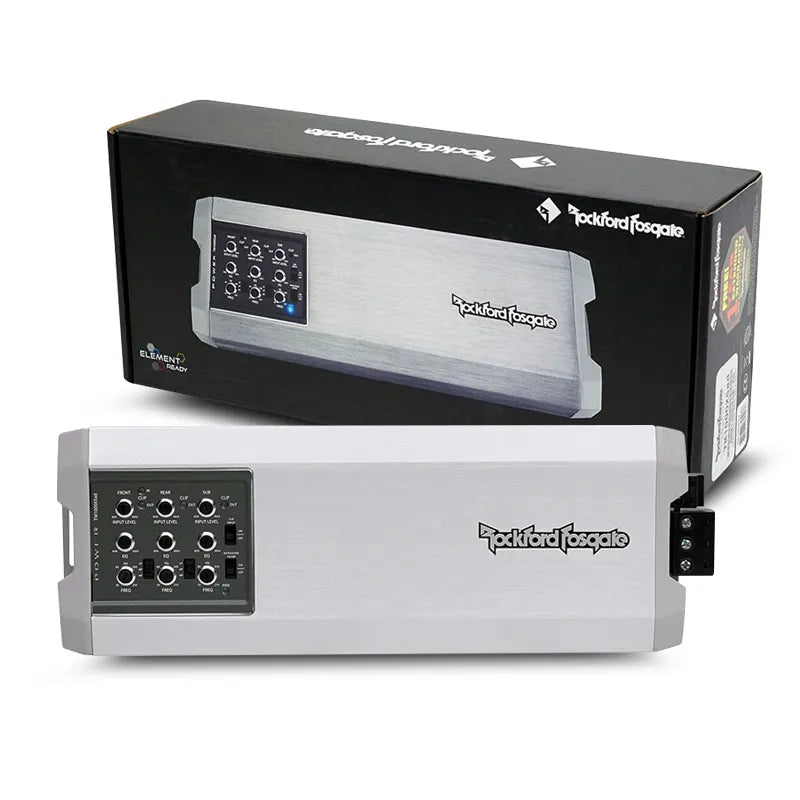

The Rockford Fosgate TM1000X5ad is a 1000W RMS, 5-channel Element Ready marine amplifier built on Rockford Fosgate's proprietary Class ad technology platform delivering multi-channel amplification for complete marine, motorcycle, UTV, and vehicle audio systems from a single compact unit. Class ad is a multi-impedance design supporting 4-Ohm and 2-Ohm loads with Constant Power technology delivering up to 25% additional output power per channel over the rated specification.
All five channels feature differential inputs accepting both high-level (speaker) and low-level (RCA) signals, with automatic turn-on detection via speaker-level input eliminating the requirement for a separate remote turn-on source. Integrated high pass and low pass crossovers, input channel configuration switches, and the patented Punch EQ circuit are all accessible from the top-mounted control panel. Marine-grade two-part epoxy conformal coating protects the circuit board from moisture, humidity, and element exposure. Compatible with the PLC2 remote level controller on the subwoofer channel.
Key Specifications
- Total RMS power: 1000W (CEA-2006 compliant) ✓
- Channels: 5 ✓
- Amplifier class: Class ad (proprietary) ✓
- Constant Power: Up to 25% additional output per channel ✓
- Impedance: 4-Ohm / 2-Ohm multi-impedance ✓
- Inputs: High level and low level (RCA), differential ✓
- Auto turn-on: Via speaker-level input ✓
- Remote out: Via high-level input mode ✓
- Crossover: Integrated HPF and LPF per channel ✓
- Input channel configuration switches: Yes ✓
- Punch EQ: Yes (subwoofer channel) ✓
- C.L.E.A.N.: Input and output clip detection with indicator LEDs ✓
- PLC2 remote: Compatible (sub channel) ✓
- Cooling: Dual fan forced induction + dual extruded heat sinks ✓
- Thermal protection: Real-time thermal sensing ✓
- Circuit board: Marine-grade two-part epoxy conformal coating ✓
- CEA-2006 compliant: Yes ✓
- CE compliant: Yes ✓
- Construction: Discrete surface mount technology ✓
- RCA connectors: Upgraded ✓
- Per-channel power breakdown: Not specified — confirm with Rockford Fosgate
- Dimensions: Not specified — confirm with Rockford Fosgate
- Weight: Not specified — confirm with Rockford Fosgate
- Warranty: Confirmed (authorised dealer purchase required — specific terms TBC)
Features & Benefits
-
Class ad — 5-Channel Multi-Impedance Design Rockford Fosgate's proprietary Class ad platform is a multi-channel topology designed for 4-Ohm and 2-Ohm loads across all five channels simultaneously. Class ad delivers the efficiency needed to run a full speaker system plus a subwoofer channel from a single amplifier without excessive electrical load on the vehicle's charging system.
-
1000W RMS Total — Constant Power Technology The 1000W RMS is rated to the CEA-2006 standard. Constant Power technology pushes actual output up to 25% above the rated figure per channel — meaning each channel delivers beyond its nominal rating in real-world listening conditions, not just in spec-sheet peaks.
-
C.L.E.A.N. Input and Output Clip Detection Separate input and output clip LEDs allow precise gain setting across all five channels — confirming the input gain stage is not being overdriven while simultaneously confirming the output stage is not clipping. This is critical on a 5-channel amplifier where gain mismatches between channels produce audible imbalances.
-
Differential Inputs — High and Low Level All five channels accept either RCA (line-level) or speaker-level signals via the configurable Molex-style input harness. The differential input circuit rejects common-mode noise — reducing alternator whine and ignition interference induced via signal cables in complex wiring environments (marine, UTV, motorcycle).
-
Auto Turn-On + Remote Out via Speaker Level Input When connected via speaker-level inputs, the amplifier detects signal and powers on automatically — no remote turn-on wire required. The remote input terminal converts to a remote output capable of triggering additional amplifiers in the system.
-
Integrated HPF, LPF, Input Configuration Switches, and Punch EQ The top-mounted control panel provides access to the high pass and low pass crossover controls, input channel configuration switches (for bridging or speaker system topology changes), and the Punch EQ bass boost circuit on the subwoofer channel — all without requiring side or rear access to the amplifier after installation.
-
PLC2 Remote Level Control — Subwoofer Channel The optional PLC2 wired remote provides cabin-accessible subwoofer level adjustment — useful in marine installations where the amplifier is mounted in a console, hatch, or remote compartment.
-
Dual Fan Forced Induction + Dual Extruded Heat Sinks Active dual fan cooling combined with dual extruded aluminium heat sinks and real-time thermal monitoring maintain safe operating temperatures at full output across all five channels simultaneously — the thermal load of a multi-channel amplifier running a complete speaker system plus subwoofer.
-
Marine-Grade Two-Part Epoxy Conformal Coating The two-part epoxy coating applied to all circuit board traces and components protects against salt moisture, humidity, and element exposure — appropriate for open-deck marine installations, UTVs, and motorcycles exposed to rain and spray.
-
Compact Design — Multiple Platform Compatibility Suitable for hybrid vehicles, electric vehicles, small cars, trucks, motorcycles, side-by-side UTVs, and marine applications — where a multi-channel system in a single compact amplifier is preferable to multiple separate units.
Technical Specs
| Specification |
Detail |
| Total RMS Power |
1000W (CEA-2006) ✓ |
| Channels |
5 ✓ |
| Amplifier Class |
Class ad (proprietary) ✓ |
| Constant Power Boost |
Up to 25% per channel ✓ |
| Impedance |
4-Ohm / 2-Ohm multi-impedance ✓ |
| Inputs |
High level + Low level (RCA), differential ✓ |
| Auto Turn-On |
Speaker level input ✓ |
| Remote Out |
High level input mode ✓ |
| HPF / LPF |
Integrated, per channel ✓ |
| Channel Config Switches |
Yes ✓ |
| Punch EQ |
Yes (sub channel) ✓ |
| C.L.E.A.N. |
Input + output clip detection + LEDs ✓ |
| PLC2 Remote |
Sub channel compatible ✓ |
| RCA Connectors |
Upgraded ✓ |
| Cooling |
Dual fan forced induction ✓ |
| Heat Sinks |
Dual extruded ✓ |
| Thermal Protection |
Real-time sensing ✓ |
| Board Coating |
Marine two-part epoxy conformal ✓ |
| CEA-2006 |
Compliant ✓ |
| CE |
Compliant ✓ |
| Construction |
Discrete surface mount technology ✓ |
| Per-Channel Power |
Not confirmed — pull from official datasheet |
| Dimensions |
Not confirmed |
| Weight |
Not confirmed |
| Warranty |
Confirmed (authorised dealer) — terms TBC |
Compatible With / Goes Well With
Suitable applications:
- Marine (Element Ready) ✓
- Motorcycles ✓
- Side-by-side UTVs ✓
- Hybrid and electric vehicles ✓
- Cars and trucks ✓
Pairs well with:
- Rockford Fosgate PMX-8BB marine source unit (high or low level input)
- Rockford Fosgate PM2652W tower speakers (full-range channels)
- Rockford Fosgate Punch P3 or Power T series subwoofers (sub channel — confirm RMS matching)
- Rockford Fosgate PLC2 remote level controller (sub channel)
Impedance note: The TM1000X5ad supports 4-Ohm and 2-Ohm loads. The per-channel power output at each impedance is not confirmed in the supplier data — pull from the official Rockford Fosgate TM1000X5ad datasheet before pairing speakers or subwoofers.
Weight
Not specified by the supplier. Contact Rockford Fosgate or your authorised reseller for confirmed unit weight and shipping data.
Frequently Asked Questions
What is Class ad amplifier technology?
Class ad is Rockford Fosgate's proprietary multi-channel amplifier topology — a design that supports 4-Ohm and 2-Ohm loads with multi-impedance Constant Power. It is distinct from Class bd (used in the TM750X1bd mono amplifier) and is optimised for 5-channel marine and multi-platform applications.
How is the 1000W RMS divided across the five channels?
The total rated output is 1000W RMS to CEA-2006 standard. The per-channel breakdown (typically 4 full-range channels + 1 subwoofer channel) is not confirmed in the supplier data. Pull the per-channel power figures from the official Rockford Fosgate TM1000X5ad datasheet before selecting speakers and subwoofer.
How does the auto turn-on work without a remote wire?
When the amplifier is connected via speaker-level inputs, the differential input circuit detects the presence of an audio signal and powers the amplifier on automatically. This is particularly useful in marine, UTV, and motorcycle installations where running a separate remote wire from the head unit is impractical.
Is the TM1000X5ad covered by warranty?
Yes — Rockford Fosgate's warranty is confirmed active on this product. Coverage requires purchase from an authorised Rockford Fosgate dealer. Confirm the specific warranty period and terms with your authorised reseller at time of purchase.
What vehicles and platforms is the TM1000X5ad designed for?
The TM1000X5ad is Element Ready — built for marine vessels, motorcycles, side-by-side UTVs, hybrid and electric vehicles, cars, and trucks. The two-part epoxy conformal circuit board coating and robust thermal management are specifically chosen for installations exposed to moisture, vibration, and temperature extremes beyond standard in-car environments.
