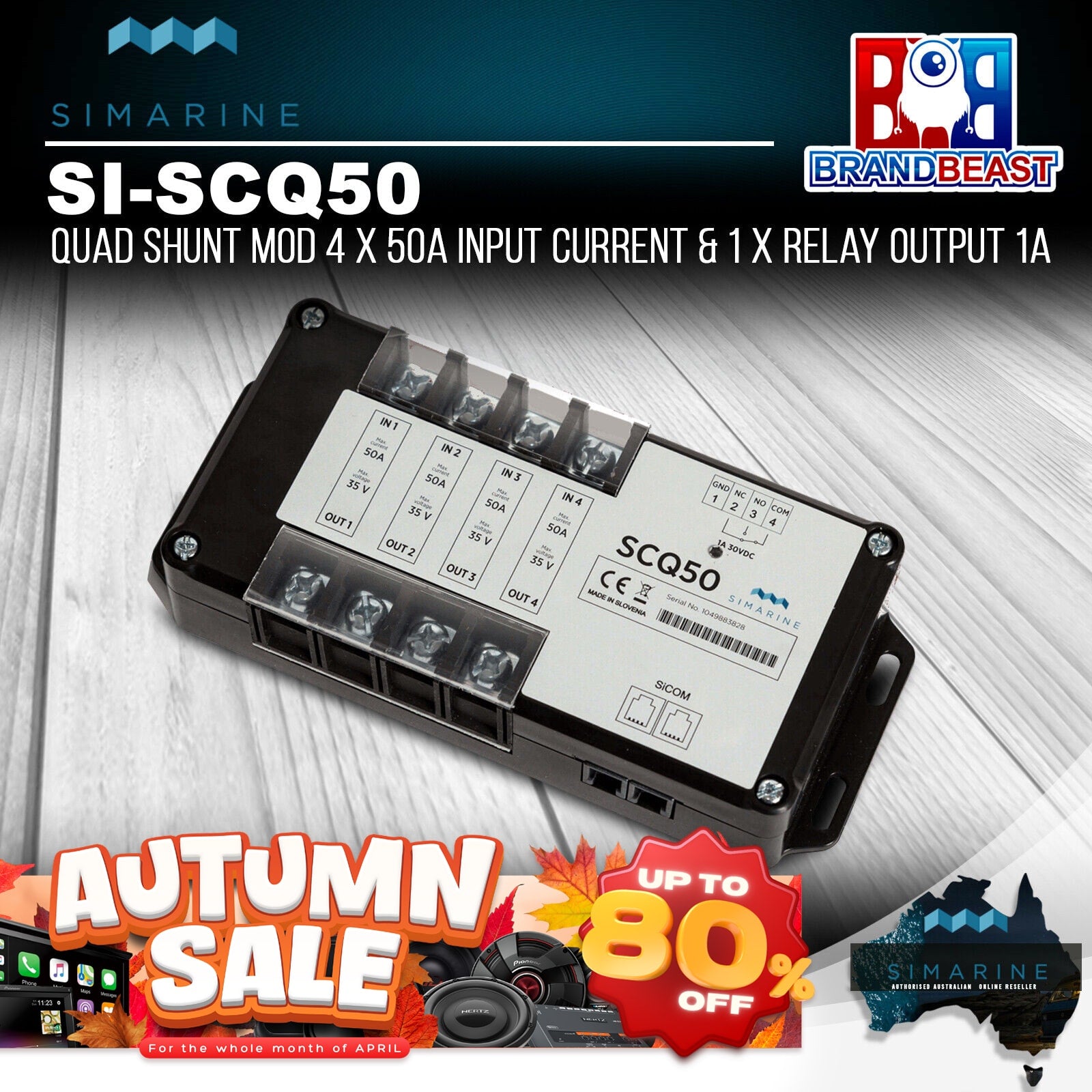

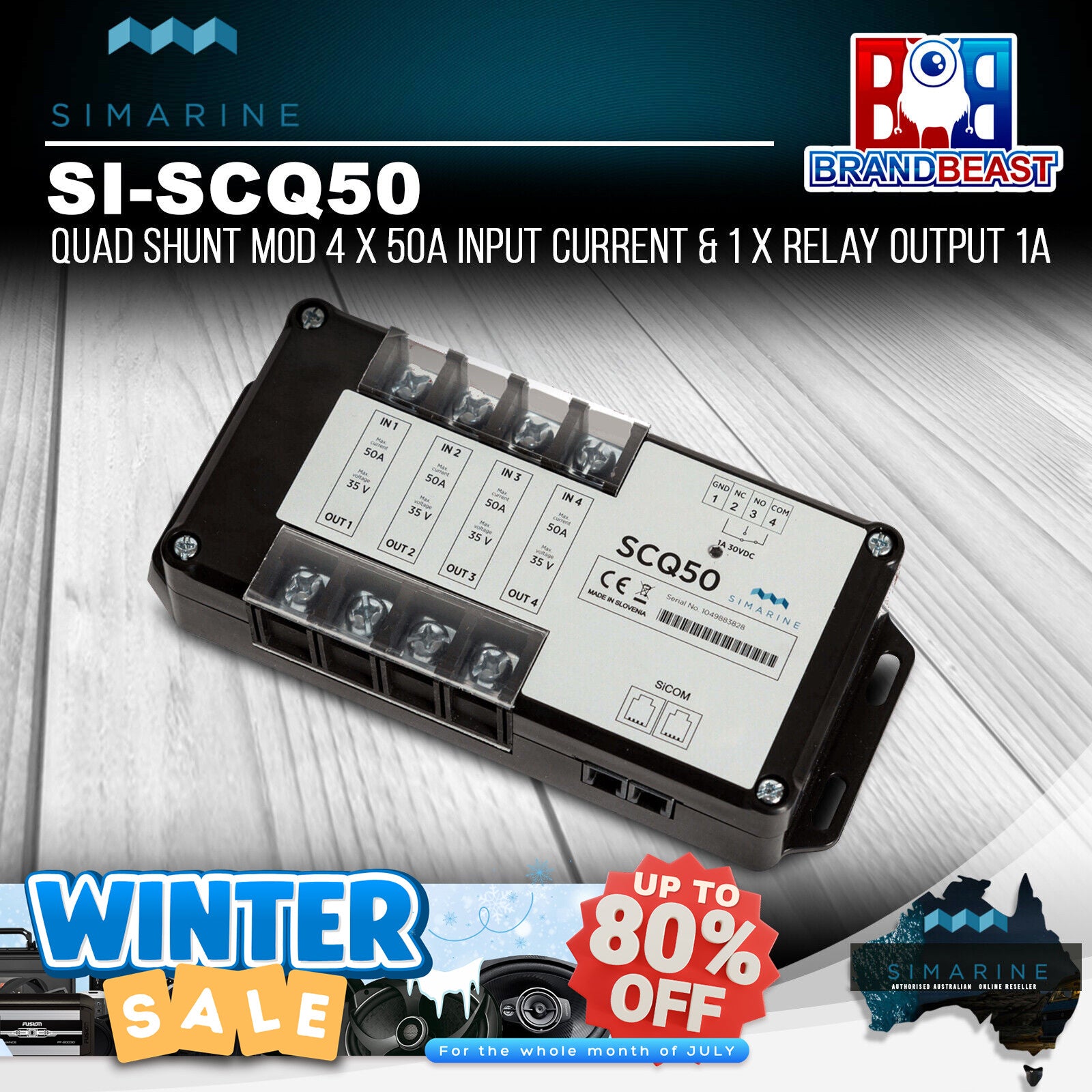

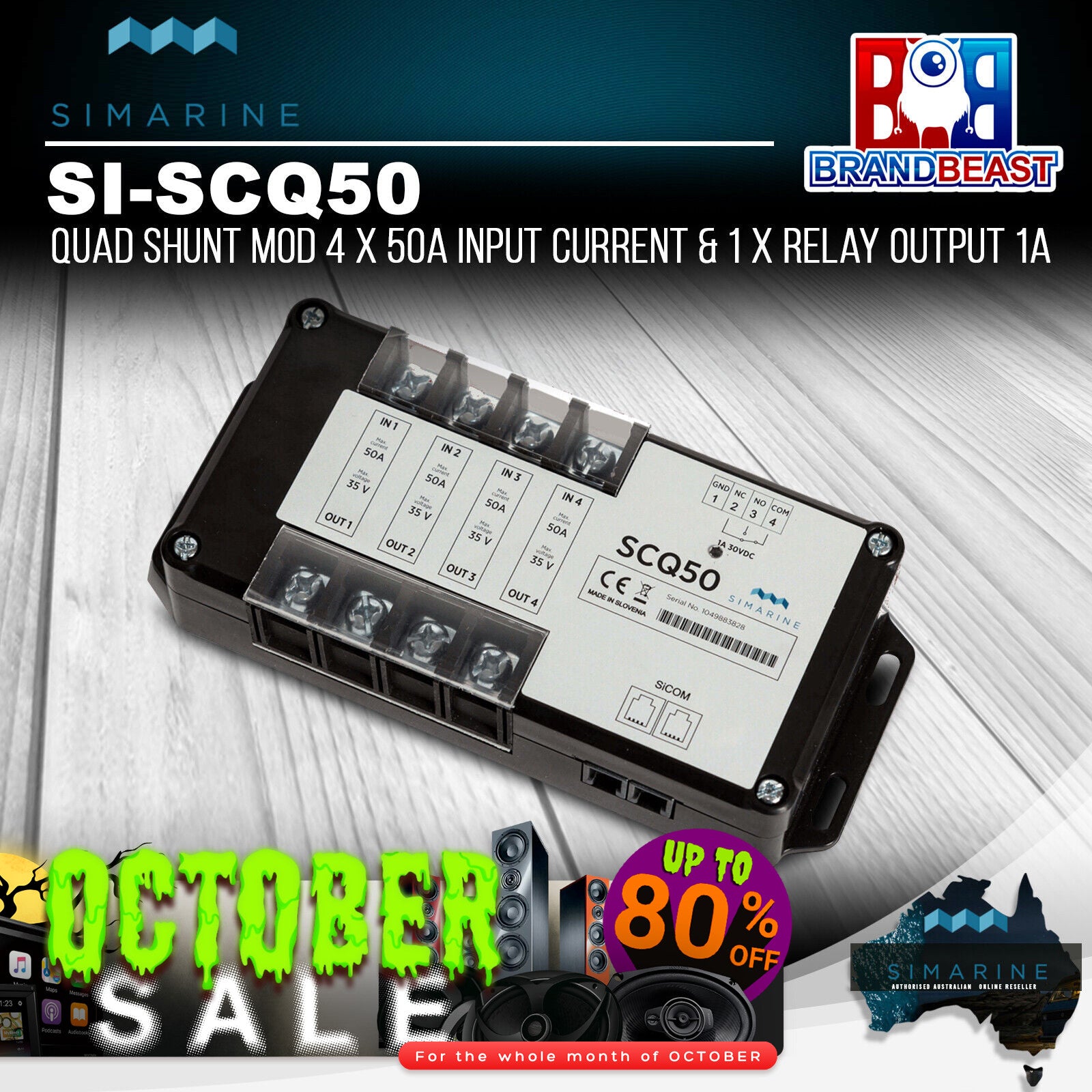

Simarine SI-SCQ50 50A Active Quad Shunt for Pico Battery Monitor

Description

Optimized Active Shunt for PICO Battery Monitor: Precision Current Monitoring for 12V & 24V Systems with 4x 50A Sensors

Active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.

Operating

  • Power source voltage range 6 – 35 V
  • Temperature range -20 – +70 ¬∞C
  • Power consumption at 12 V
  • Operating 3,5 mA
  • Current measuring channels 4
  • Relay (monostable)
  • Maximum Operating Current 1 A
  • Maximum Common Input Voltage 6 – 30V

Voltage inputs

  • Per channel 0,01 – 50 A
  • Resolution 0,01 A
  • Accuracy ¬± 0,6 %
  • Sampling rate 100 ms

Maximal current

  • Continuous 50 A
  • Peak current (<1 min) 60 A
  • Peak current (<5 sec) 60 A
  • Voltage drop at 50 A35 mV
  • Maximum voltage on connections 35 V

Connectivity Up to

  • Current sensors 4
  • Relay Common Input (COM) 1
  • Relay Output Normaly Open (NO) 1
  • Relay Output Normaly Closed (NC) 1
  • SiCOM RJ 9 Sockets 2
Installation and Dimension
  • Dimensions (length x width x depth) 182 x 80 x 37 mm
  • Weight 230g

Legendary Products & Support From Authorized Dealers

When you choose Simarine, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Simarine dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Simarine's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Simarine dealer today!

Simarine SI-SCQ50 50A Active Quad Shunt for Pico Battery Monitor

Product form

Optimized Active Shunt for PICO Battery Monitor: Precision Current Monitoring for 12V & 24V Systems with 4x 50A Sensors Active... Read more

SKU: SISCQ50

  • In Stock

$379.00 Incl. VAT
