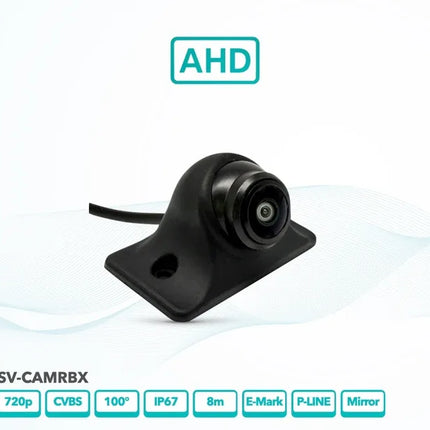

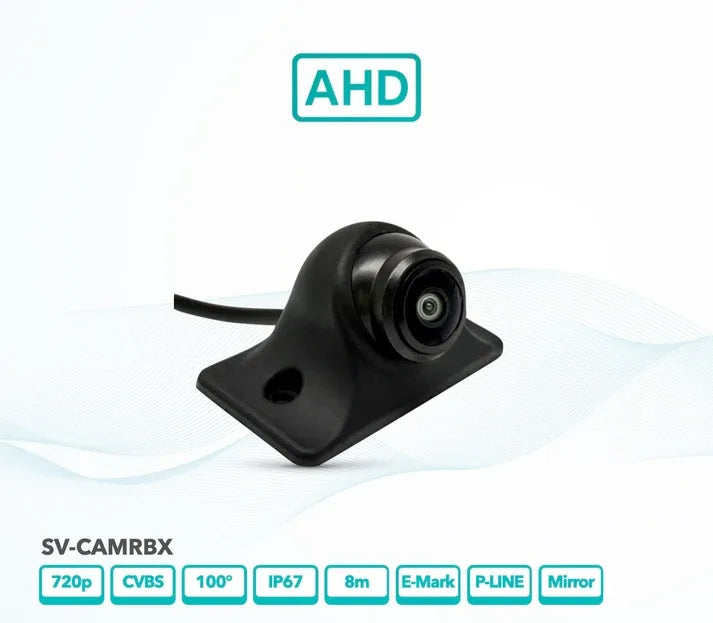

SonoVision SV-CAMRBX Universal Reversing and Blind Spot Camera AHD 720p and CVBS Switchable Versatile Rubber Base Mount for Overhang and Underhang 100 Degree View Angle IP68 Waterproof 8 Metre Extension Cable DC 12V
The SonoVision SV-CAMRBX is a universal reversing and blind spot camera with AHD 720p and CVBS switchable output, a 1/3-inch CMOS sensor, and a versatile rubber base mount that allows installation in both overhang and underhang positions. View angle is 100 degrees. IP68 waterproof rated, with an 8-metre extension cable, angle tool, and 3M self-adhesive included.
Product overview
The SV-CAMRBX is designed for reversing and blind spot camera applications across most cars and vans. The rubber mounting base is flexible enough to suit both overhang and underhang installations, giving installers the flexibility to position the camera where standard rigid mounts cannot go. Switchable between AHD 720p and CVBS output, the camera works with a wide range of head units and monitors. Parking guidelines are switchable on or off, and the image can be set to mirror or non-mirror view. The IP68 rating provides protection against all standard weather conditions, with operation confirmed from -30C to +70C.
What's in the box
- SV-CAMRBX camera with rubber base mount
- 8-metre extension cable
- Angle tool
- 3M self-adhesive
Features and benefits
AHD 720p and CVBS switchable output: Compatible with both AHD and CVBS head units and monitors without requiring a separate camera for each system type.
Versatile rubber base mount: Flexible mount supports both overhang and underhang installation positions to suit a wide range of vehicle applications.
100-degree view angle: Suitable for reversing and blind spot monitoring.
IP68 waterproof rated: Protected against all standard weather conditions.
Switchable parking guidelines: Turn parking guidelines on or off to suit the installation.
Switchable mirror and non-mirror view: Adjust image orientation to suit the mounting position.
8-metre extension cable and angle tool included.
Minimum illumination of 0.1 Lux: Suitable for low-light conditions.
CE, E-mark, FCC, RoHS, and UKCA certified.
Technical specs
| Specification |
Detail |
| SKU |
SV-CAMRBX |
| Brand |
SonoVision |
| Image Sensor |
1/3 inch CMOS1336 CMOS/AHD |
| Video Output |
AHD 720p / CVBS switchable |
| TV System |
NTSC |
| View Angle |
100 degrees |
| Waterproof Rating |
IP68 |
| Minimum Illumination |
0.1 Lux |
| Video Output Signal |
1.0Vp-p, 75 Ohm |
| Power Supply |
DC 12V |
| Operating Temperature |
-30C to +70C |
| Extension Cable |
8 metres |
| Certifications |
CE, E-mark, FCC, RoHS, UKCA |
Frequently asked questions
What makes the SV-CAMRBX suited to blind spot applications? The 100-degree view angle and flexible rubber base mount allow the camera to be positioned in locations that suit side-facing blind spot monitoring, including overhang and underhang mounting positions not accessible with a standard rigid bracket.
What is the difference between overhang and underhang mounting? Overhang mounting positions the camera so it faces downward from above the mounting surface, while underhang mounting positions it to face upward or outward from below. The SV-CAMRBX rubber base flexes to accommodate both orientations.
What is the difference between AHD and CVBS output? AHD (Analogue High Definition) delivers a 720p image to compatible AHD-capable head units or monitors. CVBS is the standard analogue video signal used by most older head units and monitors. The SV-CAMRBX switches between the two to suit the connected display.
Is the SV-CAMRBX compatible with my head unit? The SV-CAMRBX outputs AHD 720p or CVBS video, covering the two most common analogue camera input types. Confirm your head unit's supported camera input type before purchasing. Contact us for fitment advice.
What is the IP68 rating on the SV-CAMRBX? IP68 indicates the camera is dust-tight and protected against continuous submersion in water beyond one metre, making it suitable for all standard weather conditions encountered in vehicle installations.
