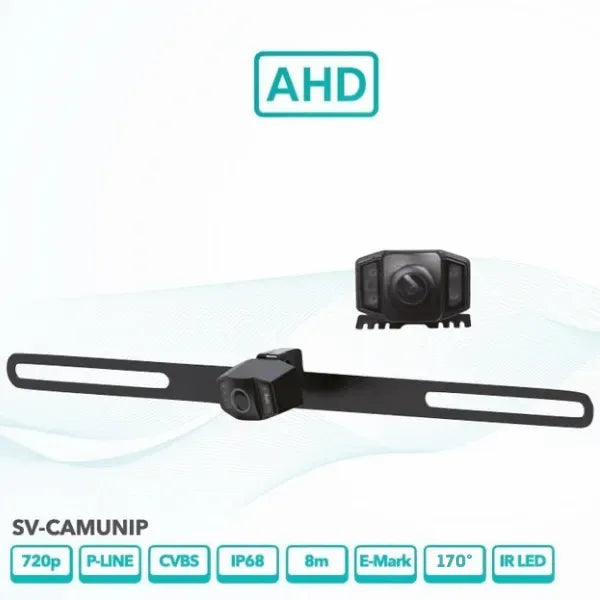

SonoVision SV-CAMUNIP Universal AHD 720p and CVBS Switchable Reversing or Front Camera with Night Vision IP68 Waterproof Universal Number Plate Bracket 8 Metre Extension Cable Switchable Guidelines Mirror and Non-Mirror View DC 12V
The SonoVision SV-CAMUNIP is a universal reversing or front-facing camera with AHD 720p and CVBS switchable output, a 1/4-inch CMOS sensor, night vision capability, and an IP68 waterproof rating. Mounts via a standard bracket or the included universal number plate bracket suited for global use. The 8-metre extension cable is supplied.
Product overview
The SV-CAMUNIP is designed for reversing and front-facing camera installation across most cars and vans. Switchable between AHD 720p and CVBS output, the camera is compatible with a wide range of head units and monitors. Parking guidelines are switchable on or off, and the image can be set to mirror or non-mirror view to suit the installation. The universal number plate bracket is designed to fit number plates from all regions. A 3M self-adhesive mounting option is also included. The IP68 rating provides protection against all standard weather conditions, and the camera operates from -30C to +70C.
What's in the box
- SV-CAMUNIP camera
- Standard bracket
- Universal number plate bracket
- 8-metre extension cable
- 3M self-adhesive
Features and benefits
AHD 720p and CVBS switchable output: Compatible with both AHD and CVBS head units and monitors without requiring a separate camera for each system type.
Night vision: Suitable for low-light and night-time use with a minimum illumination of 0.1 Lux.
Universal number plate bracket: Designed to fit number plates from all regions, alongside a standard bracket option.
IP68 waterproof rated: Protected against all standard weather conditions.
Switchable parking guidelines: Turn parking guidelines on or off to suit the installation.
Switchable mirror and non-mirror view: Adjust the image orientation to suit reverse or forward-facing use.
8-metre extension cable included: Provides sufficient cable length for most vehicle installations.
CE, E-mark, FCC, RoHS, and UKCA certified.
Technical specs
| Specification |
Detail |
| SKU |
SV-CAMUNIP |
| Brand |
SonoVision |
| Image Sensor |
1/4 inch CMOS1336 CMOS/AHD |
| Video Output |
AHD 720p / CVBS switchable |
| TV System |
NTSC |
| Waterproof Rating |
IP68 |
| Minimum Illumination |
0.1 Lux |
| Video Output Signal |
1.0Vp-p, 75 Ohm |
| Power Supply |
DC 12V |
| Operating Temperature |
-30C to +70C |
| Extension Cable |
8 metres |
| Certifications |
CE, E-mark, FCC, RoHS, UKCA |
Frequently asked questions
What is the difference between AHD and CVBS output on the SV-CAMUNIP? AHD (Analogue High Definition) delivers a 720p image to compatible AHD-capable head units or monitors. CVBS is the standard analogue video signal used by most older head units and monitors. The SV-CAMUNIP can be switched between the two to suit the connected display.
Can the SV-CAMUNIP be used as a front-facing camera as well as a reversing camera? Yes. The SV-CAMUNIP is designed for both reversing and front-facing installation, and the mirror/non-mirror switching allows the image to be oriented correctly for either application.
How does the SV-CAMUNIP differ from the SV-CAMUNIS? The SV-CAMUNIS includes five dedicated mounting options including flush and lip mount configurations. The SV-CAMUNIP comes with a standard bracket and universal number plate bracket, and adds night vision capability. Contact us if you need help choosing between the two.
Is the SV-CAMUNIP compatible with my head unit? The SV-CAMUNIP outputs AHD 720p or CVBS video, covering the two most common analogue camera input types. Confirm your head unit's supported camera input type before purchasing. Contact us for fitment advice.
What is the IP68 rating on the SV-CAMUNIP? IP68 indicates the camera is dust-tight and protected against continuous submersion in water beyond one metre, making it suitable for all standard weather conditions encountered in vehicle installations.
