SonoVision SV-CAMUNIS Universal AHD 720p and CVBS Switchable Reversing or Front Camera Kit Five Mounting Options IP68 Waterproof 170 Degree View Angle 8 Metre Extension Cable Included Switchable Guidelines Mirror and Non-Mirror View DC 12V
The SonoVision SV-CAMUNIS is a universal reversing or front-facing camera kit with AHD 720p and CVBS switchable output, a 1/4-inch CMOS sensor, and an IP68 waterproof rating. Five mounting options are included covering flush, lip, number plate, and additional configurations for universal fitment. The 8-metre extension cable is supplied. View angle is 170 degrees.
Product overview

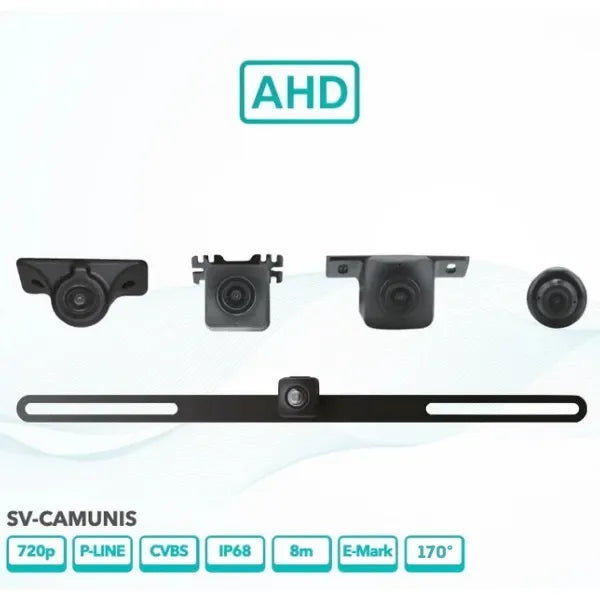

The SV-CAMUNIS is designed to cover all possible reversing and front-facing camera installation scenarios. Five mounting options are included to suit flush mount, lip mount, number plate bracket, and other configurations, with the universal number plate bracket suited for global use. Switchable between AHD 720p and CVBS output, the camera is compatible with a wide range of head units and monitors. Parking guidelines are switchable on or off, and the image can be set to mirror or non-mirror view to suit the installation. An angle tool and 3M self-adhesive are included alongside the 8-metre extension cable. The IP68 rating provides protection against all standard weather conditions, and the camera operates from -30C to +70C.
What's in the box
- SV-CAMUNIS camera
- 5 mounting options (including flush, lip, number plate bracket)
- 8-metre extension cable
- Angle tool
- 3M self-adhesive
Features and benefits
AHD 720p and CVBS switchable output: Compatible with both AHD and CVBS head units and monitors without requiring a separate camera for each system type.
Five mounting options: Covers flush, lip, number plate, and additional configurations for universal vehicle fitment.
IP68 waterproof rated: Protected against all standard weather conditions.
170-degree view angle: Wide field of view for reversing and front-facing applications.
Switchable parking guidelines: Turn parking guidelines on or off to suit the installation.
Switchable mirror and non-mirror view: Adjust the image orientation to suit reverse or forward-facing use.
8-metre extension cable included: Provides sufficient cable length for most vehicle installations.
Minimum illumination of 0.1 Lux: Suitable for low-light conditions.
CE, E-mark, FCC, RoHS, and UKCA certified.
Technical specs
| Specification |
Detail |
| SKU |
SV-CAMUNIS |
| Brand |
SonoVision |
| Image Sensor |
1/4 inch CMOS1336 CMOS/AHD |
| Video Output |
AHD 720p / CVBS switchable |
| TV System |
NTSC |
| View Angle |
170 degrees |
| Waterproof Rating |
IP68 |
| Minimum Illumination |
0.1 Lux |
| Video Output Signal |
1.0Vp-p, 75 Ohm |
| Power Supply |
DC 12V |
| Operating Temperature |
-30C to +70C |
| Extension Cable |
8 metres |
| Certifications |
CE, E-mark, FCC, RoHS, UKCA |
Frequently asked questions
What is the difference between AHD and CVBS output on the SV-CAMUNIS? AHD (Analogue High Definition) delivers a 720p image to compatible AHD-capable head units or monitors. CVBS is the standard analogue video signal used by most older head units and monitors. The SV-CAMUNIS can be switched between the two to suit the connected display.
Can the SV-CAMUNIS be used as a front-facing camera as well as a reversing camera? Yes. The SV-CAMUNIS is designed for both reversing and front-facing installation, and the mirror/non-mirror switching allows the image to be oriented correctly for either application.
What mounting options are included? Five mounting options are included covering flush mount, lip mount, and a universal number plate bracket, among others, to suit a wide range of installation positions across different vehicle types.
Is the SV-CAMUNIS compatible with my head unit? The SV-CAMUNIS outputs AHD 720p or CVBS video, covering the two most common analogue camera input types. Confirm your head unit's supported camera input type before purchasing. Contact us for fitment advice.
What is the IP68 rating on the SV-CAMUNIS? IP68 indicates the camera is dust-tight and protected against continuous submersion in water beyond one metre, making it suitable for all standard weather conditions encountered in vehicle installations.
