Description

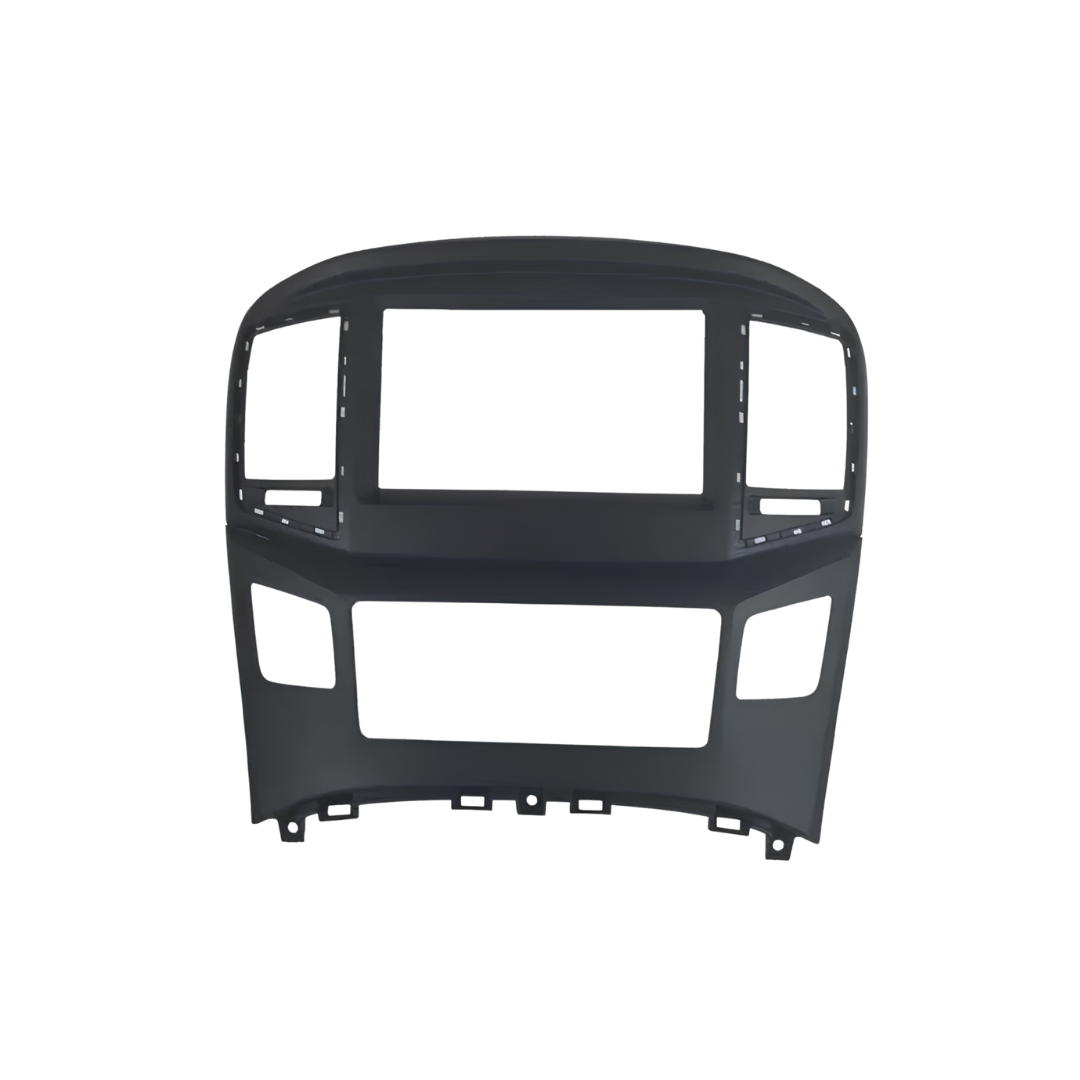

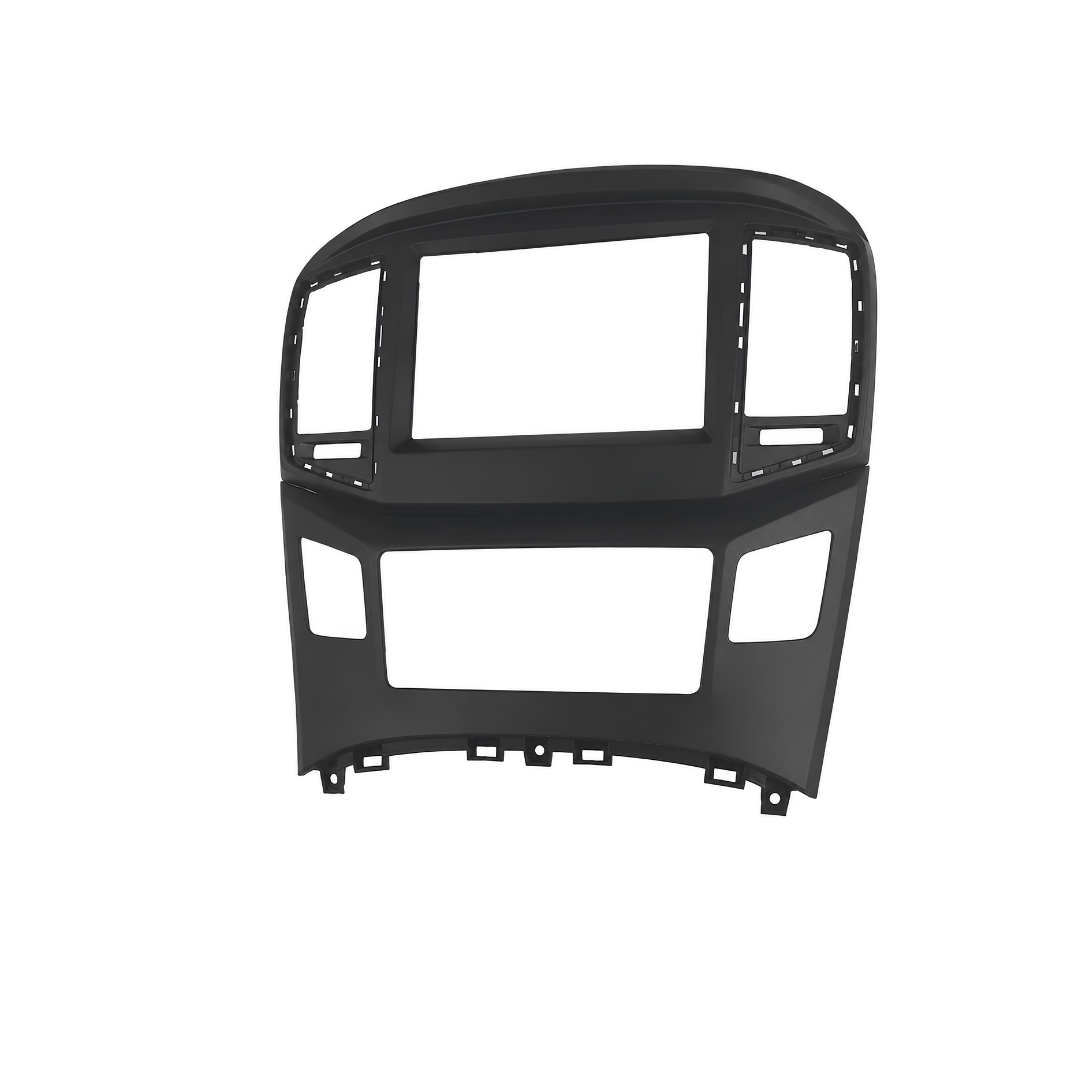

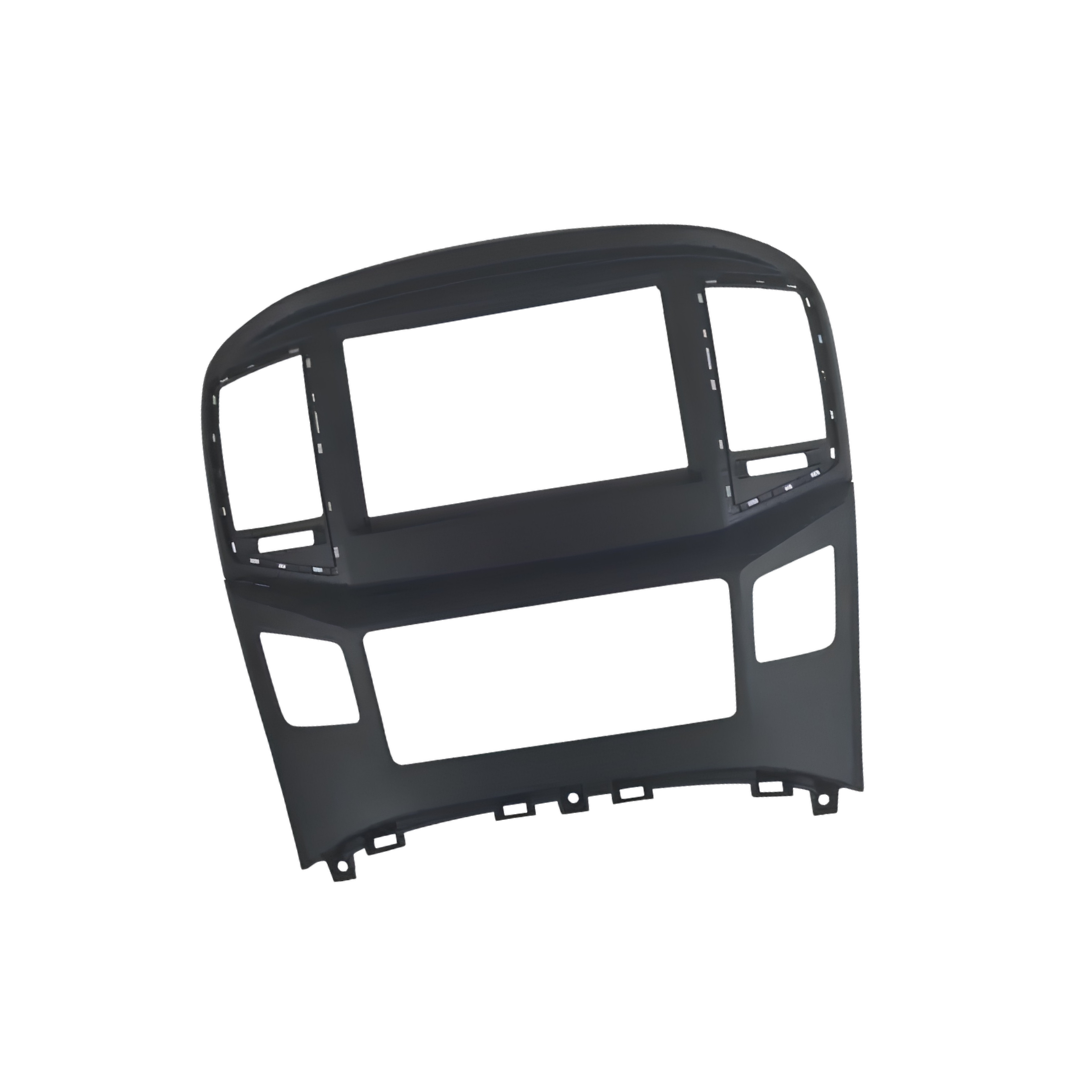

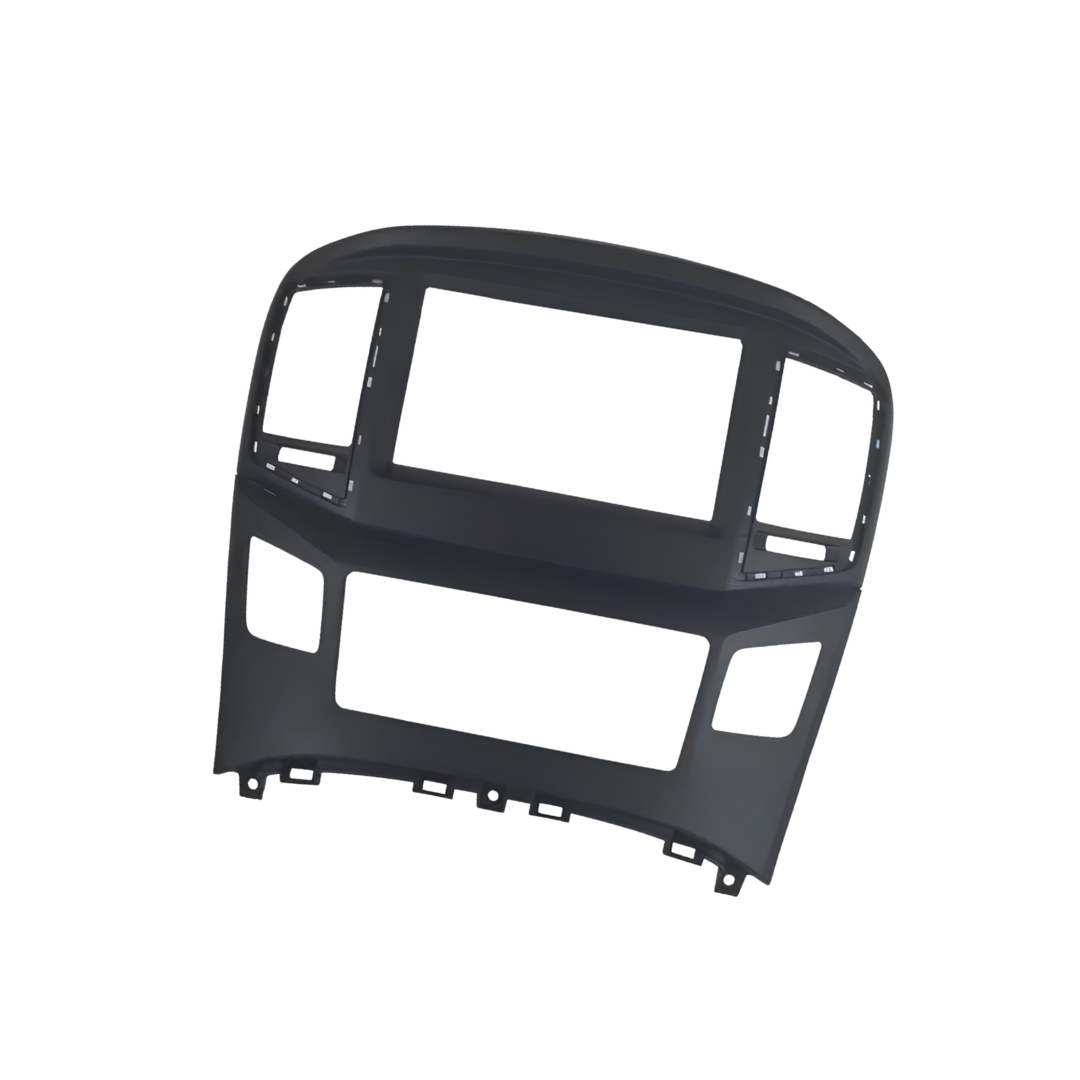

Stinger BKHY072 Double DIN Radio Fascia Kit for Hyundai iLoad/iMax TQ3/TQ4 (2016–2019)
A vehicle-specific double DIN radio fascia kit for the Hyundai iLoad/iMax TQ3 Series II (2016–2018) and TQ4 (2018–2019) black finish, uses factory mounting position for a clean 2DIN head unit installation.
Product Overview
The Stinger BKHY072 is a vehicle-specific double DIN radio fascia kit for the Hyundai iLoad (incl. iMax) TQ3 Series II (2016–2018) and TQ4 (2018–2019). It provides the dash panel required to install an aftermarket 2DIN head unit into the factory radio location, using the vehicle's existing factory mounting position. No mounting brackets are included or required.
The black finish is matched to the iLoad/iMax TQ3/TQ4 interior trim. For the earlier TQ series (2008–2016), see the BKHY046 (black) or BKHY047 (silver).
Features & Benefits
- Vehicle-specific fit for Hyundai iLoad (incl. iMax) TQ3 Series II 2016–2018 and TQ4 2018–2019
- Allows installation of aftermarket double DIN head units
- Black finish matched to factory interior trim
- Uses factory mounting position — no additional brackets required
Technical Specs
| Specification |
Detail |
| SKU / Part Number |
BKHY072 |
| Brand |
Stinger |
| Colour / Finish |
Black |
| Radio Size Compatibility |
Double DIN (2DIN) |
| Mounting Brackets Included |
No — uses factory mounting position |
| Antenna Adaptor Included |
Not included |
| Wiring Harness Included |
Not included |
| SWC Interface Included |
Not included |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Hyundai iLoad (incl. iMax) 2016–2018 (TQ3 Series II)
- Hyundai iLoad (incl. iMax) 2018–2019 (TQ4)
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC, Stinger)
- Vehicle-specific ISO wiring harness for Hyundai iLoad/iMax TQ3/TQ4
- Stinger STBAA40 antenna adaptor (for Hyundai iLoad/iMax)
- Steering wheel control interface for Hyundai iLoad/iMax TQ3/TQ4 (if applicable)
Frequently Asked Questions
How does this kit differ from the BKHY046 and BKHY047?
The BKHY046 (black) and BKHY047 (silver) cover the earlier Hyundai iLoad/iMax TQ series (2008–2016). The BKHY072 covers the later TQ3 Series II (2016–2018) and TQ4 (2018–2019), which use a different factory dash panel. Confirm your iLoad/iMax chassis code before purchasing.
Is a wiring harness included?
No. The BKHY072 is a fascia panel kit only. A vehicle-specific ISO wiring harness will need to be sourced separately to connect your aftermarket head unit to the factory wiring.
Does this kit include a steering wheel control interface?
No. A SWC interface is not included. If you want to retain factory steering wheel audio controls, a compatible SWC adaptor will need to be purchased separately.
Are mounting brackets included?
No. The BKHY072 uses the vehicle's existing factory mounting position. No additional brackets are required or included.
Is an antenna adaptor included?
No. An antenna adaptor is not included. See the Stinger STBAA40 for a compatible Hyundai iLoad/iMax antenna adaptor.
