Description

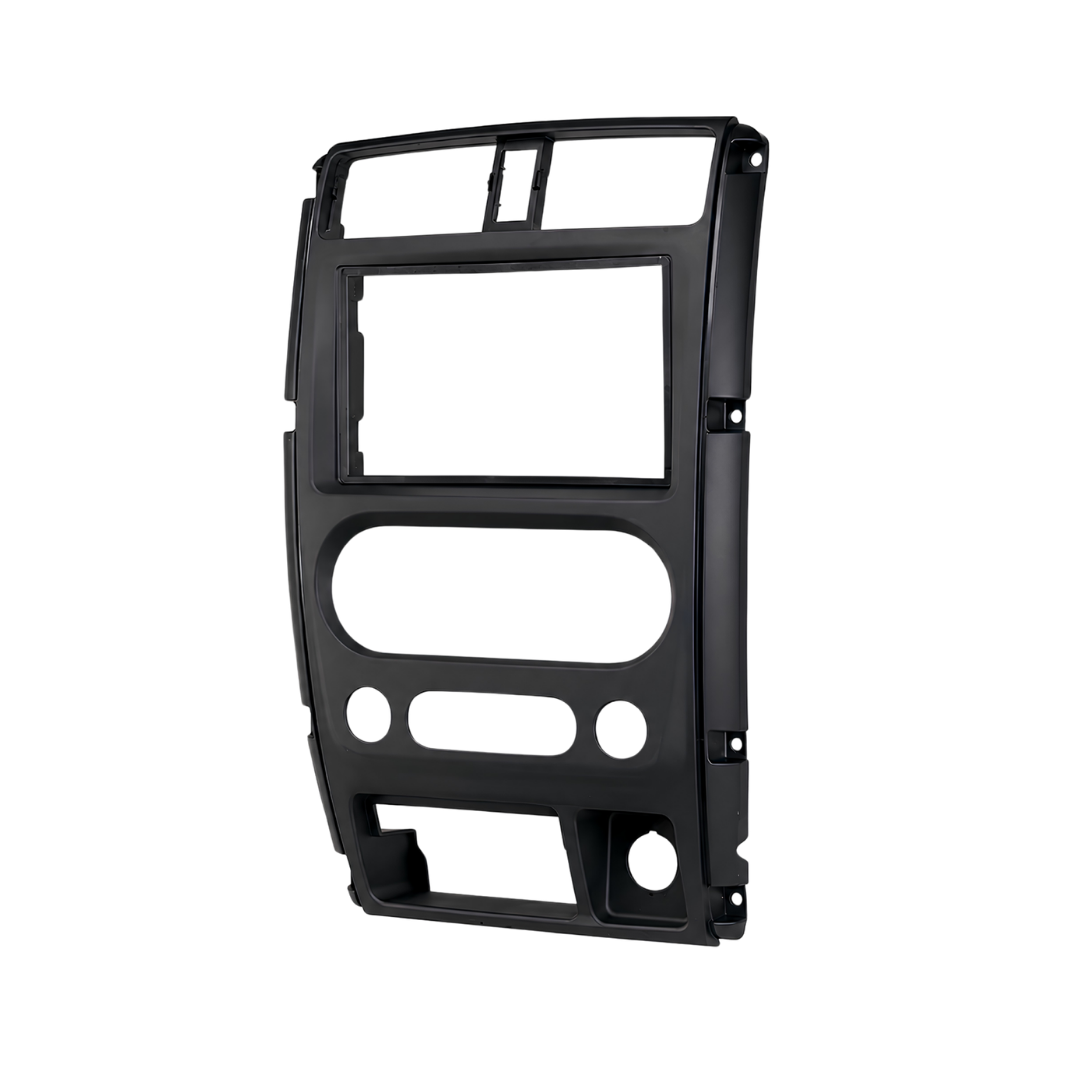

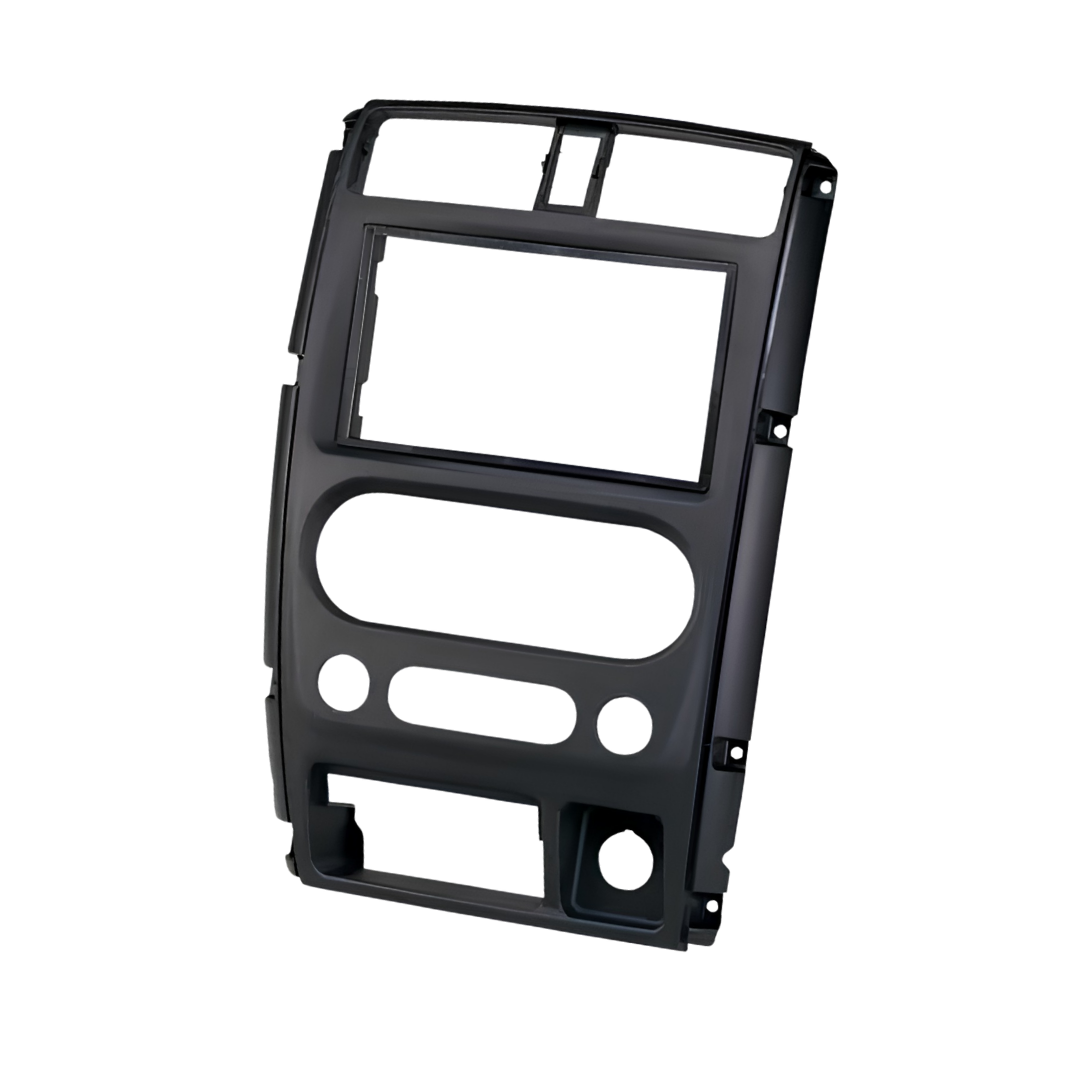

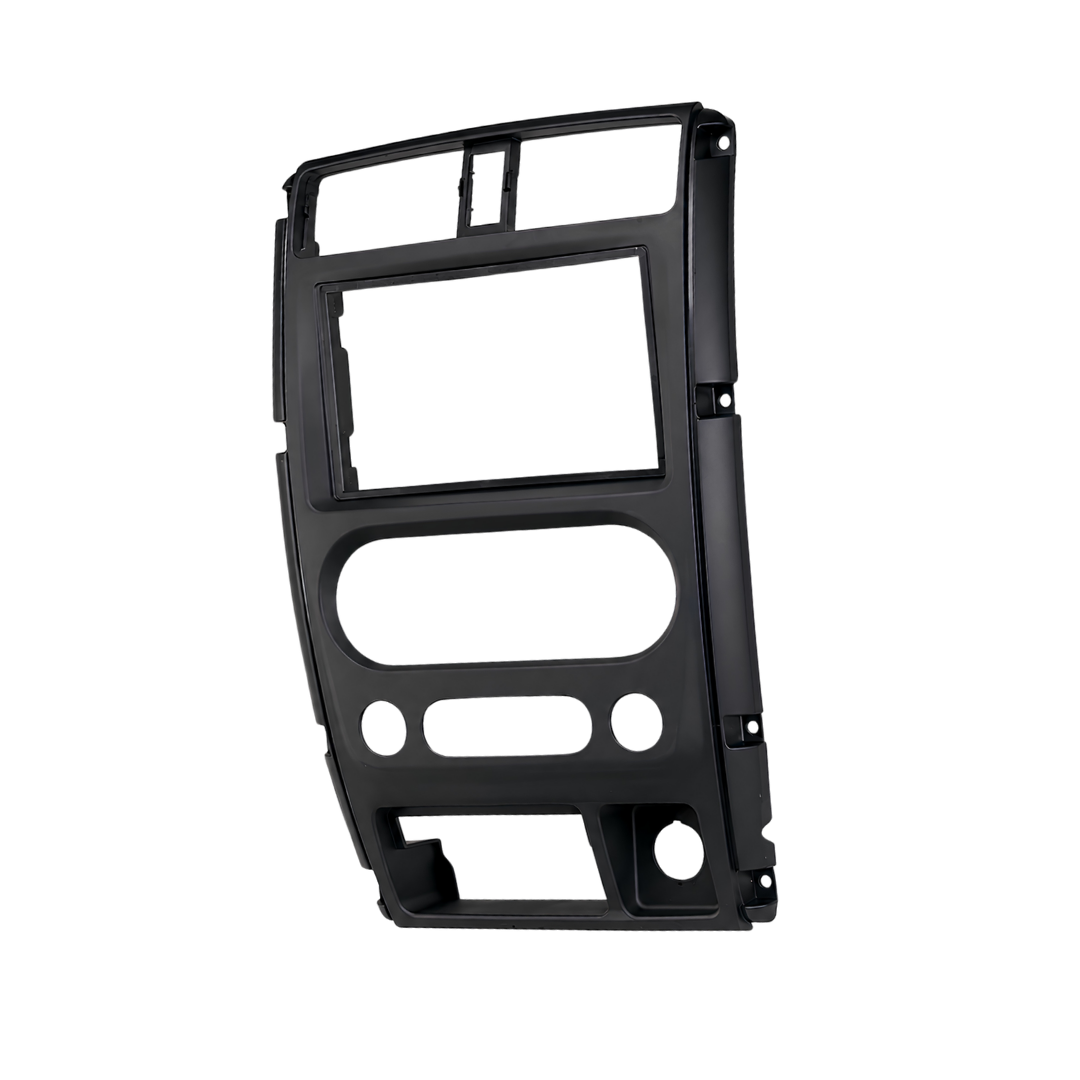

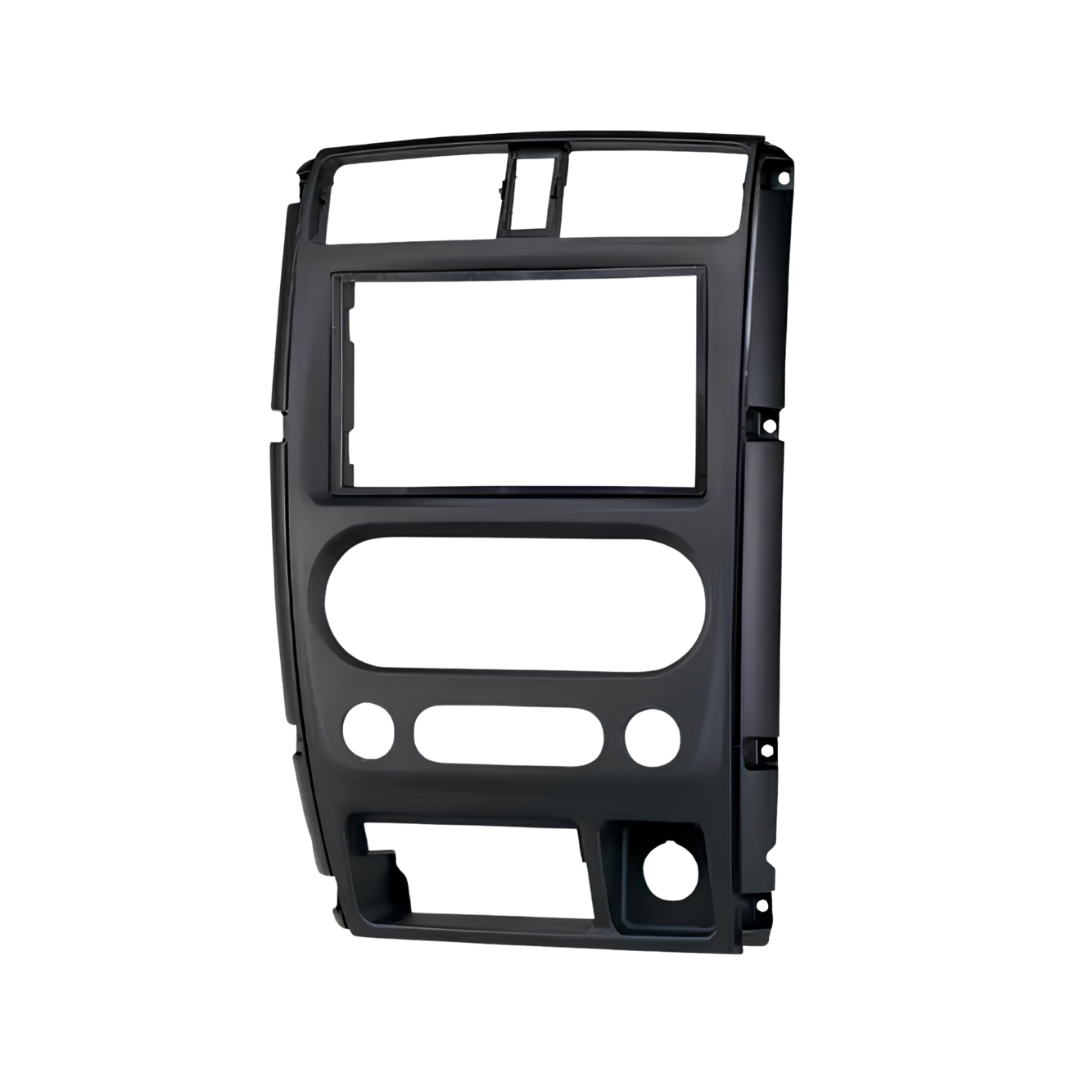

Stinger BN25K949 Double DIN Radio Fascia Kit for Suzuki Jimny SN413 (2005–2017)
A vehicle-specific double DIN radio fascia kit for the Suzuki Jimny SN413 (2005–2017) black finish, no universal cradle required. Single DIN installation requires the BKUNIP universal pocket, sold separately.
Product Overview
The Stinger BN25K949 is a vehicle-specific double DIN radio fascia kit for the Suzuki Jimny SN413 series (2005–2017). It provides the dash panel required to install an aftermarket 2DIN head unit into the factory radio opening. No universal mounting cradle is required.
If installing a single DIN head unit, the BKUNIP universal pocket is required and sold separately.
This kit is designed for double DIN applications. If the kit does not clip in fully, try spacing the heater/fan controls back a few millimetres to achieve a proper fit.
Features & Benefits
- Vehicle-specific fit for Suzuki Jimny SN413 2005–2017
- Allows installation of aftermarket double DIN head units
- No universal mounting cradle required
- Black finish matched to factory interior trim
- Single DIN installation requires BKUNIP universal pocket (sold separately)
Technical Specs
| Specification |
Detail |
| SKU / Part Number |
BN25K949 |
| Brand |
Stinger |
| Colour / Finish |
Black |
| Radio Size Compatibility |
Double DIN (2DIN); 1DIN requires BKUNIP pocket (sold separately) |
| Mounting Brackets Included |
No |
| Universal Mounting Cradle Required |
No |
| Required Accessory for 1DIN |
BKUNIP universal pocket — sold separately |
| Installation Note |
If kit does not clip in fully, space heater/fan controls back a few mm |
| Antenna Adaptor Included |
Not included |
| Wiring Harness Included |
Not included |
| SWC Interface Included |
Not included |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Suzuki Jimny 2005–2017 (SN413)
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC, Stinger)
- BKUNIP universal pocket — required for single DIN installation (sold separately)
- Vehicle-specific ISO wiring harness for Suzuki Jimny SN413
- Antenna adaptor for Suzuki (if required by chosen head unit — confirm with F.A.E.)
- Steering wheel control interface for Suzuki Jimny SN413 (if applicable)
Frequently Asked Questions
What should I do if the kit doesn't clip in fully?
If the BN25K949 does not clip in completely, try spacing the heater and fan controls back a few millimetres in the dash. This is a known fitment characteristic of this installation and adjusting the heater control depth typically resolves the issue.
Is the BKUNIP pocket included for single DIN installation?
No. The BKUNIP universal pocket required for single DIN installation is sold separately. The BN25K949 is configured for double DIN by default — if a single DIN head unit is being fitted, the BKUNIP must be sourced separately.
Is a wiring harness included?
No. The BN25K949 is a fascia panel kit only. A vehicle-specific ISO wiring harness will need to be sourced separately to connect your aftermarket head unit to the factory wiring.
Does this kit require a universal mounting cradle?
No. Unlike some fascia kits (such as those requiring the BKDDCT), the BN25K949 does not require a universal mounting cradle for double DIN installation.
Is an antenna adaptor included?
No. An antenna adaptor is not included. Depending on your aftermarket head unit's antenna connector type, an additional adaptor may be required — confirm with the F.A.E. team.
