Description

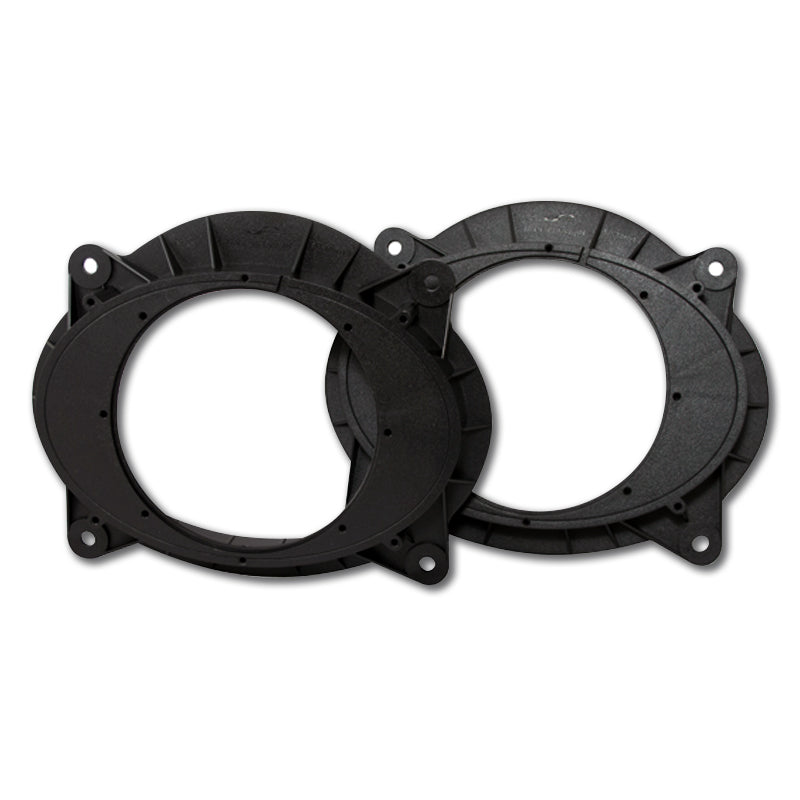

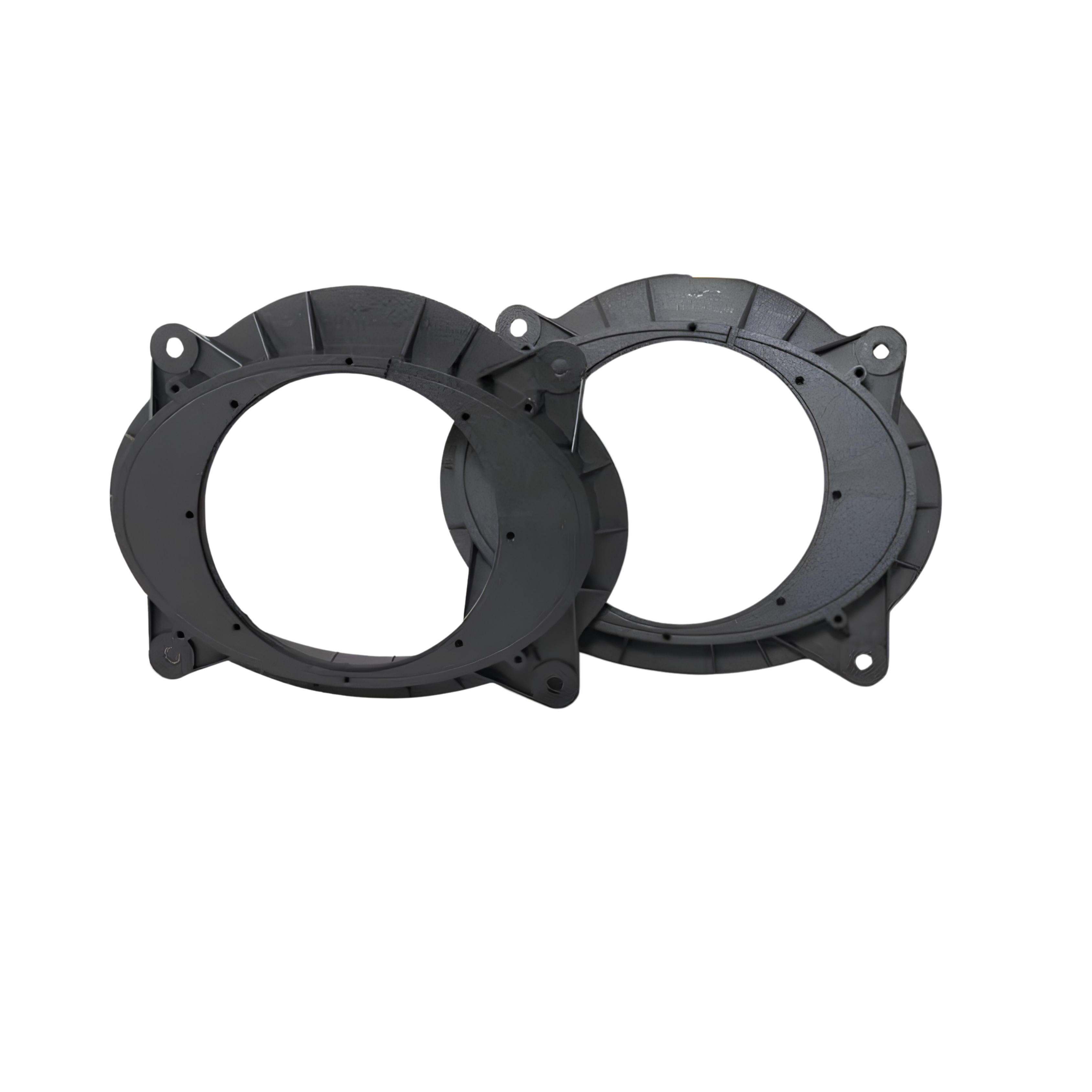

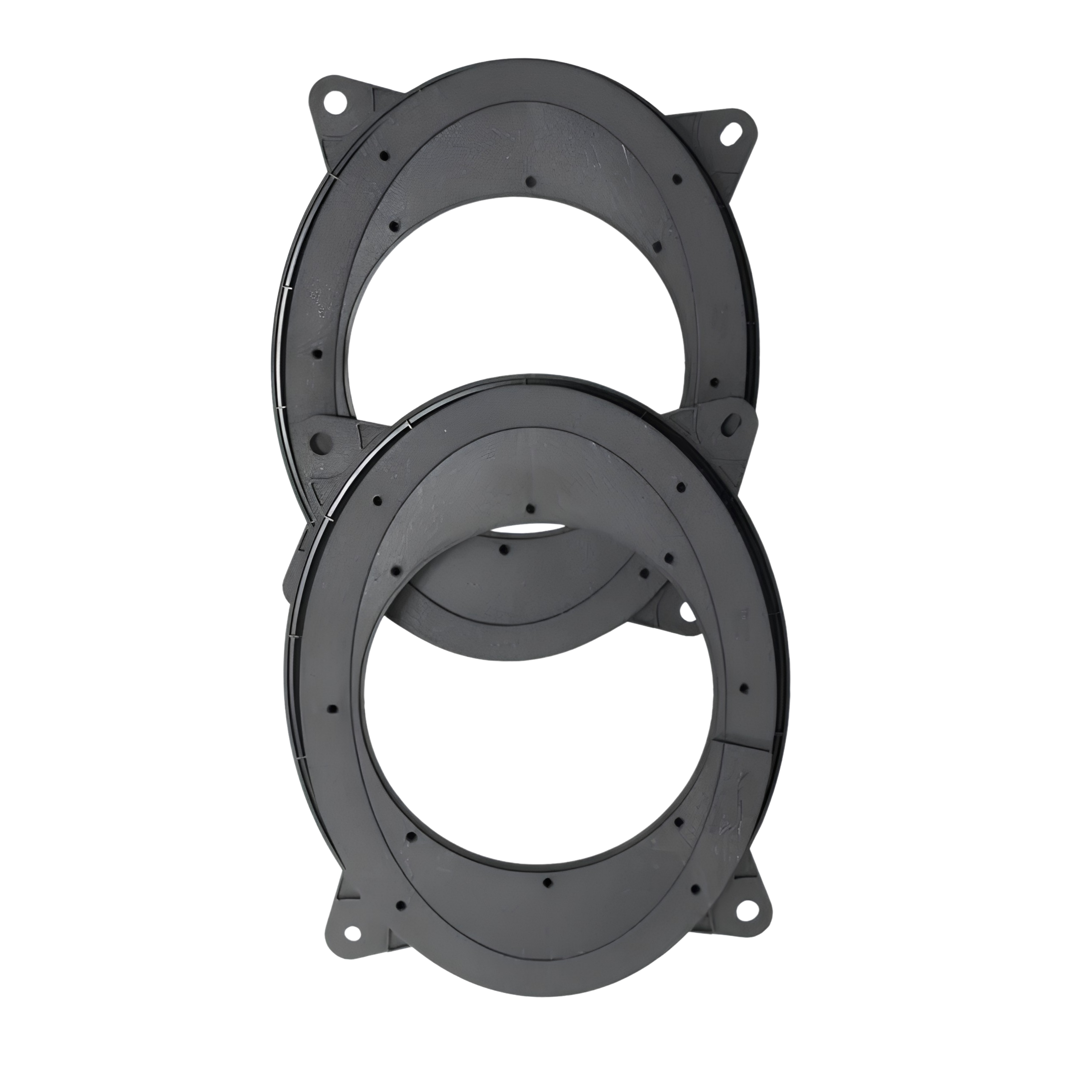

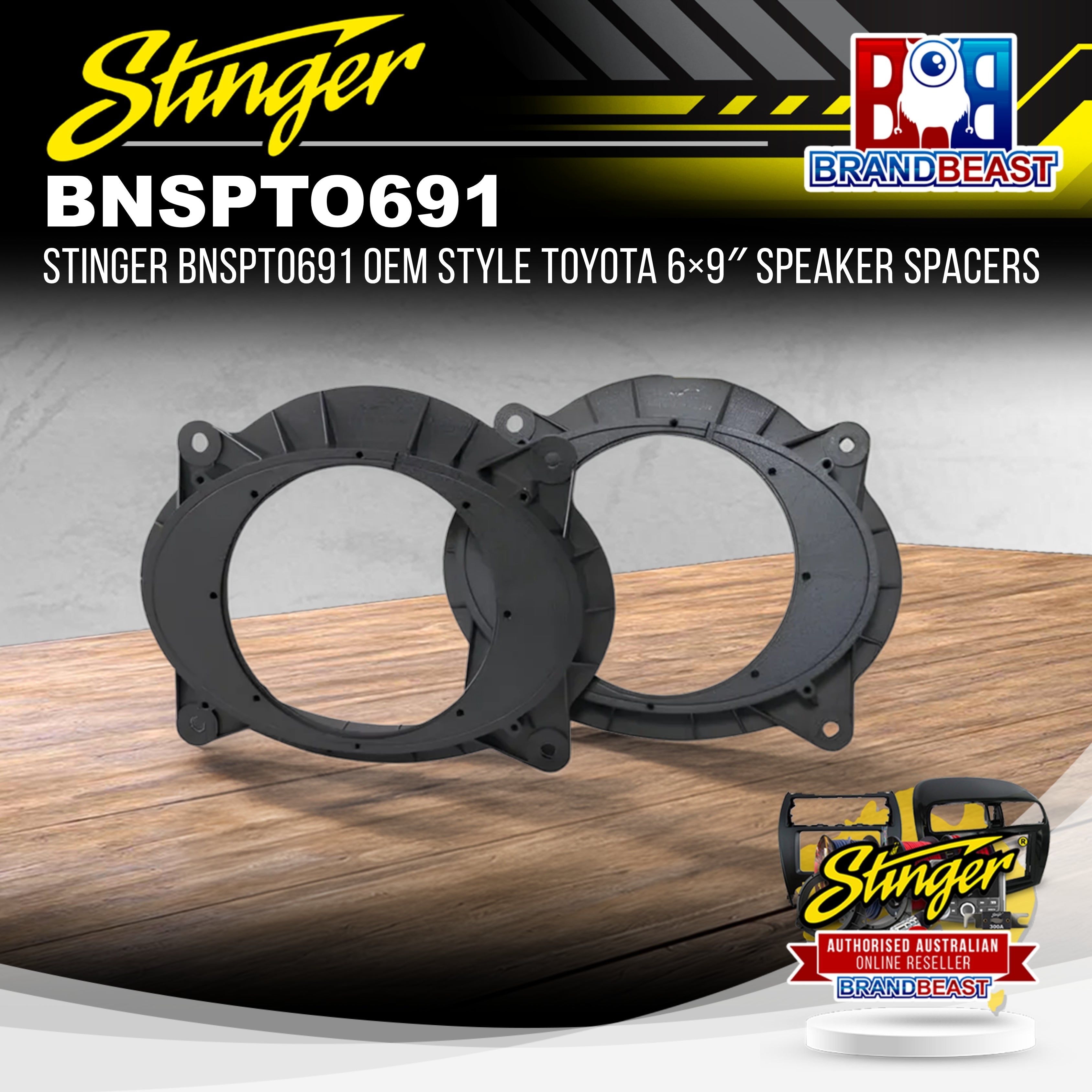

Stinger BNSPTO691 Toyota OEM Style ABS Speaker Spacers for 6.5 and 6x9 Inch Speakers Matching OEM Screw Locations Sold as a Pair
The BNSPTO691 from Stinger Australia is a pair of Toyota OEM-style ABS speaker spacers designed to accept 6.5 inch speakers directly, or 6x9 inch speakers with minor trimming of the spacer opening. With a 143mm inner diameter and 35mm mounting depth, the BNSPTO691 matches the OEM Toyota speaker screw locations for straightforward installation across confirmed Toyota, Lexus, Holden, and Isuzu models. Supplied as a pair of two spacers.
Product overview
Toyota factory speaker locations use an unconventional OEM mounting shape that does not accept standard round aftermarket speaker flanges directly. The BNSPTO691 eliminates the need for custom fabrication by providing a ready-made spacer that matches the factory Toyota OEM screw locations on the vehicle side, while providing a mounting surface suited to 6.5 inch or 6x9 inch aftermarket speakers on the speaker side. For 6x9 inch speakers, the inner opening of the spacer will need to be cut or trimmed to accommodate the larger speaker basket.
The solid ABS plastic construction provides rigidity and vibration resistance, maintaining a stable and secure mounting platform for the speaker over the life of the installation. The BNSPTO691 differs from the BNSPTO651 in offering 6x9 inch speaker compatibility alongside 6.5 inch, and uses a shallower 35mm mounting depth compared to the 58mm of the BNSPTO651. Confirm your specific model, year, and variant against the vehicle application guide below before ordering.
Features and benefits
Suits 6.5 inch and 6x9 inch speakers: Accepts 6.5 inch speakers directly, or 6x9 inch speakers with minor trimming of the inner spacer opening, providing flexibility for installations where a 6x9 inch speaker is preferred over a 6.5 inch.
Matches Toyota OEM screw locations: The BNSPTO691 is designed to align with the factory Toyota OEM speaker screw positions, allowing direct installation without drilling new holes or custom fabrication.
ABS plastic construction: The solid ABS plastic construction provides rigidity and vibration resistance, maintaining a stable and secure mounting platform for the speaker over the life of the installation.
35mm mounting depth: The 35mm depth provides the required clearance between the aftermarket speaker basket and the factory mounting surface in confirmed Toyota OEM speaker locations.
143mm inner diameter: The 143mm inner diameter suits standard 6.5 inch aftermarket speaker basket dimensions directly, and can be trimmed to accommodate 6x9 inch speakers.
Sold as a pair: Two spacers are included per pack, providing a complete set for a stereo speaker installation in a single purchase.
Technical specs
| Specification |
Detail |
| SKU |
BNSPTO691 |
| Brand |
Stinger |
| Speaker Size |
6.5 inch (direct) or 6x9 inch (with trimming) |
| Construction |
ABS plastic |
| Colour |
Black |
| Inner Diameter |
143mm |
| Mounting Depth |
35mm |
| Quantity |
2 per pack (pair) |
Compatible with
These speaker spacers are confirmed for the following vehicles. Confirm your specific model, year, and variant before ordering.
| Make |
Model |
Variant |
Years |
| Holden |
Colorado (incl 7) |
RG |
2012 - 2013 |
| Holden |
Colorado (incl 7) |
RG |
2014 - 2016 |
| Isuzu |
D-MAX |
RT50-RT85 |
2012 - 2016 |
| Isuzu |
D-MAX |
RT50-RT85 |
2016 - 2019 |
| Isuzu |
MU-X |
RF10 |
2013 - 2015 |
| Isuzu |
MU-X |
RF20 |
2016 - 2017 |
| Lexus |
RX |
XU30 |
2003 - 2008 |
| Toyota |
Camry |
XV30 Series |
2002 - 2006 |
| Toyota |
Camry |
XV40 Series |
2007 - 2011 |
| Toyota |
FJ Cruiser |
GSJ10 Series |
2010 - 2016 |
| Toyota |
LandCruiser |
200 Series |
2008 - 2012 |
| Toyota |
LandCruiser |
200 Series |
2013 - 2015 |
| Toyota |
LandCruiser |
200 Series |
2016 - 2021 |
| Toyota |
Tundra |
XK50 Series |
2007 - 2013 |
| Toyota |
Tundra |
XK50 Series |
2014 - 2021 |
Frequently asked questions
Can the BNSPTO691 accept 6x9 inch speakers without modification?
No. The BNSPTO691 accepts 6.5 inch speakers directly without modification. For 6x9 inch speakers, the inner opening of the spacer will need to be cut or trimmed to accommodate the larger speaker basket. Contact us if you need guidance on the trimming process for your specific 6x9 inch speaker.
What is the difference between the BNSPTO691 and the BNSPTO651?
Both are Toyota OEM style ABS speaker spacers with a 143mm inner diameter. The BNSPTO691 has a 35mm mounting depth and accepts 6.5 or 6x9 inch speakers, and is sold as a confirmed pair of two units. The BNSPTO651 has a deeper 58mm mounting depth and is designed for 6.5 inch speakers only. Select the spacer that matches the speaker size and mounting depth required for your specific vehicle and installation location.
How many spacers are included in the BNSPTO691 pack?
The BNSPTO691 is sold as a pair of two spacers, providing a complete set for a stereo speaker installation in a single purchase.
Does the BNSPTO691 suit both front and rear door locations?
The source data does not specify whether the BNSPTO691 is confirmed for front doors, rear doors, or both across all listed models. Contact us with your specific vehicle and intended installation location to confirm suitability before ordering.
Why does the BNSPTO691 also suit Holden, Isuzu, and Lexus models?
These vehicles share the Toyota OEM speaker mounting shape and screw locations, reflecting shared platform and component architecture between Toyota and these brands. The BNSPTO691 is designed to match this shape regardless of the badge on the vehicle.
