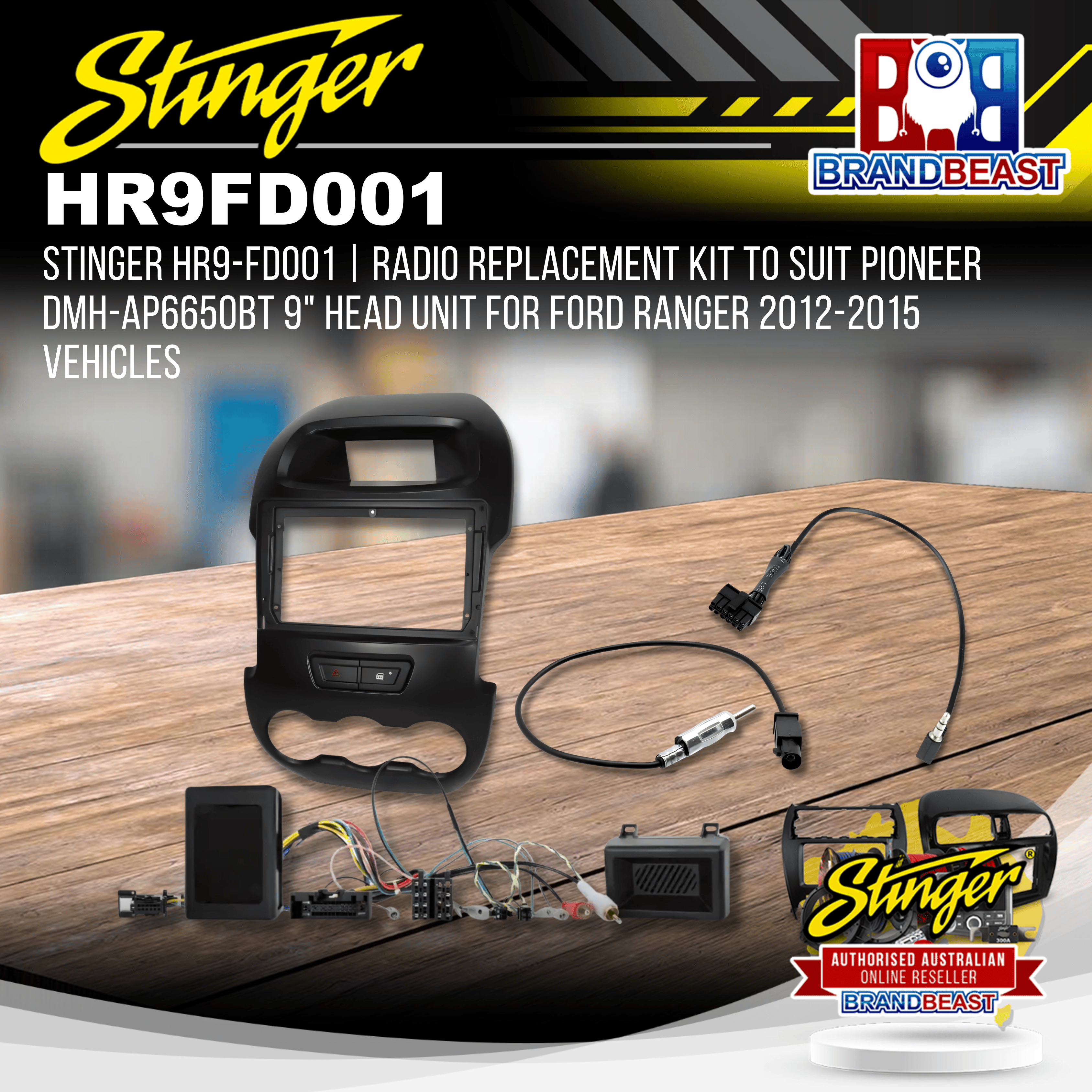

Stinger HR9-FD001 9 Inch Complete Install Kit for Pioneer DMH-AP6650BT in Ford Ranger PX1 2012 to 2015 Non-Navigation with SWC AUX Nav Outputs Hazard Button and Antenna

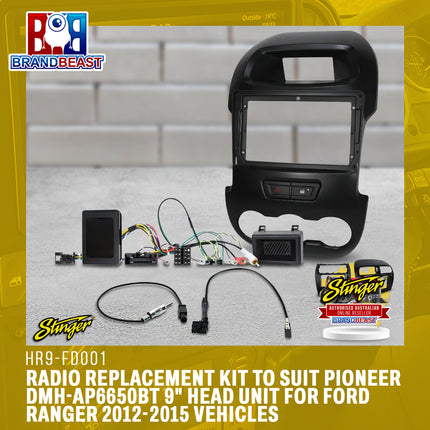

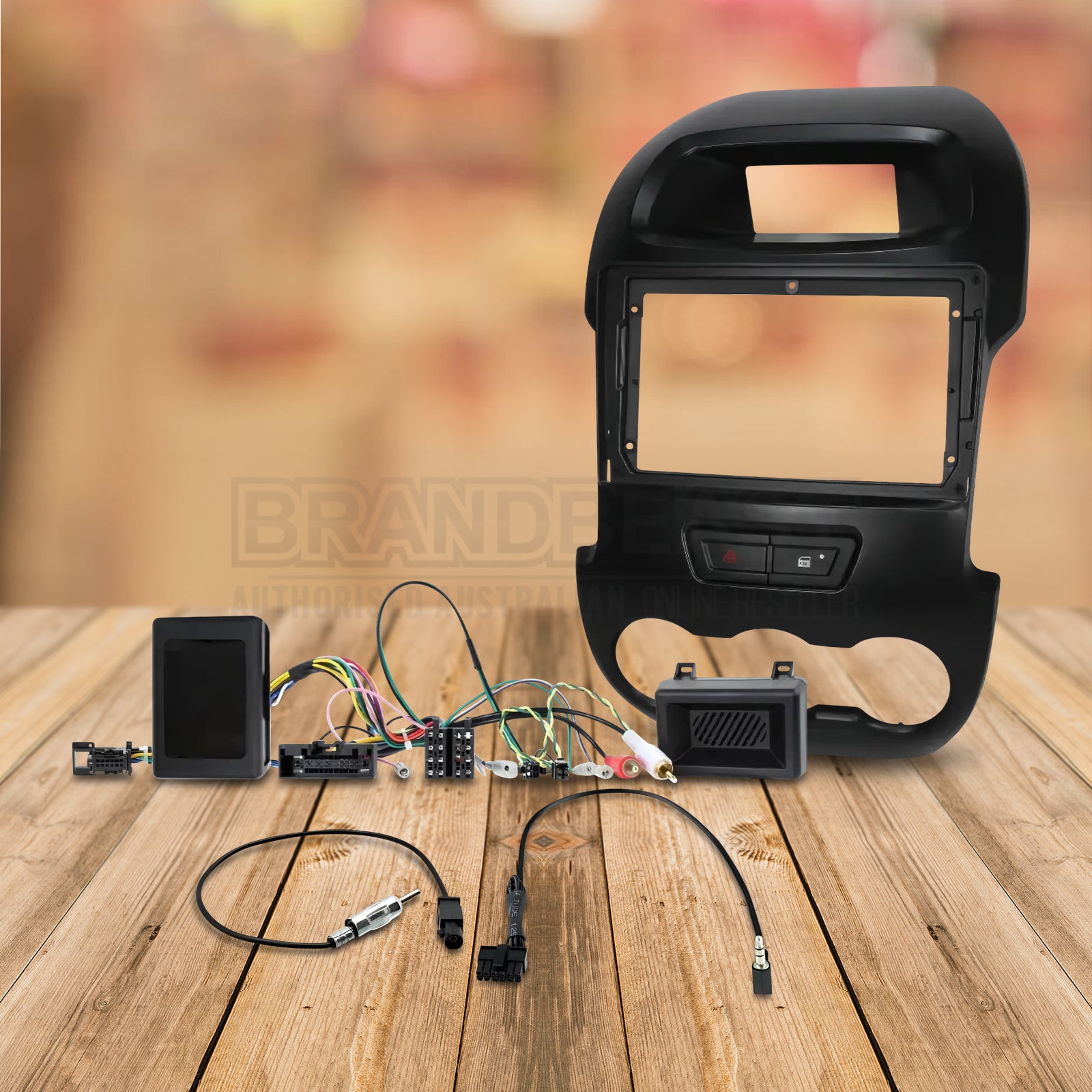

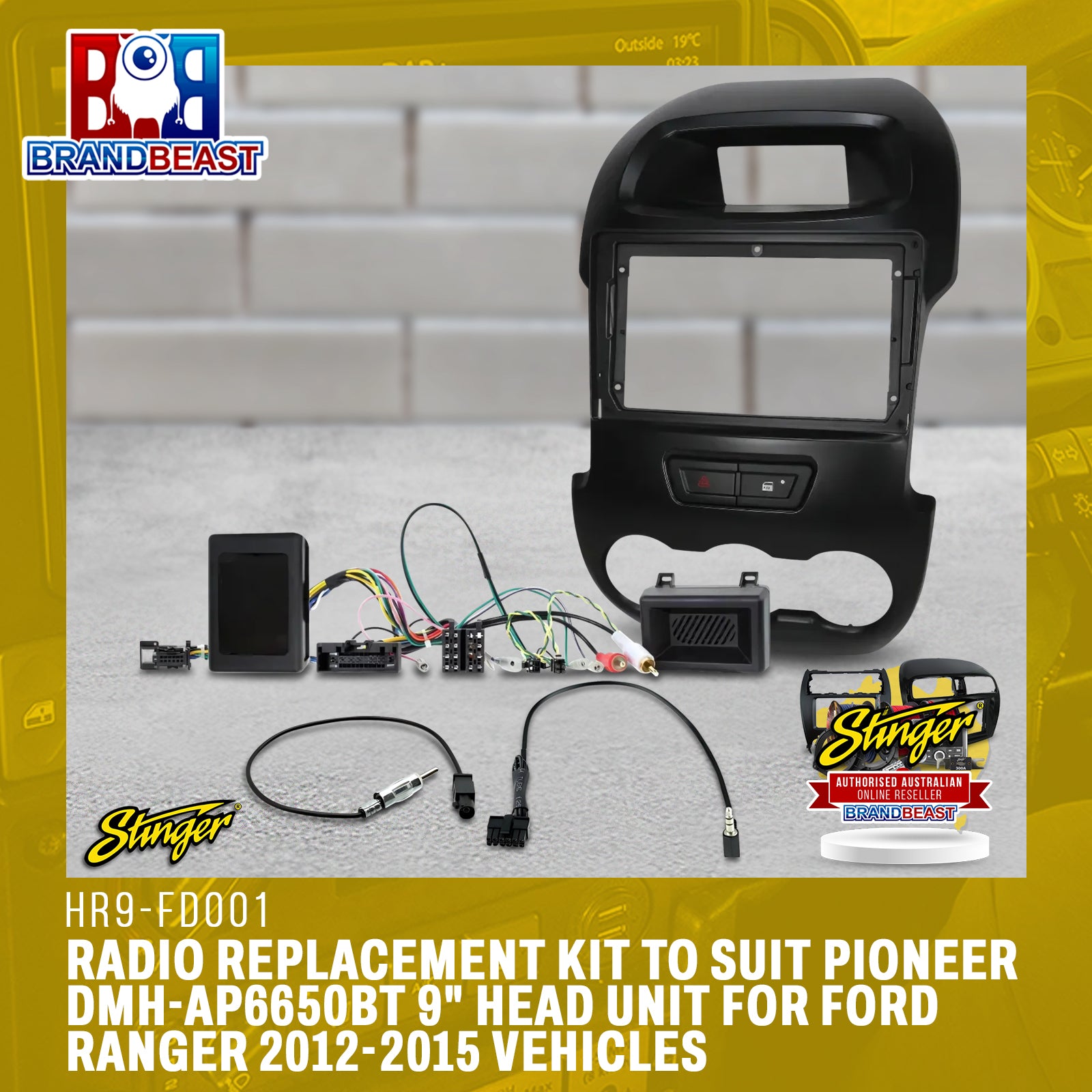

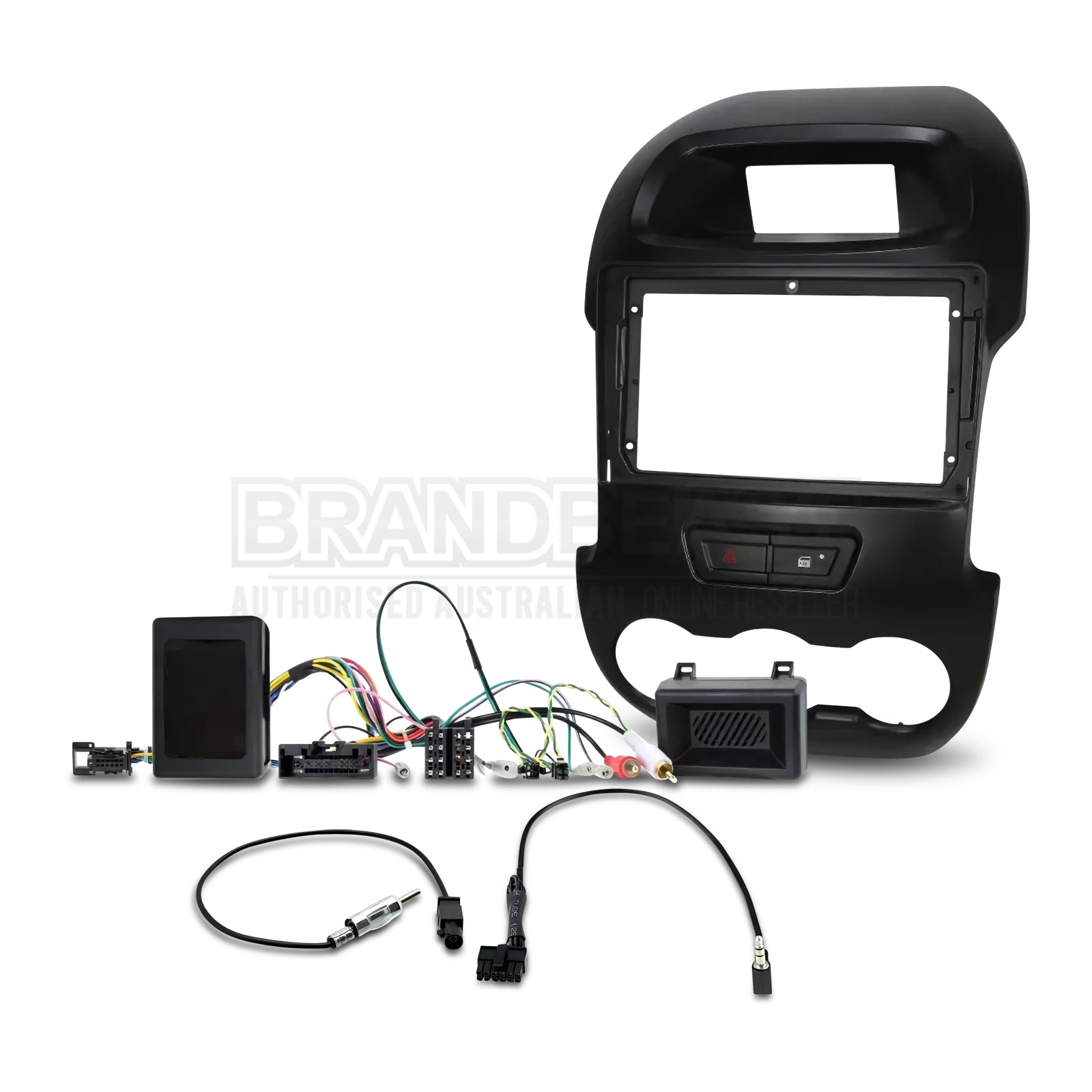

The Stinger HR9-FD001 is a complete radio installation kit for fitting the Pioneer DMH-AP6650BT 9-inch head unit into 2012 to 2015 Ford Ranger PX1 non-navigation models. Includes a 9-inch flush-fit black fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, AUX retention, full navigation outputs, and a replacement hazard and door lock button. Steering wheel phone buttons are not retained. Reverse camera retention and USB retention are not included. The Pioneer DMH-AP6650BT head unit is not included.
Product overview
The HR9-FD001 addresses a detail most generic install kits overlook: in the PX1 Ford Ranger, the hazard switch is built into the factory head unit surround. Replacing the head unit removes this function. The HR9-FD001 includes a replacement hazard and door lock button to restore this cleanly within the new fascia.
The plug-and-play harness connects to the factory connector and converts to standard ISO with no splicing, soldering, or permanent wiring changes. The SWC interface retains factory steering wheel audio buttons on compatible aftermarket radios and holds its programming through power loss. Audio buttons only are retained steering wheel phone buttons are not retained by this kit. Full navigation outputs covering reverse, park, ignition, illumination, and VSS allow navigation and safety feature integration with the Pioneer head unit. Factory AUX is retained where the vehicle is equipped with it.
Reverse camera retention and USB retention are not included. This kit suits non-navigation PX1 Ranger models only. It is not compatible with factory navigation-equipped variants. Confirm your vehicle's configuration before purchasing.
Features and benefits

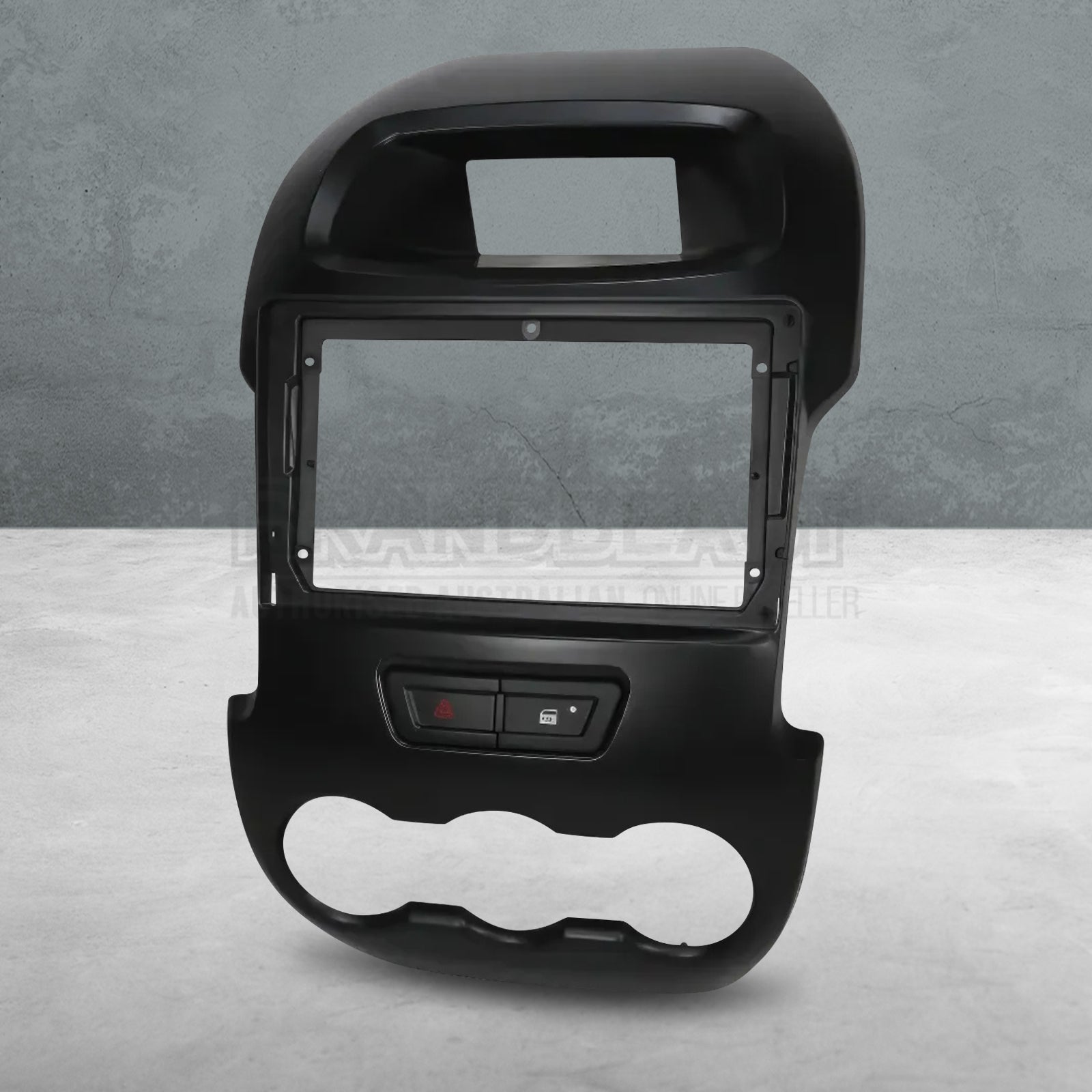

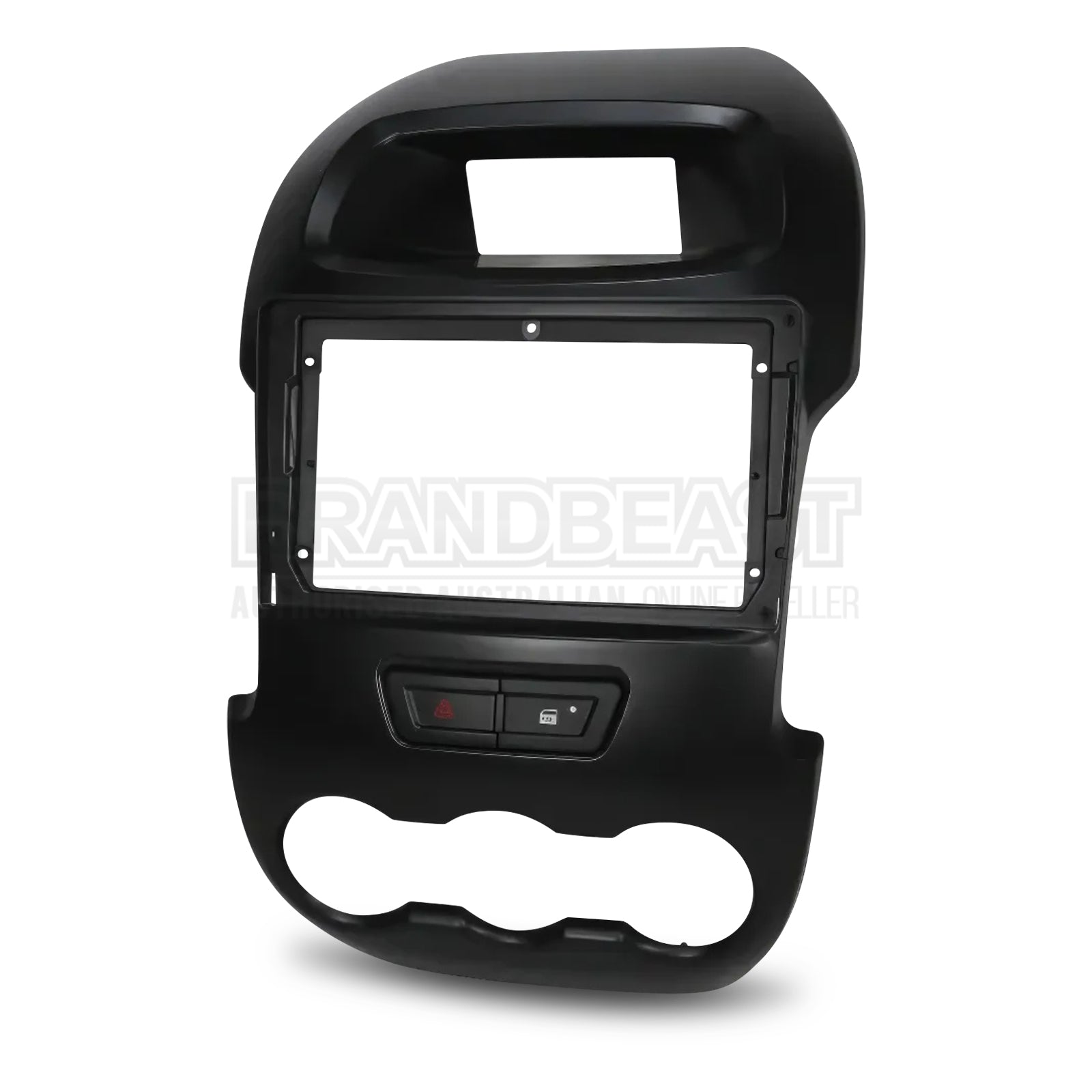

9-inch flush-fit black fascia: Purpose-moulded for the PX1 Ranger's dash for a factory-finish result with the Pioneer DMH-AP6650BT.
Replacement hazard and door lock button included: The PX1 Ranger's hazard switch is integrated into the factory head unit surround. This kit includes a replacement button to restore that function cleanly within the new fascia.

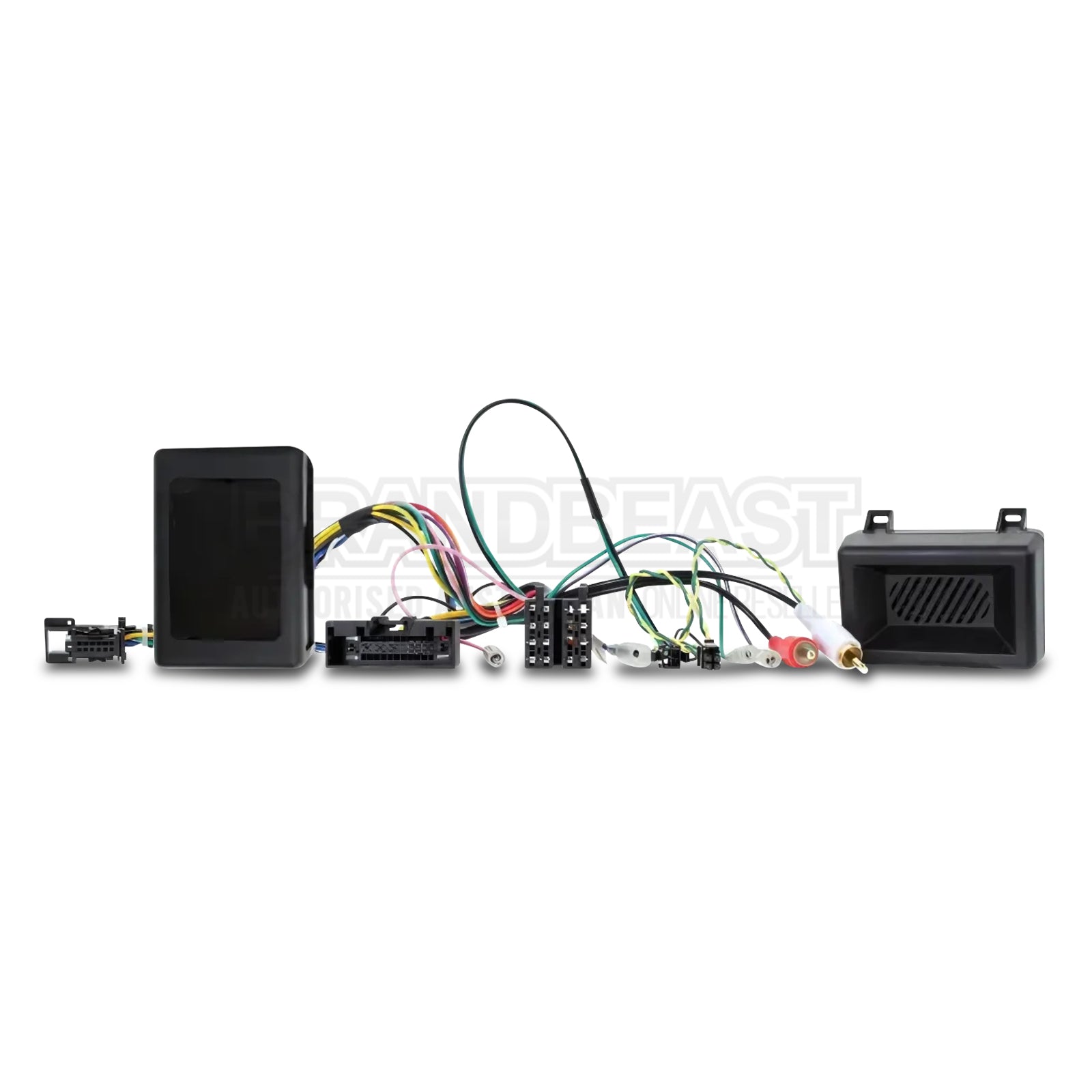

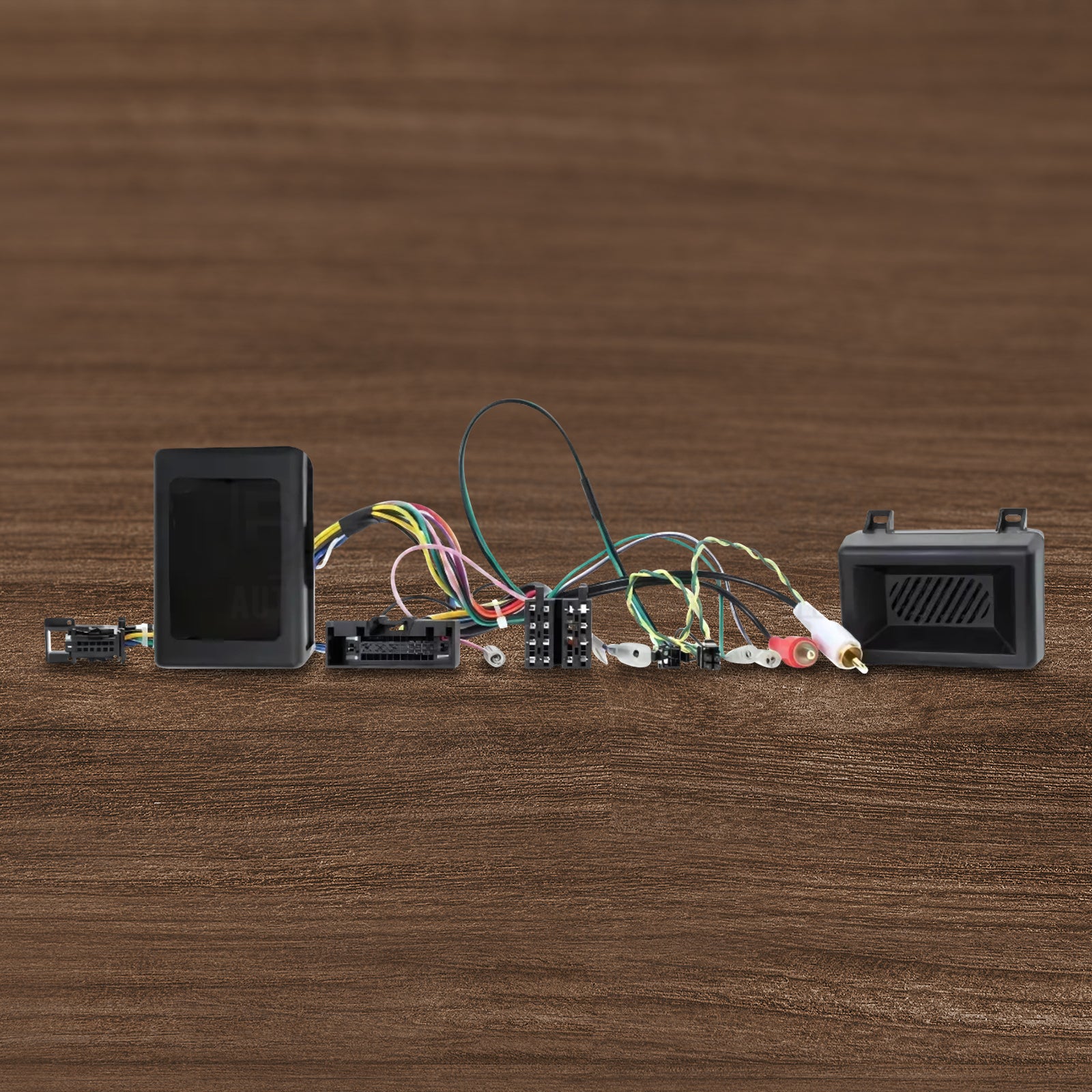

Plug-and-play harness: Connects to the factory connector and converts to standard ISO with no splicing, soldering, or permanent wiring changes.
Steering wheel audio control retention (audio buttons only): Retains factory steering wheel audio buttons with compatible aftermarket radios. SWC programming is retained through power loss. Steering wheel phone buttons are not retained.
Full navigation outputs (reverse, park, ignition, illumination, VSS): Complete suite of signal outputs for navigation and safety feature integration.
Factory AUX retention: Retains the factory AUX input where the PX1 Ranger is equipped with one.

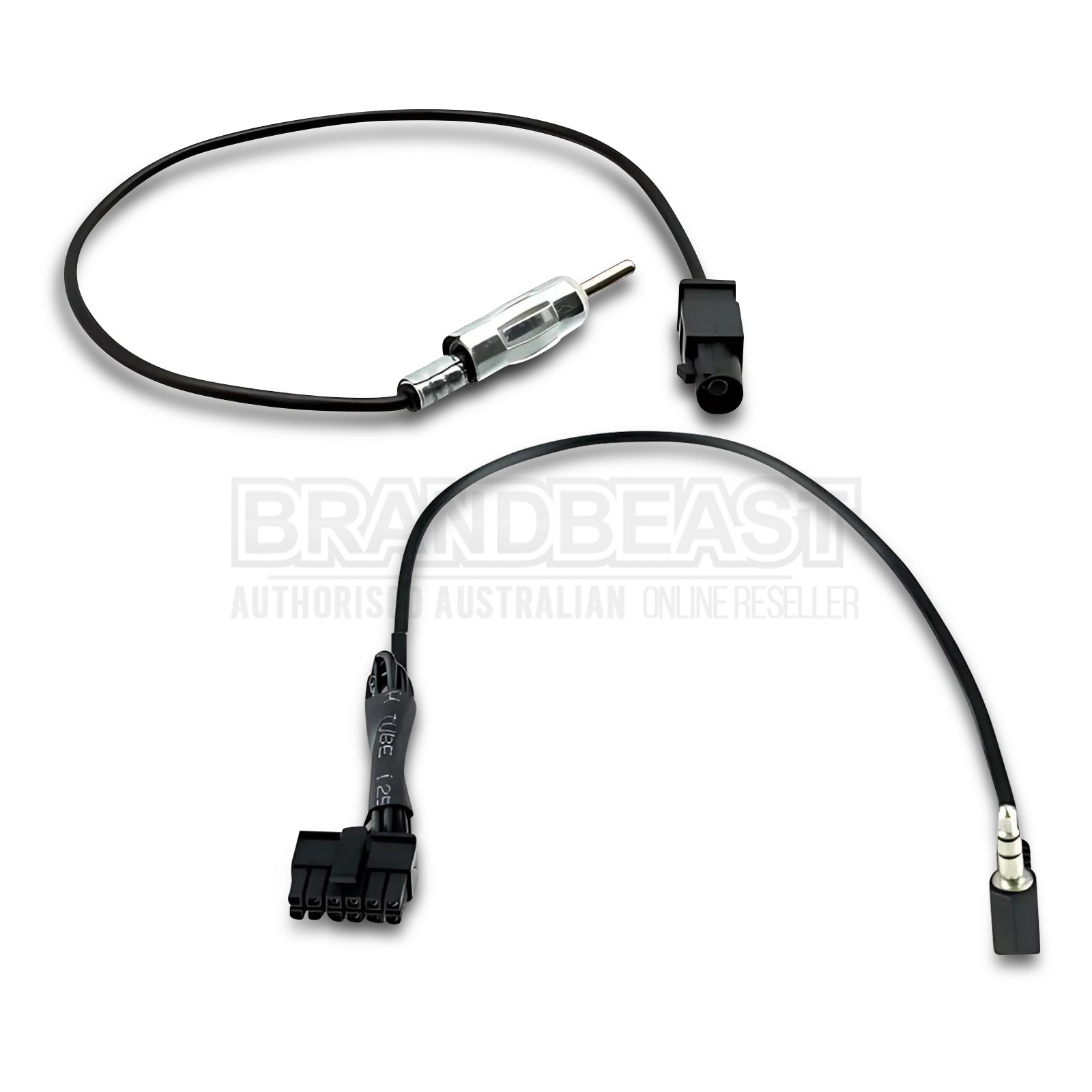

Antenna adaptor included: Factory FM/AM reception maintained without additional parts.
Non-navigation models only: Not compatible with factory navigation-equipped PX1 Ranger variants.
No reverse camera or USB retention included: Additional products will be required for these functions.
Head unit not included: The Pioneer DMH-AP6650BT is sold separately.
Technical specs
| Specification |
Detail |
| SKU |
HR9-FD001 |
| Brand |
Stinger |
| Colour |
Black |
| Output |
Standard ISO connector |
| Fascia Size |
9-inch flush fit |
| Navigation Model Compatibility |
Non-navigation models only |
| Plug and Play |
Yes, factory to ISO, no splicing required |
| Steering Wheel Audio Controls |
Retained (audio buttons only; phone buttons not retained) |
| SWC Memory |
Retained on power loss |
| Navigation Outputs |
Reverse, park, ignition, illumination, VSS |
| AUX Retention |
Yes, if factory AUX equipped |
| USB Retention |
Not included |
| Reverse Camera Retention |
Not included |
| Antenna Adaptor |
Included |
| Hazard and Door Lock Button |
Included |
| Head Unit Compatibility |
Pioneer DMH-AP6650BT |
Compatible with
Ford Ranger PX1 2012 to 2015, non-navigation models only.
Not compatible with factory navigation-equipped PX1 Ranger variants.
Frequently asked questions
Does the HR9-FD001 include the Pioneer DMH-AP6650BT head unit? No. The Pioneer DMH-AP6650BT is sold separately. The HR9-FD001 is the installation kit providing the fascia, harness, SWC interface, antenna adaptor, and hazard and door lock replacement button needed to fit that head unit into compatible PX1 Ranger models.
Why does this kit include a hazard and door lock button? In the PX1 Ford Ranger, the hazard switch is built into the factory head unit surround. Replacing the head unit removes this switch, so the HR9-FD001 includes a replacement button to restore that function cleanly within the new fascia.
Is this kit compatible with factory navigation PX1 Ranger models? No. The HR9-FD001 is for non-navigation PX1 Ranger models only. If your Ranger is fitted with the factory navigation system, this kit is not suitable.
Will this kit retain all my steering wheel control buttons? Audio buttons only. Volume and track controls are retained via the included SWC interface on compatible aftermarket radios. Steering wheel phone buttons are not retained by this kit, even if your vehicle is equipped with them.
Does this kit include reverse camera or USB retention? No. Neither reverse camera retention nor USB retention is included. Factory AUX is retained where the vehicle is equipped with it. Contact us if reverse camera integration or USB connectivity is required so the correct additional products can be identified.
