Stinger HR9-FD002 9 Inch Complete Install Kit for Pioneer DMH-AP6650BT in Ford Ranger PX2 2015 to 2019 with SWC Full Nav Outputs Reverse Camera USB and Antenna

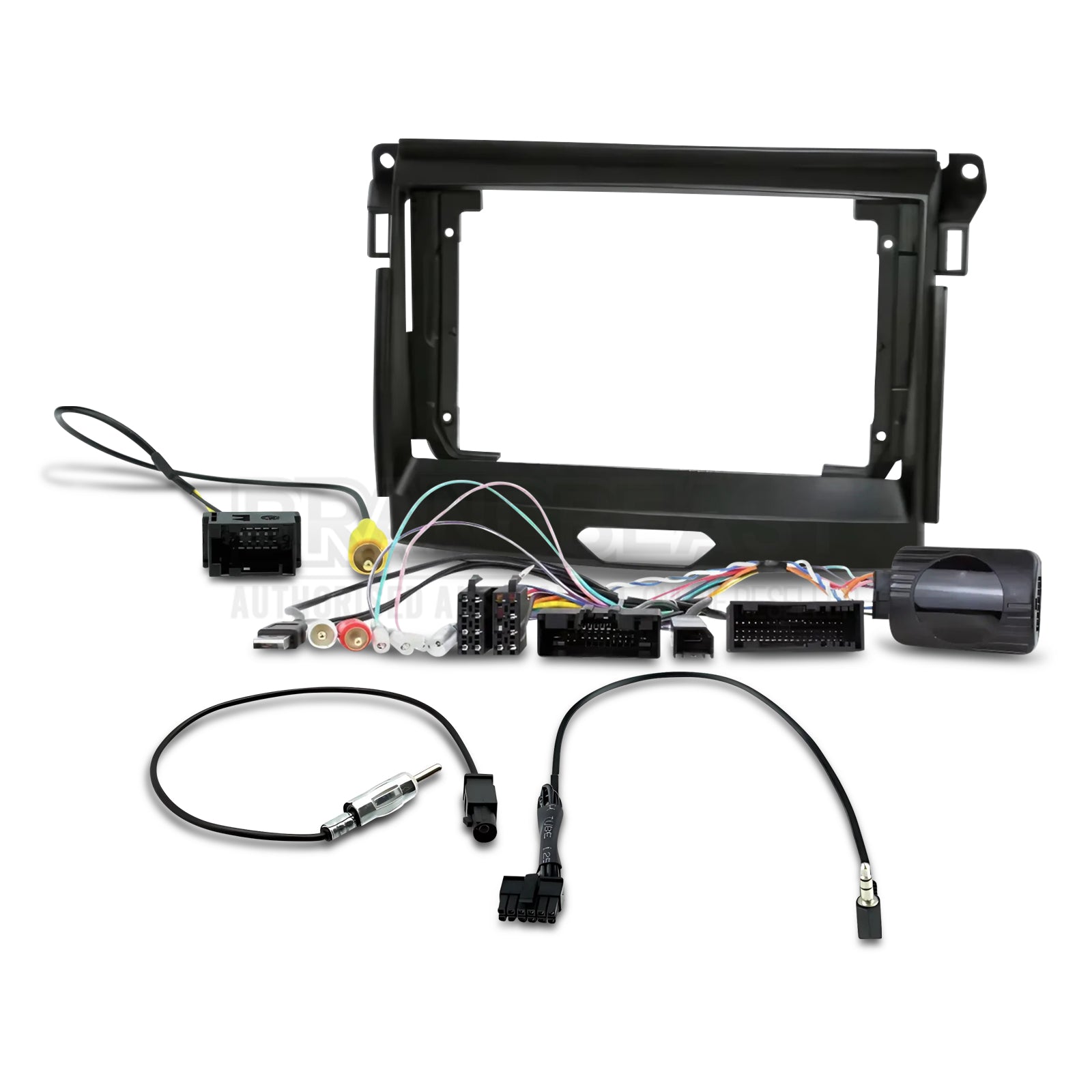

The Stinger HR9-FD002 is a complete radio installation kit for fitting the Pioneer DMH-AP6650BT 9-inch head unit into 2015 to 2019 Ford Ranger PX2 models fitted with the factory 4.3-inch screen and CD mechanism. Includes a 9-inch flush-fit black fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, USB retention, and reverse camera retention. Full navigation outputs covering reverse, park, ignition, illumination, and VSS are provided. Not compatible with PX2 Ranger models fitted with the factory 8-inch screen. AUX retention is not included. The Pioneer DMH-AP6650BT head unit is not included.
Product overview
The HR9-FD002 is engineered for the PX2 Ranger's dash and factory wiring, providing everything needed for a clean installation of the Pioneer DMH-AP6650BT. The plug-and-play harness connects to the factory connector configuration and converts to standard ISO with no splicing, soldering, or permanent wiring changes.

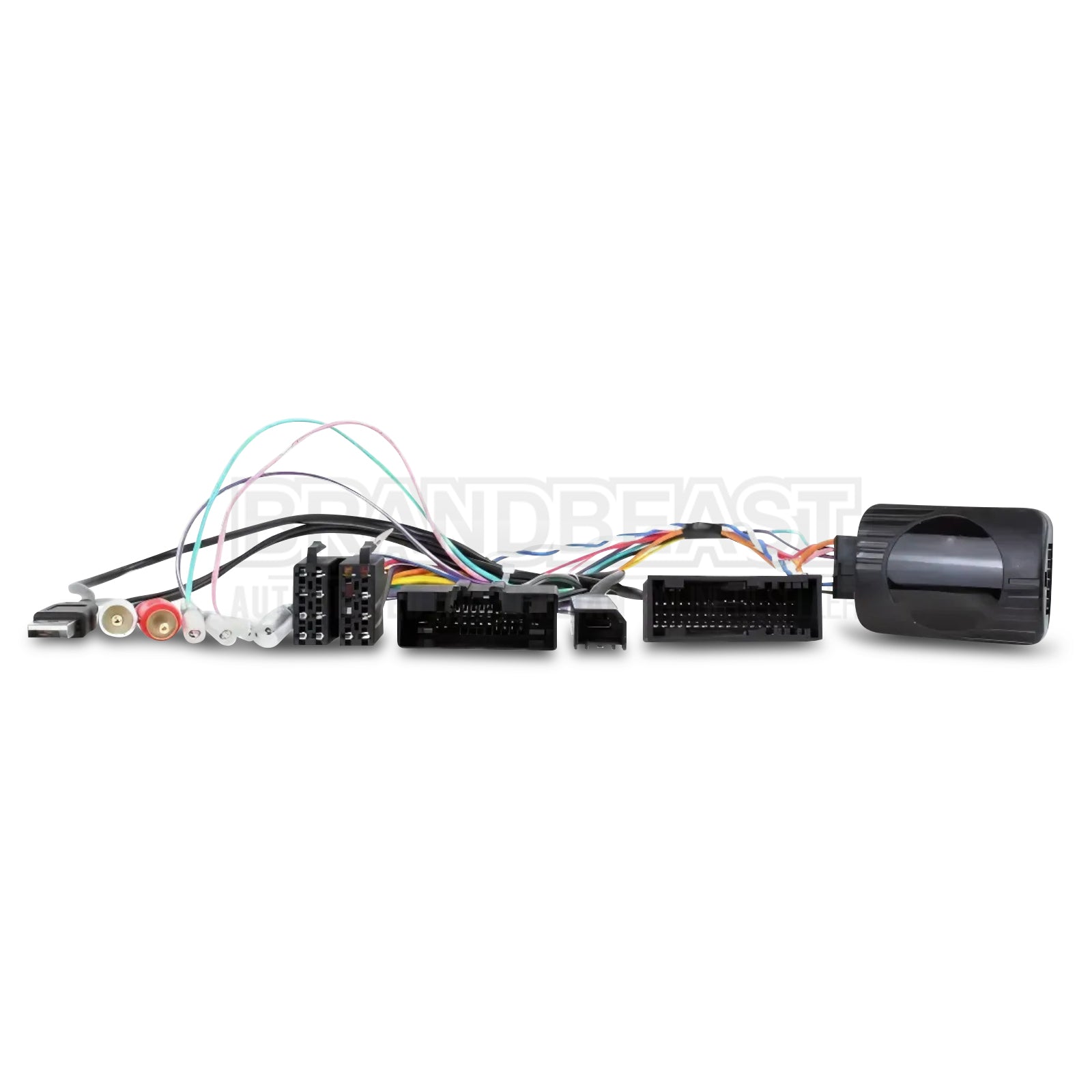

The SWC interface retains factory steering wheel audio buttons on compatible aftermarket radios and holds its programming through power loss. Full navigation outputs covering reverse, park, ignition, illumination, and VSS allow complete navigation and safety feature integration with the Pioneer head unit without additional wiring. Reverse camera retention passes the factory camera signal through to the Pioneer head unit. USB retention keeps the factory USB port functional with the new head unit. AUX retention is not included.
This kit suits PX2 Ranger models with the factory 4.3-inch screen and CD mechanism only. If your Ranger has the factory 8-inch screen, this kit is not compatible. Confirm your vehicle's factory screen size before purchasing.
Features and benefits

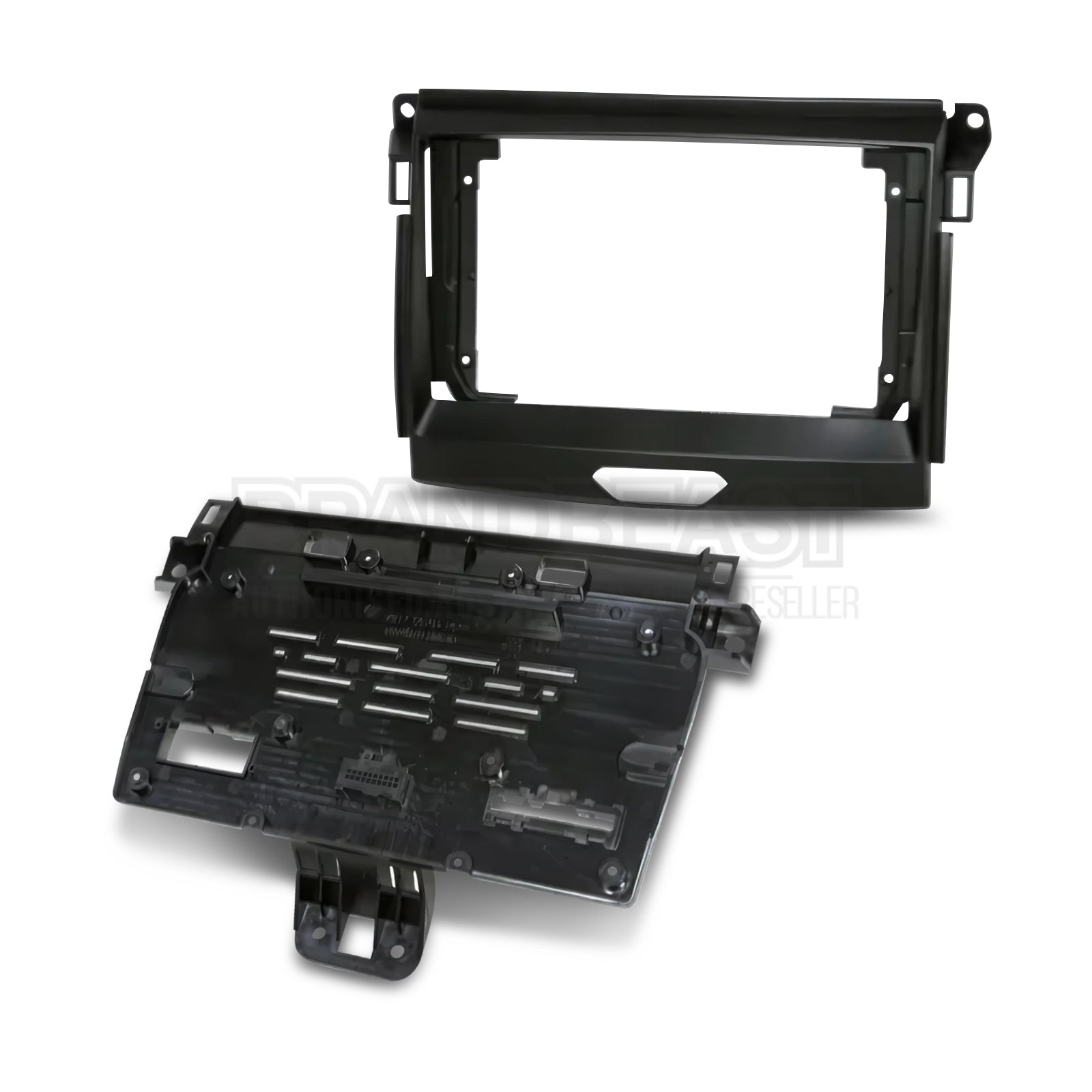

9-inch flush-fit black fascia: Purpose-moulded for the PX2 Ranger's dash for a factory-finish result with the Pioneer DMH-AP6650BT.
Plug-and-play harness: Connects to the factory connector and converts to standard ISO with no splicing, soldering, or permanent wiring changes.
Steering wheel audio control retention: Retains factory steering wheel audio buttons with compatible aftermarket radios. SWC programming is retained through power loss.
Full navigation outputs (reverse, park, ignition, illumination, VSS): Complete suite of signal outputs for navigation and safety feature integration with the Pioneer head unit.

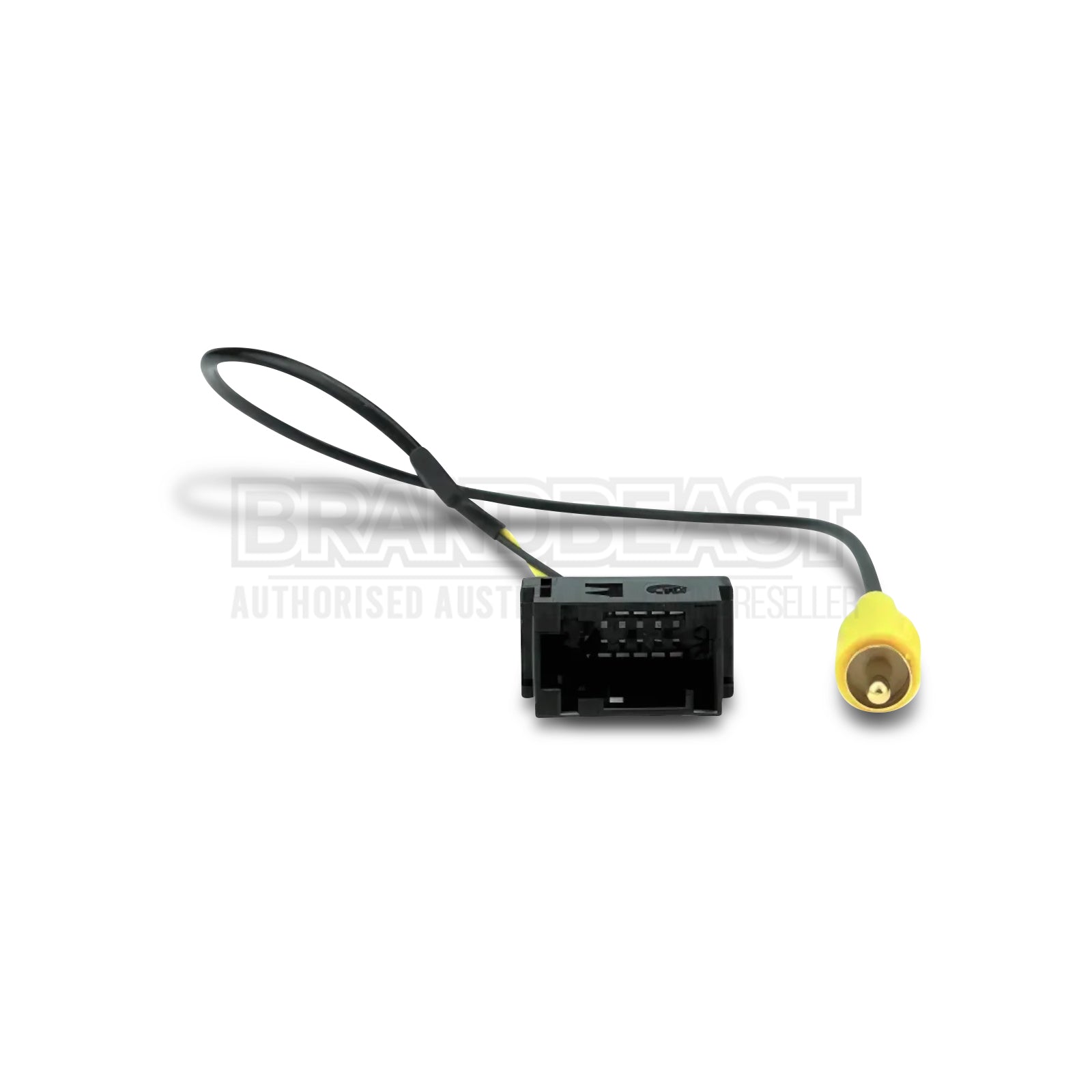

Reverse camera retention: Passes the factory reverse camera signal through to the Pioneer head unit.
USB retention: Factory USB port retained via the included harness. AUX retention is not included.

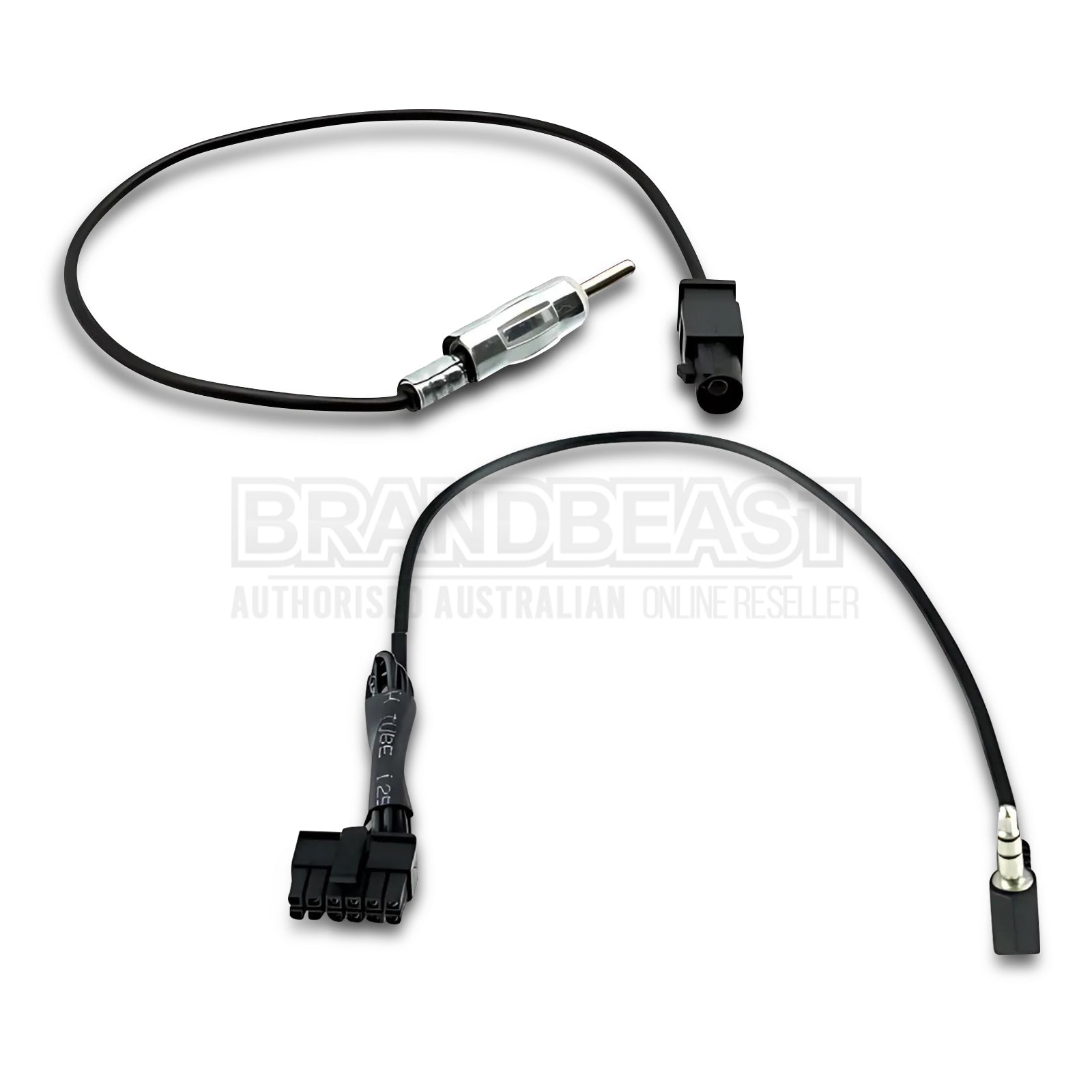

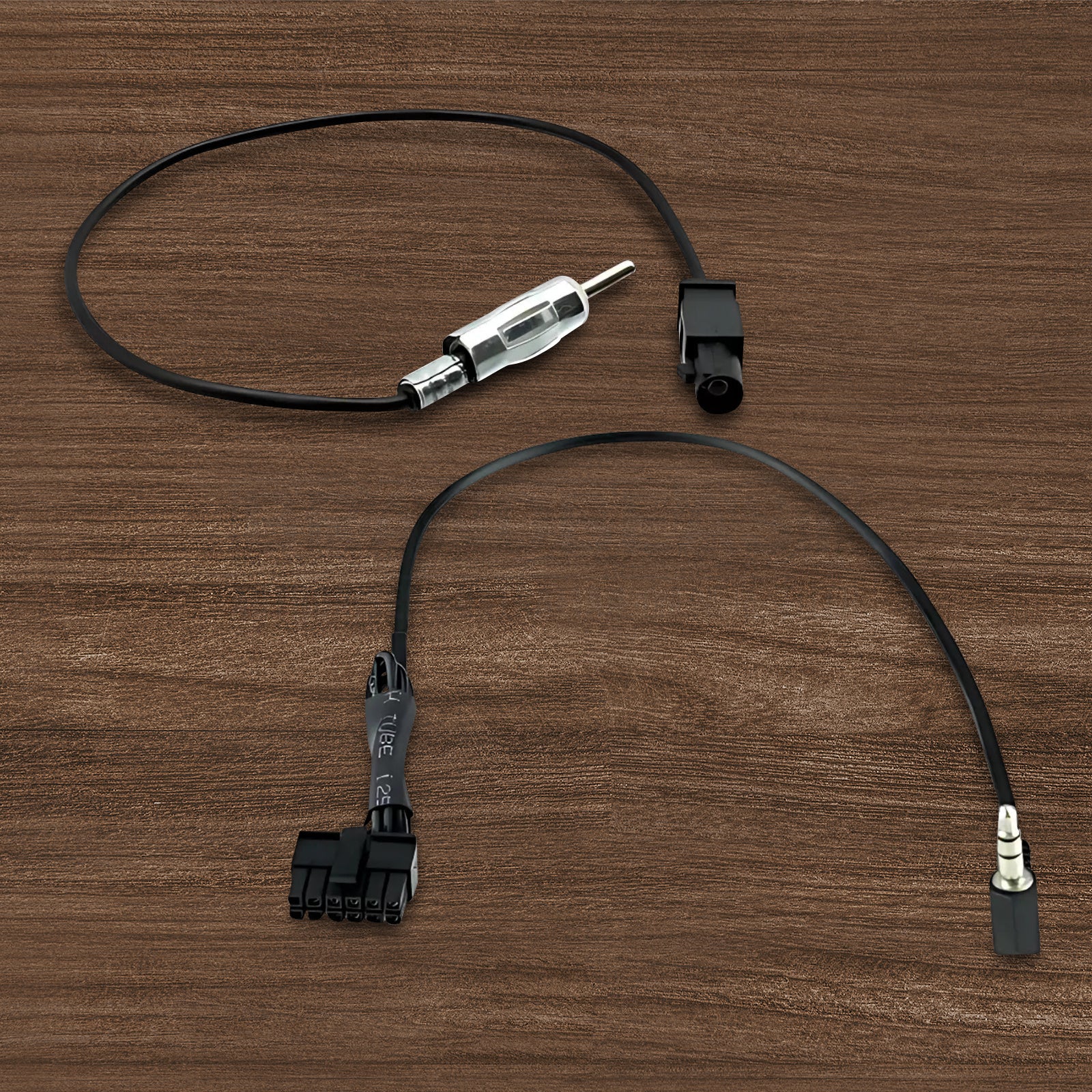

Antenna adaptor included: Factory FM/AM reception maintained without additional parts.
Factory 4.3-inch screen with CD mechanism required: Not compatible with PX2 Ranger models fitted with the factory 8-inch screen. Confirm factory screen size before purchasing.
Head unit not included: The Pioneer DMH-AP6650BT is sold separately.
Technical specs
| Specification |
Detail |
| SKU |
HR9-FD002 |
| Brand |
Stinger |
| Colour |
Black |
| Output |
Standard ISO connector |
| Fascia Size |
9-inch flush fit |
| Factory Screen Requirement |
4.3-inch screen with CD mechanism |
| Not Compatible With |
Factory 8-inch screen models |
| Plug and Play |
Yes, factory to ISO, no splicing required |
| Steering Wheel Audio Controls |
Retained (compatible aftermarket radios) |
| SWC Memory |
Retained on power loss |
| Navigation Outputs |
Reverse, park, ignition, illumination, VSS |
| Reverse Camera Retention |
Yes, reverse camera only |
| USB Retention |
Yes, USB only |
| AUX Retention |
Not included |
| Antenna Adaptor |
Included |
| Head Unit Compatibility |
Pioneer DMH-AP6650BT |
Compatible with
Ford Ranger PX2 2015 to 2019, factory 4.3-inch screen with CD mechanism only.
Not compatible with Ford Ranger models fitted with the factory 8-inch screen.
Frequently asked questions
Does the HR9-FD002 include the Pioneer DMH-AP6650BT head unit? No. The Pioneer DMH-AP6650BT is sold separately. The HR9-FD002 is the installation kit providing the fascia, harness, SWC interface, antenna adaptor, USB retention, and reverse camera retention needed to fit that head unit into compatible PX2 Ranger models.
How do I know if my Ranger is compatible with this kit? This kit suits 2015 to 2019 Ford Ranger PX2 models fitted with the factory 4.3-inch screen and CD mechanism. It is not compatible with models that came with the factory 8-inch screen. Check your vehicle's current factory screen size before purchasing.
Will this kit retain my factory steering wheel controls and reverse camera? Yes to both. The SWC interface retains audio button functions with compatible aftermarket radios, and the reverse camera retention passes the factory camera signal through to the Pioneer head unit. SWC programming is retained through power loss.
What navigation outputs does this kit provide? The interface provides reverse, park, ignition, illumination, and VSS signal outputs a full suite for navigation and safety feature integration with the Pioneer head unit without additional wiring.
Is factory USB retained and what about AUX? USB is retained via the included harness, keeping the factory USB port functional with the Pioneer head unit. AUX retention is not included with this kit.
