iLoad & iMax Audio Sorted Full 9" Pioneer Fitment With Every Output You Need
Product Overview

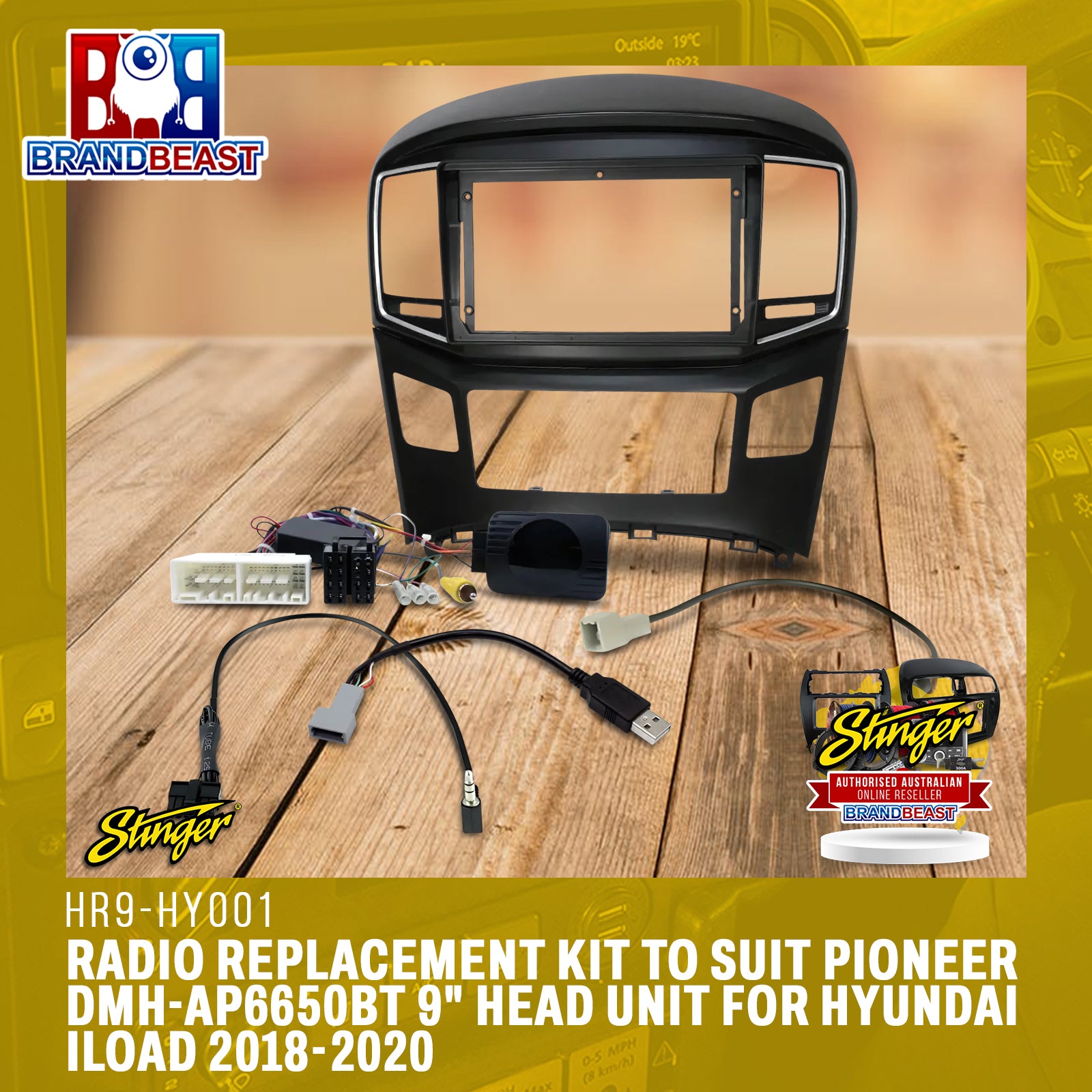

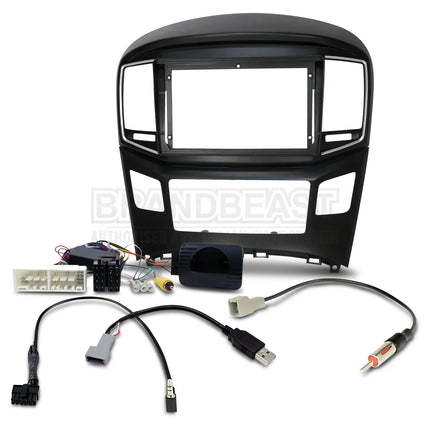

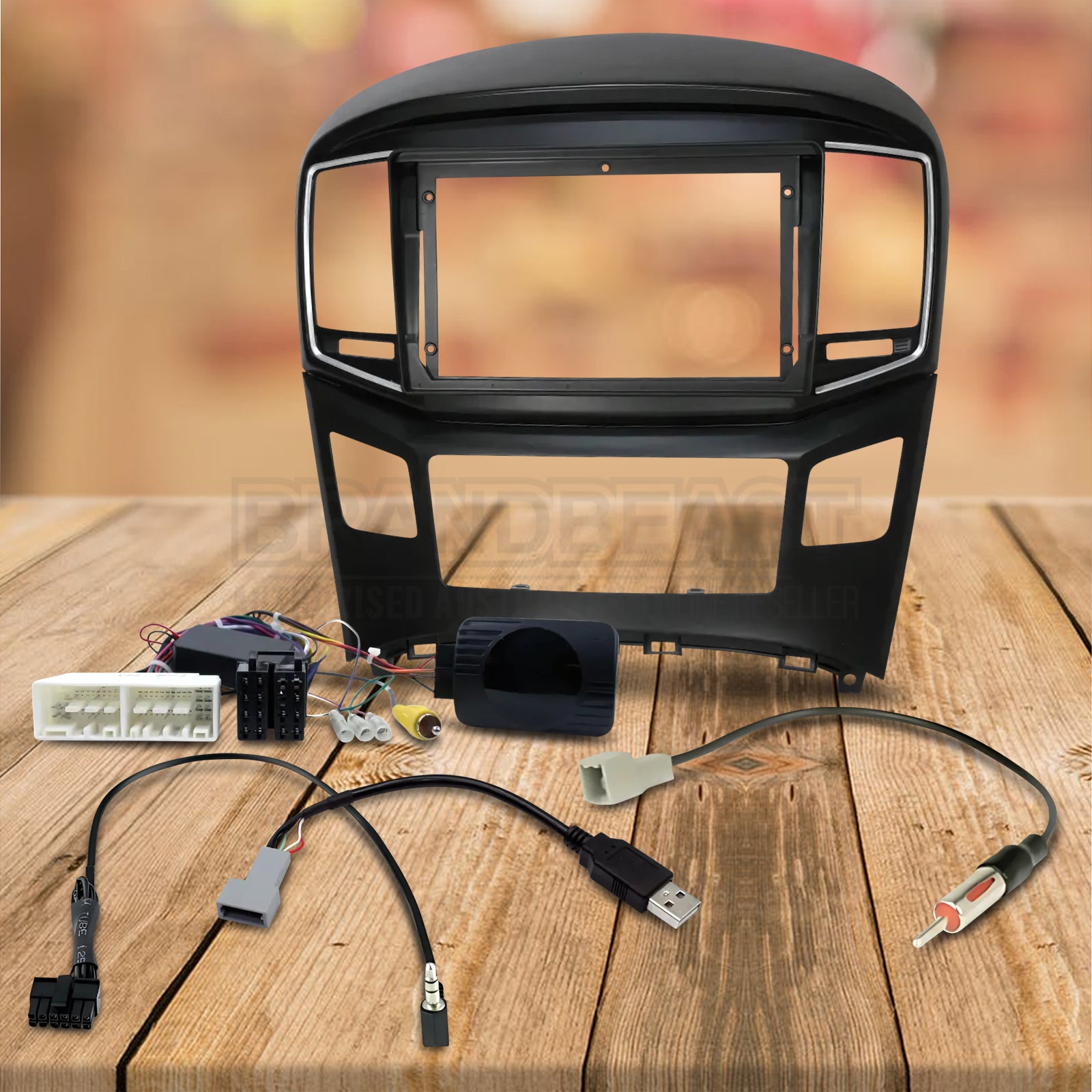

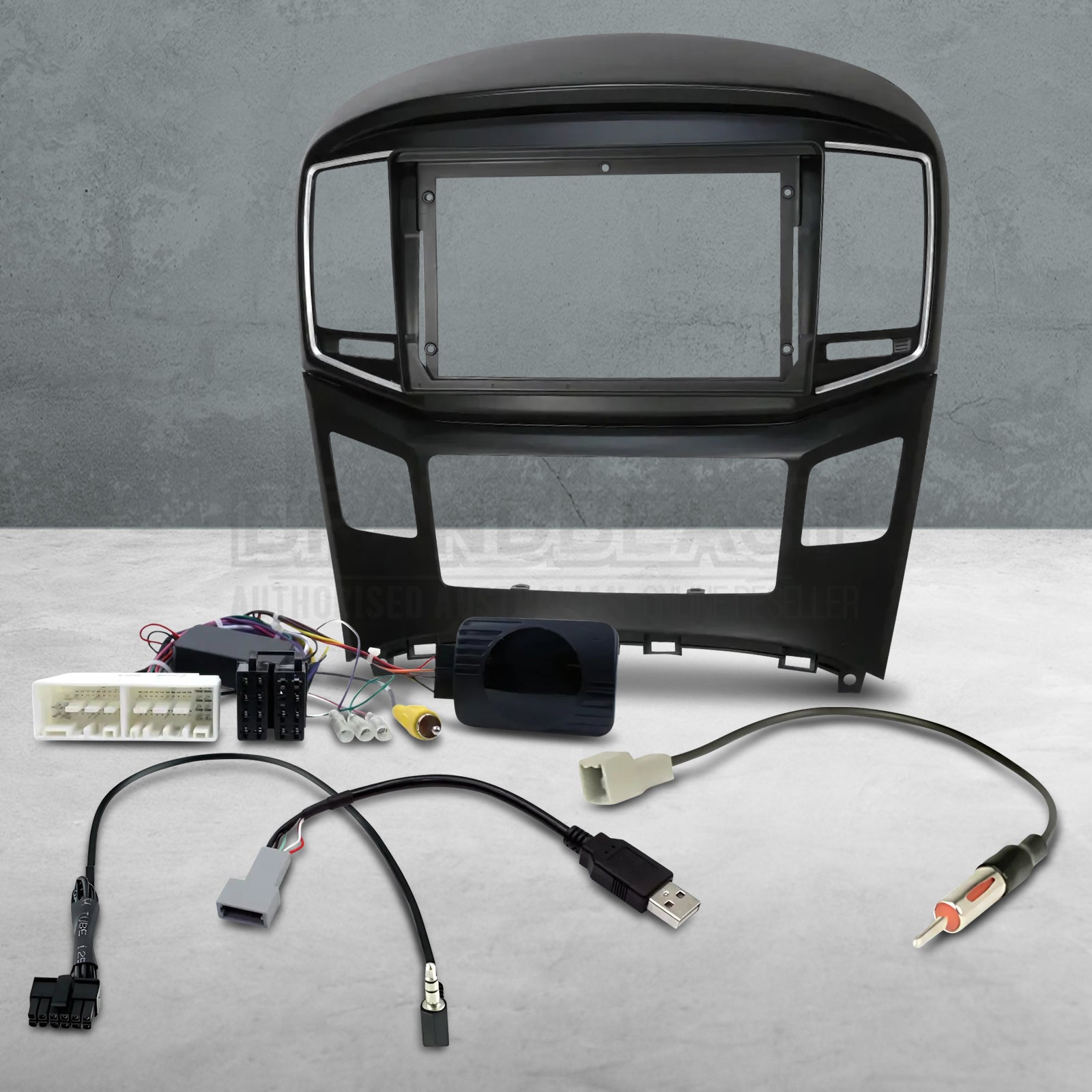

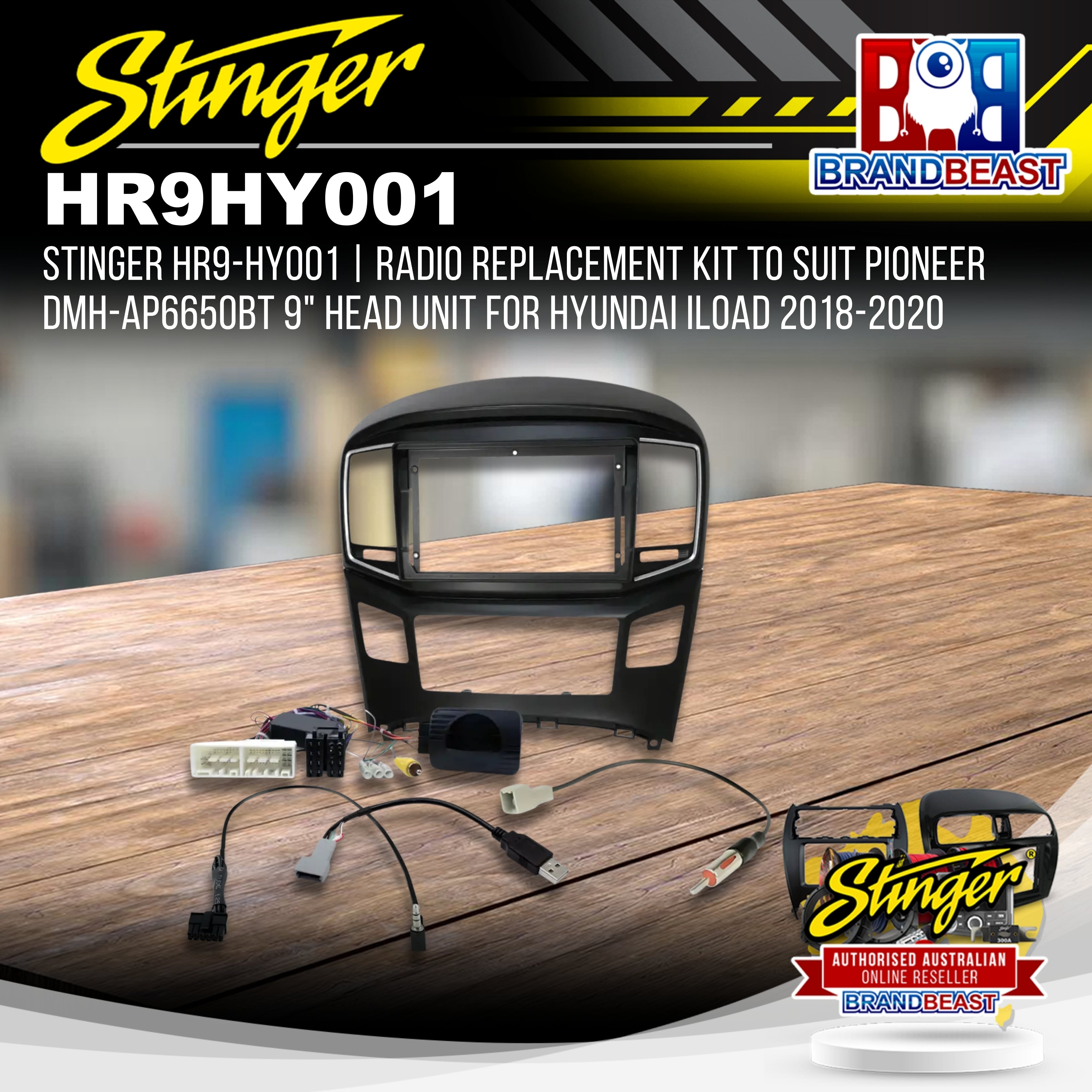

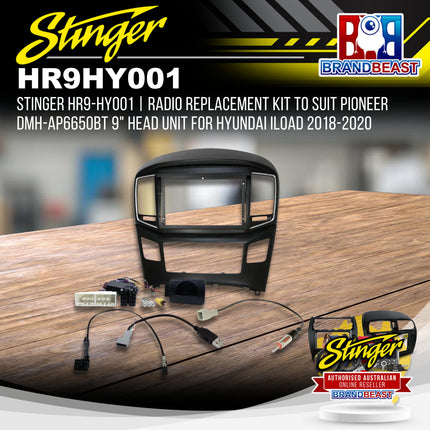

The Stinger HR9-HY001 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2018–2020 Hyundai iLoad and iMax models. This complete bundle provides a flush-fit 9" fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, USB retention, and reverse camera retention all matched and engineered for the iLoad/iMax factory wiring and dash.
Beyond audio button retention, the HR9-HY001's SWC interface delivers a full suite of navigation outputs reverse, park, ignition, illumination, and VSS enabling proper head unit integration without additional wiring. The interface also retains its programming through battery disconnection. Please note: the Pioneer DMH-AP6650BT head unit is not included.
Key Specifications
- Manufacturer Part Number: HR9-HY001
- Compatible head unit: Pioneer DMH-AP6650BT (9" display)
- Vehicle compatibility: Hyundai iLoad 2018–2020 / Hyundai iMax 2018–2020
- Factory connector type: 38-pin + 35-pin Hyundai/Kia style connectors
- Output connector type: Standard ISO connector
- Steering wheel audio control retention: Yes (select aftermarket radios)
- SWC memory retention: Yes — retained on power loss
- Navigation outputs: Yes — reverse, park, ignition, illumination, VSS
- Reverse camera retention: Yes — included with interface
- USB retention: Yes — USB only (no AUX)
- Antenna adaptor: Included
- Colour: Black
- Plug & Play: Yes
Features & Benefits
-

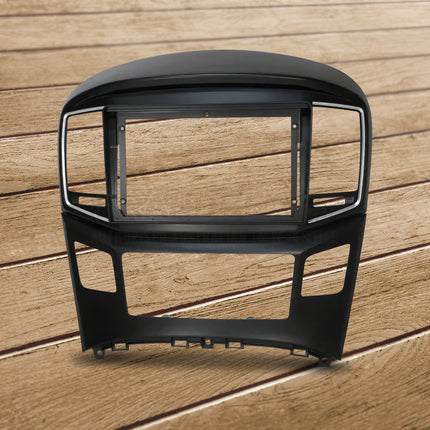

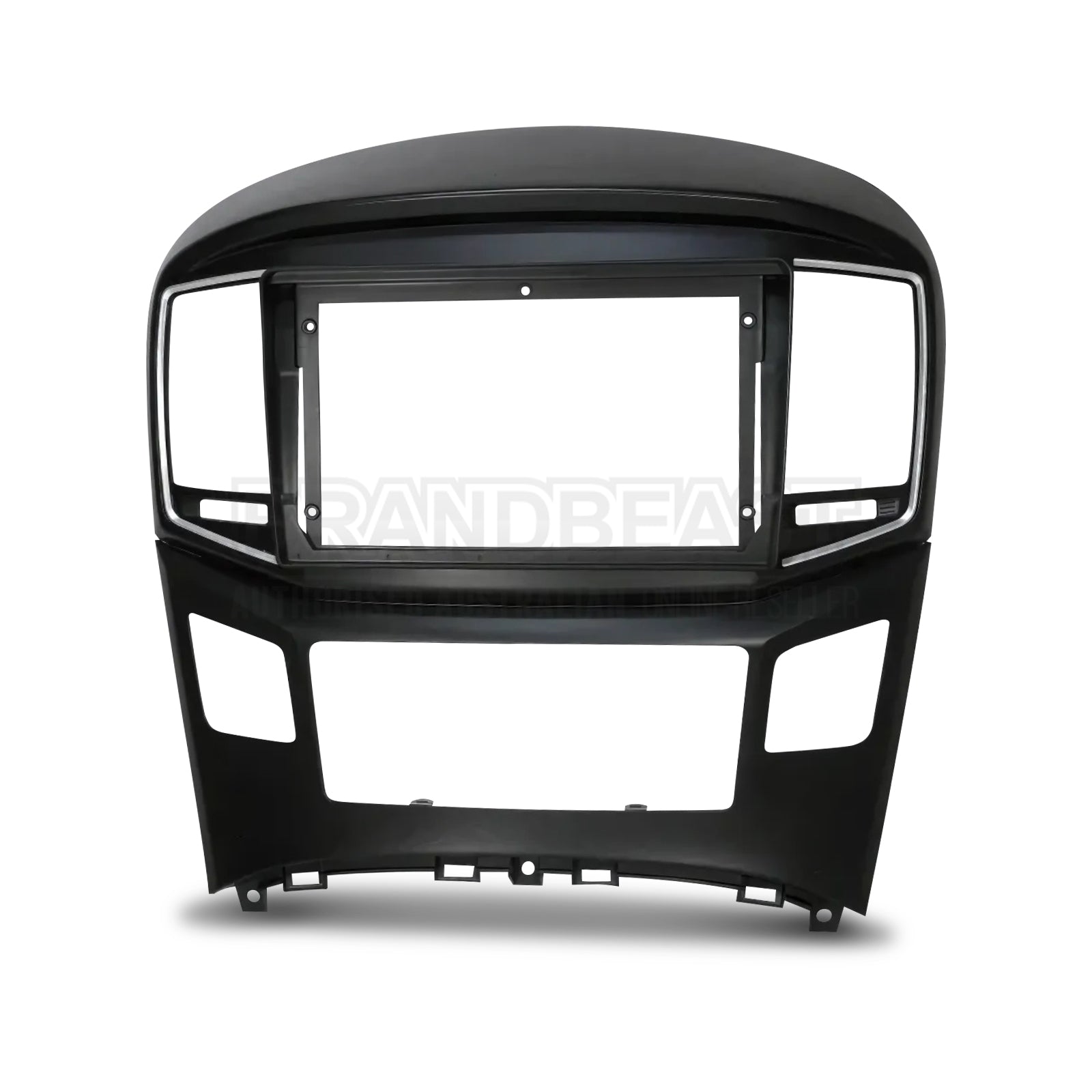

9" Flush Fit Radio Panel — Purpose-moulded for the iLoad and iMax dash, delivering a factory-finish result around the larger 9" Pioneer screen with no gaps or generic trims on show.
-
Steering Wheel Audio Control Retention — Keeps factory steering wheel audio buttons active through the included interface with compatible aftermarket radios. Memory is retained even when battery power is lost.
-
Full Navigation Outputs — The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs to the head unit — enabling full navigation and safety feature integration without additional wiring runs.
-
Reverse Camera Retention — The reverse camera retention interface is included and integrated with the SWC harness, passing the factory camera signal directly to the Pioneer head unit.
-

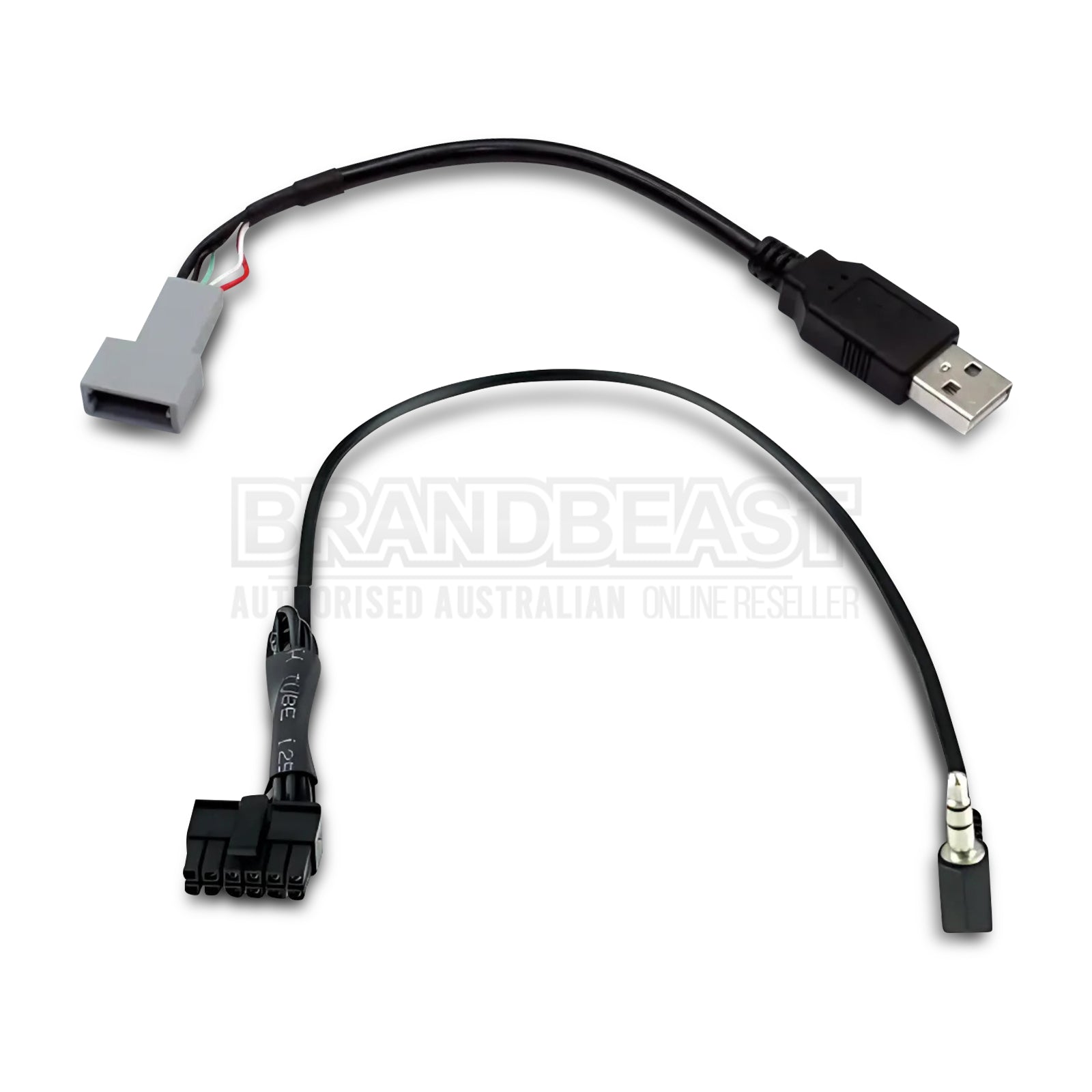

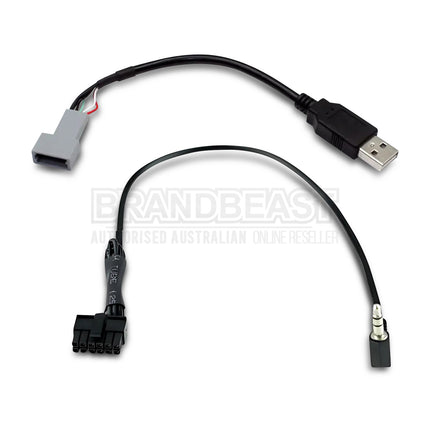

USB Retention — Factory USB port is retained via the included harness, keeping the factory USB connection functional with the new head unit. AUX is not retained.
-

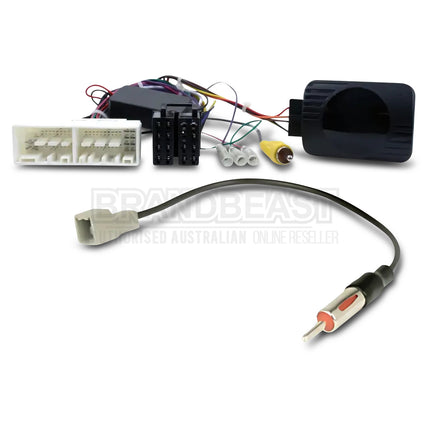

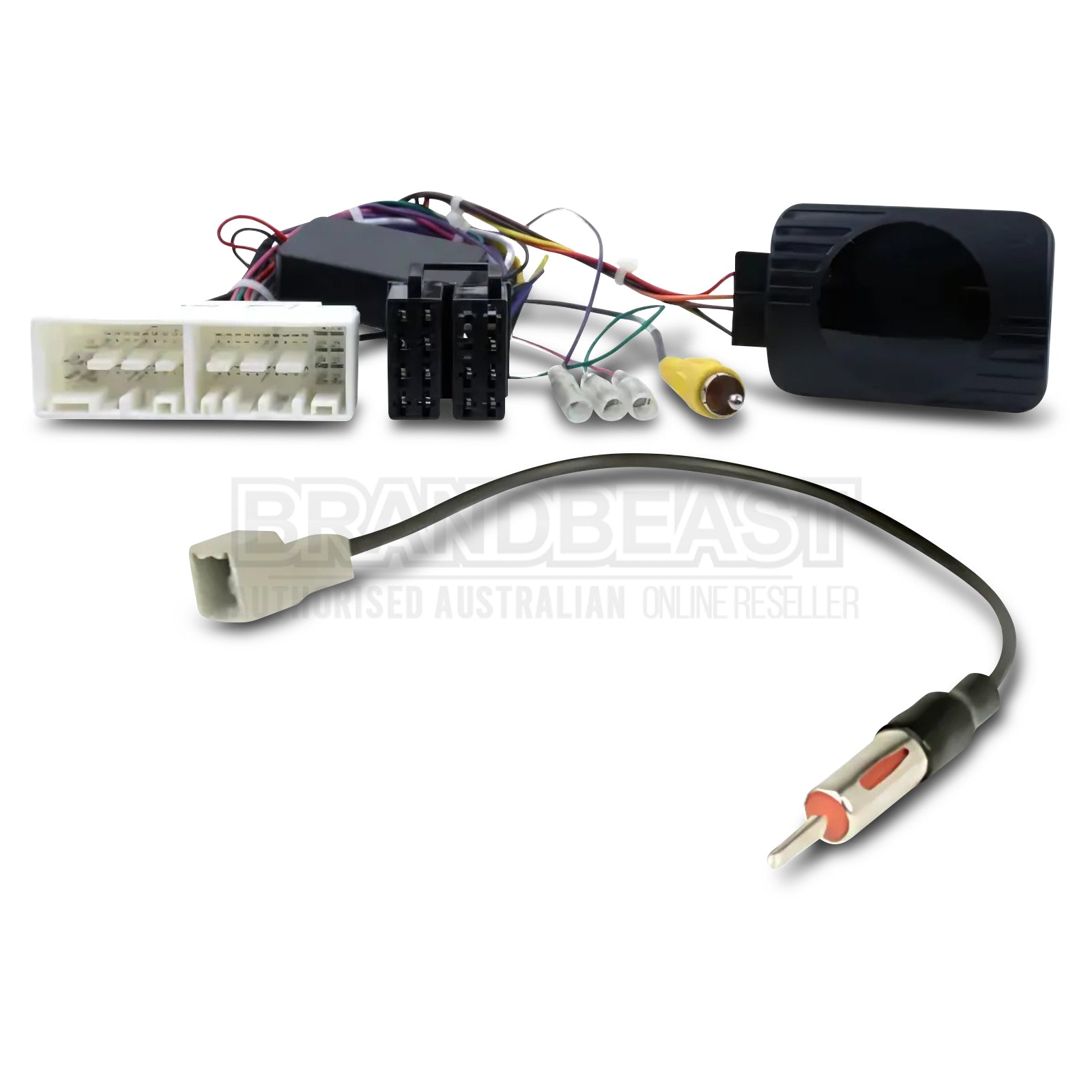

Plug & Play Harness (38-pin + 35-pin to ISO) — Connects directly to the iLoad/iMax factory 38-pin and 35-pin Hyundai/Kia connectors and converts to standard ISO — no splicing, no soldering, fully reversible.
-
Antenna Adaptor Included — Factory antenna connection is retained via the included adaptor, maintaining FM/AM reception without additional parts.
Technical Specs
| Specification |
Detail |
| Part Number |
HR9-HY001 |
| Brand |
Stinger |
| Colour |
Black |
| Vehicle Plug Style |
38-pin + 35-pin Hyundai/Kia connectors |
| Output |
Standard ISO connector |
| Fascia Size |
9" flush fit |
| Plug & Play |
Yes — factory to ISO, no splicing required |
| Steering Wheel Audio Controls |
Retained (compatible aftermarket radios) |
| SWC Memory |
Retained on power loss |
| Navigation Outputs |
Reverse, Park, Ignition, Illumination, VSS |
| Reverse Camera Retention |
Included with interface |
| USB Retention |
Yes — USB only |
| AUX Retention |
Not included |
| Antenna Adaptor |
Included |
| Head Unit Compatibility |
Pioneer DMH-AP6650BT |
Compatible With / Goes Well With
- Hyundai iLoad 2018, 2019, 2020
- Hyundai iMax 2018, 2019, 2020
- Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
- Factory Hyundai iLoad/iMax steering wheel audio controls (retained via included interface)
- Factory Hyundai iLoad/iMax reverse camera (retained via included interface)
- Factory Hyundai iLoad/iMax USB port (retained via included harness)
Caution: AUX retention is not included with this kit — USB only. If retaining factory AUX connectivity is a requirement, an additional retention harness will be needed. Always verify compatibility with your specific iLoad or iMax variant before installation.
Frequently Asked Questions
Does the HR9-HY001 include the Pioneer DMH-AP6650BT head unit?
No — the Pioneer DMH-AP6650BT is sold separately. The HR9-HY001 is an installation kit providing the fascia, wiring harness, SWC interface, antenna adaptor, USB retention, and reverse camera retention needed to fit that head unit into compatible iLoad and iMax models.
Is this kit compatible with both the Hyundai iLoad and iMax?
Yes — the HR9-HY001 is designed to suit both the Hyundai iLoad and Hyundai iMax for the 2018–2020 model years, sharing the same factory connector configuration.
Will this kit retain my factory steering wheel controls and reverse camera?
Yes to both. The SWC interface retains audio button functions with compatible aftermarket radios, and the reverse camera retention interface is included and integrated with the harness. SWC memory is retained even if battery power is lost.
What navigation outputs does this kit provide?
The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs — a full suite of navigation and safety outputs for the Pioneer head unit without additional wiring.
Is factory USB retained, and what about AUX?
USB is retained via the included harness, keeping the factory USB port functional with the Pioneer head unit. AUX retention is not included with this kit.
