Stinger HR9-SZ002 9-Inch Trapezoid Radio Replacement Kit for Suzuki Swift AZ Series 2017–2023 and Swift Sport 2023–2025
The Stinger HR9-SZ002 is a complete radio replacement bundle designed for the installation of a 9-inch trapezoid aftermarket head unit into the Suzuki Swift AZ Series from 2017 to 2023 and the Suzuki Swift Sport AZ from 2023 to 2025. The kit includes a 9-inch flush fit radio panel, steering wheel control retention interface with patch lead, antenna adaptor and reverse camera retention interface. Note that AUX and USB retention is not included, and in some instances the reverse camera retention interface will require modification or rewiring.
Product overview
The HR9-SZ002 provides a plug-and-play installation solution for the Suzuki Swift AZ Series and Swift Sport AZ, connecting directly to the factory 20-pin connector without cutting or modification to the vehicle wiring. Coverage spans the Swift AZ from 2017 to 2023 and extends to the Swift Sport AZ from 2023 to 2025, making the HR9-SZ002 the correct kit across a wide slice of the current Suzuki Swift generation. The SWC interface retains the factory audio steering wheel controls with select aftermarket head units and holds its programmed memory even after a power loss.
An important installation caution applies to the reverse camera interface: in some Swift AZ configurations the interface harness pinout may differ from the factory harness, requiring modification or rewiring before the camera will operate correctly. Always compare the interface harness to the factory harness before connecting. AUX and USB retention is not included in this bundle and must be sourced separately if required.
Features and benefits
Covers Suzuki Swift AZ 2017–2023 and Swift Sport AZ 2023–2025: A single kit covers both the standard Swift AZ and the Swift Sport AZ across the confirmed vehicle application guide, providing a consistent installation solution for both variants.

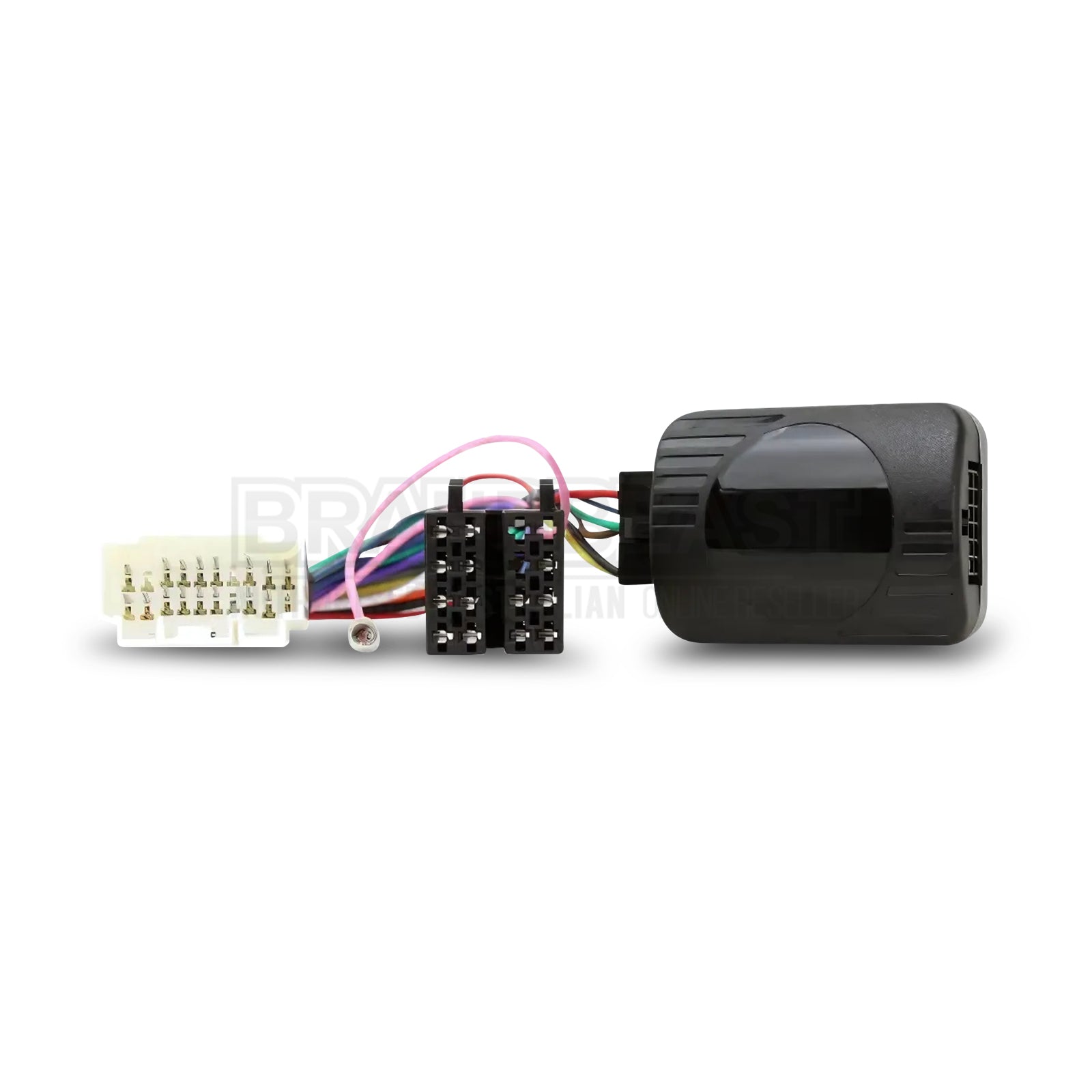

Plug and play SWC retention: Connects directly to the factory 20-pin Suzuki connector, retaining factory audio steering wheel controls with select aftermarket head units. Memory is retained even after a power loss.

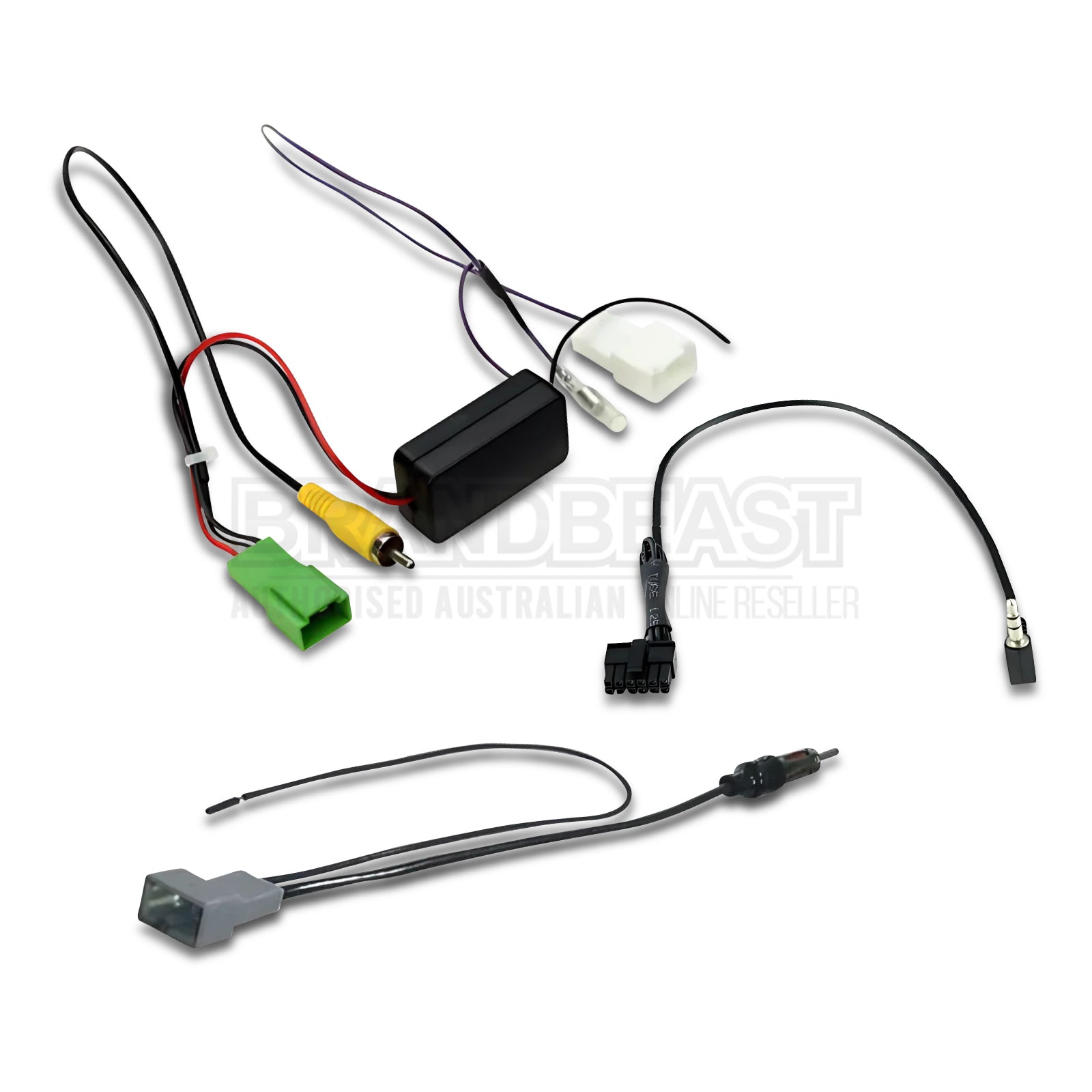

Reverse camera retention interface included: The factory reverse camera is supported via the included retention interface. In some instances the interface harness may require modification or rewiring — always compare to the factory harness before connecting.
Antenna adaptor included: A factory-to-aftermarket antenna adaptor is included, covering the antenna connection without a separate purchase.
AUX and USB retention not included: AUX and USB factory connection retention is not part of this bundle. Source separately if retention of these inputs is required.
Plug and play factory connector compatibility: Connects directly to the Swift AZ's 20-pin factory connector without cutting, splicing or modification to the vehicle wiring.

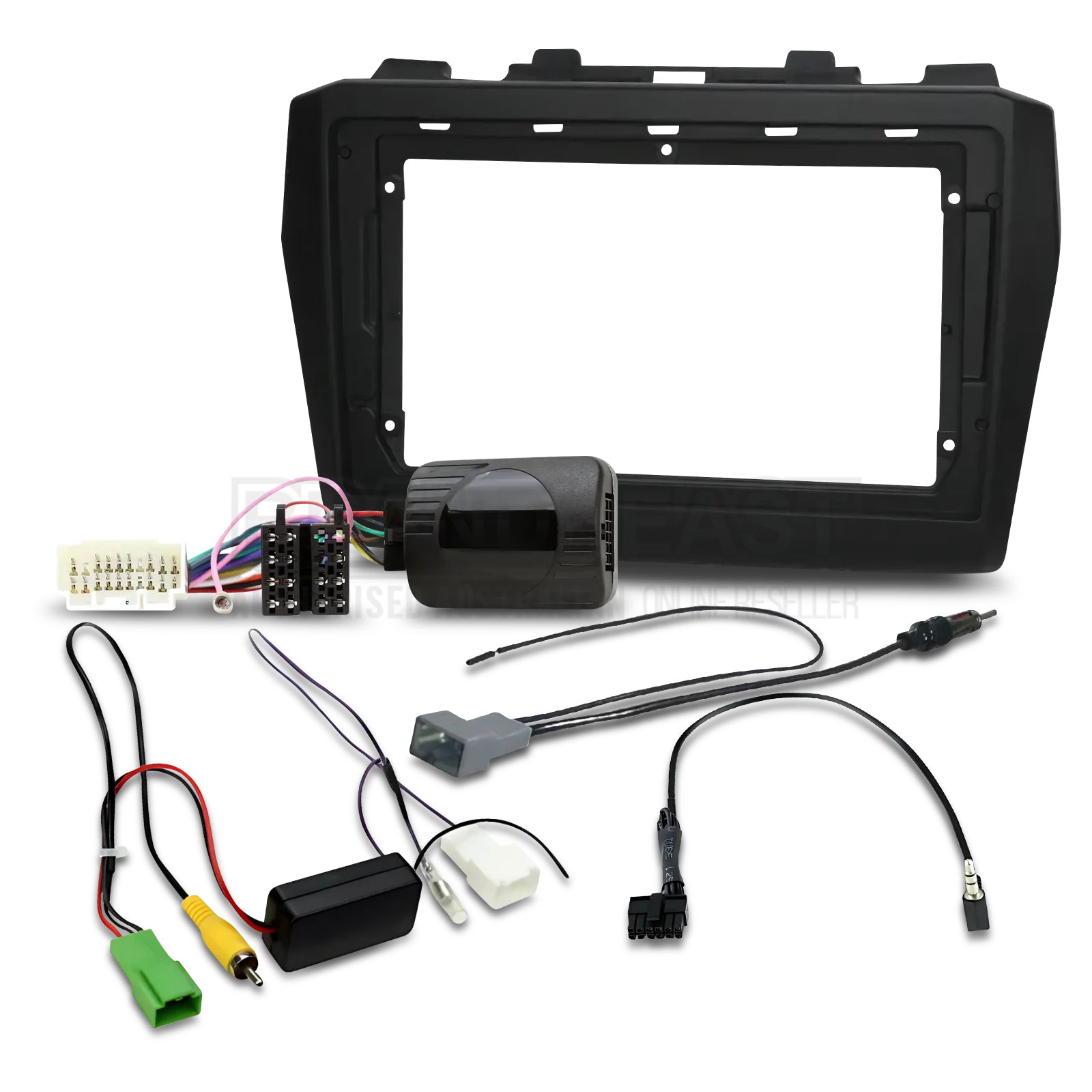

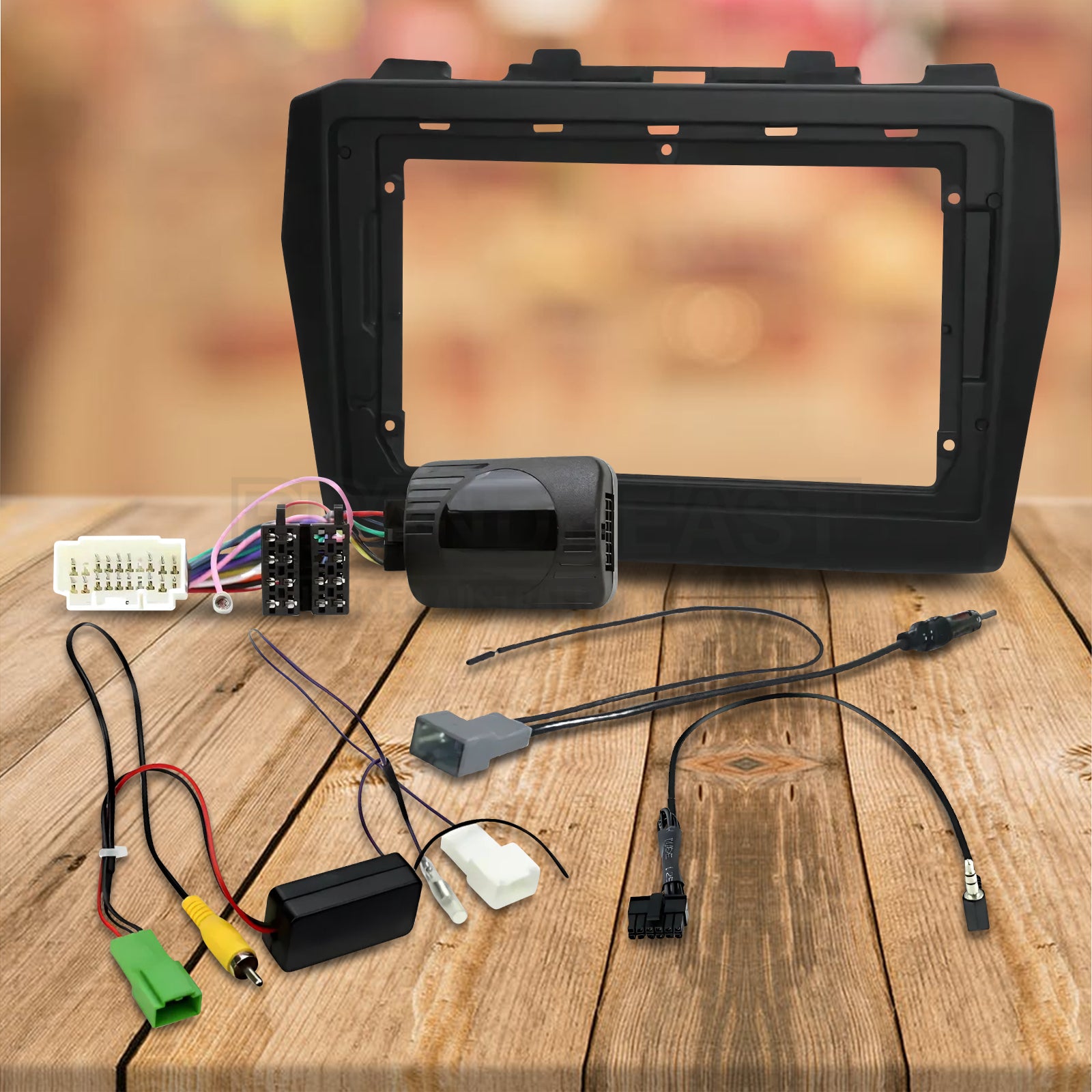

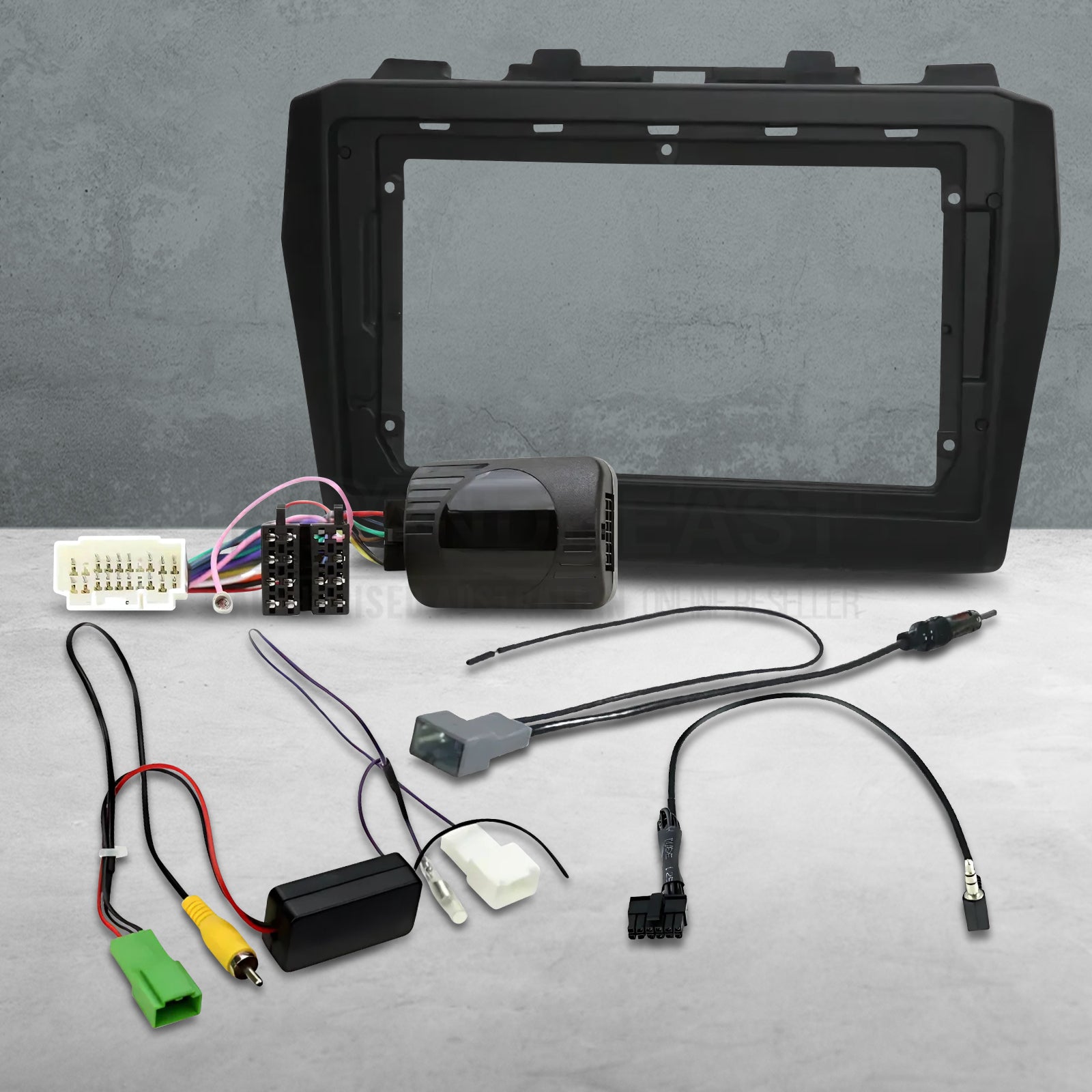

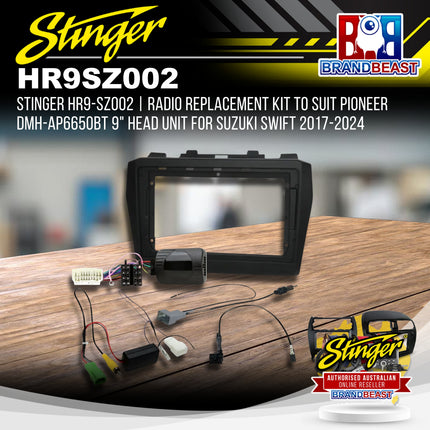

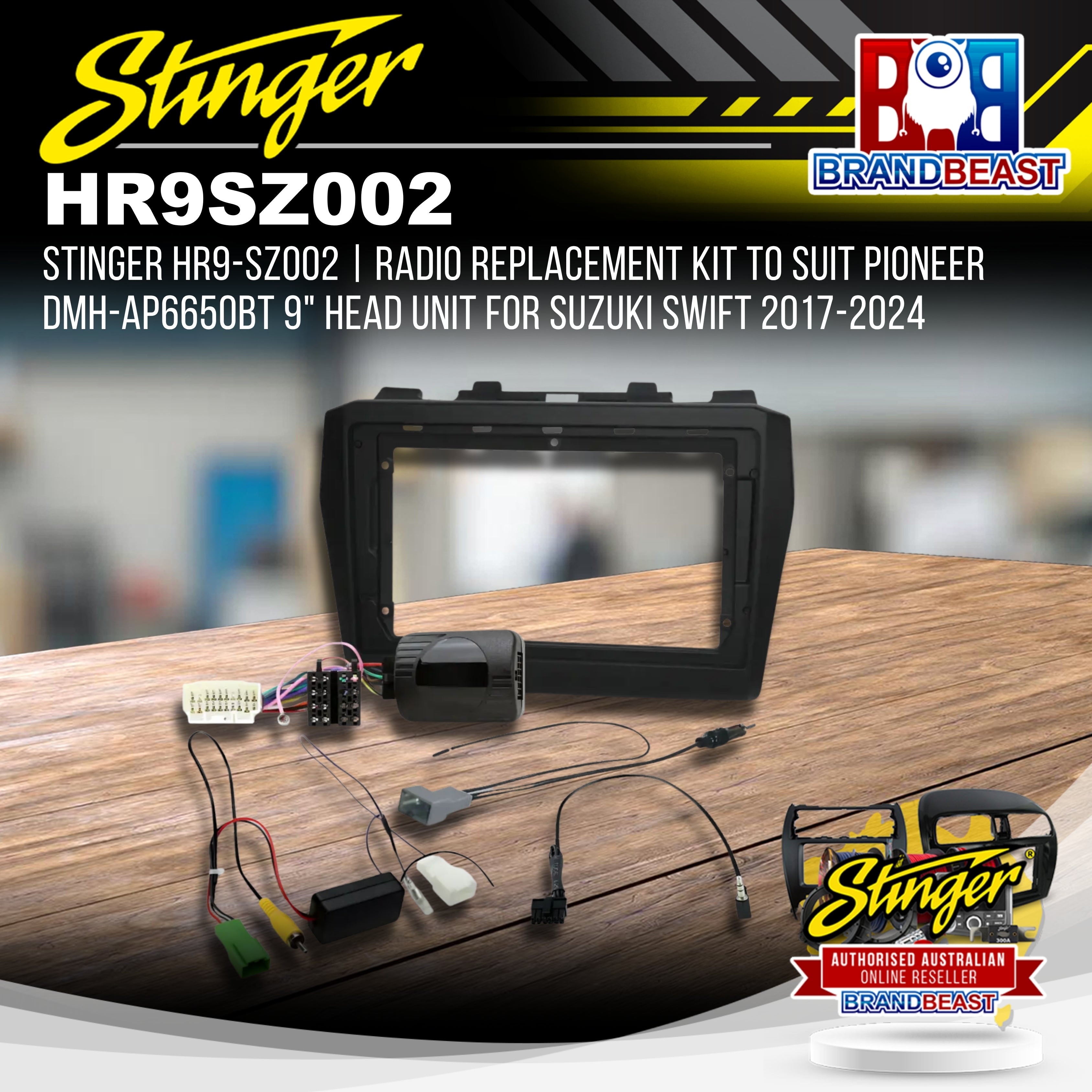

What's in the box

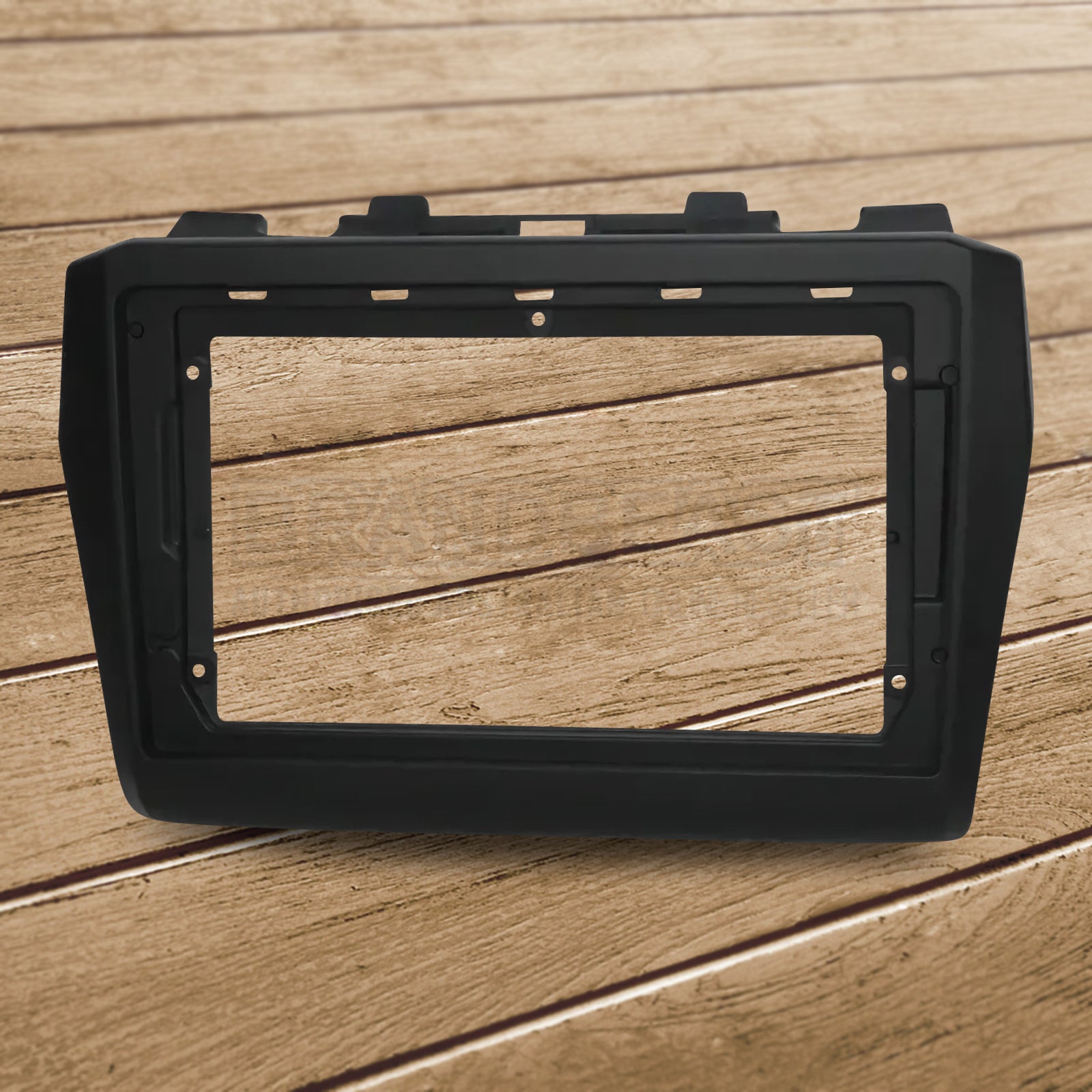

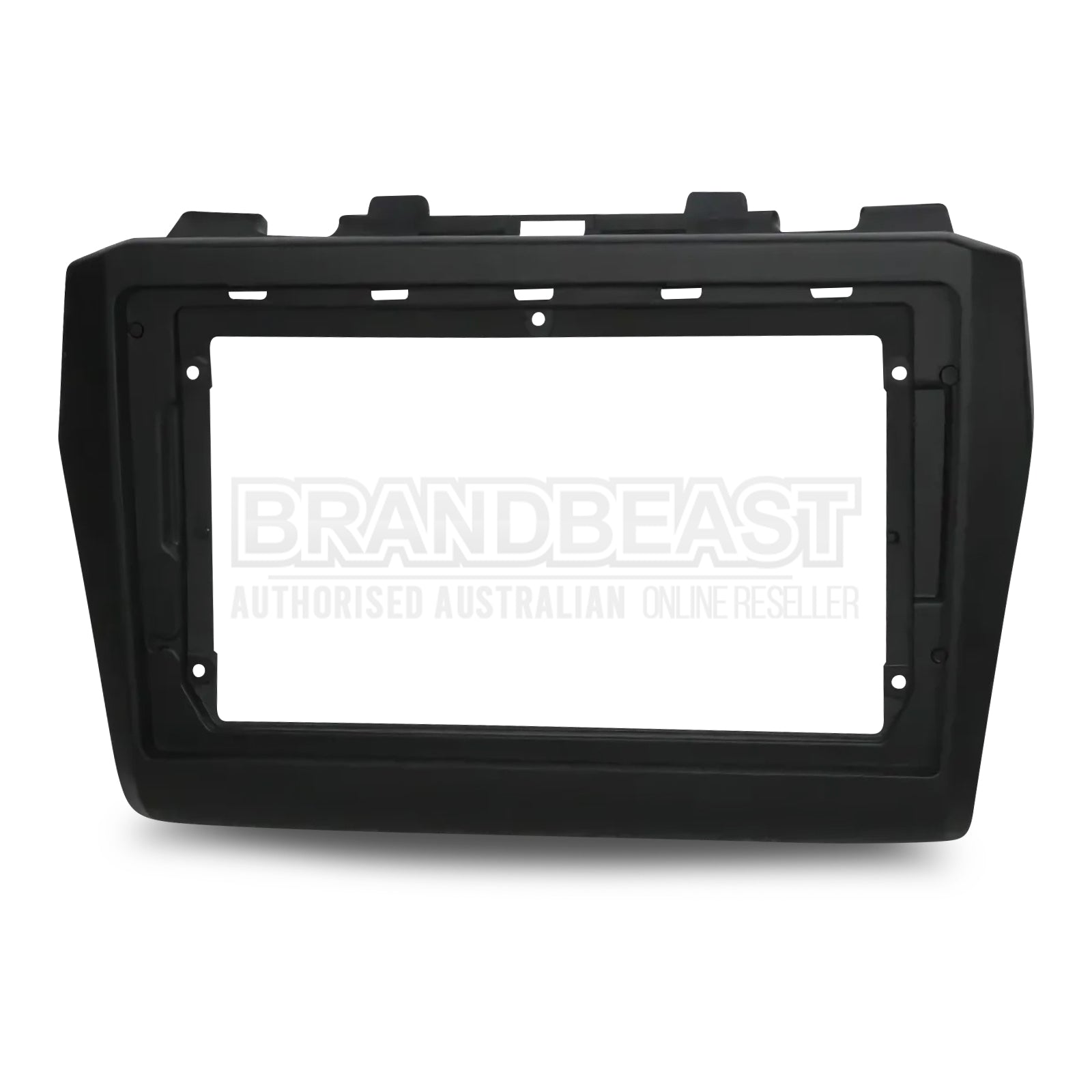

- 9" flush fit radio panel
- Steering wheel control retention interface
- SWC patch lead
- Antenna adaptor
- Reverse camera retention interface
Technical specs
| Specification |
Detail |
| SKU |
HR9-SZ002 |
| Brand |
Stinger |
| Colour |
Black |
| Compatible Vehicles |
Suzuki Swift AZ 2017–2023, Suzuki Swift Sport AZ 2023–2025 |
| Head Unit Format |
9" Trapezoid |
| Vehicle Connectors |
20-pin Suzuki style |
| SWC Interface |
Plug and play, memory retention |
| Antenna Adaptor |
Included |
| Reverse Camera Retention |
Included modification may be required in some instances |
| AUX/USB Retention |
Not included |
| Sold As |
Bundle |
Compatible head units
The HR9-SZ002 is confirmed compatible with the following 9-inch trapezoid head units:
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Kenwood |
DMX80AXS |
| Mongoose |
Q9WCA |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
Vehicle feature retention
| Feature |
Status |
| Steering wheel audio controls |
Retained via included SWC interface |
| SWC memory retention |
Retained after power loss |
| Factory reverse camera |
Retained via included interface modification may be required |
| Factory antenna |
Retained via included adaptor |
| AUX/USB retention |
Not included |
Frequently asked questions
Does the HR9-SZ002 cover both the Suzuki Swift and Swift Sport? Yes. The HR9-SZ002 covers the Suzuki Swift AZ Series from 2017 to 2023 and the Suzuki Swift Sport AZ from 2023 to 2025. If you are unsure whether your specific variant or build date is covered, contact us before purchasing.
Why might the reverse camera retention interface need to be modified or rewired? In some Suzuki Swift AZ configurations the pinout of the factory reverse camera harness differs from the standard interface harness supplied. Always compare the interface harness connector to the factory harness before connecting. If a mismatch is found, rewiring of the interface harness pins will be required before the camera will operate correctly. Professional installation is recommended if you are unsure.
Does the HR9-SZ002 retain the factory steering wheel audio controls? Yes. The plug-and-play SWC interface retains the factory audio steering wheel controls with select aftermarket head units. The interface also retains its programmed memory after a power loss.
Does the HR9-SZ002 include AUX or USB retention? No. AUX and USB retention is not included in this bundle. If you require retention of these factory inputs, a separate AUX/USB retention harness must be sourced. Contact us for compatible accessories for the Swift AZ.
Which 9-inch trapezoid head units are compatible with the HR9-SZ002? Confirmed compatible units include Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Mongoose Q9WCA, Pioneer DMH-AP6650BT and Aerpro AM9X. Contact us for guidance on units not listed.
