Stinger HR9-SZ003 9-Inch Trapezoid Radio Replacement Kit for Suzuki Vitara LY Series 2015–2024
The Stinger HR9-SZ003 is a complete radio replacement bundle designed for the installation of a 9-inch trapezoid aftermarket head unit into the Suzuki Vitara LY Series from 2015 to 2024. The kit includes a 9-inch flush fit radio panel, steering wheel control retention interface with patch lead, antenna adaptor and reverse camera retention interface. Note that in some instances the reverse camera retention interface will require modification or rewiring compare the interface harness to the factory harness before connecting.
Product overview
The HR9-SZ003 provides a plug-and-play installation solution for the Suzuki Vitara LY Series, connecting directly to the factory 20-pin connector without cutting or modification to the vehicle wiring. The SWC interface retains the factory audio steering wheel controls with select aftermarket head units and holds its programmed memory even after a power loss. A factory-to-aftermarket antenna adaptor is included, and reverse camera retention is provided via the included interface.
One installation caution applies to the reverse camera interface: in some Vitara LY configurations the interface harness pinout may differ from the factory harness, requiring modification or rewiring before connection. Always compare the interface harness to the factory harness before connecting. If you are unsure, professional installation by a qualified car audio installer is recommended.
Features and benefits
Complete radio replacement bundle for Suzuki Vitara LY 2015–2024: Combines a flush fit radio panel, plug-and-play SWC retention interface, antenna adaptor and reverse camera retention interface for the Vitara LY Series in a single kit.

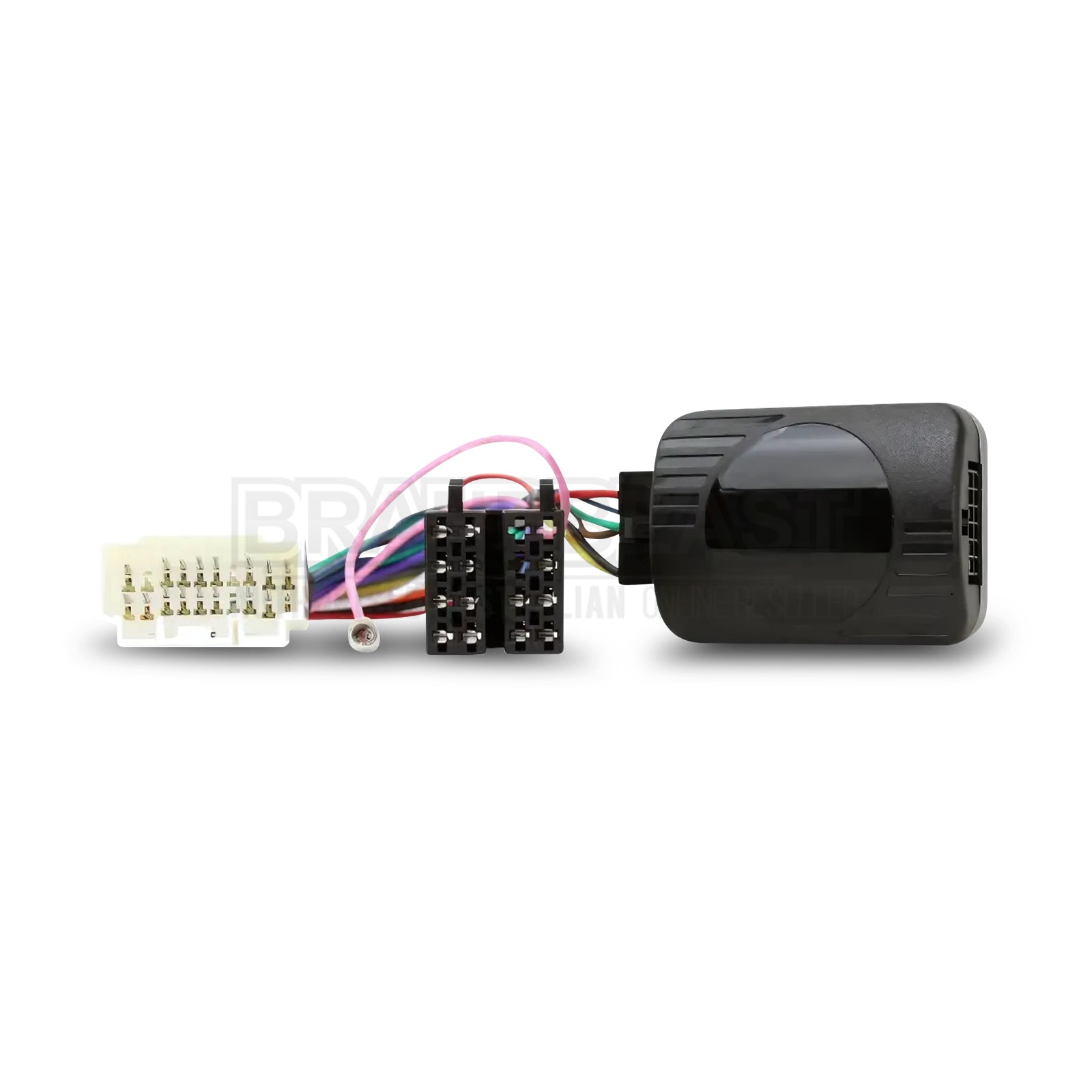

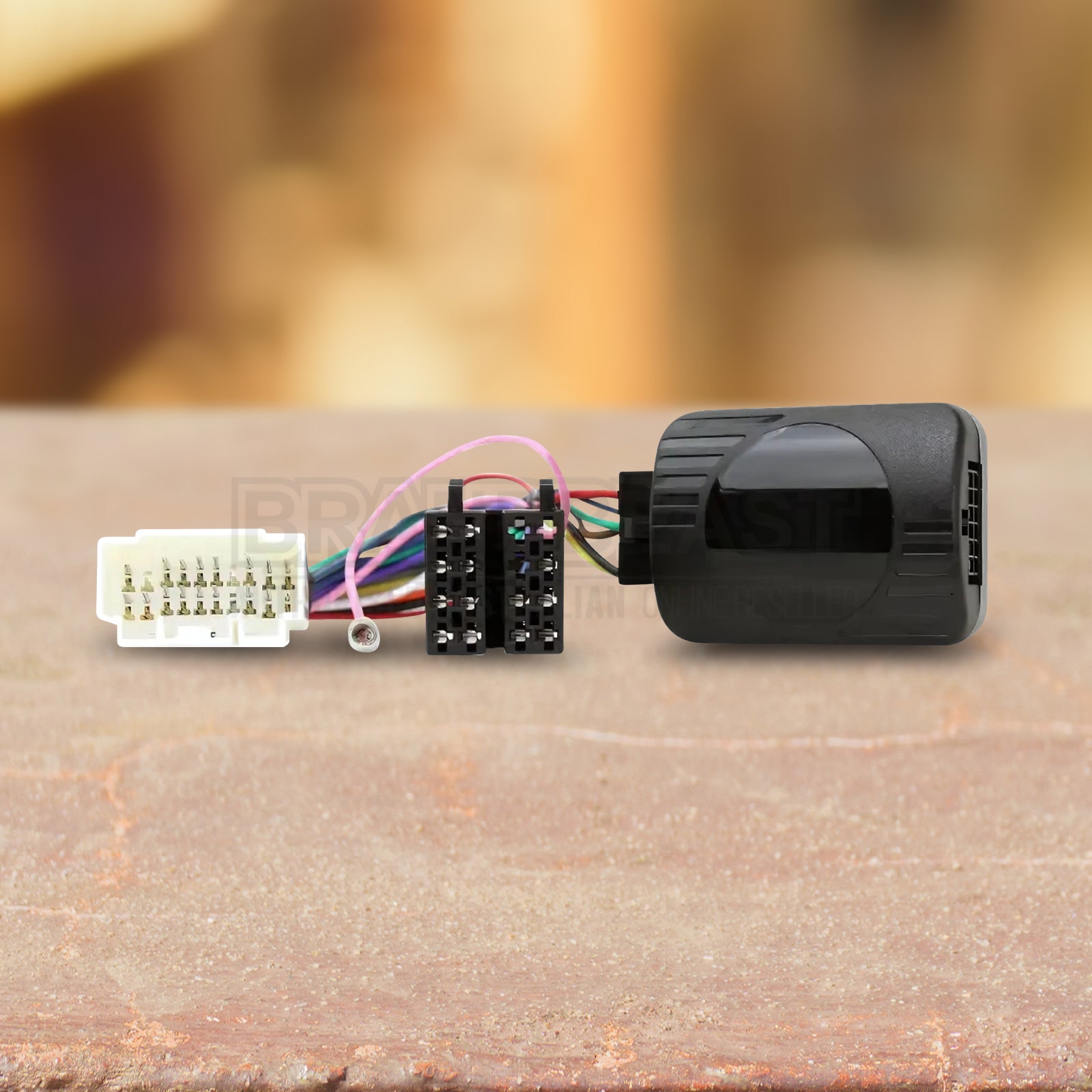

Plug and play SWC retention: Connects directly to the factory 20-pin Suzuki connector, retaining factory audio steering wheel controls with select aftermarket head units. Memory is retained even after a power loss.

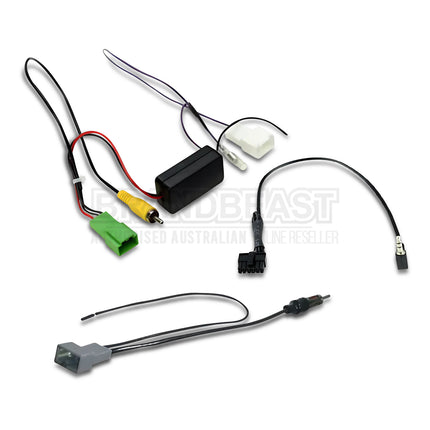

Reverse camera retention interface included: The factory reverse camera is supported via the included retention interface. Note that in some instances the interface harness may require modification or rewiring always compare to the factory harness before connecting.
Antenna adaptor included: A factory-to-aftermarket antenna adaptor is included, covering the antenna connection without a separate purchase.
Plug and play factory connector compatibility: Connects directly to the Vitara LY's 20-pin factory connector without cutting, splicing or modification to the vehicle wiring.

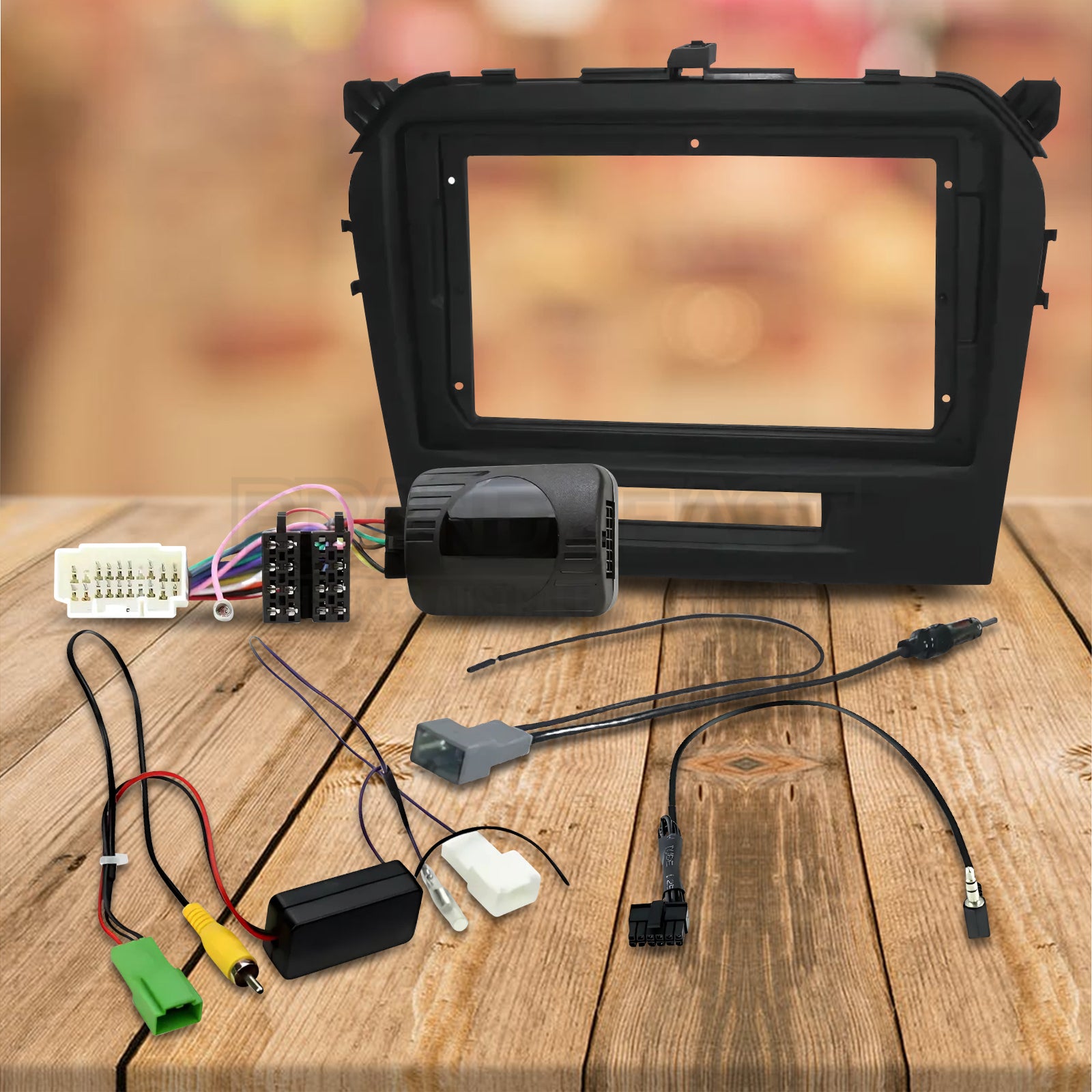

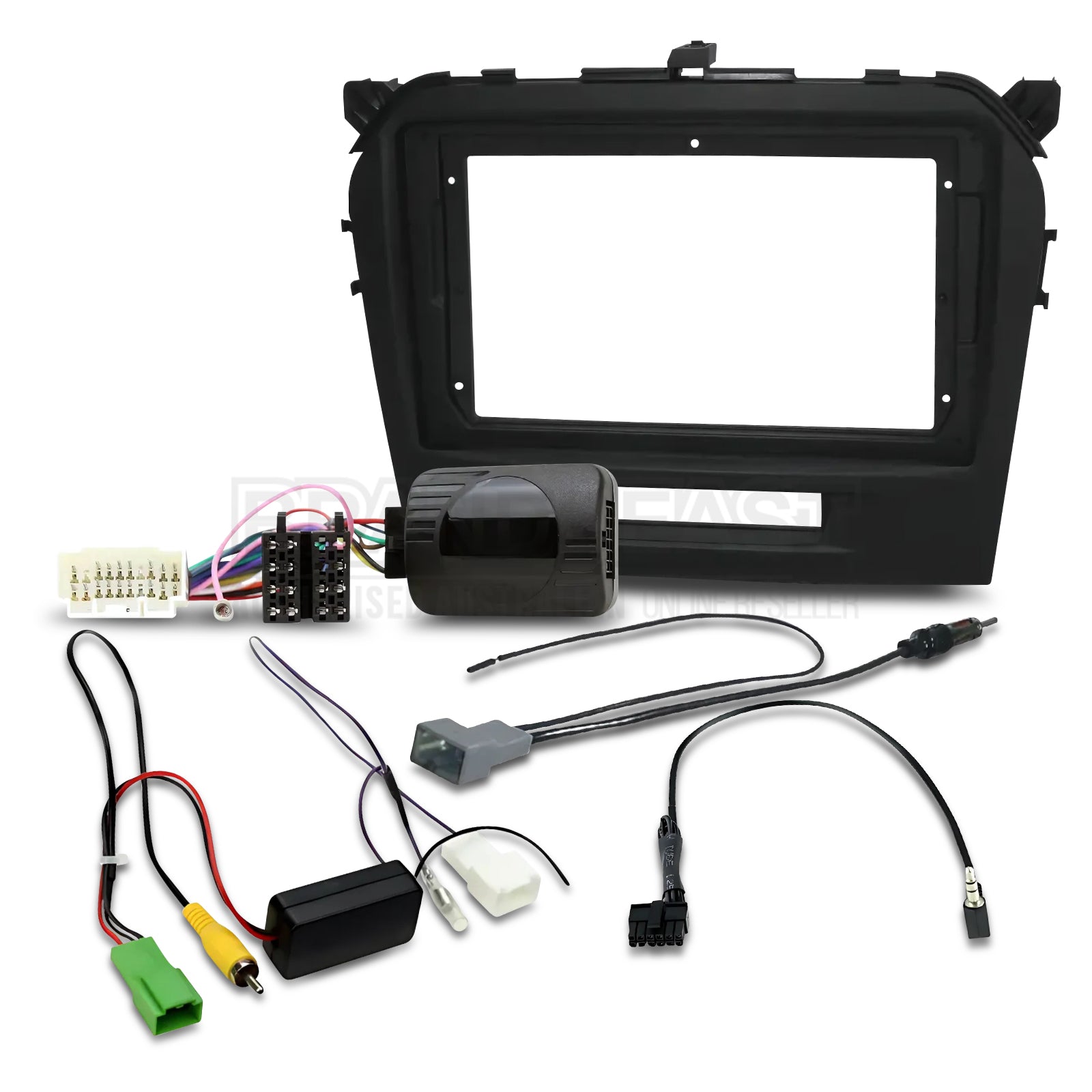

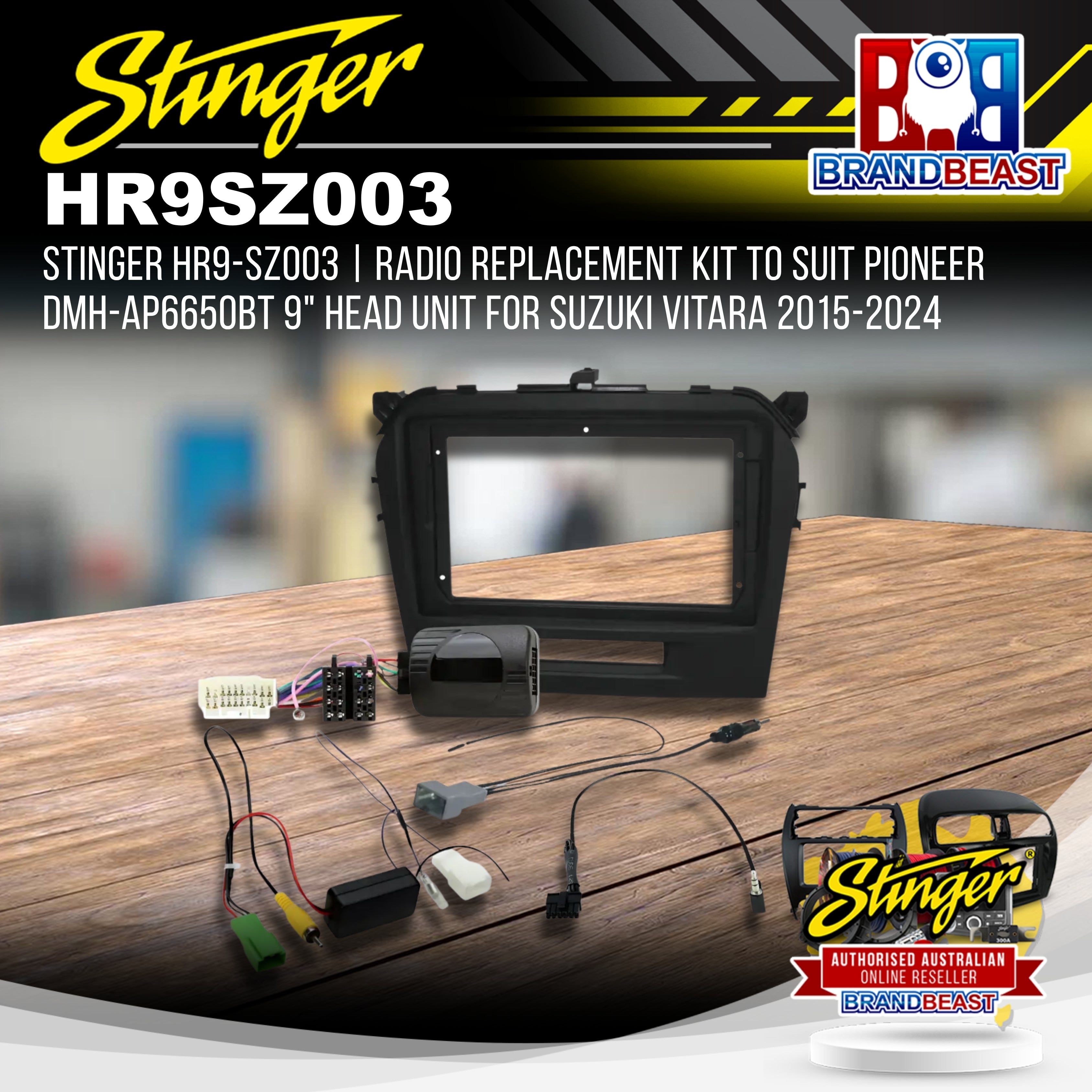

What's in the box

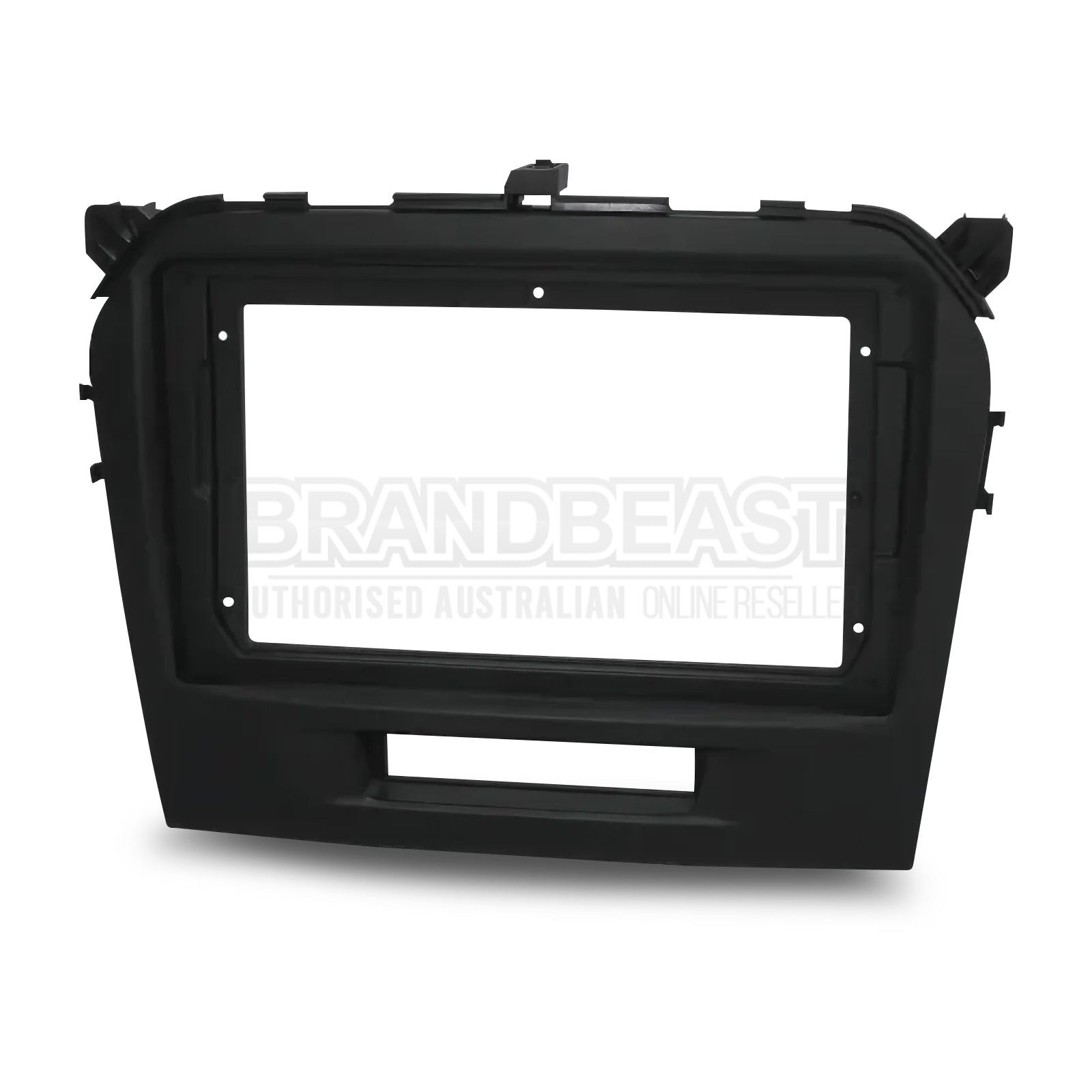

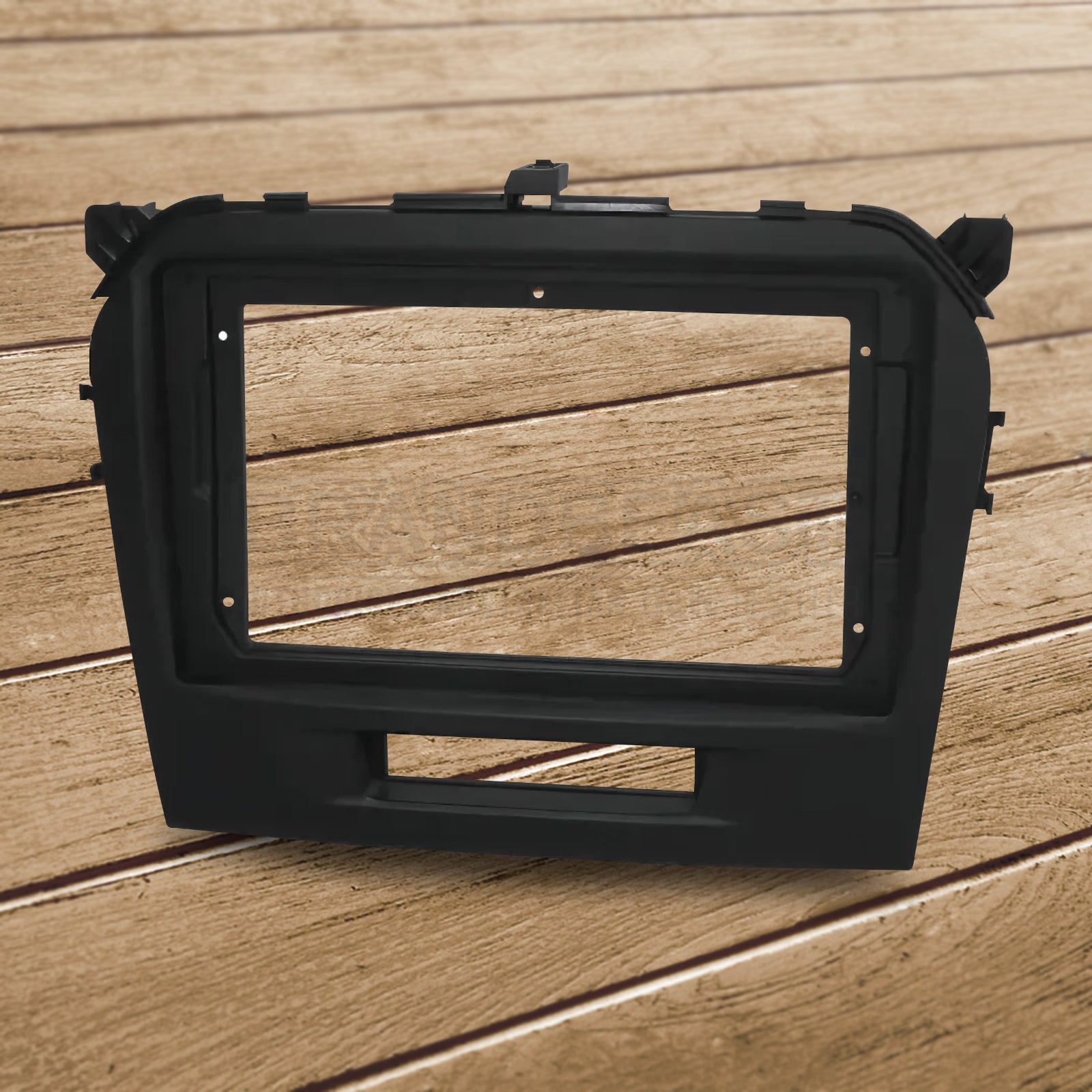

- 9" flush fit radio panel
- Steering wheel control retention interface
- SWC patch lead
- Antenna adaptor
- Reverse camera retention interface
Technical specs
| Specification |
Detail |
| SKU |
HR9-SZ003 |
| Brand |
Stinger |
| Colour |
Black |
| Compatible Vehicles |
Suzuki Vitara LY Series 2015–2024 |
| Head Unit Format |
9" Trapezoid |
| Vehicle Connectors |
20-pin Suzuki style |
| SWC Interface |
Plug and play, memory retention |
| Antenna Adaptor |
Included |
| Reverse Camera Retention |
Included modification may be required in some instances |
| Sold As |
Bundle |
Compatible head units
The HR9-SZ003 is confirmed compatible with the following 9-inch trapezoid head units:
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Kenwood |
DMX80AXS |
| Mongoose |
Q9WCA |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
Vehicle feature retention
| Feature |
Status |
| Steering wheel audio controls |
Retained via included SWC interface |
| SWC memory retention |
Retained after power loss |
| Factory reverse camera |
Retained via included interface modification may be required |
| Factory antenna |
Retained via included adaptor |
Frequently asked questions
Why might the reverse camera retention interface need to be modified or rewired? In some Suzuki Vitara LY configurations the pinout of the factory reverse camera harness differs from the standard interface harness supplied. Always compare the interface harness connector to the factory harness before connecting. If a mismatch is found, rewiring of the interface harness pins will be required before the camera will operate correctly. Professional installation is recommended if you are unsure.
Does the HR9-SZ003 retain the factory steering wheel audio controls? Yes. The plug-and-play SWC interface retains the factory audio steering wheel controls with select aftermarket head units. The interface also retains its programmed memory after a power loss.
Does the HR9-SZ003 fit all Suzuki Vitara LY Series variants from 2015 to 2024? The HR9-SZ003 is confirmed for the Suzuki Vitara LY Series from 2015 to 2024. If you are unsure whether your specific variant or build date is covered, contact us before purchasing.
Does the HR9-SZ003 include AUX or USB retention? AUX and USB retention is not confirmed as included in this bundle. Contact us if you require retention of these factory inputs for your Vitara installation.
Which 9-inch trapezoid head units are compatible with the HR9-SZ003? Confirmed compatible units include Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Mongoose Q9WCA, Pioneer DMH-AP6650BT and Aerpro AM9X.
