Description
Stinger HR9-SZ004 9-Inch Trapezoid Radio Replacement Kit for Suzuki Jimny JB74W 3-Door 2018–2025
The Stinger HR9-SZ004 is a complete radio replacement bundle designed for the installation of a 9-inch trapezoid aftermarket head unit into the Suzuki Jimny JB74W 3-door from 2018 to 2025. The kit includes a 9-inch flush fit radio panel, steering wheel control retention interface with patch lead, antenna adaptor and reverse camera retention interface. Note that AUX and USB retention is not included, and in some instances the reverse camera retention interface will require modification or rewiring.
Product overview
The HR9-SZ004 provides a plug-and-play installation solution for the Suzuki Jimny JB74W 3-door, connecting directly to the factory 20-pin connector without cutting or modification to the vehicle wiring. The SWC interface retains the factory audio steering wheel controls with select aftermarket head units and holds its programmed memory even after a power loss. A factory-to-aftermarket antenna adaptor is included, and reverse camera retention is provided via the included interface in a gloss black finish that suits the Jimny's interior.
An important installation caution applies to the reverse camera interface: in some JB74W configurations the interface harness pinout may differ from the factory harness, requiring modification or rewiring before the camera will operate correctly. Always compare the interface harness to the factory harness before connecting. AUX and USB retention is not included in this bundle and must be sourced separately if required.
Features and benefits
Complete radio replacement bundle for Suzuki Jimny JB74W 3-door 2018–2025: Combines a flush fit radio panel, plug-and-play SWC retention interface, antenna adaptor and reverse camera retention interface for the Jimny JB74W in a single kit.

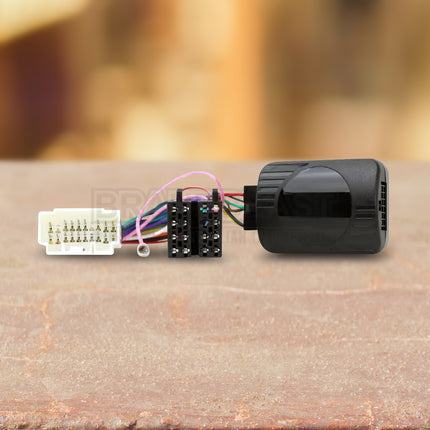

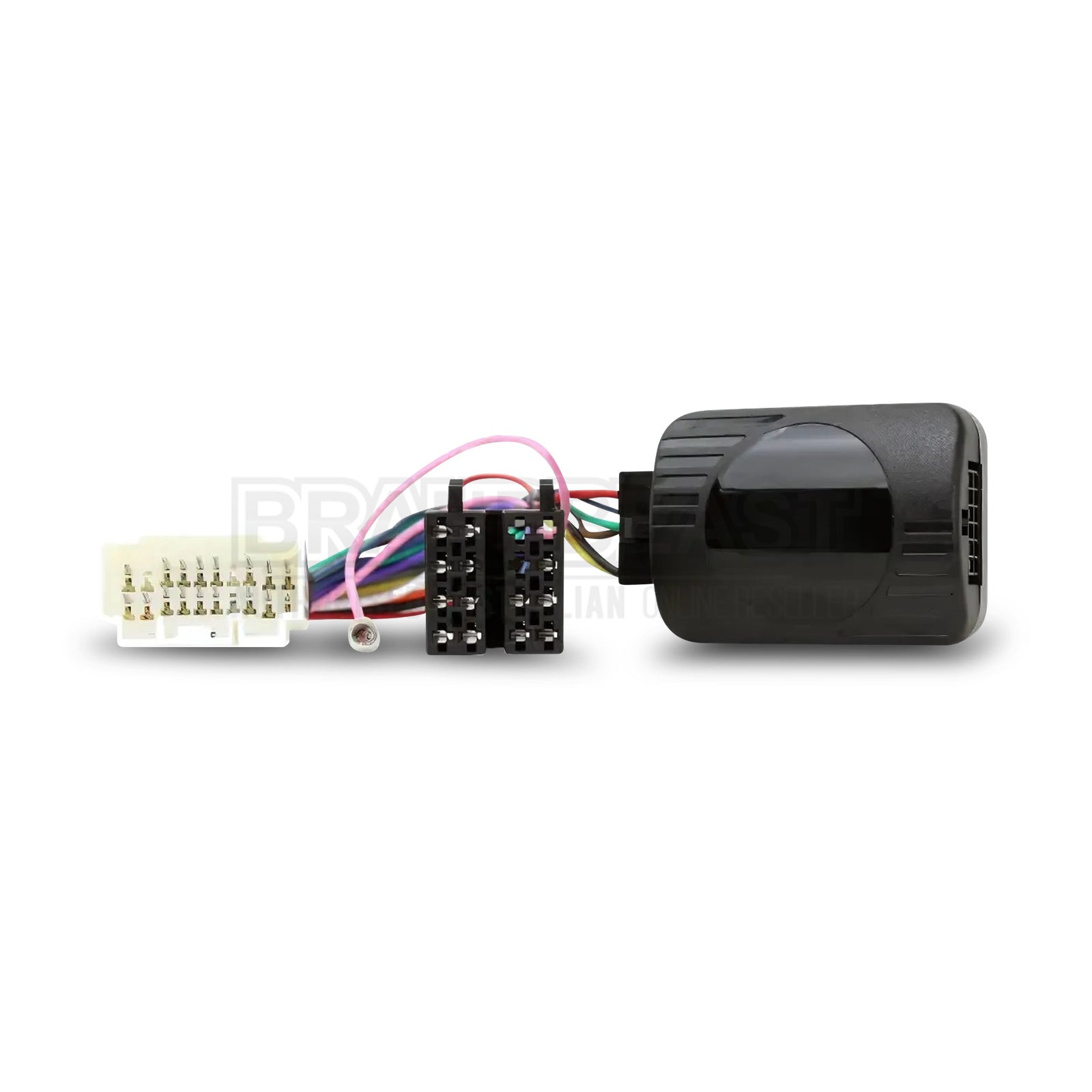

Plug and play SWC retention: Connects directly to the factory 20-pin Suzuki connector, retaining factory audio steering wheel controls with select aftermarket head units. Memory is retained even after a power loss.
Reverse camera retention interface included: The factory reverse camera is supported via the included retention interface. In some instances the interface harness may require modification or rewiring — always compare to the factory harness before connecting.
Antenna adaptor included: A factory-to-aftermarket antenna adaptor is included, covering the antenna connection without a separate purchase.
AUX and USB retention not included: AUX and USB factory connection retention is not part of this bundle. Source separately if retention of these inputs is required.

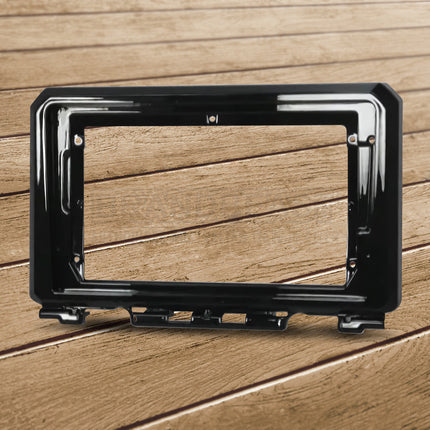

Gloss black finish: The flush fit radio panel is finished in gloss black, complementing the Jimny JB74W interior trim.

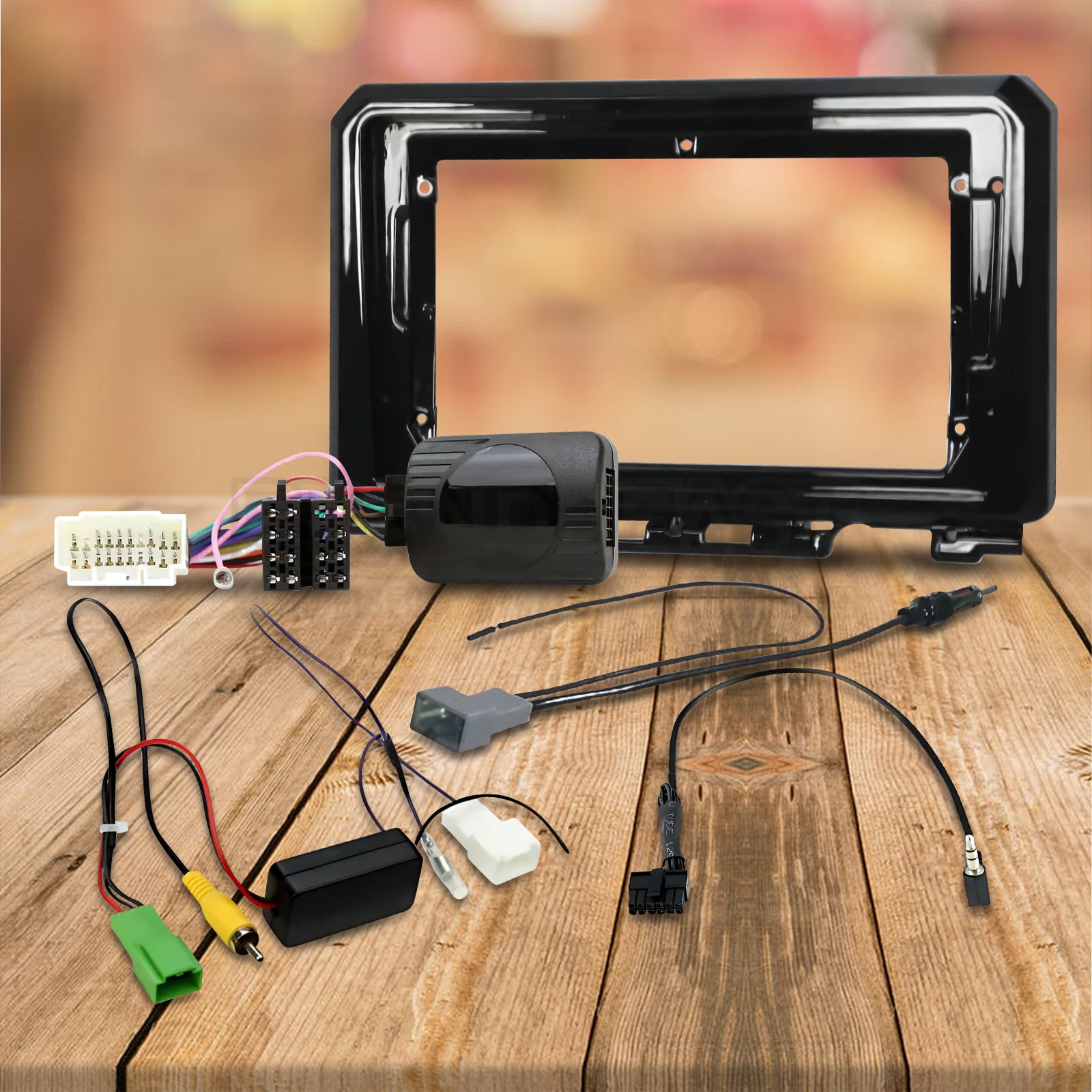

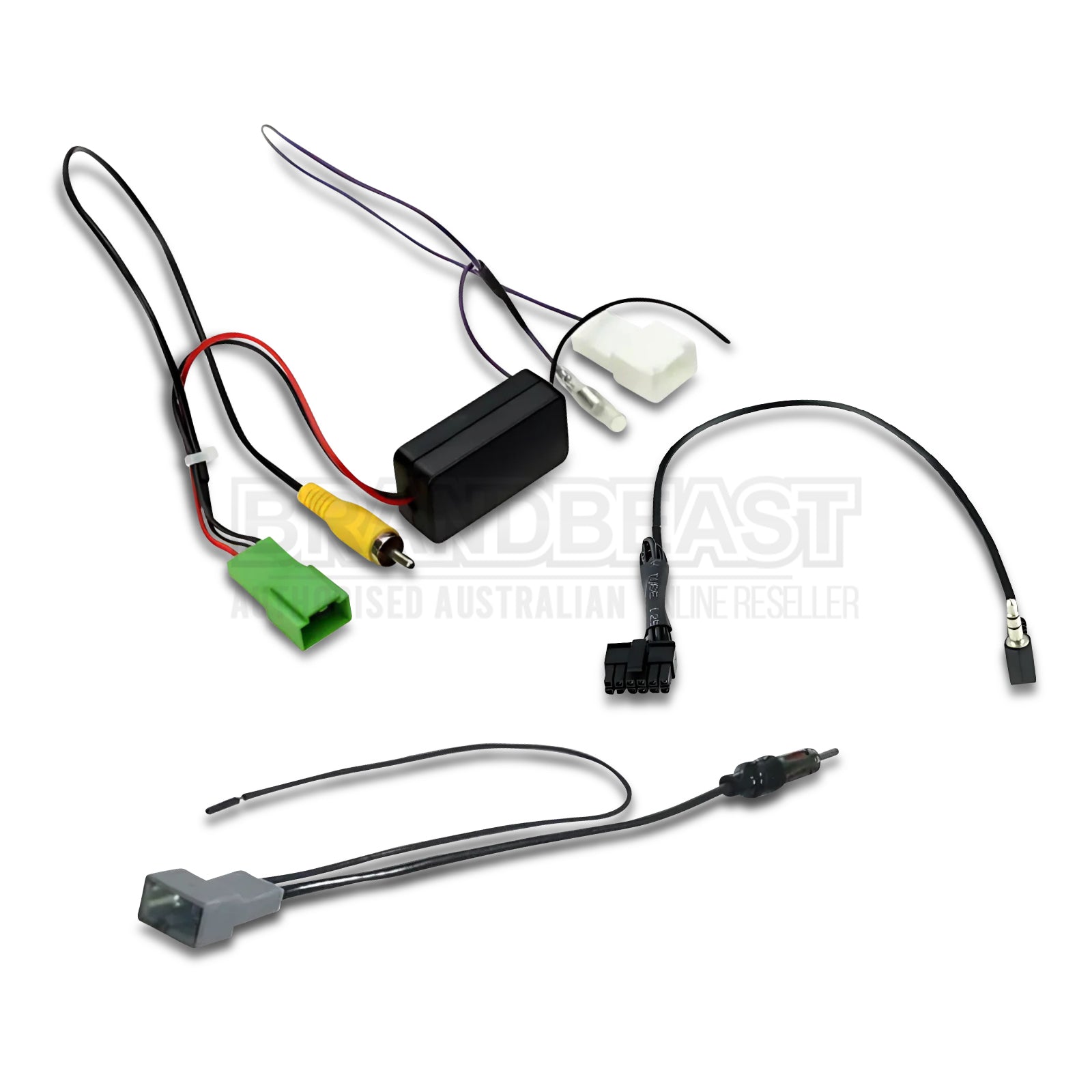

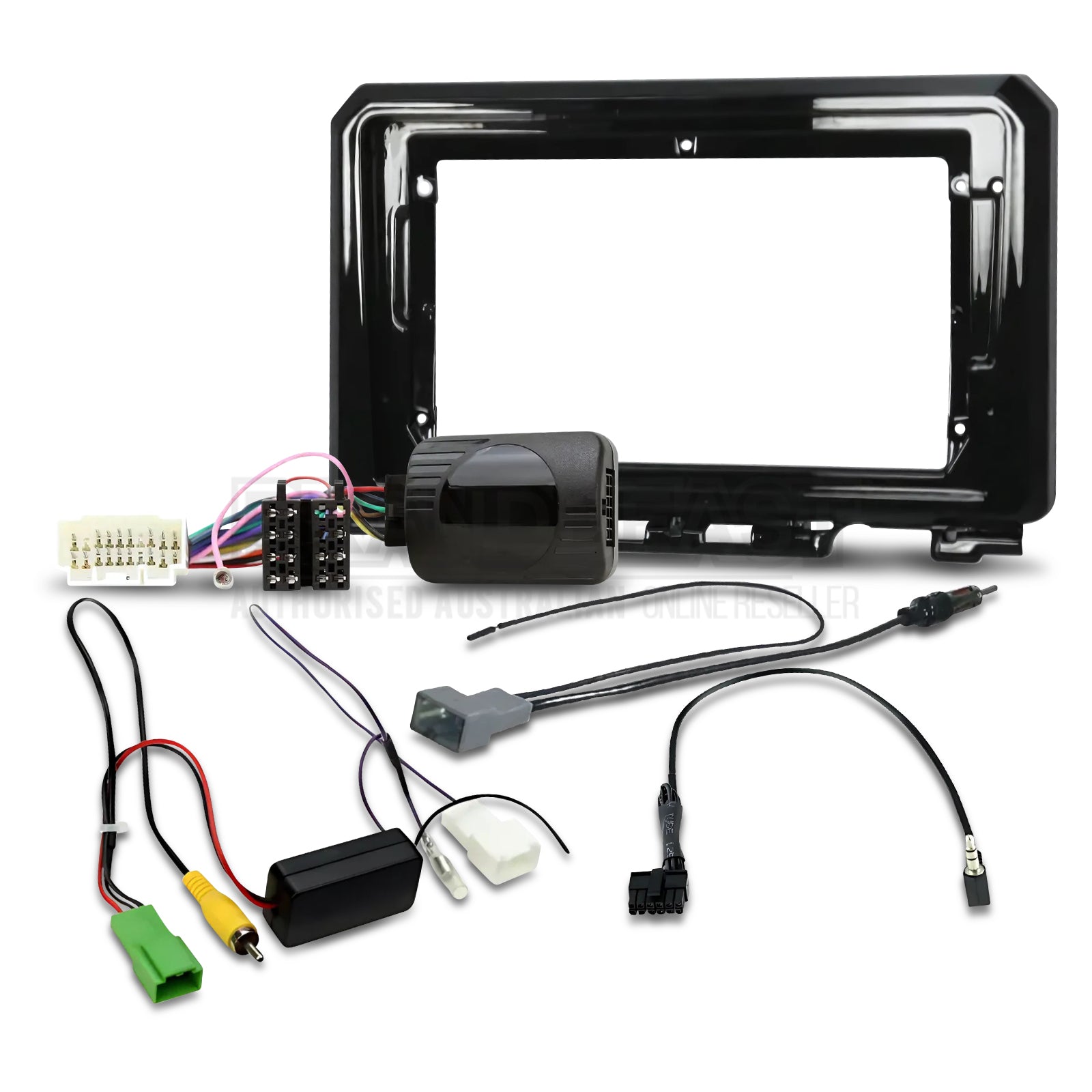

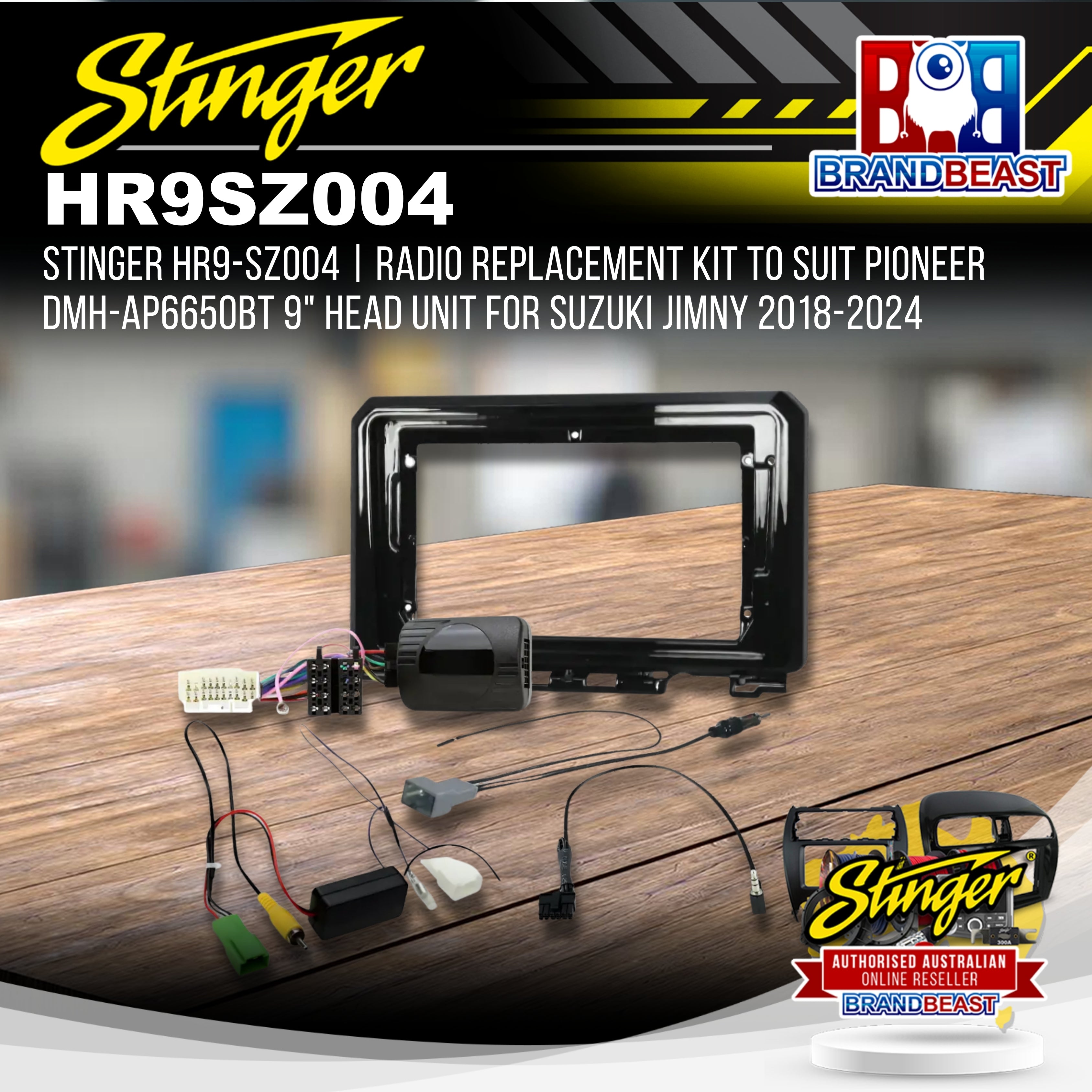

What's in the box

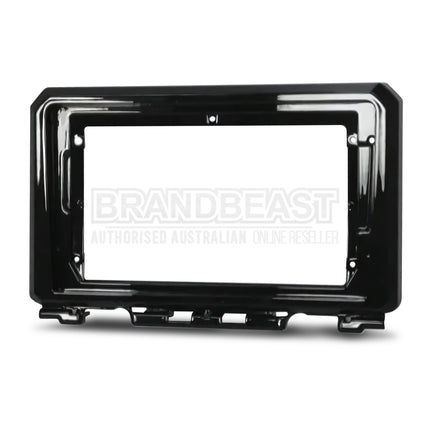

- 9" flush fit radio panel (gloss black)
- Steering wheel control retention interface
- SWC patch lead
- Antenna adaptor
- Reverse camera retention interface
Technical specs
| Specification |
Detail |
| SKU |
HR9-SZ004 |
| Brand |
Stinger |
| Colour |
Gloss Black |
| Compatible Vehicles |
Suzuki Jimny JB74W 3-door 2018–2025 |
| Head Unit Format |
9" Trapezoid |
| Vehicle Connectors |
20-pin Suzuki style |
| SWC Interface |
Plug and play, memory retention |
| Antenna Adaptor |
Included |
| Reverse Camera Retention |
Included — modification may be required in some instances |
| AUX/USB Retention |
Not included |
| Sold As |
Bundle |
Compatible head units
The HR9-SZ004 is confirmed compatible with the following 9-inch trapezoid head units:
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Kenwood |
DMX80AXS |
| Mongoose |
Q9WCA |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
Vehicle feature retention
| Feature |
Status |
| Steering wheel audio controls |
Retained via included SWC interface |
| SWC memory retention |
Retained after power loss |
| Factory reverse camera |
Retained via included interface — modification may be required |
| Factory antenna |
Retained via included adaptor |
| AUX/USB retention |
Not included |
Frequently asked questions
Does the HR9-SZ004 fit the Suzuki Jimny 5-door? No. The HR9-SZ004 is confirmed for the Suzuki Jimny JB74W 3-door only. If you have a 5-door Jimny variant, contact us to confirm the correct installation kit for your vehicle.
Why might the reverse camera retention interface need to be modified or rewired? In some Suzuki Jimny JB74W configurations the pinout of the factory reverse camera harness differs from the standard interface harness supplied. Always compare the interface harness connector to the factory harness before connecting. If a mismatch is found, rewiring of the interface harness pins will be required before the camera will operate correctly. Professional installation is recommended if you are unsure.
Does the HR9-SZ004 retain the factory steering wheel audio controls? Yes. The plug-and-play SWC interface retains the factory audio steering wheel controls with select aftermarket head units. The interface also retains its programmed memory after a power loss.
Does the HR9-SZ004 include AUX or USB retention? No. AUX and USB retention is not included in this bundle. If you require retention of these factory inputs, a separate AUX/USB retention harness must be sourced. Contact us for compatible accessories for the Jimny JB74W.
Which 9-inch trapezoid head units are compatible with the HR9-SZ004? Confirmed compatible units include Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Mongoose Q9WCA, Pioneer DMH-AP6650BT and Aerpro AM9X. Contact us for guidance on units not listed.
