Description

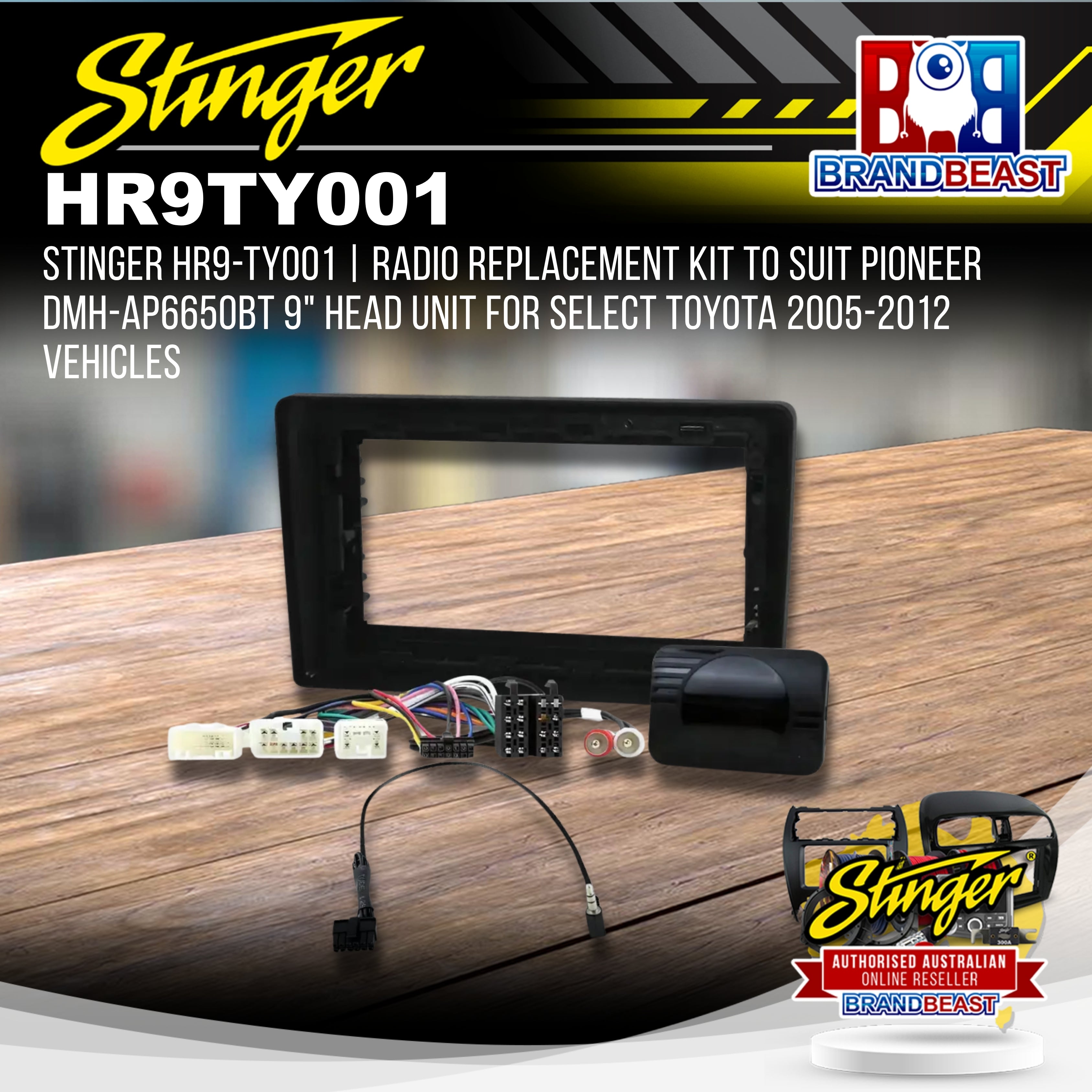

Stinger HR9-TY001 9 Inch Radio Replacement Kit for Pioneer DMH-AP6650BT in Select Toyota Models 2005 to 2012 with Steering Wheel Control Retention

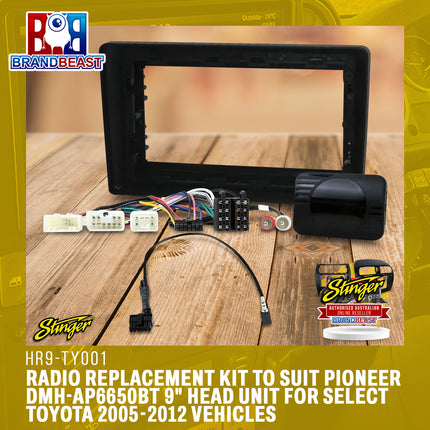

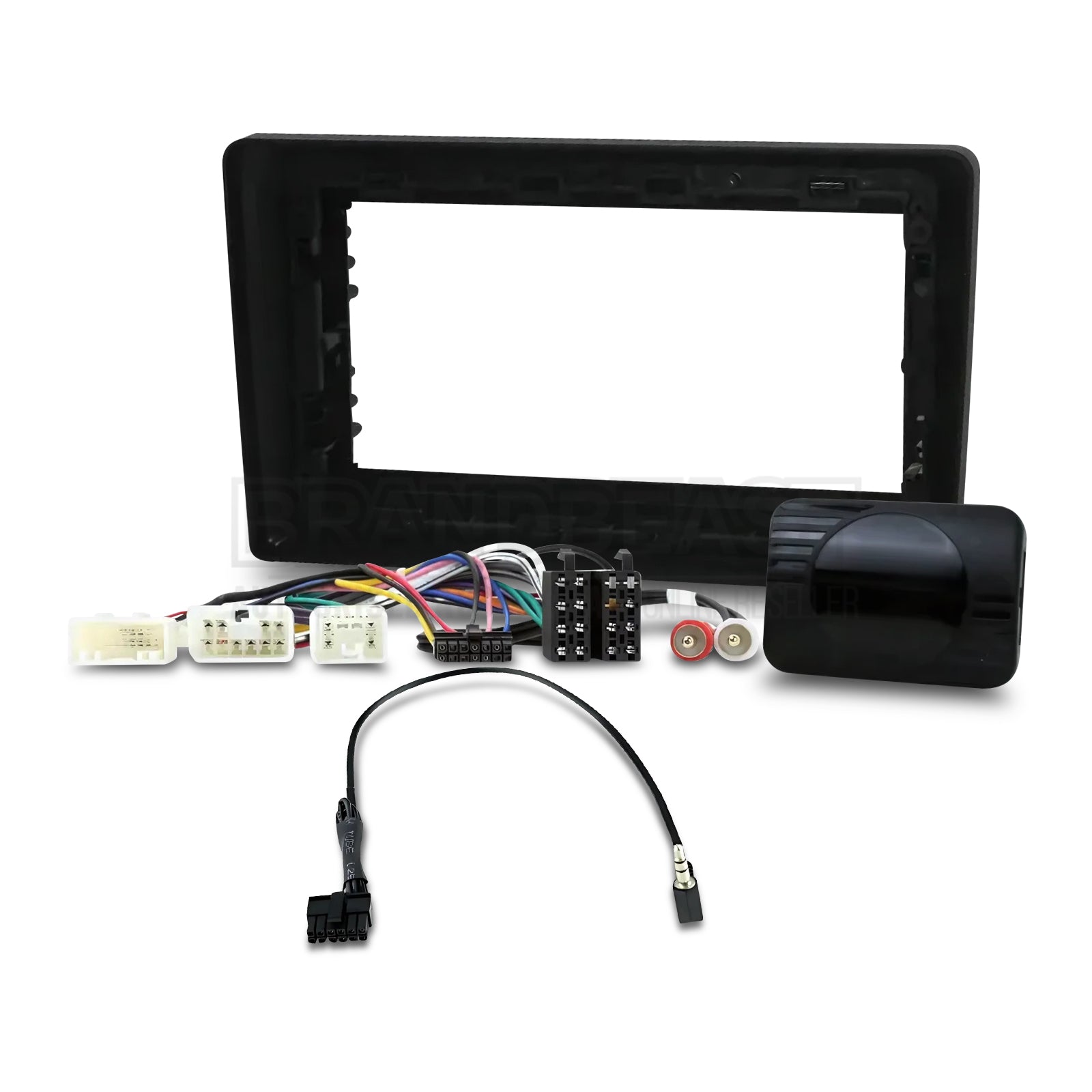

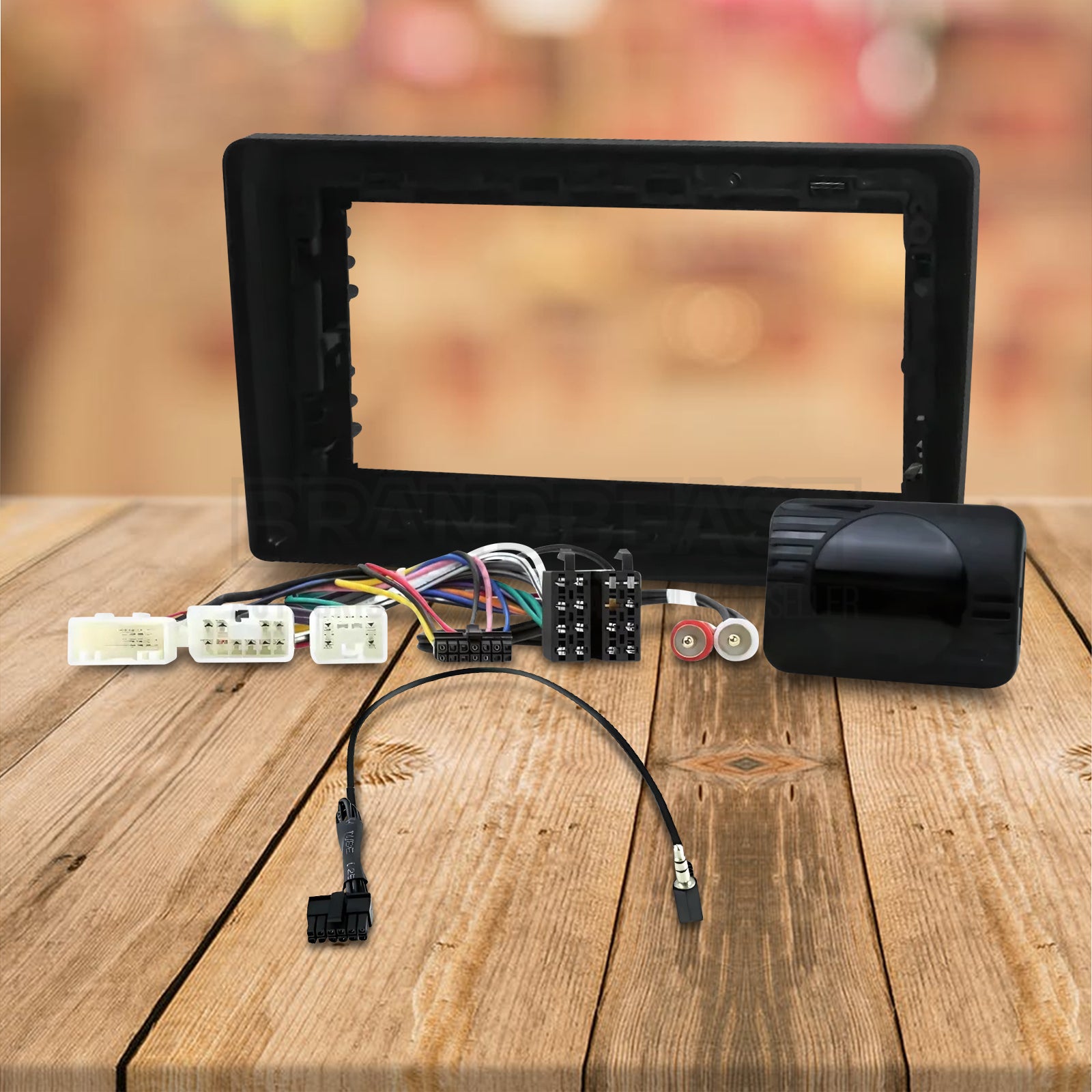

The Stinger HR9-TY001 is a radio installation kit for fitting the Pioneer DMH-AP6650BT 9-inch head unit into compatible Toyota vehicles from 2005 to 2012 with a factory 200mm head unit opening. Includes a 9-inch flush-fit fascia and a plug-and-play steering wheel control interface. Connects to Toyota's factory 20-pin, 10-pin, and 6-pin connectors and converts to a standard ISO plug with no splicing or permanent wiring changes. SWC retention applies to models with the 20-pin connector only. No antenna adaptor or reverse camera retention is included. The Pioneer DMH-AP6650BT head unit is not included.
Product overview
The HR9-TY001 provides the fascia and SWC interface required to install the Pioneer DMH-AP6650BT in compatible Toyota models with a 200mm factory head unit opening and the Toyota 20-pin, 10-pin, and 6-pin connector configuration. The plug-and-play harness connects directly to the factory loom and converts to standard ISO without cutting, splicing, or soldering.
Steering wheel audio control retention applies to Toyota models fitted with the 20-pin connector. The SWC interface retains its programming through power loss, so a battery disconnect or flat battery will not reset the setup.
Note that an antenna adaptor is not included and will need to be sourced separately if required by the vehicle. Reverse camera retention is also not included. On some vehicles the head unit will sit forward of the factory dash panel, and fascia bracket modification may be required. Professional installation is recommended if fitment depth is a concern for a specific vehicle.
Confirm your vehicle's factory head unit opening size and connector type before purchasing. The Pioneer DMH-AP6650BT is sold separately.
Features and benefits

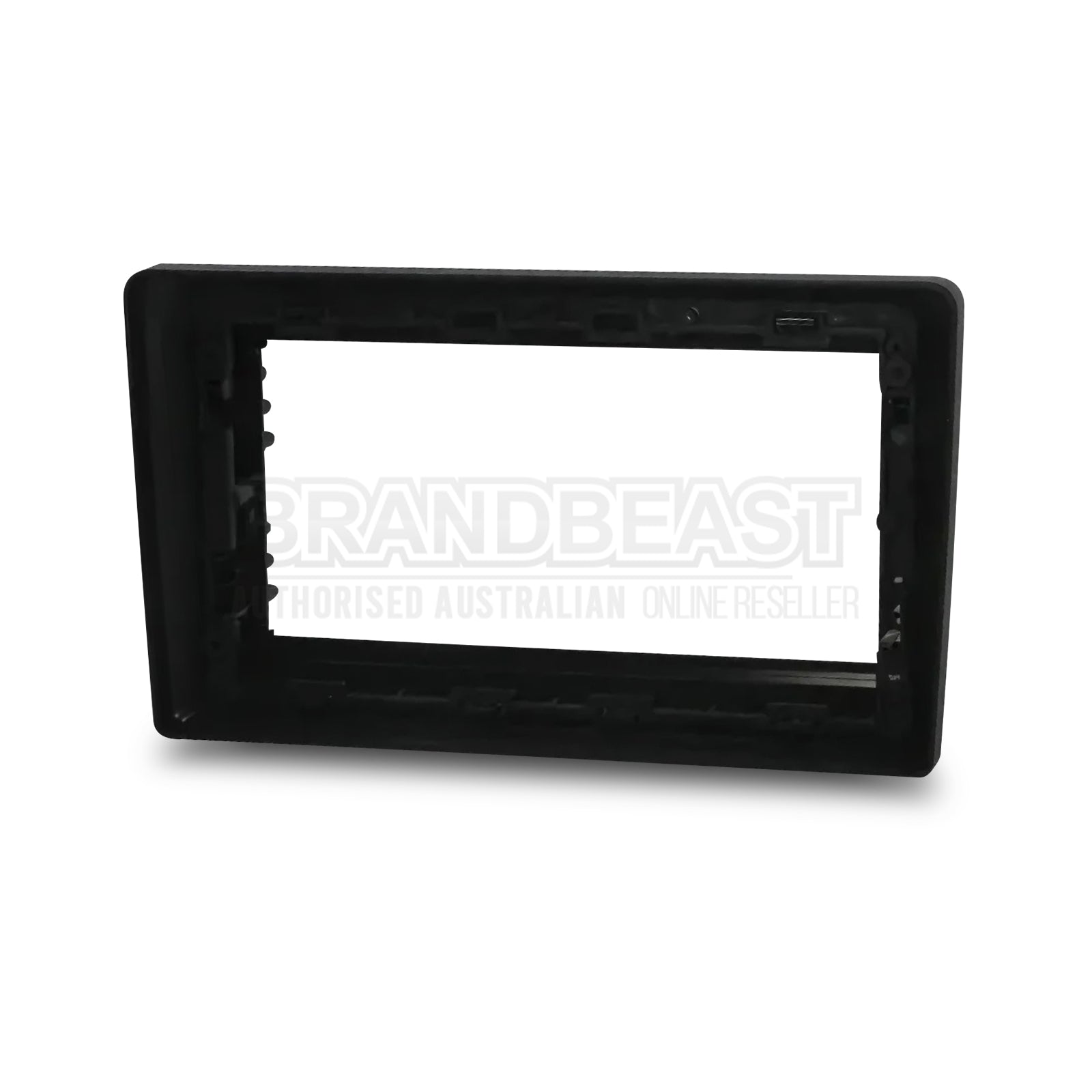

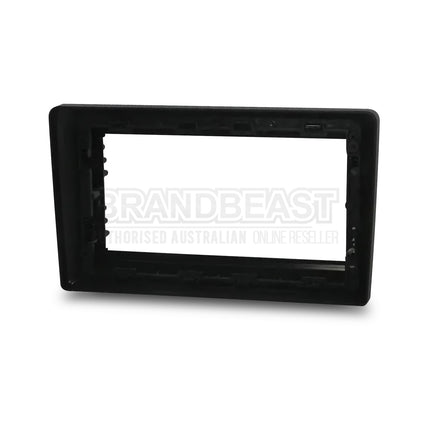

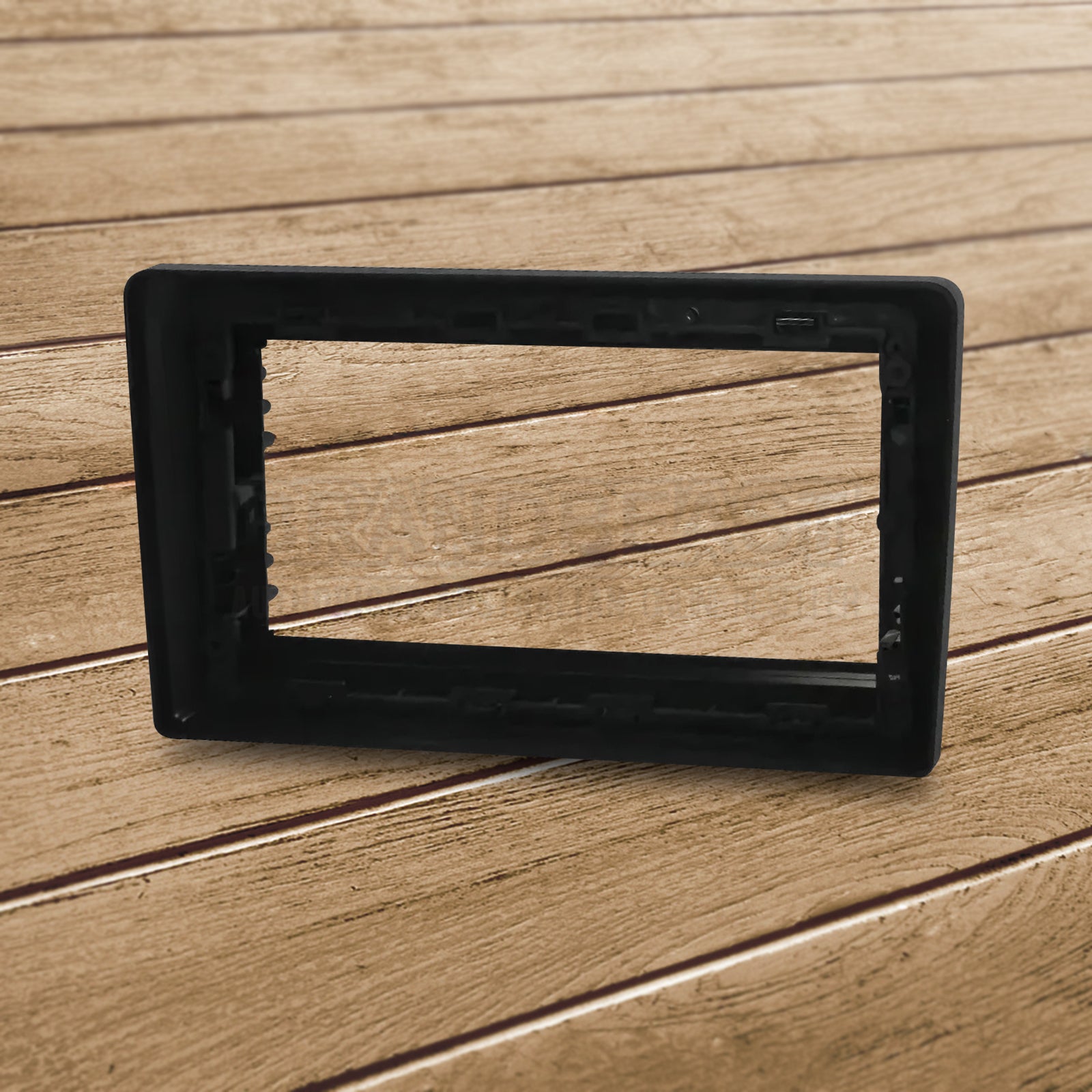

9-inch flush-fit fascia: Designed around Toyota's 200mm factory head unit opening for a purpose-built result with the Pioneer DMH-AP6650BT.

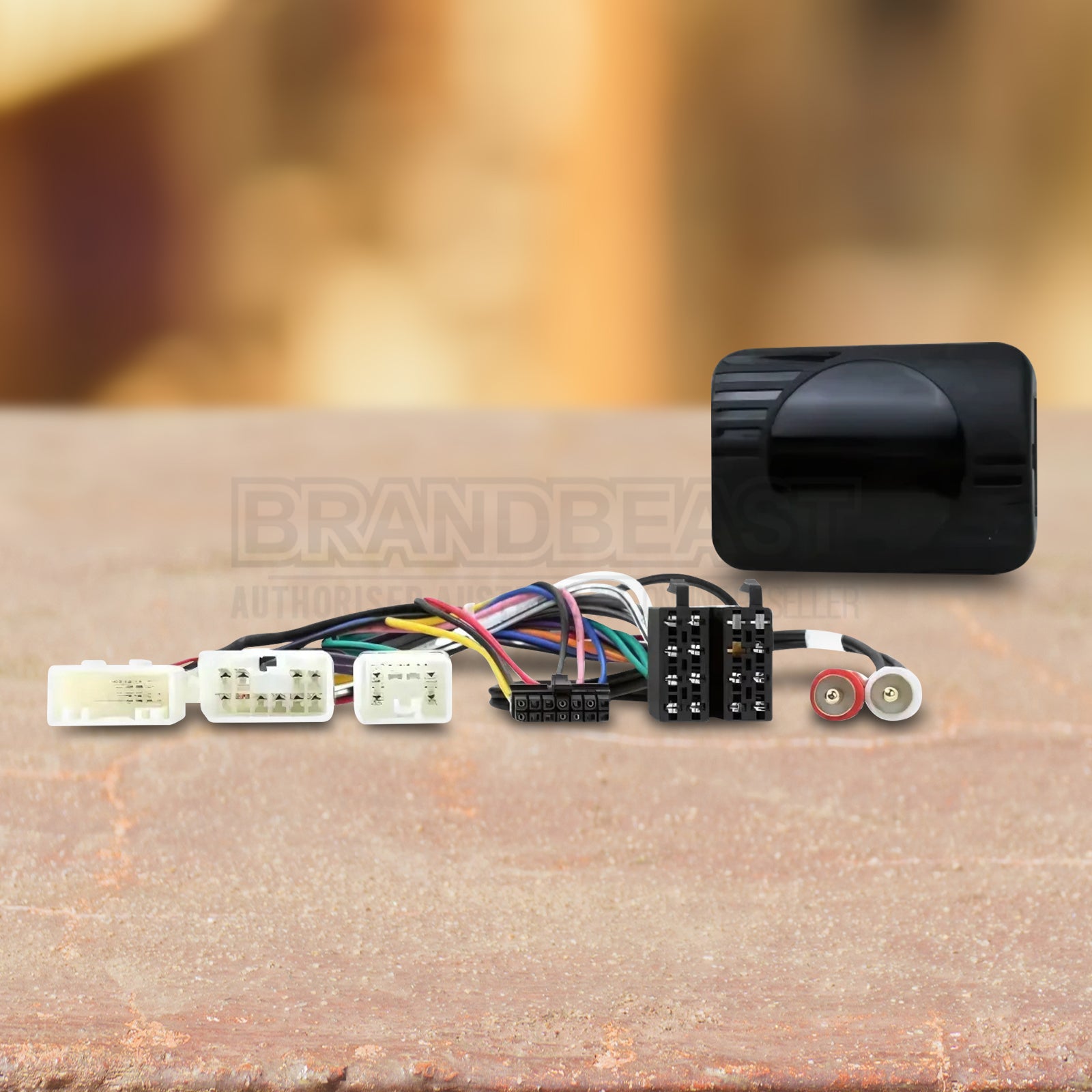

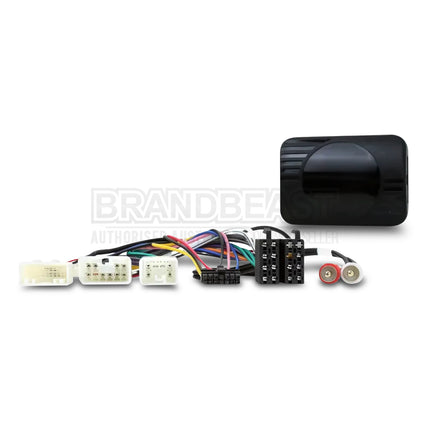

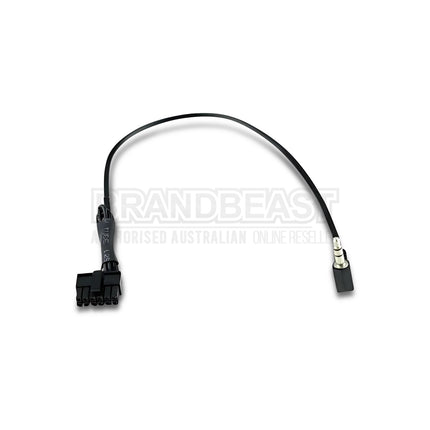

Plug-and-play harness: Connects to Toyota's factory 20-pin, 10-pin, and 6-pin loom and converts to standard ISO. No splicing, soldering, or permanent wiring changes required.
Steering wheel audio control retention: Retains factory steering wheel audio buttons on models fitted with the 20-pin connector.
SWC memory retention on power loss: The interface stores its programming when disconnected from battery power, keeping settings intact through battery changes and workshop visits.
No antenna adaptor included: A separate antenna adaptor may be required depending on the vehicle.
No reverse camera retention included: Additional product may be required for reverse camera integration.
Head unit not included: The Pioneer DMH-AP6650BT is sold separately.
Technical specs
| Specification |
Detail |
| SKU |
HR9-TY001 |
| Brand |
Stinger |
| Colour |
Black |
| Vehicle Plug Style |
20-pin, 10-pin, and 6-pin Toyota connectors |
| Output |
Standard ISO connector |
| Fascia Size |
9-inch flush fit |
| Factory Opening Required |
200mm |
| Plug and Play |
Yes, factory to ISO, no splicing required |
| Steering Wheel Audio Controls |
Retained (20-pin connector models only) |
| SWC Memory |
Retained on power loss |
| Reverse Camera Retention |
Not included |
| Antenna Adaptor |
Not included |
| Fascia Bracket Modification |
May be required on some vehicles |
| Head Unit Fitment Depth |
May sit forward of factory dash panel on some vehicles |
| Head Unit Compatibility |
Pioneer DMH-AP6650BT |
Compatible with
Select Toyota models 2005 to 2012 with a factory 200mm head unit opening and Toyota 20-pin, 10-pin, and 6-pin connector configuration. Confirm your vehicle's factory opening size and connector type before purchasing.
Frequently asked questions
Does the HR9-TY001 include the Pioneer DMH-AP6650BT head unit? No. The Pioneer DMH-AP6650BT is sold separately. The HR9-TY001 is the installation kit providing the fascia and SWC interface needed to fit that head unit into compatible Toyota models.
Which Toyota models is the HR9-TY001 compatible with? This kit suits select Toyota models from 2005 to 2012 with a factory 200mm head unit opening and the Toyota 20-pin, 10-pin, and 6-pin connector configuration. Confirm your specific vehicle's factory opening size and connector type before purchasing.
Will this kit retain my Toyota's factory steering wheel controls? Yes, on models fitted with the 20-pin connector. The SWC interface retains audio button functions and holds its programming if battery power is lost.
Does this kit include an antenna adaptor or reverse camera retention? No. Neither an antenna adaptor nor a reverse camera retention interface is included. If your vehicle requires either, additional products will be needed.
Will the head unit sit flush with my dash after installation? Not always. On some vehicles the head unit will sit forward of the factory dash panel and fascia brackets may require modification. Professional installation is recommended if fitment depth is a concern for your specific vehicle.
