Stinger HR9-TY002 9-Inch Trapezoid Radio Replacement Kit for Select Toyota Vehicles with 200mm Factory Head Unit
The Stinger HR9-TY002 is a radio replacement bundle designed for the installation of a 9-inch trapezoid aftermarket head unit into select Toyota vehicles originally fitted with a 200mm factory head unit. The kit includes a 9-inch flush fit radio panel, steering wheel control retention interface with patch lead, antenna adaptor, reverse camera retention interface and AUX/USB retention. Note that the head unit will sit forward of the factory dash panel after installation, and fascia bracket modification may be required in some vehicles.
Product overview
The HR9-TY002 covers a range of Toyota models sharing the 200mm factory head unit format, including the Toyota 86 (post-facelift), C-HR AX10, HiAce H200, LandCruiser 200 Series and Prius C XP130. The plug-and-play SWC interface connects to the factory Toyota connector architecture and retains factory audio steering wheel controls on models equipped with the 28-pin connector. Reverse camera retention is provided via the included interface, but only where the vehicle has reverse camera wiring present in the 24-pin connector this should be verified for the specific vehicle before purchasing.
AUX and USB retention is confirmed included, and a factory-to-aftermarket antenna adaptor is provided. The factory amplifier is not retained by this kit. Due to the depth difference between the 200mm opening and the 9-inch trapezoid head unit, the unit will sit forward of the factory dash panel after installation. Fascia bracket modification may also be required in some vehicle applications, so professional installation by a qualified car audio installer is recommended.
Features and benefits
Covers select Toyota vehicles with 200mm factory head unit: A single kit supports the Toyota 86 post-facelift, C-HR AX10, HiAce H200, LandCruiser 200 Series and Prius C XP130 across a range of production years.
Plug and play SWC retention for 28-pin connector models: The SWC interface retains factory audio steering wheel controls on vehicles equipped with the 28-pin connector. Confirm your vehicle's connector type before purchasing.
Reverse camera retention interface included: Reverse camera retention is provided where the vehicle has camera wiring in the 24-pin connector. Verify this wiring is present in your specific vehicle before purchasing.
AUX and USB retention included: Factory AUX and USB connections are retained after the head unit upgrade via the included retention harness.
Antenna adaptor included: A factory-to-aftermarket antenna adaptor is included, covering the antenna connection without a separate purchase.
Factory amplifier not retained: This kit does not retain the factory amplifier. Vehicles with a factory amplified audio system should be assessed before installation.
Head unit sits forward of factory dash panel: Due to the depth difference between the 200mm opening and the 9-inch trapezoid head unit, the unit will project forward of the factory dash panel after installation.
Fascia bracket modification may be required: In some Toyota applications the fascia brackets will need modification to achieve a correct fit. Professional installation is recommended.
What's in the box

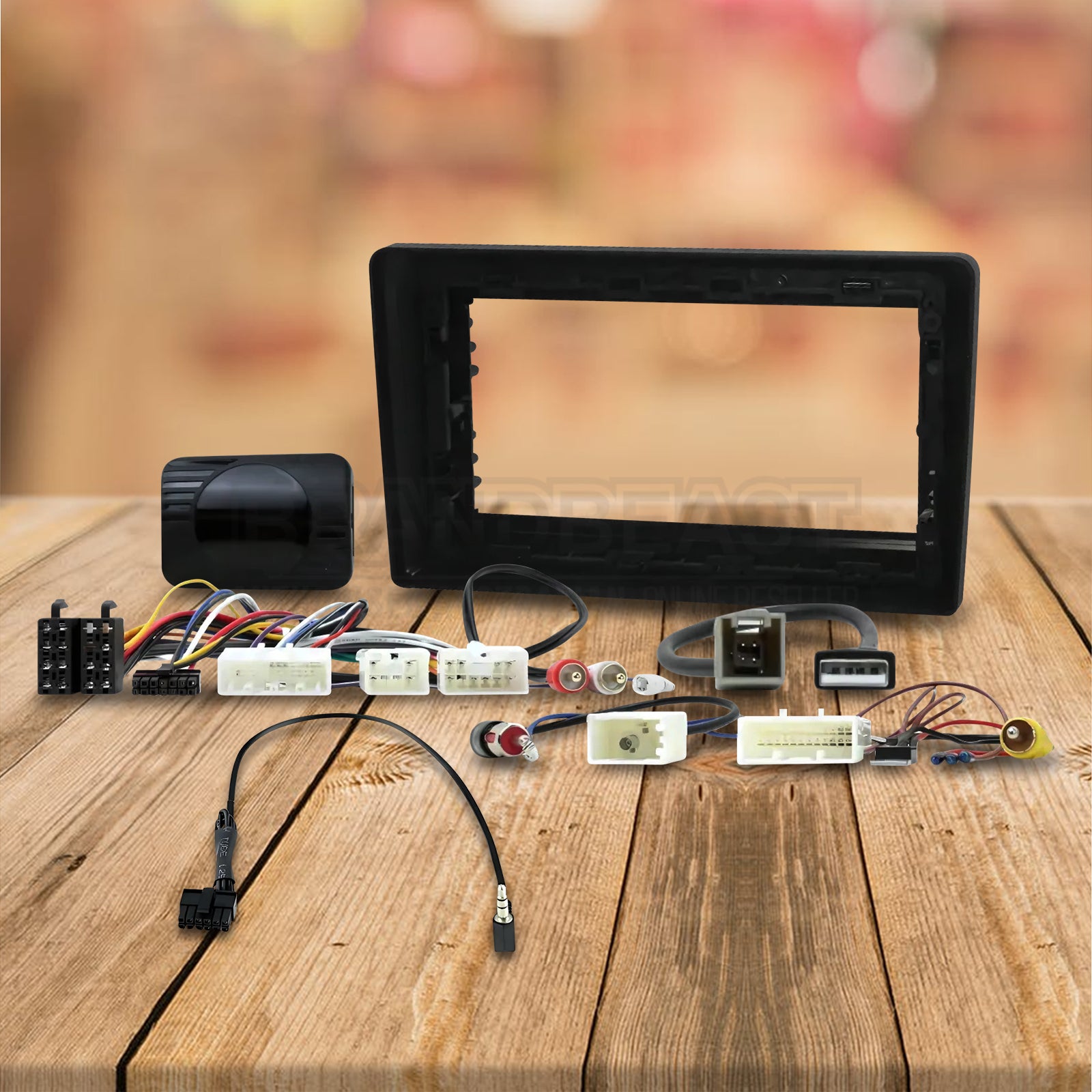

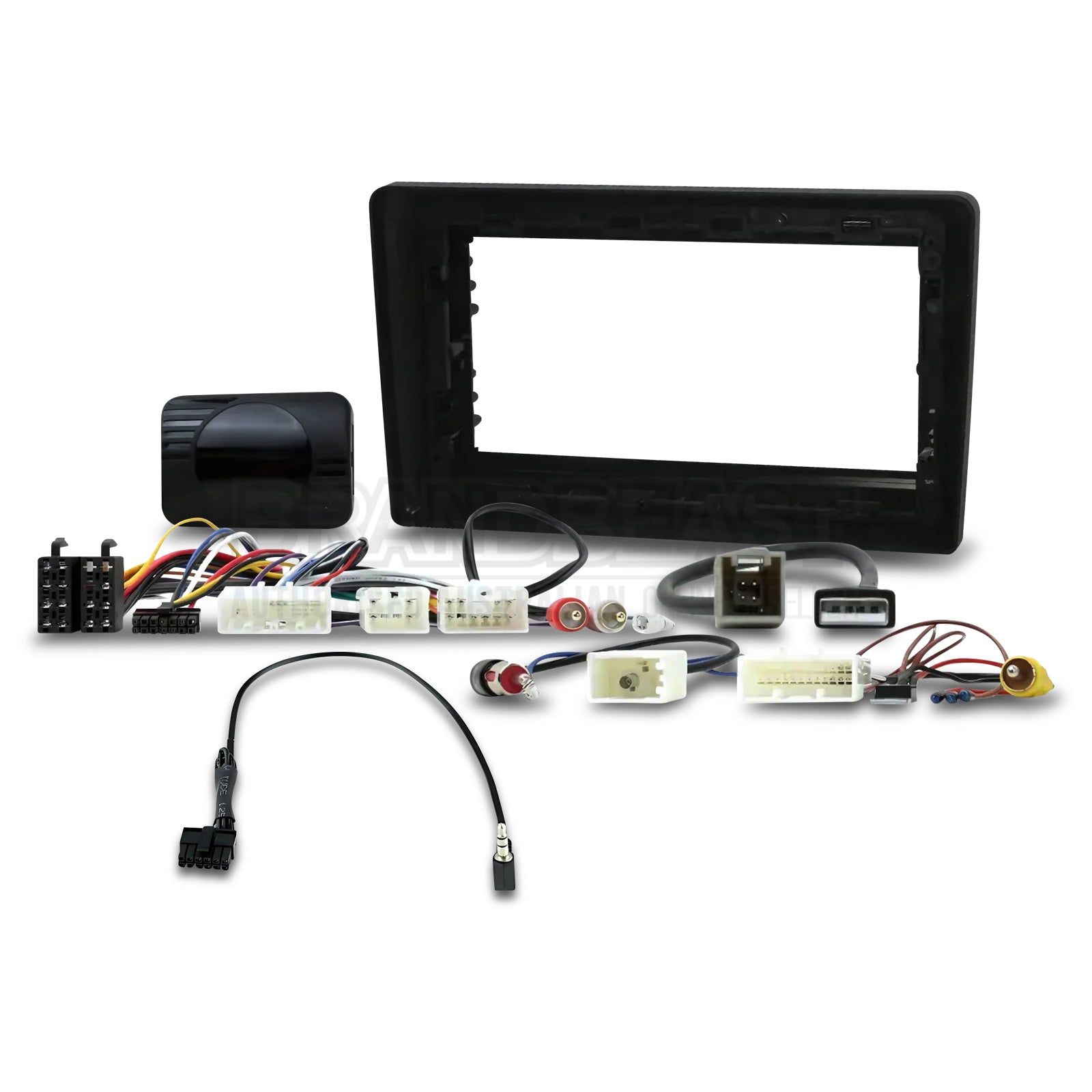

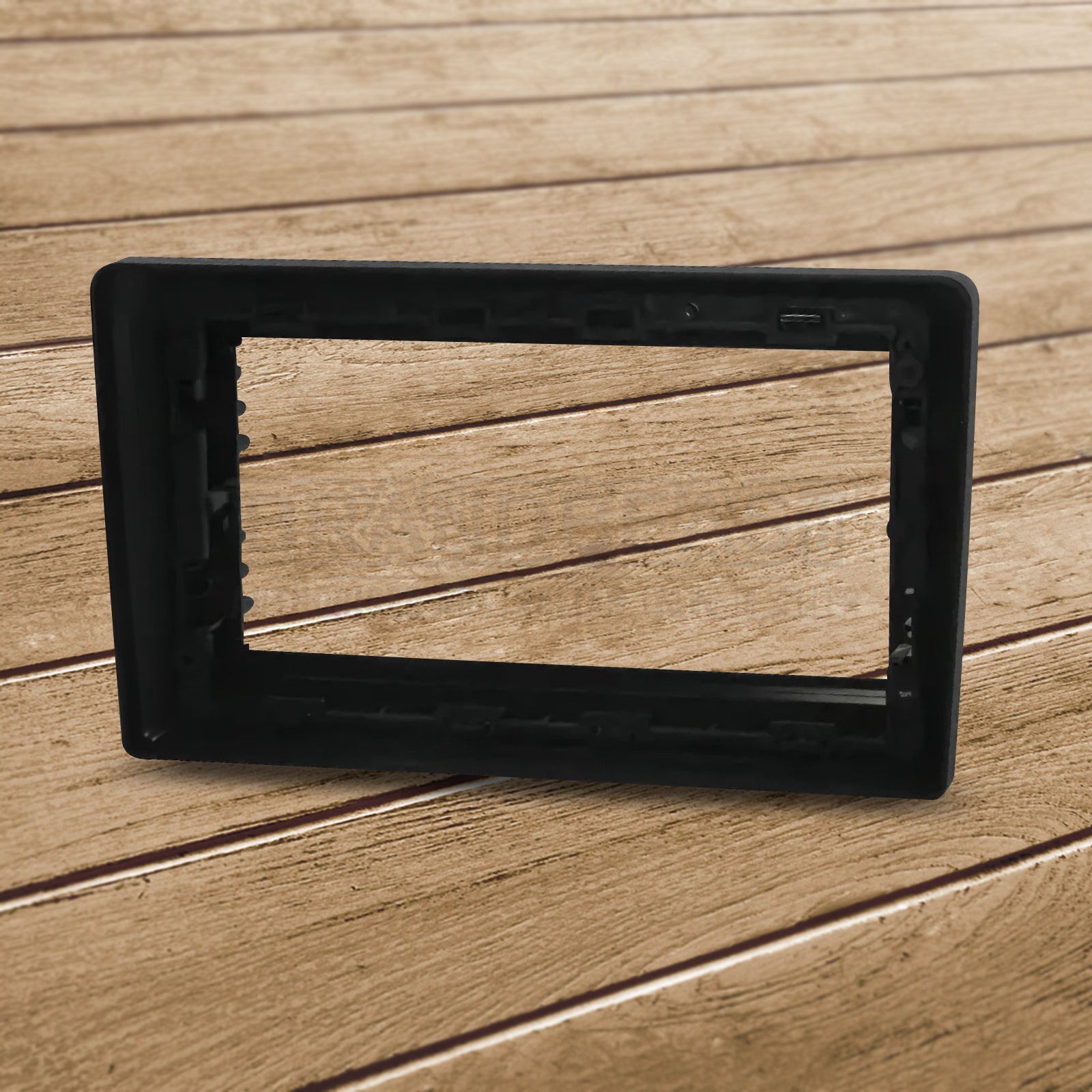

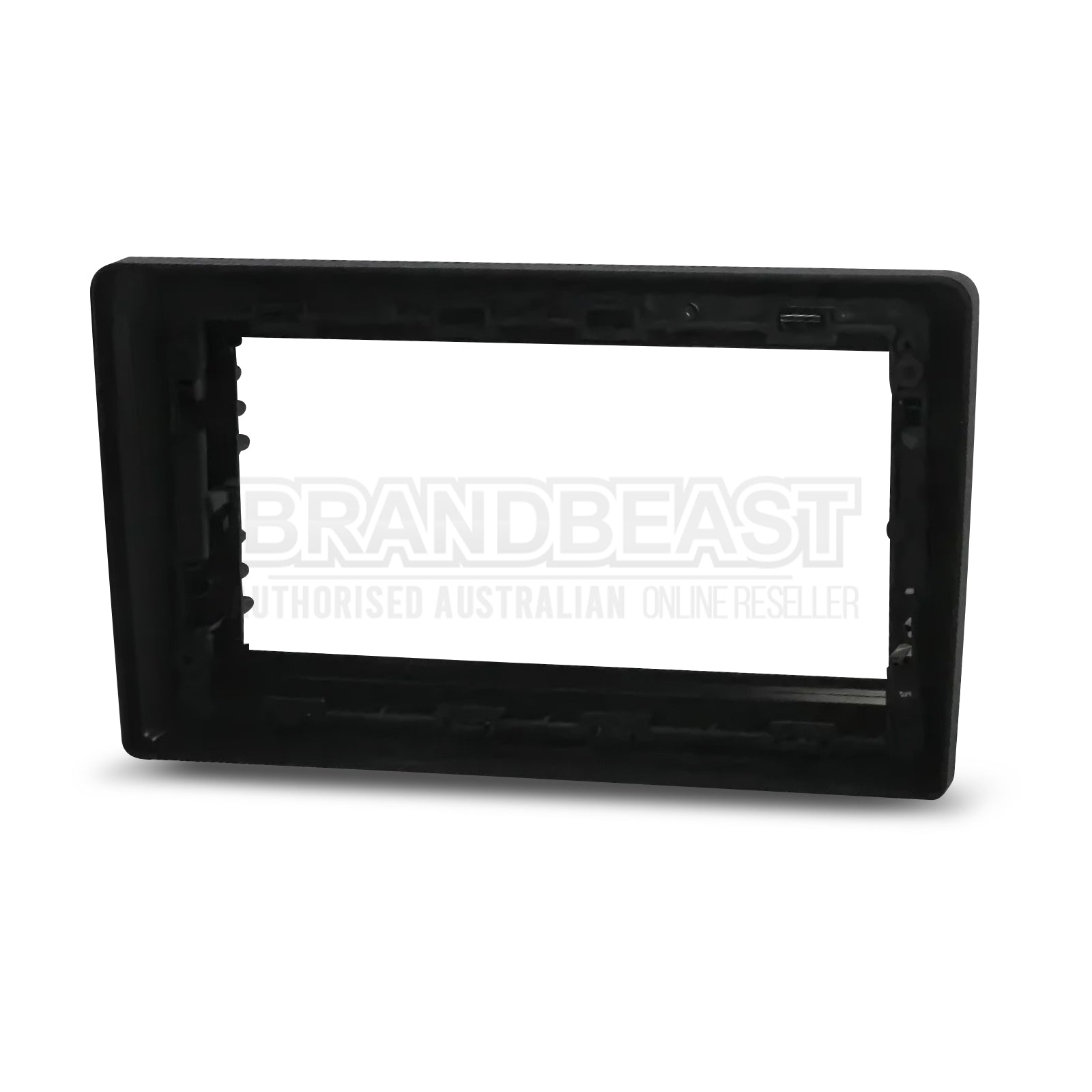

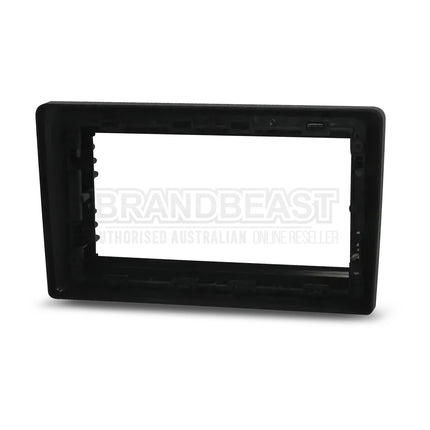

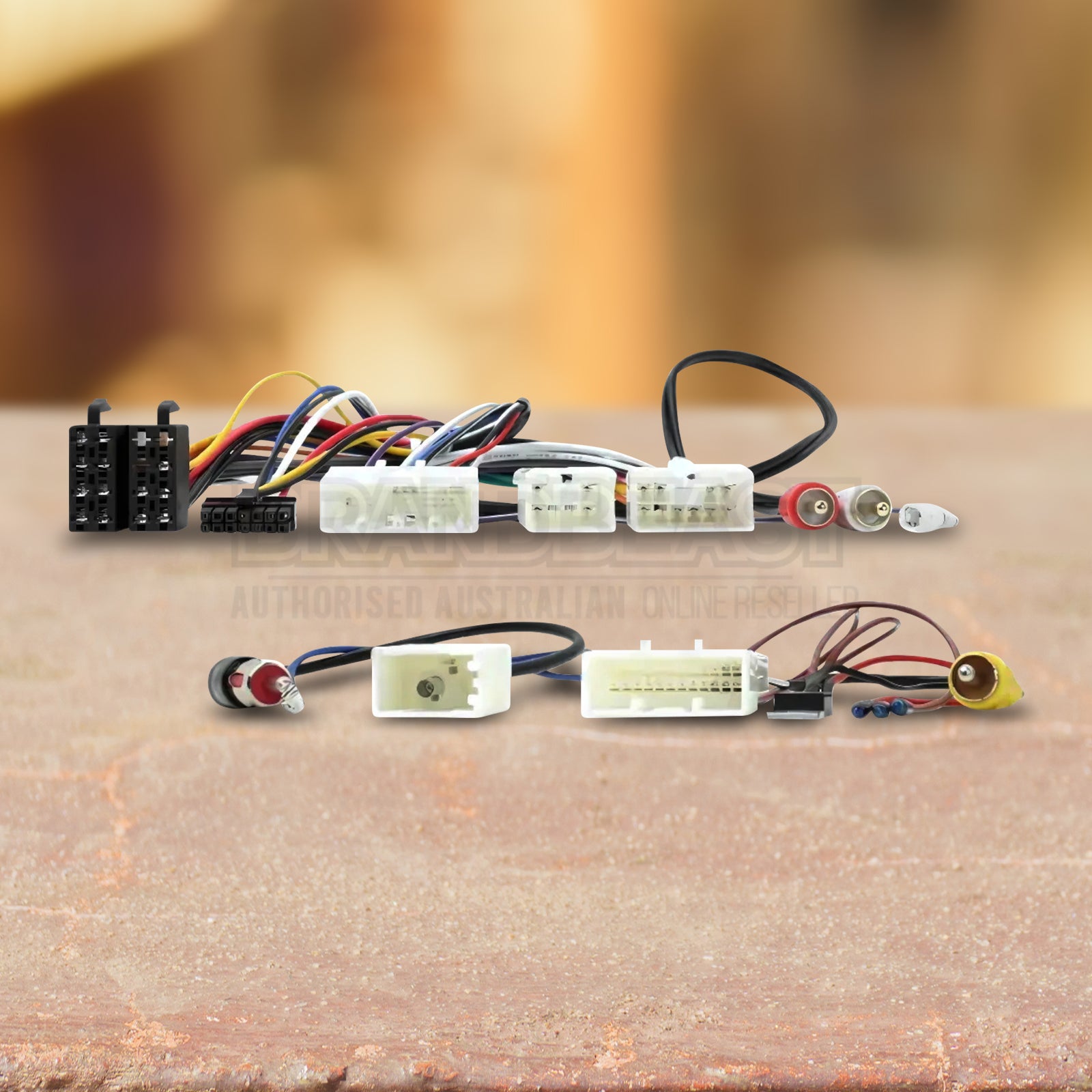

- 9" flush fit radio panel

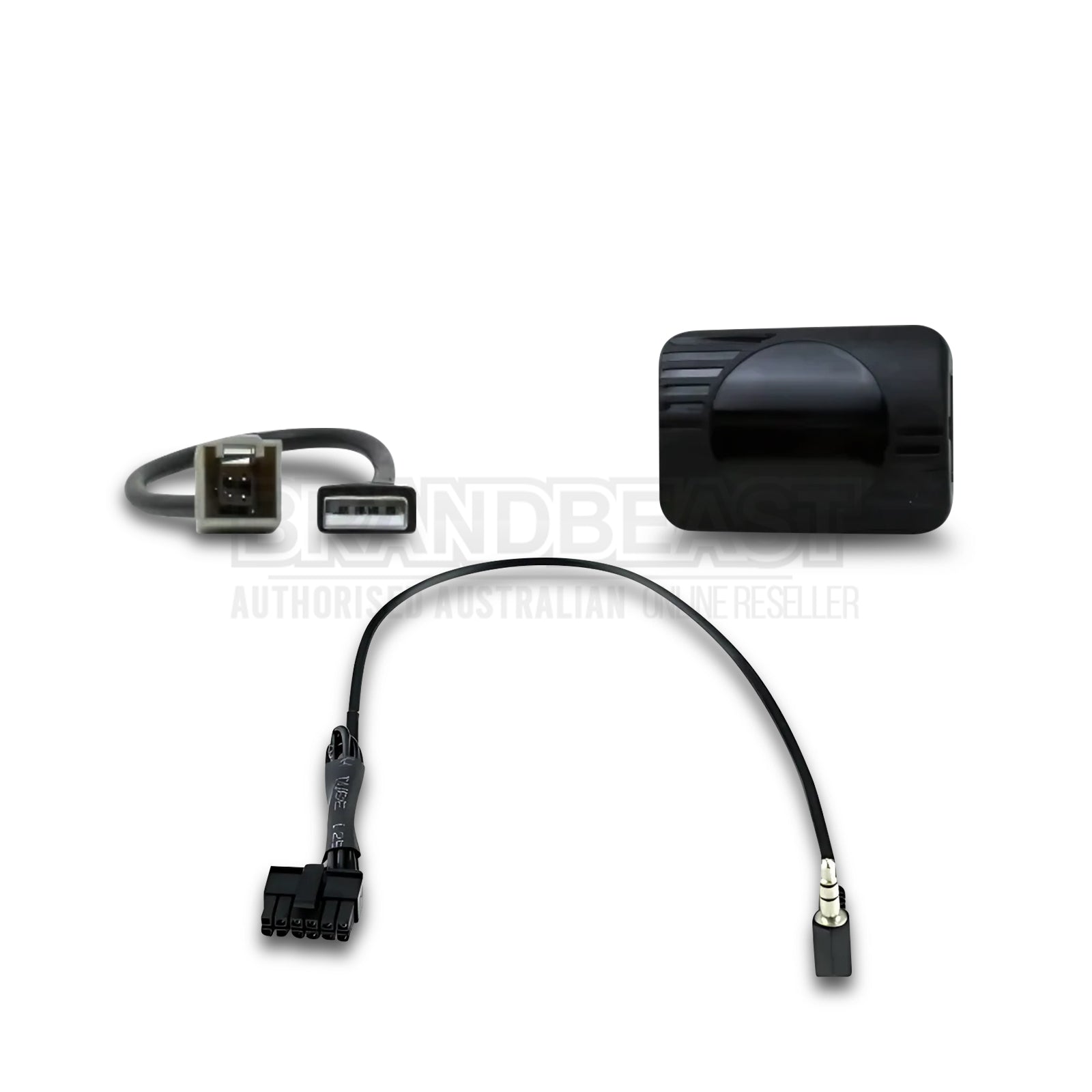

- Steering wheel control retention interface
- SWC patch lead
- Antenna adaptor

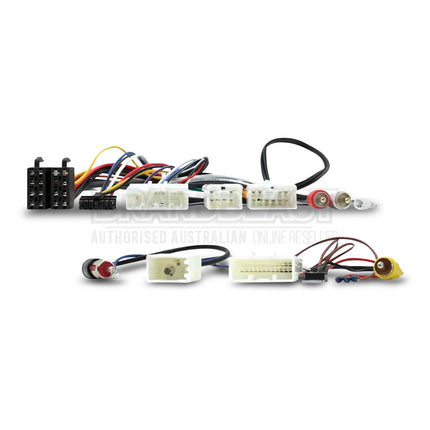

- Reverse camera retention interface
- AUX and USB retention harness
Technical specs
| Specification |
Detail |
| SKU |
HR9-TY002 |
| Brand |
Stinger |
| Colour |
Black |
| Compatible Format |
Toyota 200mm factory head unit opening |
| Head Unit Format |
9" Trapezoid |
| Vehicle Connectors |
28-pin, 24-pin, 10-pin and 6-pin Toyota style |
| SWC Interface |
Plug and play, memory retention 28-pin connector models only |
| Reverse Trigger |
Provided |
| Antenna Adaptor |
Included |
| AUX/USB Retention |
AUX and USB included |
| Reverse Camera Retention |
Included requires camera wiring in 24-pin connector |
| Factory Amplifier Retention |
Not retained |
| Head Unit Position |
Sits forward of factory dash panel |
| Fascia Brackets |
Modification may be required in some applications |
| Sold As |
Bundle |
Compatible head units
The HR9-TY002 is confirmed compatible with the following 9-inch trapezoid head units:
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Kenwood |
DMX80AXS |
| Mongoose |
Q9WCA |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
86 |
Post-facelift |
2017–2020 |
| Toyota |
C-HR |
AX10 Series |
2017–2019 |
| Toyota |
HiAce |
H200 Series |
2005–2019 |
| Toyota |
LandCruiser |
200 Series |
2016–2021 |
| Toyota |
Prius C |
XP130 Series |
2012–2018 |
Vehicle feature retention
| Feature |
Status |
| Steering wheel audio controls |
Retained 28-pin connector models only |
| SWC memory retention |
Retained after power loss |
| Reverse trigger output |
Provided |
| Factory reverse camera |
Retained requires camera wiring in 24-pin connector |
| Factory antenna |
Retained via included adaptor |
| AUX input |
Retained via included harness |
| USB input |
Retained via included harness |
| Factory amplifier |
Not retained |
Frequently asked questions
Which Toyota vehicles is the HR9-TY002 compatible with? The HR9-TY002 is confirmed for the Toyota 86 post-facelift (2017–2020), C-HR AX10 Series (2017–2019), HiAce H200 Series (2005–2019), LandCruiser 200 Series (2016–2021) and Prius C XP130 Series (2012–2018). All must be fitted with the 200mm factory head unit format. Contact us if your vehicle is not listed and you believe it may have a 200mm factory opening.
Why is the reverse camera retention conditional? The reverse camera retention interface supplied with the HR9-TY002 only functions where the vehicle has reverse camera wiring present in the factory 24-pin connector. Not all listed vehicles or variants will have this wiring. Verify the presence of reverse camera wiring in your vehicle's 24-pin connector before purchasing if camera retention is required.
Why is the SWC retention limited to 28-pin connector models? The SWC interface in the HR9-TY002 is designed to work with the 28-pin Toyota connector. Vehicles in the application list that use a different connector configuration may not have steering wheel control retention. Confirm your vehicle's connector type before purchasing if SWC retention is a requirement.
Will the head unit be flush with my dash after installation? No. Due to the depth difference between the 200mm factory opening and the 9-inch trapezoid head unit, the unit will sit forward of the factory dash panel after installation. In some applications the fascia brackets will also require modification to achieve a correct fit. Professional installation is strongly recommended.
Does the HR9-TY002 retain the factory amplifier? No. The factory amplifier is not retained by this kit. If your Toyota is fitted with a factory amplified audio system, assess the audio configuration before proceeding with the installation.
