Description
Complete Radio Replacement Bundle Toyota RAV4 XA40 2014–2018 for Pioneer DMH-AP6650BT. Includes Fascia, SWC Interface, Antenna Adaptor, Reverse Camera Retention, and USB.
Product Overview
The Stinger HR9-TY003 is a comprehensive radio replacement bundle for installing the Pioneer DMH-AP6650BT 9-inch head unit into a 2014–2018 Toyota RAV4 (XA40 Series). It is the most complete installation bundle in the Stinger HR9 range including five components in a single purchase: a 9-inch flush fit radio panel, a plug-and-play steering wheel control (SWC) interface with patch lead and reverse trigger, an antenna adaptor, a reverse camera retention interface, and AUX/USB retention. The harness uses Toyota's 28-pin, 10-pin, and 6-pin connectors for a direct plug-and-play connection to the RAV4 XA40 factory loom, and the SWC interface retains factory steering wheel audio controls with memory retention even after power loss.
There are two important compatibility limitations: the HR9-TY003 is not compatible with RAV4 XA40 models fitted with the factory JBL premium audio system (the factory amplifier is not retained), and the fascia does not sit perfectly flush against the left-hand side air vent there is a 2mm step on that side. Both are manufacturing characteristics of this installation, not faults, but buyers and installers should confirm these are acceptable before purchasing. The Pioneer DMH-AP6650BT head unit is not included.

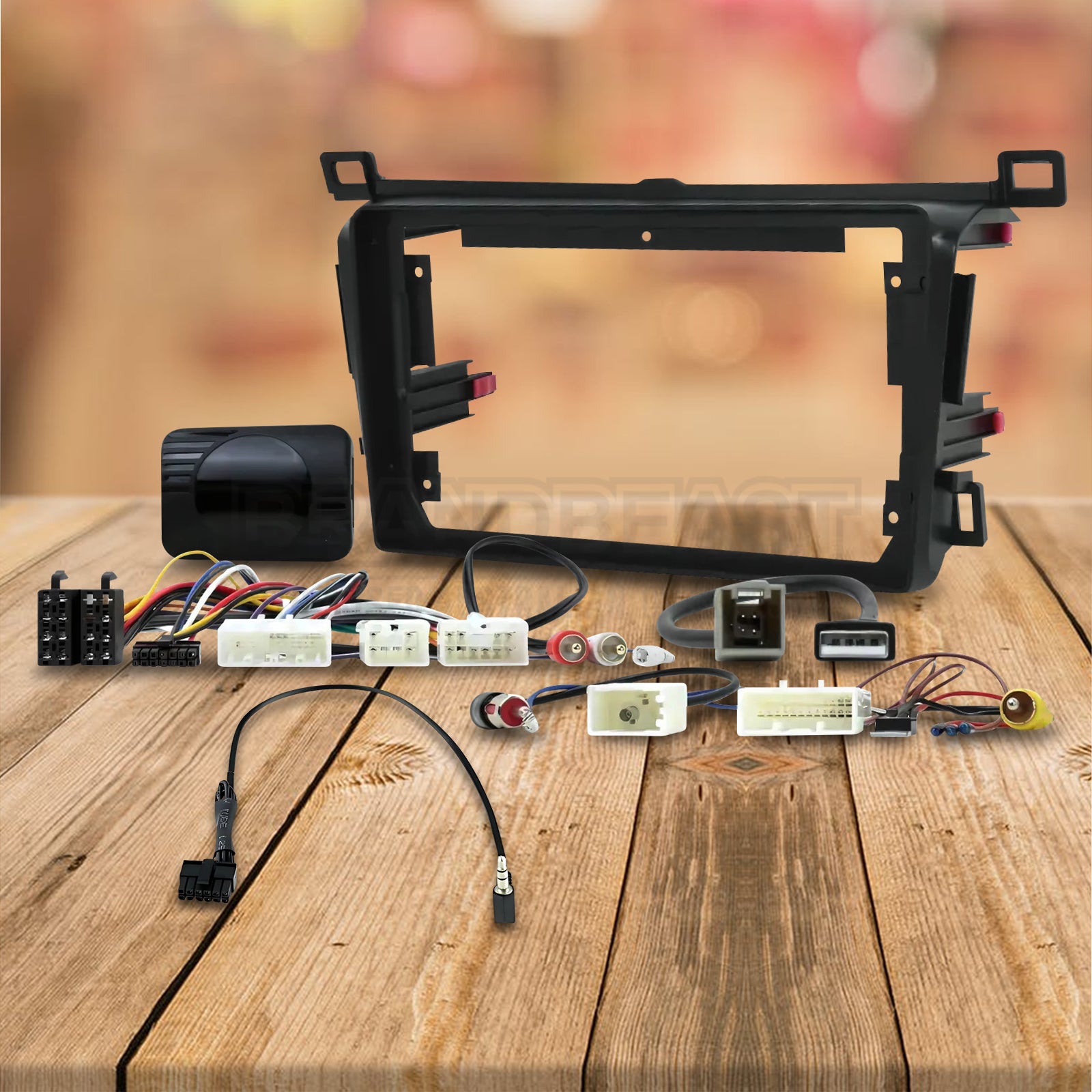

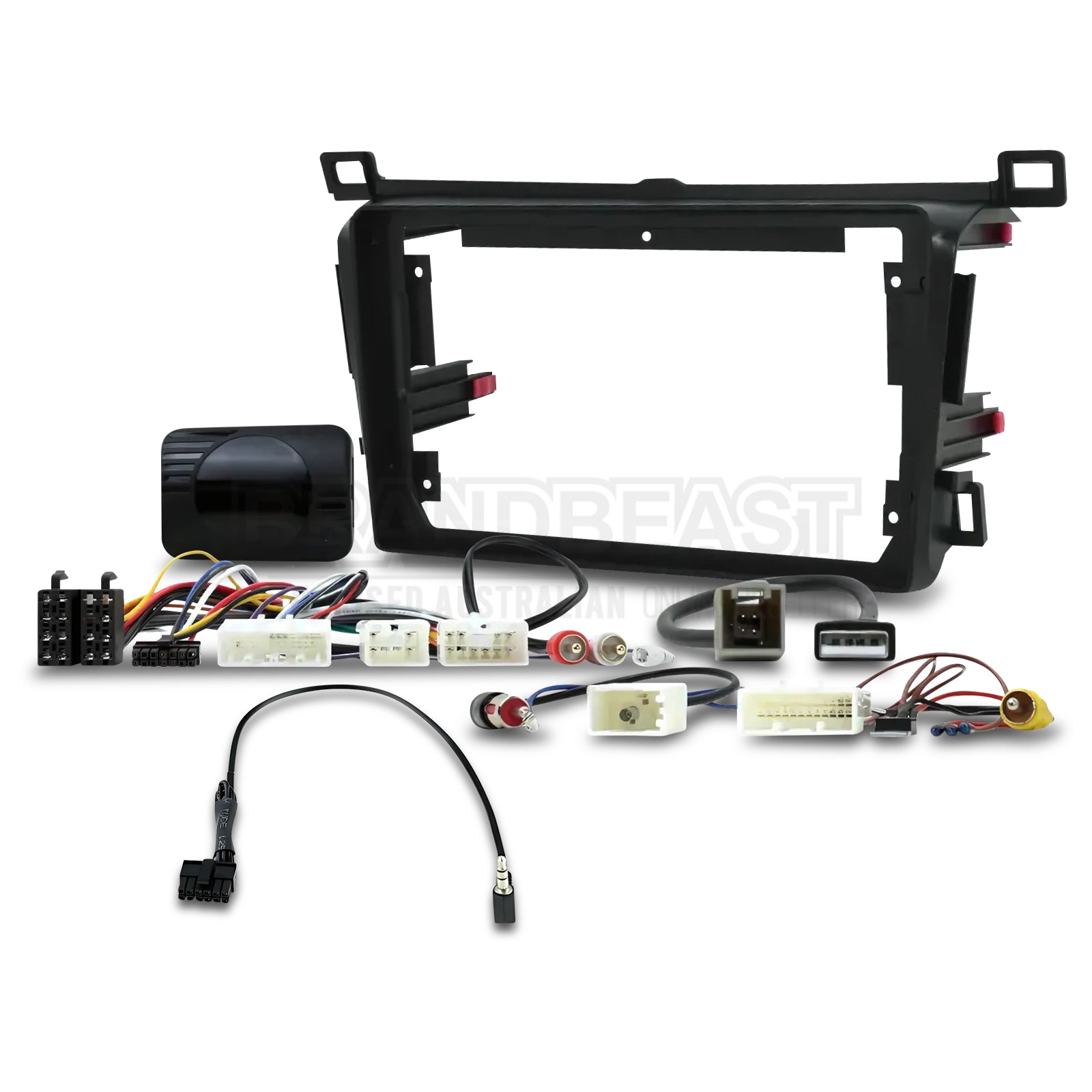

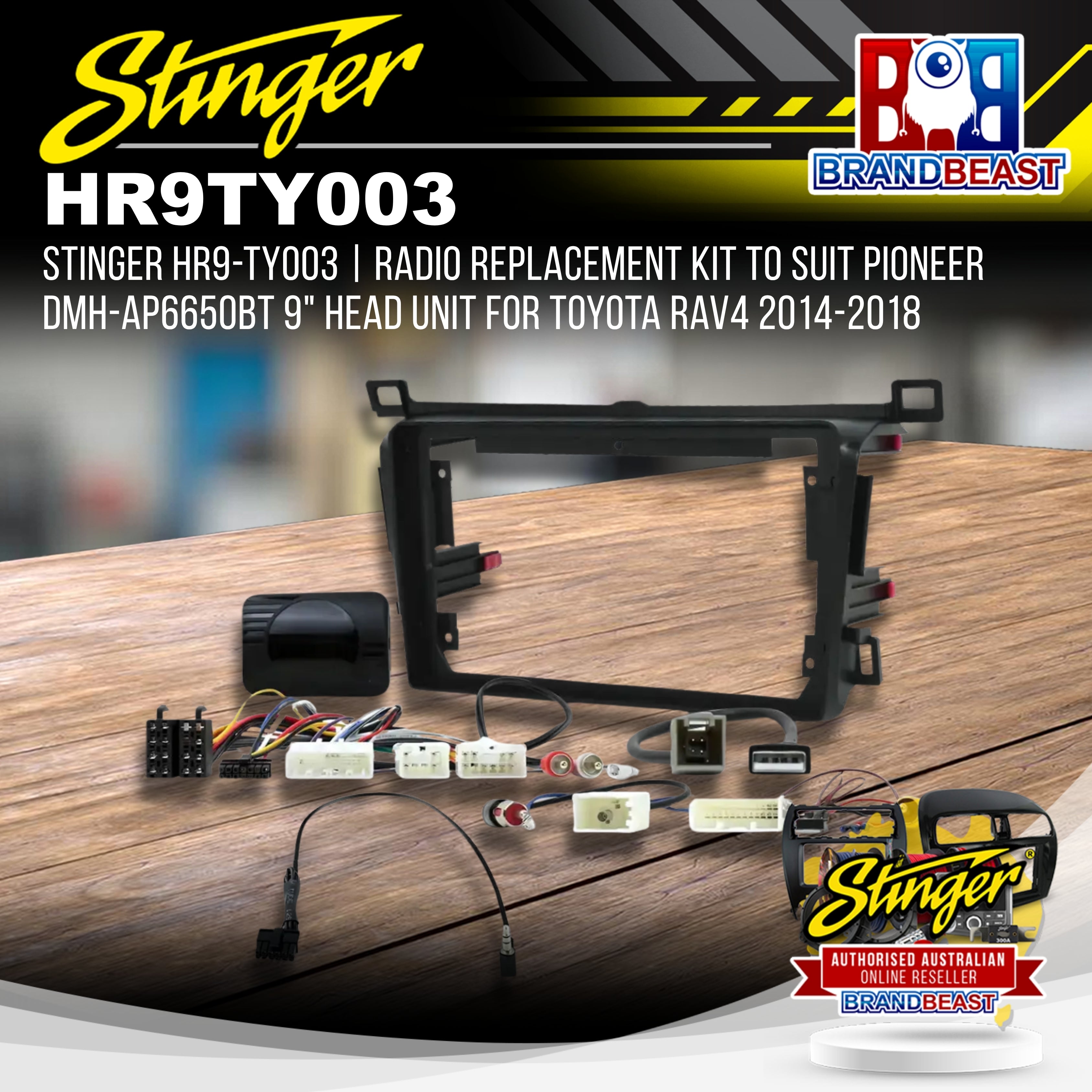

What's in the Box

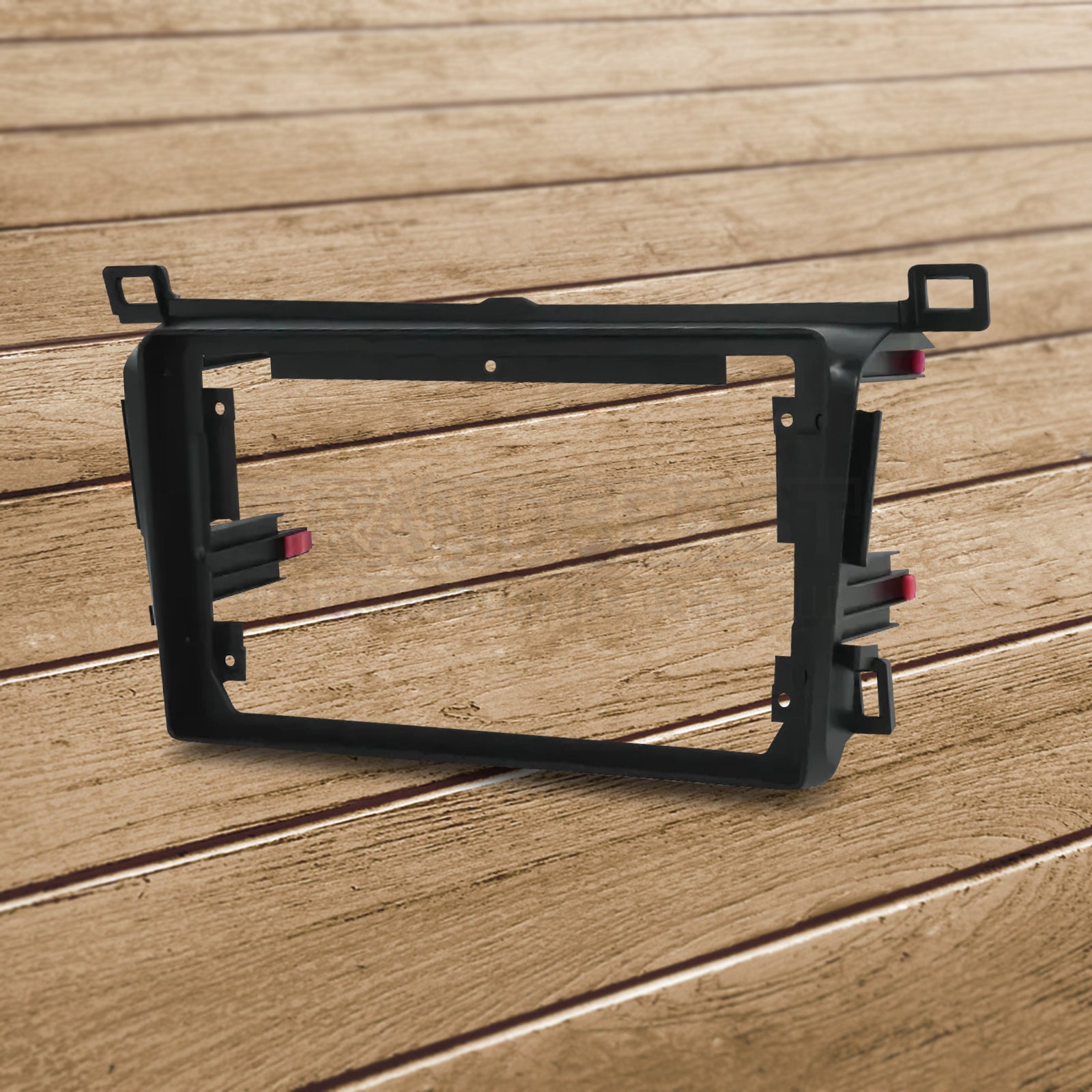

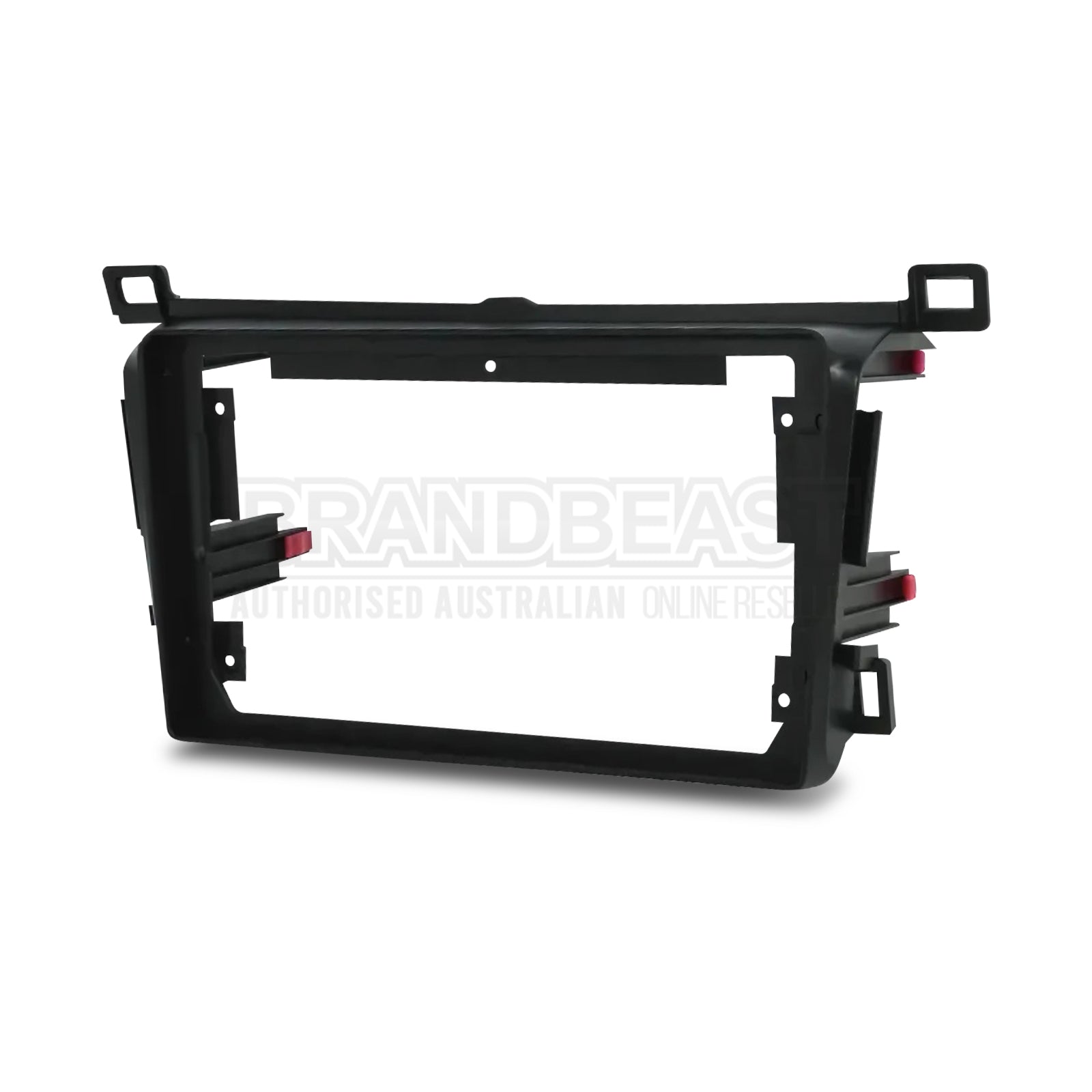

- 9-inch flush fit radio panel (RAV4 XA40 specific)

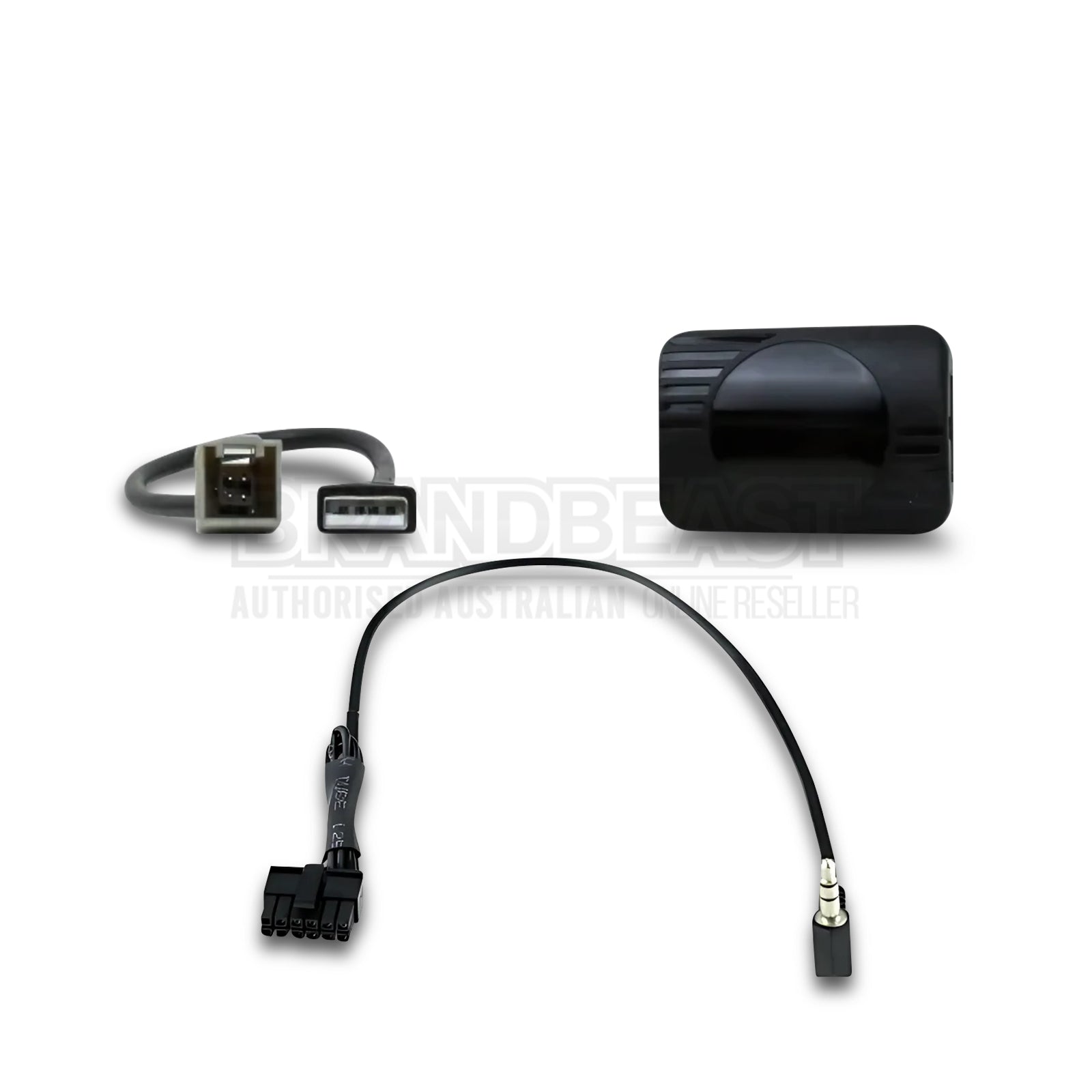

- Steering wheel control (SWC) interface and patch lead
- Antenna adaptor
- Reverse camera retention interface
- AUX and USB retention
Key Specifications
| Specification |
Detail |
| Part Number |
HR9-TY003 |
| Brand |
Stinger |
| Vehicle |
Toyota RAV4 XA40 2014–2018 |
| Compatible Head Unit |
Pioneer DMH-AP6650BT (9-inch) |
| Head Unit Included |
No |
| Fascia Type |
9-inch flush fit panel |
| Fascia Note |
2mm step at left-hand side air vent — not fully flush |
| Vehicle Connectors |
28-pin, 10-pin, and 6-pin Toyota |
| Harness Type |
Plug and play — factory to standard ISO |
| Antenna Adaptor |
Yes — included |
| SWC Interface |
Yes — included (retains factory audio controls) |
| SWC Memory Retention |
Yes — retains memory if power is lost |
| SWC Outputs |
Reverse Trigger |
| Reverse Camera Retention |
Yes — interface included |
| AUX/USB Retention |
Yes — AUX and USB |
| Factory Amplifier |
Not retained |
| JBL System |
Not compatible |
| Colour |
Black |
Features & Benefits
-
Five Components in One Bundle The HR9-TY003 is the most complete installation bundle in the Stinger range — combining flush fit fascia, SWC interface, antenna adaptor, reverse camera retention interface, and AUX/USB retention in a single purchase, minimising the risk of missing a required component.
-
Flush Fit Panel with One Known Limitation The panel provides a flush fit result in the RAV4 XA40 dashboard — with one noted exception: there is a 2mm step between the fascia and the left-hand side air vent. This is a known manufacturing characteristic, not a fault, but should be confirmed as acceptable before installation.
-
Reverse Camera Retention Included The factory RAV4 reverse camera is retained through the included reverse camera retention interface — allowing the factory reversing image to display through the Pioneer DMH-AP6650BT when reverse gear is selected.
-
AUX and USB Retention Factory AUX and USB inputs are retained through the included retention module — buyers do not need to purchase these separately.
-

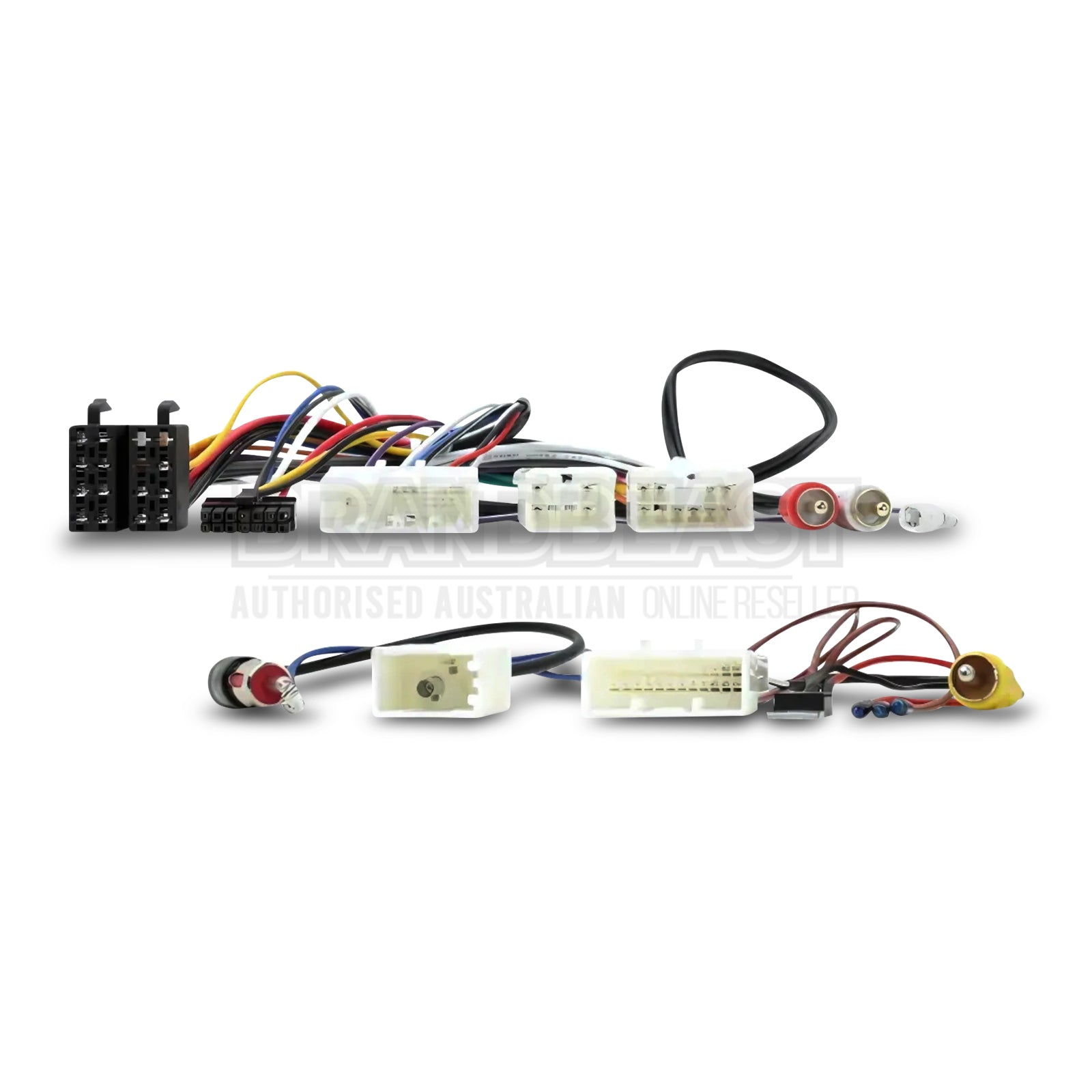

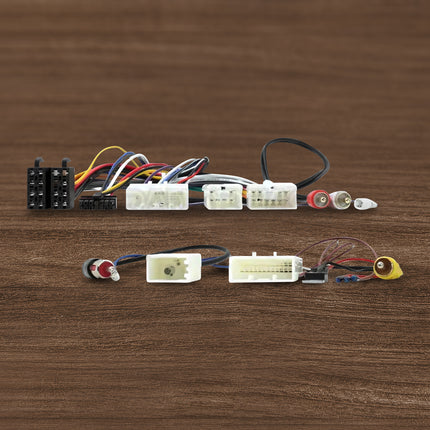

Plug and Play Toyota Harness Toyota's 28-pin, 10-pin, and 6-pin connectors are used throughout the XA40 RAV4. The HR9-TY003 is fully plug-and-play to standard ISO — no wire cutting or modification required.
-
SWC Interface — Memory Retention After Power Loss The SWC interface retains steering wheel control programming even after a battery disconnect or power loss, preventing the need to reprogram following any electrical work.
-
JBL System Not Compatible — Check Before Purchasing The HR9-TY003 does not retain the factory JBL amplifier. RAV4 XA40 models equipped with the JBL premium audio system are not compatible with this bundle.
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Chassis |
Notes |
| Toyota |
RAV4 |
2014–2018 |
XA40 |
JBL-equipped models NOT compatible |
Not compatible with:
- Toyota RAV4 XA40 models with factory JBL audio system
- Toyota RAV4 2019 and newer (XA50 — different platform)
Head unit:
- Pioneer DMH-AP6650BT (9-inch) — not included
Frequently Asked Questions
Is the Pioneer DMH-AP6650BT head unit included?
No — the HR9-TY003 is the installation hardware bundle only. The Pioneer DMH-AP6650BT head unit must be purchased separately.
My RAV4 has a JBL audio system. Can I use this kit?
No — the HR9-TY003 does not retain the factory JBL amplifier and is not compatible with RAV4 XA40 models equipped with the JBL premium audio system. If the vehicle has JBL audio, a different installation approach is required.
Will my factory reverse camera work after installation?
Yes — the HR9-TY003 includes a reverse camera retention interface that allows the factory RAV4 reverse camera to display through the Pioneer DMH-AP6650BT when reverse gear is selected.
Will my factory USB and AUX inputs be retained?
Yes — the HR9-TY003 includes AUX and USB retention as part of the bundle.
Why does the fascia have a 2mm step at the left-hand side air vent?
The 2mm step between the fascia panel and the left-hand side air vent is a known manufacturing characteristic of the HR9-TY003 fascia design for the RAV4 XA40 dashboard. It is not a fitment fault but should be confirmed as acceptable before installation.
