Description
Radio Replacement Bundle Toyota HiAce H300 Series 2019 Onwards for Pioneer DMH-AP6650BT 9". Includes Fascia, SWC Interface, Antenna Adaptor, and Reverse Camera Retention. No AUX/USB Retention. Head Unit Not Included.
Product Overview
The Stinger HR9-TY004 is a radio replacement bundle for installing the Pioneer DMH-AP6650BT 9-inch head unit into a Toyota HiAce H300 Series (2019 onwards). The bundle includes four components: a 9-inch flush fit radio panel, a plug-and-play steering wheel control (SWC) interface with patch lead and reverse trigger output, an antenna adaptor, and a reverse camera retention interface. The harness uses Toyota's 30-pin, 28-pin, and 10-pin connectors for a direct plug-and-play connection to the HiAce H300 factory loom, and the SWC interface retains factory steering wheel audio controls with memory retention even after power loss.
Compared to the HR9-TY003 (Toyota RAV4 bundle), the HR9-TY004 does not include AUX/USB retention buyers who need to retain factory USB or AUX inputs will need to source those separately. The reverse camera retention interface covers the factory reverse camera only not 360-degree multi-camera systems. The Pioneer DMH-AP6650BT head unit is not included. Cross-reference to the SF9-TY04 for buyers who need only the fascia panel.

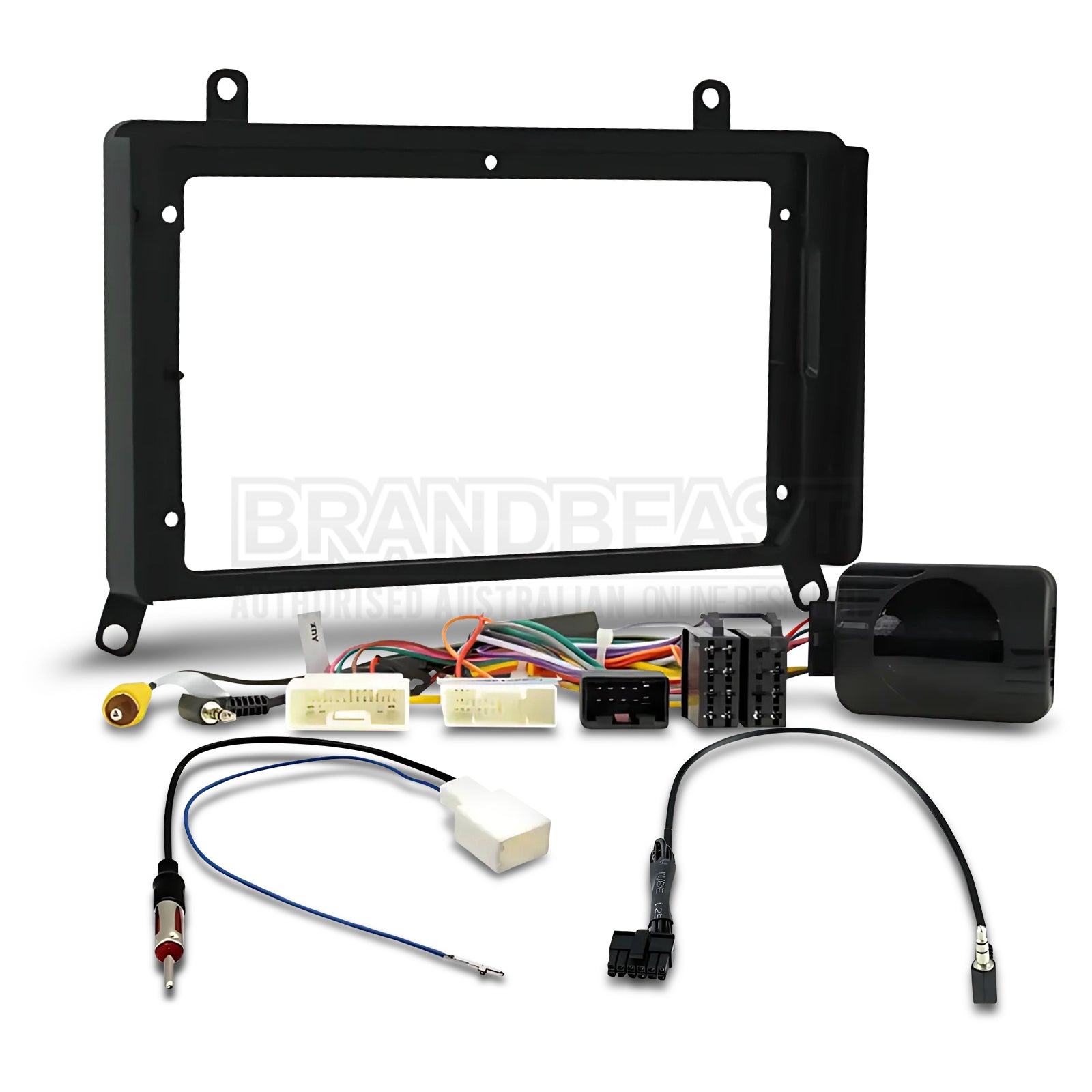

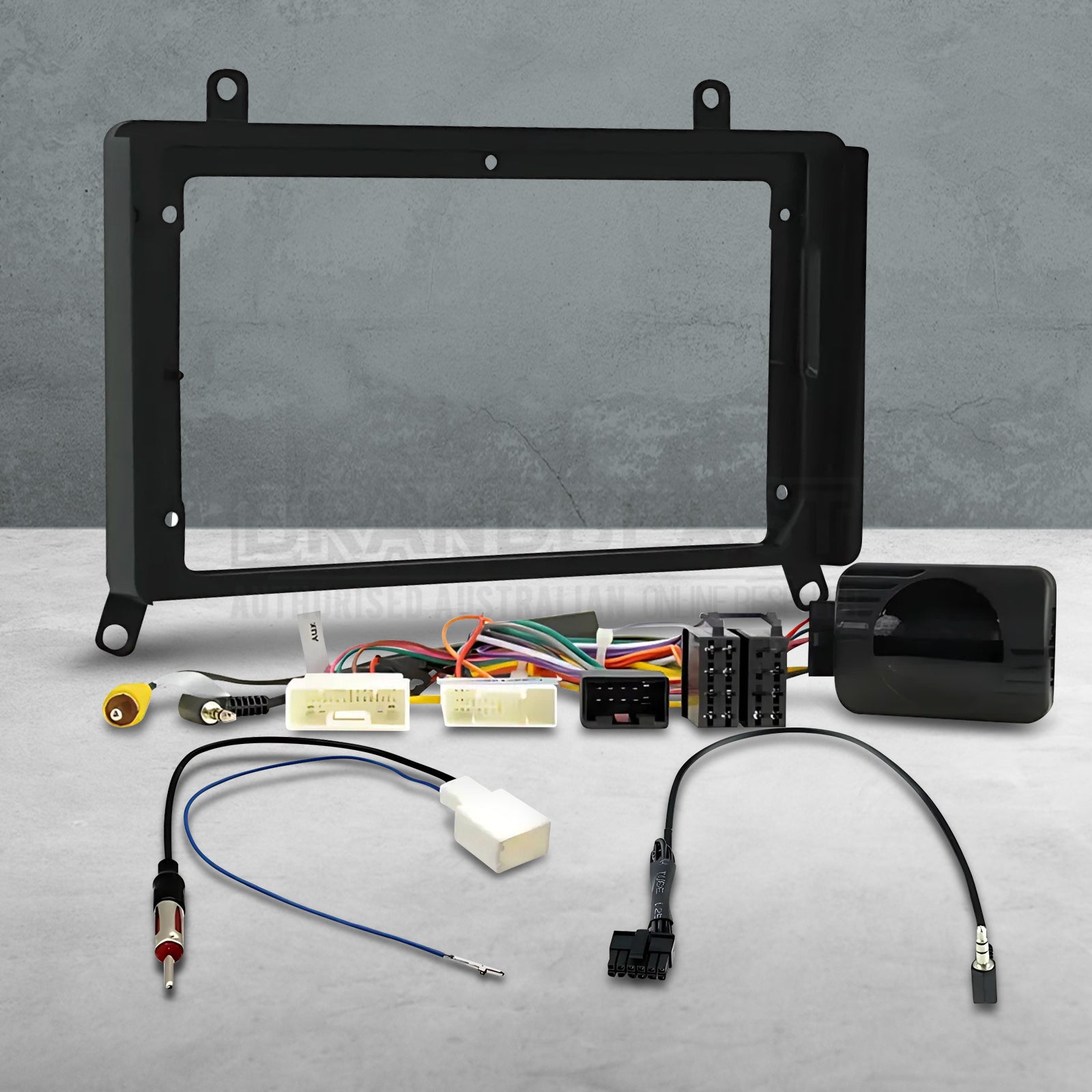

What's in the Box

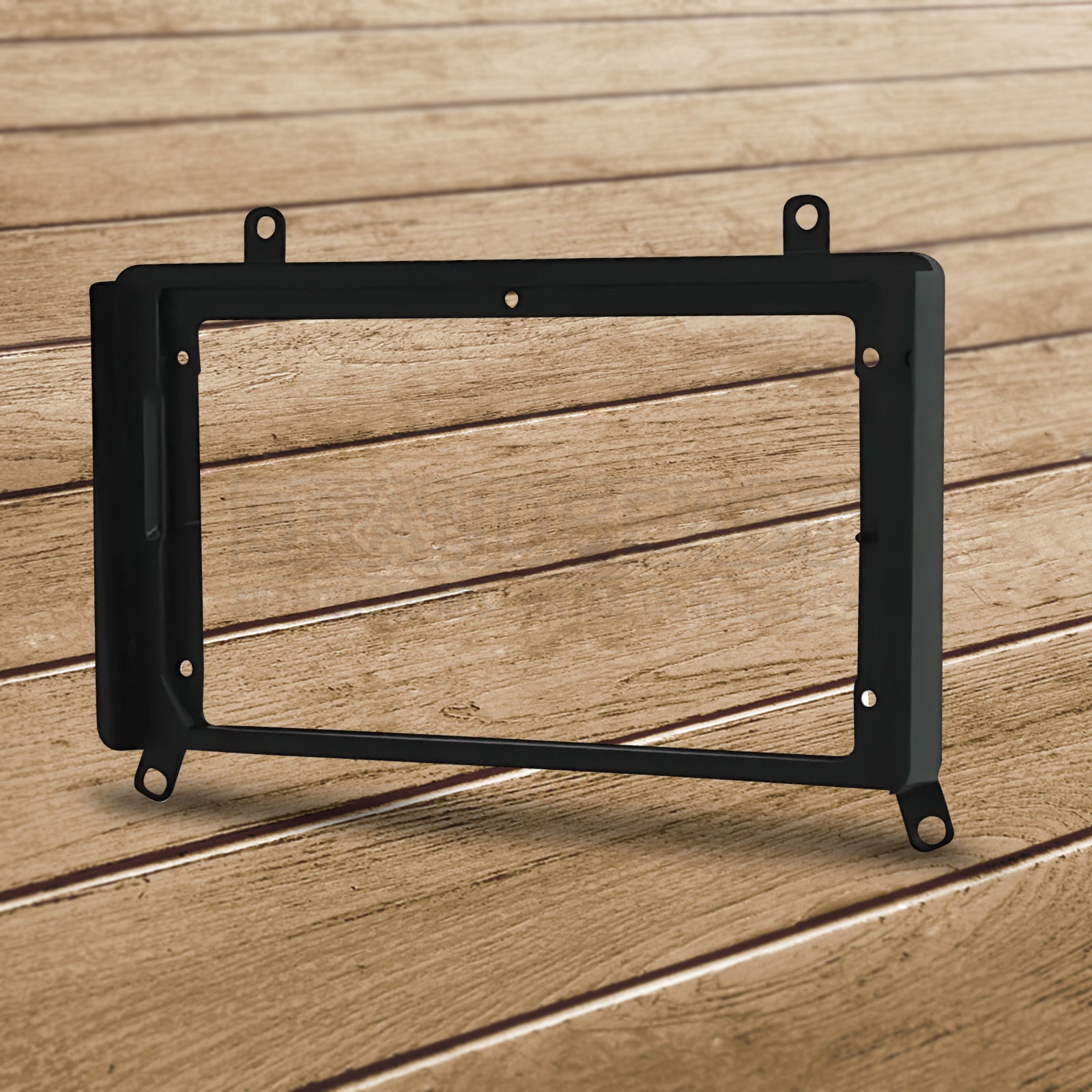

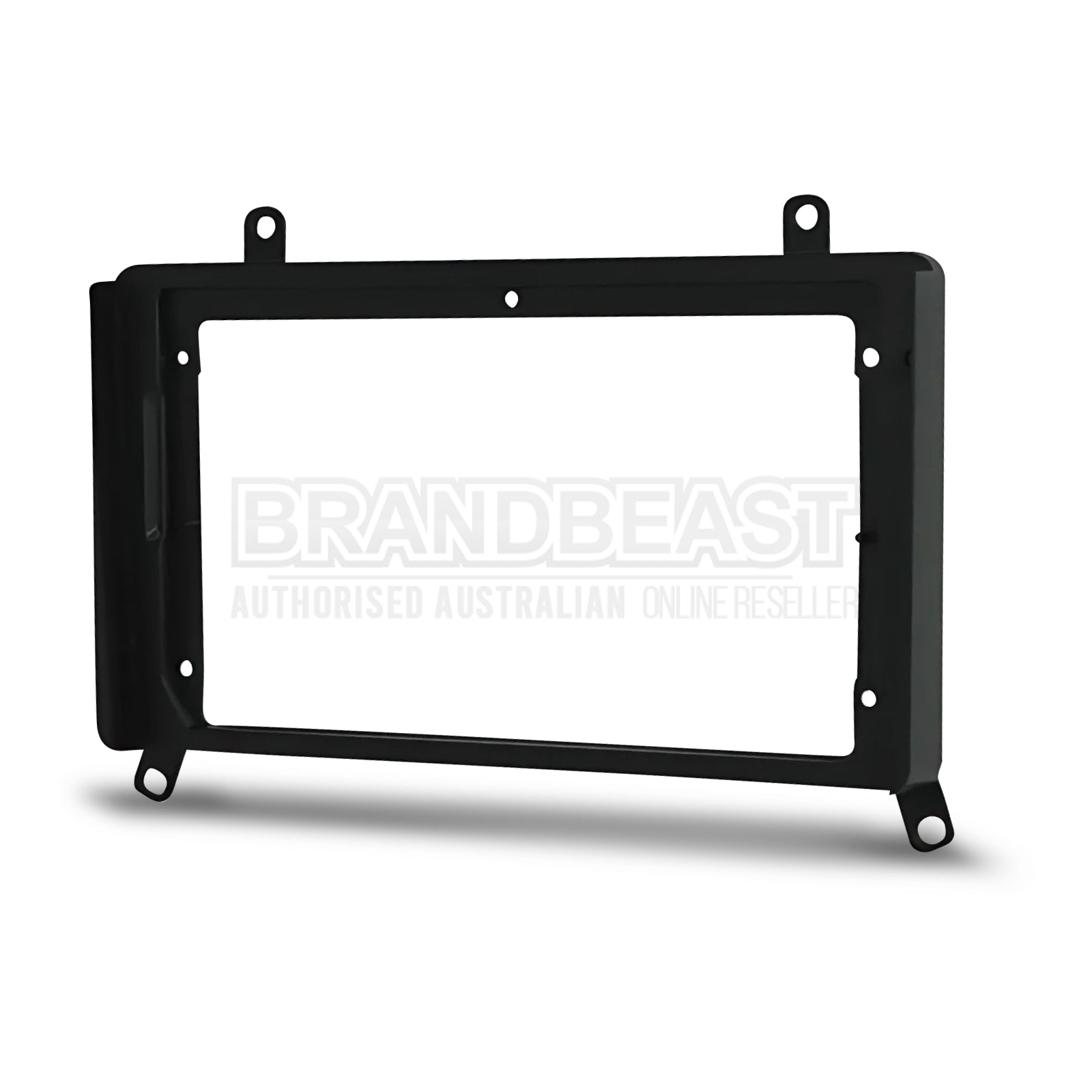

- 9-inch flush fit radio panel (HiAce H300 specific)

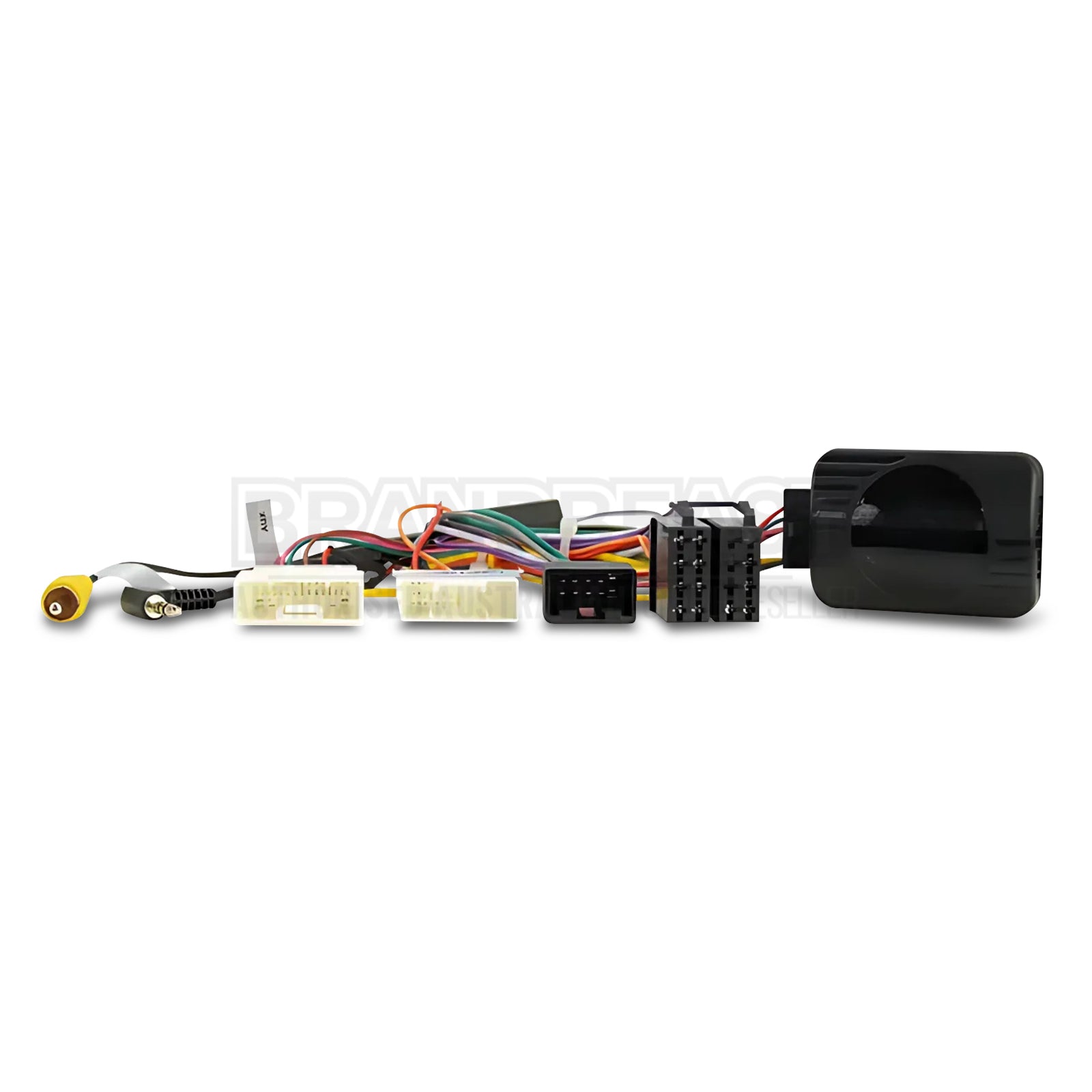

- Steering wheel control (SWC) interface and patch lead

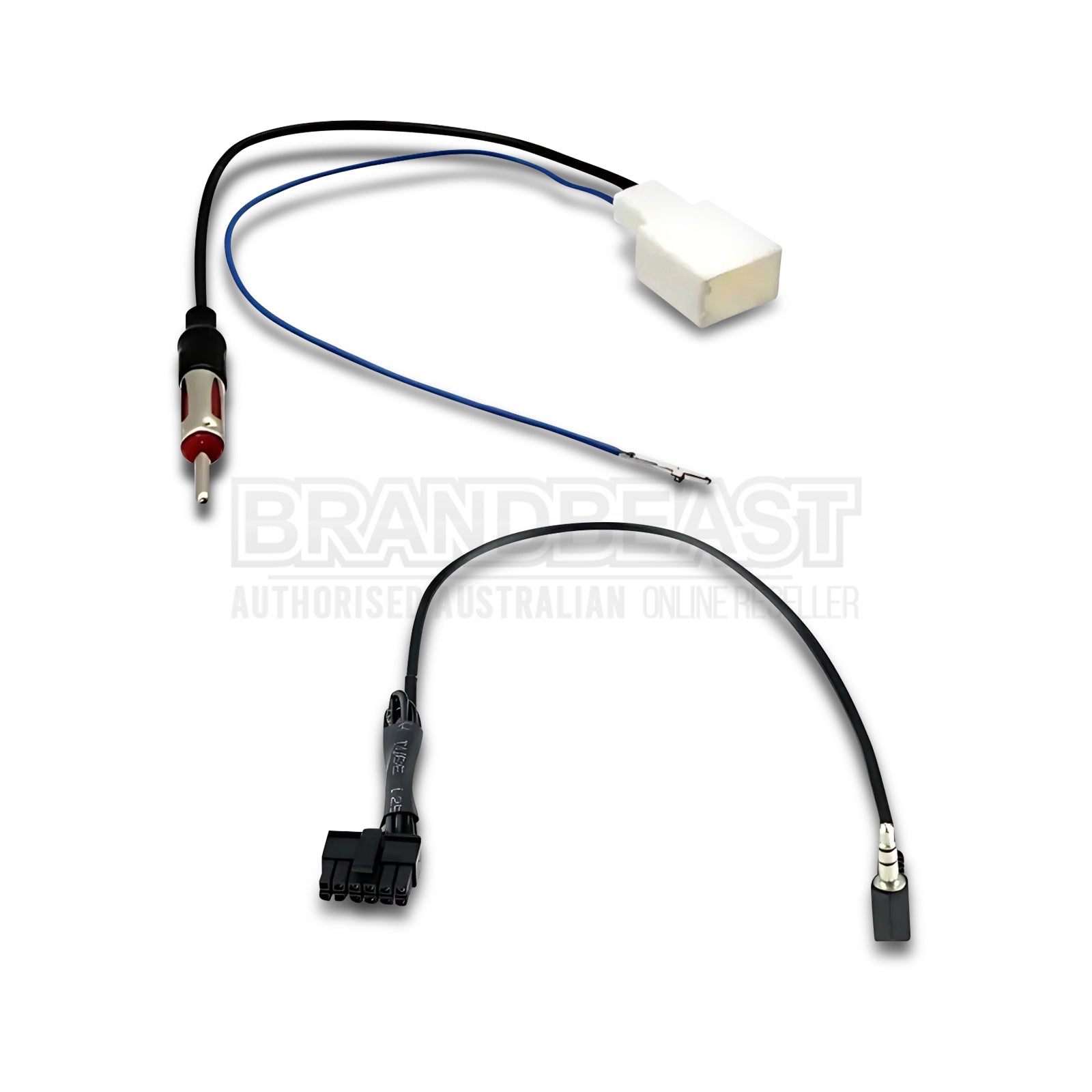

- Antenna adaptor
- Reverse camera retention interface
Key Specifications
| Specification |
Detail |
| Part Number |
HR9-TY004 |
| Brand |
Stinger |
| Vehicle |
Toyota HiAce H300 Series 2019 Onwards |
| Compatible Head Unit |
Pioneer DMH-AP6650BT (9-inch) |
| Head Unit Included |
No |
| Fascia Type |
9-inch flush fit panel |
| Vehicle Connectors |
30-pin + 28-pin + 10-pin Toyota |
| Harness Type |
Plug and play — factory to standard ISO |
| Antenna Adaptor |
Yes — included |
| SWC Interface |
Yes — included (retains factory audio controls) |
| SWC Memory Retention |
Yes — retains memory if power is lost |
| SWC Outputs |
Reverse Trigger |
| Reverse Camera Retention |
Yes — reverse camera only |
| AUX/USB Retention |
No |
| Colour |
Black |
Features & Benefits
-
Purpose-Built for HiAce H300 2019-Onwards Engineered specifically for the sixth-generation HiAce H300 dashboard — plug-and-play connection to the factory 30-pin, 28-pin, and 10-pin Toyota connectors without cutting or modification.
-
Reverse Camera Retention Included The factory HiAce H300 reverse camera is retained through the included retention interface — displaying the reversing image through the Pioneer DMH-AP6650BT when reverse gear is selected.
-
SWC Interface — Memory Retention After Power Loss Retains factory steering wheel audio control programming after battery disconnects or power loss — no reprogramming required.
-
Flush Fit Panel The 9-inch panel is flush fit to the HiAce H300 factory dashboard opening — the same flush result as the HR9-TY003 (RAV4) and HR9-VW001 (Golf MK6) bundles.
-
AUX/USB Not Included Unlike the HR9-TY003 (RAV4), this bundle does not include AUX/USB retention. If retaining factory USB or AUX inputs is required, source these separately.
-
Fleet and Commercial Application Ready Designed for the HiAce H300's commercial van context — the complete bundle minimises component sourcing complexity for fleet operators fitting multiple vehicles simultaneously.
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Chassis |
| Toyota |
HiAce |
2019 onwards |
H300 Series |
Head unit:
- Pioneer DMH-AP6650BT (9-inch) — not included
Not included — sold separately:
- Pioneer DMH-AP6650BT head unit
- AUX/USB retention (not in bundle)
Frequently Asked Questions
Is the Pioneer DMH-AP6650BT included?
No — the HR9-TY004 is the installation hardware bundle only. The Pioneer DMH-AP6650BT head unit must be purchased separately.
Does the HR9-TY004 retain the factory reverse camera?
Yes — the reverse camera retention interface is included, allowing the factory HiAce H300 reverse camera to display through the Pioneer DMH-AP6650BT.
Does the HR9-TY004 include AUX/USB retention?
No — AUX/USB retention is not included in this bundle. If retaining factory USB or AUX inputs is required, these must be sourced separately.
Will the factory steering wheel controls work after installation?
Yes — the SWC interface retains factory steering wheel audio controls with the Pioneer DMH-AP6650BT and maintains programming even if power is lost.
What is the difference between the HR9-TY004 and the SF9-TY04?
The SF9-TY04 is the fascia panel only for the HiAce H300. The HR9-TY004 is a complete installation bundle that includes the fascia plus SWC interface, antenna adaptor, and reverse camera retention. Choose the HR9-TY004 for a more complete single-purchase solution, or the SF9-TY04 if only the fascia is needed.
