Description
Stinger HRCH001 Complete Radio Replacement Kit for Chrysler Dodge Jeep and Ram 2007 to 2018 with Steering Wheel Control and Factory Amplifier Retention
The HRCH001 from Stinger is a complete radio replacement kit designed for confirmed Chrysler, Dodge, Jeep, and Ram vehicles from 2007 to 2018 fitted with the standard Chrysler rectangular factory head unit. The kit includes a double DIN radio replacement panel, ST27AA06 OEM antenna adaptor harness, and PACRP4CH11 interface from PAC Audio for retention of factory steering wheel controls, OEM factory amplifier, rear seat entertainment activation (if fitted), and gauge cluster error prevention. Factory reverse camera retention requires the PACCHYRVD harness, available separately.
Product overview
The HRCH001 is designed for vehicles featuring the standard Chrysler rectangular factory head unit and allows installation of a double DIN aftermarket radio in place of the factory unit. The included PACRP4CH11 interface retains steering wheel audio controls with select aftermarket radios, retains the OEM factory amplifier, activates rear seat entertainment (if fitted), prevents gauge cluster errors from removal of the OEM radio, and retains the factory clock and trip display where these were controlled by the OEM radio.
Important compatibility notes: Vehicles with a factory OEM amplifier do not have fading capabilities as the factory amplifier uses a 2-channel audio input. Rear seat entertainment and factory reverse camera retention both require the PACCHYRVD harness, which is available separately. Analog navigation outputs (VSS, park brake, reverse) only function if the signal in the vehicle is digital, and not all Chrysler vehicles use MS CAN control for these outputs. Confirm your specific vehicle configuration before ordering.
Features and benefits
Complete radio replacement kit for standard Chrysler rectangular head unit vehicles: Includes all parts required to replace the factory OEM head unit with a double DIN aftermarket radio in confirmed Chrysler, Dodge, Jeep, and Ram vehicles from 2007 to 2018.
Steering wheel control retention: The included PACRP4CH11 interface retains factory steering wheel audio controls with select aftermarket radios. SWC button remapping is available via manual programming.
Factory amplifier retention: The OEM factory amplifier is retained after installation. Note that vehicles with a factory OEM amplifier do not support fading as the factory amplifier uses a 2-channel audio input.
Gauge cluster error prevention: The PACRP4CH11 interface prevents gauge cluster errors that can occur when the OEM radio is removed.
Clock and trip display retention: Retains the OEM clock and trip display where these features were controlled by the OEM radio.
ST27AA06 antenna adaptor included: The ST27AA06 OEM antenna adaptor harness is included, retaining the factory antenna connection with the aftermarket head unit.
Factory reverse camera and rear seat entertainment requires PACCHYRVD: Retention of the factory reverse camera and rear seat entertainment requires the PACCHYRVD harness, available separately. This is not included in the HRCH001 kit.

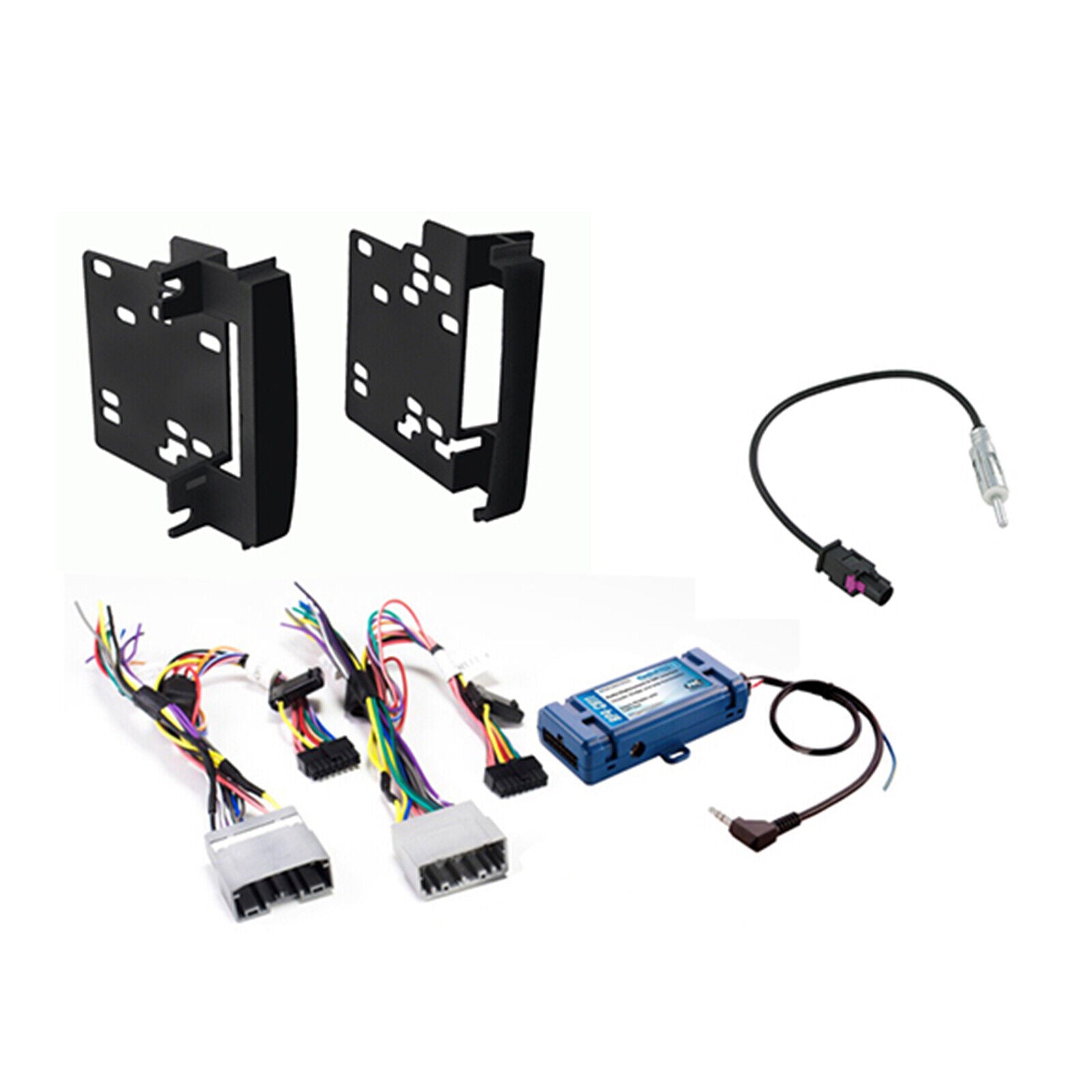

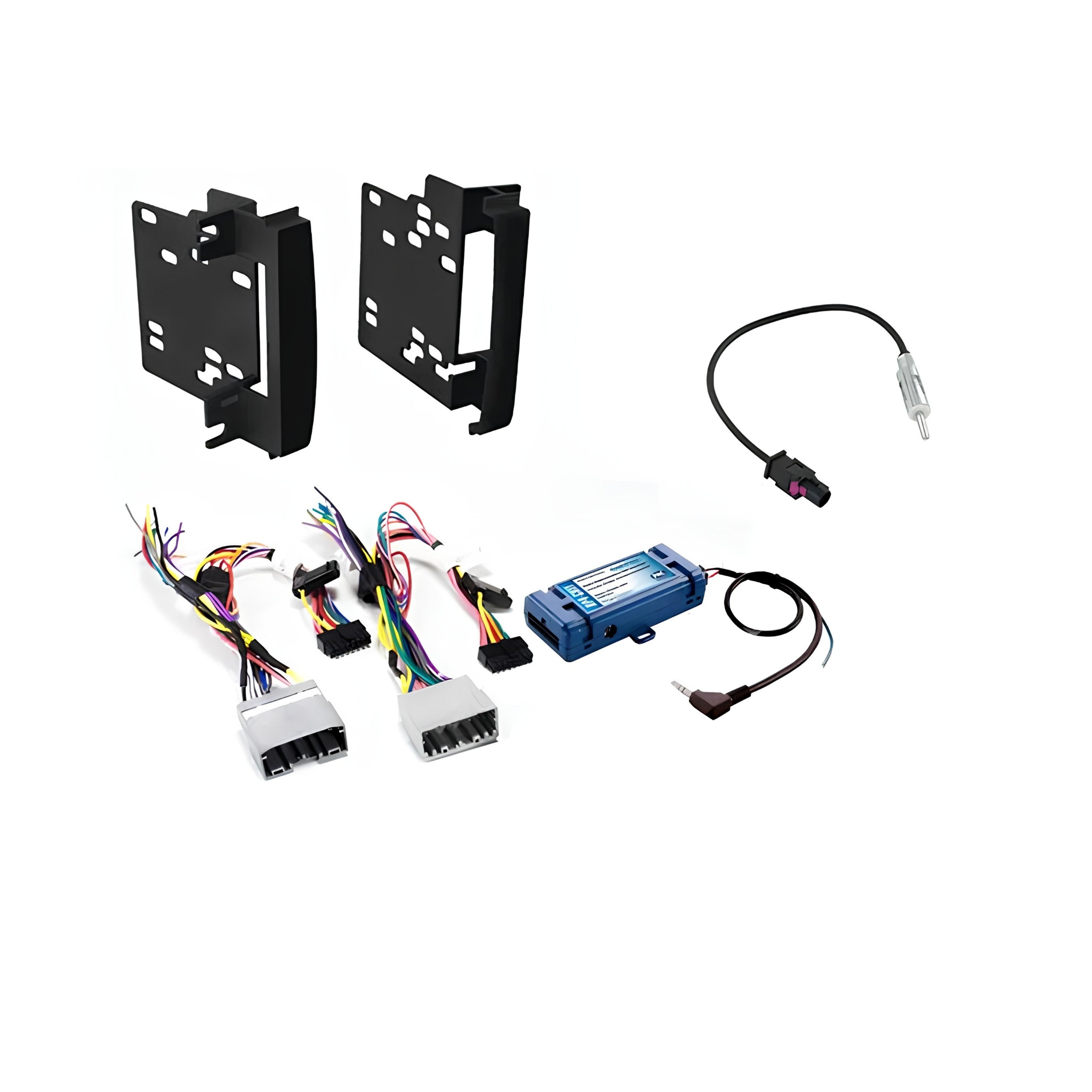

What's in the box

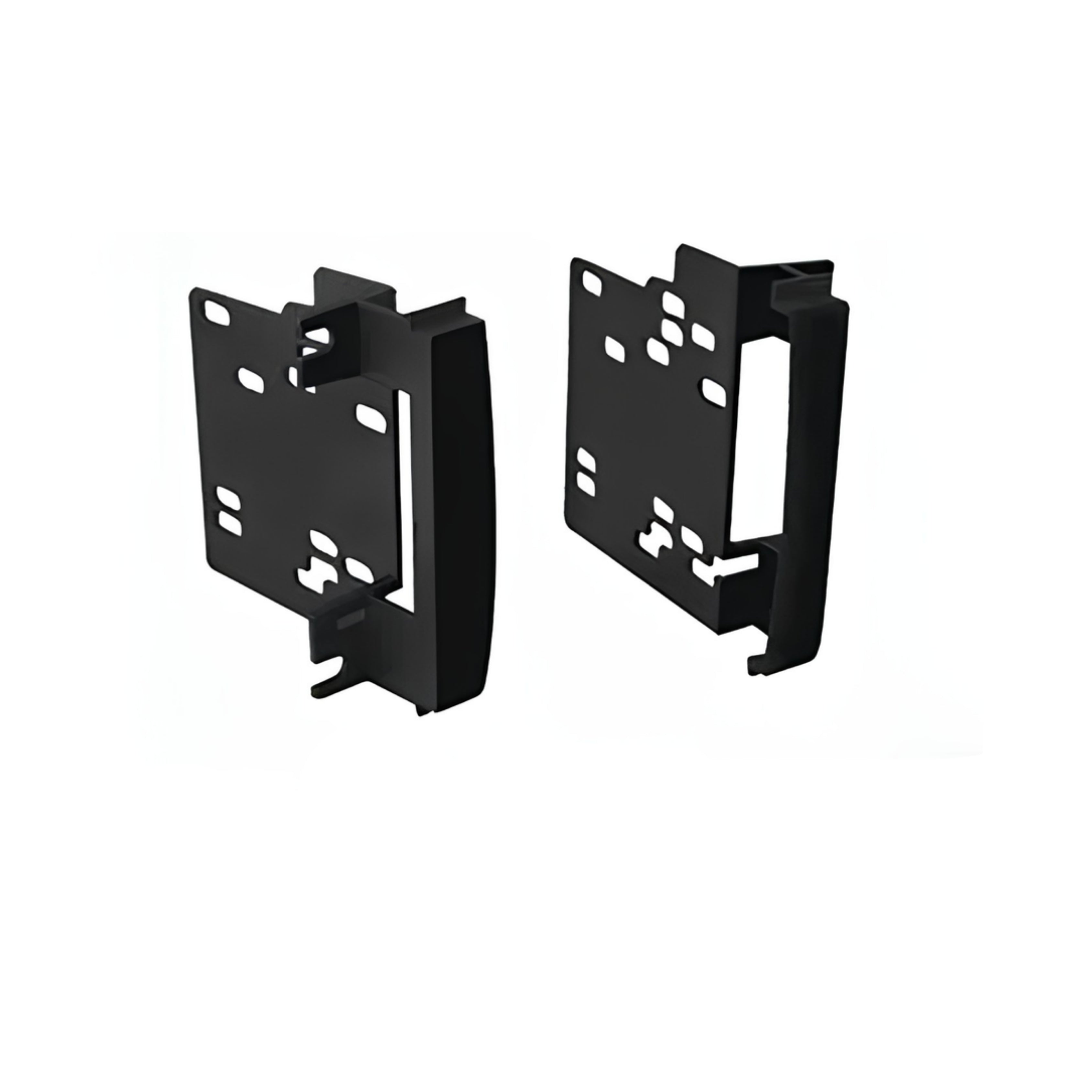

- 1x MT95-6511 Radio Replacement Panel

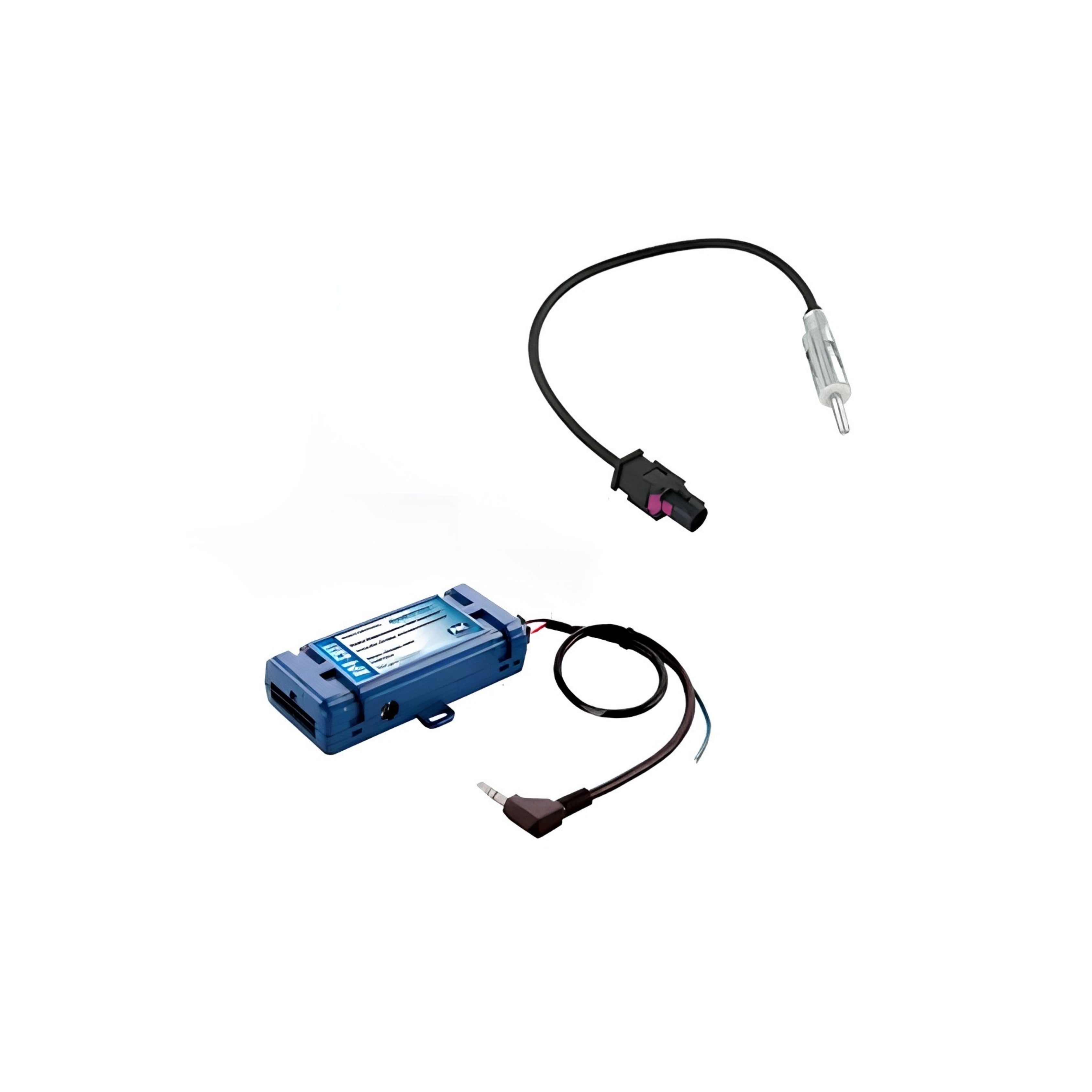

- 1x ST27AA06 OEM Antenna Adaptor Harness
- 1x PACRP4CH11 Camera Retention Interface
Technical specs
| Specification |
Detail |
| SKU |
HRCH001 |
| Brand |
Stinger |
| Compatible Head Unit Format |
Double DIN |
| Finish |
Black |
| Mounting Brackets |
Included |
| Antenna Adaptor |
Included (ST27AA06) |

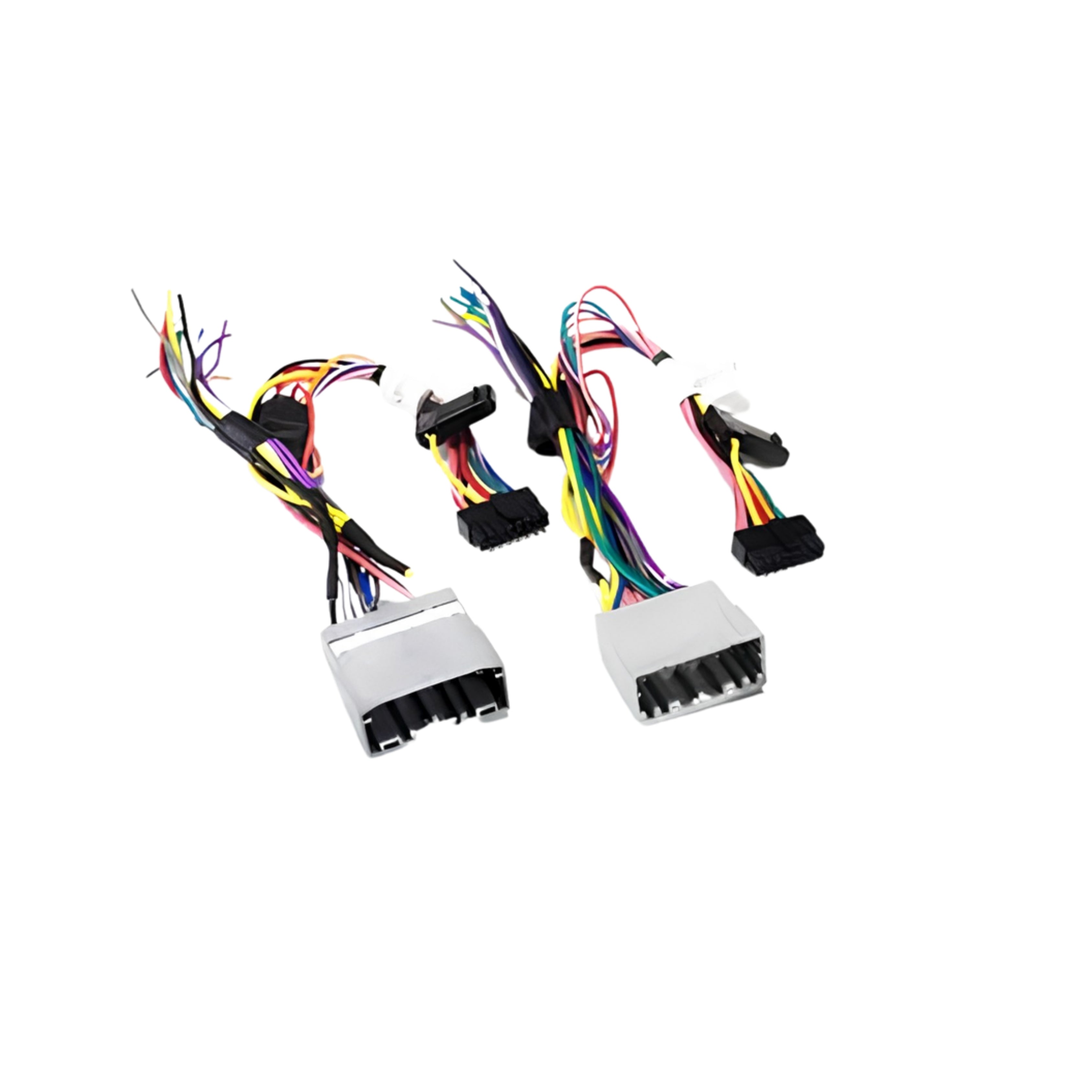

| Vehicle Plug Style |
22-pin Chrysler style connector |
| Plug and Play |
Yes, factory connector to bare wires |
| Steering Wheel Controls |
Retained with select aftermarket radios, remappable |
| Factory Amplifier |
Retained, 2-channel input (no fading) |
| Clock and Trip Display |
Retained where controlled by OEM radio |
| Factory Reverse Camera |
Requires PACCHYRVD (sold separately) |
| Rear Seat Entertainment |
Requires PACCHYRVD (sold separately) |
| Blind Spot Detection |
Not retained |
| AUX/USB Retention |
Not included |
| SWC Button Remapping |
Yes, via manual programming |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Audio Controls |
Yes, with select aftermarket radios |
| Factory Amplifier |
Yes, 2-channel input (no fading) |
| Clock and Trip Display |
Yes, where controlled by OEM radio |
| Factory Antenna Connection |
Yes, via ST27AA06 adaptor |
| Gauge Cluster Error Prevention |
Yes |
| Rear Seat Entertainment |
Requires PACCHYRVD (sold separately) |
| Factory Reverse Camera |
Requires PACCHYRVD (sold separately) |
| Blind Spot Detection |
Not retained |
| AUX/USB |
Not retained |
Compatible with
This kit is confirmed for the following vehicles fitted with the standard Chrysler rectangular factory head unit. Confirm your specific model, variant, and build year before ordering.
| Make |
Model |
Variant |
Years |
| Chrysler |
300 |
All variants |
2009 - 2010 |
| Chrysler |
Sebring |
JS chassis |
2007 - 2011 |
| Chrysler |
Voyager (incl Grand Voyager) |
5th Generation |
2008 - 2014 |
| Dodge |
Avenger |
Second Generation |
2007 - 2014 |
| Dodge |
Caliber |
Second Generation |
2009 - 2012 |
| Dodge |
Challenger R/T |
Third Generation |
2008 - 2014 |
| Dodge |
Journey |
First Generation |
2008 - 2011 |
| Dodge |
Nitro |
All variants |
2007 - 2012 |
| Jeep |
Cherokee |
KK chassis |
2007 - 2012 |
| Jeep |
Compass |
MK chassis |
2009 - 2017 |
| Jeep |
Grand Cherokee |
WH-WK chassis |
2008 - 2011 |
| Jeep |
Patriot |
MK chassis |
2010 - 2016 |
| Jeep |
Wrangler |
JK chassis |
2007 - 2018 |
| Ram |
1500 |
4th Generation |
2009 - 2012 |
Frequently asked questions
Does the HRCH001 retain the factory reverse camera?
No. Factory reverse camera retention requires the PACCHYRVD harness, which is available separately and is not included in the HRCH001 kit. Contact us to confirm the correct part before ordering.
Does the HRCH001 retain the factory amplifier?
Yes. The OEM factory amplifier is retained after installation. However, vehicles with a factory OEM amplifier do not support fading as the factory amplifier uses a 2-channel audio input.
Will the HRCH001 work with any aftermarket radio brand?
The PACRP4CH11 interface retains steering wheel controls with select aftermarket radios. Contact us to confirm compatibility between your chosen aftermarket radio and the HRCH001 before ordering.
What is the PACCHYRVD and when do I need it?
The PACCHYRVD is a separate harness required to retain the factory reverse camera and rear seat entertainment in confirmed vehicles. It is not included in the HRCH001 kit and must be purchased separately if these features are required. Contact us for further guidance.
Do the analog navigation outputs work in all confirmed vehicles?
No. The analog navigation outputs (VSS, park brake, reverse) only function if the signal in the vehicle is digital. Not all Chrysler, Dodge, Jeep, and Ram vehicles in the confirmed range use MS CAN control for these outputs. Contact us to confirm whether your specific vehicle supports these outputs before ordering.
