Description
Stinger HRDG001 Radio Replacement Kit for Dodge RAM 1500 and 2500 4th Generation 2013 to 2019 with 3 Inch or 5 Inch Factory Radio SWC and Reverse Camera Retention
The HRDG001 from Stinger is a complete radio replacement kit for the Dodge RAM 1500 and 2500 4th generation (DS-DJ-D2 chassis, 2013 to 2019) fitted with a 3 inch or 5 inch OEM factory radio. The kit retains factory steering wheel audio controls (with select aftermarket head units), factory reverse camera, factory amplifier, factory blind spot detection, and the OEM clock and trip display. Several important compatibility restrictions and feature losses apply and must be confirmed before ordering.
Product overview

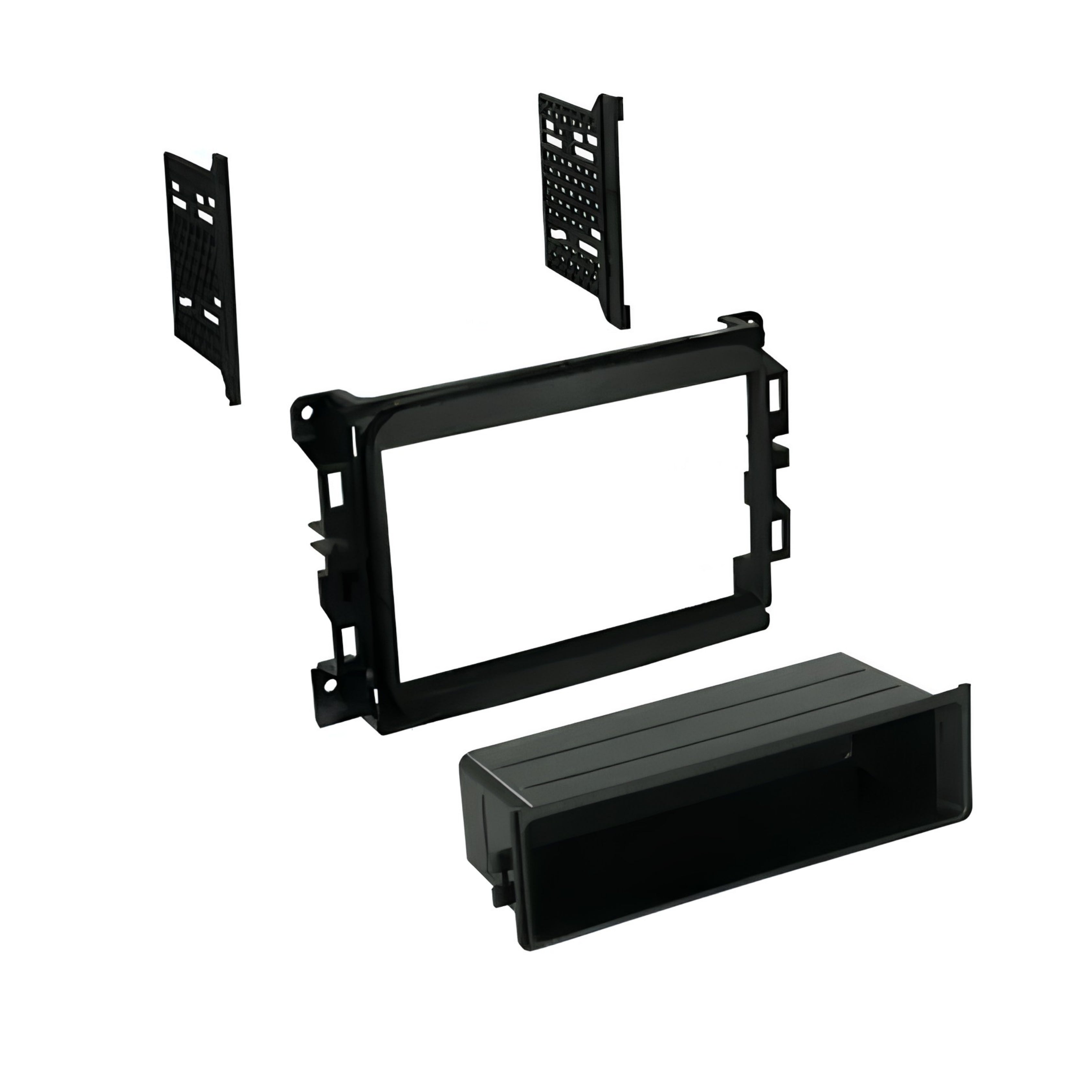

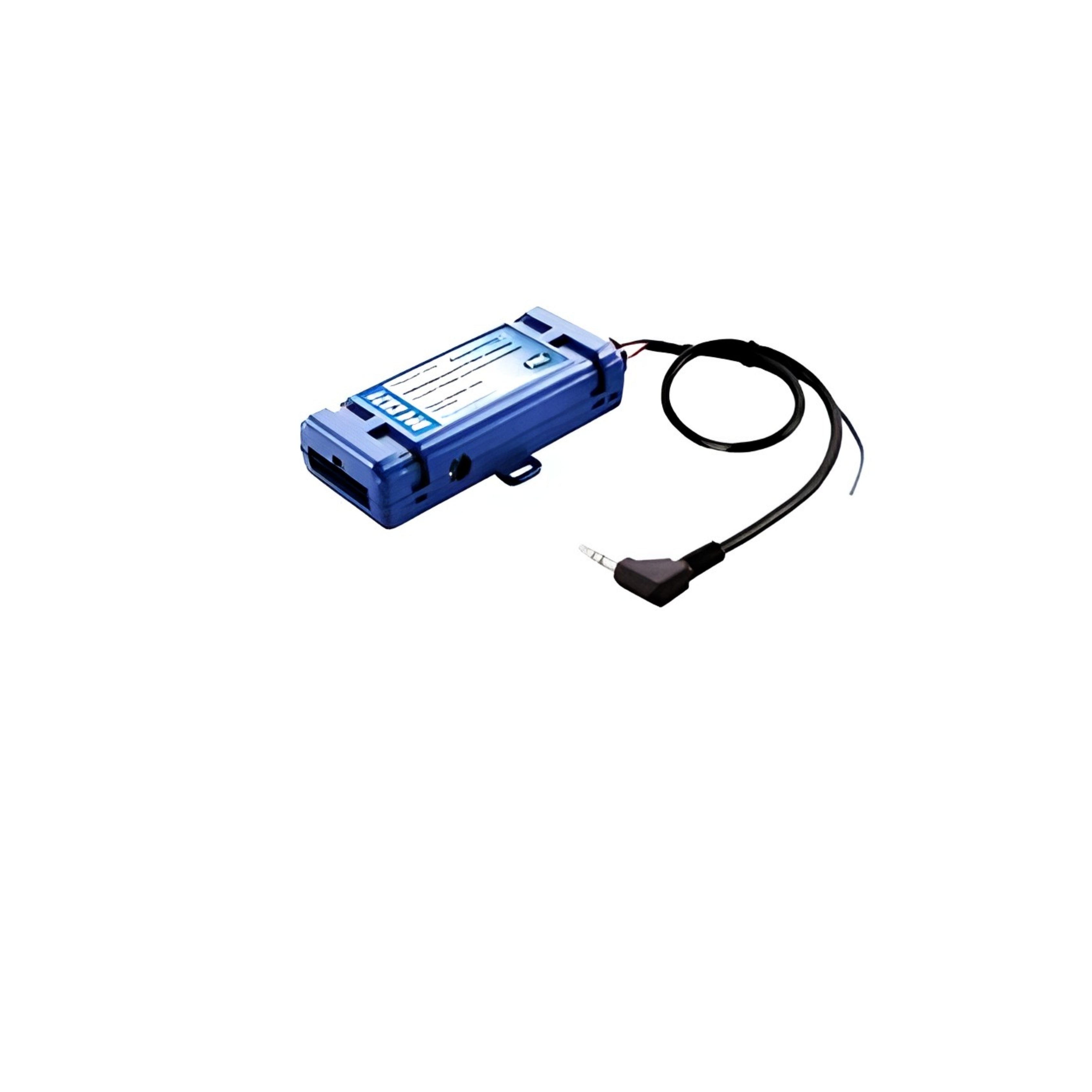

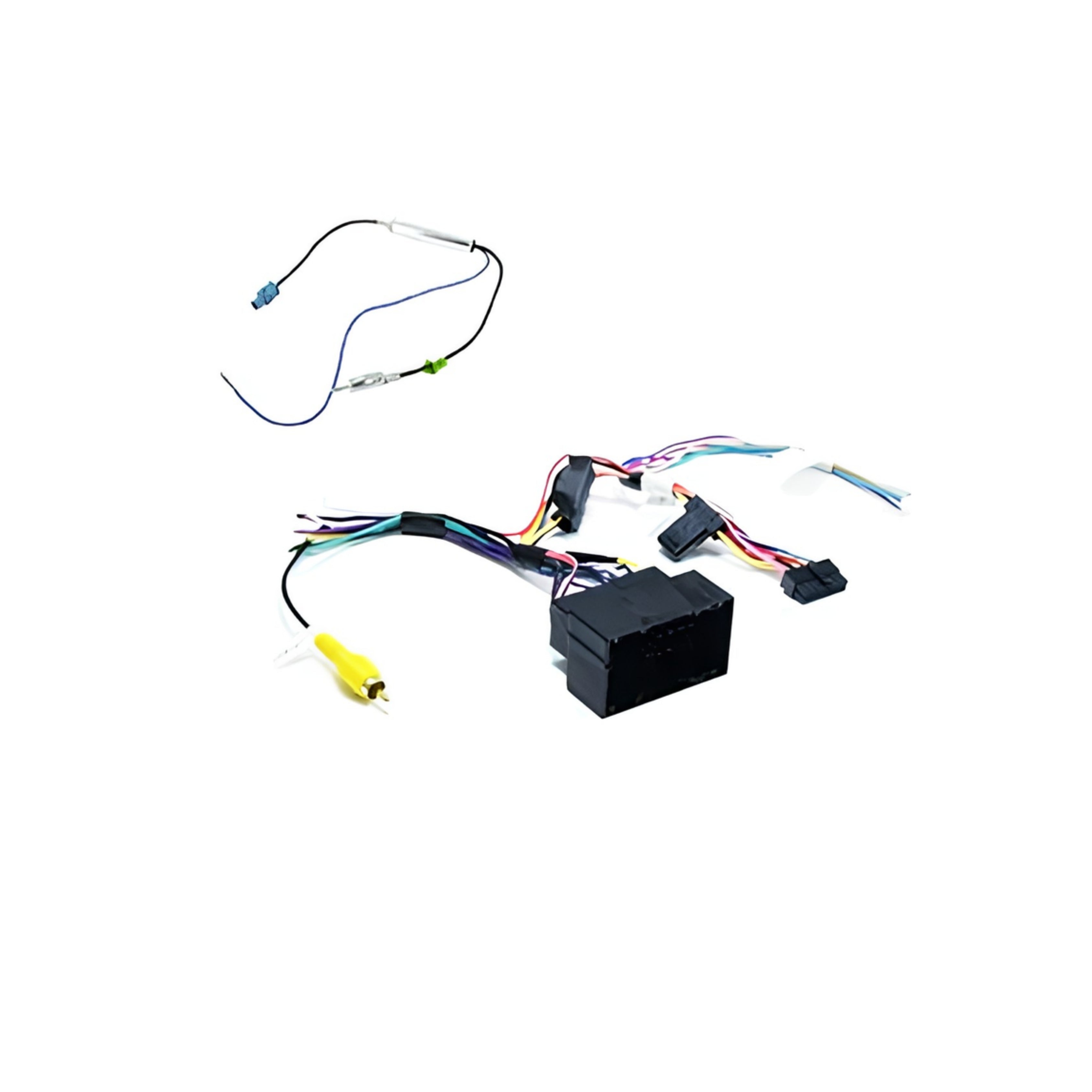

The HRDG001 kit includes a replacement radio panel (BKCDK656), antenna adaptor (ST27AA14), and radio replacement interface (PACRP4CH21) providing a plug and play installation using the factory 52-pin Chrysler-style connector, with bare wire outputs for the chosen aftermarket head unit. Mounting brackets and the antenna adaptor are included.
Six important notes must be confirmed before ordering. First, this kit is not compatible with vehicles fitted with the 8.4 inch factory uConnect radio. For those vehicles the PAC RadioPRO RAM Truck Kit (RPK4-CH4101) is required instead. Second, parking sensor audio and reverse chimes will be lost after installation. Third, the ability to change certain vehicle settings including horn honk with lock and fuel saver display will be lost. Fourth, steering wheel audio control retention is only confirmed with major branded head units including Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and Stinger. Fifth, the factory amplifier is a 2-channel audio input with no fade capability. Sixth, OE vehicle settings cannot be adjusted once the head unit is removed so all settings must be confirmed and adjusted before removal of the factory head unit.
Features and benefits
Suits Dodge RAM 1500 and 2500 with 3 inch or 5 inch factory radio: Confirmed for the Dodge RAM 1500 and 2500 4th generation (DS-DJ-D2 chassis, 2013 to 2019) fitted with a 3 inch or 5 inch OEM factory radio only. Not compatible with the 8.4 inch uConnect radio.
Factory steering wheel audio control retention: Steering wheel audio controls are retained with select aftermarket head units. Retention is confirmed with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and Stinger branded head units only. Confirm compatibility with your chosen head unit before ordering.
Factory reverse camera retention: The factory reverse camera is retained and included with the interface.
Factory amplifier retention: The factory amplifier is retained. Note that the factory amplifier is a 2-channel audio input with no fade capability.
Factory blind spot detection retention: The factory blind spot detection system is retained after installation.
OEM clock and trip display retention: The OEM clock and trip display is retained if this feature was controlled by the factory radio.
Dual press steering wheel control function: Customisable dual press steering wheel control function is supported.
Manual SWC button remapping: Steering wheel control button remapping is available via a manual programming control button on the interface.
Plug and play 52-pin Chrysler connector: Connects to the factory 52-pin Chrysler-style connector with bare wire outputs to the chosen aftermarket head unit. No cutting of factory wiring required.

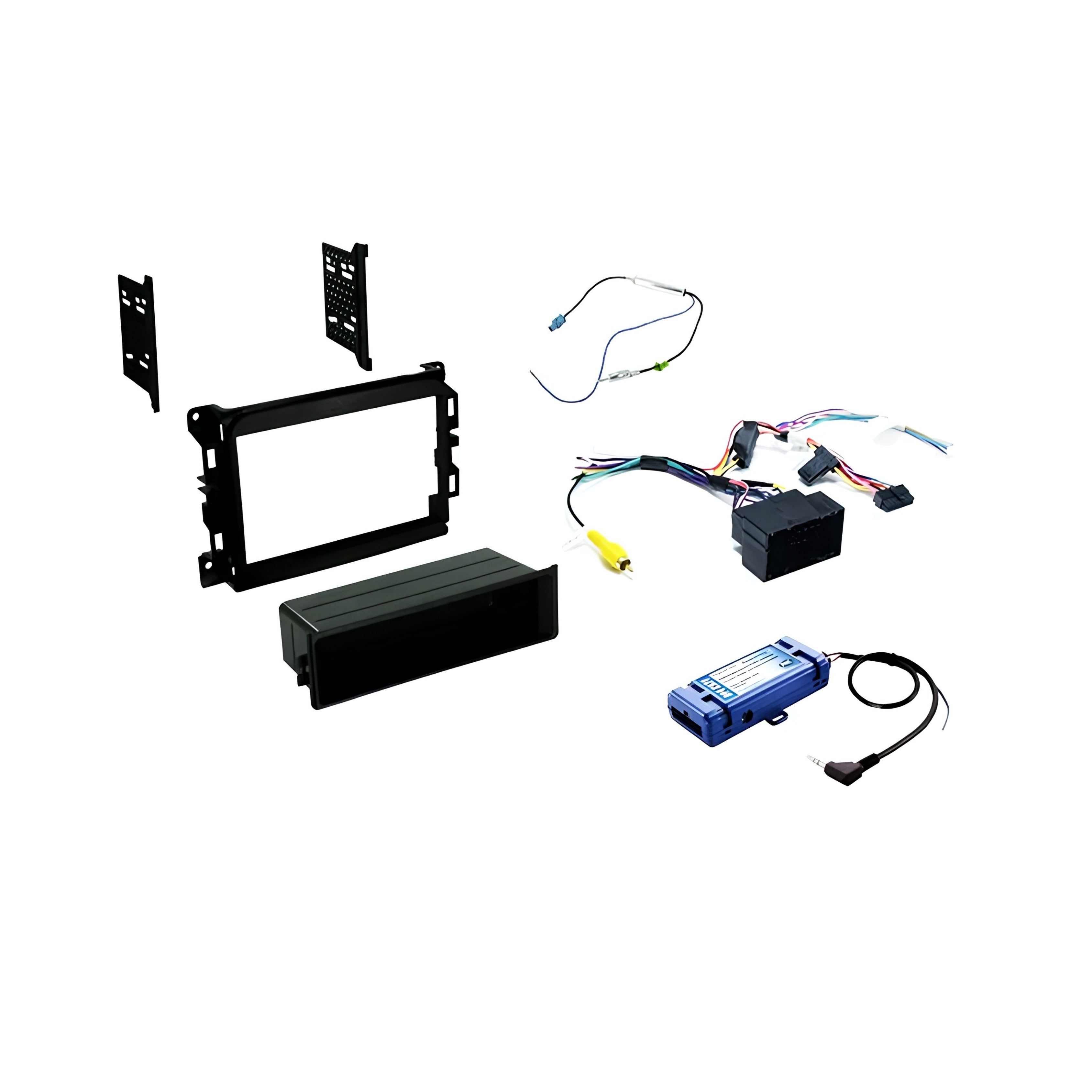

What's included
| Item |
Part Number |
| Replacement Radio Panel |
BKCDK656 |
| Antenna Adaptor |
ST27AA14 |
| Radio Replacement Interface |
PACRP4CH21 |
| Mounting Brackets |
Included |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Audio Controls |
Yes, with Alpine Clarion JVC Kenwood Pioneer Sony or Stinger head units only |
| Factory Reverse Camera |
Yes |
| Factory Amplifier |
Yes, 2-channel input only, no fade capability |
| Blind Spot Detection |
Yes |
| OEM Clock and Trip Display |
Yes, if controlled by factory radio |
| Parking Sensor Audio and Reverse Chimes |
No, will be lost |
| Horn Honk with Lock |
No, will be lost |
| Fuel Saver Display |
No, will be lost |
| AUX and USB Retention |
No |
Technical specs
| Specification |
Detail |
| SKU |
HRDG001 |
| Brand |
Stinger |
| Factory Connector |
52-pin Chrysler style |
| Plug and Play |
Yes, factory connector to bare wires |
| Mounting Brackets |
Included |
| Antenna Adaptor |
Included (ST27AA14) |
| Compatible Factory Radio |
3 inch and 5 inch OEM only |
| Not Compatible With |
8.4 inch uConnect factory radio |
Compatible with
This kit is confirmed for the following vehicles with 3 inch or 5 inch factory radio only. Not compatible with the 8.4 inch uConnect factory radio. Confirm your specific factory radio size, chassis code, and build year before ordering. Confirm and adjust all OE vehicle settings before removing the factory head unit as these cannot be changed afterwards.
| Make |
Model |
Variant |
Years |
| RAM |
1500 |
4th Generation DS-DJ-D2 chassis, 3 inch or 5 inch factory radio only |
2013 - 2019 |
| RAM |
2500 |
4th Generation DS-DJ-D2 chassis, 3 inch or 5 inch factory radio only |
2013 - 2019 |
Frequently asked questions
Is the HRDG001 compatible with the 8.4 inch uConnect factory radio?
No. The HRDG001 is not compatible with vehicles fitted with the 8.4 inch factory uConnect radio. For those vehicles the PAC RadioPRO RAM Truck Kit (RPK4-CH4101) is required instead. Confirm your factory radio screen size before ordering.
Will parking sensor audio and reverse chimes be retained?
No. Parking sensor audio and reverse chimes will be lost after installation of the HRDG001 if the factory radio was generating these tones. If the parking sensors were not controlled by the factory radio, they should not be affected.
Which aftermarket head units support steering wheel control retention with the HRDG001?
Steering wheel audio control retention is confirmed with major branded head units from Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and Stinger. Confirm compatibility with your chosen head unit before ordering.
Why do I need to adjust OE settings before removing the factory head unit?
Once the factory head unit is removed, the ability to change certain OE vehicle settings is lost. This includes settings such as horn honk with lock and fuel saver display. Confirm and adjust all vehicle settings to your preferences before beginning the installation.
What does 2-channel factory amplifier mean for audio performance?
The factory amplifier in these RAM models provides a 2-channel audio input, meaning there is no independent front and rear channel control and no fade capability when used with this interface. If full fade control is required, an aftermarket amplifier would need to be considered as part of the installation.
