Description
Stinger HRIZ002 Radio Replacement Kit for Isuzu D-Max 2012 to 2019 and MU-X 2013 to 2017 with 7 Inch Colour Screen SWC and Reverse Camera Retention
The HRIZ002 from Stinger is a complete radio replacement kit for the Isuzu D-Max (2012 to 2019) and MU-X (2013 to 2017) fitted with a 7 inch colour screen, enabling installation of a major branded aftermarket head unit while retaining factory steering wheel audio controls, factory reverse camera, and OEM radio antenna. Several compatibility restrictions apply and must be confirmed before ordering.
Product overview
The HRIZ002 kit includes a flat black dash fascia, two mounting brackets, and a plug and play steering wheel control interface with ISO connectors, connecting to the factory 16-pin and 8-pin connectors. The kit is compatible with major branded aftermarket head units including Alpine, Clarion, Kenwood, Pioneer, Sony, and Stinger.
Five important compatibility restrictions must be confirmed before ordering. First, this kit suits D-Max and MU-X models with a 7 inch colour screen only. Second, the kit is not suitable for vehicles fitted with the OE Clarion Navigation System. Third, the kit is not suitable for vehicles with a factory amplified audio system. Fourth, phone buttons cannot be retained in all vehicle models. Fifth, AUX and USB retention is not included and an additional product may be required to retain these functions. Confirm all five points for your specific vehicle before ordering.
Features and benefits
Suits Isuzu D-Max 2012 to 2019 and MU-X 2013 to 2017 with 7 inch colour screen: Confirmed for D-Max and MU-X models fitted with a 7 inch colour screen. Not suitable for Clarion navigation or factory amplified audio system variants.
Factory steering wheel audio control retention: Steering wheel audio controls are retained with select aftermarket head units. Confirmed with Alpine, Clarion, Kenwood, Pioneer, Sony, and Stinger branded head units. Phone buttons cannot be retained in all models.
Factory reverse camera retention: The factory OEM reverse camera is retained and included with the interface.
OEM radio antenna retention: The factory OEM radio antenna is retained after installation.
Allows RCA video input to OEM roof mount screen: Provides RCA video input capability to the OEM roof mount screen where fitted.

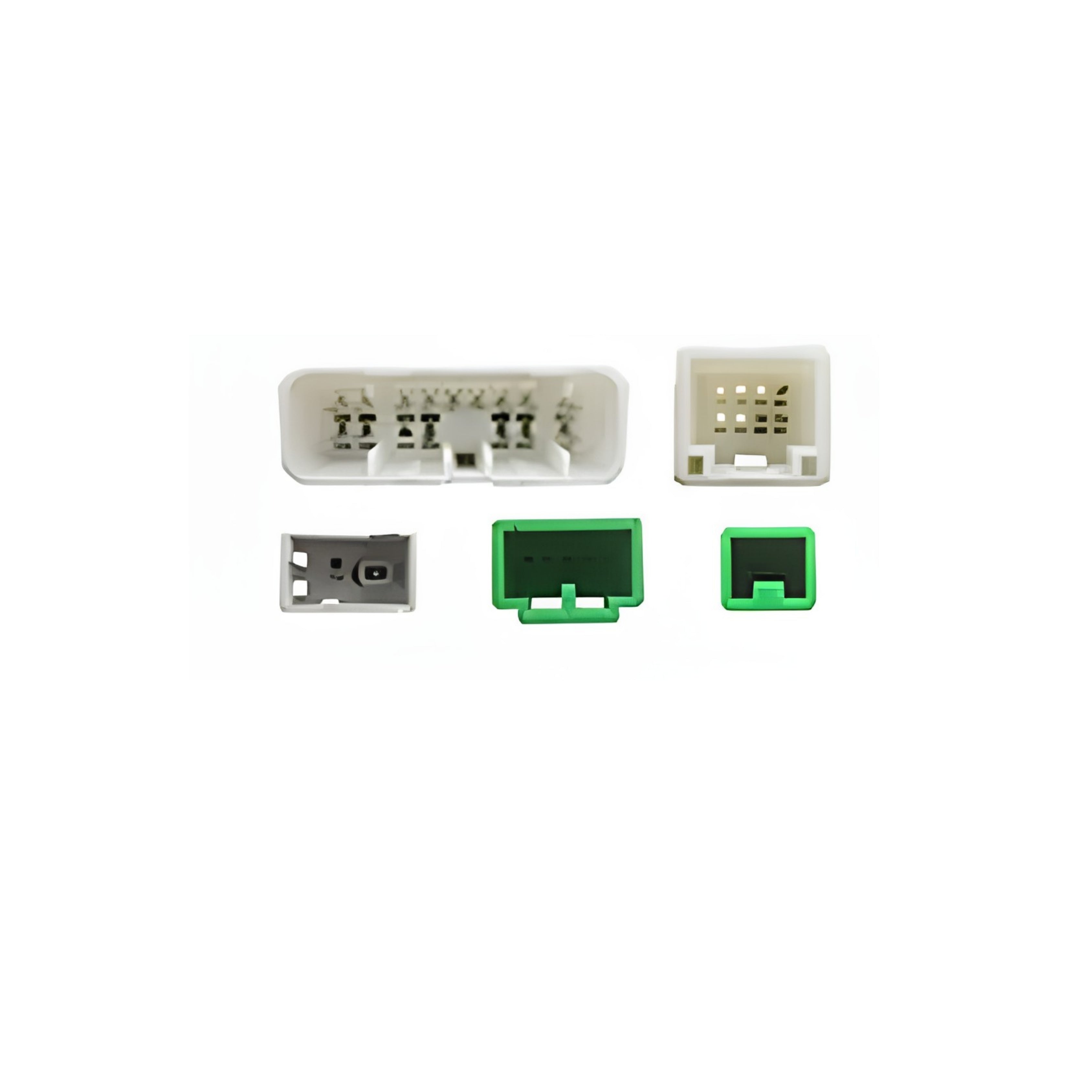

Plug and play ISO connectors: The steering wheel control interface connects to the factory 16-pin and 8-pin connectors with standard ISO outputs to the chosen aftermarket head unit. No cutting of factory wiring required.
Factory amplifier not retained: This kit does not retain the factory amplified audio system. Not suitable for vehicles with factory amplified audio.
AUX and USB not included: AUX and USB retention is not included in this kit. An additional product may be required to retain these functions.

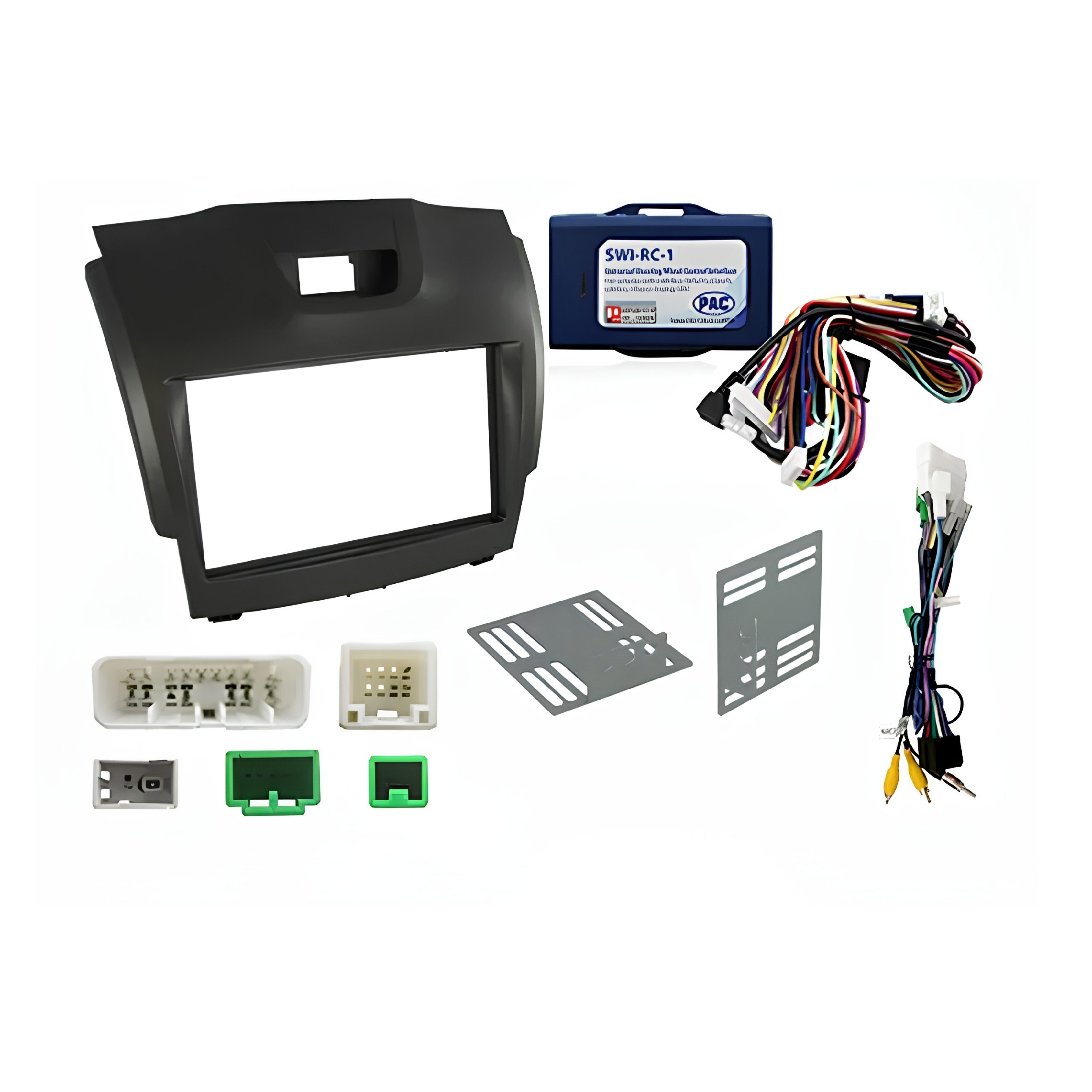

What's in the box

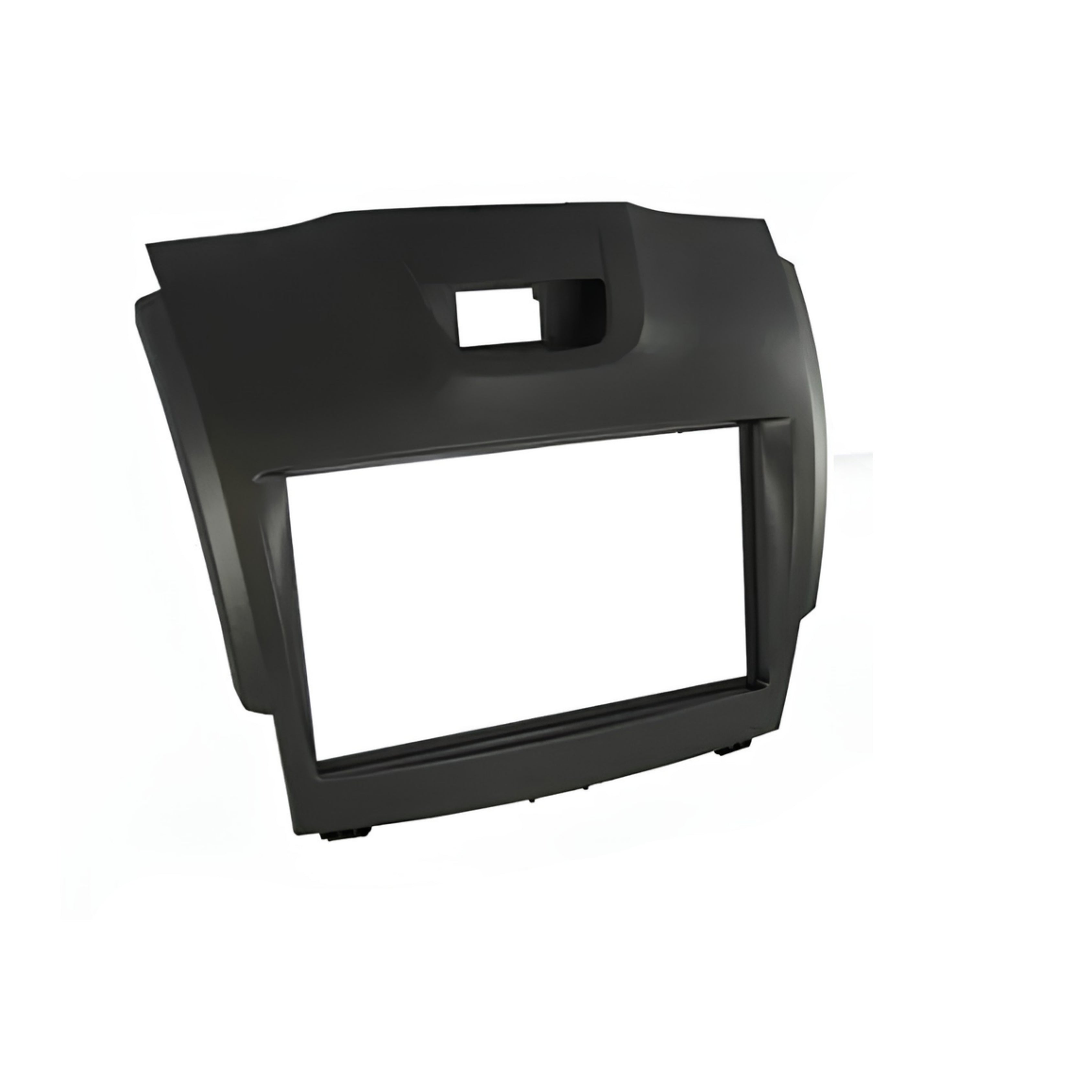

- 1x Flat Black Dash Fascia Kit
- 2x Mounting Brackets

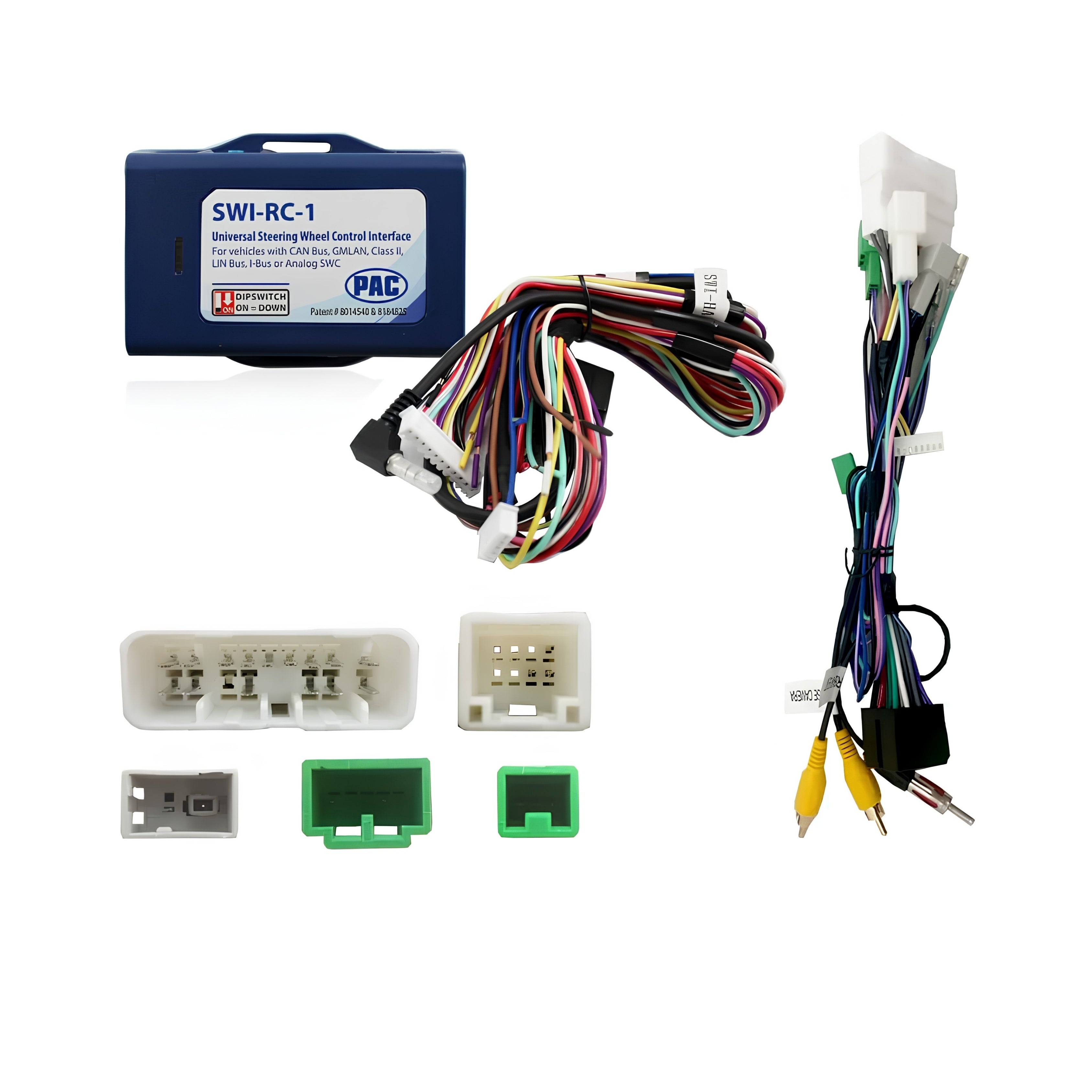

- 1x Plug and Play Steering Wheel Control Interface with ISO Connectors
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Audio Controls |
Yes, with select aftermarket head units. Phone buttons not retained in all models |
| Factory Reverse Camera |
Yes |
| OEM Radio Antenna |
Yes |
| RCA Video to OEM Roof Mount Screen |
Yes |
| Factory Amplifier |
No, not suitable for factory amplified audio vehicles |
| AUX and USB |
No, additional product may be required |
Technical specs
| Specification |
Detail |
| SKU |
HRIZ002 |
| Manufacturer Part Number |
HRIZ002 |
| Brand |
Stinger |
| Fascia Finish |
Flat Black |
| Mounting Brackets |
Yes, 2 included |
| Factory Connector |
16-pin and 8-pin |
| Plug and Play |
Yes, factory connector to standard ISO |
| Compatible Factory Screen |
7 inch colour screen only |
| Not Compatible With |
OE Clarion Navigation System, factory amplified audio system |
Compatible with
This kit is confirmed for the following Isuzu vehicles fitted with a 7 inch colour screen. Not suitable for OE Clarion navigation or factory amplified audio system variants. Confirm your specific variant, screen type, and factory audio configuration before ordering.
| Make |
Model |
Variant |
Years |
| Isuzu |
D-Max |
RT50-RT85 chassis, 7 inch colour screen only |
2012 - 2016 |
| Isuzu |
D-Max |
RT50-RT85 chassis, 7 inch colour screen only |
2016 - 2019 |
| Isuzu |
MU-X |
RF10 chassis, 7 inch colour screen only |
2013 - 2015 |
| Isuzu |
MU-X |
RF20 chassis, 7 inch colour screen only |
2016 - 2017 |
Frequently asked questions
Is the HRIZ002 compatible with Isuzu D-Max and MU-X models with the OE Clarion Navigation System?
No. The HRIZ002 is not suitable for vehicles fitted with the OE Clarion Navigation System. Contact us before ordering to confirm the correct kit for your specific D-Max or MU-X variant.
Does the HRIZ002 suit D-Max and MU-X models with a factory amplified audio system?
No. The HRIZ002 does not retain the factory amplified audio system and is not suitable for vehicles fitted with factory amplified audio. Contact us to confirm whether your specific vehicle has a factory amplified audio system before ordering.
Will phone buttons on the steering wheel be retained?
Phone buttons cannot be retained in all vehicle models. Audio steering wheel control buttons are retained with select aftermarket head units. Confirm with us before ordering whether phone button retention is supported for your specific D-Max or MU-X variant.
Is AUX and USB retention included in the HRIZ002 kit?
No. AUX and USB retention is not included in this kit. An additional product may be required to retain these functions. Contact us for guidance on the correct AUX and USB retention solution for your specific D-Max or MU-X variant.
Which aftermarket head unit brands are confirmed for steering wheel control retention?
Steering wheel control retention is confirmed with major branded head units from Alpine, Clarion, Kenwood, Pioneer, Sony, and Stinger. Contact us to confirm compatibility with your specific chosen head unit before ordering.
