Description
Stinger HRIZ003 Radio Replacement Kit for Isuzu D-MAX 2019-2023 and MU-X 2021-2024
The HRIZ003 is a vehicle-specific radio replacement kit from Stinger for the Isuzu D-MAX RG (2019-2023) and Isuzu MU-X RJ20 (2021-2024), compatible with both 7" and 9" factory OEM head units. It includes a gloss black dash panel, SWC interface, OEM camera retention adaptor, USB/AUX adaptor, antenna adaptor, and mounting brackets. Factory reverse camera, USB, AUX, and steering wheel controls are retained. Not compatible with the Mazda BT-50. Head unit not included.
Product overview
The Stinger HRIZ003 provides the complete installation hardware required to fit an aftermarket head unit into the Isuzu D-MAX RG (2019-2023) or Isuzu MU-X RJ20 (2021-2024), covering vehicles fitted with either the factory 7-inch or 9-inch OEM head unit. The replacement dash panel accommodates both factory aperture sizes without modification. The kit connects via factory 16-pin and 8-pin Isuzu connectors to a standard ISO output, providing a plug and play installation without cutting factory wiring.
Despite sharing a platform with the Isuzu D-MAX, the Mazda BT-50 has different wiring connector and dash fitment requirements and is not compatible with the HRIZ003. A separate kit is required for the BT-50.
Steering wheel control retention is confirmed with select aftermarket head unit brands only. Confirm compatibility with your chosen head unit brand before purchasing. Features not confirmed in the kit data, including climate control displays, parking sensor tones, and vehicle settings menus, are not confirmed as retained. Contact us if specific feature retention is critical to your installation.
Features and benefits
Suits Isuzu D-MAX RG 2019-2023 and MU-X RJ20 2021-2024: A single kit covers both Isuzu models on their respective chassis, providing compatibility across the full current generation of both vehicles in one product.
Compatible with 7" and 9" factory OEM head units: The replacement gloss black dash panel accommodates the factory aperture of both the 7-inch and 9-inch factory OEM head units, with no modification required regardless of which screen size the vehicle is fitted with.
Factory reverse camera retention included: The included OEM camera retention adaptor routes the factory reverse camera signal to the aftermarket head unit, retaining reverse camera functionality without additional hardware.
Factory USB and AUX retention included: The included vehicle-specific USB/AUX adaptor retains both the factory USB input and the factory AUX input with the new aftermarket head unit.

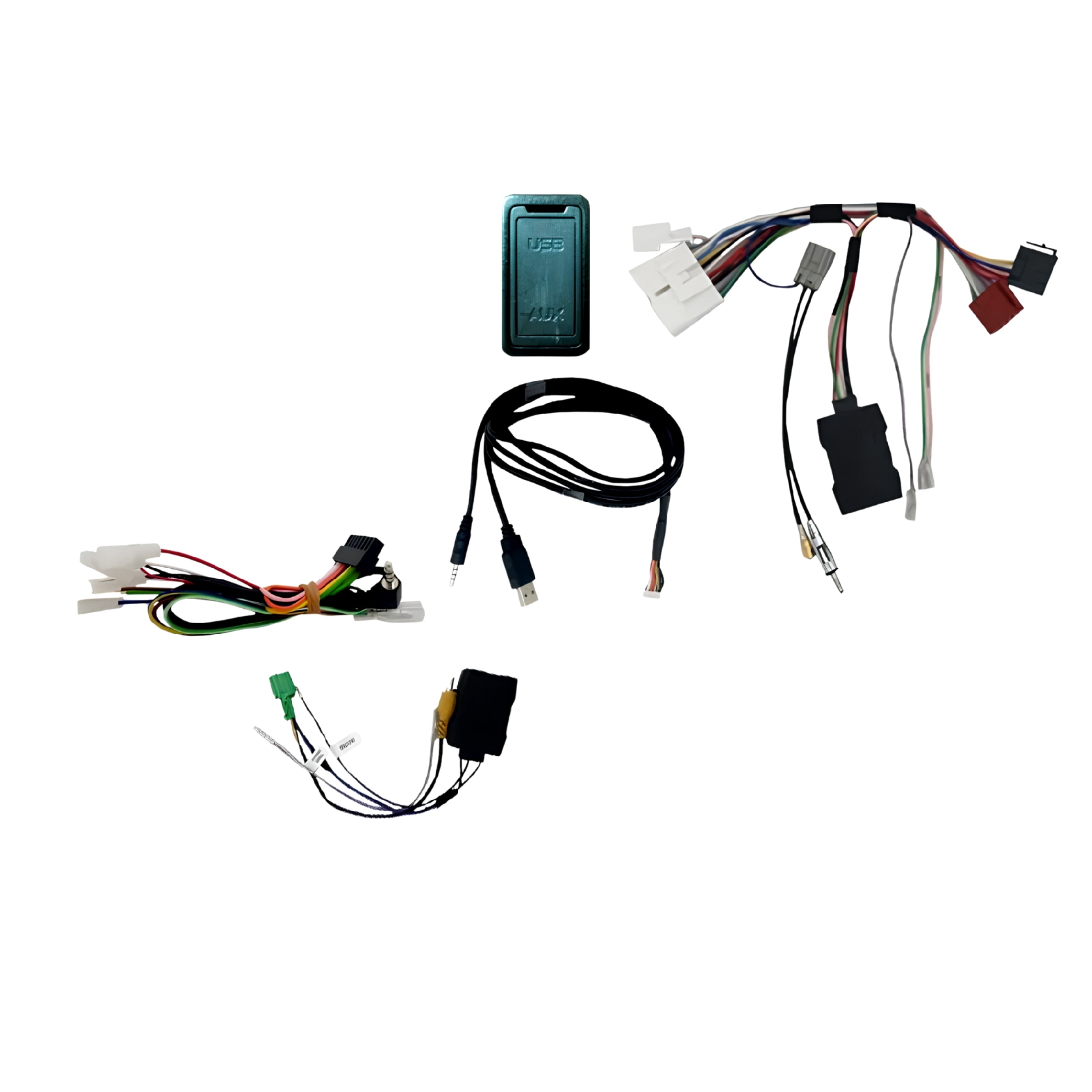

SWC interface with plug and play ISO output: The included SWC interface connects the factory 16-pin and 8-pin Isuzu connectors to a standard ISO output without cutting factory wiring, retaining steering wheel audio controls with compatible aftermarket head unit brands.
Antenna adaptor included: An Isuzu antenna adaptor is included in the kit, covering the antenna connection requirement without a separate purchase.

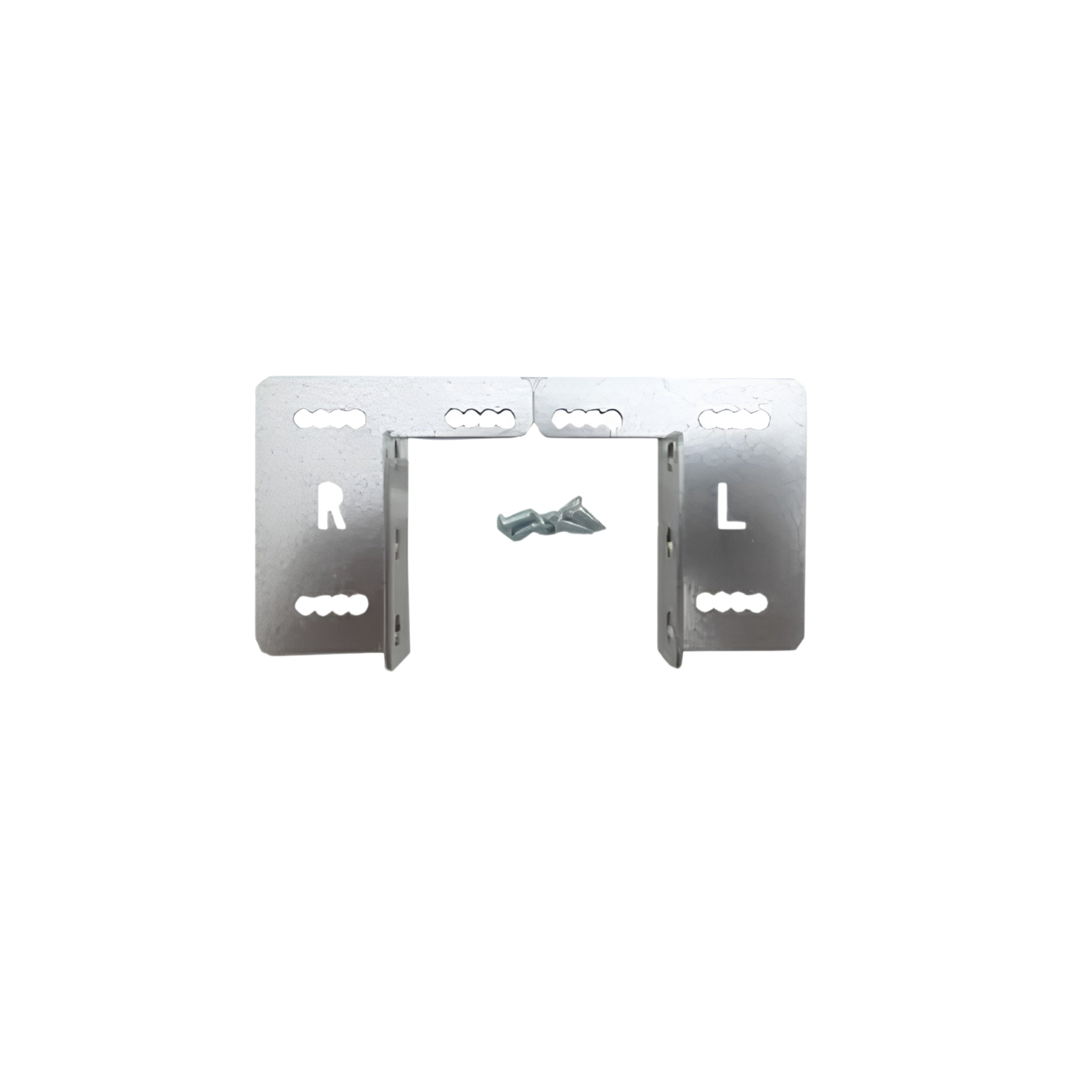

Mounting brackets included: Two mounting brackets are included for securing the aftermarket head unit in the factory dash opening.

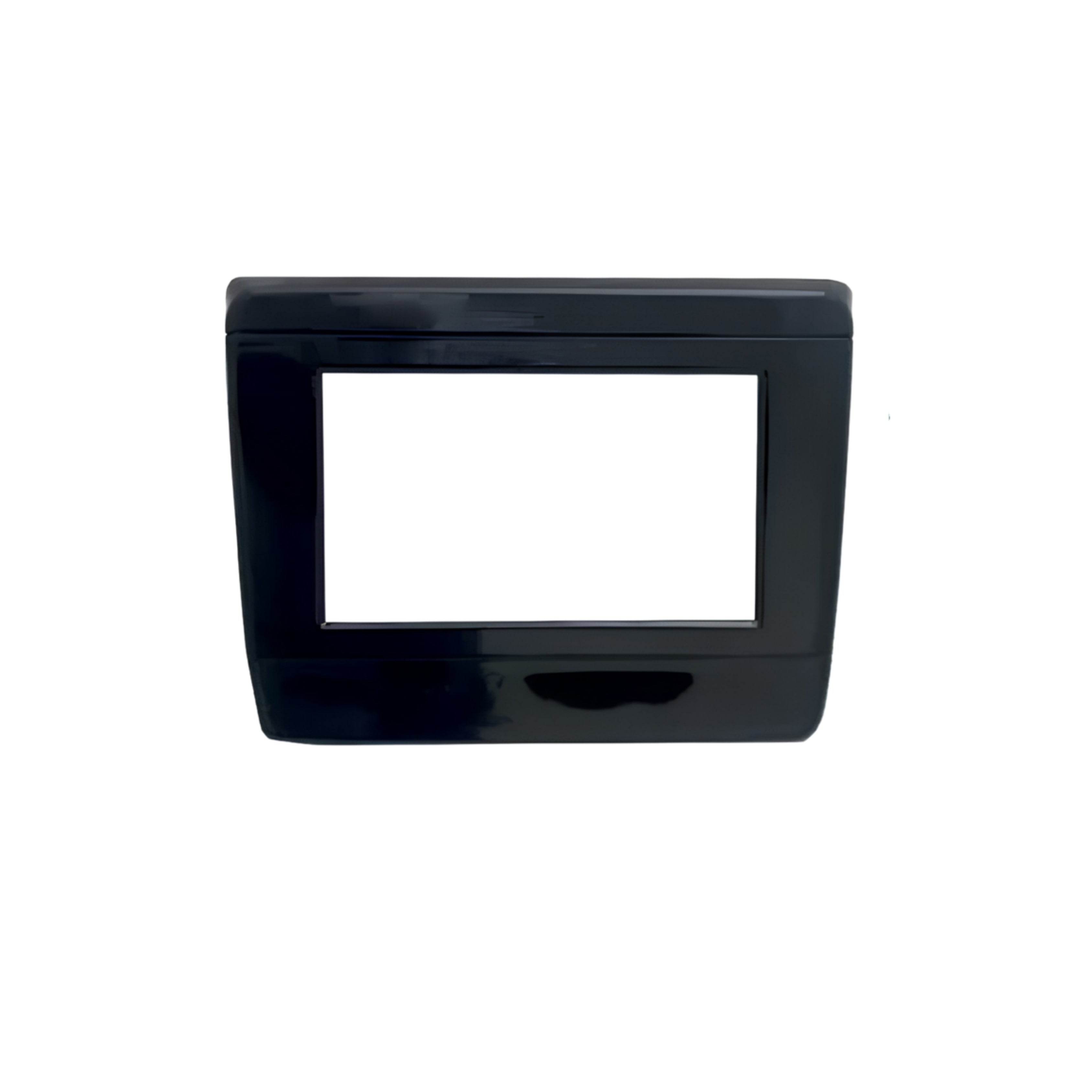

Gloss black dash panel: The gloss black finish is matched to the D-MAX and MU-X interior trim for a clean, integrated appearance after installation.
Not compatible with Mazda BT-50: Despite the shared D-MAX platform, the BT-50 has different wiring connector and dash fitment requirements. Purchasing the HRIZ003 for a BT-50 will not result in correct fitment. A separate BT-50-specific kit is required.

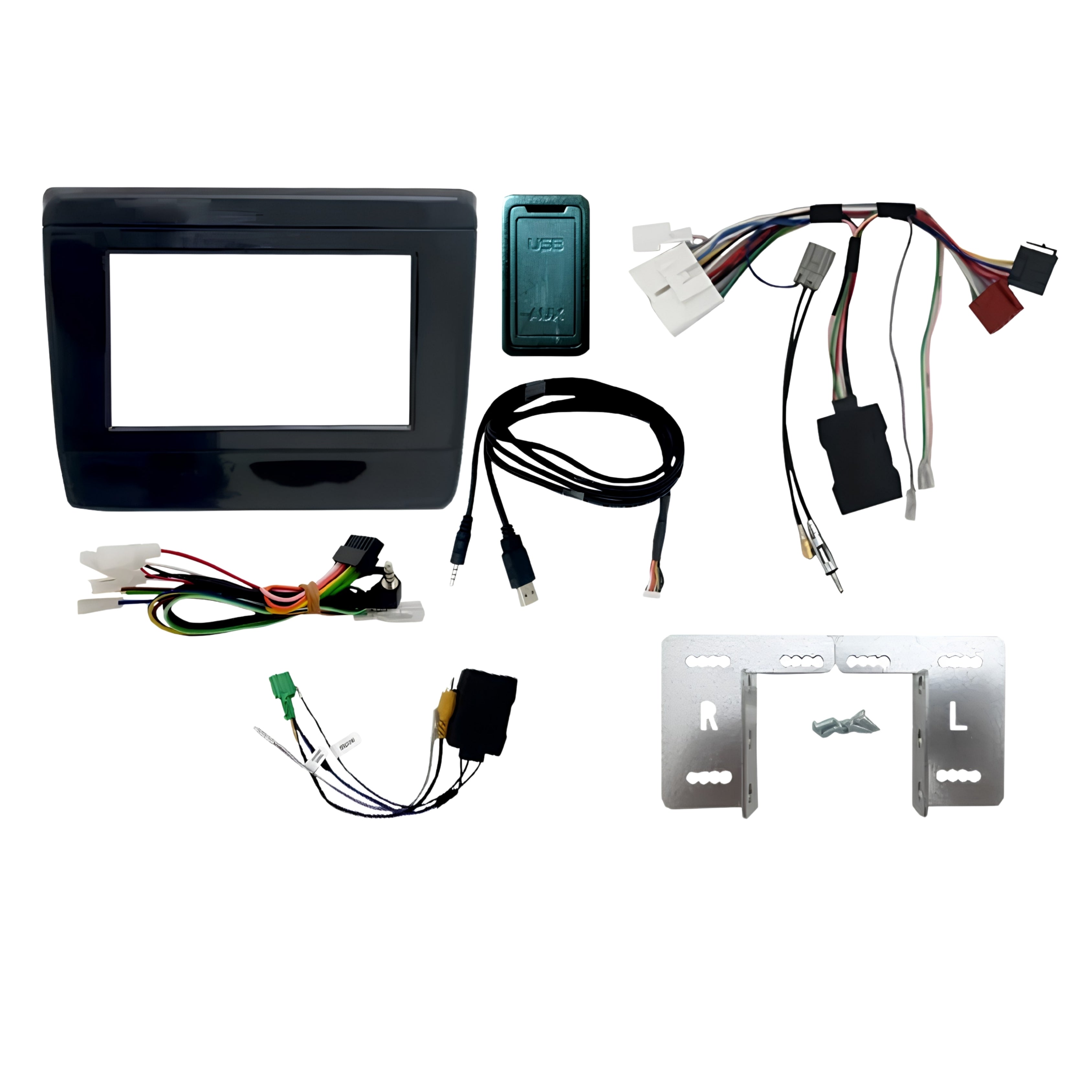

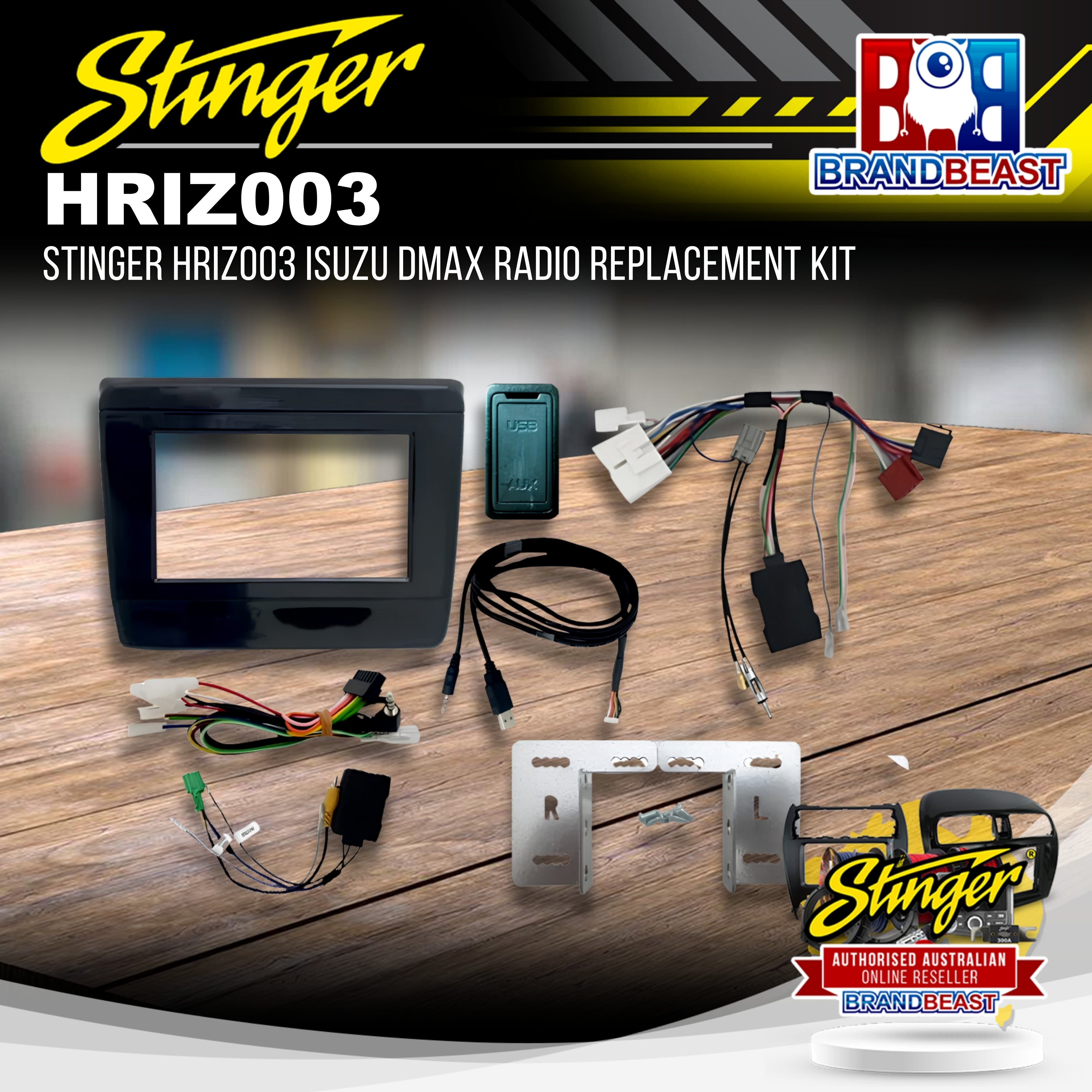

What's in the box
- Gloss black dash panel
- SWC interface with factory to ISO plug and play connection
- OEM camera retention adaptor
- Vehicle-specific USB/AUX adaptor
- Antenna adaptor
- Mounting brackets (x2)
Technical specs
| Specification |
Detail |
| SKU |
HRIZ003 |
| Brand |
Stinger |
| Dash Panel Colour |
Gloss black |
| Vehicle Plug Style |
16-pin and 8-pin Isuzu connectors |
| Output |
Standard ISO (plug and play) |
| Steering Wheel Control Retention |
Yes, select aftermarket head unit brands only |
| Reverse Camera Retention |
Yes, via included OEM camera retention adaptor |
| USB Retention |
Yes, via included USB/AUX adaptor |
| AUX Retention |
Yes, via included USB/AUX adaptor |
| Compatible OEM Screen Size |
7" and 9" |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes, x2 |
| Head Unit Included |
No, purchased separately |
| Not Compatible With |
Mazda BT-50 |
Compatible with
| Make |
Model |
Variant |
Years |
| Isuzu |
D-MAX |
RG chassis, 7" or 9" factory radio |
2019-2023 |
| Isuzu |
MU-X |
RJ20 chassis, 7" or 9" factory radio |
2021-2024 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, select aftermarket head unit brands only |
| Reverse Camera |
Yes, via included OEM camera retention adaptor |
| Factory USB |
Yes, via included USB/AUX adaptor |
| Factory AUX |
Yes, via included USB/AUX adaptor |
Frequently asked questions
Is the HRIZ003 compatible with the Mazda BT-50?
No. The HRIZ003 is not compatible with the Mazda BT-50, despite the BT-50 being built on the same platform as the Isuzu D-MAX. The BT-50 has different wiring connector and dash fitment requirements and needs its own specific kit. Contact us for guidance on the correct kit for the Mazda BT-50.
Does the HRIZ003 fit my D-MAX or MU-X if it has a 9-inch factory screen?
Yes. The HRIZ003 is compatible with both the 7-inch and 9-inch factory OEM head units in the Isuzu D-MAX and MU-X. The replacement dash panel accommodates both factory aperture sizes without modification.
What factory features are retained with the HRIZ003?
The factory reverse camera, factory USB input, factory AUX input, and steering wheel audio controls (with a compatible aftermarket head unit brand) are all retained via the included adaptors and interface. Features not confirmed in the kit data, including climate control displays, parking sensor tones, and vehicle settings menus, are not confirmed as retained. Contact us if specific feature retention is critical to your installation.
How does the plug and play connection work on the HRIZ003?
The included SWC interface connects the factory Isuzu 16-pin and 8-pin harness connectors to a standard ISO output. This means the factory wiring does not need to be cut. The Isuzu factory connectors plug into the interface, and the ISO side connects directly to the aftermarket head unit's standard ISO harness, providing a clean, reversible installation.
Does the HRIZ003 include a head unit?
No. The HRIZ003 provides the installation hardware only, including the dash panel, SWC interface, camera retention adaptor, USB/AUX adaptor, antenna adaptor, and mounting brackets. The aftermarket head unit is purchased separately. Confirm that your chosen head unit brand supports SWC retention through this interface before purchasing.
