Description

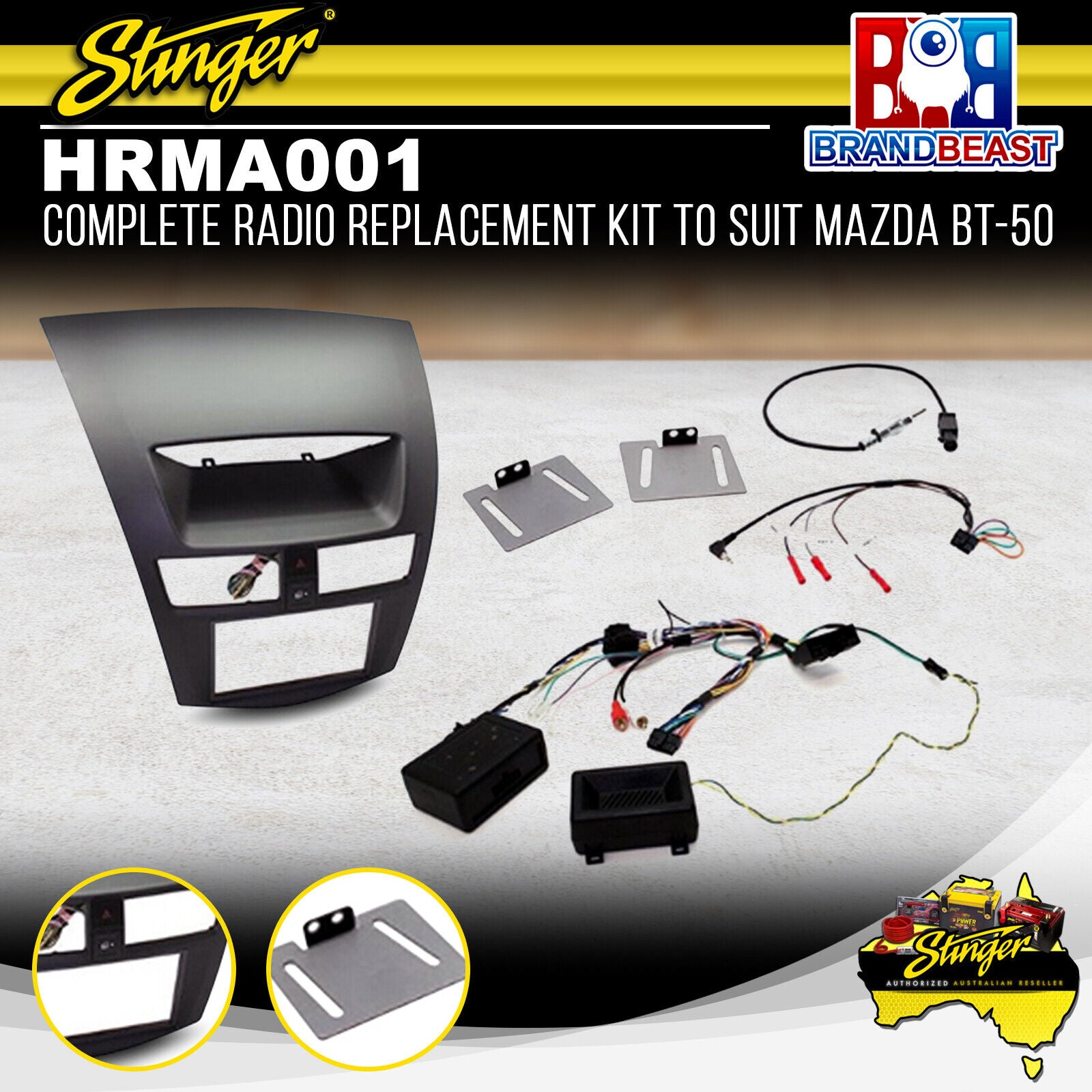

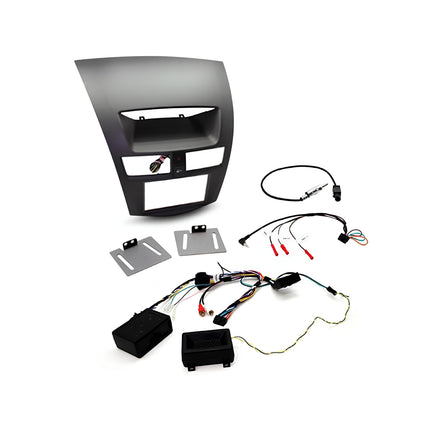

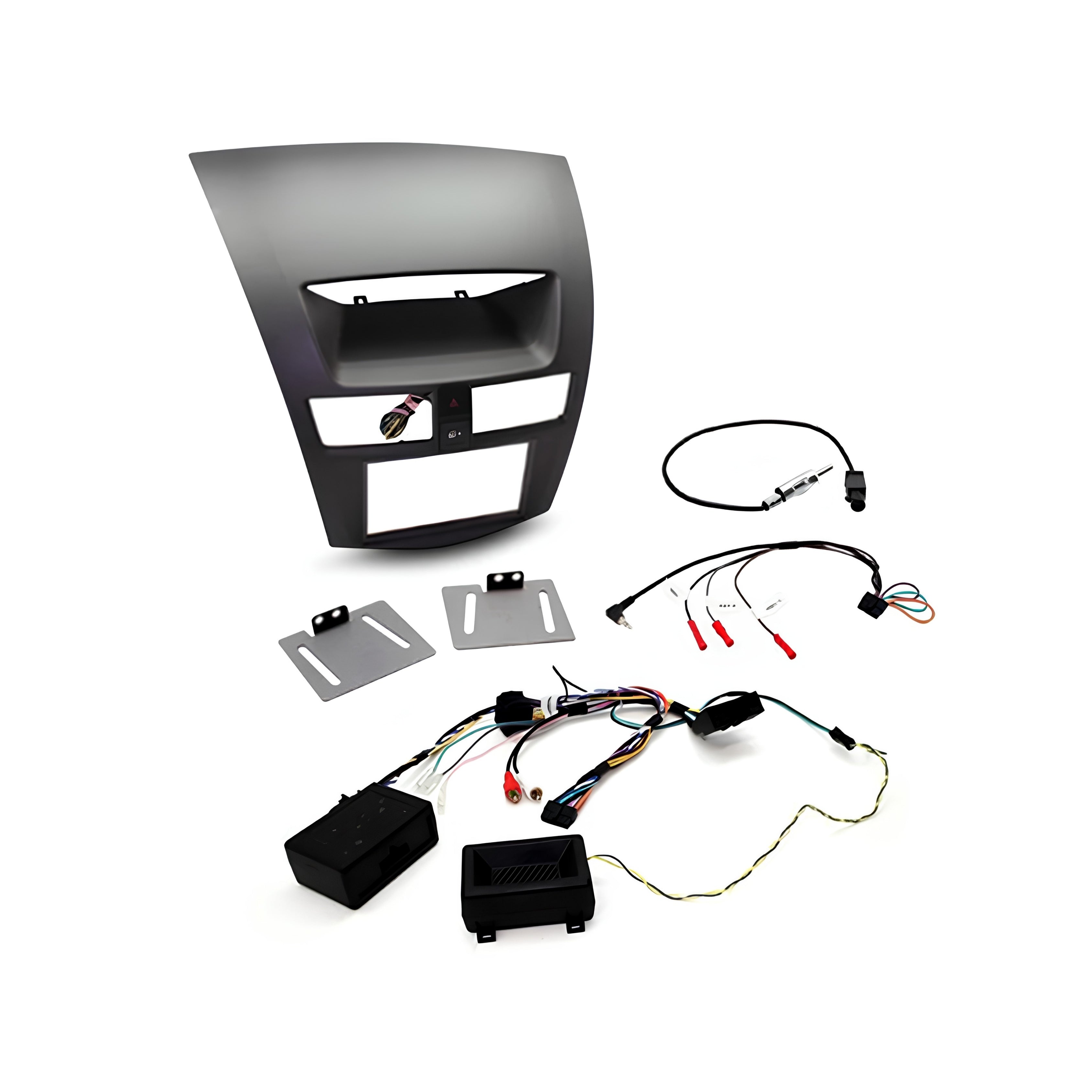

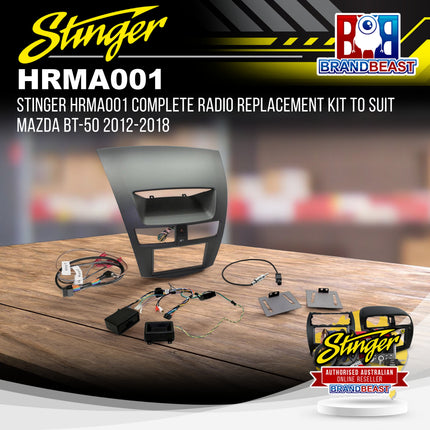

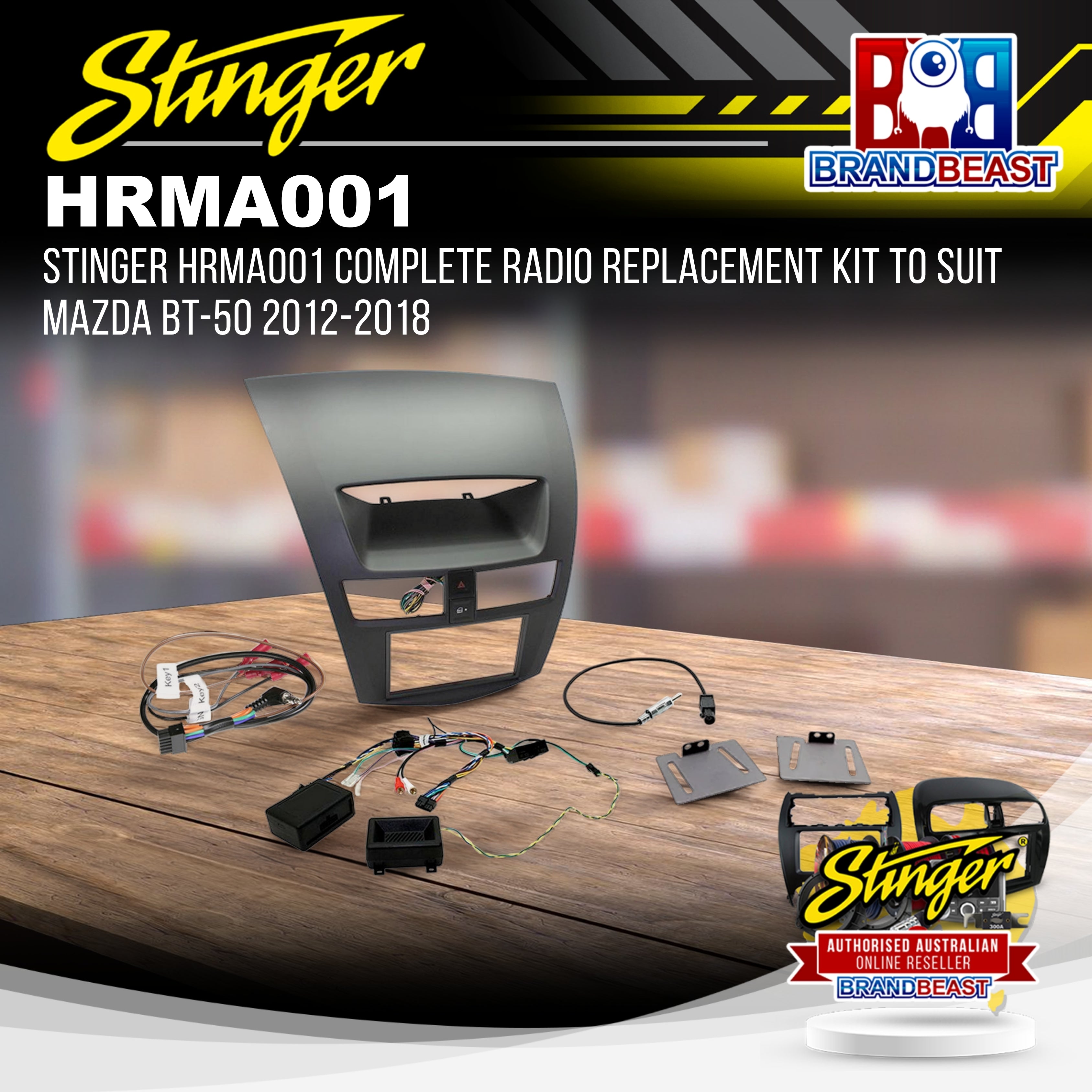

Stinger HRMA001 Complete Plug & Play Radio Replacement Kit for Mazda BT-50 (2012–2018)
Everything needed to upgrade your Mazda BT-50 factory head unit in one kit CAN-BUS SWC retention, AUX retention, antenna adaptor, hazard/door lock button, and 2DIN panel. Head unit not included.
Product Overview

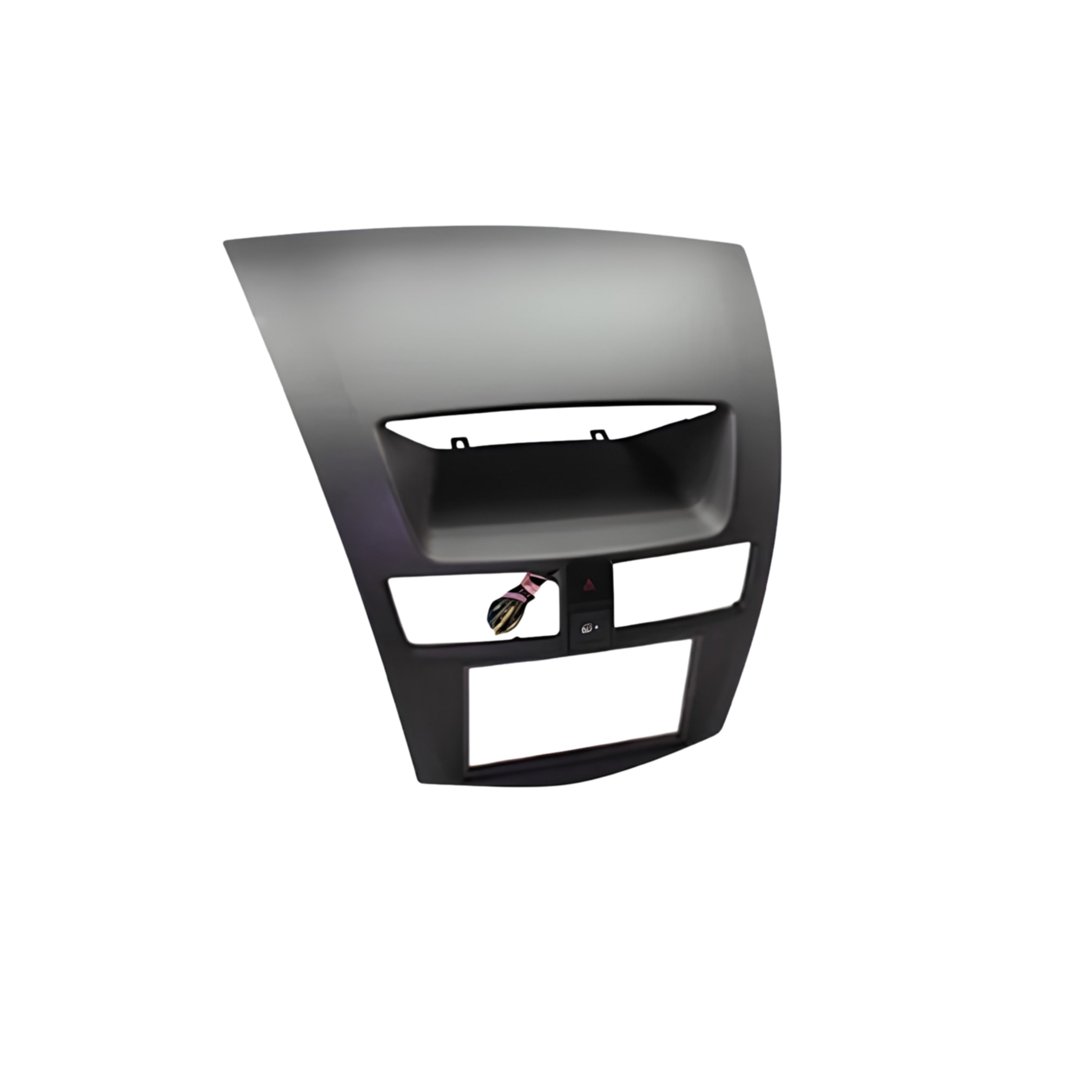

The Stinger HRMA001 is a complete, all-in-one radio replacement kit for the Mazda BT-50 (B32Q 2012–2015 and UR 2015–2018). It includes every component required for a professional aftermarket head unit installation 2DIN radio panel, CAN-BUS steering wheel control adaptor with patch lead, antenna adaptor, AUX retention, mounting brackets, and a replacement hazard and door lock button.
The plug-and-play harness connects directly from the factory connector to standard ISO without cutting or splicing.
Features & Benefits
- Complete all-in-one installation kit — no additional components required
- Plug & play — factory connector to standard ISO

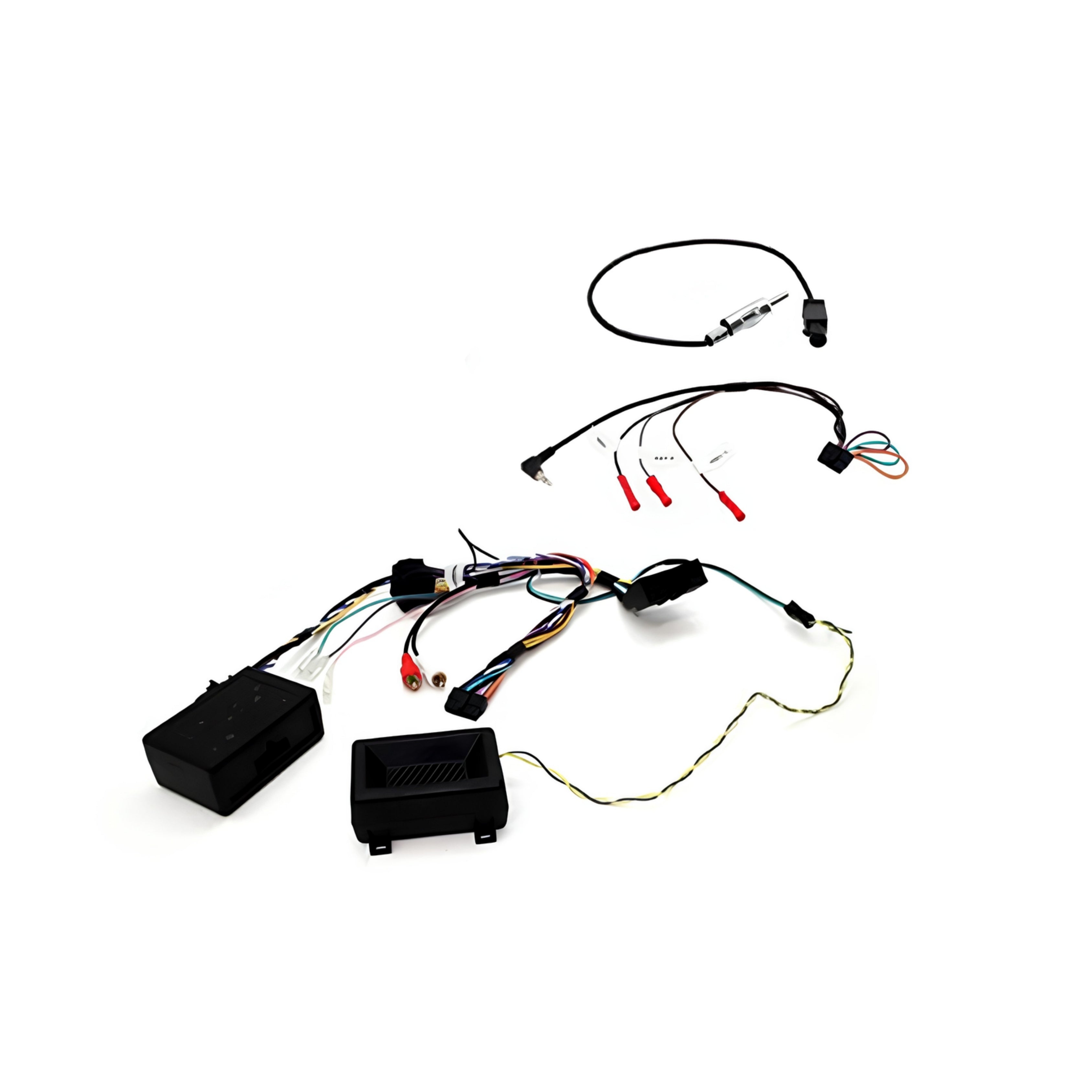

- Retains factory steering wheel audio controls via CAN-BUS adaptor and patch lead
- AUX retention included
- Antenna adaptor included

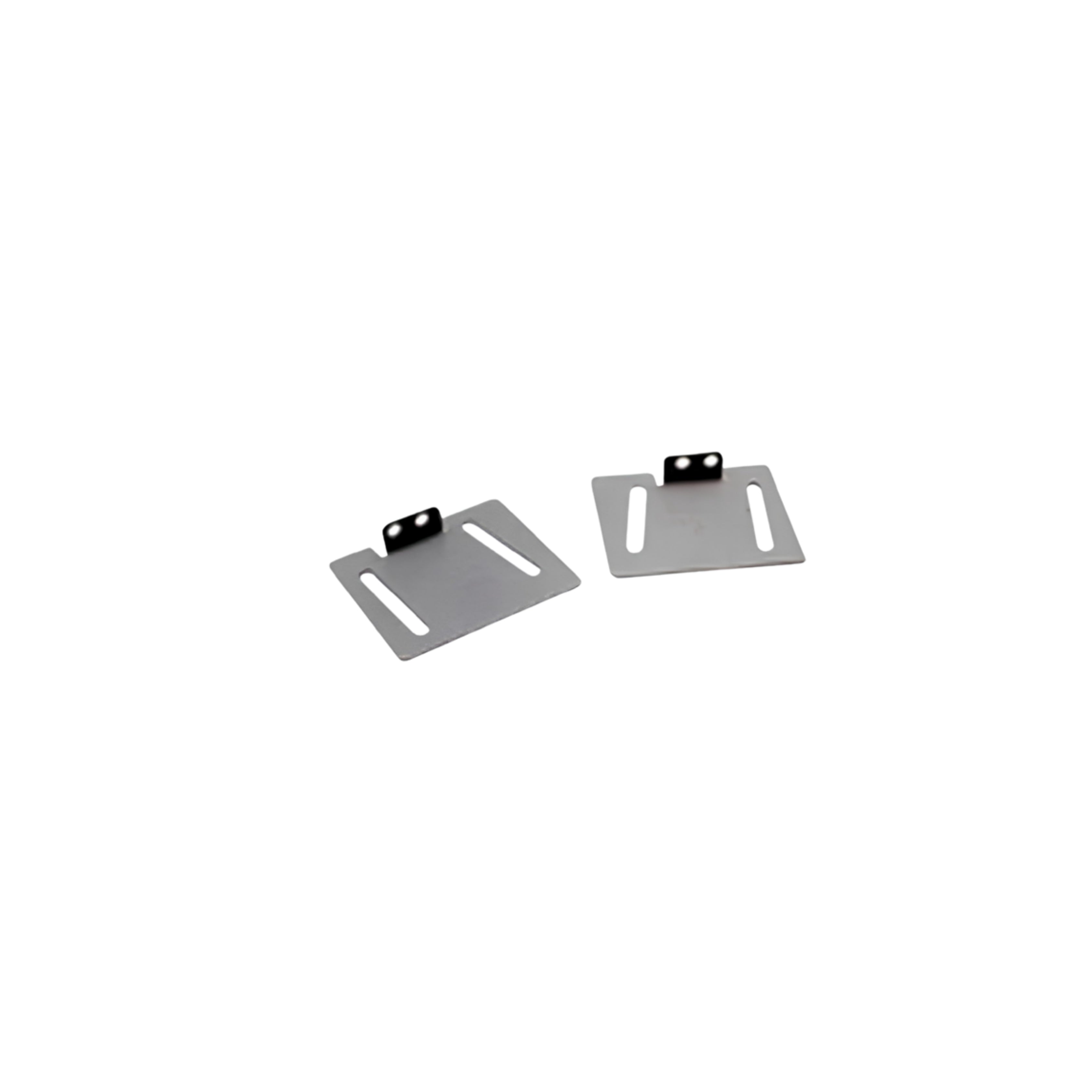

- Mounting brackets included
- Replacement hazard and door lock button included
- Black finish
- USB retention not included
Technical Specs
| Specification |
Detail |
| SKU / Part Number |
HRMA001 |
| Brand |
Stinger |
| Plug & Play |
Yes — Factory Connector to Standard ISO |
| Steering Wheel Control Retention |
Yes — CAN-BUS adaptor with SWC patch lead |
| AUX Retention |
Yes — AUX only |
| USB Retention |
No |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes |
| Colour / Finish |
Black |
| What's in the Box |
2DIN Radio Panel, Steering Wheel Audio Buttons & CAN-BUS Adaptor, Antenna Adaptor, Hazard & Door Lock Replacement Button, SWC Patch Lead |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Mazda BT-50 2012–2015 (B32Q)
- Mazda BT-50 2015–2018 (UR)
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC, Stinger)
- Aftermarket reverse camera (if reverse camera functionality is required)
Frequently Asked Questions
Does this kit retain factory steering wheel controls?
Yes. The HRMA001 includes a CAN-BUS steering wheel control adaptor and SWC patch lead that retains factory steering wheel audio controls with compatible aftermarket head units.
Is USB retention included alongside AUX?
No. The HRMA001 includes AUX retention only. USB retention is not included — if factory USB connectivity is required, an additional retention module will need to be sourced separately.
Why is a hazard and door lock replacement button included?
On the Mazda BT-50, the hazard and door lock button is integrated into the factory fascia surround. When the factory surround is replaced with the new 2DIN panel, a replacement button is required to maintain these functions. It is included in the kit as standard.
Does this kit include a head unit?
No. The HRMA001 is a radio replacement kit — it includes everything needed to install an aftermarket head unit, but the head unit itself must be purchased separately.
Does this kit cover both the B32Q and UR series BT-50?
Yes. The HRMA001 is compatible with both the Mazda BT-50 B32Q (2012–2015) and the UR series (2015–2018).
