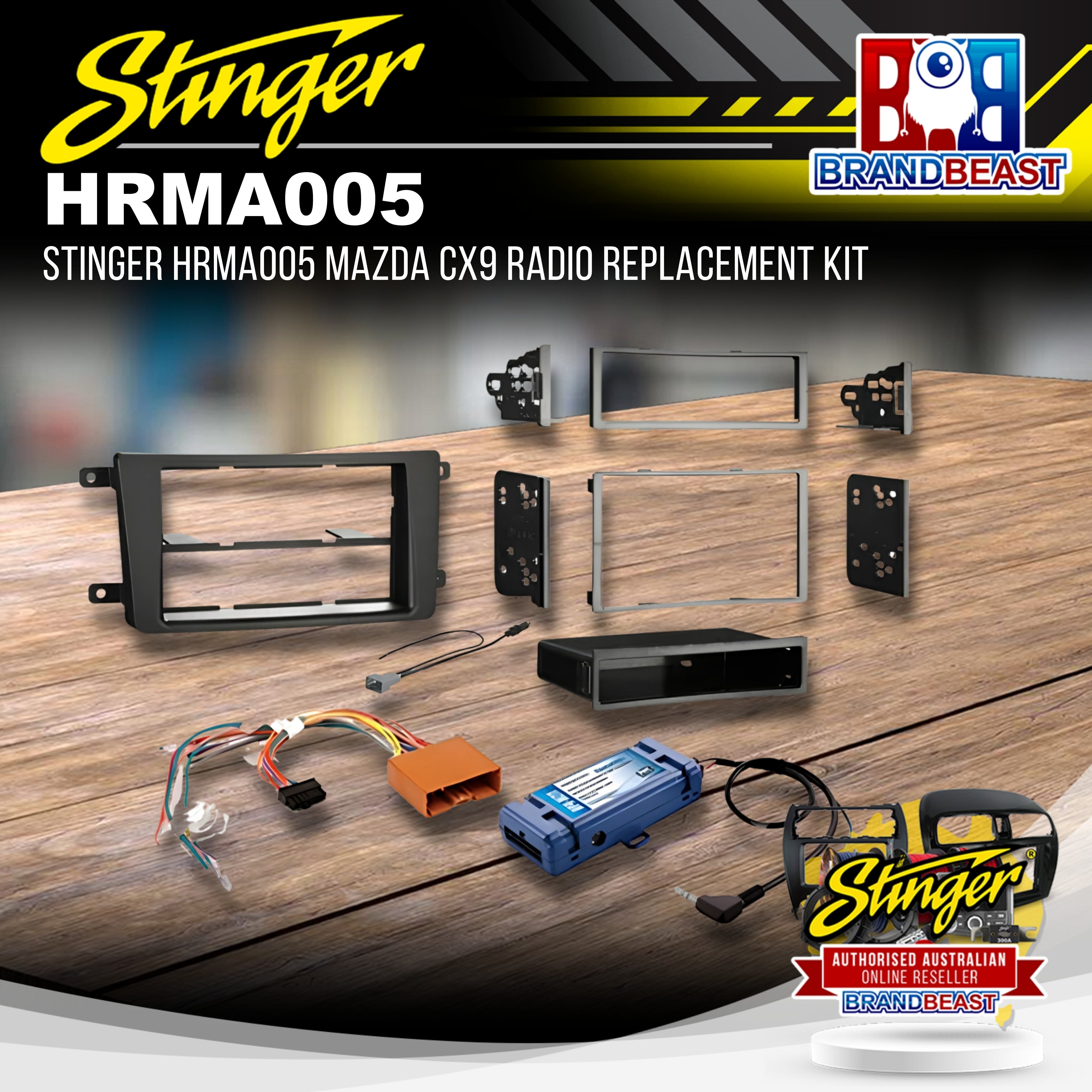

Stinger HRMA005 – Complete Plug & Play Radio Replacement Kit for Mazda CX9
Drop in an aftermarket radio without losing a thing steering wheel controls, Bose audio, A/C compressor function, and rear seat entertainment all stay intact.
Product Overview
The Stinger HRMA005 is a vehicle-specific radio replacement kit engineered for the Mazda CX9 (2006–2015, TB series). It bridges your new aftermarket head unit to your factory wiring, delivering a clean, plug-and-play installation with no cutting or splicing required. The kit is pre-programmed to retain your steering wheel controls out of the box and supports non-amplified, Bose digital, and premium audio system configurations.
Unlike generic dash kits, the HRMA005 communicates with your vehicle's OBD network to retain active features including the A/C compressor function on 2010 CX9 models, and allows the OE LCD to continue displaying trip data MPG, estimated range, and more without needing the factory radio connected.
Features & Benefits
- Pre-programmed steering wheel control retention — works immediately on install
- Compatible with non-amplified, Bose digital, and premium audio systems
- Retains A/C compressor function (2010 Mazda CX9)
- OE LCD remains functional — clock, MPG, estimated miles to empty, and more
- User-programmable display text during normal operation
- User-programmable Bose digital, amplified gain, fader, and surround sound settings
- Field updatable via PAC-UP
- Retains rear seat entertainment
- Provides 12V ACC, Illumination, VSS, Parking Brake, and Reverse outputs

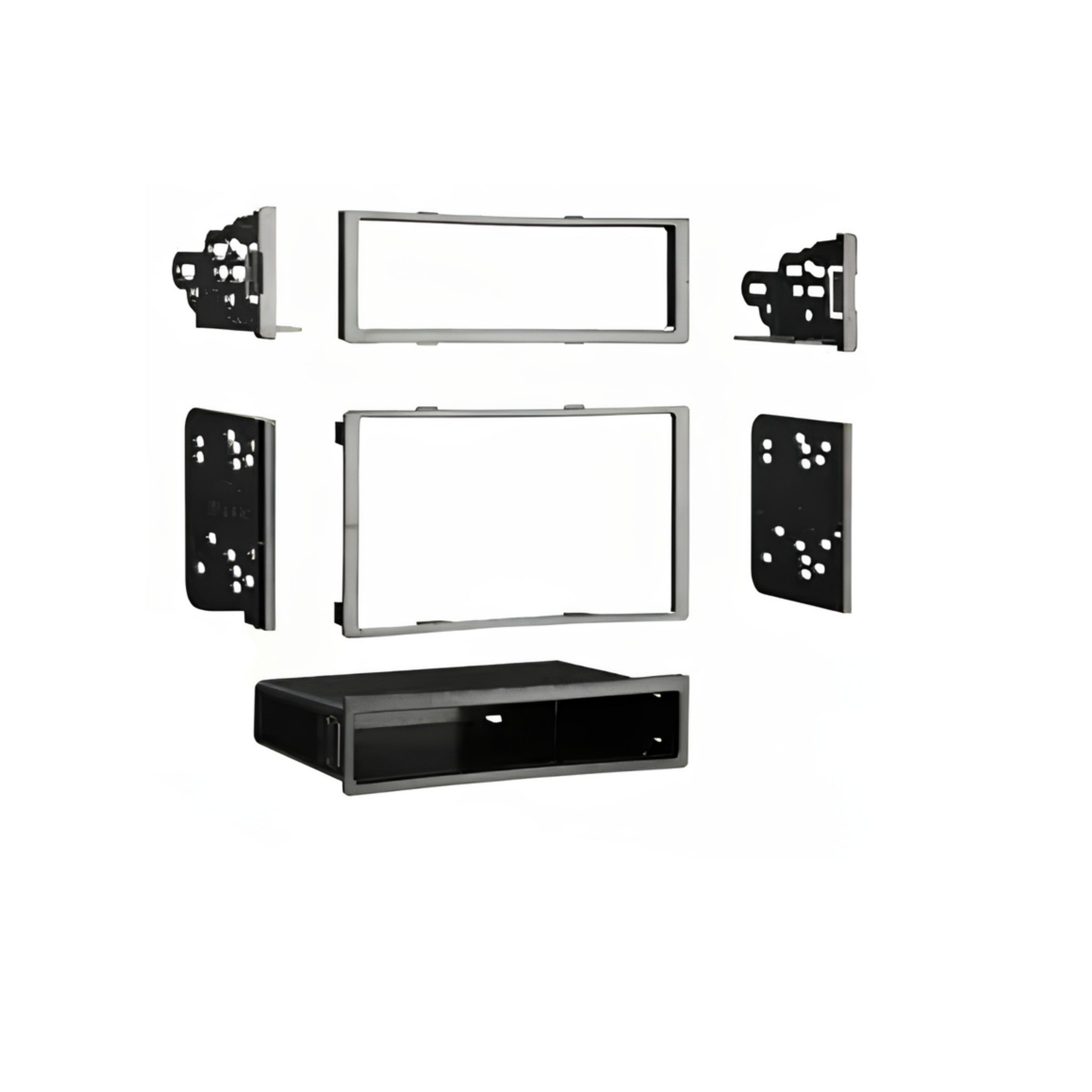

- Includes antenna adaptor and mounting brackets
- Factory connector to standard ISO connector — true plug & play
- Black finish
Technical Specs
| Specification |
Detail |
| SKU / Part Number |
HRMA005 |
| Brand |
Stinger |
| Colour / Finish |
Black |
| Plug & Play |
Yes — Factory Connector to Standard ISO Connector |
| Steering Wheel Control Retention |
Yes (Pre-programmed) |
| Compatible Audio Systems |
Non-Amplified, Bose Digital, Premium Audio |
| A/C Compressor Retention |
Yes (2010 Mazda CX9) |
| Rear Seat Entertainment Retention |
Yes |
| AUX / USB Retention |
No |
| Factory Reverse Camera Retention |
No — Additional product may be required |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes |
| Field Updatable |
Yes — via PAC-UP |
| Outputs Provided |
12V ACC, Illumination, VSS, Parking Brake, Reverse |
| What's in the Box |

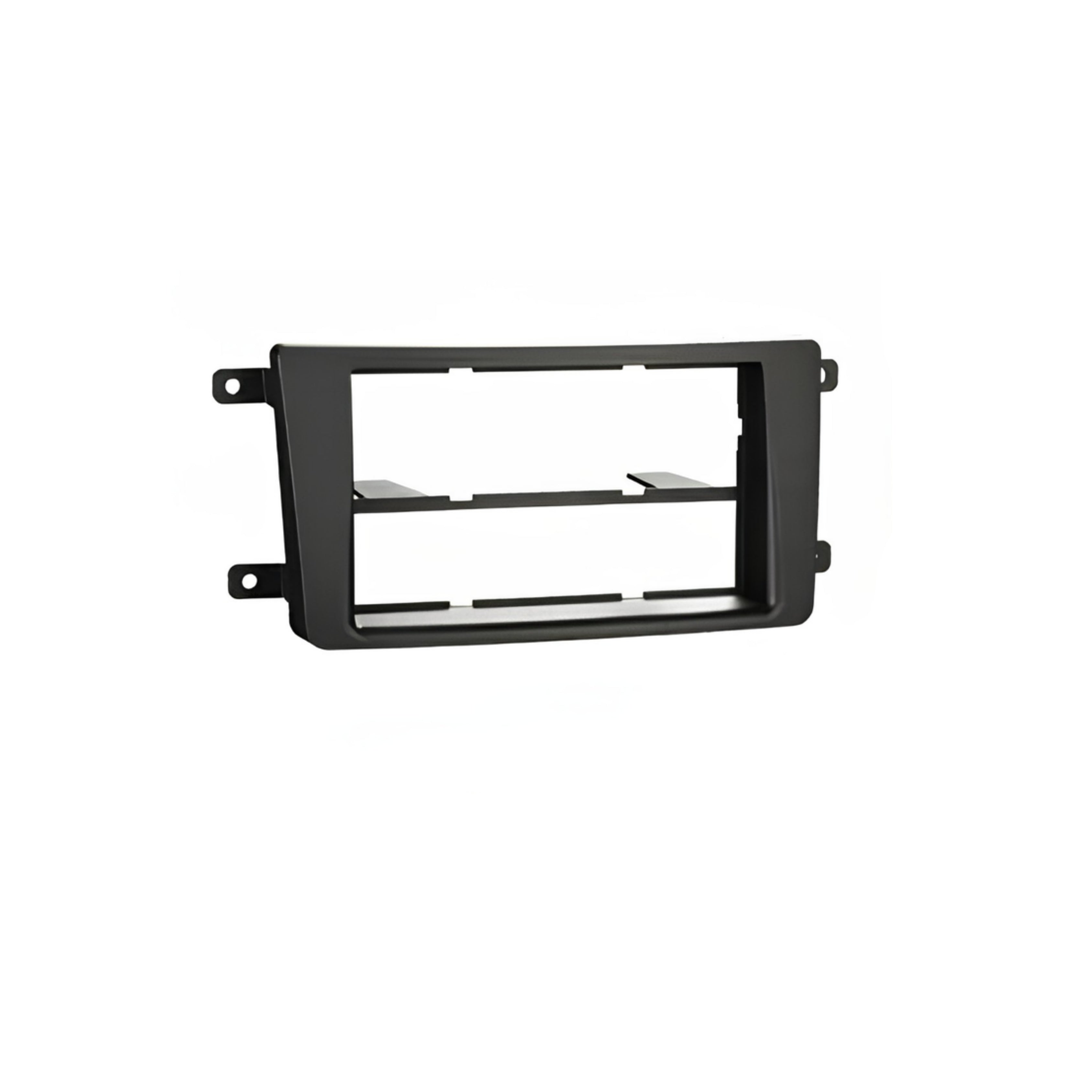

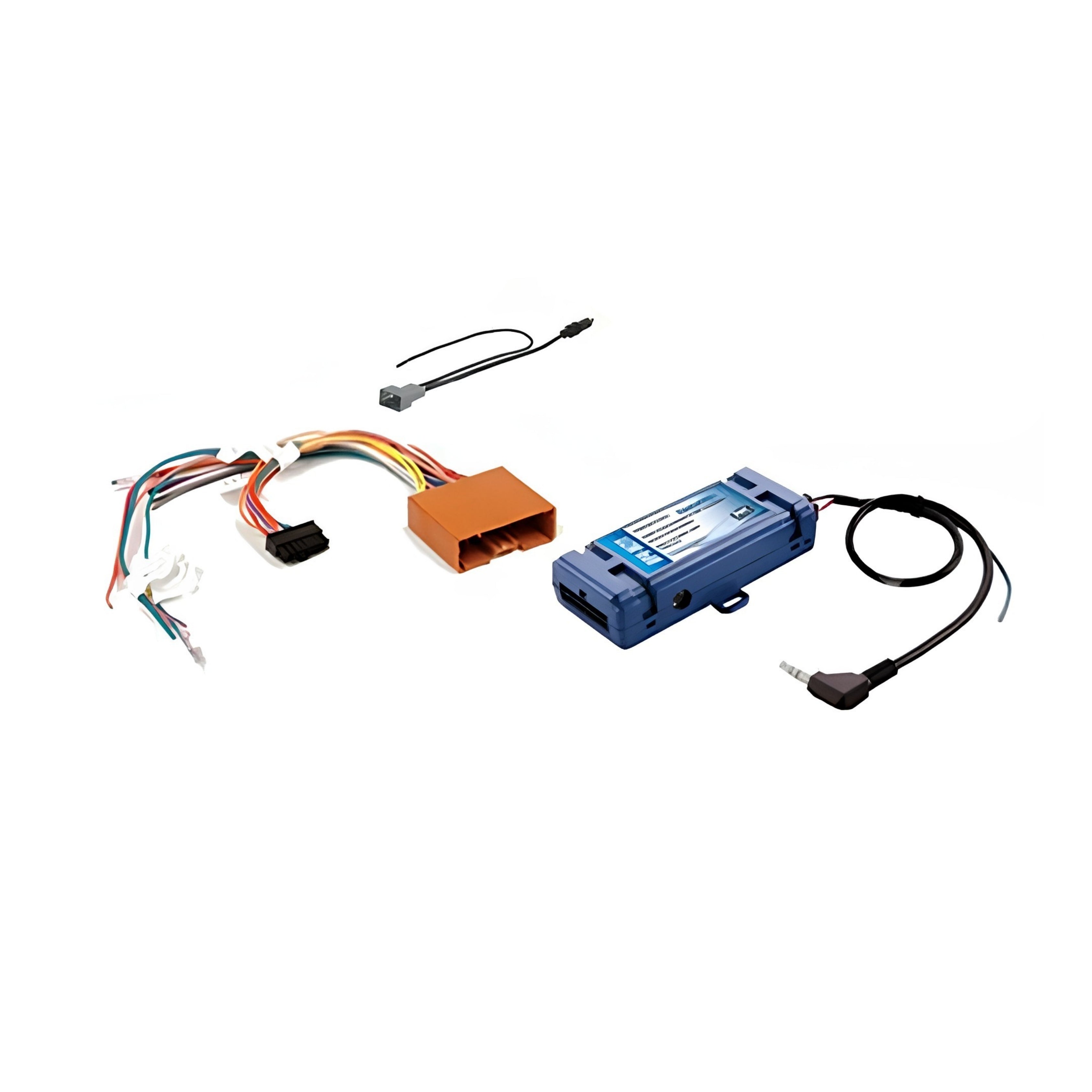

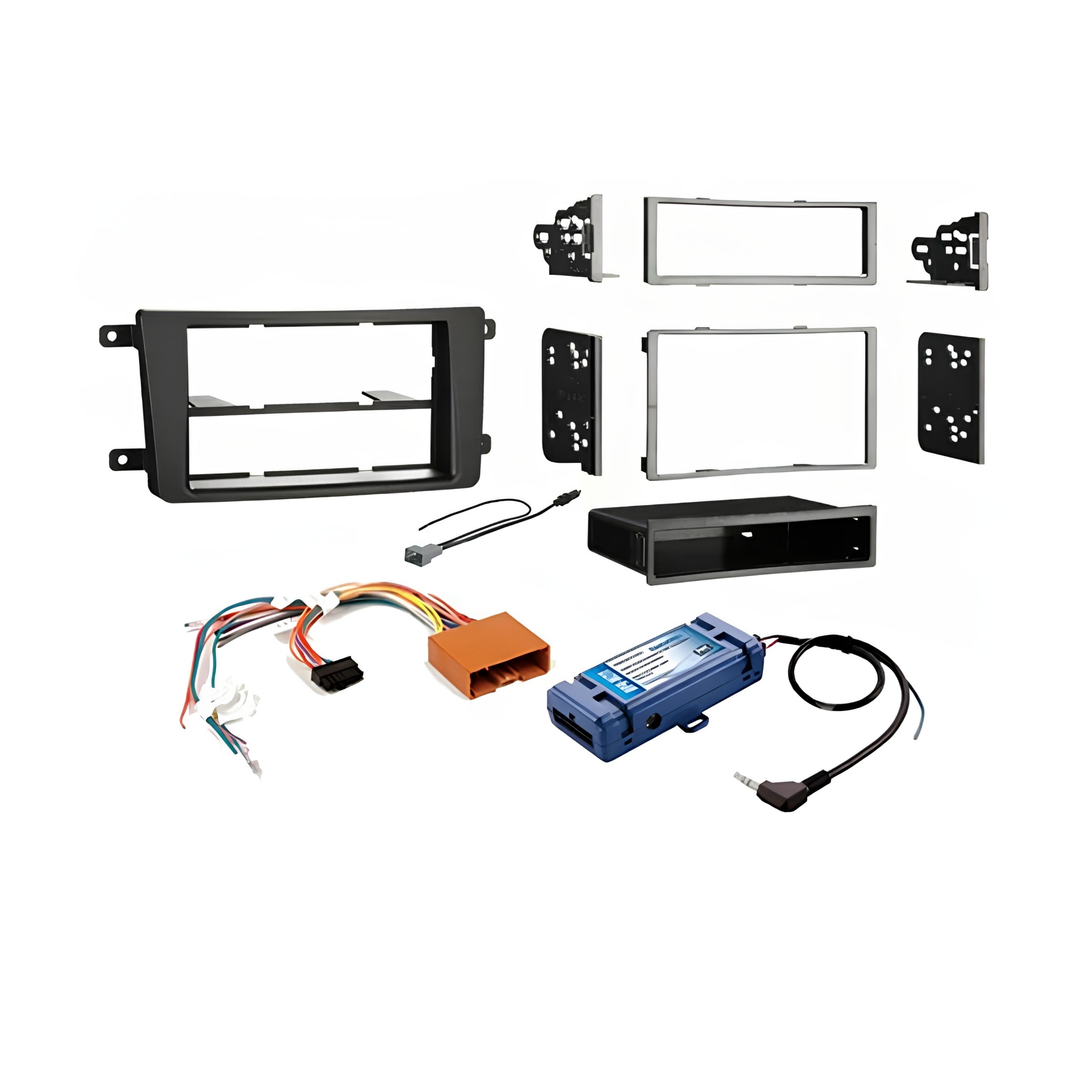

2DIN Radio Panel, Steering Wheel Control Interface, Antenna Adaptor |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Mazda CX9 2006–2011 (TB)
- Mazda CX9 2012–2015 (TB)
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
- PAC-UP field update cable (for firmware updates)
- Aftermarket reverse camera (required to retain reverse camera functionality)
Frequently Asked Questions
Do I need to program the steering wheel controls after installation?
No. The HRMA005 comes pre-programmed for Mazda CX9 steering wheel controls and is ready to work straight out of the box.
Will this kit work with my factory Bose sound system?
Yes. The HRMA005 supports non-amplified, Bose digital, and premium audio system configurations, so your factory audio system type is covered.
Does this kit retain the factory reverse camera?
No. The HRMA005 does not retain the factory reverse camera. An additional product will be required to maintain reverse camera functionality with your new head unit.
Can I still use the OE LCD screen for vehicle information after installing an aftermarket radio?
Yes. The HRMA005 allows the OE LCD to display trip information — including MPG, estimated miles to empty, and clock settings — without requiring the factory radio to be connected.
Is this kit compatible with the 2014 Mazda CX9?
Yes. The HRMA005 is compatible with the Mazda CX9 TB series from 2006 through to 2015, which includes the 2014 model year.
