Description
Stinger HRMA006 Plug and Play Radio Replacement Kit for Mazda BT-50 UR Factory 7" Navigation 2015-2019
The HRMA006 is a vehicle-specific plug and play radio replacement kit from Stinger, designed for the Mazda BT-50 UR series (2015-2019) fitted with the factory 7-inch navigation system. It includes a steering wheel control interface with dual-function short and long press mapping, antenna adaptor, mounting brackets, and a hazard and door lock replacement button. Suits factory 7-inch navigation models only. A blanking panel for the top display area is not included and must be fabricated separately.
Product overview
The Stinger HRMA006 connects an aftermarket head unit to the factory wiring of the Mazda BT-50 UR with factory 7-inch navigation via a plug and play ISO harness, without cutting or splicing factory wiring. The kit is not compatible with non-navigation BT-50 UR variants. For non-navigation BT-50 models, see the BN25K8450 fascia kit instead.

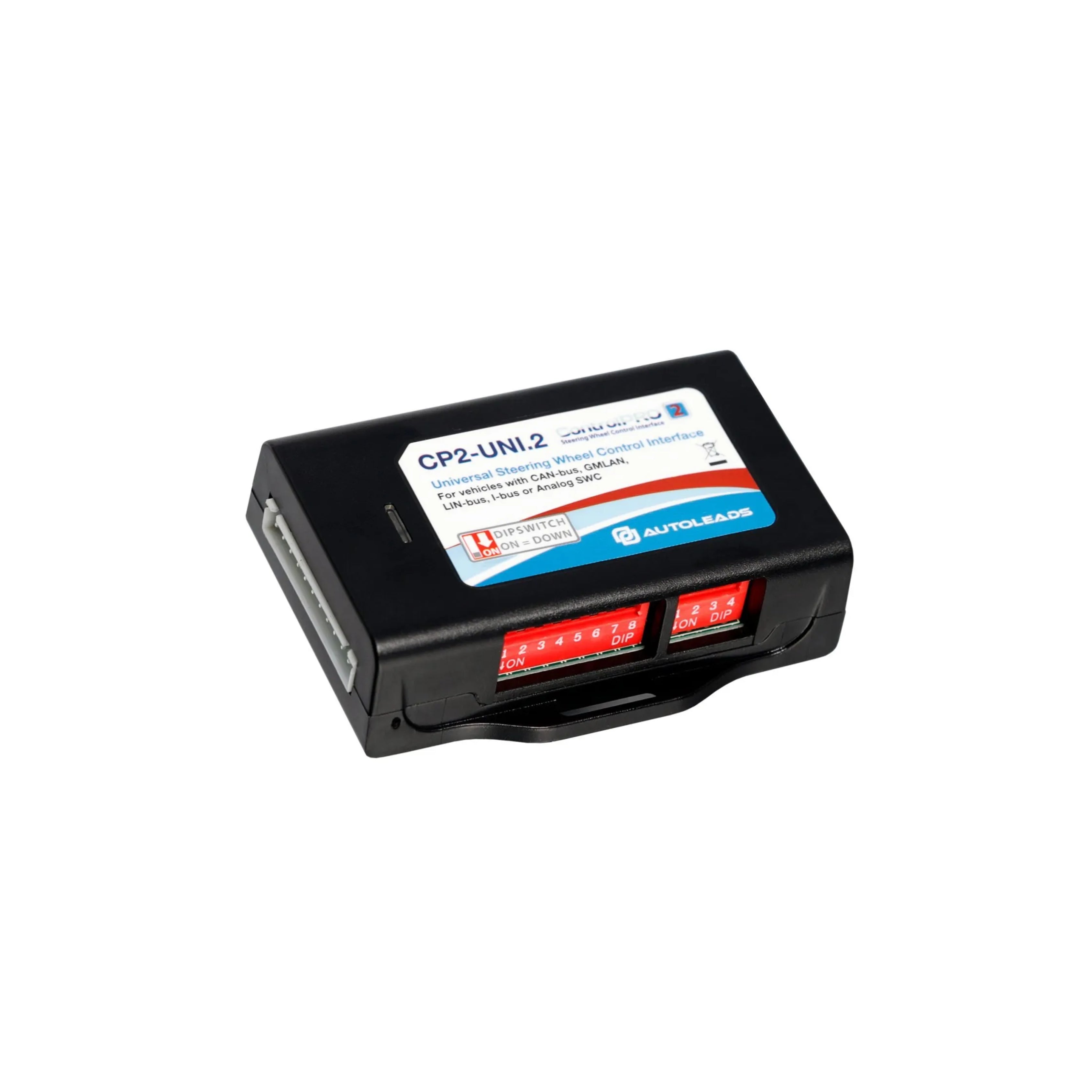

The steering wheel control interface supports dual-function button assignment, allowing two separate radio functions to be mapped to a single steering wheel button via short press and long press inputs. Three configuration methods are supported: PC via the Autoleads application, dip switch settings, or manual programming on the module. The Autoleads PC application also enables field firmware updates. A tri-colour LED provides real-time status feedback, and memory is retained even if vehicle power is lost.
The Mazda BT-50 UR with factory 7-inch navigation has a top display area above the head unit opening. When the 2DIN fascia panel is installed, this area will be left exposed and will require a custom fabricated blanking panel to fill the gap. This blanking panel is not included in the kit and must be sourced or fabricated separately before the installation can be considered complete.
Features and benefits

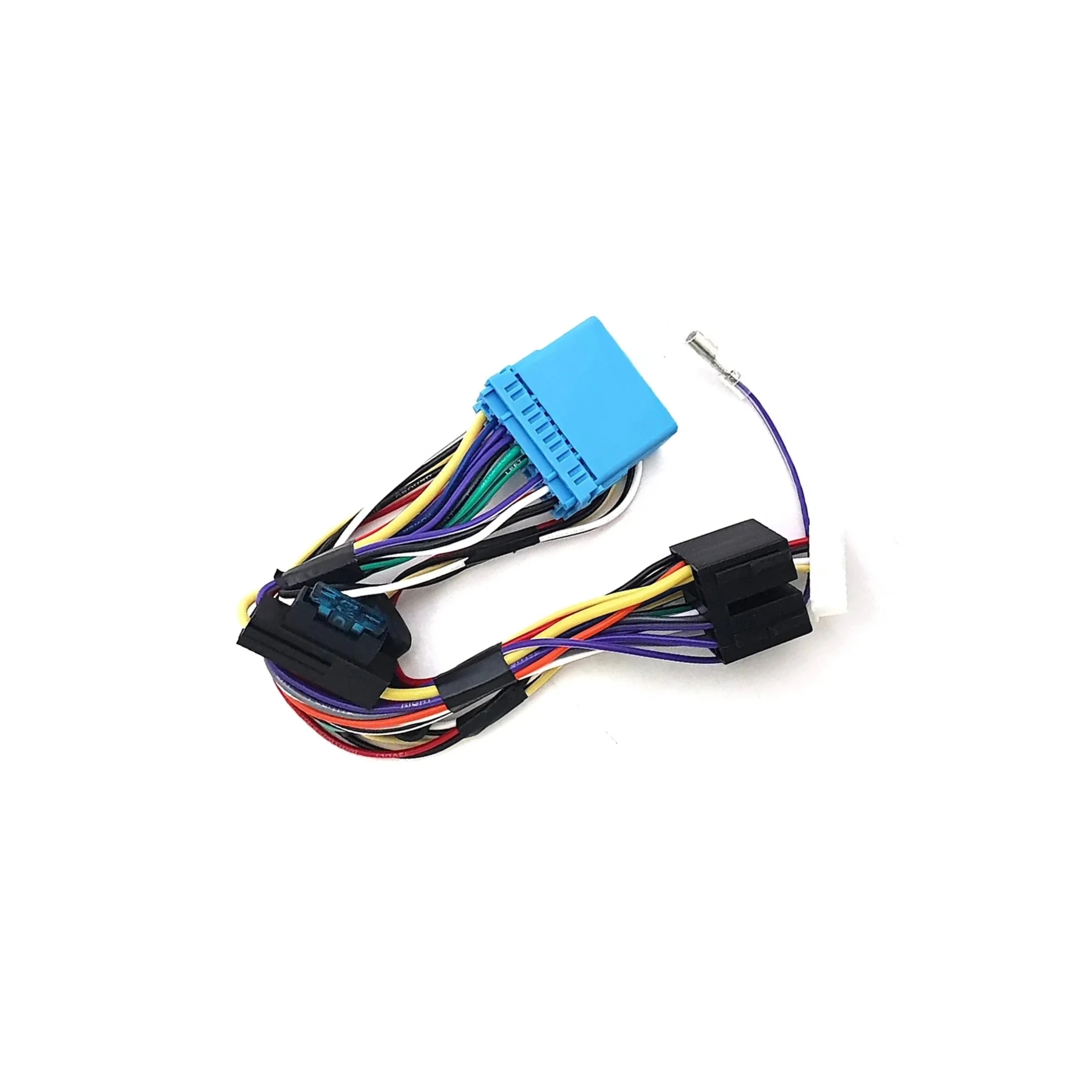

Plug and play factory to ISO harness: Connects directly from the Mazda BT-50 UR factory wiring to a standard ISO harness for straightforward installation without cutting or splicing factory vehicle wiring.
Steering wheel control retention with dual-function mapping: The included SWC interface retains the factory steering wheel audio controls, with dual-function button assignment allowing two separate radio functions per button via short press and long press inputs.
Three SWC configuration methods: The SWC interface can be configured via PC using the Autoleads application, dip switch settings, or manual programming on the module, with a manual learning function for compatibility with unlisted analogue SWC vehicles.
Field updatable via Autoleads PC application: Firmware updates are applied through the Autoleads PC application, keeping the SWC interface current and compatible with new head unit releases without replacing the module.
CAN Bus accessory output: Provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire is not available on the factory harness.
Hazard and door lock replacement button included: A replacement hazard and door lock button is included in the kit, maintaining access to these factory controls after the head unit installation.
Antenna adaptor included: A Mazda antenna adaptor is included in the kit, covering the antenna connection requirement without a separate purchase.
Mounting brackets included: Mounting brackets are included for securing the aftermarket head unit in the factory dash opening.
Tri-colour LED status indicator: A tri-colour LED provides real-time status feedback on the SWC interface module during programming and normal operation.
Memory retention after power loss: The SWC interface retains its programmed configuration even if vehicle power is disconnected, removing the need to reprogram after battery changes or electrical work.
Black finish: The black fascia panel is matched to factory BT-50 UR interior trim for a clean, integrated appearance after installation.

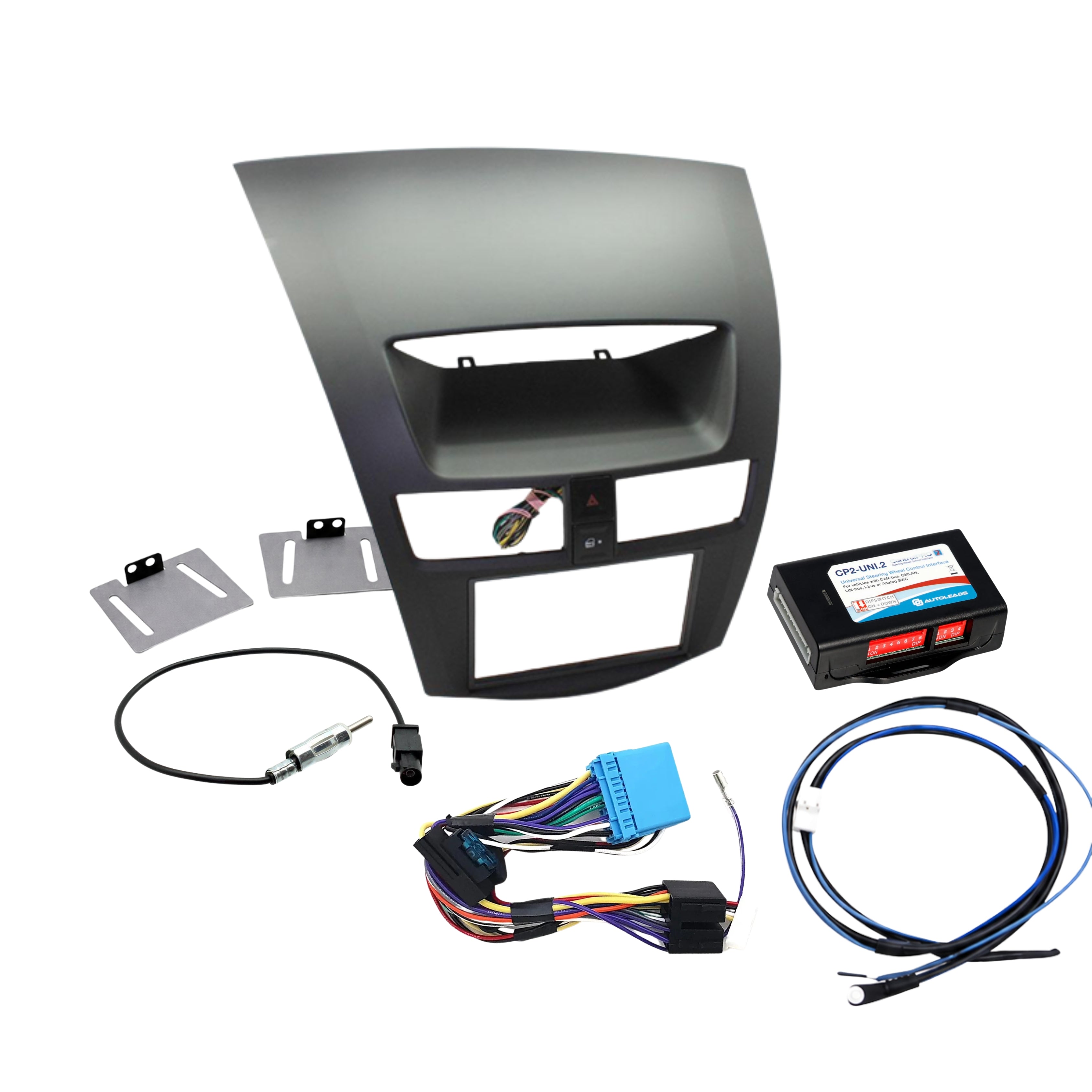

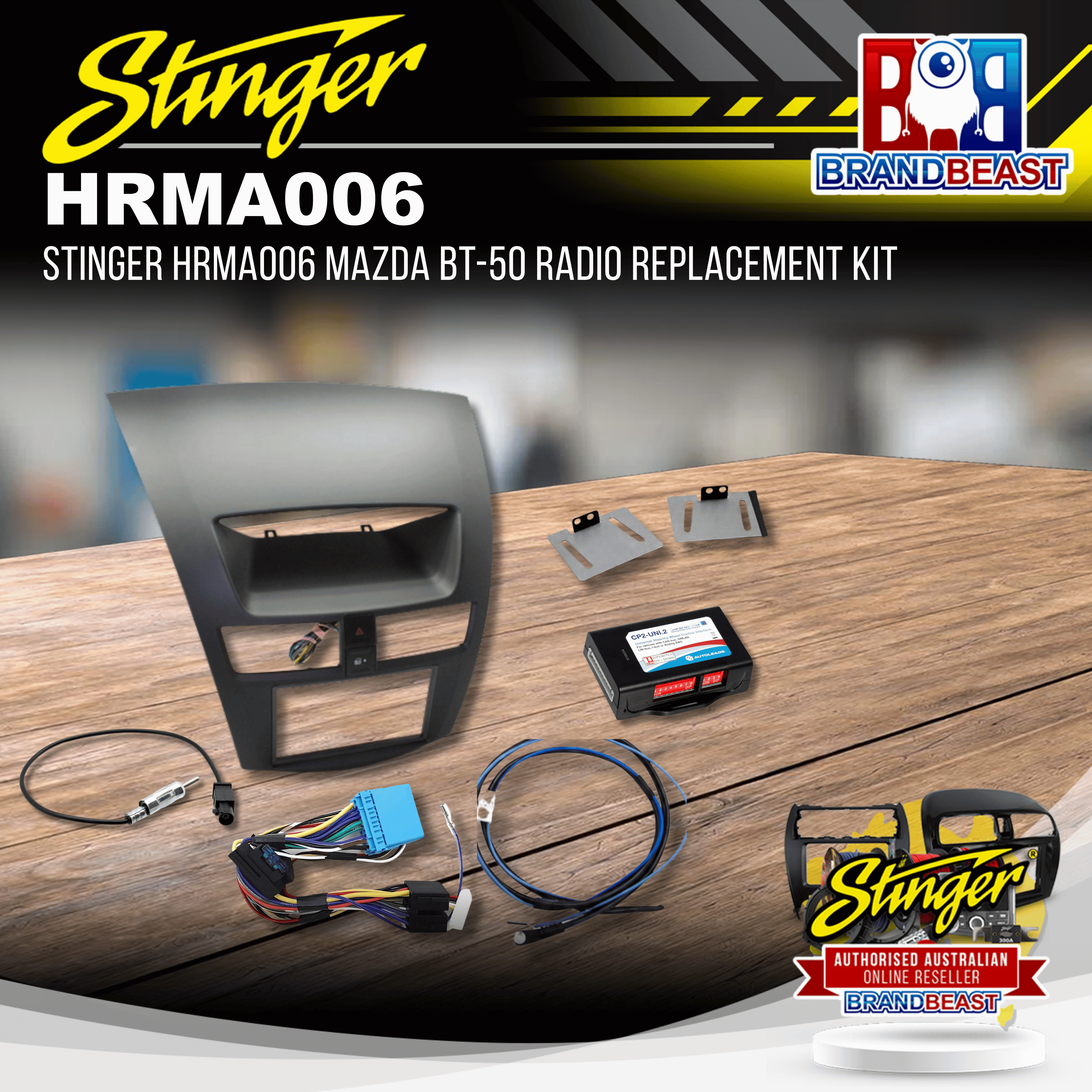

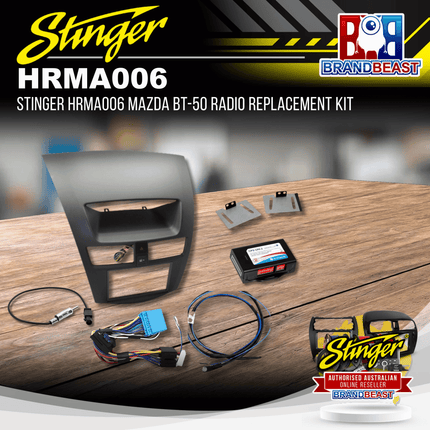

What's in the box

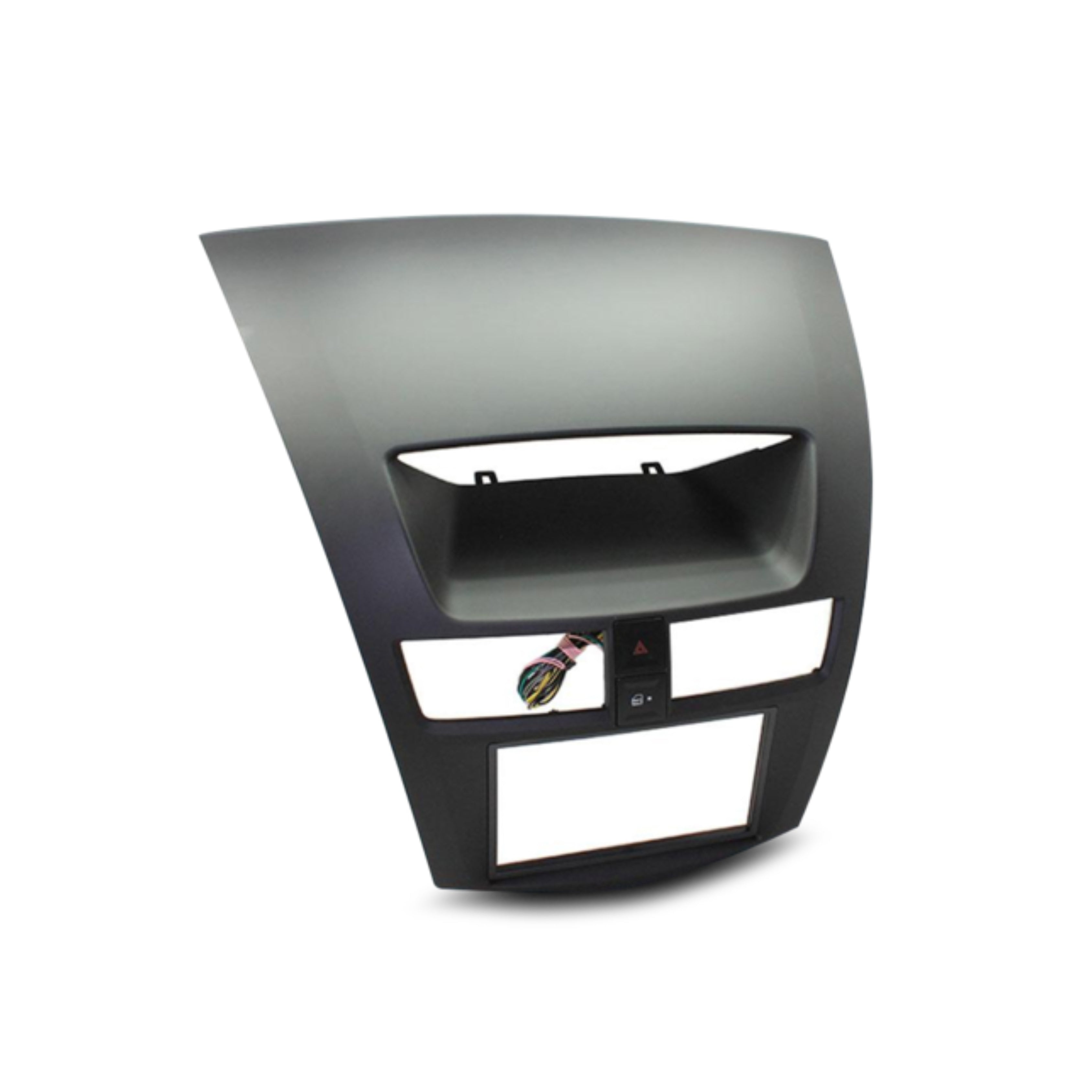

- 2DIN radio fascia panel (black)

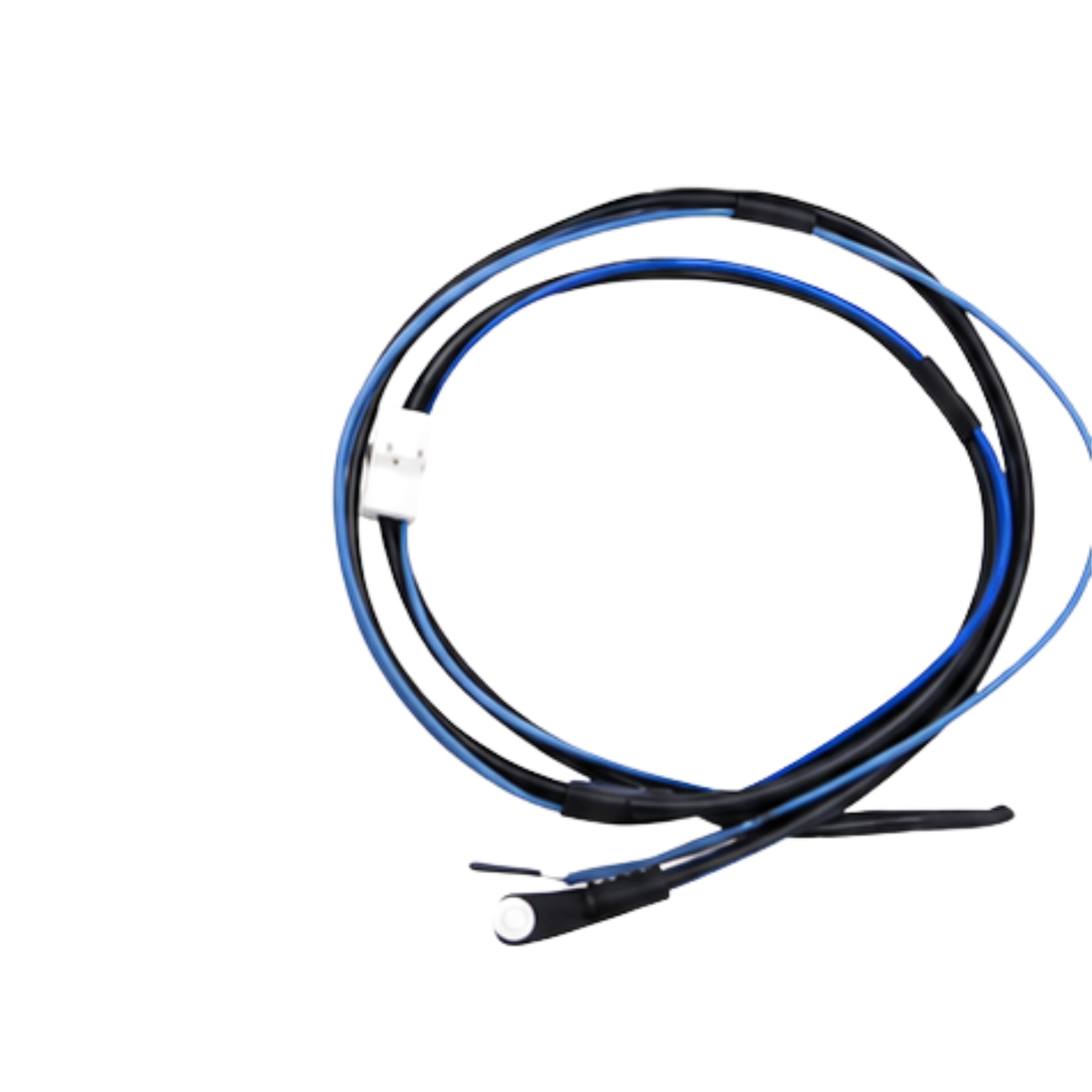

- Steering wheel audio control interface with patch lead

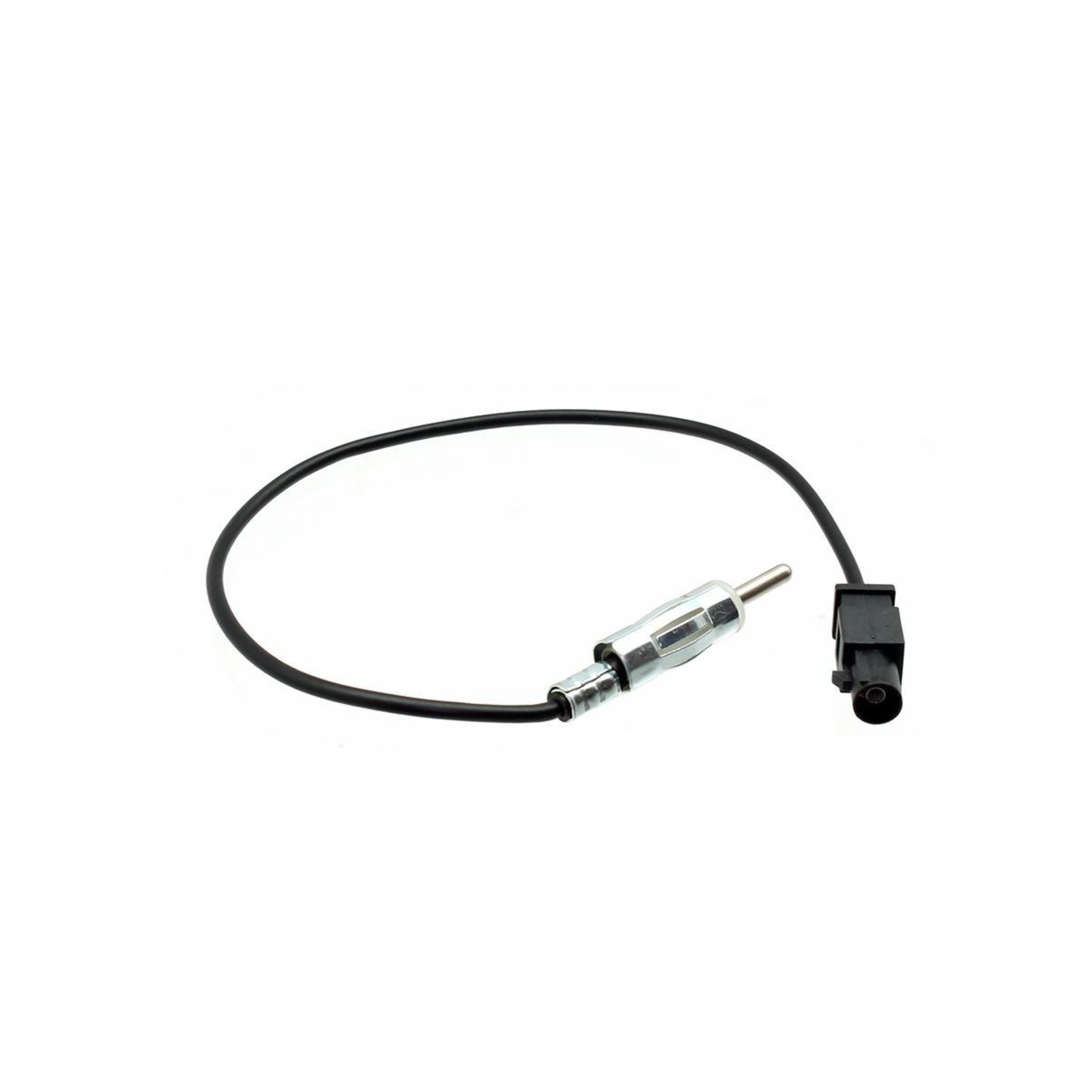

- Antenna adaptor
- Mounting brackets
- Hazard and door lock replacement button
Technical specs
| Specification |
Detail |
| SKU |
HRMA006 |
| Brand |
Stinger |
| Colour |
Black |
| Plug and Play |
Yes, factory connector to standard ISO |
| Steering Wheel Control Retention |
Yes, included |
| Dual-Function SWC Mapping |
Yes, short press and long press per button |
| SWC Programming Options |
PC (Autoleads app), dip switch, manual |
| CAN Bus Accessory Output |
Yes |
| Memory Retention |
Yes, retained after power loss |
| Field Updatable |
Yes, via Autoleads PC application |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes |
| Hazard and Door Lock Button |
Yes, included |
| Vehicle Note |
Suits factory 7" navigation models only. Blanking panel for top display required (not included). |
Compatible with
| Make |
Model |
Variant |
Years |
| Mazda |
BT-50 |
UR, factory 7" navigation models only |
2015-2019 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included SWC interface |
| Hazard and Door Lock Controls |
Yes, via included replacement button |
Frequently asked questions
Will the HRMA006 fit all Mazda BT-50 UR models?
No. The HRMA006 is designed specifically for Mazda BT-50 UR models (2015-2019) fitted with the factory 7-inch navigation system. It is not suitable for non-navigation variants. For non-navigation BT-50 models, see the BN25K8450 fascia kit. Confirm your factory head unit before purchasing.
What is the blanking panel and do I need one?
The Mazda BT-50 UR with factory 7-inch navigation has a top display area above the head unit opening. When the 2DIN fascia panel is installed, this area will be left exposed and will require a custom fabricated blanking panel to fill the gap. This blanking panel is not included in the HRMA006 kit and must be sourced or fabricated separately before the installation can be considered complete.
Can I assign multiple functions to a single steering wheel button?
Yes. The HRMA006 supports dual-function mapping, allowing two separate radio functions to be assigned to a single steering wheel button via short press and long press inputs, effectively doubling the number of assignable functions without additional buttons.
How do I configure or update the steering wheel control interface?
The SWC interface supports three configuration methods: PC via the Autoleads application, dip switch settings, or manual programming on the module. A manual learning function is also available for compatibility with unlisted analogue SWC vehicles. Firmware updates are applied through the Autoleads PC application.
Is a reverse camera retention module included with the HRMA006?
No. A reverse camera retention module is not included. If reverse camera retention is required for your installation, an additional module will need to be sourced separately. Contact us for guidance on compatible reverse camera retention solutions for the Mazda BT-50 UR.
