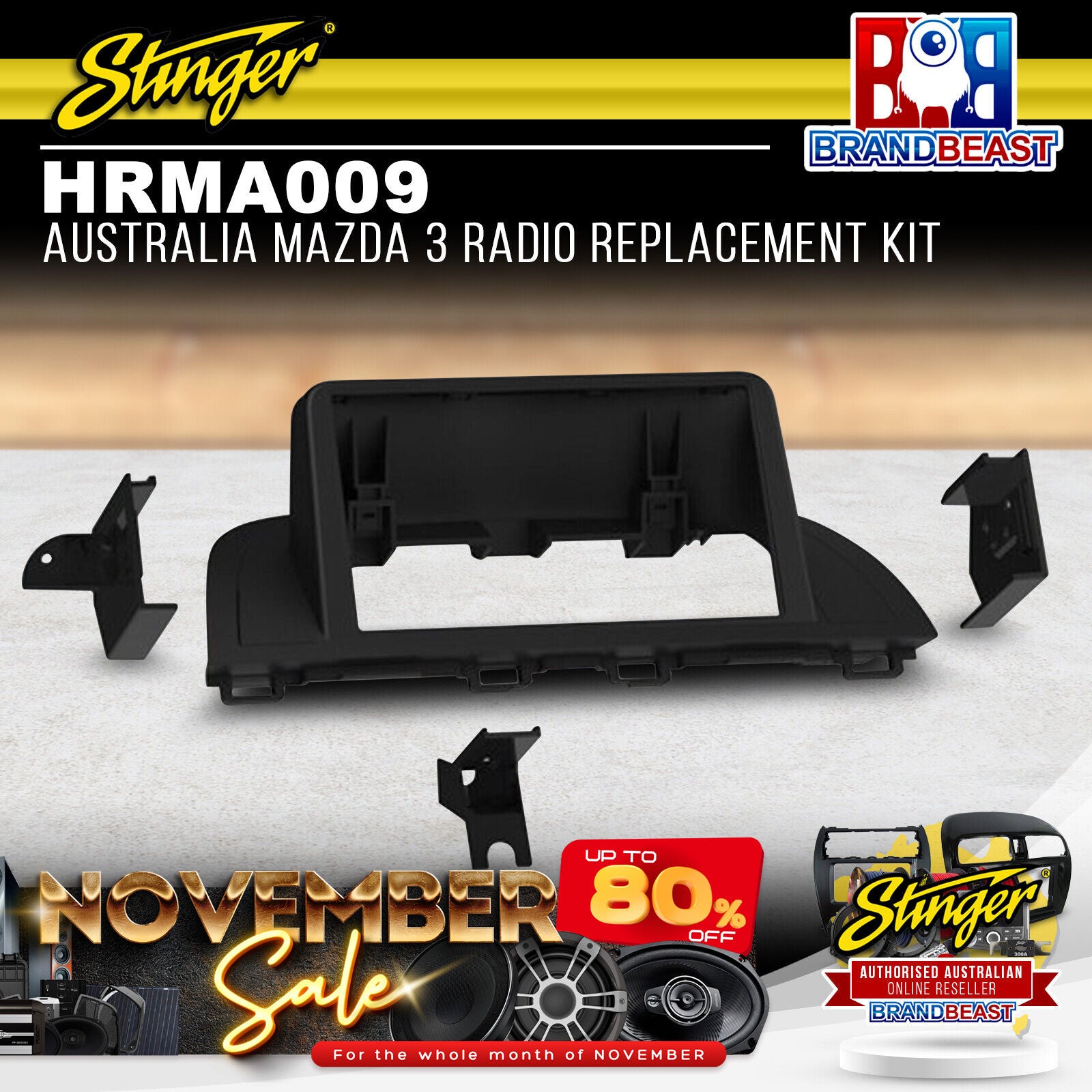

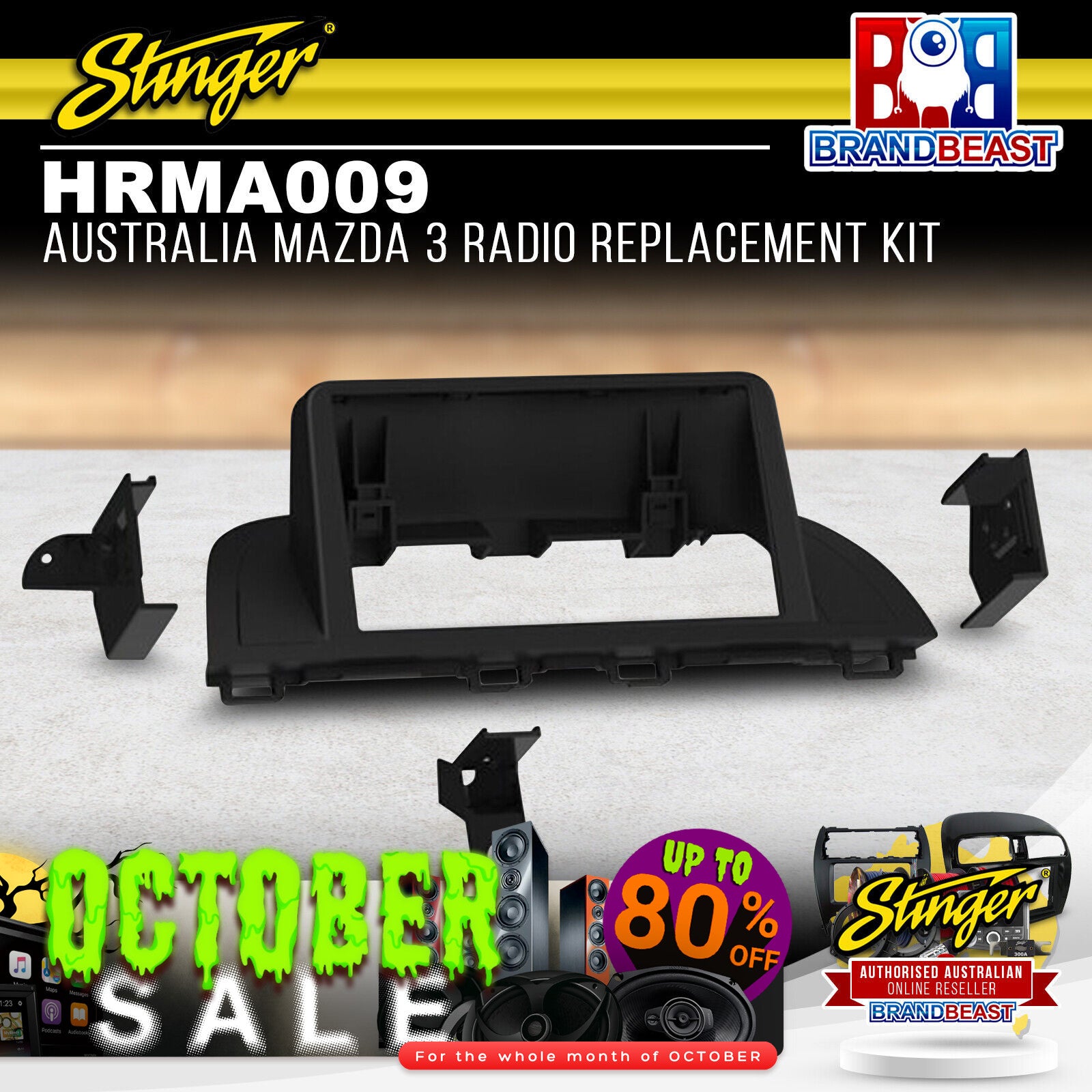

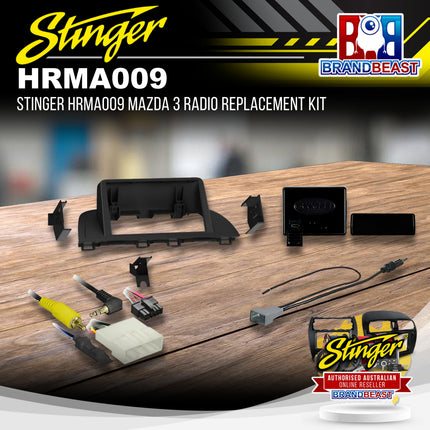

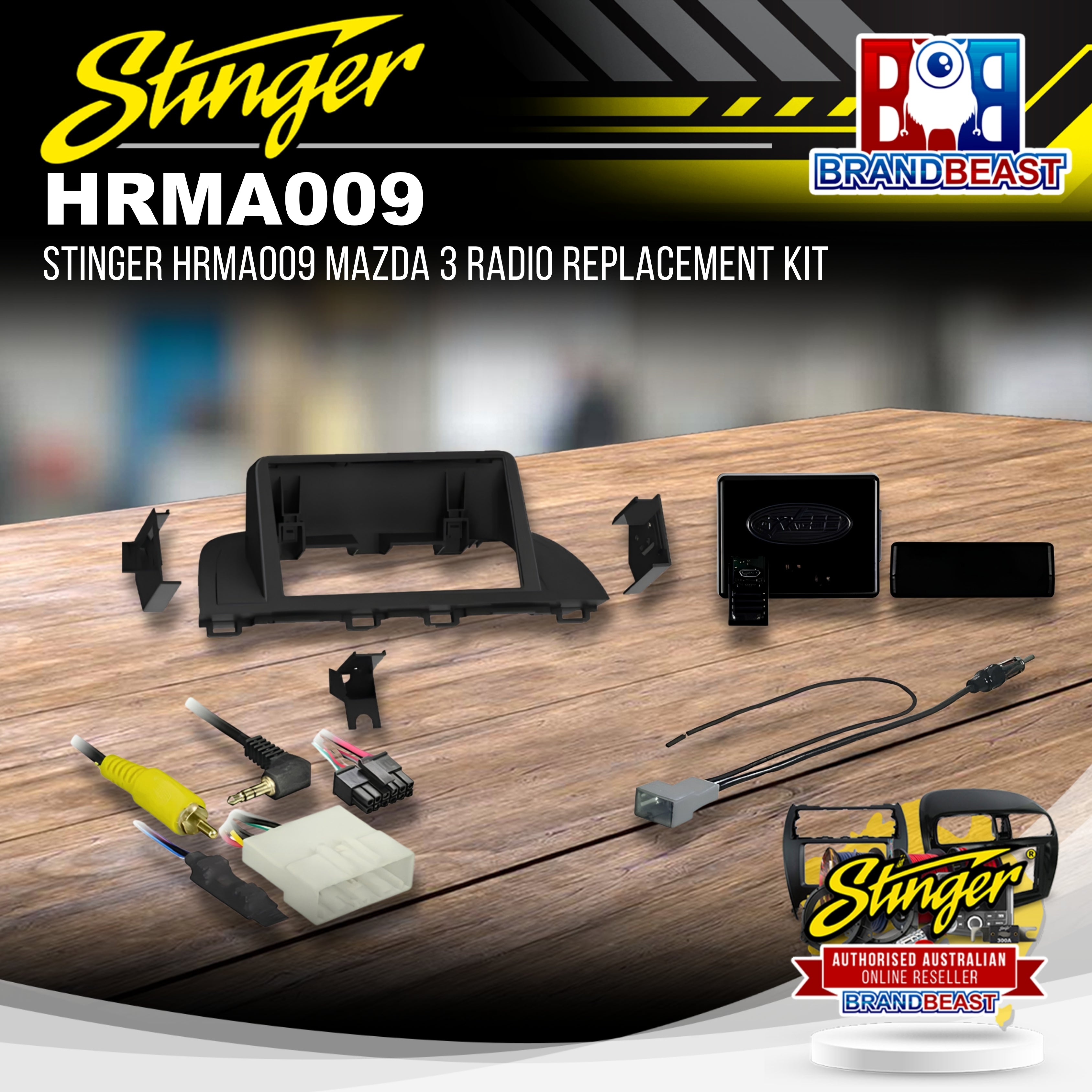

Stinger HRMA009 L-Shape 2DIN Radio Replacement Kit for Mazda 3 BM 2013-2016
The HRMA009 is a vehicle-specific radio replacement kit from Stinger for the Mazda 3 BM (2013-2016) fitted with the factory 7-inch colour display. It accommodates an L-shaped 2DIN head unit with the 1DIN body at the bottom of the aperture, and includes the AXSWC SWC interface, reverse camera retention harness, STBAA28 antenna adaptor, and mounting brackets. Factory amplifier is not retained. Parking sensor audio and reverse chimes are lost after installation. Colour display models only.
Product overview
The Stinger HRMA009 is designed for higher specification Mazda 3 BM (2013-2016) variants fitted with the factory 7-inch colour display infotainment system. It is not compatible with Mazda 3 BM models fitted with a monochrome or single-colour factory display. The kit accommodates an L-shaped double DIN head unit where the 1DIN body sits at the bottom of the dash aperture, which is the correct format for the Mazda 3 BM dash recess.
The kit connects via a plug and play factory OEM connector to bare wire output. The vehicle-side connector plugs directly into the factory wiring loom without cutting, while the head unit side terminates in bare wires for connection to the chosen aftermarket head unit's ISO harness. The head unit ISO harness is not included and must be sourced separately.
The AXSWC interface retains factory steering wheel audio control buttons with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and Stinger head units. Compatibility with other head unit brands is not guaranteed. The reverse camera activation interface is included so the factory reverse camera continues to function. The factory amplifier is not retained. Parking sensor audio alerts and reverse chimes will be lost after installation.
Features and benefits
L-shaped 2DIN fitment for Mazda 3 BM: Accommodates an L-shaped double DIN head unit with the 1DIN body positioned at the bottom of the aperture, which is the correct format for the Mazda 3 BM dash recess on 7-inch colour display models.
Factory reverse camera retention included: The reverse camera activation interface is included in the kit, so the factory reverse camera continues to function with the new aftermarket head unit without an additional retention module.
AXSWC steering wheel control retention: The included AXSWC interface retains factory steering wheel audio button inputs. Confirmed compatible with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and Stinger head units. Compatibility with other brands is not guaranteed.
STBAA28 antenna adaptor included: The correct Mazda antenna adaptor is included in the kit, covering the antenna connection requirement without a separate purchase.
Mounting brackets included: All hardware needed to secure the new head unit in the Mazda 3 BM dash aperture is supplied.
Plug and play factory OEM connector: The vehicle-side harness connects directly to the factory wiring loom using the OEM connector without cutting factory wiring. The head unit side terminates in bare wires for connection to the chosen head unit's ISO harness.
Complete interface bundle: The kit includes the MT95-7526B replacement radio panel, STBAA28 antenna adaptor, AXSWC SWC interface, AXBUCS-MZ286V interface harness, and 70-7903L radio extension harness, covering all vehicle-side installation components.

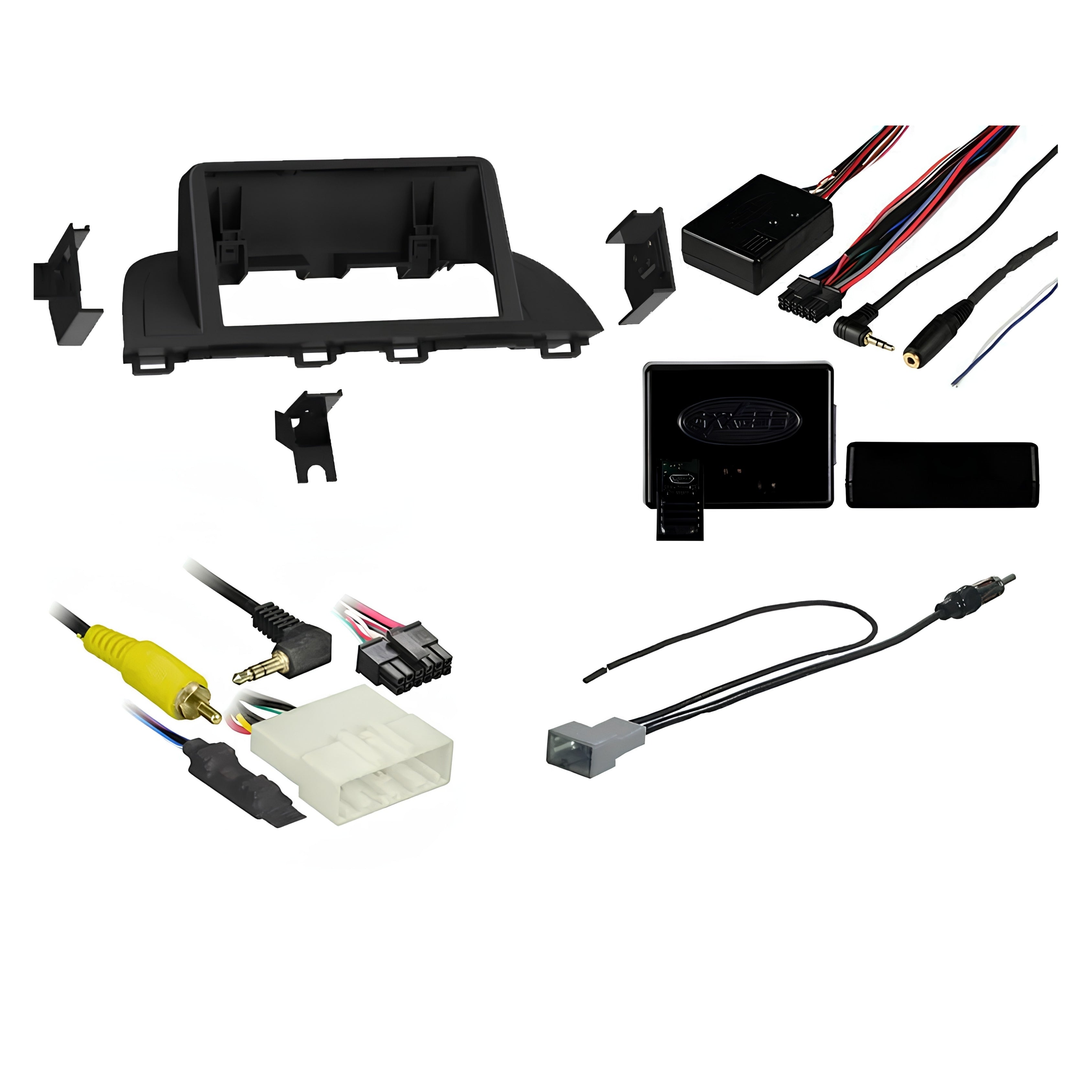

What's in the box

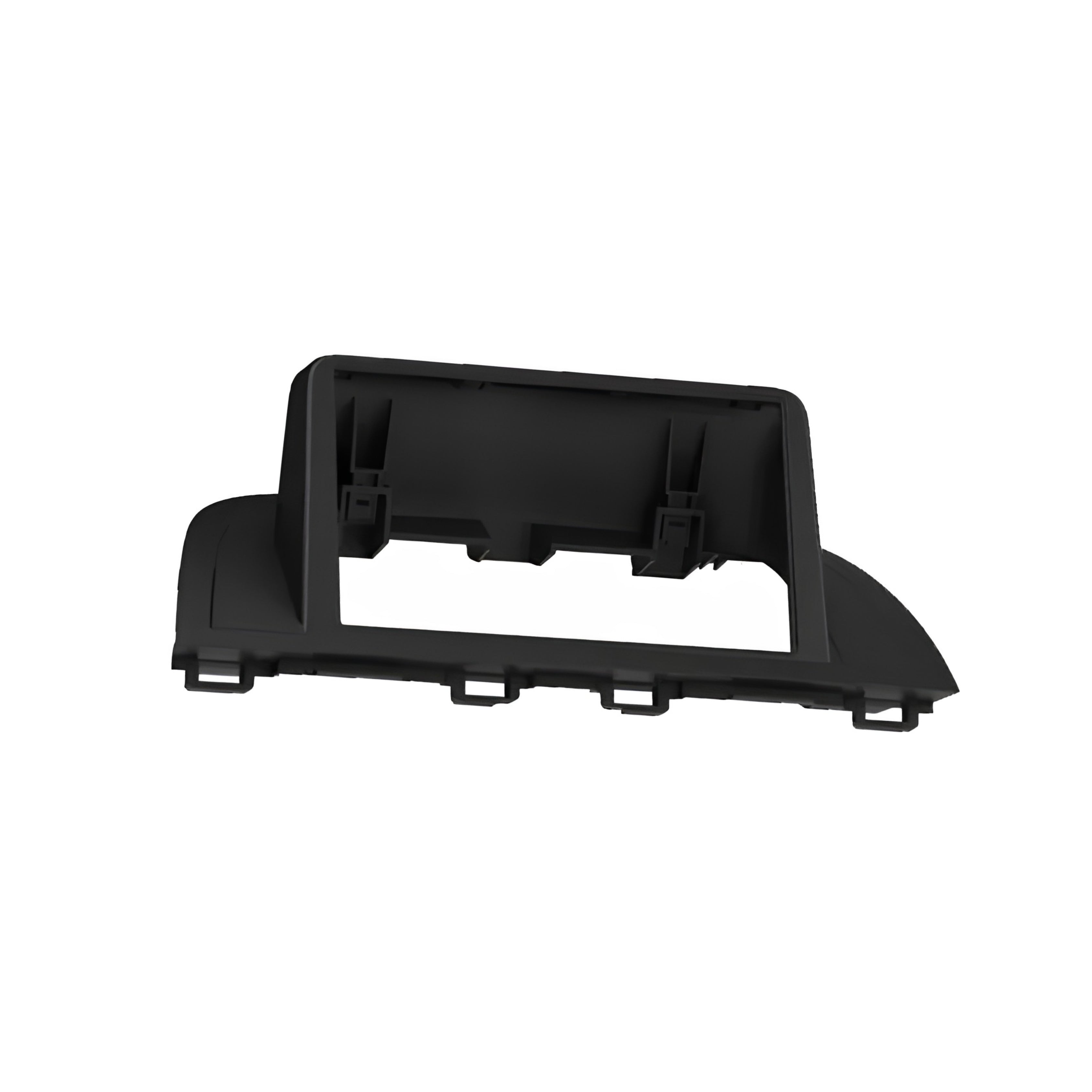

- MT95-7526B replacement radio panel (black)
- STBAA28 Mazda antenna adaptor

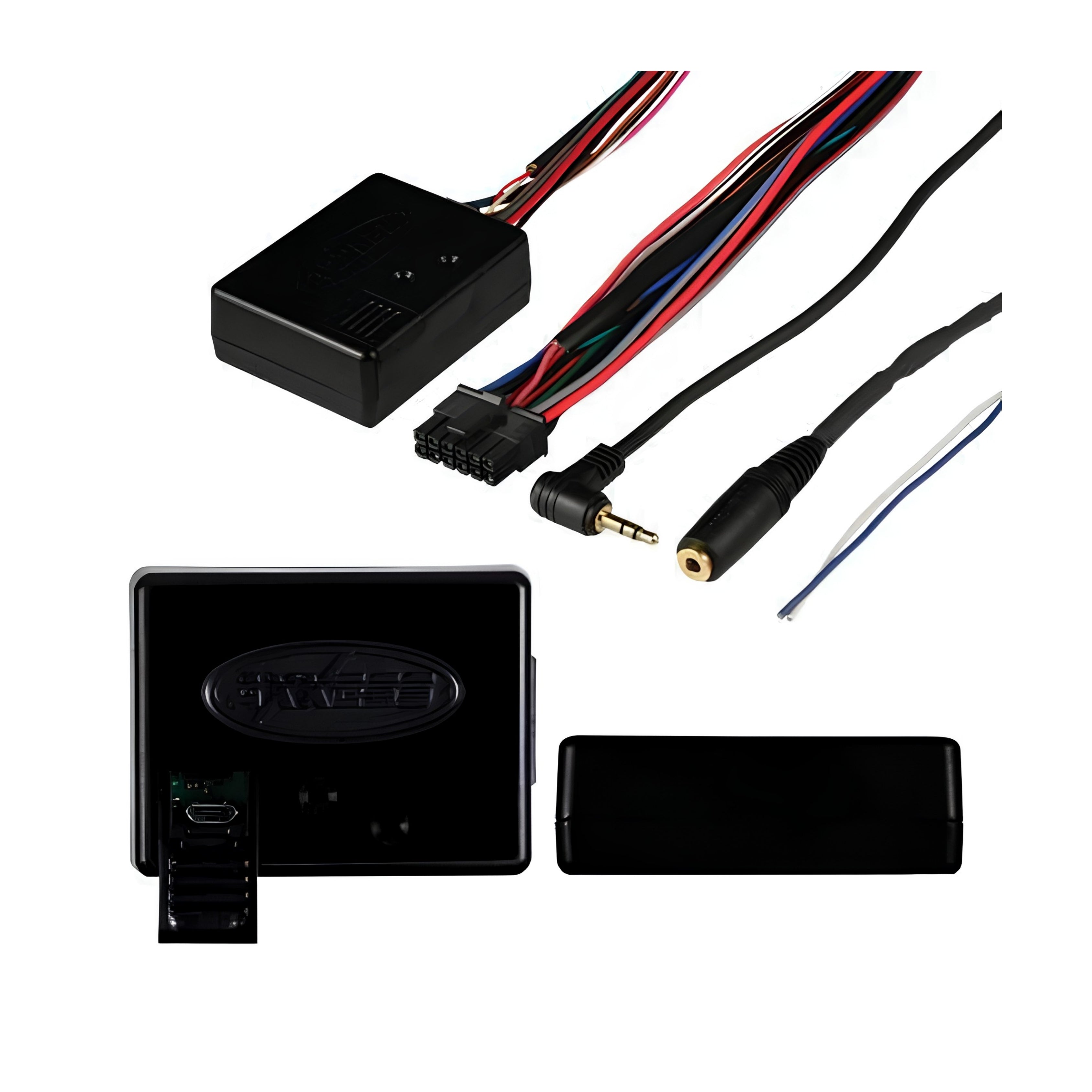

- AXSWC steering wheel control interface

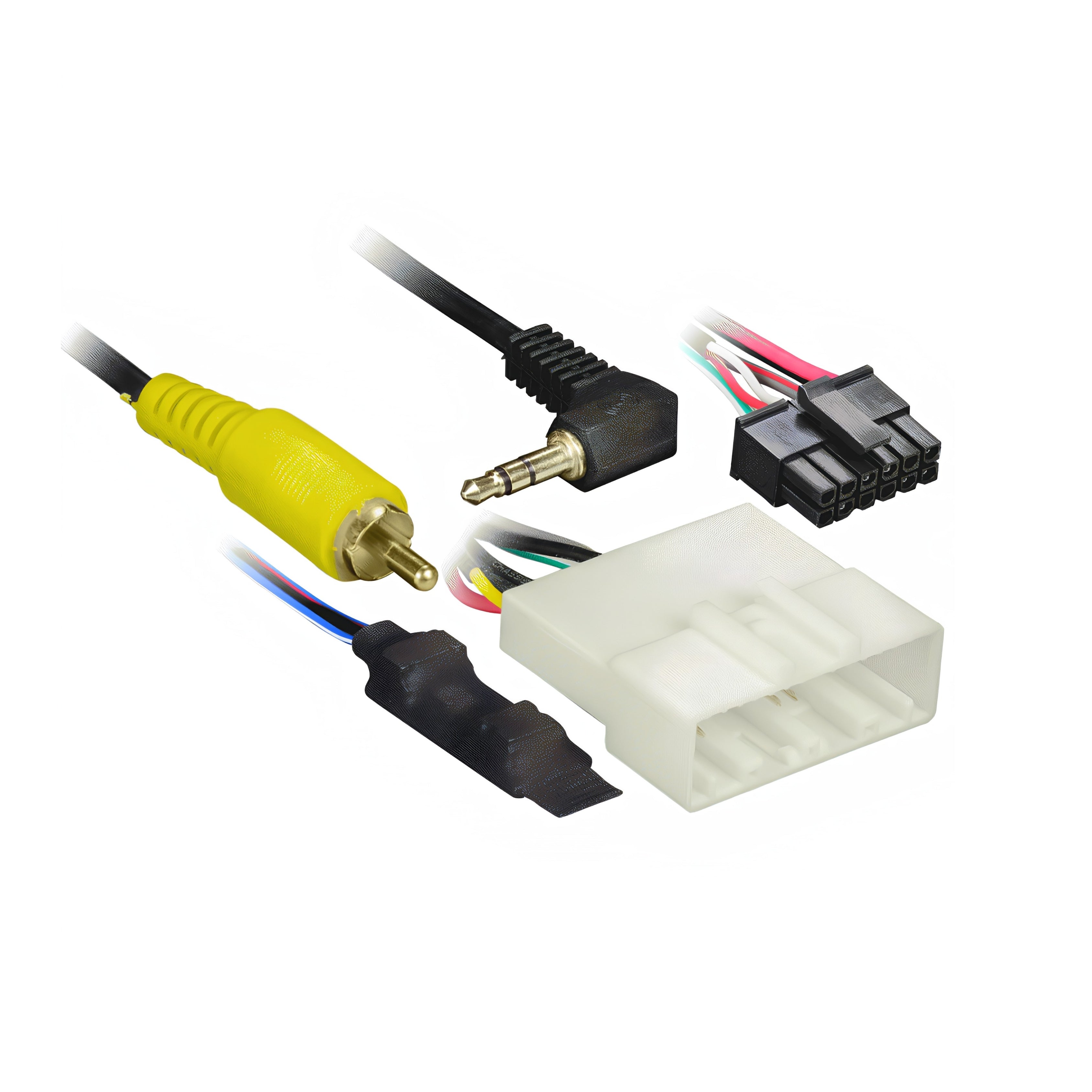

- AXBUCS-MZ286V interface harness
- 70-7903L radio extension harness
- Mounting brackets
Technical specs
| Specification |
Detail |
| SKU |
HRMA009 |
| Brand |
Stinger |
| Colour |
Black |
| Kit Type |
2DIN L-shaped radio replacement kit |
| Plug and Play |
Yes, factory OEM connector to bare wires |
| SWC Interface |
AXSWC |
| Steering Wheel Control Retention |
Yes, Alpine, Clarion, JVC, Kenwood, Pioneer, Sony and Stinger only |
| Reverse Camera Retention |
Yes, interface included |
| Factory Amplifier Retention |
No, not retained |
| Parking Sensor Audio |
Lost after installation |
| Reverse Chimes |
Lost after installation |
| Antenna Adaptor Included |
Yes, STBAA28 |
| Mounting Brackets Included |
Yes |
| Compatible Display Type |
7-inch colour display models only |
| Head Unit ISO Harness |
No, source separately |
Compatible with
| Make |
Model |
Variant |
Years |
| Mazda |
3 |
BM, 7-inch colour display models only |
2013-2016 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, Alpine/Clarion/JVC/Kenwood/Pioneer/Sony/Stinger only |
| Reverse Camera |
Yes, via included retention interface |
| Factory Amplifier |
No, not retained |
| Parking Sensor Audio |
No, lost after installation |
| Reverse Chimes |
No, lost after installation |
Frequently asked questions
How do I confirm whether my Mazda 3 BM has a 7-inch colour display or a monochrome display?
The 7-inch colour display models feature a full-colour touchscreen infotainment system as part of the factory head unit. Monochrome or single-colour display models typically have a smaller, simpler screen with limited colour output. If you are unsure, contact us before ordering and we can help confirm your factory head unit type from your vehicle's build specifications.
Will my steering wheel audio buttons work with any aftermarket head unit?
No. The AXSWC interface included in the HRMA009 is confirmed compatible with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and Stinger head units only. Compatibility with other brands is not guaranteed. Contact us before ordering if your chosen head unit is not on this list.
What does plug and play factory connector to bare wires mean?
The vehicle-side connector is an OEM plug that connects directly to the factory wiring loom without cutting. The head unit side of the harness terminates in bare wires, which connect to your chosen aftermarket head unit's ISO wiring harness. The head unit ISO harness is not included and must be sourced separately to match your chosen head unit.
What factory features will be lost after installing the HRMA009?
Parking sensor audio alerts and reverse chimes will be lost after installation. Any other vehicle features previously controlled through the factory head unit will also not be accessible. The factory reverse camera and steering wheel audio controls (confirmed major brands only) are retained via the included interfaces.
Is the factory amplifier retained with the HRMA009?
No. The factory amplifier is not retained with the HRMA009. Factor this into your head unit selection to ensure your chosen aftermarket head unit has sufficient output for your speaker configuration. Contact us for guidance on compatible head units and amplifier options for the Mazda 3 BM.
