Stinger HRNI001 Complete 2DIN Radio Replacement Kit for Nissan Qashqai J11 and X-Trail T32 2014-2017
The HRNI001 is a complete 2DIN radio replacement kit from Stinger for the Nissan Qashqai J11 and X-Trail T32 (2014-2017), covering both navigation and non-navigation factory models. It includes a 2DIN fascia panel, pre-programmed CAN-BUS SWC interface, factory amplifier retention, reverse camera activation interface, factory USB retention, antenna adaptor, and mounting brackets. The factory 360-degree camera cannot be retained. The instrument cluster clock cannot be adjusted after installation.
Product overview
The Stinger HRNI001 connects an aftermarket head unit to the factory wiring of the Nissan Qashqai J11 and X-Trail T32 via a plug and play factory connector to standard ISO output, without cutting factory wiring. The kit covers both navigation and non-navigation factory variants of both models in a single kit, with no additional adaptors or configuration required for either variant.
The pre-programmed CAN-BUS SWC interface retains the factory steering wheel audio controls and factory amplifier without manual programming. The factory reverse camera is retained via the included activation interface. Note that the factory 360-degree surround camera system cannot be retained with this kit. Only the standard single reverse camera is supported. The factory USB port is also retained via the included USB retention module.
Two known limitations apply to all compatible models after installation: the factory 360-degree camera system cannot be retained, and the instrument cluster clock display cannot be adjusted after an aftermarket head unit is installed. The clock will still display, but the time cannot be changed via the vehicle's standard controls.
Features and benefits
Plug and play factory connector to standard ISO output: Connects directly to the factory wiring loom via a standard ISO output without cutting, splicing, or making irreversible modifications to the factory wiring.
Pre-programmed CAN-BUS SWC retention: The included pre-programmed CAN-BUS adaptor retains factory steering wheel audio controls without manual programming or additional modules, and is ready to use immediately after installation in most cases.
Factory amplifier retention: The interface preserves the factory amplifier signal path, keeping factory speaker performance intact with the new aftermarket head unit.
Factory reverse camera retention included: The reverse camera activation interface is included, so the factory standard reverse camera continues to function with the new aftermarket head unit. The factory 360-degree camera system is not supported.
Factory USB retention included: The factory USB port is retained via the included USB retention module, allowing continued use of the OEM USB input alongside the new head unit.
Antenna adaptor included: The correct antenna adaptor for the Qashqai J11 and X-Trail T32 factory antenna connection is included in the kit, with no additional antenna adaptor purchase required.
Mounting brackets and hardware included: All hardware needed to secure the new head unit and fascia panel is supplied, with no additional bracket sourcing required.
Suits navigation and non-navigation models: Compatible with both factory navigation and non-navigation variants of the Nissan Qashqai J11 and X-Trail T32 without additional configuration.
Black finish: The black fascia panel suits the Qashqai J11 and X-Trail T32 interior trim for a factory-finished appearance after installation.

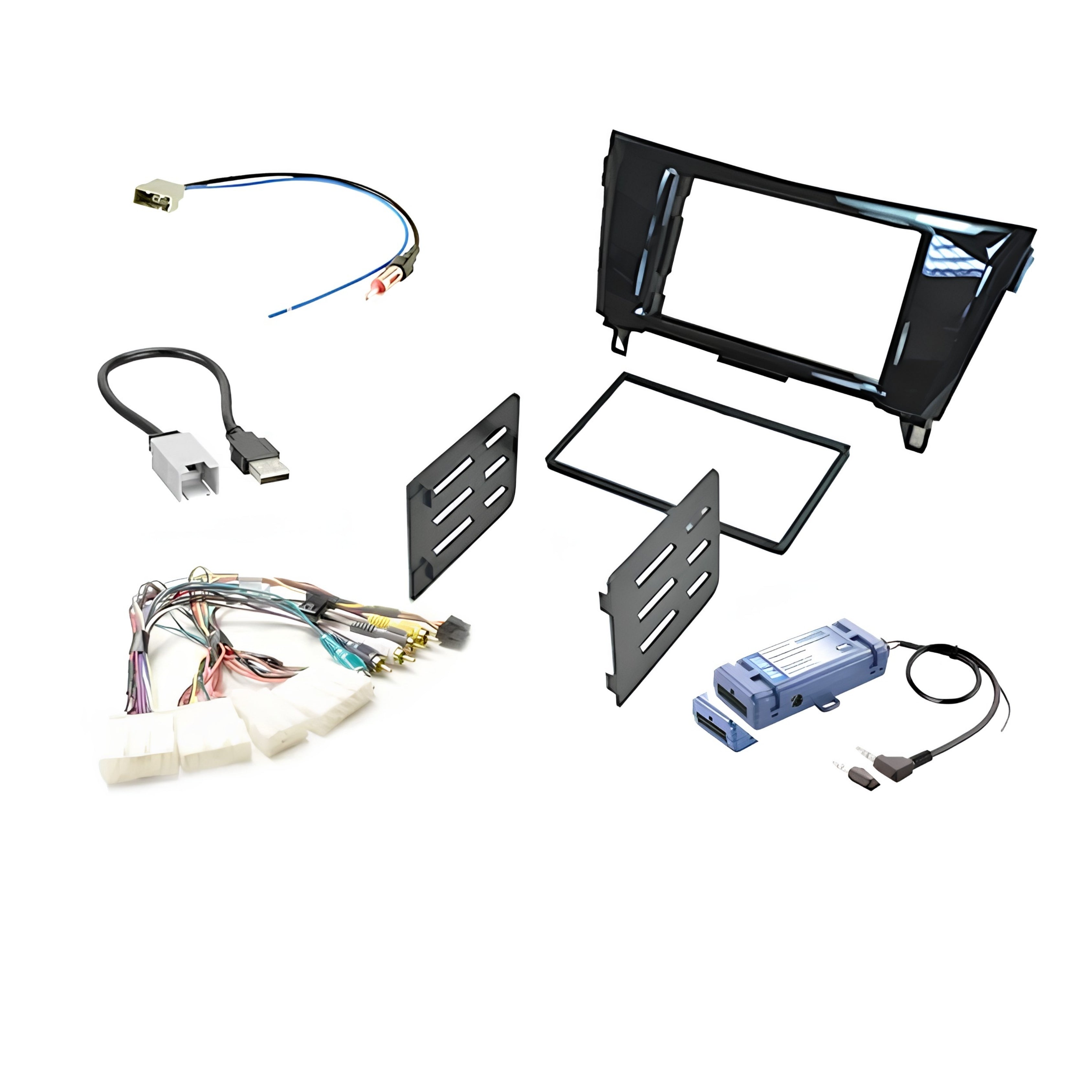

What's in the box

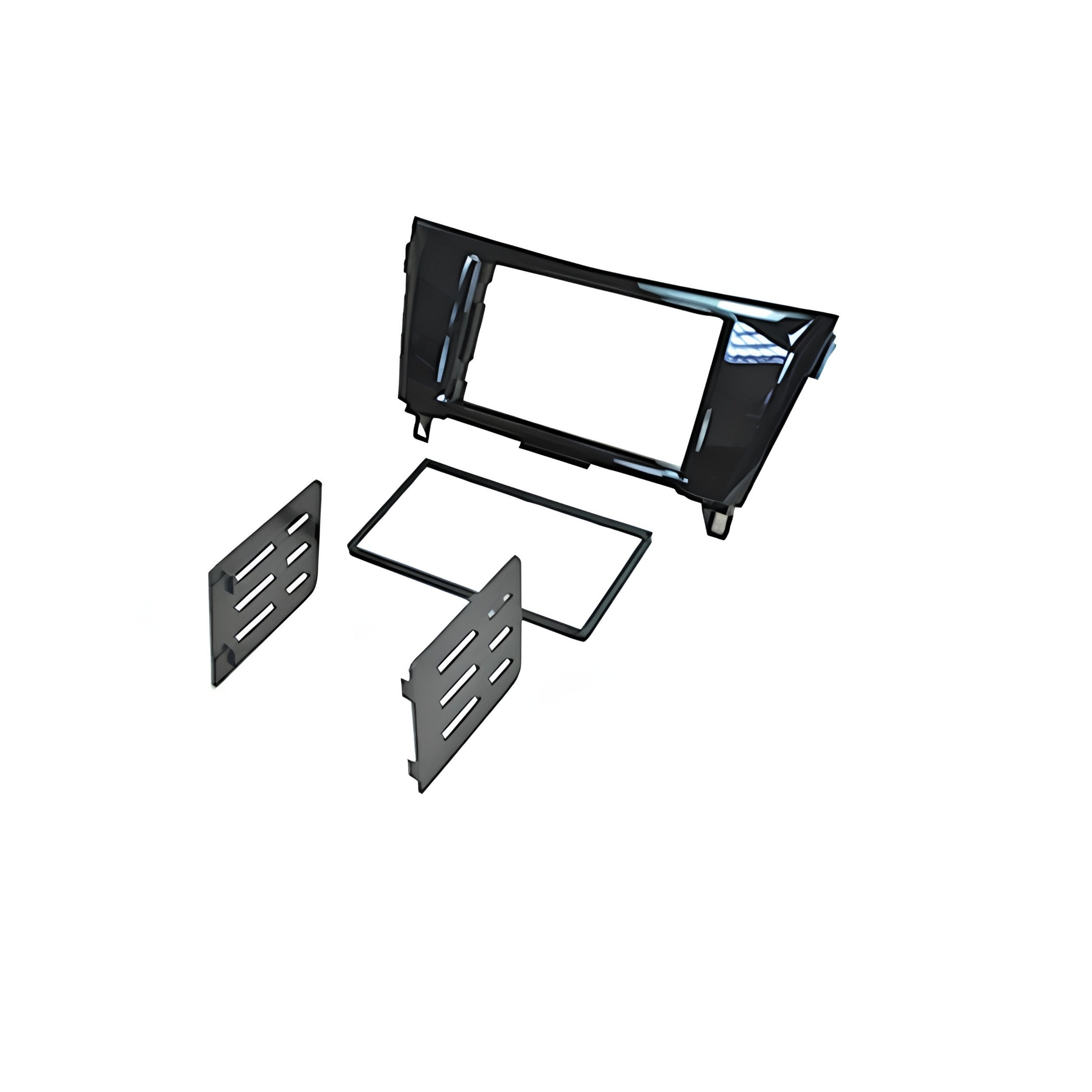

- 2DIN fascia panel (black)

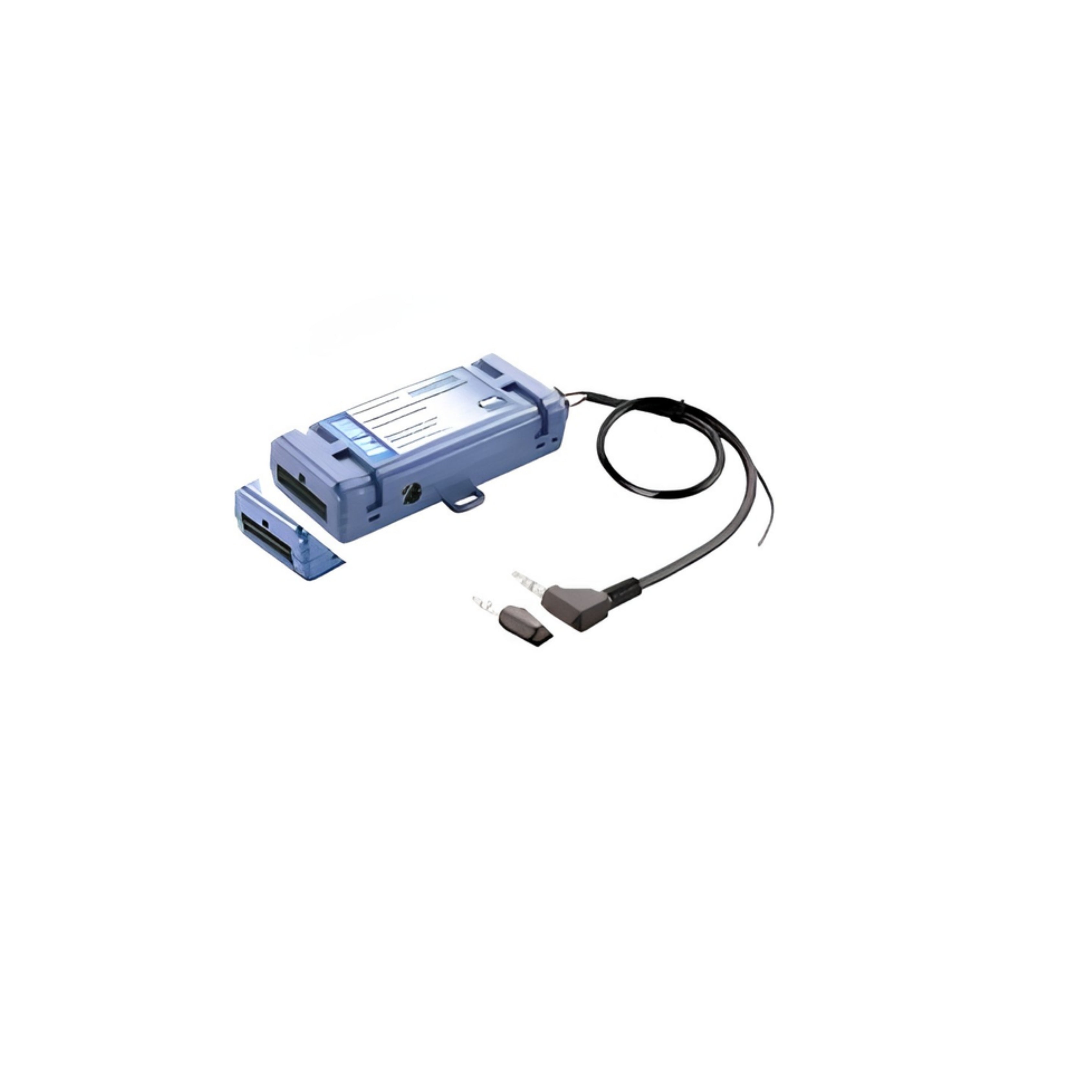

- Pre-programmed CAN-BUS SWC interface
- Factory amplifier retention module

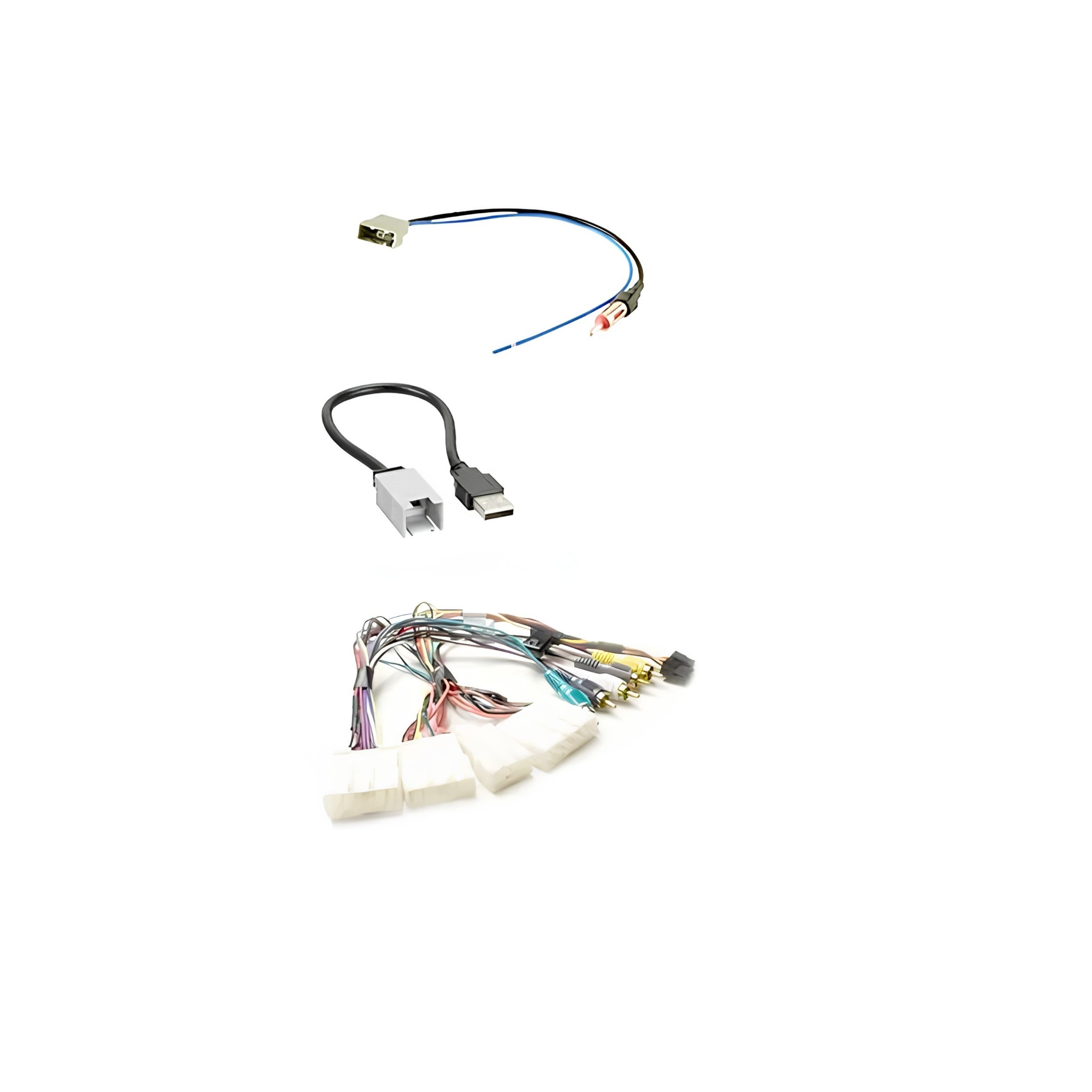

- Reverse camera activation interface
- Factory USB retention module
- Antenna adaptor
- Mounting brackets and hardware
Technical specs
| Specification |
Detail |
| SKU |
HRNI001 |
| Brand |
Stinger |
| Colour |
Black |
| Kit Type |
Complete 2DIN radio replacement kit |
| Plug and Play |
Yes, factory connector to standard ISO |
| Steering Wheel Control Retention |
Yes, pre-programmed CAN-BUS adaptor |
| Factory Amplifier Retention |
Yes |
| Reverse Camera Retention |
Yes, standard reverse camera only |
| 360-Degree Camera Retention |
No, not supported |
| USB Retention |
Yes, factory USB retained |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes, with hardware |
| Factory Config Compatibility |
Navigation and non-navigation models |
| Instrument Cluster Clock Adjustment |
Not available after installation |
Compatible with
| Make |
Model |
Variant |
Years |
| Nissan |
Qashqai |
J11, navigation and non-navigation |
2014-2017 |
| Nissan |
X-Trail |
T32, navigation and non-navigation |
2014-2017 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via pre-programmed CAN-BUS adaptor |
| Factory Amplifier |
Yes |
| Reverse Camera (standard) |
Yes, via included activation interface |
| 360-Degree Camera System |
No, not supported |
| Factory USB Port |
Yes, via included retention module |
| Instrument Cluster Clock Adjustment |
No, not available after installation |
Frequently asked questions
Does the HRNI001 work with both navigation and non-navigation Qashqai and X-Trail models?
Yes. The HRNI001 is compatible with both factory navigation and non-navigation variants of the Nissan Qashqai J11 and X-Trail T32 (2014-2017). No additional adaptors or configuration is required for either variant.
Will my factory 360-degree camera still work after installing the HRNI001?
No. The HRNI001 supports retention of the standard factory reverse camera only. If your Qashqai or X-Trail is fitted with the factory 360-degree surround camera system, that functionality cannot be retained with this kit. Confirm your factory camera configuration before ordering.
Do the steering wheel audio controls work straight out of the box?
Yes. The CAN-BUS adaptor included in the kit is pre-programmed for the Qashqai J11 and X-Trail T32, and steering wheel audio controls should function with your new aftermarket head unit without additional programming in most cases. Compatibility can vary between head unit brands. Contact us if you have a specific head unit in mind before purchasing.
What happens to the instrument cluster clock after installation?
The instrument cluster clock display will still show the time, but the time can no longer be adjusted via the vehicle's standard controls after an aftermarket head unit is installed using the HRNI001. This is a known limitation on these Nissan models and applies to all compatible Qashqai J11 and X-Trail T32 variants.
Is the factory amplifier retained with the HRNI001?
Yes. The HRNI001 preserves the factory amplifier signal path, keeping factory speaker performance intact with the new aftermarket head unit.
