Description
Stinger HRNI002 Plug & Play Radio Replacement Kit for Nissan Navara ST/STX/STL
Upgrade your Navara's head unit without losing steering wheel controls, factory amplifier, reverse camera, or USB all retained out of the box.
Product Overview
The Stinger HRNI002 is a vehicle-specific radio replacement kit built for the Nissan Navara D23 NP300 (2015–2019) in ST, STX, and STL trim levels. It connects your new aftermarket head unit directly to factory wiring via a plug-and-play ISO harness no cutting, no splicing required.
The HRNI002 goes beyond a basic dash kit by including a CAN-BUS steering wheel control adaptor (pre-programmed), factory amplifier retention, reverse camera activation interface, and factory USB retention covering all the key factory features in one complete package.
Please note: After installation of an aftermarket head unit, the clock cannot be adjusted via the instrument cluster. The factory 360-degree reverse camera (if fitted) cannot be retained with this kit a standard reverse camera feed only.
Features & Benefits
- Pre-programmed steering wheel control retention via CAN-BUS adaptor
- Retains factory amplifier
- Provides factory reverse camera activation — interface included
- Factory USB retention included
- Plug & play — factory connector to standard ISO connector
- Antenna adaptor included
- Uses factory mounting brackets — no additional brackets required
- Black finish
- Suitable for ST, STX, and STL trim levels only
Technical Specs
| Specification |
Detail |
| SKU / Part Number |
HRNI002 |
| Brand |
Stinger |
| Colour / Finish |
Black |
| Plug & Play |
Yes — Factory Connector to Standard ISO Connector |
| Steering Wheel Control Retention |
Yes (Pre-programmed, CAN-BUS) |
| Factory Amplifier Retention |
Yes |
| Reverse Camera Retention |
Yes — Interface included |
| 360-Degree Reverse Camera Retention |
No — Not compatible |
| USB Retention |
Yes — USB only |
| AUX Retention |
No |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
No — Uses factory brackets |
| Clock Adjustment via Cluster |
Not available after aftermarket head unit installation |
| What's in the Box |

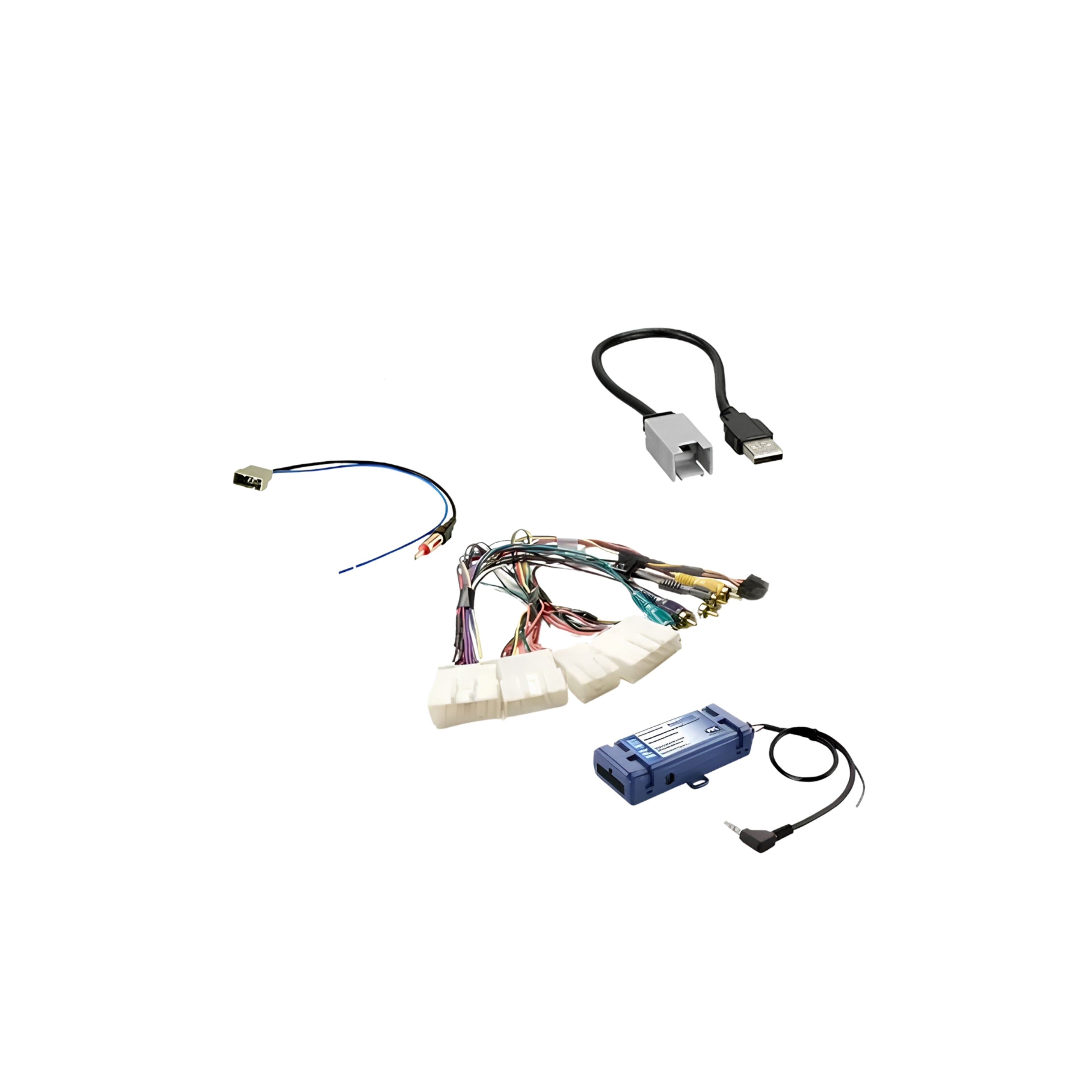

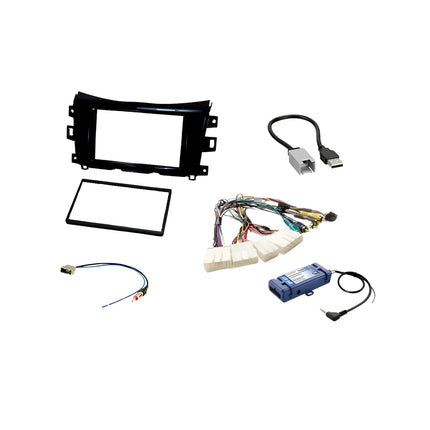

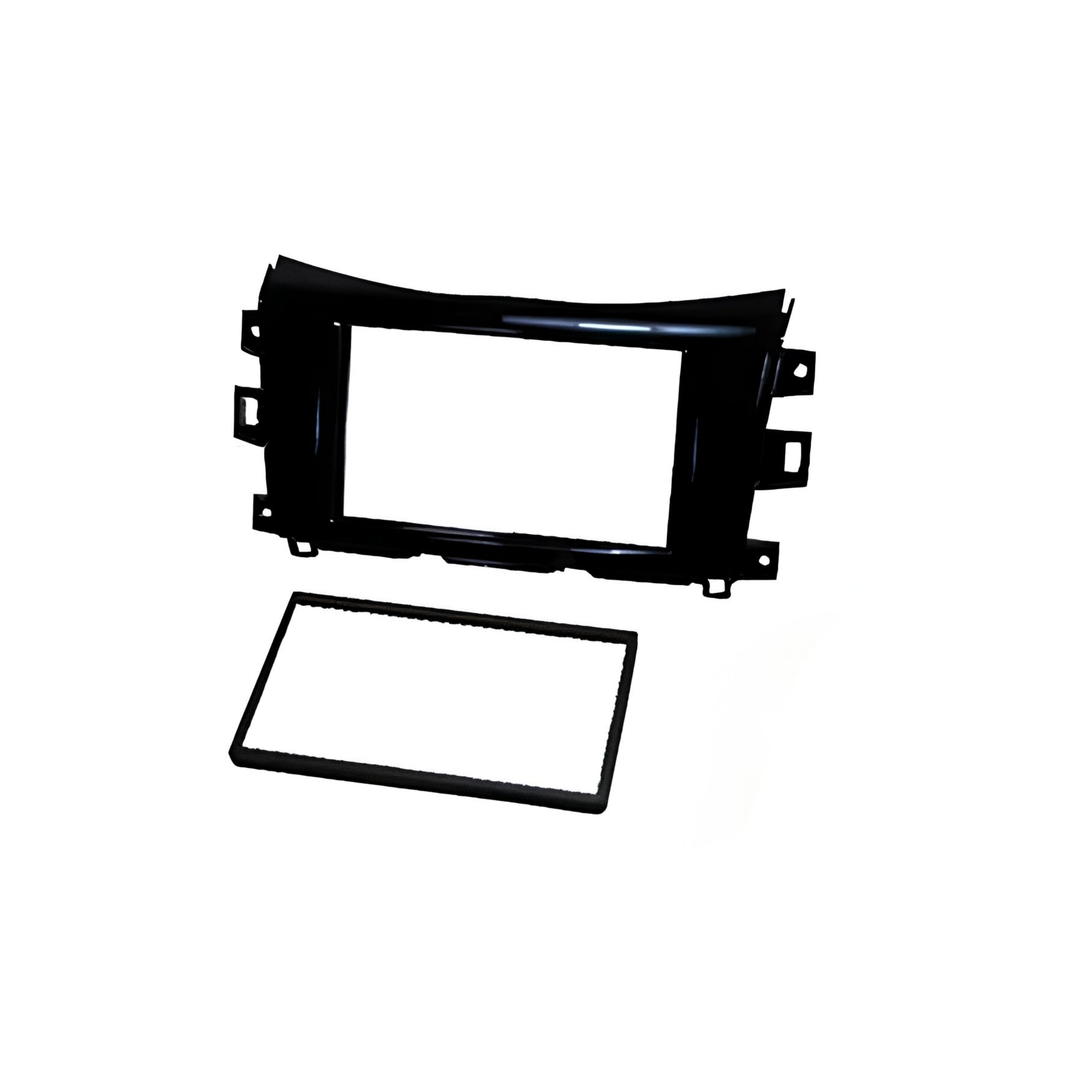

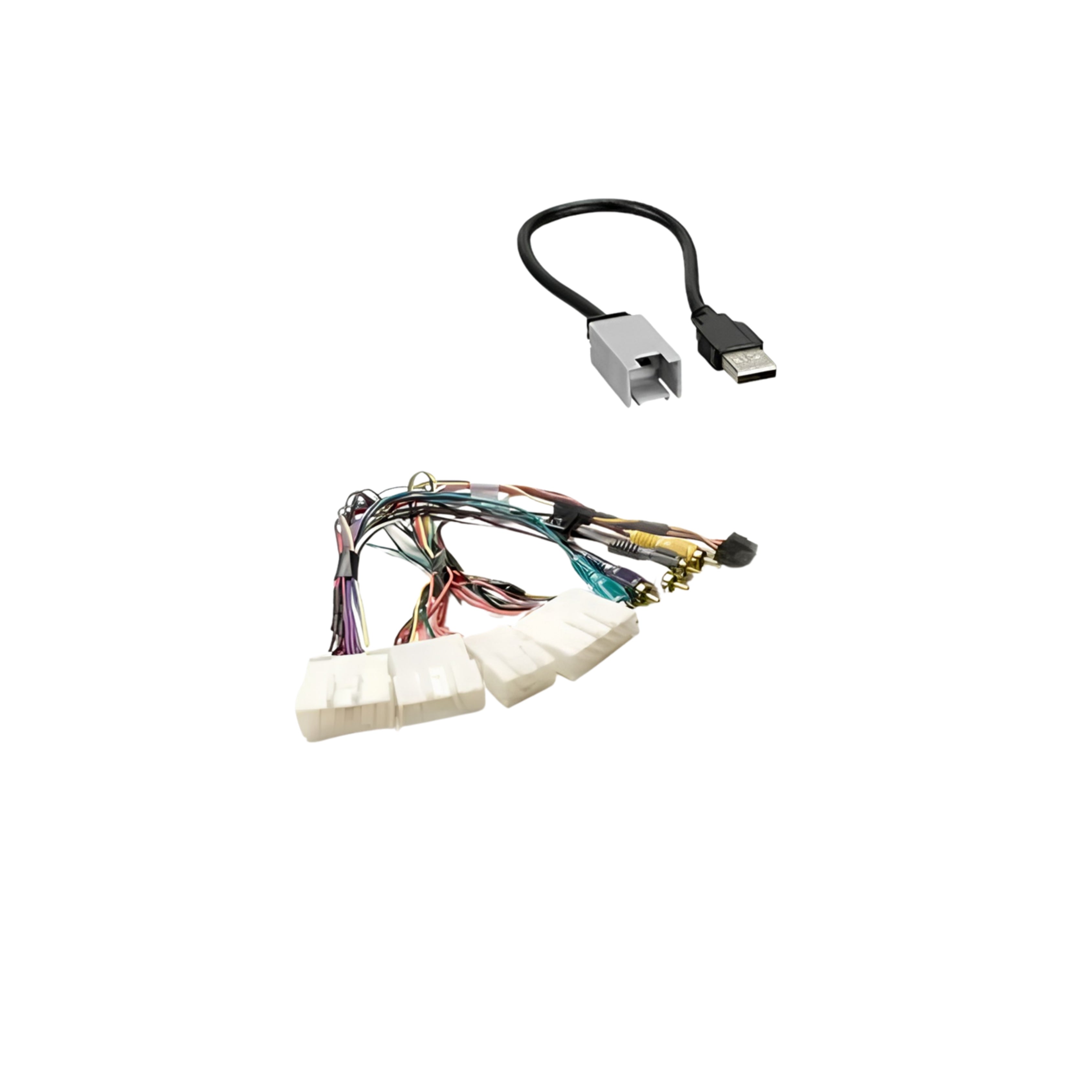

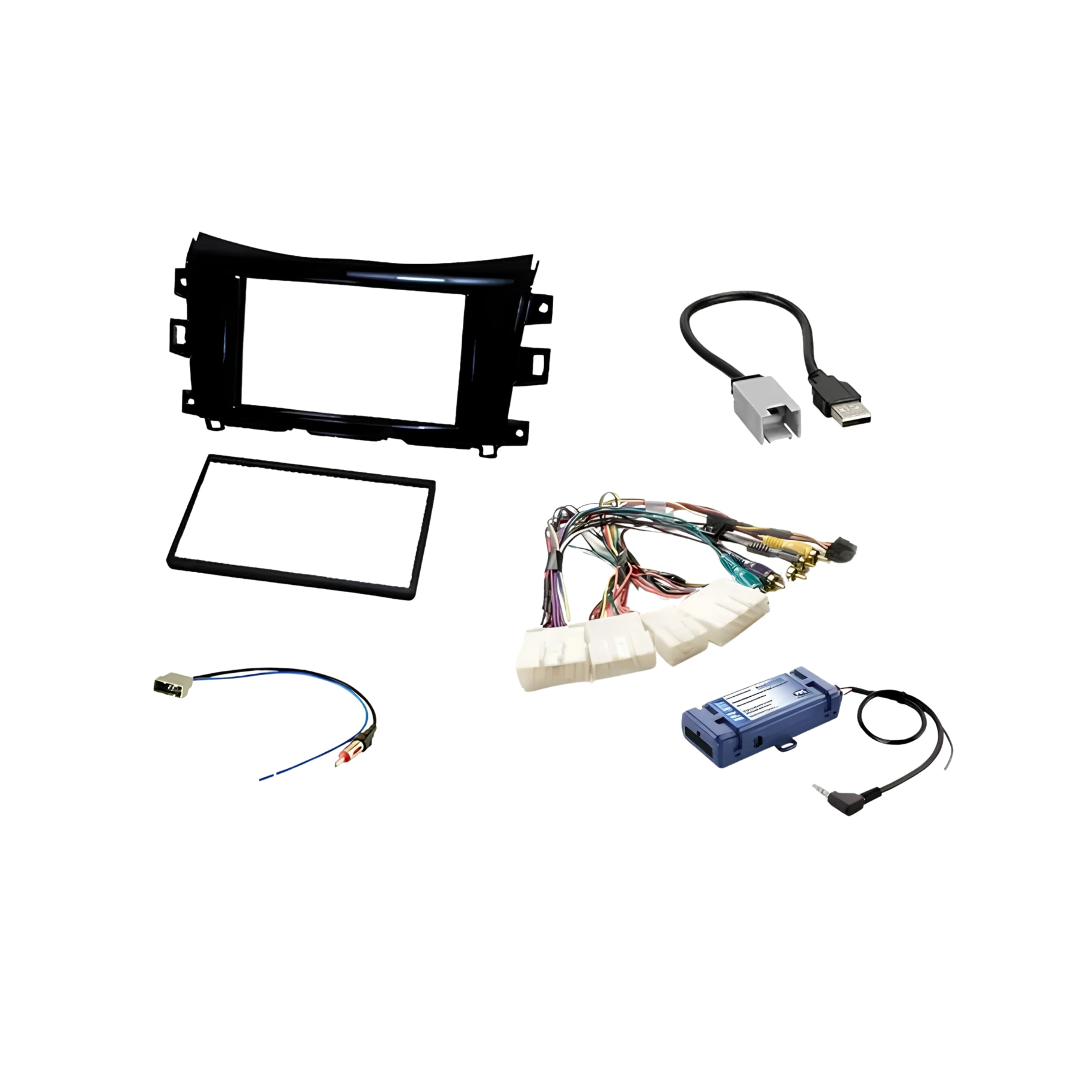

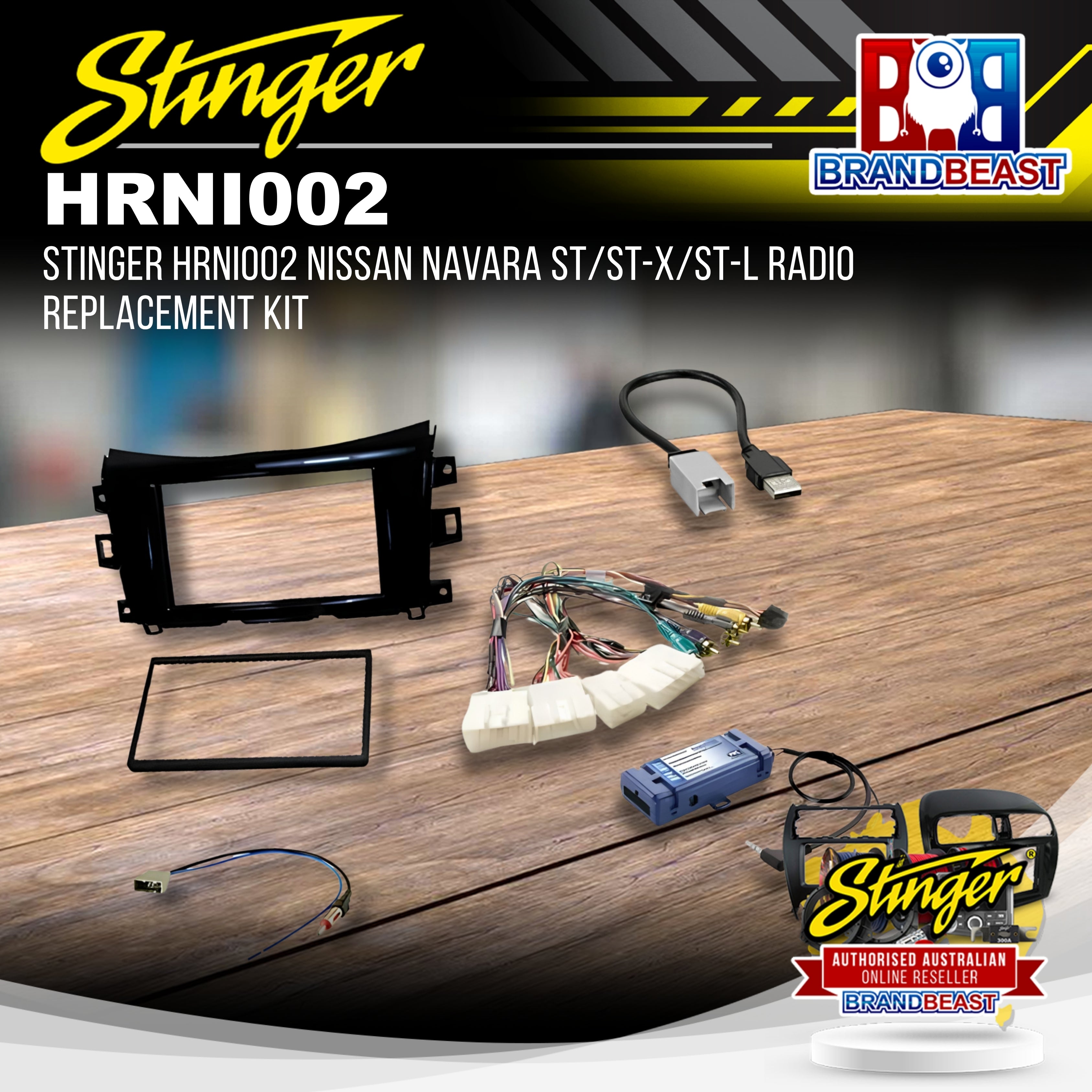

2DIN Radio Panel, Steering Wheel Audio Buttons & CAN-BUS Adaptor, Antenna Adaptor, Factory Reverse Camera Retention, Factory USB Retention |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Nissan Navara 2015–2019 (D23 / NP300) — ST, STX, STL models only
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
- Aftermarket reverse camera (if upgrading from factory camera)
Frequently Asked Questions
Is this kit compatible with all Nissan Navara NP300 variants?
No. The HRNI002 is designed specifically for the Nissan Navara D23 NP300 in ST, STX, and STL trim levels (2015–2019). It is not confirmed for other variants — check your trim level before purchasing.
Will my factory reverse camera still work after installation?
Yes, standard factory reverse camera activation is retained via the included interface. However, if your vehicle is fitted with a factory 360-degree reverse camera system, this cannot be retained with the HRNI002.
Does this kit retain the factory amplifier?
Yes. The HRNI002 includes factory amplifier retention, so your factory audio system output will continue to function correctly with your new aftermarket head unit.
Can I still adjust the clock in the instrument cluster after installation?
No. Once an aftermarket head unit is installed using the HRNI002, the clock can no longer be adjusted via the instrument cluster. This is a known limitation and applies to all compatible Navara models.
Is USB retention included, and what about AUX?
USB retention is included with the HRNI002 via the factory USB retention module in the box. AUX retention is not included — an additional product would be required if AUX connectivity is needed.
