Description
Stinger HRSZ002 Complete 2DIN Radio Replacement Kit for Suzuki Swift FZ 2011-2016
The HRSZ002 is a complete 2DIN radio replacement kit from Stinger for the Suzuki Swift FZ (2011-2016). It includes a 2DIN fascia panel, mounting brackets, and a fully configurable steering wheel control interface with dual press function, connecting via factory plug and play connector to standard ISO output without cutting factory wiring. An antenna adaptor is not included and must be sourced separately.
Product overview
The Stinger HRSZ002 provides everything needed for a clean aftermarket head unit installation in the Suzuki Swift FZ (2011-2016). The plug and play factory connector connects directly to the Swift FZ factory wiring loom and outputs a standard ISO connection without cutting, splicing, or making irreversible modifications to the factory wiring.
The included steering wheel control interface supports short press and long press assignment on a single button, allowing two separate radio functions per steering wheel control. Three configuration methods are supported: PC via the Autoleads application, DIP switch settings, or manual learning mode. Manual learning mode extends compatibility to vehicles with analogue SWC systems not pre-listed in the Autoleads database. Firmware is field-updatable via the Autoleads PC application, and the interface retains its programming even if vehicle power is disconnected. A tri-colour LED provides real-time module status feedback during setup and operation.
Mounting brackets are included for securing the aftermarket head unit. An antenna adaptor is not included and must be sourced separately before installation.
Features and benefits
Plug and play factory connector to standard ISO output: Connects directly to the Suzuki Swift FZ factory wiring loom and outputs a standard ISO connection without cutting, splicing, or making irreversible modifications to the factory wiring.
Advanced SWC interface with dual press function: Supports short press and long press assignment on a single steering wheel button, allowing two separate radio functions per button and doubling the number of controllable functions compared to a standard single-function SWC adaptor.
Three SWC configuration methods: The interface can be configured via the Autoleads PC application for full control and firmware updates, via DIP switch settings for quick configuration, or via manual learning mode for compatibility with analogue SWC systems not pre-listed in the Autoleads database.
Field-updatable firmware: The module can be updated via the Autoleads PC application, keeping the interface compatible with new head unit releases without requiring module replacement.
Memory retention after power loss: The interface retains its programmed configuration even if the vehicle battery is disconnected, removing the need to reprogram after a battery swap or disconnection.
Tri-colour LED status indicator: A tri-colour LED provides real-time module status feedback during installation setup and normal operation.
Mounting brackets included: All hardware needed to secure the aftermarket head unit in the Swift FZ dash opening is supplied, with no additional bracket sourcing required.
Black finish: The black fascia panel suits the Suzuki Swift FZ interior trim for a factory-finished appearance after installation.

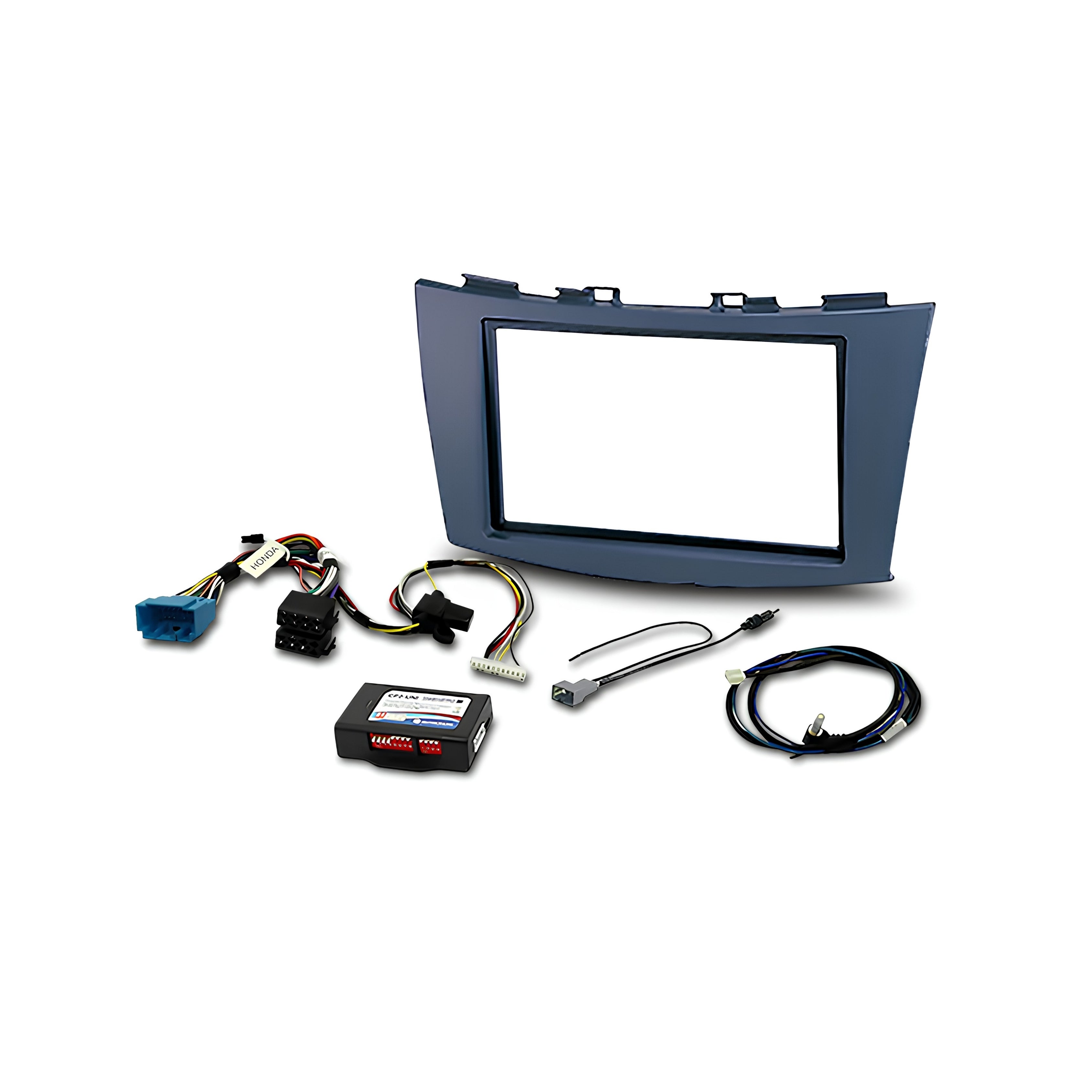

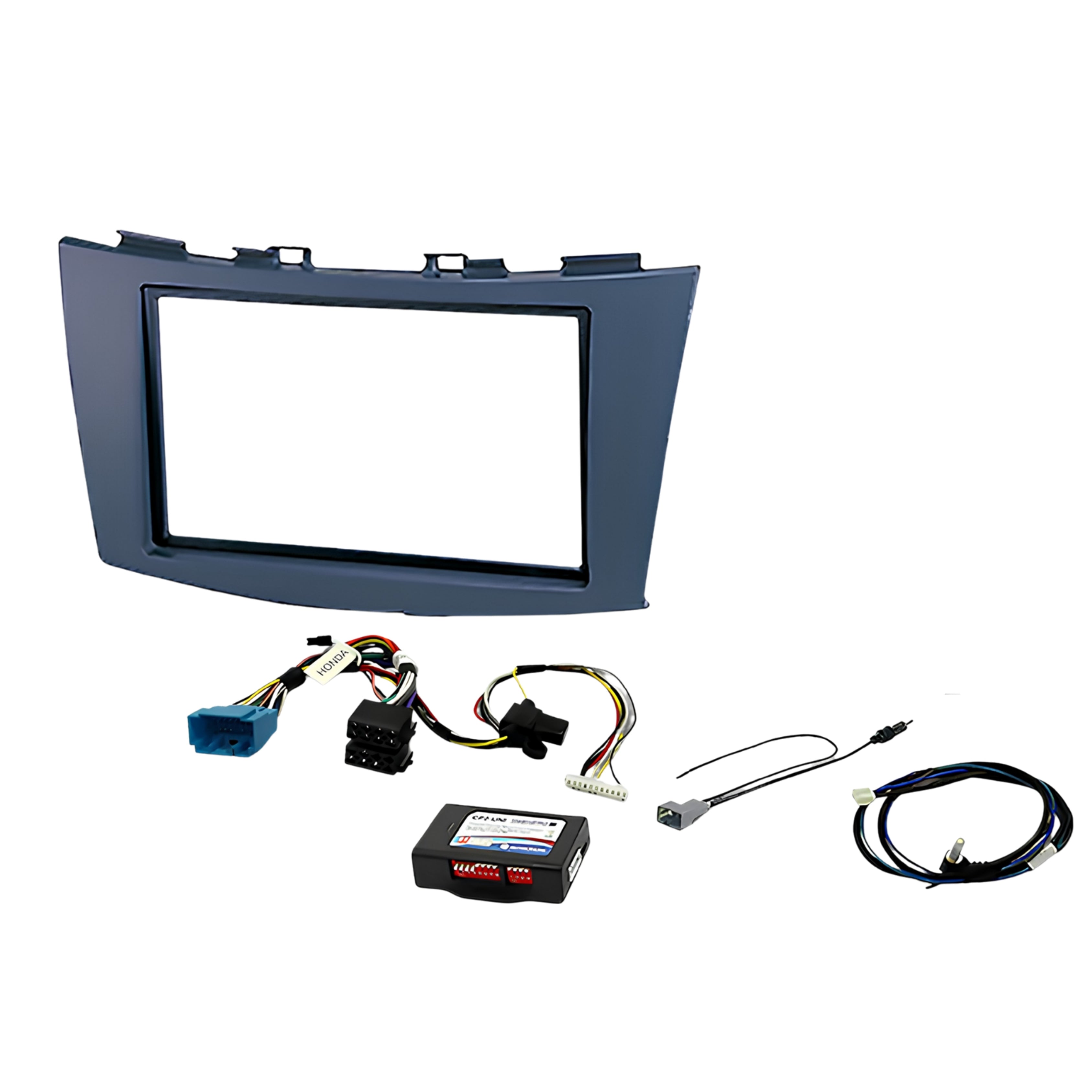

What's in the box

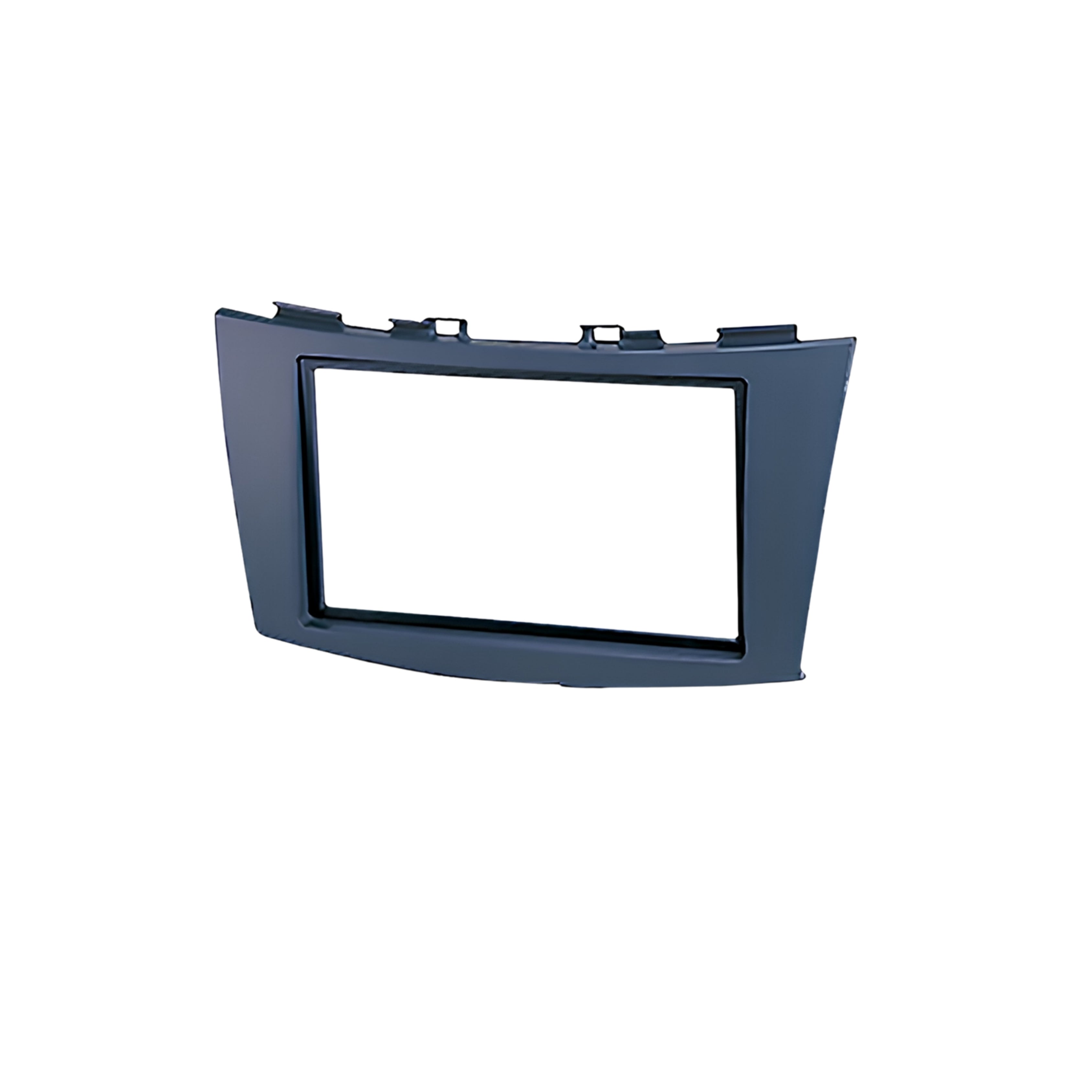

- 2DIN fascia panel (black)

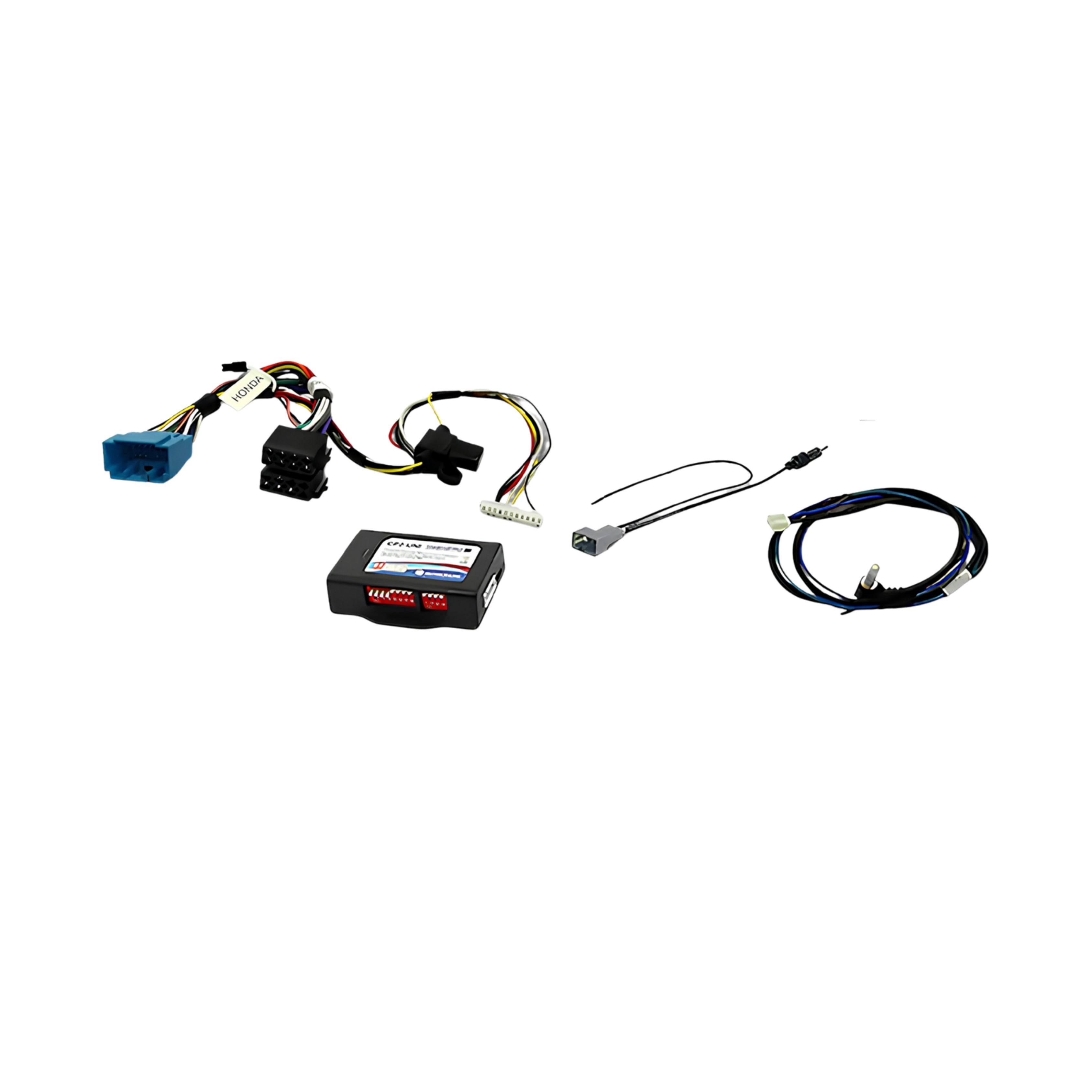

- Steering wheel control interface with dual press function
- Mounting brackets
- Plug and play vehicle-to-ISO harness
Technical specs
| Specification |
Detail |
| SKU |
HRSZ002 |
| Brand |
Stinger |
| Colour |
Black |
| Kit Type |
Complete 2DIN radio replacement kit |
| Plug and Play |
Yes, factory connector to standard ISO |
| Steering Wheel Control Retention |
Yes, configurable SWC adaptor included |
| Dual Press Function |
Yes, short press and long press per button |
| SWC Configuration Methods |
PC (Autoleads app), DIP switch, manual learning |
| Memory Retention |
Yes, retained after power loss |
| Field Updatable |
Yes, via Autoleads PC application |
| Tri-colour LED |
Yes |
| Mounting Brackets Included |
Yes |
| Antenna Adaptor Included |
No, source separately |
Compatible with
| Make |
Model |
Variant |
Years |
| Suzuki |
Swift |
FZ |
2011-2016 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included configurable SWC interface |
Frequently asked questions
Does the HRSZ002 include an antenna adaptor?
No. An antenna adaptor is not included with the HRSZ002. A compatible antenna adaptor for your chosen head unit must be sourced separately before installation. Contact us for guidance on the correct antenna adaptor for the Suzuki Swift FZ and your chosen head unit.
What does short press and long press assignment mean for steering wheel controls?
The SWC interface allows two different radio functions to be assigned to a single steering wheel button, with one action triggered by a short press and a different action triggered by holding the button. This doubles the number of controllable functions from the steering wheel compared to a standard single-function-per-button SWC adaptor.
How do I configure the steering wheel control interface on the HRSZ002?
The interface supports three configuration methods: PC via the Autoleads application for full control and firmware updates, DIP switch settings for quick configuration, or manual learning mode where the module self-programs from steering wheel inputs. Manual learning mode also extends compatibility to vehicles with analogue SWC systems not pre-listed in the Autoleads database.
Will the HRSZ002 fit all Suzuki Swift FZ variants?
The HRSZ002 is listed for the Suzuki Swift FZ (2011-2016) without body style or transmission restrictions. Contact us if you have a specific variant or trim level concern before purchasing, as dash configurations can occasionally differ between trim levels.
Does the interface retain its settings after the vehicle battery is disconnected?
Yes. The SWC interface retains its programmed configuration even if the vehicle battery is disconnected, removing the need to reprogram after a battery swap, flat battery, or electrical work on the vehicle.
