Description
Stinger HRTY006 Radio Replacement Kit for Toyota Camry XV70 2018-2020
The HRTY006 is a vehicle-specific radio replacement kit from Stinger for the Toyota Camry XV70 series (2018-2020), supporting both Toyota 200mm wide head units and standard 2DIN units. It includes an OEM-grade dash panel and clock assembly, the SWI-RC-1 advanced SWC interface, an Axxess vehicle harness with camera retention, Toyota 200mm adaptors, mounting brackets, and a 3.5mm patch lead. Requires a Toyota 20-pin SWC connection. Antenna adaptor inclusion is not confirmed, so verify before purchasing.
Product overview
The Stinger HRTY006 is designed specifically for the Toyota Camry XV70 (2018-2020), providing a complete radio replacement solution for both Toyota 200mm format and standard 2DIN aftermarket head units. The OEM-grade dash panel and clock assembly maintain the factory finish of the Camry interior after installation, keeping the upgrade looking factory-integrated rather than aftermarket.
The SWI-RC-1 steering wheel control interface supports dual press function, DIP switch or manual button programming, power-loss memory retention, and compatibility with analogue, CAN, LAN, LIN, KBUS, Class II, and Serial Data SWC bus types. Configuration is supported via Apple, Android, and PC applications. A tri-colour LED provides real-time feedback on module power, button presses, and fault conditions during installation and operation. This kit requires a Toyota 20-pin SWC connection. Confirm your Camry's SWC connector type before ordering.
The Axxess vehicle-to-bare-wire harness includes camera retention, so the factory reverse camera continues to function with the new aftermarket head unit. Toyota 200mm adaptors and mounting brackets are included for both head unit size formats. The head unit ISO wiring harness is not included and must be sourced separately to match the chosen aftermarket head unit.
Features and benefits
200mm Toyota-style and 2DIN compatible: Accepts both Toyota 200mm format and standard 2DIN aftermarket head units, with Toyota 200mm adaptors and mounting brackets included for both formats, providing the broadest choice of compatible aftermarket radios for the XV70 Camry.
OEM-grade dash panel and clock assembly: The included OEM-grade Toyota fascia and clock assembly maintain the factory finish of the Camry interior, keeping the installation looking factory-integrated.
Factory reverse camera retention via Axxess harness: The Axxess vehicle-to-bare-wire harness includes camera retention, so the factory reverse camera continues to function with the new aftermarket head unit without an additional retention module.
SWI-RC-1 advanced SWC interface: Supports dual press function allowing two actions per steering wheel button, DIP switch or manual button programming, power-loss memory retention, and compatibility with analogue, CAN, LAN, LIN, KBUS, Class II, and Serial Data SWC bus types.
App-supported SWC configuration: The SWI-RC-1 can be configured via Apple, Android, or PC applications for precise control over button assignments and SWC protocol selection.
Dual press function: Two separate radio commands can be assigned to a single steering wheel button via short press and long press inputs, effectively doubling the number of controllable functions without additional buttons.
Tri-colour LED status indicator: Provides real-time feedback on module power, button presses, and fault conditions during installation and normal operation.
3.5mm patch lead included: An auxiliary audio patch lead is included for connecting audio sources where required by the chosen aftermarket head unit.
Mounting brackets and Toyota 200mm adaptors included: All mechanical mounting hardware for both 200mm and 2DIN head unit formats is included in the kit.

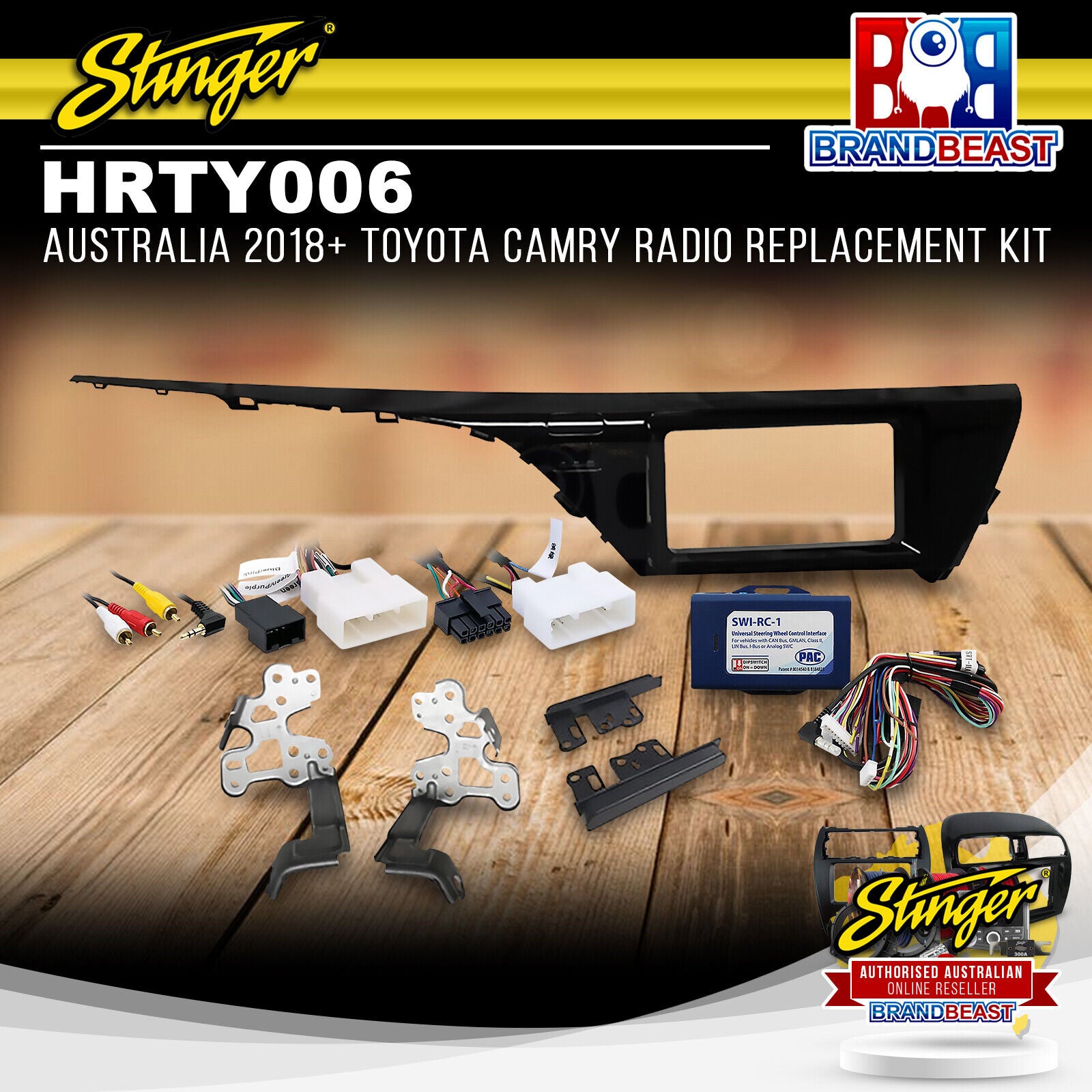

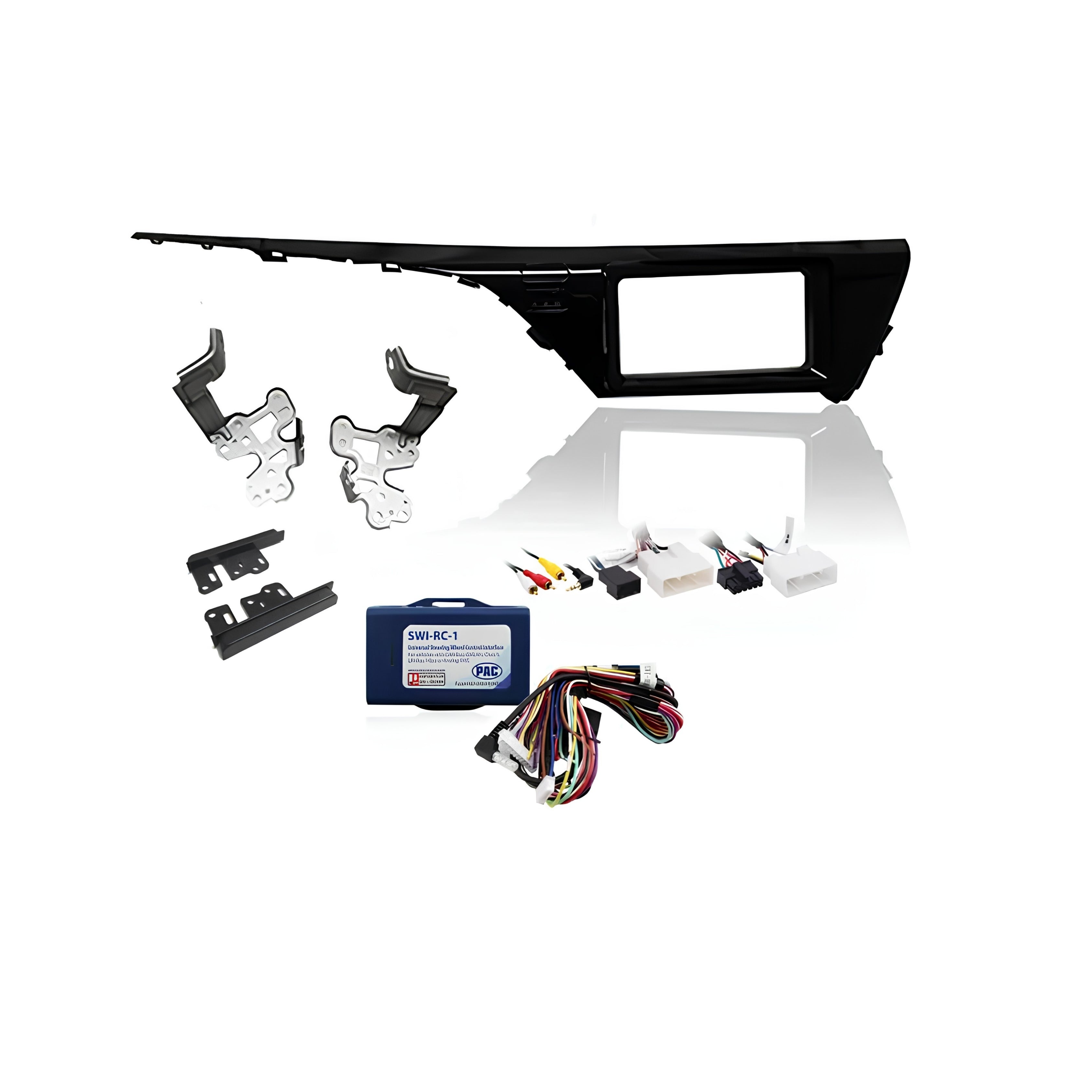

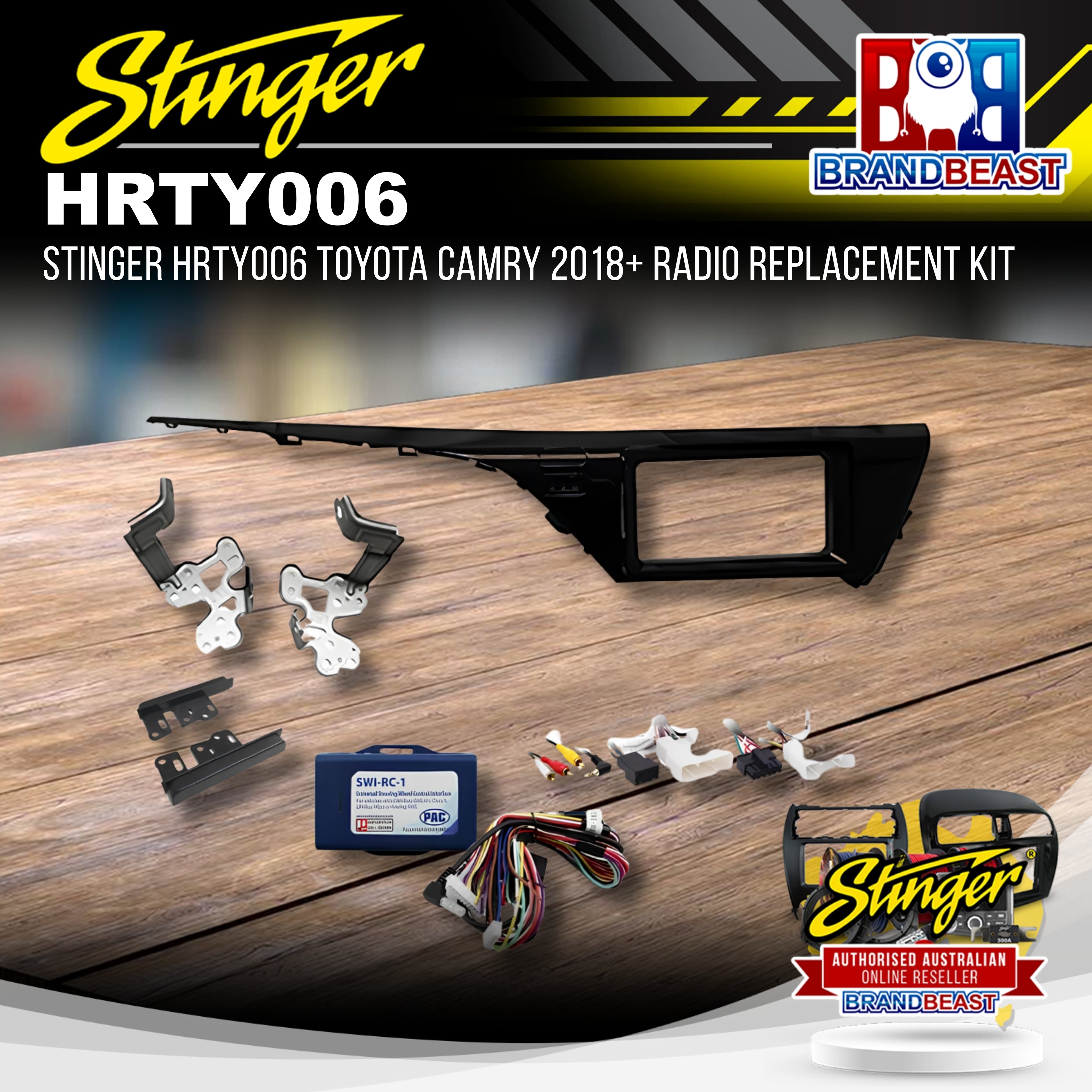

What's in the box

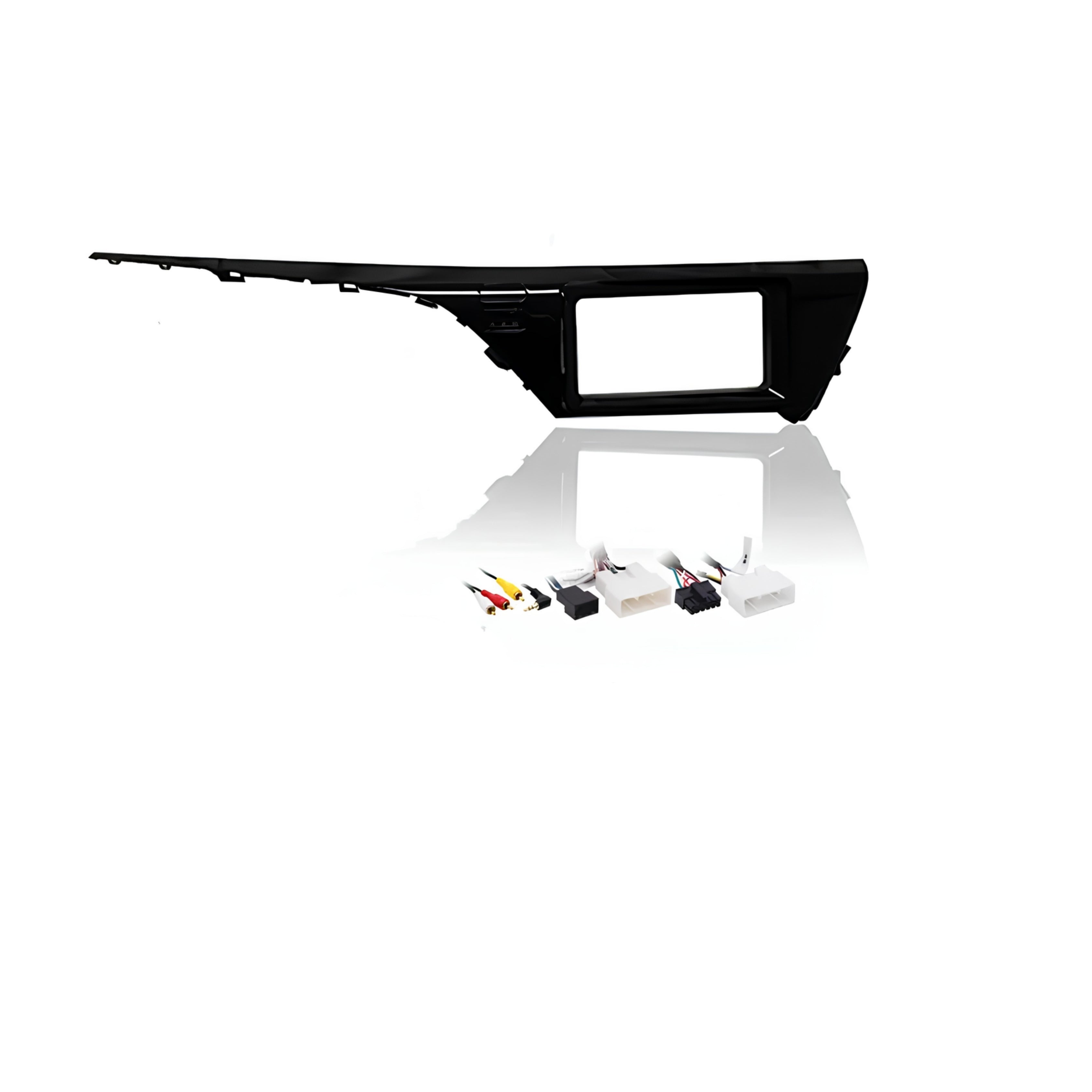

- OEM-grade Toyota dash panel (black)
- Clock assembly

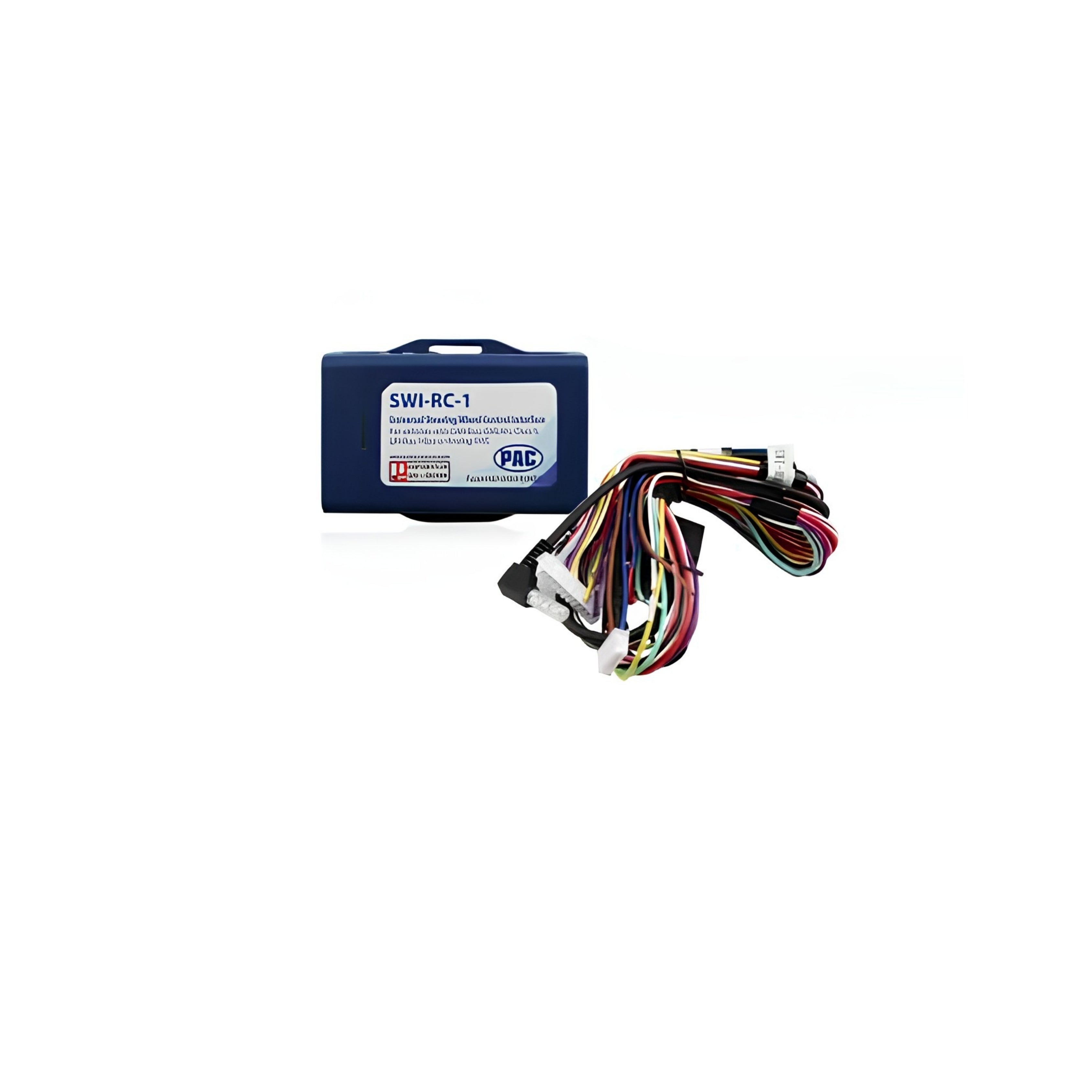

- SWI-RC-1 steering wheel control interface
- Axxess vehicle-to-bare-wire harness with camera retention
- Toyota 200mm adaptors

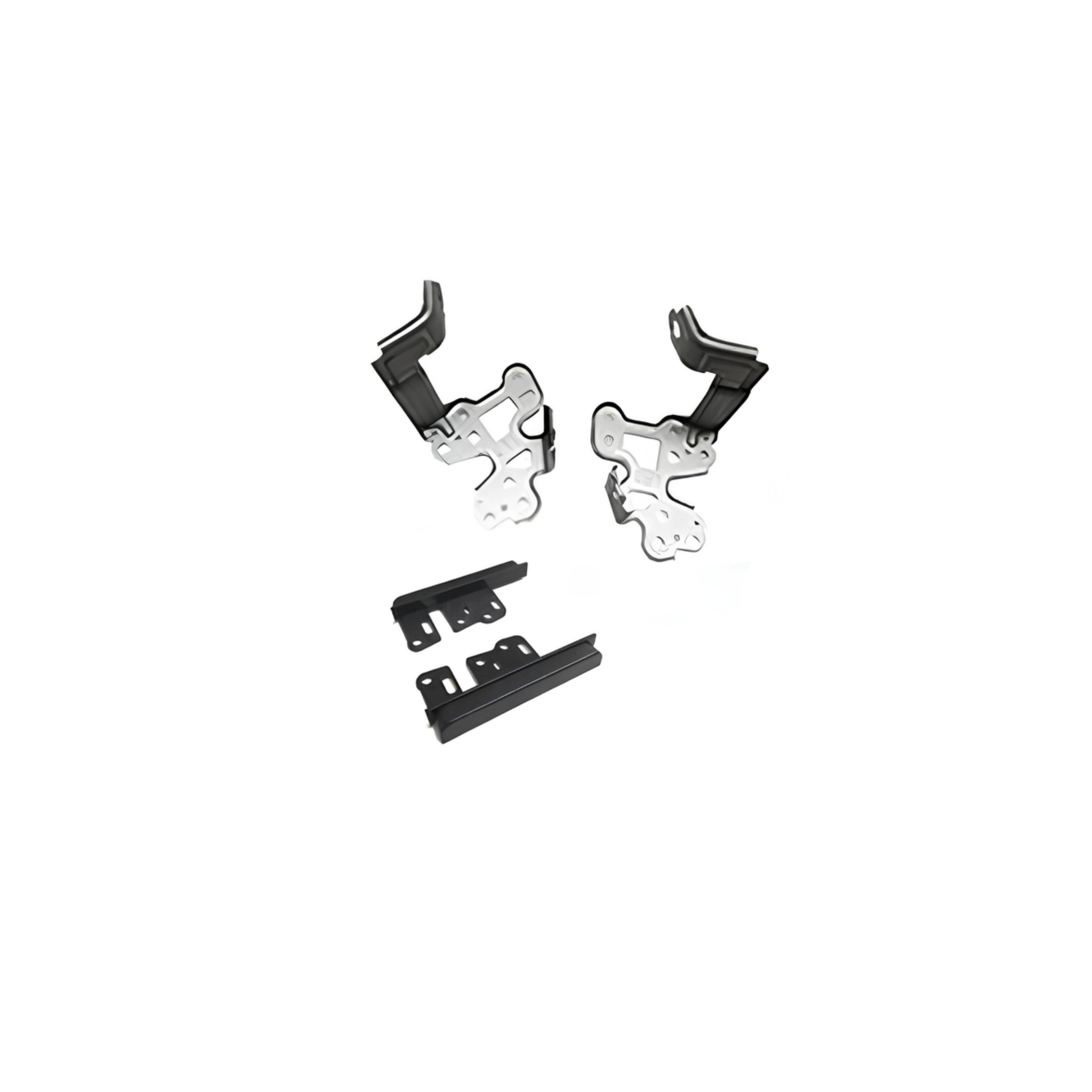

- Mounting brackets
- 3.5mm patch lead
- Wiring instructions
Technical specs
| Specification |
Detail |
| SKU |
HRTY006 |
| Brand |
Stinger |
| Colour |
Black |
| Kit Type |
200mm Toyota-style and 2DIN radio replacement kit |
| Plug and Play |
Yes, Axxess vehicle to bare wire harness |
| SWC Interface |
SWI-RC-1 |
| SWC Connection Required |
Toyota 20-pin SWC |
| SWC Bus Compatibility |
Analogue, CAN, LAN, LIN, KBUS, Class II, Serial Data |
| Dual Press Function |
Yes, two actions per steering wheel button |
| Memory Retention |
Yes, retained after power loss |
| App Support |
Apple, Android, PC |
| Tri-colour LED |
Yes |
| Camera Retention |
Yes, via Axxess harness |
| Toyota 200mm Adaptors |
Yes, included |
| Mounting Brackets |
Yes, included |
| 3.5mm Patch Lead |
Yes, included |
| Antenna Adaptor |
Not confirmed, verify before purchasing |
| Head Unit ISO Harness |
No, source separately |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Camry |
XV70 |
2018-2020 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via SWI-RC-1 (Toyota 20-pin SWC required) |
| Reverse Camera |
Yes, via Axxess harness camera retention |
| Clock Display |
Yes, via included OEM-grade clock assembly |
Frequently asked questions
What is the difference between a Toyota 200mm head unit and a standard 2DIN unit?
Toyota 200mm head units are wider than a standard 2DIN unit, measuring approximately 200mm across compared to the standard 178mm DIN width. The HRTY006 includes adaptors for both formats, allowing either a Toyota-style 200mm unit for a more factory-matched look or a standard 2DIN unit to be installed.
Does the HRTY006 include everything needed for installation?
The HRTY006 includes the OEM-grade dash panel, clock assembly, SWI-RC-1 SWC interface, Axxess vehicle harness with camera retention, Toyota 200mm adaptors, mounting brackets, 3.5mm patch lead, and wiring instructions. An antenna adaptor is not confirmed as included and must be verified before ordering. The head unit ISO wiring harness is not included and must be sourced separately to match your chosen aftermarket head unit.
Will the steering wheel audio controls work with any aftermarket head unit?
The SWI-RC-1 is broadly compatible across a wide range of vehicles and head unit brands, but SWC compatibility can vary. Configure the interface via the app or DIP switches to match your head unit's SWC input protocol. Contact us if you have a specific head unit in mind and want to confirm compatibility before purchasing.
What is dual press function and how does it work?
Dual press function allows two different radio commands to be assigned to a single steering wheel button, one for a short press and a different action for a long press. This effectively doubles the number of controllable functions available from the steering wheel without requiring additional buttons.
Is an antenna adaptor included with the HRTY006?
Antenna adaptor inclusion is not confirmed in the available source data. Contact us to verify whether an antenna adaptor is included before purchasing, as one may be required depending on your chosen aftermarket head unit and its antenna connector type.
