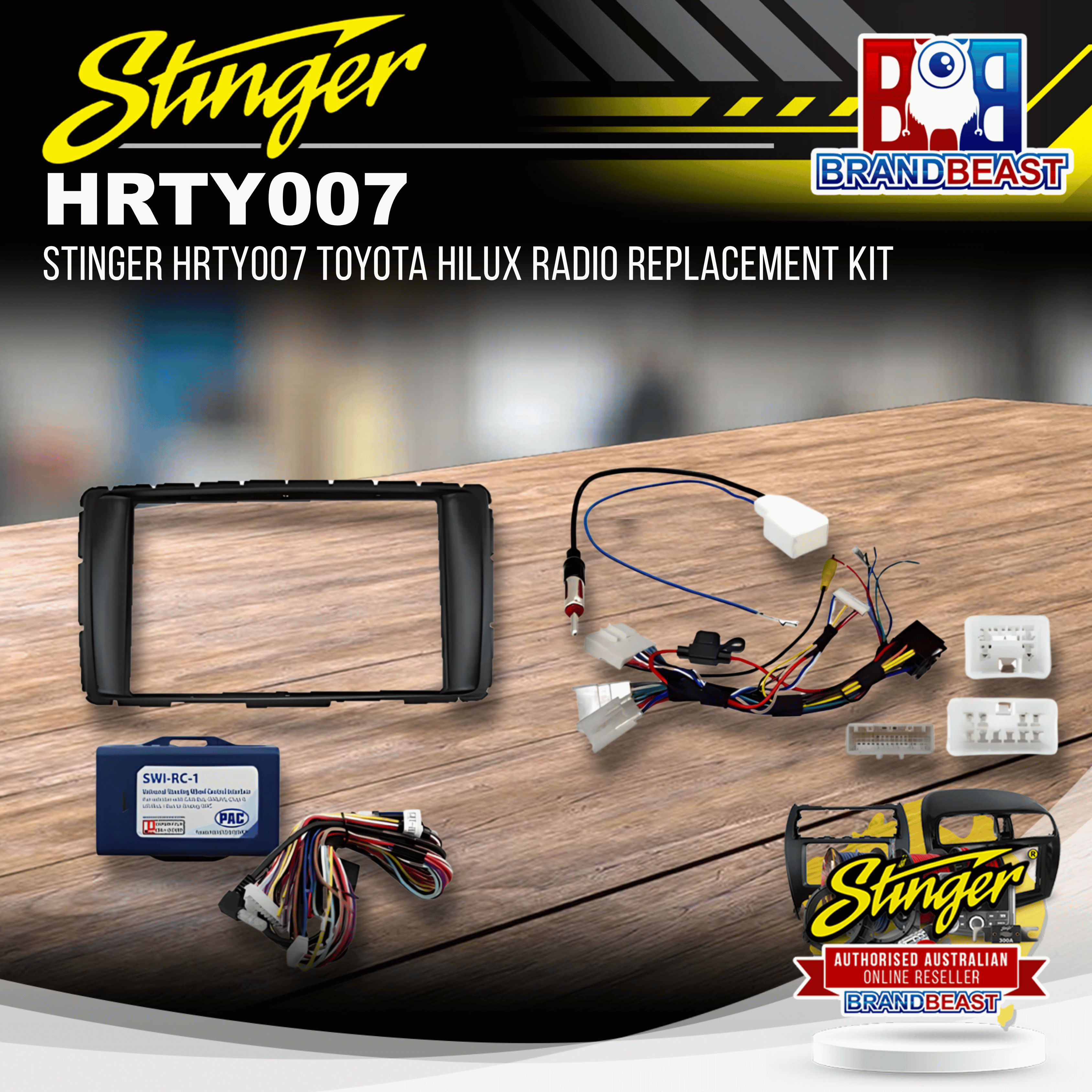

Stinger HRTY007 Plug and Play Radio Replacement Kit for Toyota Hilux AN10/AN20/AN30 2013-2015
The HRTY007 is a vehicle-specific plug and play radio replacement kit from Stinger, built for the Toyota Hilux AN10/AN20/AN30 series (2013-2015). It includes a steering wheel control interface with dual-function short and long press button mapping, reverse camera retention for vehicles with camera wiring in the 28-pin plug, antenna adaptor, and mounting brackets. The SWC interface supports PC, dip switch, and manual programming with CAN Bus accessory output and memory retention after power loss.
Product overview
The Stinger HRTY007 connects an aftermarket head unit to the factory wiring of the Toyota Hilux AN10/AN20/AN30 (2013-2015) via a plug and play ISO harness, without cutting or splicing factory wiring. The kit is complete out of the box with mounting brackets, antenna adaptor, and SWC interface included alongside the 2DIN radio panel.
The steering wheel control interface uses a Toyota 20-pin SWC connection and features dual-function button assignment, allowing two separate radio functions to be mapped to a single steering wheel button via short press and long press inputs. Three configuration methods are supported: PC via the Autoleads application, dip switch settings, or manual programming directly on the module. The Autoleads PC application also enables field firmware updates. A tri-colour LED provides real-time status feedback, and memory is retained even if vehicle power is lost.
Reverse camera retention is supported on vehicles where reverse camera wiring is present in the 28-pin plug. If the Hilux does not have this wiring pre-installed, reverse camera retention will not be available with this kit. The CAN Bus accessory output provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire may not be available on the factory harness.
Features and benefits

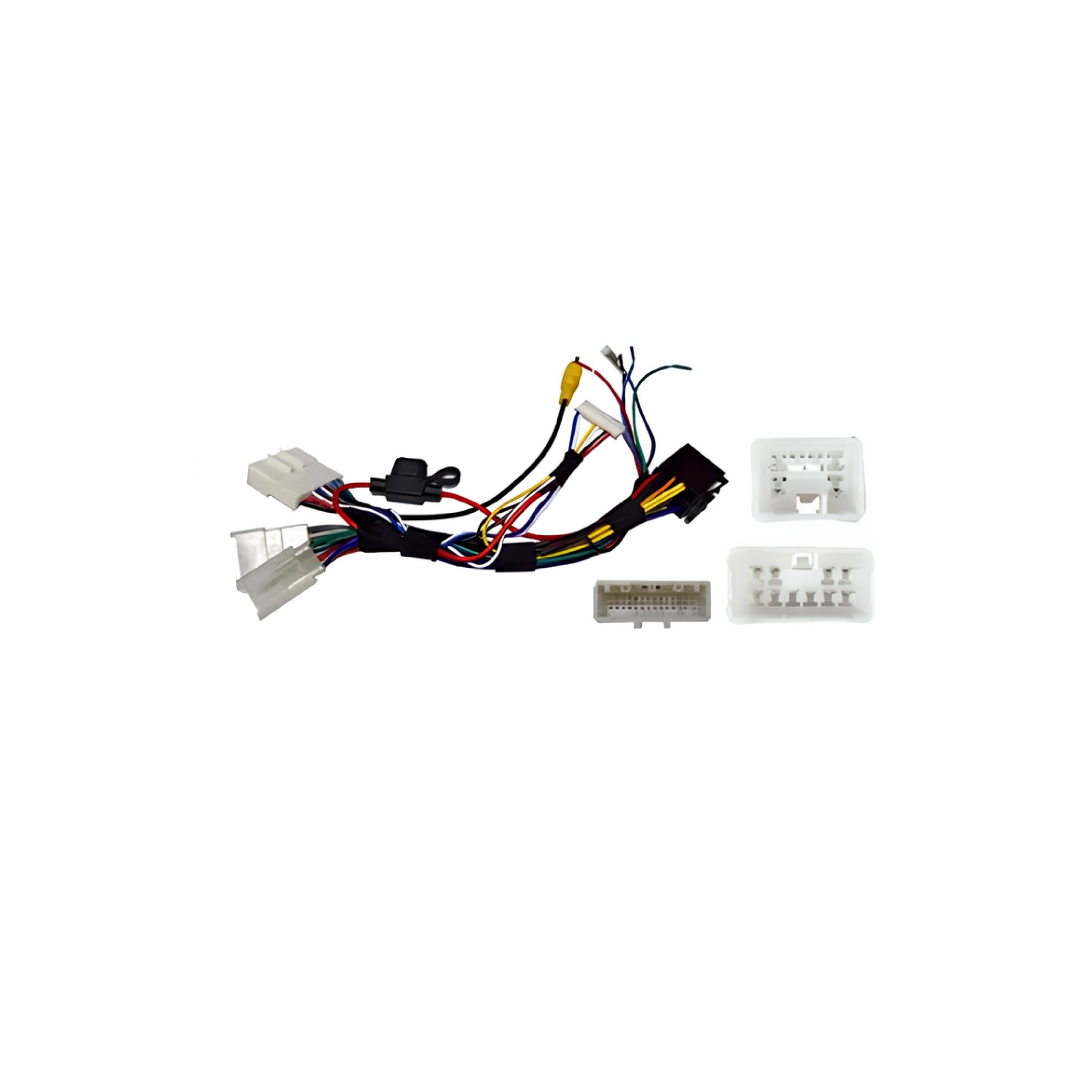

Plug and play factory to ISO harness: Connects directly from the Toyota Hilux AN10/AN20/AN30 factory wiring to a standard ISO harness for straightforward installation without cutting or splicing factory vehicle wiring.

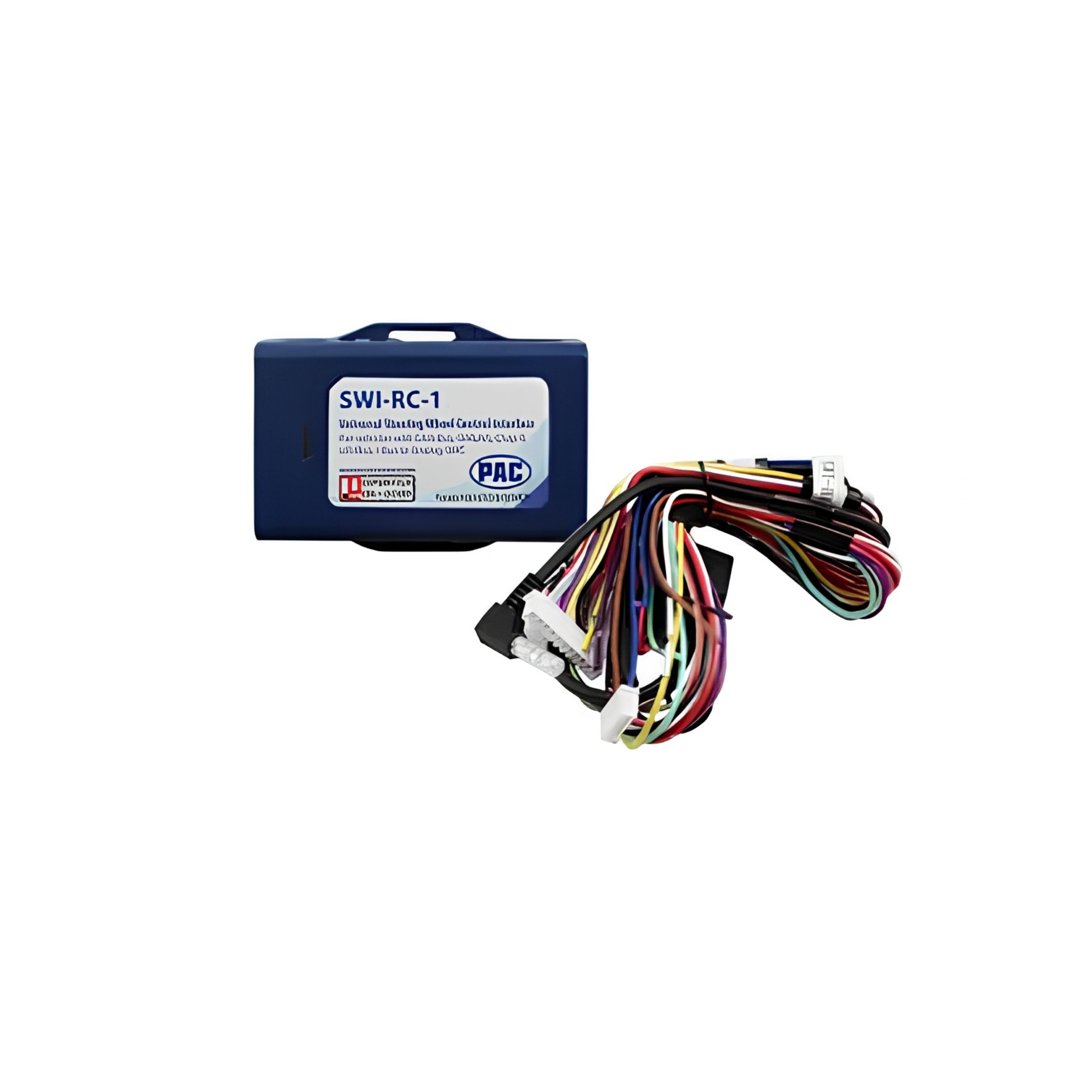

Steering wheel control retention with dual-function mapping: The included SWC interface retains the factory steering wheel audio controls via a Toyota 20-pin SWC connection, with dual-function button assignment allowing two separate radio functions per button via short press and long press inputs.
Three SWC configuration methods: The SWC interface can be configured via PC using the Autoleads application, dip switch settings, or manual programming on the module, with a manual learning function for compatibility with unlisted analogue SWC vehicles.
Field updatable via Autoleads PC application: Firmware updates are applied through the Autoleads PC application, keeping the SWC interface current and compatible with new head unit releases without replacing the module.
Reverse camera retention via 28-pin plug: Reverse camera retention is supported for vehicles where reverse camera wiring is present in the 28-pin plug. Vehicles without this wiring cannot use the reverse camera retention function of this kit.
CAN Bus accessory output: Provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire is not available on the factory harness.

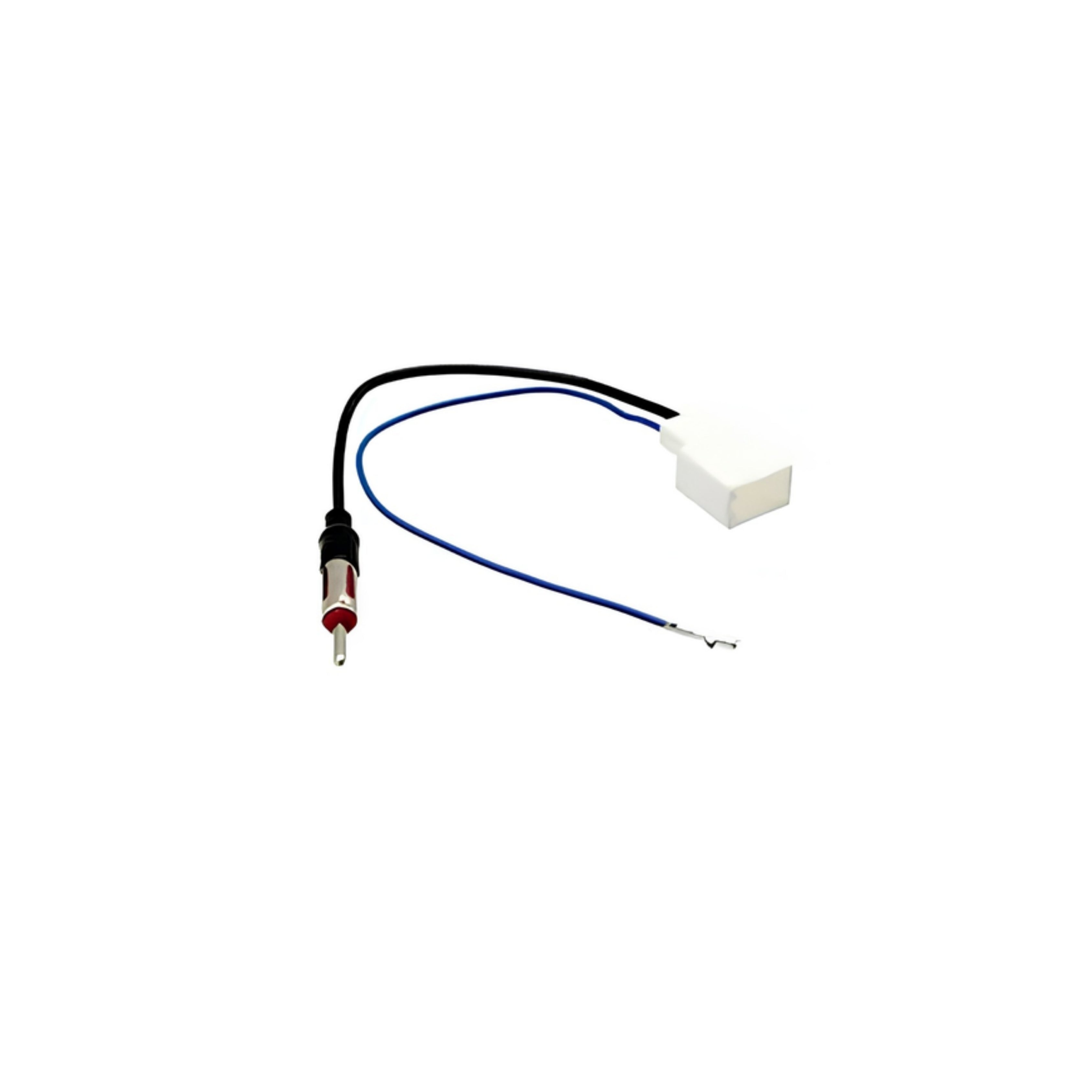

Antenna adaptor included: A Toyota antenna adaptor is included in the kit, covering the antenna connection requirement without a separate purchase.
Mounting brackets included: Mounting brackets are included for securing the aftermarket head unit in the factory dash opening.
Tri-colour LED status indicator: A tri-colour LED provides real-time status feedback on the SWC interface module during programming and normal operation.
Memory retention after power loss: The SWC interface retains its programmed configuration even if vehicle power is disconnected, removing the need to reprogram after battery changes or electrical work.

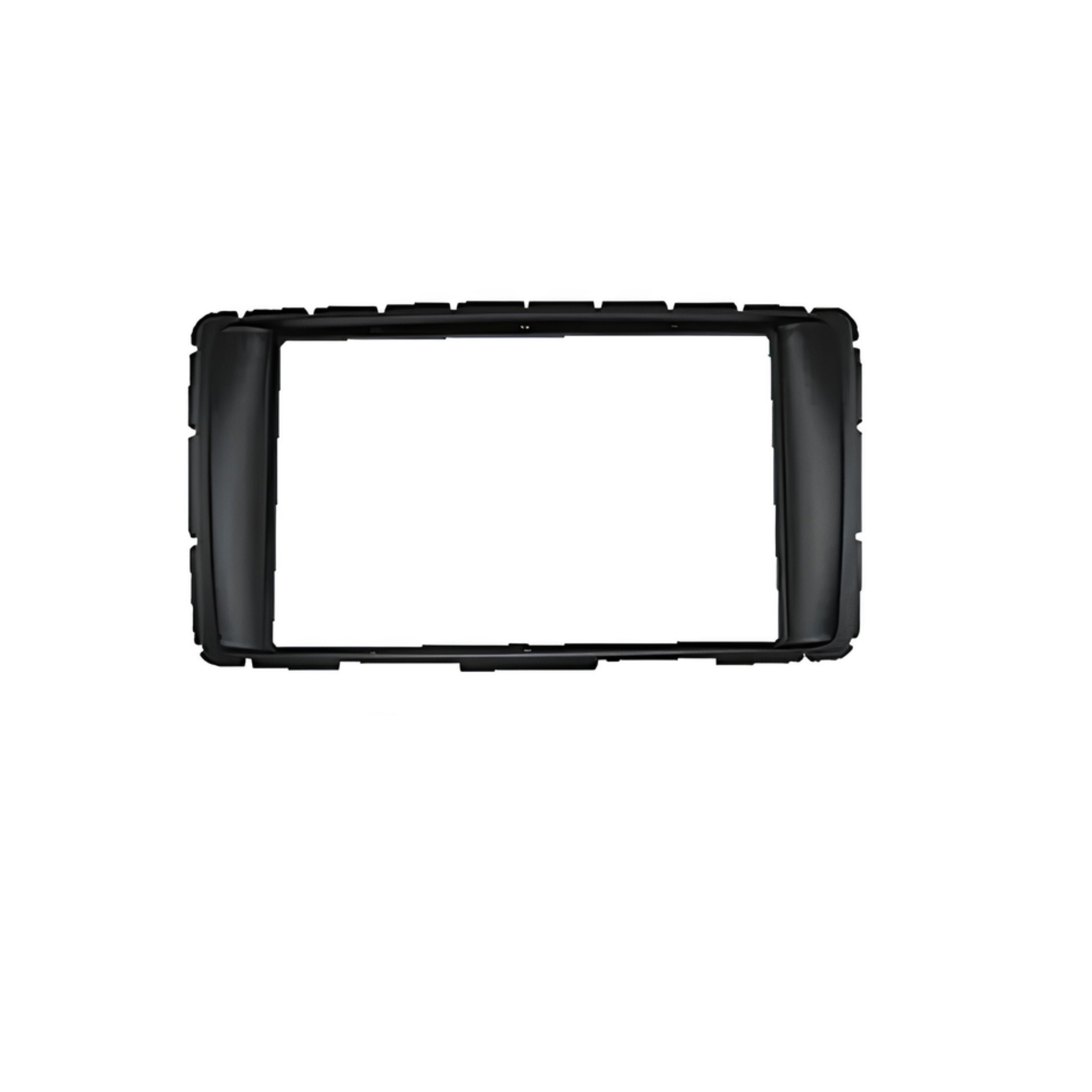

Black finish: The black fascia panel is matched to factory Hilux AN10/AN20/AN30 interior trim for a clean, integrated appearance after installation.

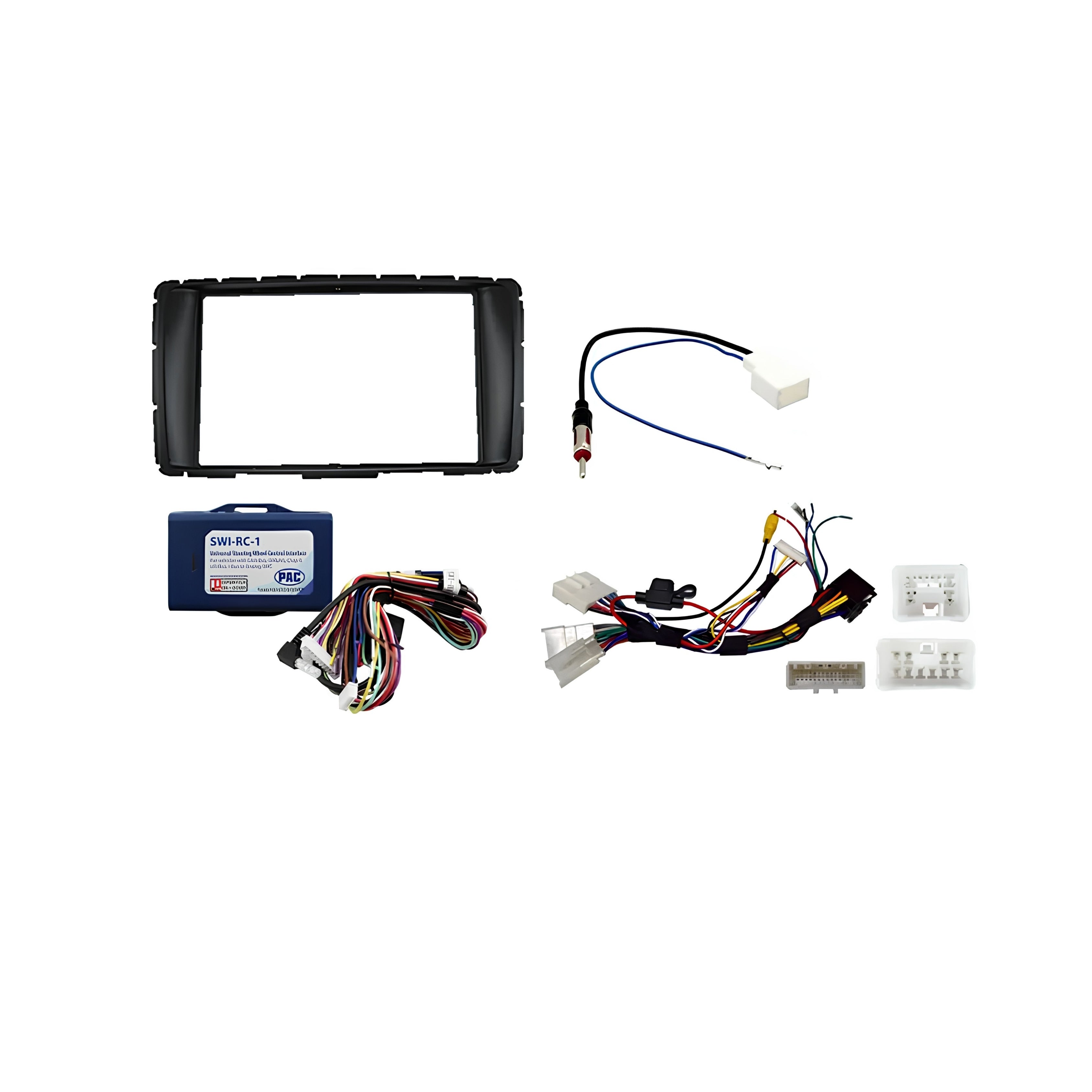

What's in the box
- 2DIN radio fascia panel (black)
- Steering wheel audio control interface with dual-function mapping
- Antenna adaptor
- Mounting brackets
Technical specs
| Specification |
Detail |
| SKU |
HRTY007 |
| Brand |
Stinger |
| Colour |
Black |
| Plug and Play |
Yes, factory connector to standard ISO |
| SWC Connection Type |
Toyota 20-pin SWC |
| Steering Wheel Control Retention |
Yes, included |
| Dual-Function SWC Mapping |
Yes, short press and long press per button |
| SWC Programming Options |
PC (Autoleads app), dip switch, manual |
| CAN Bus Accessory Output |
Yes |
| Reverse Camera Retention |
Yes, 28-pin plug with camera wiring only |
| Memory Retention |
Yes, retained after power loss |
| Field Updatable |
Yes, via Autoleads PC application |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Hilux |
AN10/AN20/AN30 |
2013-2015 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included SWC interface (20-pin) |
| Reverse Camera |
Yes, vehicles with camera wiring in 28-pin plug only |
Frequently asked questions
Will the HRTY007 retain my factory reverse camera?
Reverse camera retention is supported, but only on vehicles where reverse camera wiring is present in the 28-pin plug. If your Hilux AN10/AN20/AN30 does not have this wiring pre-installed, reverse camera retention will not be available with this kit. Contact us to confirm whether your vehicle has the required wiring before purchasing.
Can I assign multiple functions to a single steering wheel button?
Yes. The HRTY007 supports dual-function mapping, allowing two separate radio functions to be assigned to a single steering wheel button via short press and long press inputs, effectively doubling the number of assignable functions without additional buttons.
How do I configure or update the steering wheel control interface?
The SWC interface supports three configuration methods: PC via the Autoleads application, dip switch settings, or manual programming on the module. A manual learning function is also available for compatibility with unlisted analogue SWC vehicles. Firmware updates are applied through the Autoleads PC application.
Is this kit compatible with all 2013-2015 Toyota Hilux variants?
The HRTY007 is specified for the Toyota Hilux AN10/AN20/AN30 series (2013-2015). Contact us to confirm compatibility with your specific variant or factory audio configuration before purchasing.
Does the HRTY007 include an antenna adaptor and mounting brackets?
Yes. Both an antenna adaptor and mounting brackets are included in the box alongside the 2DIN radio panel and steering wheel audio control interface.
