Description
Stinger HRTY008 Plug and Play Radio Replacement Kit for Toyota Hilux AN120/AN130 2015-2020
The HRTY008 is a vehicle-specific plug and play radio replacement kit from Stinger, engineered for the Toyota Hilux AN120/AN130 (2015-2020). It includes a steering wheel control interface with dual-function short and long press button mapping, factory USB retention, antenna adaptor, and mounting brackets. The SWC interface supports PC, dip switch, and manual programming, with CAN Bus accessory output and memory retention after power loss.
Product overview
The Stinger HRTY008 connects an aftermarket head unit to the factory wiring of the Toyota Hilux AN120/AN130 (2015-2020) via a plug and play ISO harness, without cutting or splicing factory wiring. The kit is complete out of the box, including the mounting brackets and antenna adaptor required for a full installation alongside the SWC interface and USB retention harness.

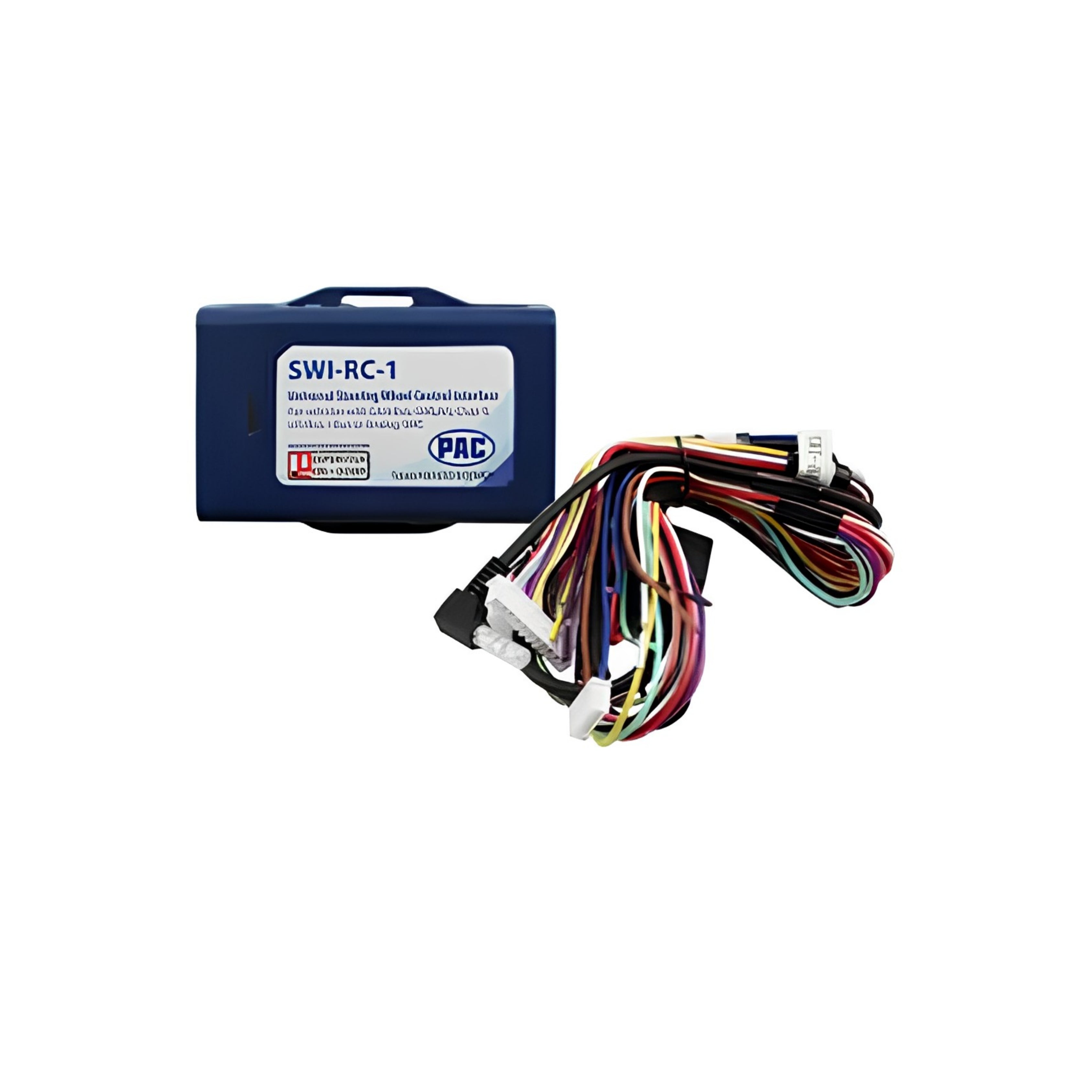

The steering wheel control interface features dual-function button assignment, allowing two separate radio functions to be mapped to a single steering wheel button via short press and long press inputs. Three configuration methods are supported: PC via the Autoleads application, dip switch settings, or manual programming directly on the module. The Autoleads PC application also enables field firmware updates to keep the SWC interface current. A tri-colour LED provides real-time status feedback, and memory is retained even if vehicle power is lost.
The CAN Bus accessory output provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire may not be available. Note that reverse camera retention is not confirmed for the HRTY008. Contact us before purchasing if reverse camera retention is required for your installation.
Features and benefits

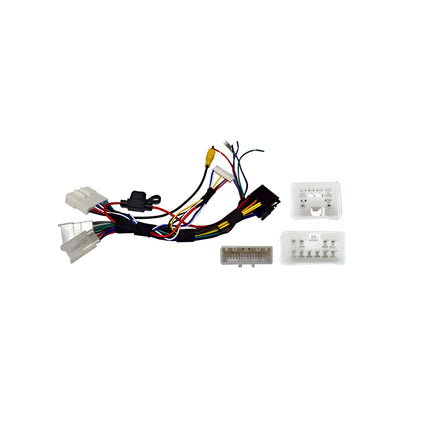

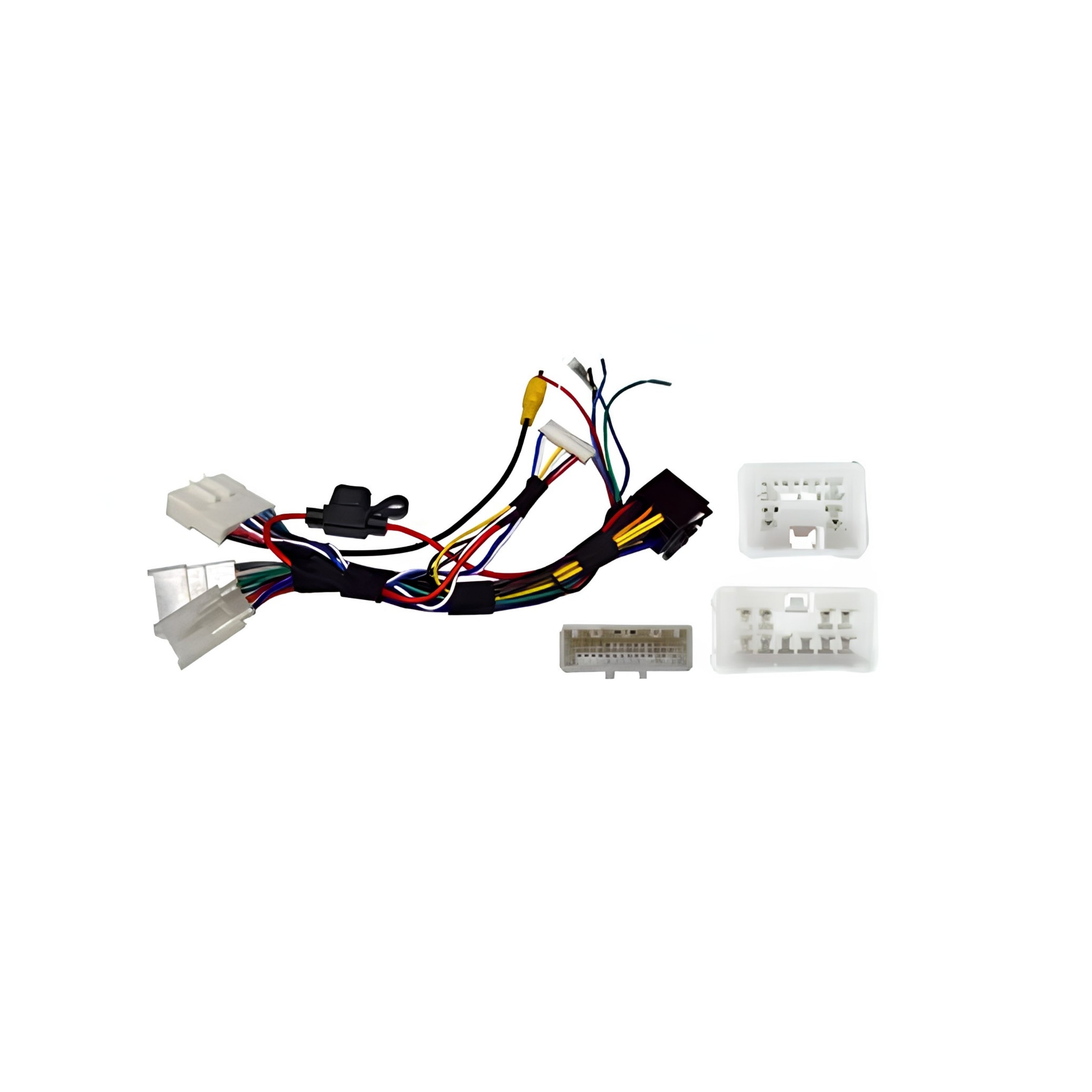

Plug and play factory to ISO harness: Connects directly from the Toyota Hilux AN120/AN130 factory wiring to a standard ISO harness for straightforward installation without cutting or splicing factory vehicle wiring.
Steering wheel control retention with dual-function mapping: The included SWC interface retains the factory steering wheel audio controls, with dual-function button assignment allowing two separate radio functions to be mapped to a single button via short press and long press inputs.
Three SWC configuration methods: The SWC interface can be configured via PC using the Autoleads application, dip switch settings, or manual programming on the module, covering a range of installer preferences and workshop environments.
Field updatable via Autoleads PC application: Firmware updates are applied through the Autoleads PC application, keeping the SWC interface current and compatible with future head unit releases without replacing the module.
CAN Bus accessory output: Provides a switched accessory signal in CAN Bus vehicles where a traditional ACC wire is not available on the factory harness.
Factory USB retention included: The factory USB input is retained through the aftermarket head unit installation via the included USB retention harness.
Antenna adaptor included: A Toyota antenna adaptor is included in the kit, covering the antenna connection requirement without a separate purchase.
Mounting brackets included: Mounting brackets are included for securing the aftermarket head unit in the factory dash opening.
Tri-colour LED status indicator: A tri-colour LED provides real-time status feedback on the SWC interface module during programming and normal operation.
Memory retention after power loss: The SWC interface retains its programmed configuration even if vehicle power is disconnected, removing the need to reprogram after battery changes or electrical work.
Black finish: The black fascia panel is matched to factory Hilux AN120/AN130 interior trim for a clean, integrated appearance after installation.

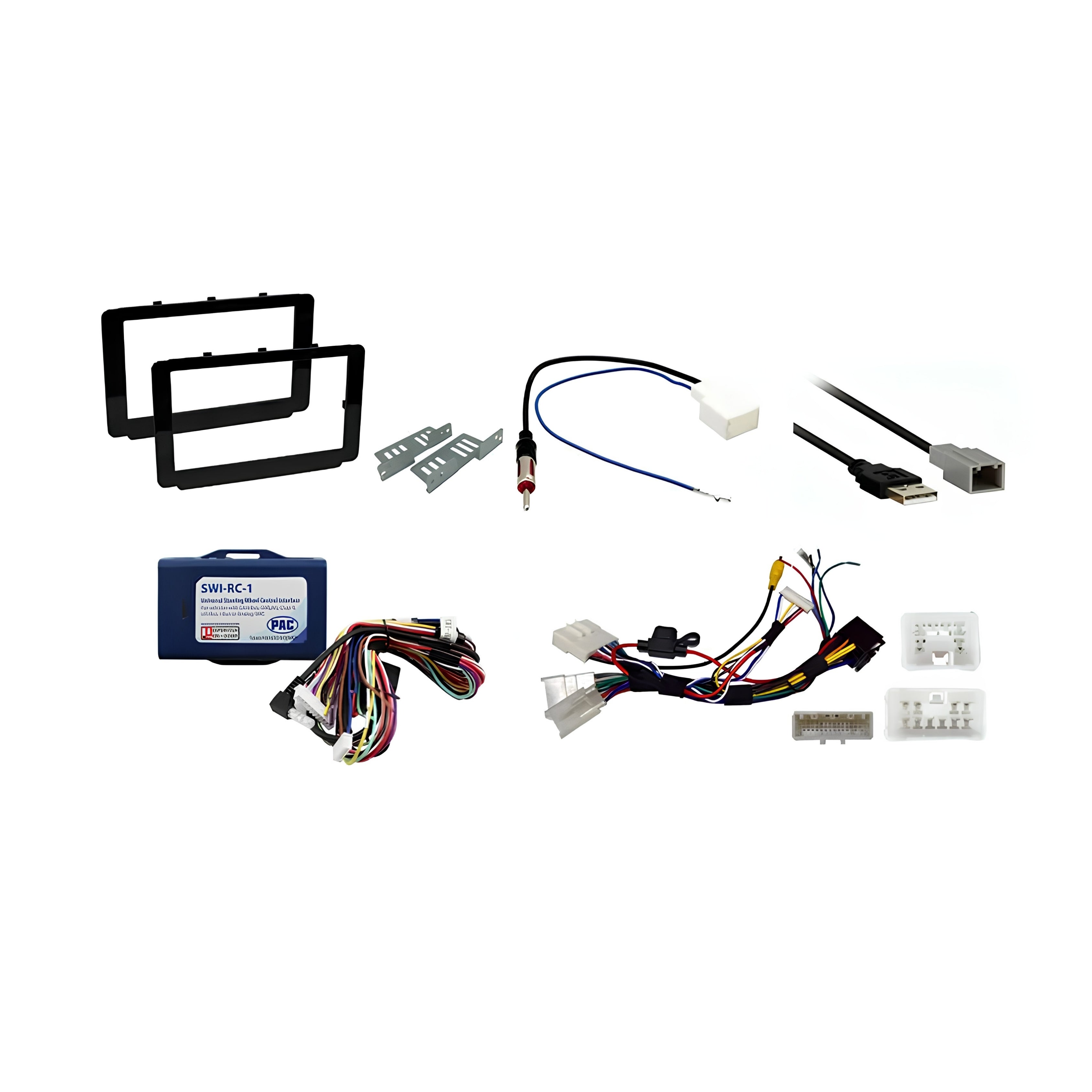

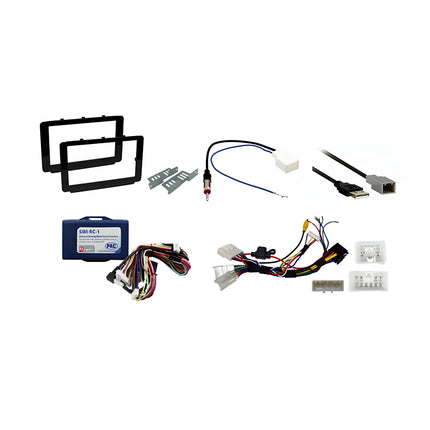

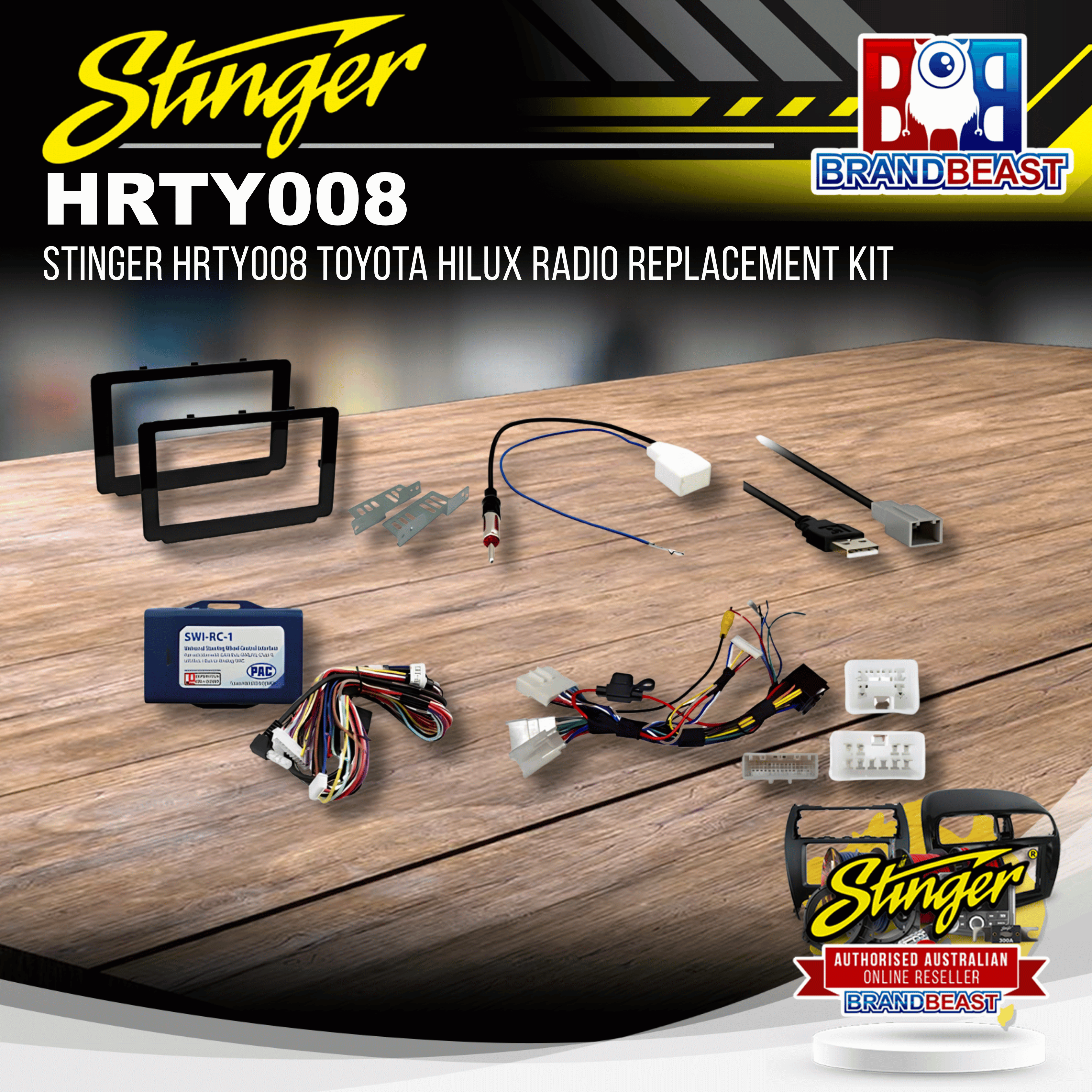

What's in the box

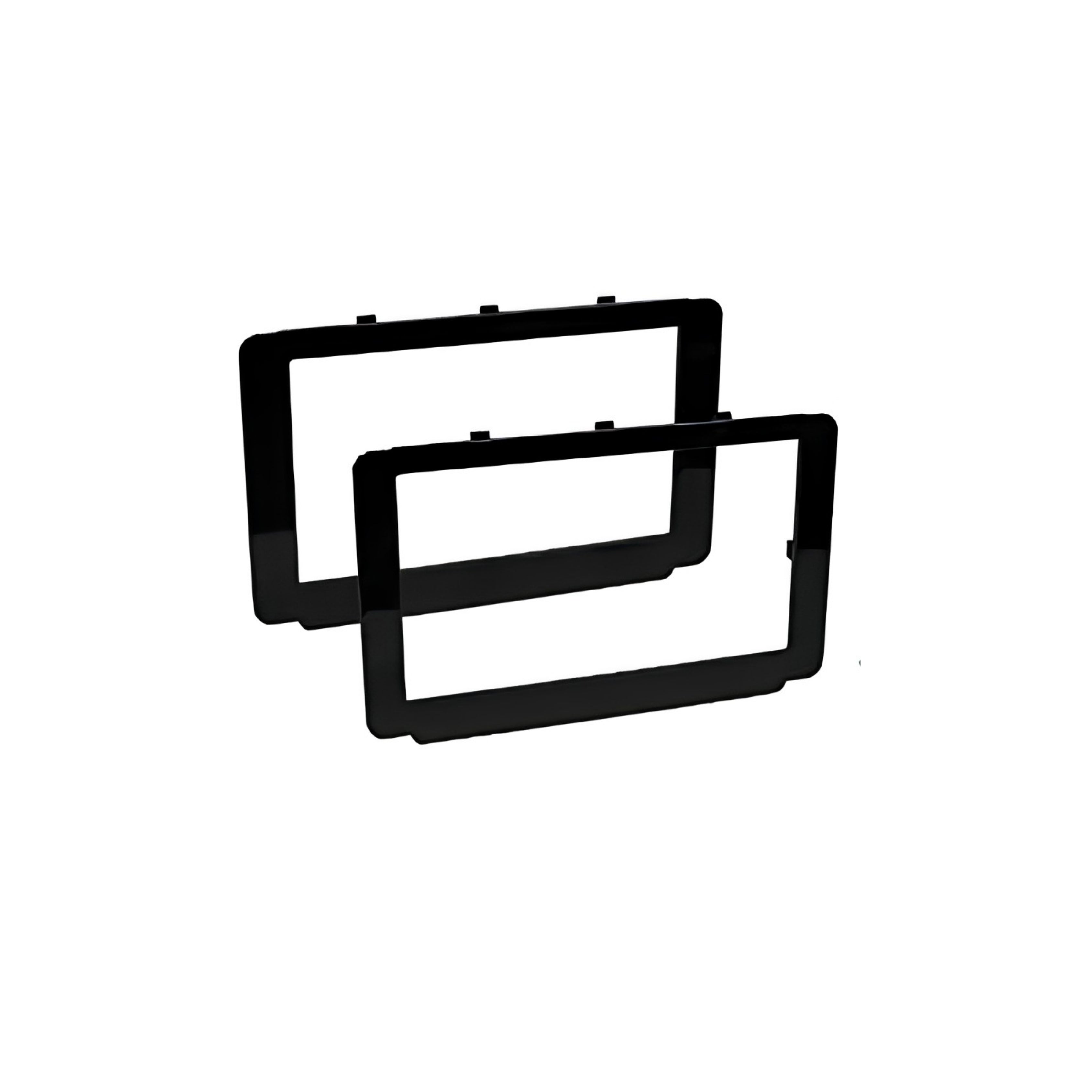

- 2DIN radio fascia panel (black)
- Steering wheel audio control interface with dual-function mapping

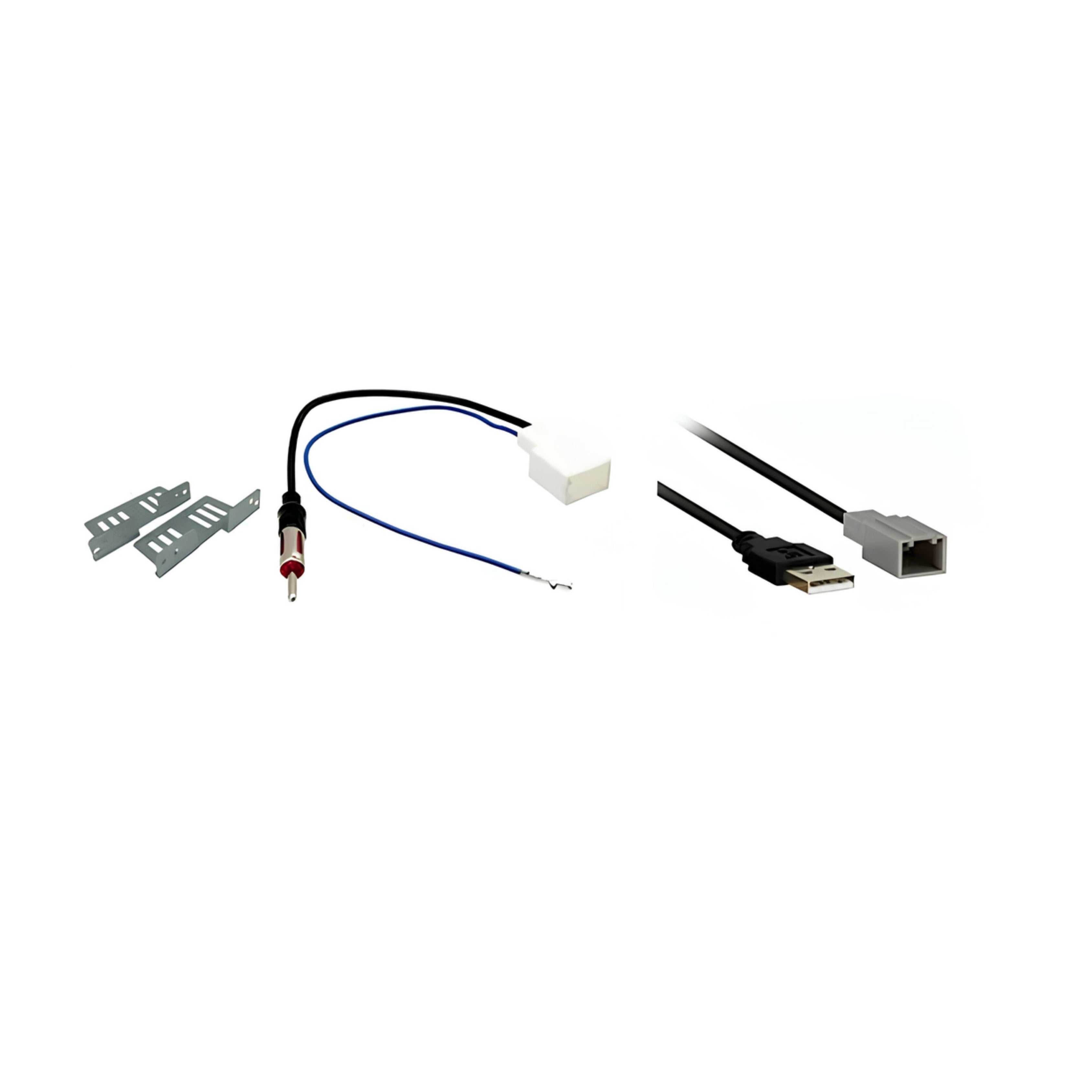

- Antenna adaptor
- USB retention harness
- Mounting brackets
Technical specs
| Specification |
Detail |
| SKU |
HRTY008 |
| Brand |
Stinger |
| Colour |
Black |
| Plug and Play |
Yes, factory connector to standard ISO |
| Steering Wheel Control Retention |
Yes, included |
| Dual-Function SWC Mapping |
Yes, short press and long press per button |
| SWC Programming Options |
PC (Autoleads app), dip switch, manual |
| CAN Bus Accessory Output |
Yes |
| USB Retention |
Yes, included |
| AUX Retention |
No |
| Memory Retention |
Yes, retained after power loss |
| Field Updatable |
Yes, via Autoleads PC application |
| Antenna Adaptor Included |
Yes |
| Mounting Brackets Included |
Yes |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Hilux |
AN120/AN130 |
2015-2020 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included SWC interface |
| Factory USB |
Yes, via included USB retention harness |
| AUX |
No, not retained |
| Reverse Camera |
Not confirmed, contact us before purchasing |
Frequently asked questions
Is USB retention included with the HRTY008, and what about AUX?
Yes, factory USB retention is included in the box. AUX retention is not included. An additional product would be required if AUX connectivity needs to be carried over to the new head unit. Contact us for guidance on compatible AUX retention solutions.
Can I assign multiple functions to a single steering wheel button?
Yes. The HRTY008 supports dual-function mapping, allowing two separate radio functions to be assigned to a single steering wheel button via short press and long press inputs, effectively doubling the number of assignable functions without requiring additional buttons.
How do I configure or update the steering wheel control interface?
The SWC interface supports three configuration methods: PC via the Autoleads application, dip switch settings, or manual programming on the module. Firmware updates are applied through the Autoleads PC application to keep the interface current with new head unit releases.
Does the HRTY008 retain the factory reverse camera?
Reverse camera retention is not confirmed in the available supplier data for the HRTY008. Contact us to confirm before purchasing if reverse camera retention is required for your installation.
Is the HRTY008 compatible with all 2015-2020 Toyota Hilux variants?
The HRTY008 is specified for the Toyota Hilux AN120/AN130 series (2015-2020). Contact us to confirm compatibility with your specific variant or factory audio configuration before purchasing.
