Description
Stinger HRTY009 Plug and Play Radio Replacement Kit for Toyota Estima XR50 Non-Amplified Models 2006-2016
The HRTY009 is a vehicle-specific plug and play radio replacement kit from Stinger, designed for the Toyota Estima XR50 (2006-2016) with a non-amplified factory audio system. It includes reverse camera retention and a steering wheel control adaptor, with an OEM-grade silver fascia panel supporting both 2DIN and 200mm radio installation. Not compatible with HD Audio or DSP amplified Estima XR50 variants.
Product overview
The Stinger HRTY009 is designed exclusively for Toyota Estima XR50 models without the factory HD Audio Package or DSP amplified audio system. It connects via Toyota 10-pin plus 6-pin and 20-pin connectors to a standard ISO harness, providing a plug and play installation without cutting or splicing factory wiring. For Estima XR50 models fitted with the factory amplified system, see the HRTY010 instead.
The kit includes a steering wheel audio control adaptor to retain the factory steering wheel audio controls, and a reverse camera retention module to keep the factory rear reverse camera active with the new aftermarket head unit. Note that the following factory features cannot be retained when replacing the factory radio: the Parking Assist system, optional side and front-facing cameras, and the optional roof mount screen.

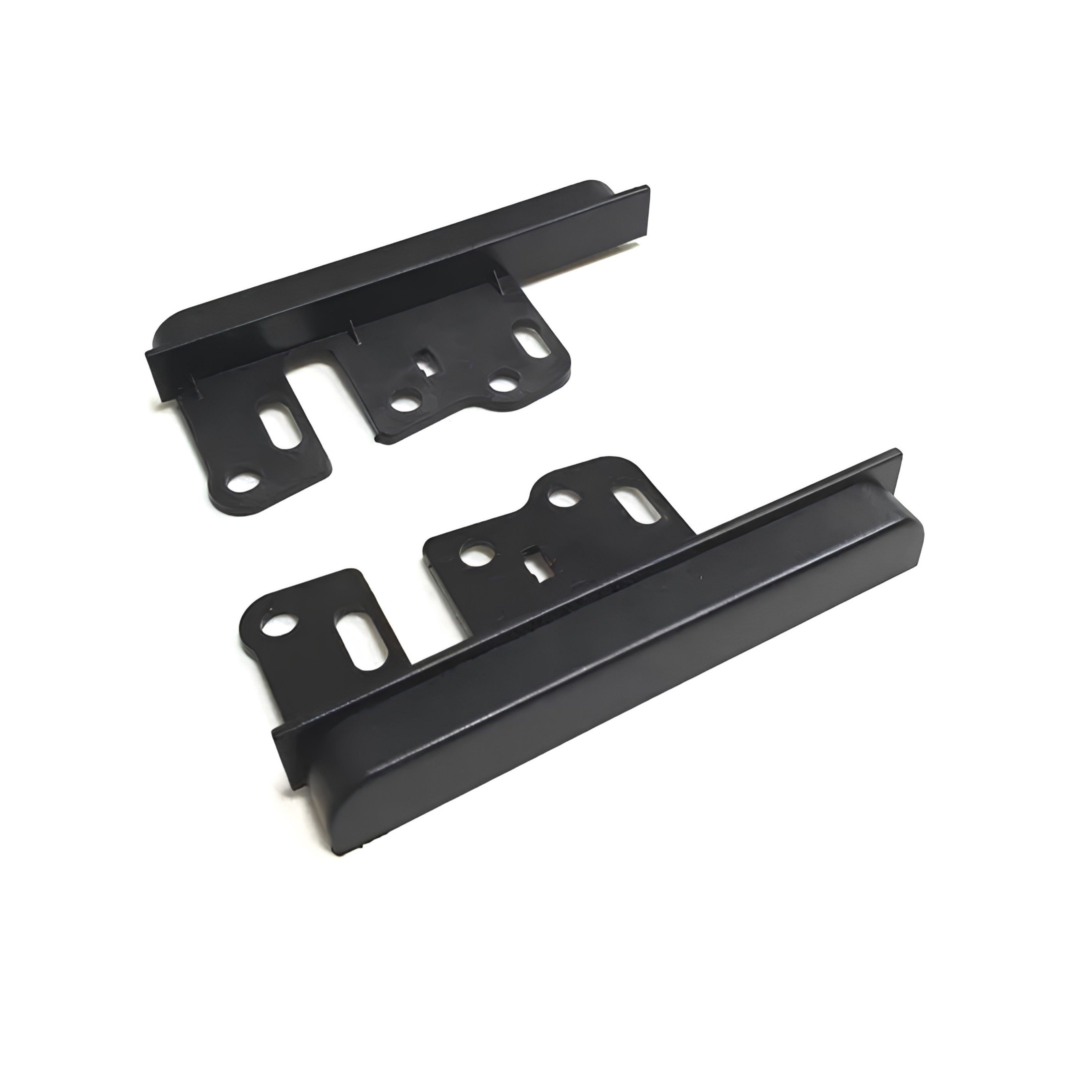

The OEM-grade silver fascia panel supports standard 2DIN radio installation using included adaptors, as well as 200mm single DIN radios. The kit uses the vehicle's existing factory mounting brackets, with no additional mounting hardware required.
Features and benefits
Plug and play via Toyota 10-pin, 6-pin, and 20-pin connectors: Connects directly from the factory Toyota connectors to a standard ISO harness, allowing installation without cutting or splicing factory vehicle wiring.

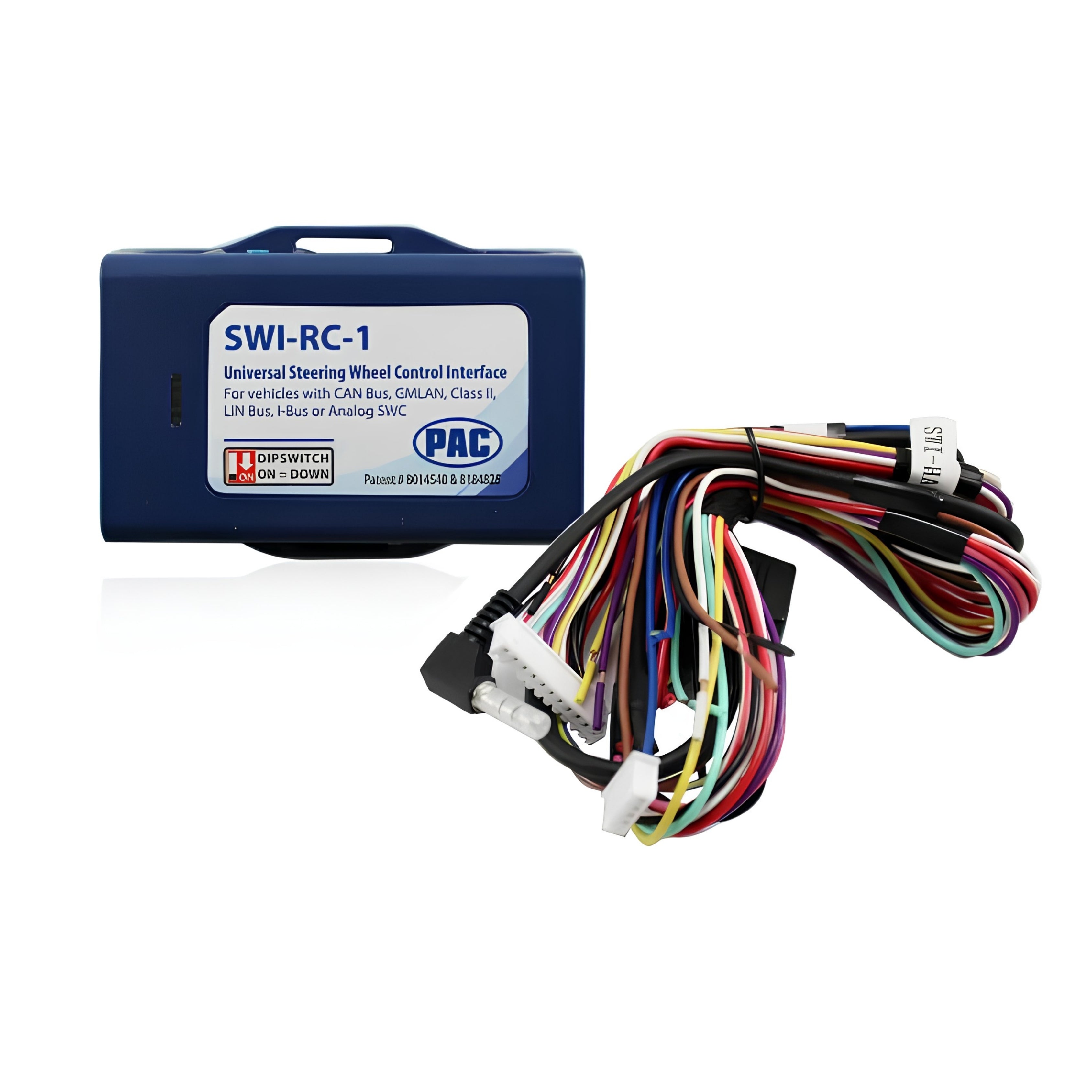

Steering wheel control retention included: The included steering wheel audio control adaptor retains the factory steering wheel audio controls through the aftermarket head unit installation.

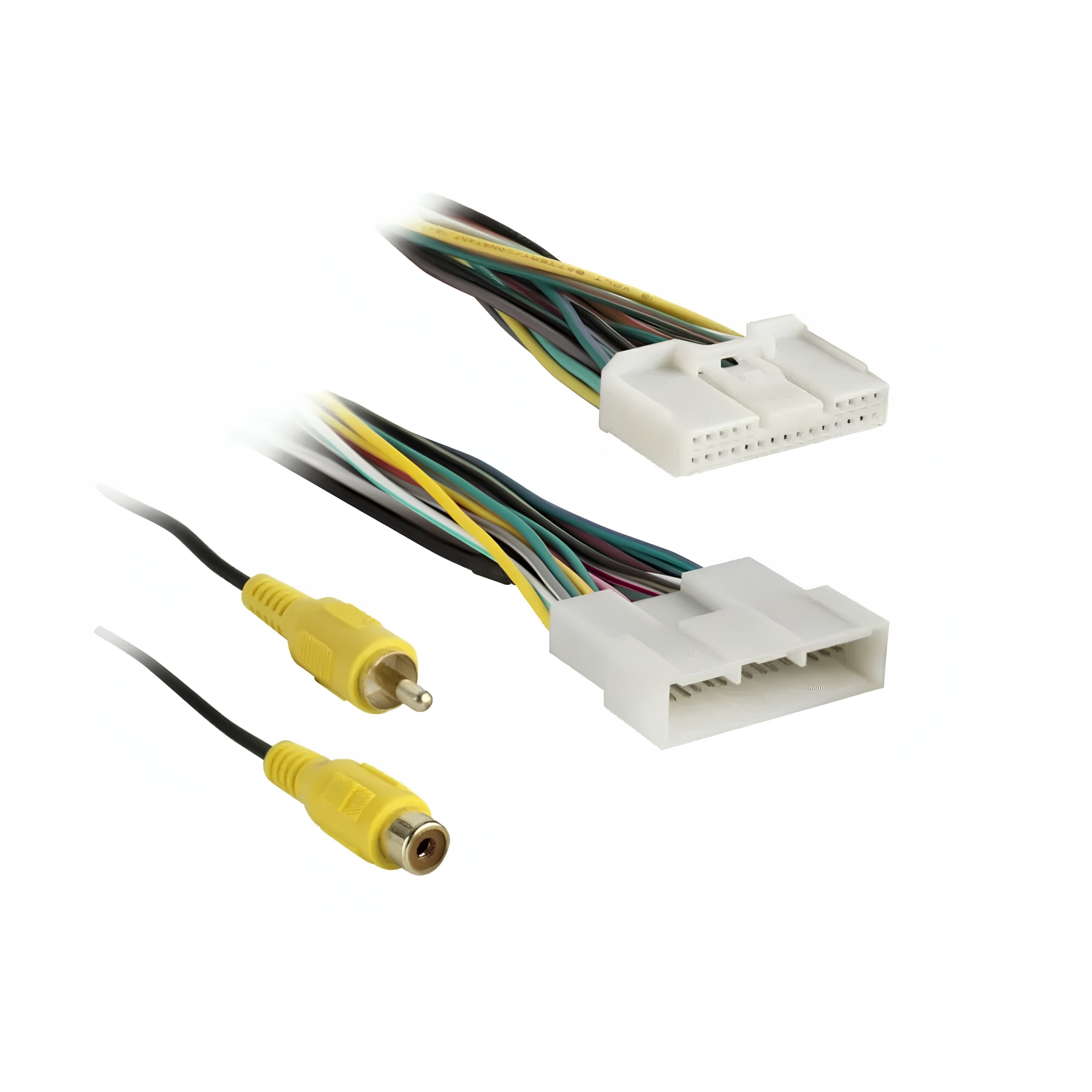

Factory reverse camera retention included: The included retention module retains the factory rear reverse camera with the new aftermarket head unit. Note that optional side-facing and front-facing cameras are not retained.
OEM-grade silver fascia panel: The silver OEM-grade fascia panel matches the Estima XR50 interior finish and supports both standard 2DIN radio installation using included adaptors and 200mm single DIN radios.
Uses factory mounting brackets: The HRTY009 uses the Toyota Estima XR50's existing factory radio mounting brackets, removing the need for additional mounting hardware.
2DIN and 200mm radio compatibility: The fascia supports standard 2DIN radio installation via included adaptors, as well as 200mm single DIN radios, providing flexibility in head unit selection.

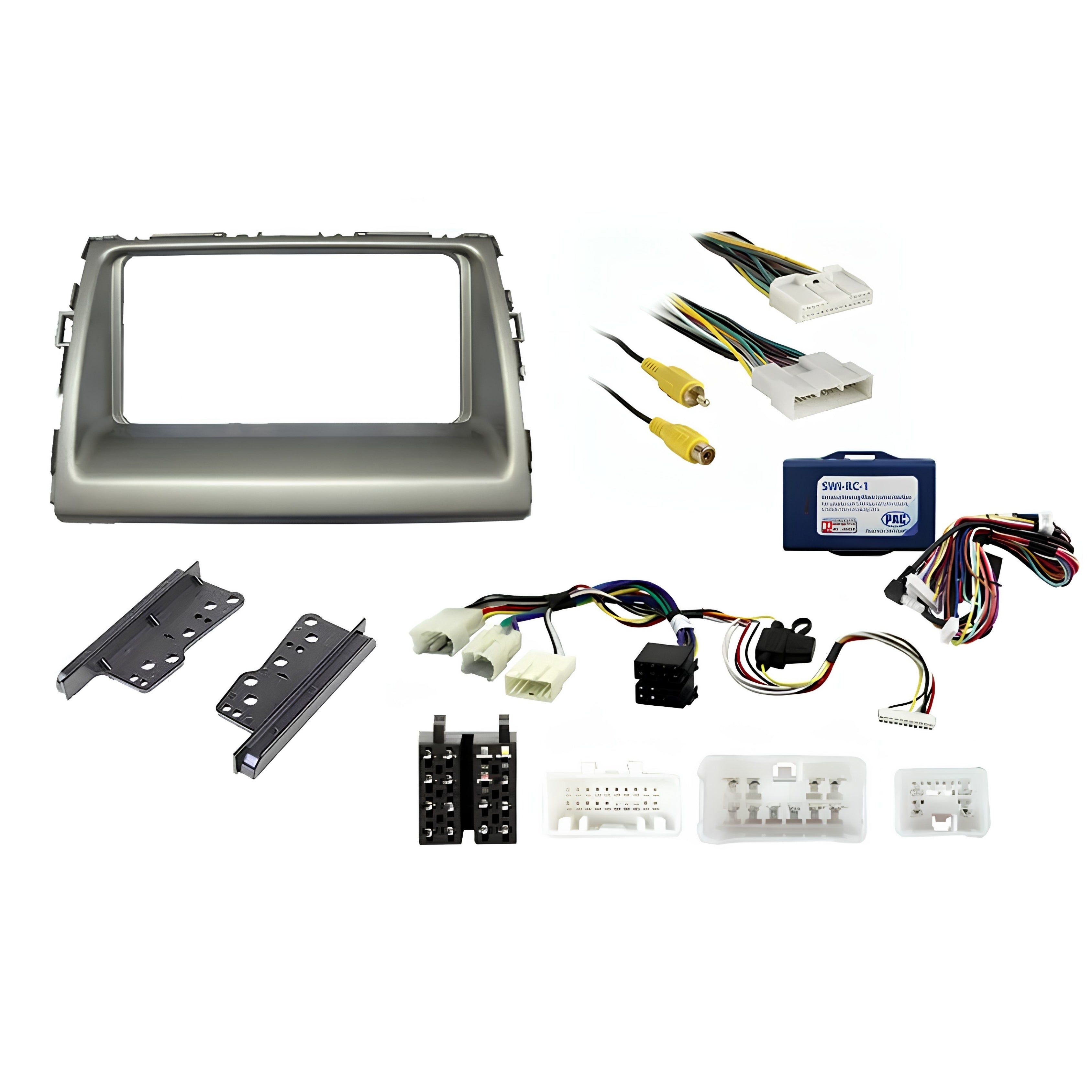

What's in the box
- OEM-grade 2DIN radio fascia panel (silver)
- Steering wheel audio control adaptor
- Reverse camera retention module
Technical specs
| Specification |
Detail |
| SKU |
HRTY009 |
| Brand |
Stinger |
| Colour |
Silver |
| Plug and Play |
Yes, factory connector to standard ISO |
| Vehicle Plug Style |
Toyota 10-pin + 6-pin, 20-pin Toyota |
| Compatible Audio System |
Non-amplified only (not compatible with HD Audio or DSP) |
| Radio Size Compatibility |
2DIN (with included adaptors) or 200mm |
| Steering Wheel Control Retention |
Yes, adaptor included |
| Reverse Camera Retention |
Yes, rear camera only |
| Parking Assist Retention |
No, not retained |
| Side and Front Camera Retention |
No, not retained |
| Roof Mount Screen Retention |
No, not retained |
| Mounting Brackets Included |
No, uses factory brackets |
| Antenna Adaptor Included |
No |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Estima |
XR50, non-amplified models only |
2006-2016 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included adaptor |
| Reverse Camera (rear) |
Yes, via included retention module |
| Side and Front Cameras |
No, not retained |
| Parking Assist System |
No, not retained |
| Roof Mount Screen |
No, not retained |
Frequently asked questions
How do I confirm my Toyota Estima XR50 has a non-amplified audio system?
The HRTY009 suits Estima XR50 models without the factory HD Audio Package or DSP amplified system. If your vehicle has a factory amplifier or premium audio upgrade, the HRTY009 is not compatible. Check your vehicle's factory option list or contact us to confirm before purchasing. For amplified Estima XR50 models, see the HRTY010.
What factory features cannot be retained after installing the HRTY009?
The Parking Assist system, optional side-facing cameras, optional front-facing cameras, and the optional roof mount screen cannot be retained when the factory radio is replaced using the HRTY009. Only the rear reverse camera is retained via the included retention module.
Will my factory reverse camera still work after installing the HRTY009?
Yes, but only the rear reverse camera is retained. Optional side-facing and front-facing cameras are not retained. Contact us if camera retention requirements are critical to your installation before purchasing.
Does the HRTY009 fit both 2DIN and 200mm radios?
Yes. The included OEM-grade fascia panel supports standard 2DIN radio installation using the included adaptors, as well as 200mm single DIN radios, providing flexibility across a wide range of aftermarket head unit choices.
Is an antenna adaptor included with the HRTY009?
No. An antenna adaptor is not included. Depending on your aftermarket head unit's antenna connector type, an additional Toyota antenna adaptor will likely be required and should be sourced separately. Contact us for guidance on compatible antenna adaptors for the Toyota Estima XR50.
