Description
Stinger HRTY010 Plug and Play Radio Replacement Kit for Toyota Estima XR50 Amplified HD Audio DSP Models 2006-2016
The HRTY010 is a vehicle-specific plug and play radio replacement kit from Stinger, designed for the Toyota Estima XR50 (2006-2016) fitted with the factory HD Audio Package or DSP amplified audio system. It includes factory amplifier retention, rear reverse camera retention, and a steering wheel control adaptor, with an OEM-grade silver fascia panel supporting both 2DIN and 200mm radio installation. Not compatible with non-amplified Estima XR50 variants.
Product overview
The Stinger HRTY010 is the amplified-system counterpart to the HRTY009, built specifically for Toyota Estima XR50 models fitted with the factory HD Audio Package or DSP Audio System. It connects via Toyota 20-pin and 24-pin connectors to a standard ISO harness, providing a plug and play installation without cutting or splicing factory wiring. The kit is not compatible with non-amplified Estima XR50 variants. For non-amplified models, see the HRTY009.
To confirm whether your Estima XR50 has the amplified system: look for the DSP icon in the bottom left corner of the OE screen when it is displaying CD, Radio, or Mini Disc mode. If the DSP icon is visible, the HRTY010 is the correct kit. If no DSP icon is present, the vehicle has a non-amplified system and the HRTY009 should be used instead.
The included factory amplifier retention module keeps the factory amplified audio system active with the new aftermarket head unit. The factory rear reverse camera is also retained via an included retention module. Note that the following factory features cannot be retained when replacing the factory radio: the Parking Assist system, optional side and front-facing cameras, and the optional roof mount screen.
Features and benefits
Plug and play via Toyota 20-pin and 24-pin connectors: Connects directly from the factory Toyota 20-pin and 24-pin connectors to a standard ISO harness, allowing installation without cutting or splicing factory vehicle wiring.
Factory amplifier retention included: The included factory amplifier retention module keeps the factory HD Audio or DSP amplified system active and functioning with the new aftermarket head unit, preserving factory audio performance.
Factory reverse camera retention included: The included retention module retains the factory rear reverse camera with the new aftermarket head unit. Note that optional side-facing and front-facing cameras are not retained.
Steering wheel control retention included: The included steering wheel audio control adaptor retains the factory steering wheel audio controls through the aftermarket head unit installation.
OEM-grade silver fascia panel: The silver OEM-grade fascia panel matches the Estima XR50 interior finish and supports both standard 2DIN radio installation using included adaptors and 200mm single DIN radios.

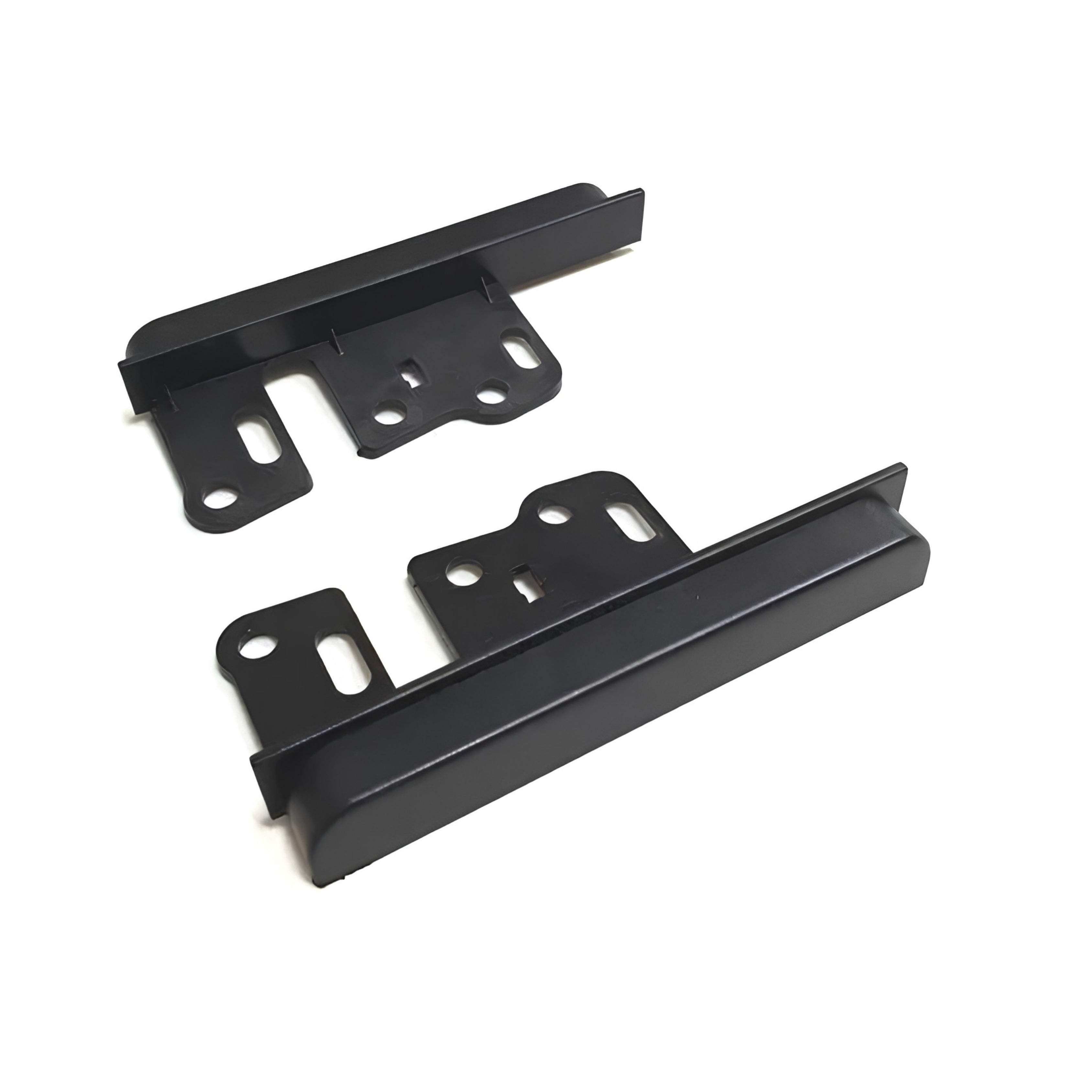

Uses factory mounting brackets: The HRTY010 uses the Toyota Estima XR50's existing factory radio mounting brackets, removing the need for additional mounting hardware.
2DIN and 200mm radio compatibility: The fascia supports standard 2DIN radio installation via included adaptors, as well as 200mm single DIN radios, providing flexibility in head unit selection.

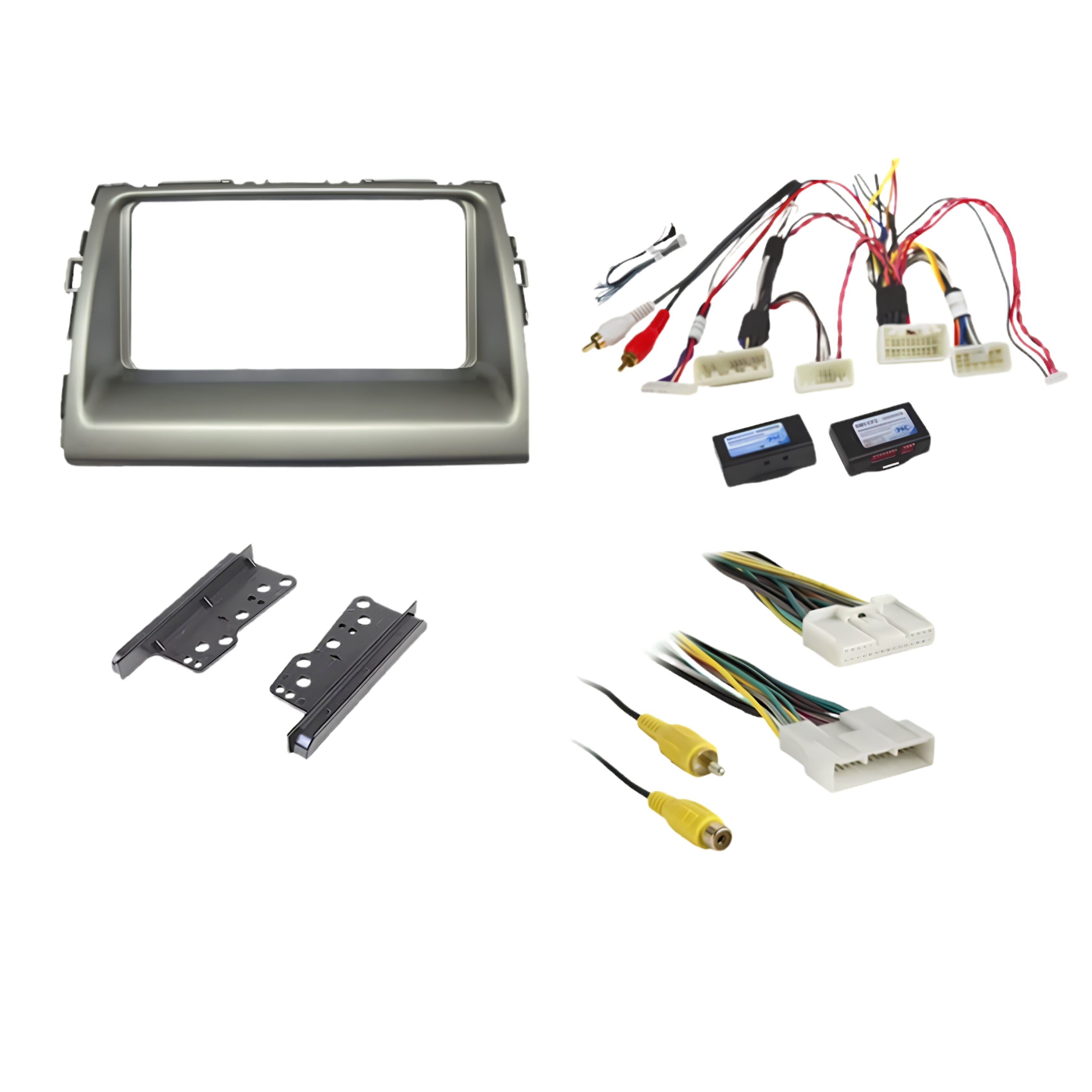

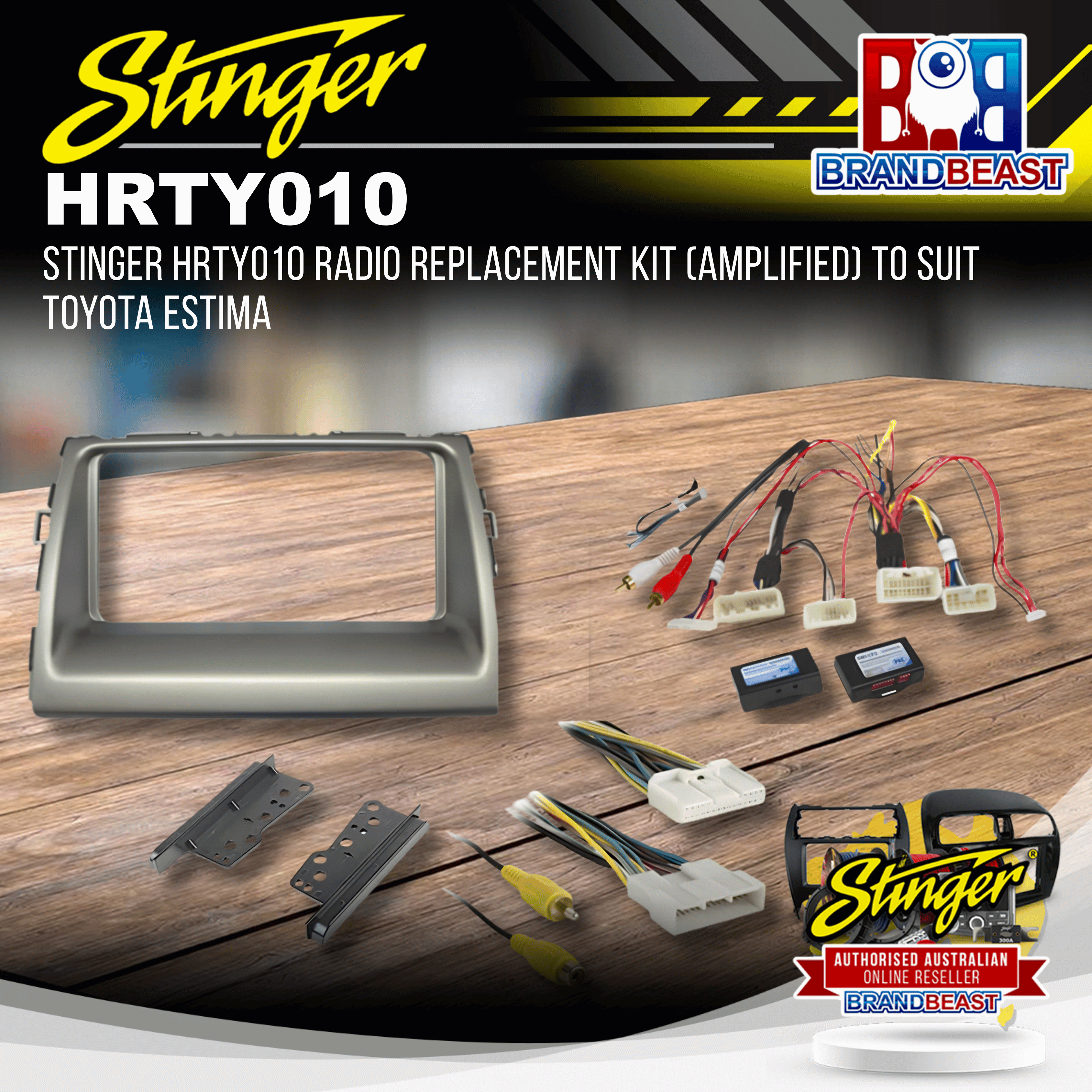

What's in the box
- OEM-grade 2DIN radio fascia panel (silver)
- Steering wheel audio control adaptor

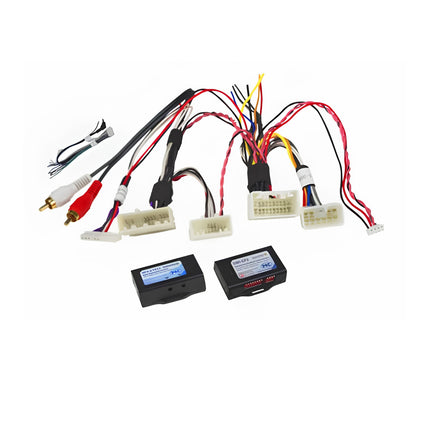

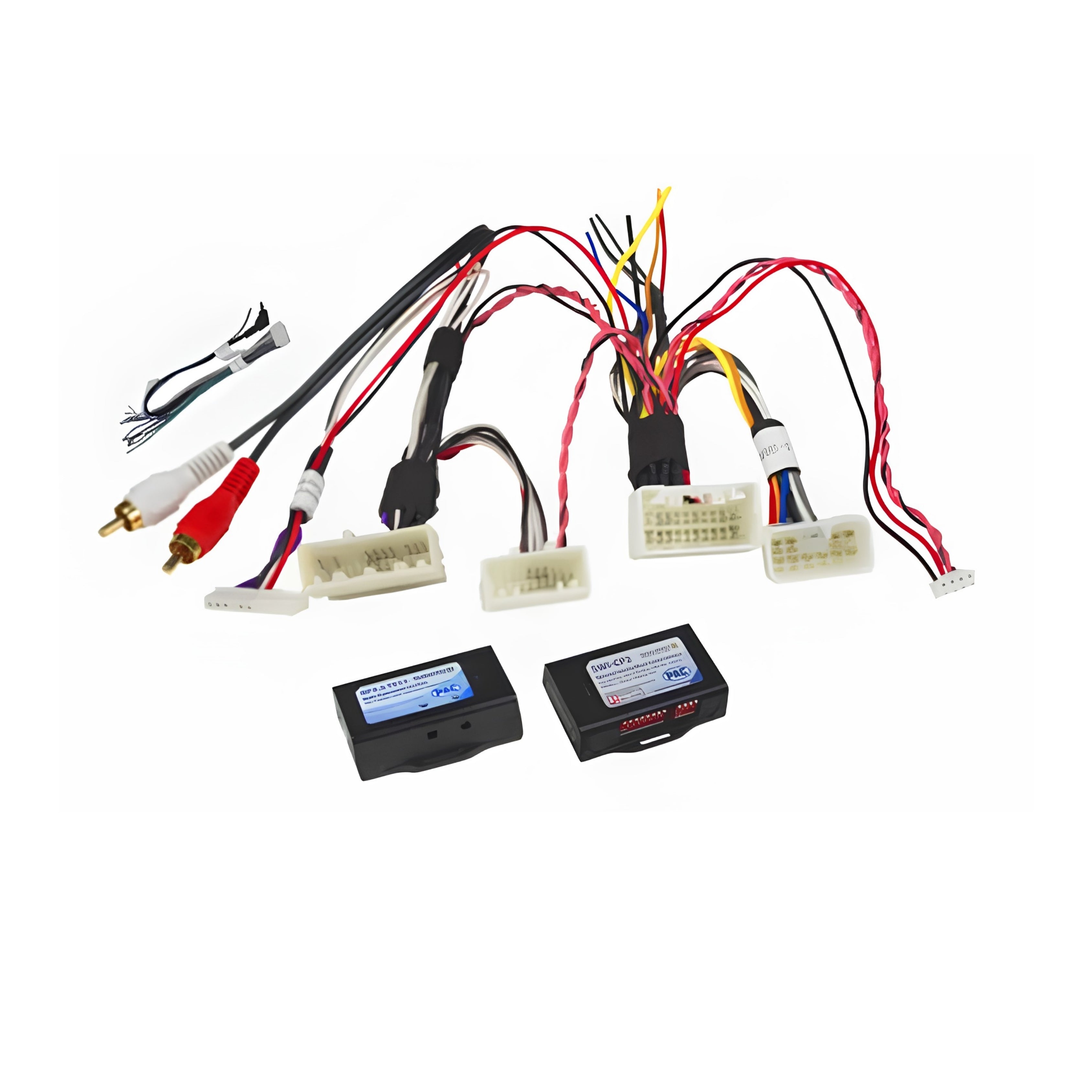

- Factory amplifier retention module

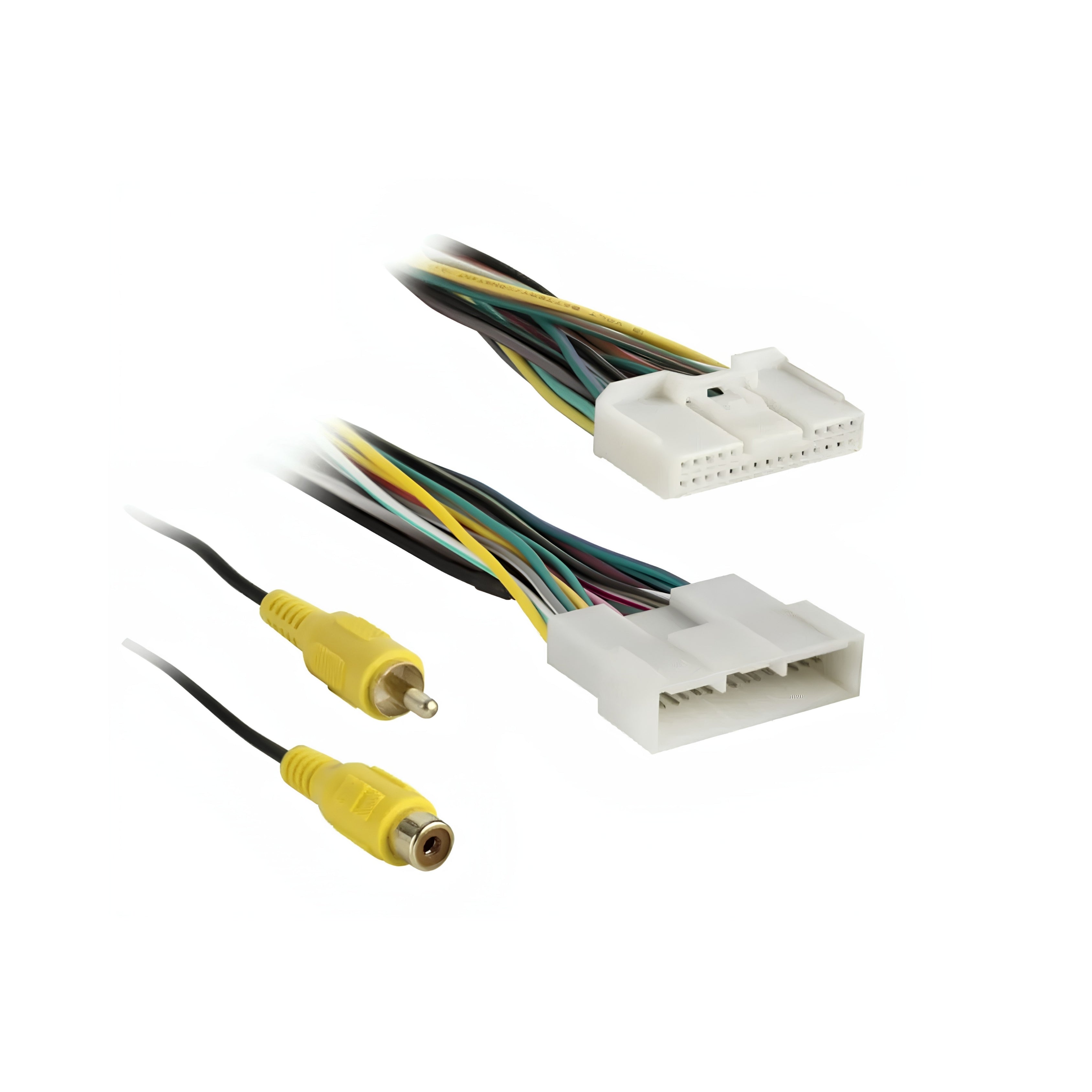

- Factory reverse camera retention module
Technical specs
| Specification |
Detail |
| SKU |
HRTY010 |
| Brand |
Stinger |
| Colour |
Silver |
| Plug and Play |
Yes, factory connector to standard ISO |
| Vehicle Plug Style |
20-pin Toyota and 24-pin Toyota |
| Compatible Audio System |
Amplified only (HD Audio Package / DSP) |
| Radio Size Compatibility |
2DIN (with included adaptors) or 200mm |
| Steering Wheel Control Retention |
Yes, adaptor included |
| Factory Amplifier Retention |
Yes, retention module included |
| Reverse Camera Retention |
Yes, rear camera only |
| Parking Assist Retention |
No, not retained |
| Side and Front Camera Retention |
No, not retained |
| Roof Mount Screen Retention |
No, not retained |
| Mounting Brackets Included |
No, uses factory brackets |
| Antenna Adaptor Included |
No |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Estima |
XR50, HD Audio / DSP amplified models only |
2006-2016 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included adaptor |
| Factory Amplifier |
Yes, via included retention module |
| Reverse Camera (rear) |
Yes, via included retention module |
| Side and Front Cameras |
No, not retained |
| Parking Assist System |
No, not retained |
| Roof Mount Screen |
No, not retained |
Frequently asked questions
How do I confirm my Toyota Estima XR50 has the amplified HD audio system?
Look for the DSP icon in the bottom left corner of the OE screen while it is displaying CD, Radio, or Mini Disc mode. If the DSP icon is visible, your vehicle has the amplified system and the HRTY010 is the correct kit. If no DSP icon is present, your vehicle has a non-amplified system and the HRTY009 should be used instead.
What factory features cannot be retained after installing the HRTY010?
The Parking Assist system, optional side-facing cameras, optional front-facing cameras, and the optional roof mount screen cannot be retained when the factory radio is replaced using the HRTY010. Only the rear reverse camera is retained via the included retention module.
Will my factory amplifier still work after installing the HRTY010?
Yes. The HRTY010 includes a factory amplifier retention module that keeps the factory HD Audio or DSP amplified system active and functioning with the new aftermarket head unit.
Does the HRTY010 fit both 2DIN and 200mm radios?
Yes. The included OEM-grade fascia panel supports standard 2DIN radio installation using the included adaptors, as well as 200mm single DIN radios, providing flexibility across a wide range of aftermarket head unit choices.
Is an antenna adaptor included with the HRTY010?
No. An antenna adaptor is not included. Depending on your aftermarket head unit's antenna connector type, an additional Toyota antenna adaptor may be required and should be sourced separately. Contact us for guidance on compatible antenna adaptors for the Toyota Estima XR50.
