Description
Stinger HRVW001 Complete Plug and Play Radio Replacement Kit for Volkswagen 2005 to 2015 with SWC Retention Single and Double DIN Fascia and Dual Diversity Antenna Adaptor
The HRVW001 from Stinger is a complete plug and play radio replacement kit for confirmed Volkswagen vehicles from 2005 to 2015, supplying every component required for a professional aftermarket single DIN or double DIN head unit installation. The kit includes the Metra MT99-9011 single and double DIN dash kit, ST27AA25 dual diversity FAKRA antenna adaptor, SWI-VW02 ConnectPRO plug and play interface, vehicle harness, and installation manuals. AUX and USB retention are not included. The head unit is not included. Note that the Dynaudio Digital Amplified System is not retained by this kit.
Product overview
The HRVW001 is designed to simplify the Volkswagen radio replacement process by supplying all required installation components in a single kit. The SWI-VW02 ConnectPRO interface retains factory steering wheel audio controls and converts CAN vehicle commands to analogue outputs including 12V accessory output, reverse output trigger, park brake output signal, tachometer output signal, speed signal output (VSS), and illumination output. The factory basic amplified system is also retained.
Important compatibility notes: The Dynaudio Digital Amplified System is not retained by this kit. CAN output functionality is only available if the relevant signal is on the vehicle network. Confirm your specific Volkswagen model, variant, and factory audio system configuration before ordering. AUX and USB retention are not included in this kit.
Features and benefits
Complete all-in-one installation kit for confirmed Volkswagen models 2005 to 2015: Supplies every component required for a professional aftermarket single DIN or double DIN head unit installation in confirmed Volkswagen models in a single kit purchase.
Plug and play: Factory connector to standard ISO for straightforward installation without cutting or splicing factory wiring.
Steering wheel control retention: The SWI-VW02 ConnectPRO interface retains factory steering wheel audio controls with the ability to customise button assignments to suit the chosen aftermarket head unit.
CAN vehicle command conversion: Converts CAN vehicle commands to analogue outputs including 12V accessory, reverse trigger, park brake, tachometer, speed signal (VSS), and illumination. CAN output functionality requires the relevant signal to be present on the vehicle network.
Factory basic amplified system retained: The factory basic amplified system is retained after installation. Note that the Dynaudio Digital Amplified System is not retained by this kit.
Dual diversity FAKRA antenna adaptor included: The ST27AA25 dual diversity FAKRA antenna adaptor retains the factory antenna connection with the aftermarket head unit.
Single and double DIN fascia included: The Metra MT99-9011 single and double DIN dash kit allows installation of either a single DIN or double DIN head unit in place of the factory head unit.
AUX and USB retention not included: AUX and USB retention are not included in the HRVW001 kit and must be sourced separately if factory connectivity is required.

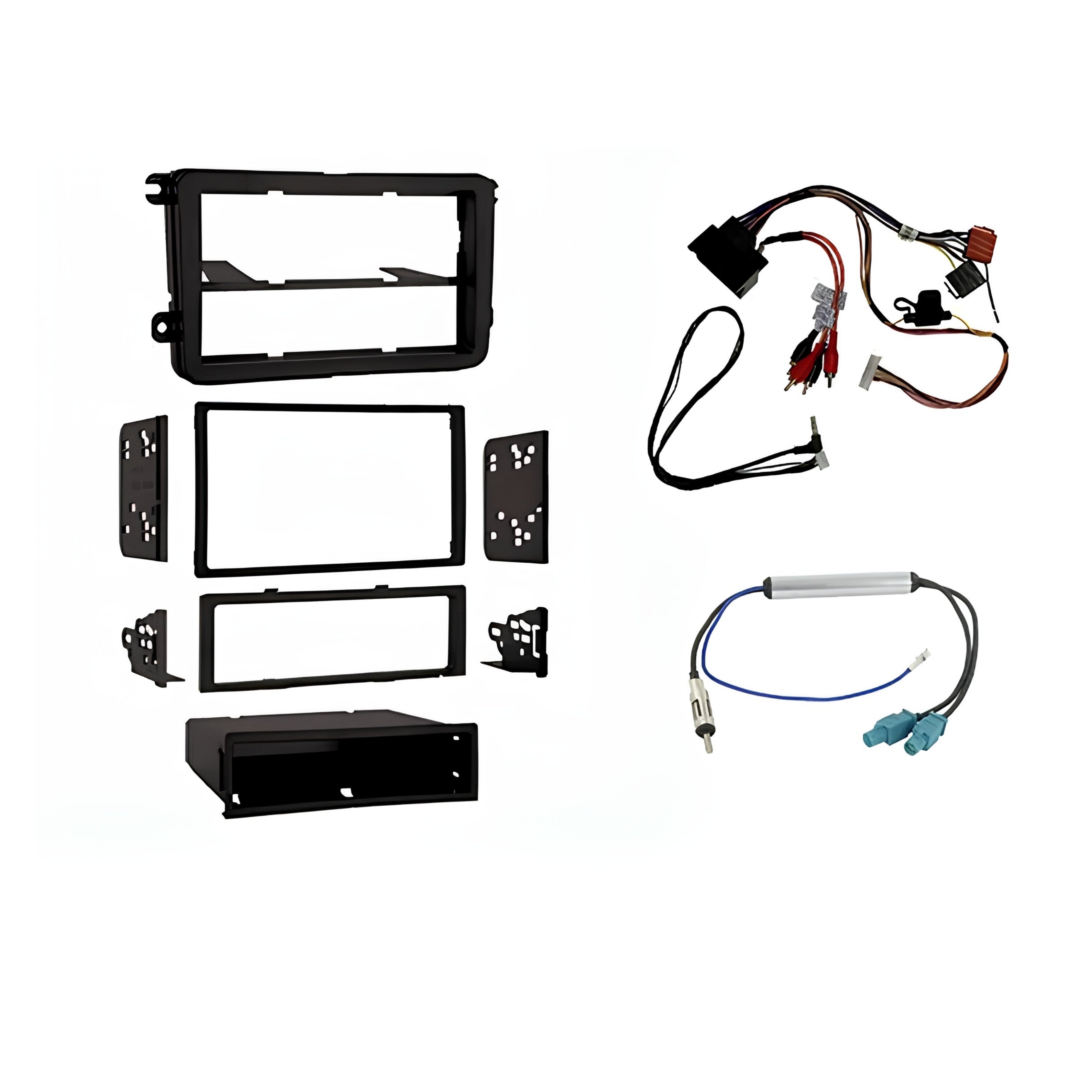

What's in the box

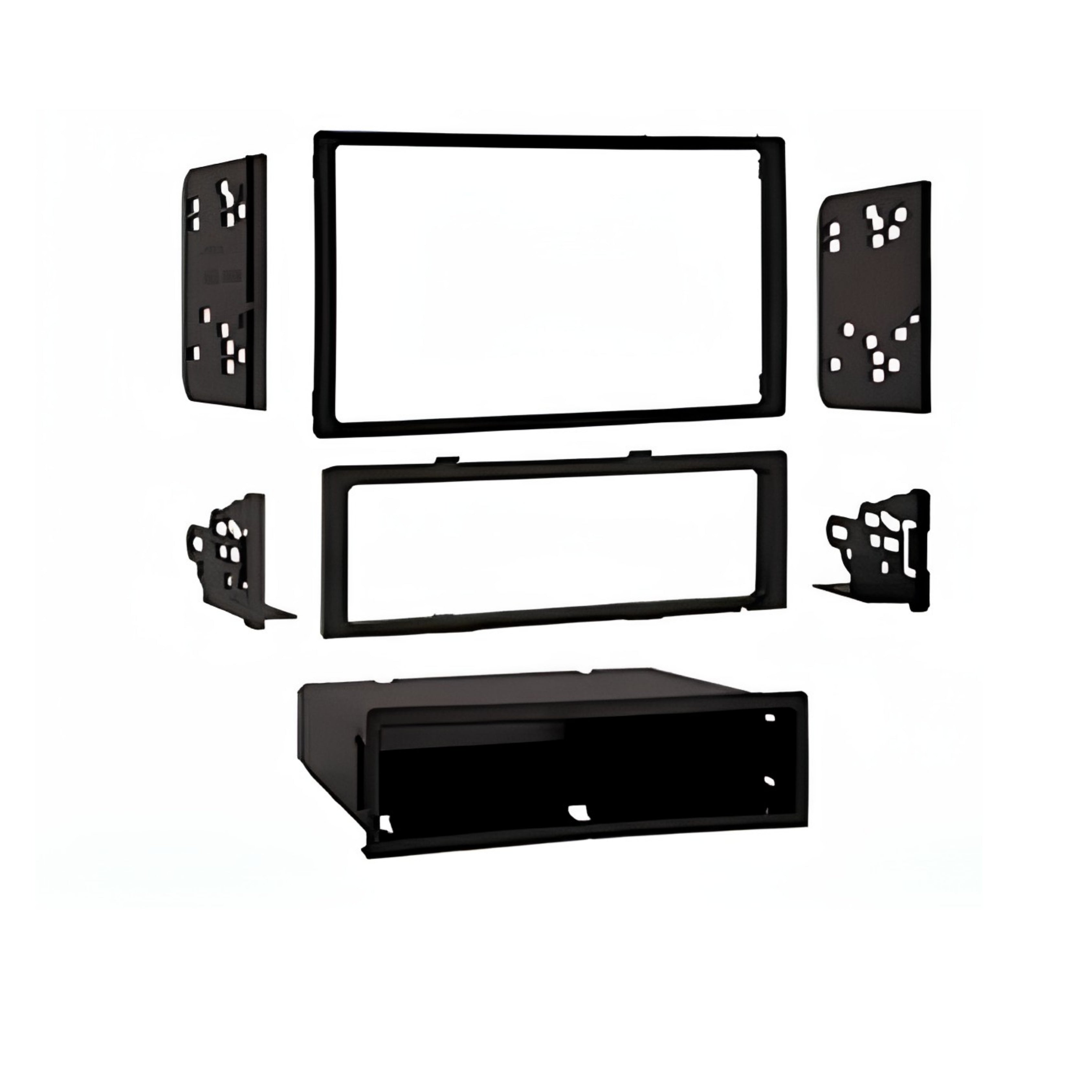

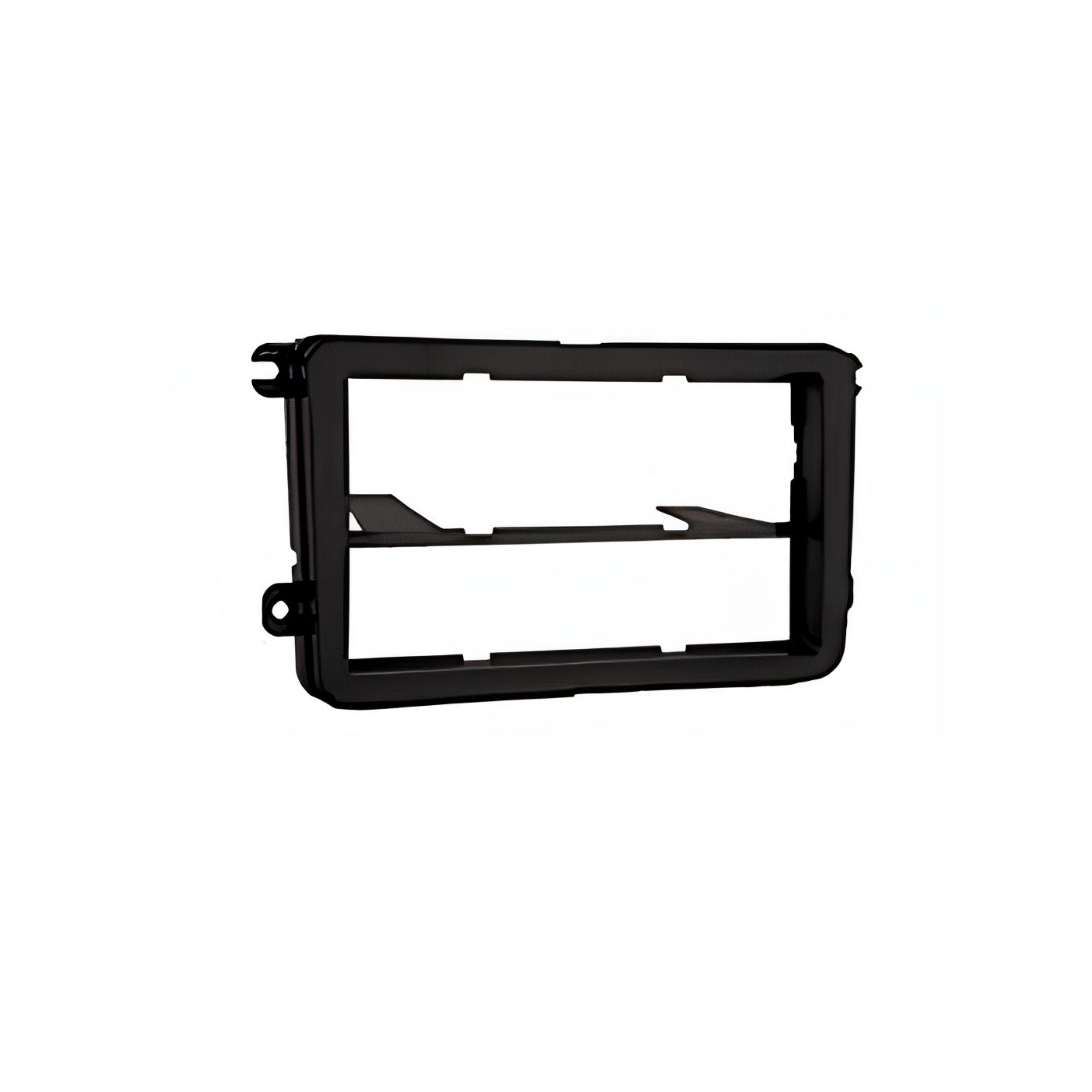

- MT99-9011 Metra Black Single and Double DIN Dash Kit

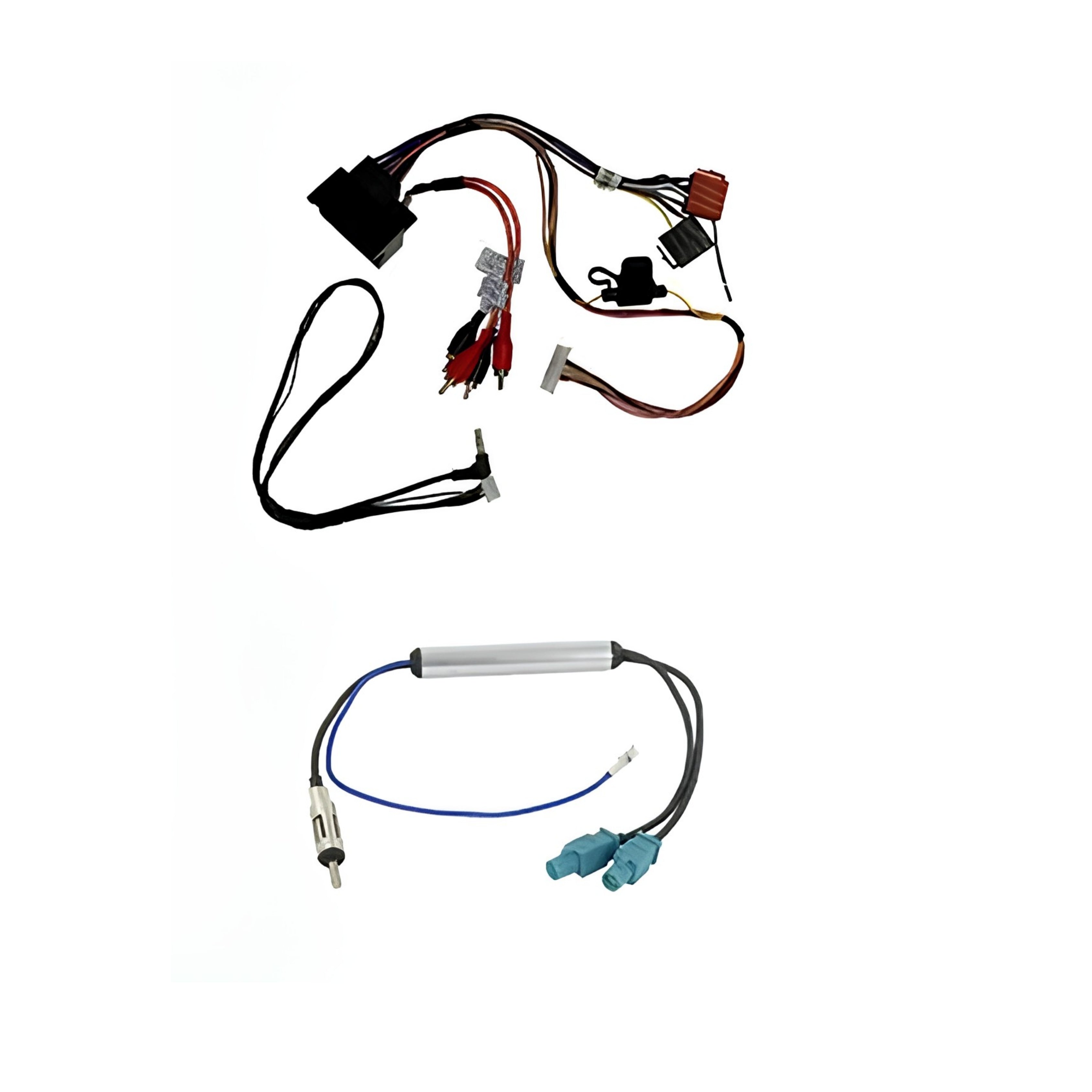

- ST27AA25 Stinger Australia Dual Diversity FAKRA Antenna Adaptor
- SWI-VW02 ConnectPRO Plug and Play Interface
- Vehicle Harness
- Installation Manuals
Technical specs
| Specification |
Detail |
| SKU |
HRVW001 |
| Brand |
Stinger |
| Compatible Head Unit Format |
Single DIN and Double DIN |
| Finish |
Black |
| Plug and Play |
Yes, factory connector to standard ISO |
| Mounting Brackets |
Included |
| Antenna Adaptor |
Included (ST27AA25 dual diversity FAKRA) |
| Steering Wheel Controls |
Retained via SWI-VW02 ConnectPRO interface |
| AUX Retention |
Not included |
| USB Retention |
Not included |
| Factory Basic Amplifier |
Retained |
| Dynaudio Digital Amplifier |
Not retained |
| Head Unit |
Not included |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Audio Controls |
Yes, customisable via SWI-VW02 |
| Factory Basic Amplified System |
Yes |
| Dynaudio Digital Amplified System |
Not retained |
| Factory Antenna Connection |
Yes, via ST27AA25 dual diversity FAKRA adaptor |
| 12V Accessory Output |
Yes, via CAN conversion (if on vehicle network) |
| Reverse Output Trigger |
Yes, via CAN conversion (if on vehicle network) |
| Park Brake Output Signal |
Yes, via CAN conversion (if on vehicle network) |
| Tachometer Output Signal |
Yes, via CAN conversion (if on vehicle network) |
| Speed Signal Output (VSS) |
Yes, via CAN conversion (if on vehicle network) |
| Illumination Output |
Yes, via CAN conversion (if on vehicle network) |
| AUX Input |
Not included |
| USB Input |
Not included |
Compatible with
This kit is confirmed for the following Volkswagen vehicles. Confirm your specific model, variant, and factory audio system configuration before ordering.
| Make |
Model |
Variant |
Years |
| Volkswagen |
Amarok |
2H Series |
2011 - 2016 |
| Volkswagen |
Caddy |
2K Series |
2005 - 2015 |
| Volkswagen |
Eos |
1F chassis |
2005 - 2013 |
| Volkswagen |
Golf (incl GTI) |
Mk5 |
2005 - 2008 |
| Volkswagen |
Golf (incl GTI) |
Mk6 |
2009 - 2013 |
| Volkswagen |
Jetta |
A5-A6 Series |
2005 - 2015 |
| Volkswagen |
Passat |
B6-B7 Series |
2005 - 2014 |
| Volkswagen |
Polo |
6R Series |
2010 - 2014 |
| Volkswagen |
Scirocco |
3rd Generation |
2008 - 2014 |
| Volkswagen |
Tiguan |
5N Series |
2007 - 2016 |
| Volkswagen |
Transporter (incl Multivan and Caravelle) |
T5 Series |
2010 - 2015 |
Frequently asked questions
Does the HRVW001 retain the Dynaudio Digital Amplified System?
No. The HRVW001 does not retain the Dynaudio Digital Amplified System. It retains the factory basic amplified system only. Contact us before ordering if your Volkswagen is fitted with the Dynaudio system to confirm the correct installation solution for your vehicle.
Does the HRVW001 retain factory steering wheel controls?
Yes. The SWI-VW02 ConnectPRO interface retains factory steering wheel audio controls with the ability to customise button assignments to suit the chosen aftermarket head unit.
Are AUX and USB inputs retained by the HRVW001?
No. AUX and USB retention are not included in the HRVW001 kit. If factory AUX or USB connectivity is required, additional retention modules must be sourced separately. Contact us for guidance on the correct retention solution for your specific Volkswagen model.
What CAN outputs are available with the HRVW001?
The SWI-VW02 ConnectPRO interface converts CAN vehicle commands to analogue outputs including 12V accessory, reverse trigger, park brake, tachometer, speed signal (VSS), and illumination. CAN output functionality is only available if the relevant signal is present on the vehicle network. Not all outputs may be available in all confirmed Volkswagen models.
Is the head unit included in the HRVW001 kit?
No. The HRVW001 is a radio replacement kit that includes everything required to install an aftermarket single DIN or double DIN head unit, but the head unit itself must be purchased separately. Contact us for guidance on suitable head unit options for your specific Volkswagen model.
