Description

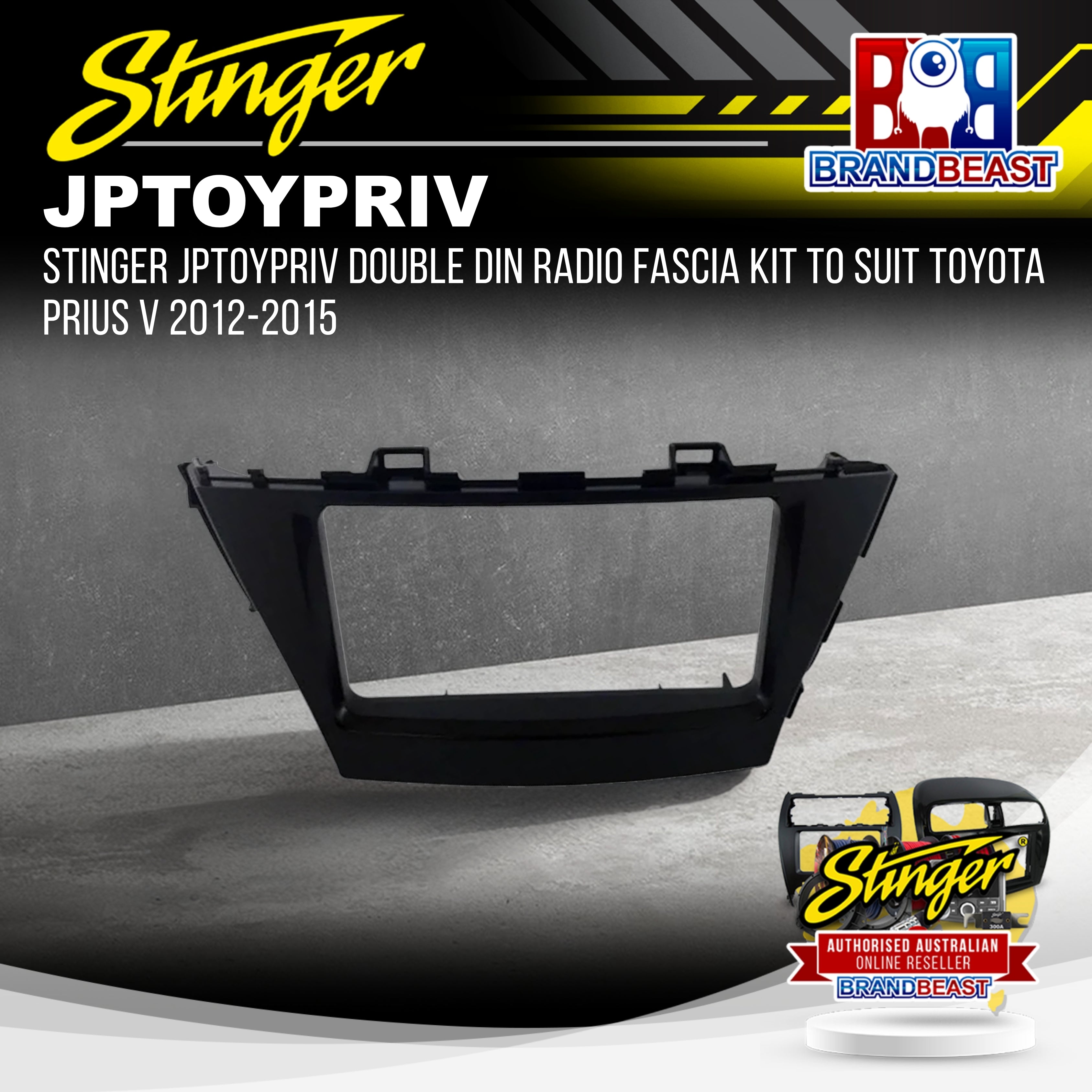

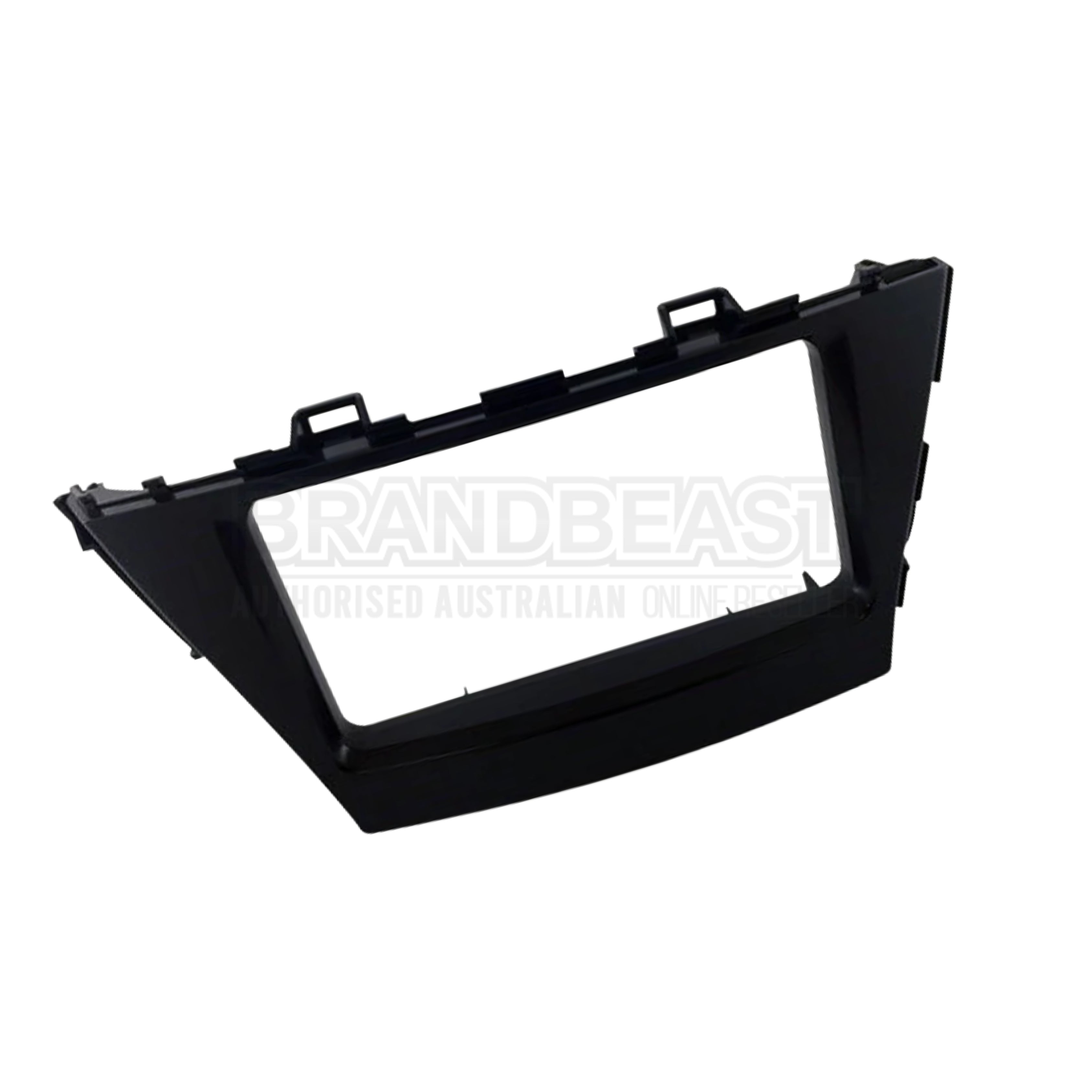

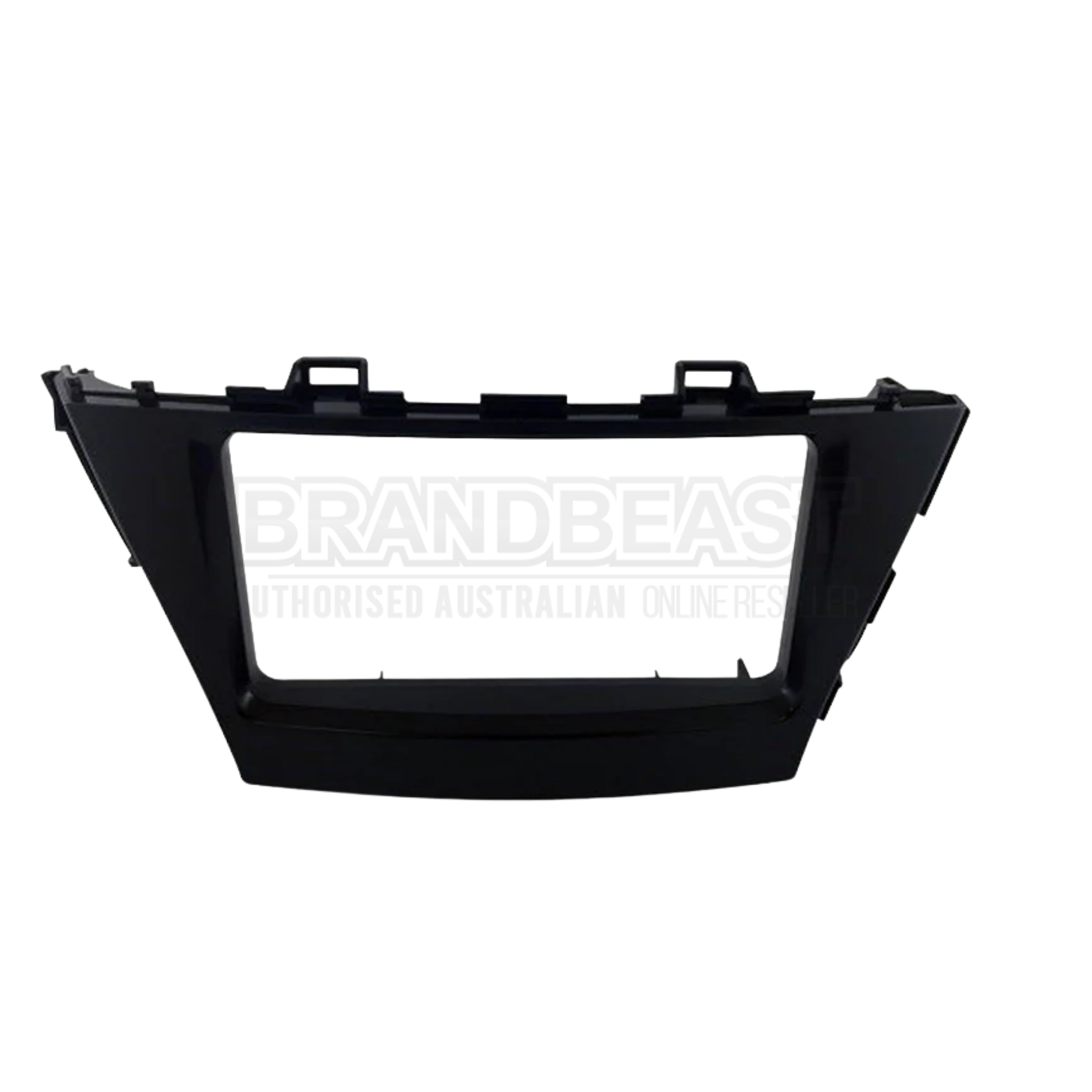

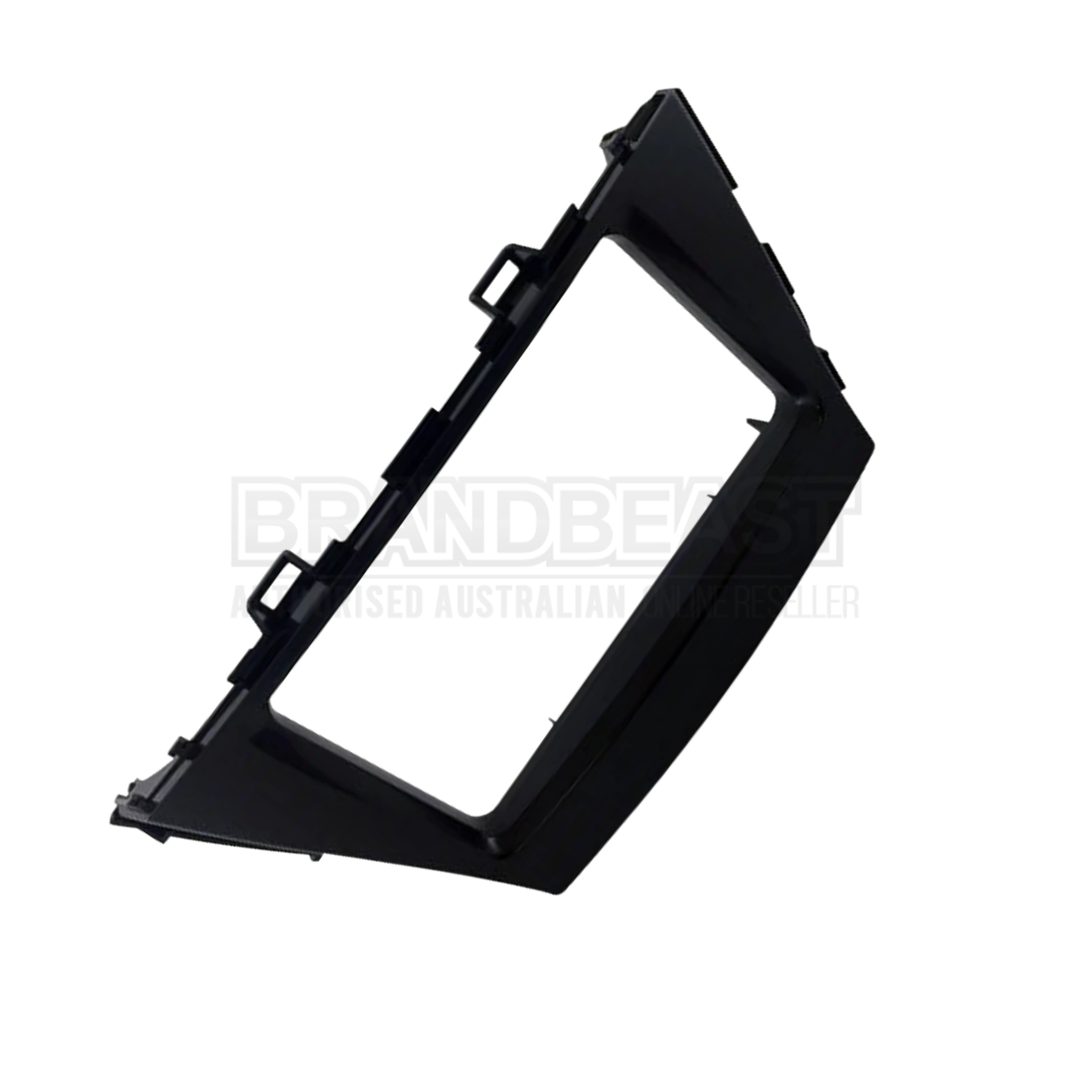

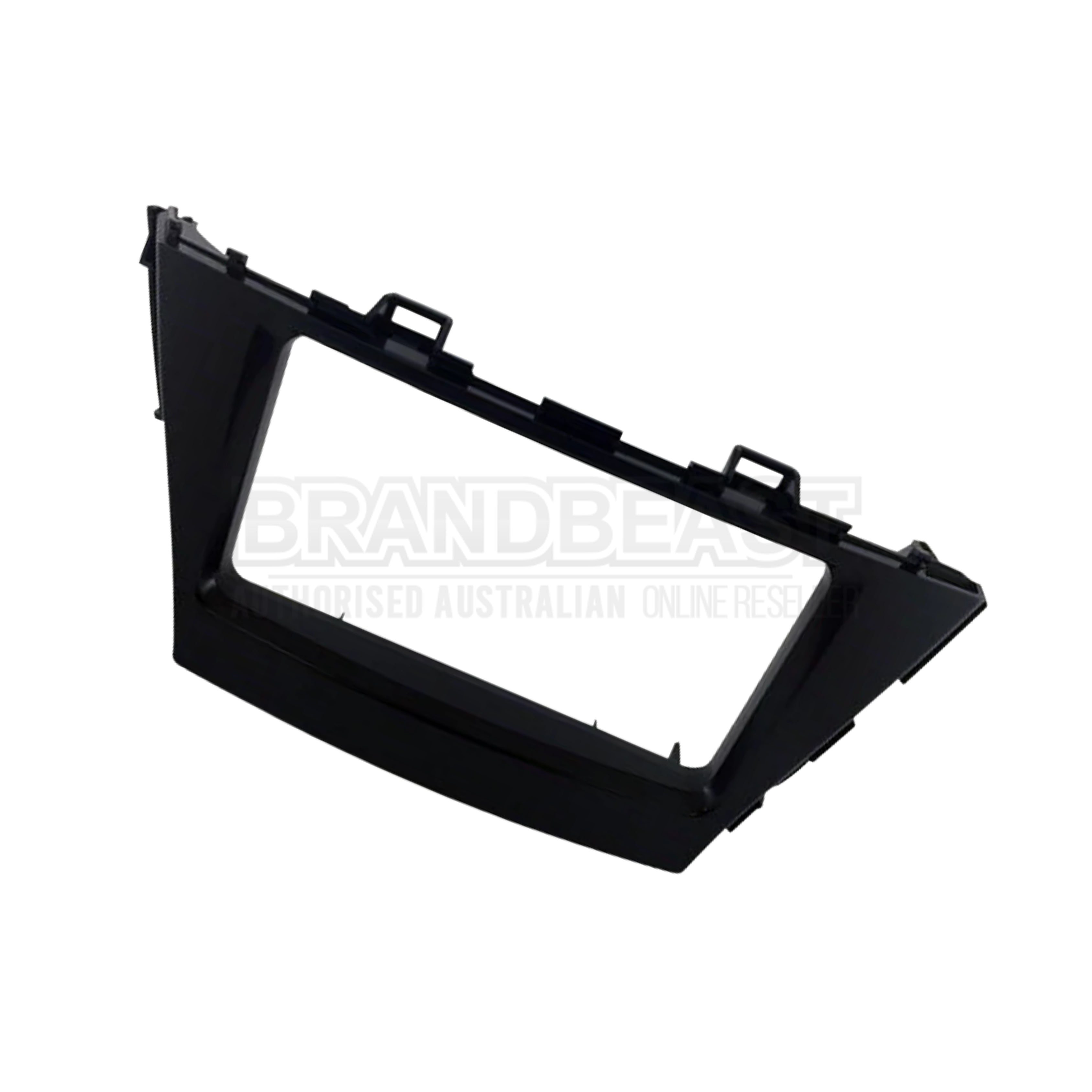

Stinger JPTOYPRIV JP Series Double DIN Fascia Kit for Toyota Prius V ZVW40R 2012 to 2015 in Black Natively Supporting 200mm Toyota Style Radio Installation
The JPTOYPRIV from Stinger is a JP Series Japanese OEM-grade black double DIN fascia kit designed for the Toyota Prius V ZVW40R Series from 2012 to 2015. The fascia natively supports 200mm Toyota-style radio installation. Standard double DIN head units can also be fitted, however the BKTOYBR adaptor is required for standard double DIN installation and is sold separately and not included in this kit. Mounting brackets are not included and the factory mounting position is used directly.
Product overview
The JPTOYPRIV is manufactured to Japanese OEM quality standards, providing a factory-matched fit and finish when installing an aftermarket head unit into the Toyota Prius V ZVW40R. The black finish complements the Prius V interior trim for a clean, factory-like appearance after installation.
The JPTOYPRIV natively supports 200mm Toyota-style radio installation without requiring additional adaptors. For standard double DIN head unit installation, the BKTOYBR adaptor must be purchased separately as it is not included in the JPTOYPRIV kit. This is the key difference between the JPTOYPRIV and the JPTOY09, which covers the same vehicle but includes the BKTOYBR adaptors in the box. No mounting brackets are included or required as the JPTOYPRIV uses the vehicle's factory mounting position directly.
Features and benefits
JP Series Japanese OEM-grade fascia for Toyota Prius V ZVW40R 2012 to 2015: Manufactured to Japanese OEM quality standards for a factory-matched fit and finish.
Natively supports 200mm Toyota-style radio: The JPTOYPRIV natively accepts 200mm Toyota-style radios without requiring additional adaptors, making it the straightforward choice for Toyota-compatible 200mm head units.
Standard double DIN installation requires BKTOYBR: Standard double DIN head units can also be installed using the BKTOYBR adaptor. The BKTOYBR is sold separately and is not included in this kit. If installing a standard double DIN head unit, source the BKTOYBR before beginning installation.
Black finish: The black finish complements the Toyota Prius V interior trim for a clean, factory-like appearance after installation.
Uses factory mounting position: No additional mounting brackets are required or included. The JPTOYPRIV uses the vehicle's existing factory mounting position directly.
Technical specs
| Specification |
Detail |
| SKU |
JPTOYPRIV |
| Brand |
Stinger |
| Series |
JP Series (Japanese OEM Grade) |
| DIN Size |
200mm Toyota-style (native) or standard 2DIN (BKTOYBR required, sold separately) |
| Chassis Code |
ZVW40R Series |
| Finish |
Black |
| Mounting Brackets |
Not required, uses factory mounting position |
| BKTOYBR Adaptors |
Not included, sold separately for standard 2DIN installation |
| Antenna Adaptor |
Not included |
| Wiring Harness |
Not included |
Compatible with
This fascia kit is confirmed for the following Toyota vehicle. Confirm your specific series and build year before ordering.
| Make |
Model |
Variant |
Years |
| Toyota |
Prius V |
ZVW40R Series |
2012 - 2015 |
Frequently asked questions
What is the difference between the JPTOYPRIV and the JPTOY09?
Both kits cover the Toyota Prius V ZVW40R (2012 to 2015) in black and use the factory mounting position. The key difference is that the JPTOY09 includes the BKTOYBR 2DIN bracket adaptors in the box, while the JPTOYPRIV does not. If you intend to install a standard double DIN head unit, the JPTOY09 may be the more complete purchase. If you are installing a 200mm Toyota-style radio, neither kit requires the BKTOYBR adaptor.
Is the BKTOYBR adaptor included with the JPTOYPRIV?
No. The BKTOYBR adaptor required for standard double DIN installation is sold separately and is not included with the JPTOYPRIV. If you are installing a 200mm Toyota-style radio, no additional adaptor is needed.
Are mounting brackets included with the JPTOYPRIV?
No additional mounting brackets are included or required. The JPTOYPRIV uses the vehicle's existing factory mounting position directly.
Is a wiring harness included with the JPTOYPRIV?
No. The JPTOYPRIV is a fascia kit only. A vehicle-specific ISO wiring harness must be sourced separately to connect the aftermarket head unit to the factory wiring. Contact us for guidance on the correct wiring harness for the Toyota Prius V ZVW40R.
Is an antenna adaptor included with the JPTOYPRIV?
No. An antenna adaptor is not included. The Stinger STAAT10M is a compatible antenna adaptor for the Toyota Prius V ZVW40R. Contact us for further guidance before ordering.
