Add a Reverse Camera to Your Factory Isuzu Infotainment System No Head Unit Replacement Required
Product Overview

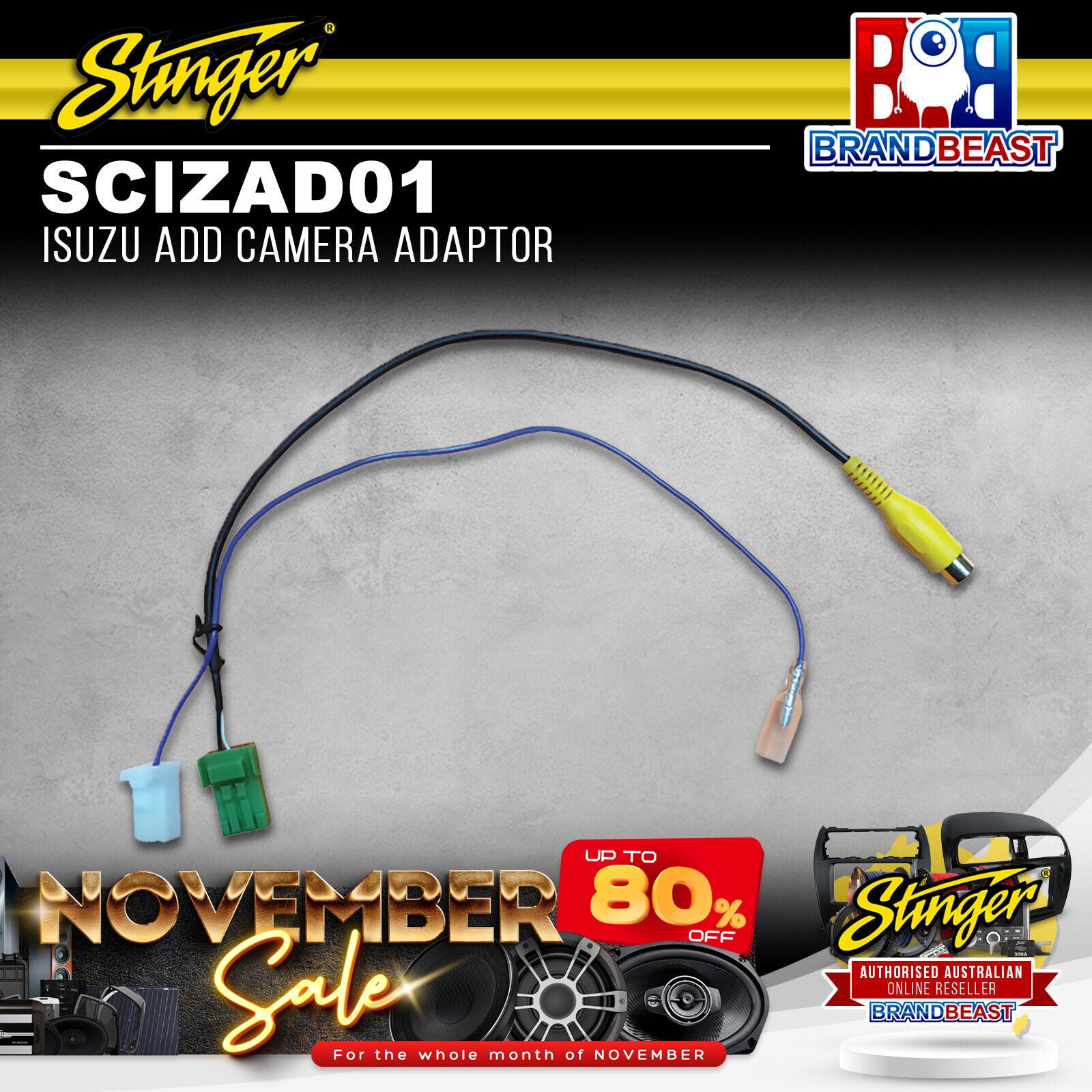

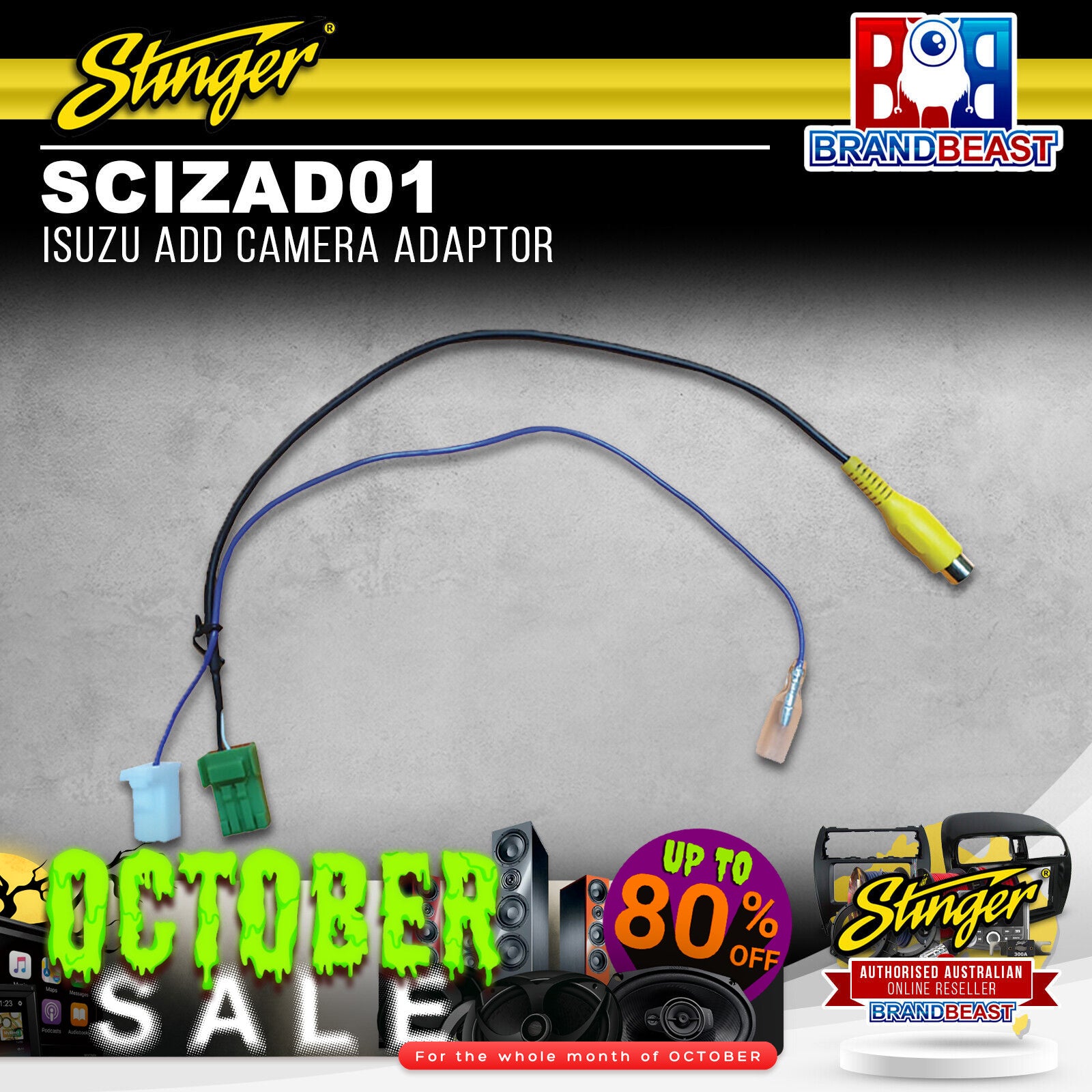

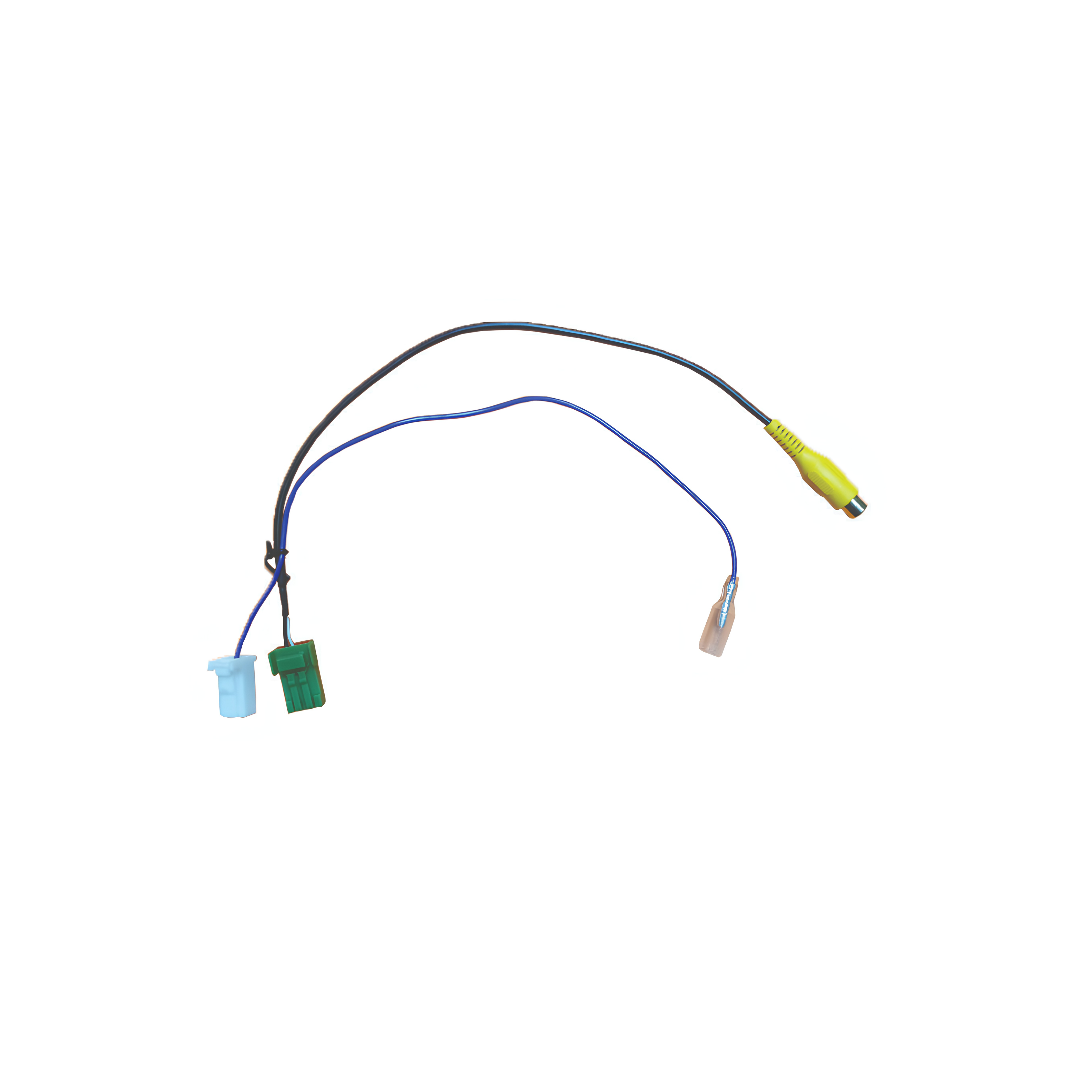

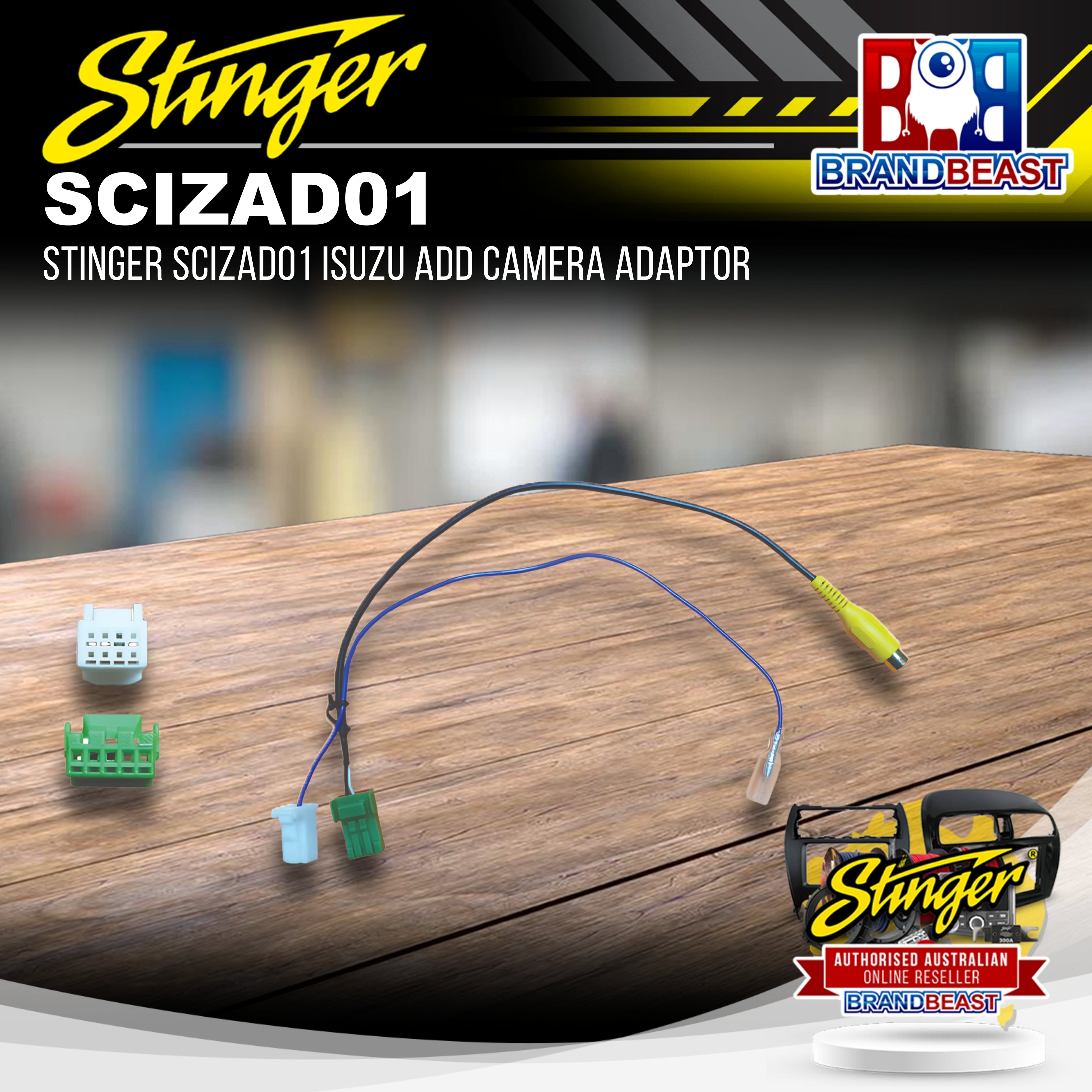

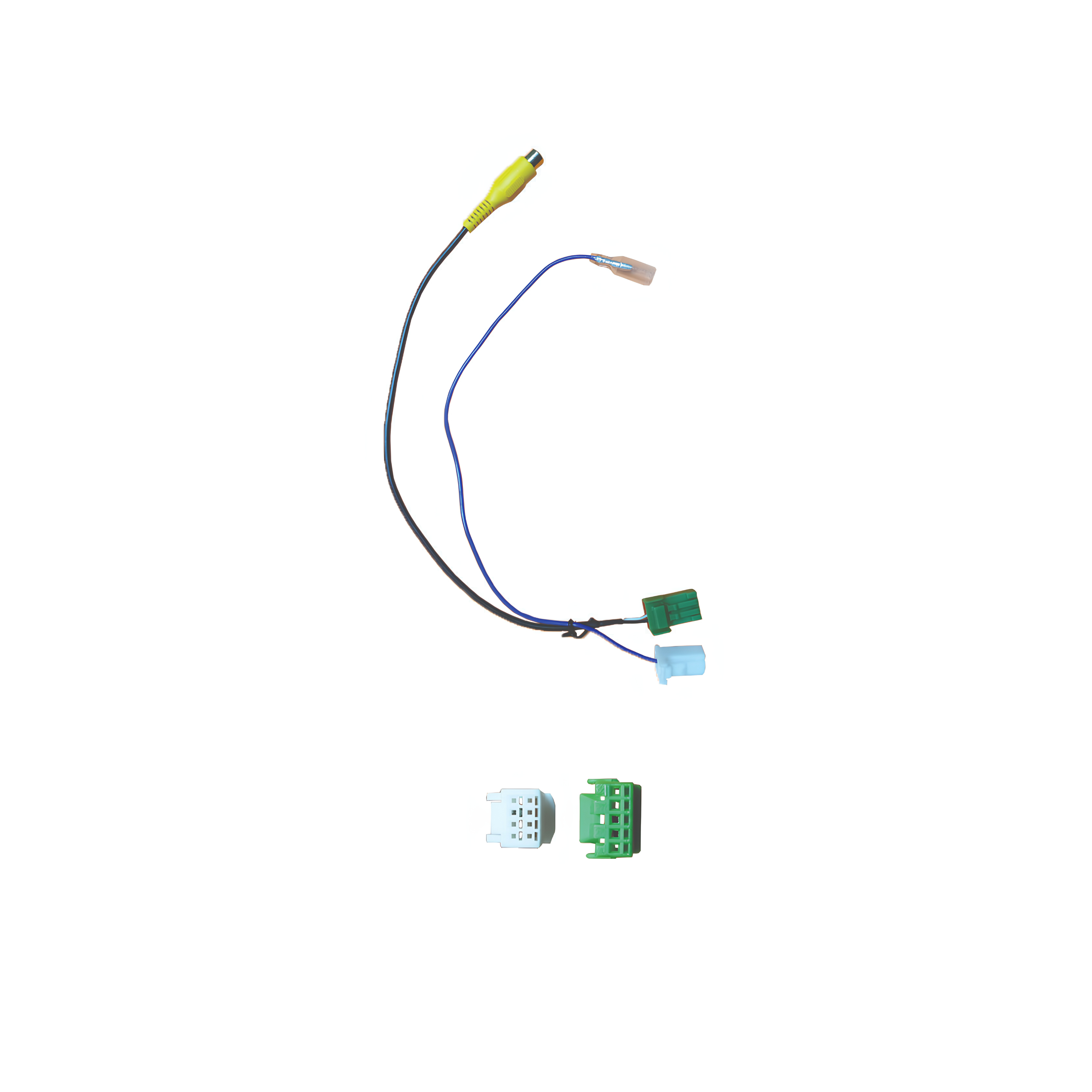

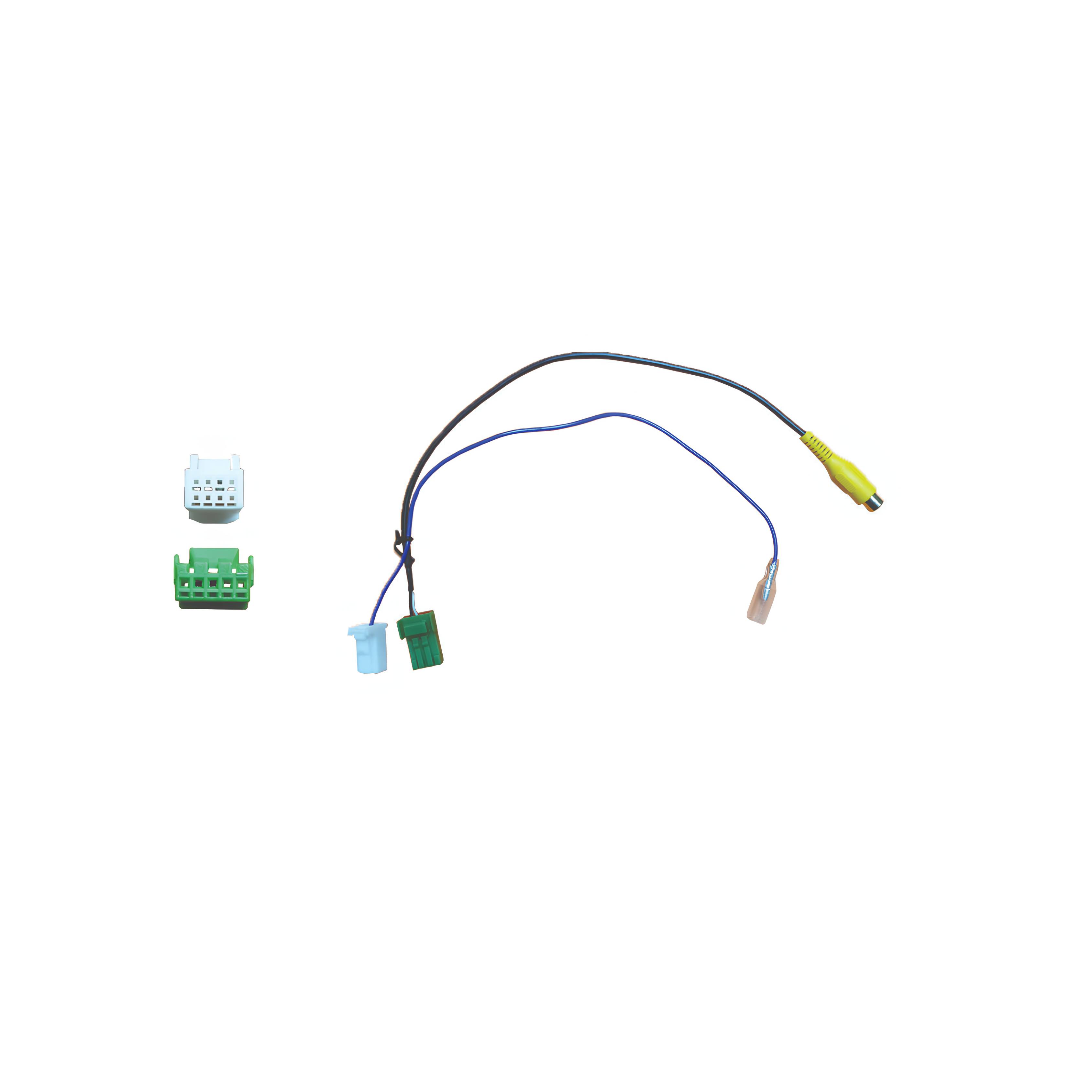

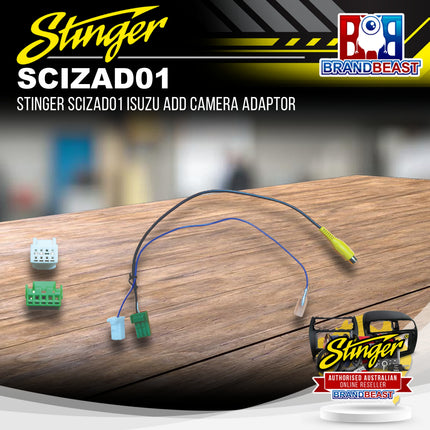

The Stinger SCIZAD01 is a camera add adaptor designed to integrate an aftermarket reverse camera into the factory OEM infotainment system of compatible Isuzu D-MAX and MU-X vehicles without replacing the factory head unit. It connects via the vehicle's existing 5-pin and 4-pin connectors, enabling the factory display to show the aftermarket camera image when reverse is engaged.
Compatible vehicles are the Isuzu D-MAX RT50/RT85 (2012–2016 and 2016–2019) and Isuzu MU-X RF10 (2013–2015) and RF20 (2016–2017). The adaptor is designed for NTSC cameras only and requires the vehicle to have a colour display it is not compatible with monochrome factory displays. A vehicle harness is included in the box.
Key Specifications
- Manufacturer Part Number: SCIZAD01
- Function: Add aftermarket camera to OEM factory infotainment display
- Camera standard: NTSC only
- Display requirement: Colour display — not compatible with monochrome

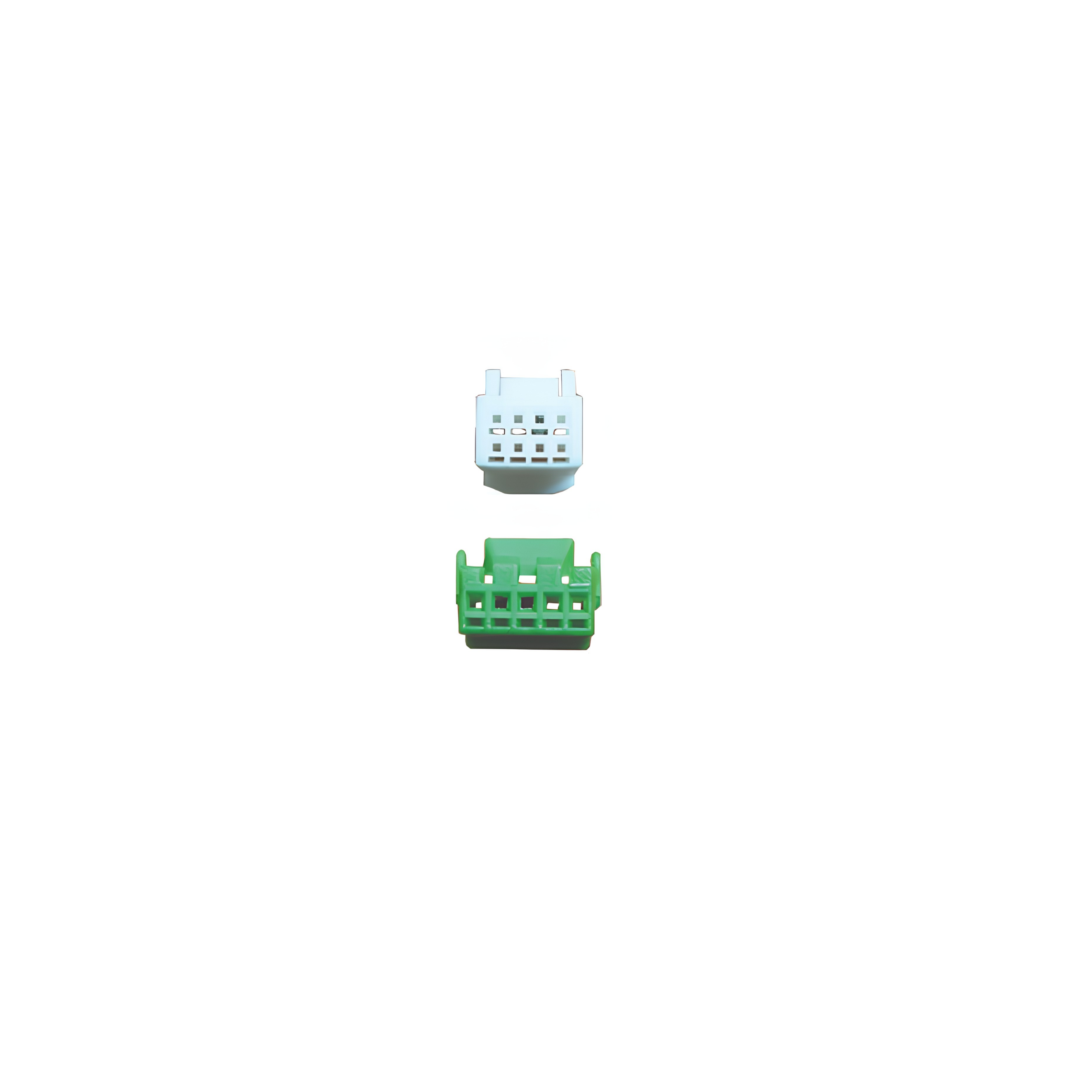

- Factory connectors required: 5-pin and 4-pin
- Vehicle harness: Included
- Compatible vehicles: Isuzu D-MAX RT50/RT85 2012–2019; Isuzu MU-X RF10 2013–2015; Isuzu MU-X RF20 2016–2017
Features & Benefits
-
Integrates Aftermarket Camera Into Factory Display — Allows an aftermarket reverse camera to be added to the factory Isuzu infotainment system, displaying the camera image on the OEM screen without replacing the head unit.
-
No Head Unit Replacement Required — The SCIZAD01 works with the factory infotainment system, preserving all OEM functions while adding rear camera visibility.
-
Vehicle Harness Included — The required vehicle-specific harness is included in the box, simplifying installation without additional wiring components.
-
Covers Both D-MAX and MU-X Generations — Compatible with the RT50/RT85 D-MAX across its full 2012–2019 production run and both the RF10 and RF20 MU-X.
Technical Specs
| Specification |
Detail |
| Part Number |
SCIZAD01 |
| Brand |
Stinger |
| Function |
Add aftermarket camera to OEM infotainment |
| Camera Standard |
NTSC only |
| Display Requirement |
Colour display required (not monochrome) |
| Factory Connectors |
5-pin and 4-pin |
| Vehicle Harness |
Included |
| Compatible Vehicles |
D-MAX RT50/RT85 2012–2019; MU-X RF10 2013–2015; MU-X RF20 2016–2017 |
Compatible With / Goes Well With
- Isuzu D-MAX RT50/RT85 2012, 2013, 2014, 2015, 2016
- Isuzu D-MAX RT50/RT85 2016, 2017, 2018, 2019
- Isuzu MU-X RF10 2013, 2014, 2015
- Isuzu MU-X RF20 2016, 2017
- NTSC-standard aftermarket reverse cameras
Frequently Asked Questions
Does the SCIZAD01 replace the factory head unit?
No — the SCIZAD01 adds an aftermarket reverse camera to the existing factory Isuzu infotainment system without replacing the head unit. The factory display shows the camera image when reverse is engaged.
What type of reverse camera is compatible with the SCIZAD01?
NTSC cameras only. PAL cameras are not compatible with this adaptor. Confirm your camera's output standard before purchase.
Does my vehicle need a colour display for this to work?
Yes — the SCIZAD01 requires the vehicle to have a colour factory display. It is not compatible with monochrome displays.
Does the kit include a reverse camera?
No — the SCIZAD01 is a camera integration adaptor only. The vehicle harness is included but a reverse camera is not — this must be sourced separately.
What vehicles is the SCIZAD01 compatible with?
Compatible vehicles are the Isuzu D-MAX RT50/RT85 (2012–2016 and 2016–2019) and the Isuzu MU-X RF10 (2013–2015) and RF20 (2016–2017). The vehicle must also have both 5-pin and 4-pin factory connectors and a colour display.
