Description

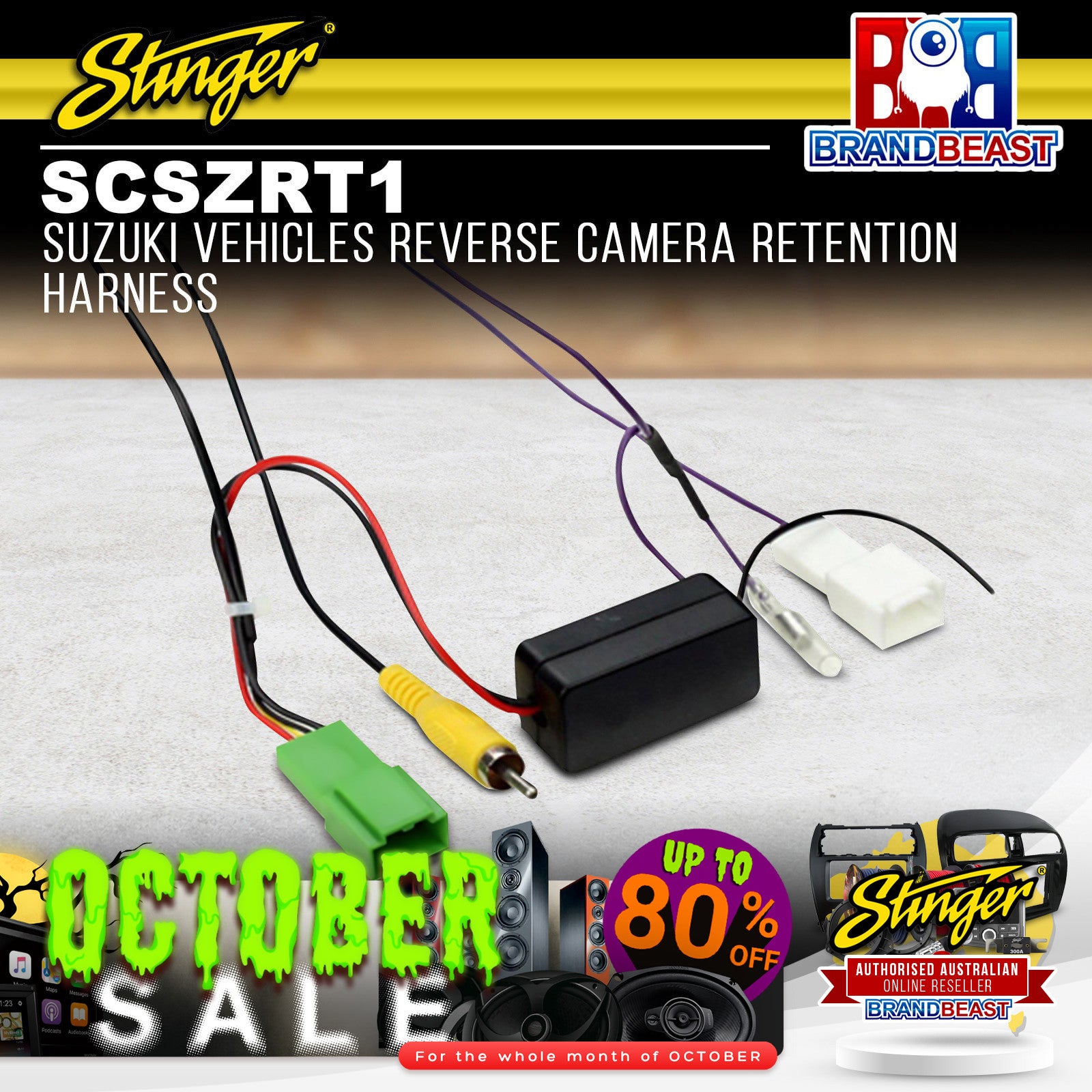

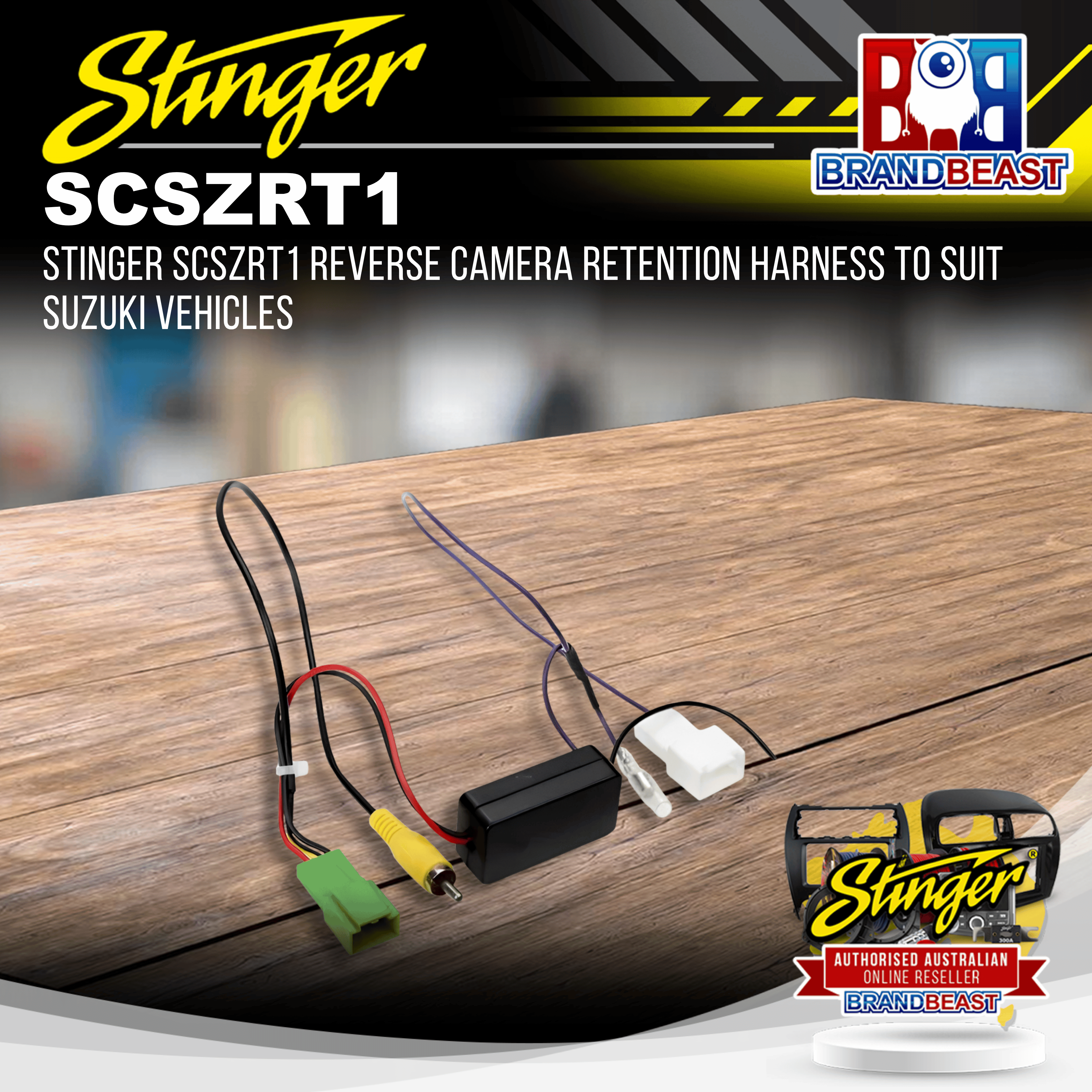

Stinger SCSZRT1 Suzuki Factory Reverse Camera Retention Harness for Aftermarket Head Unit Installation in Select Suzuki Vehicles
The SCSZRT1 from Stinger retains the factory OEM reverse camera in confirmed Suzuki models when replacing the factory infotainment system with an aftermarket unit. Three compatibility requirements must be confirmed before ordering. The vehicle must have the OEM camera connector, the OEM camera power voltage must be checked before use to avoid damage to the factory camera, and some later model vehicles fitted with a Bosch or Directed factory head unit may require the connector to be re-pinned before the harness can be used.
Product overview

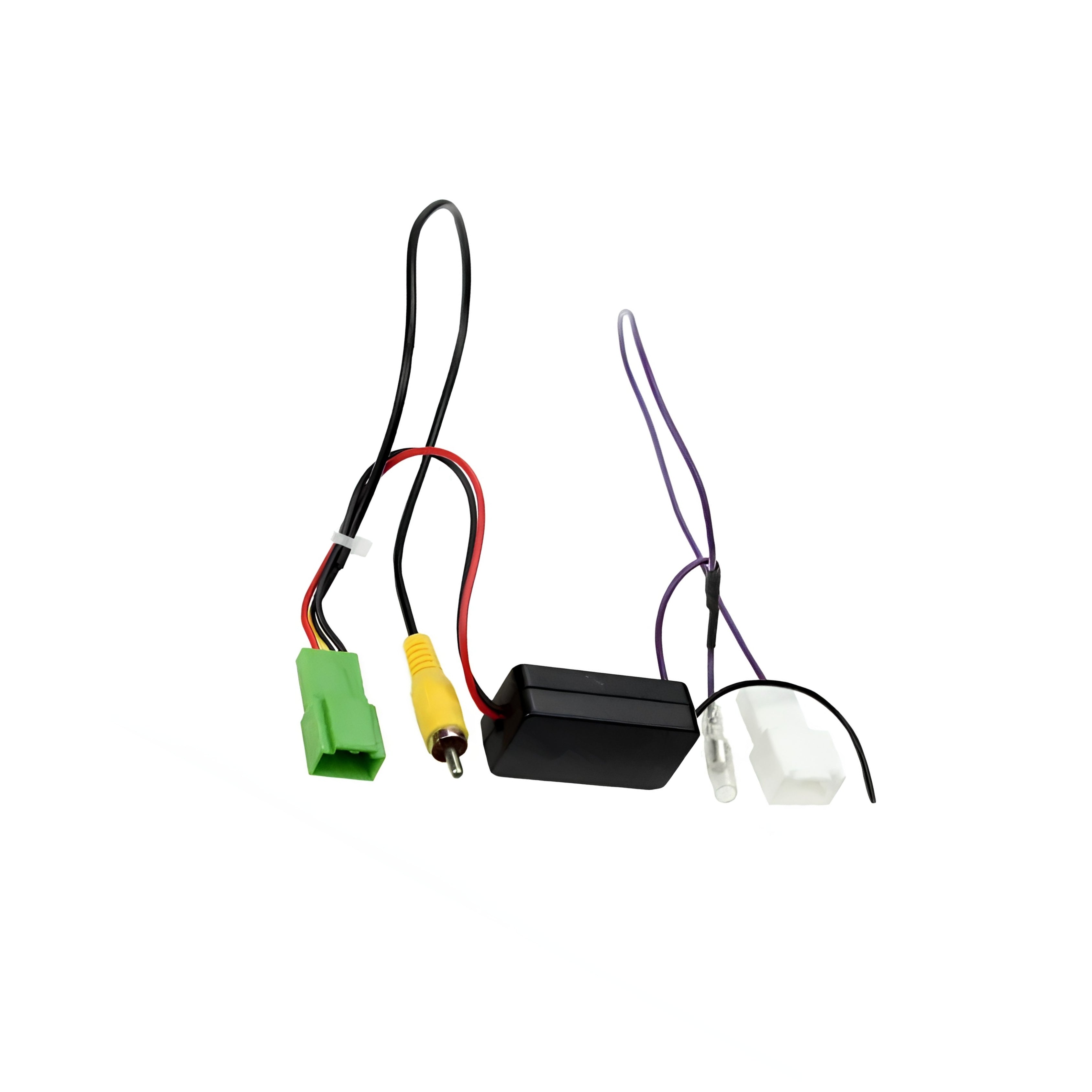

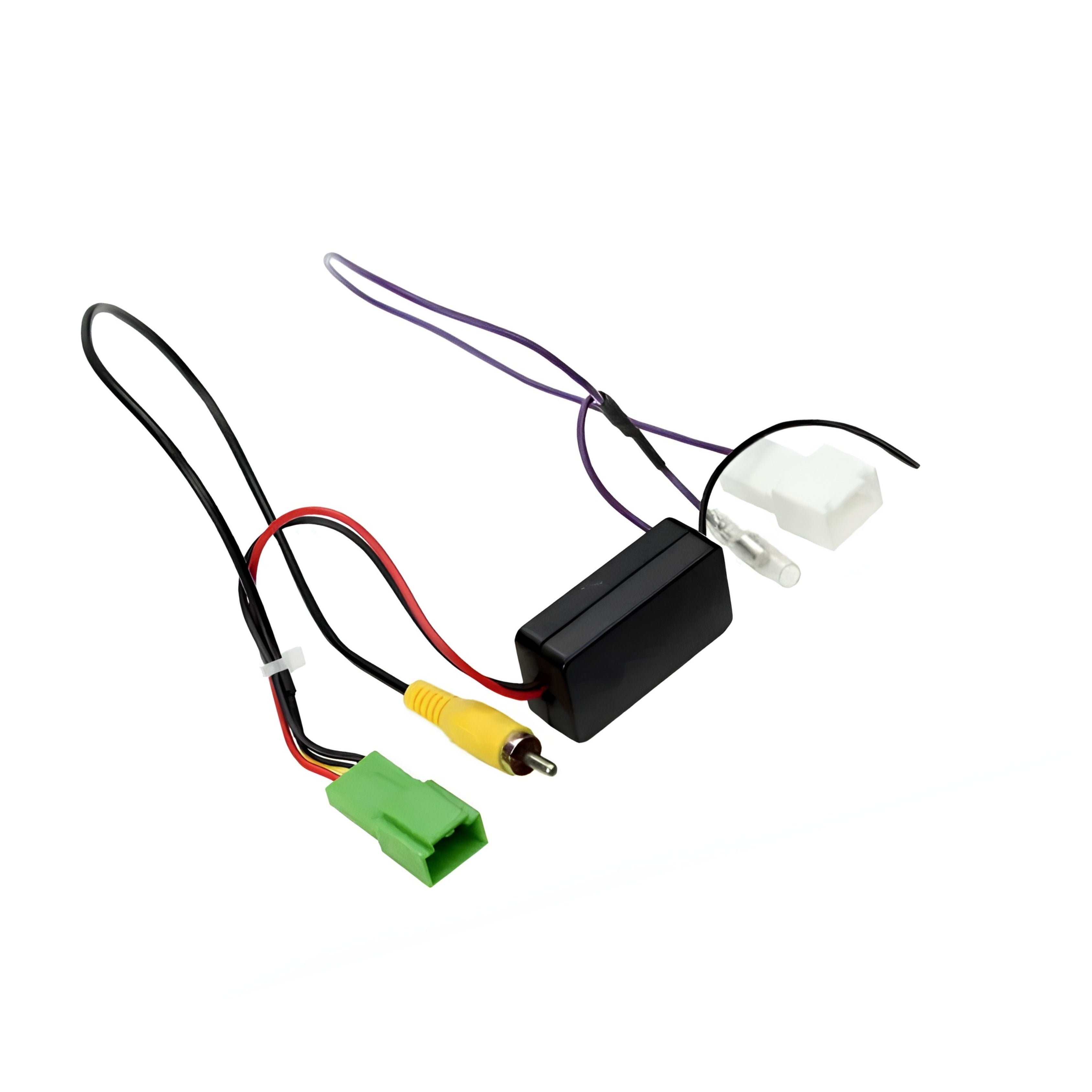

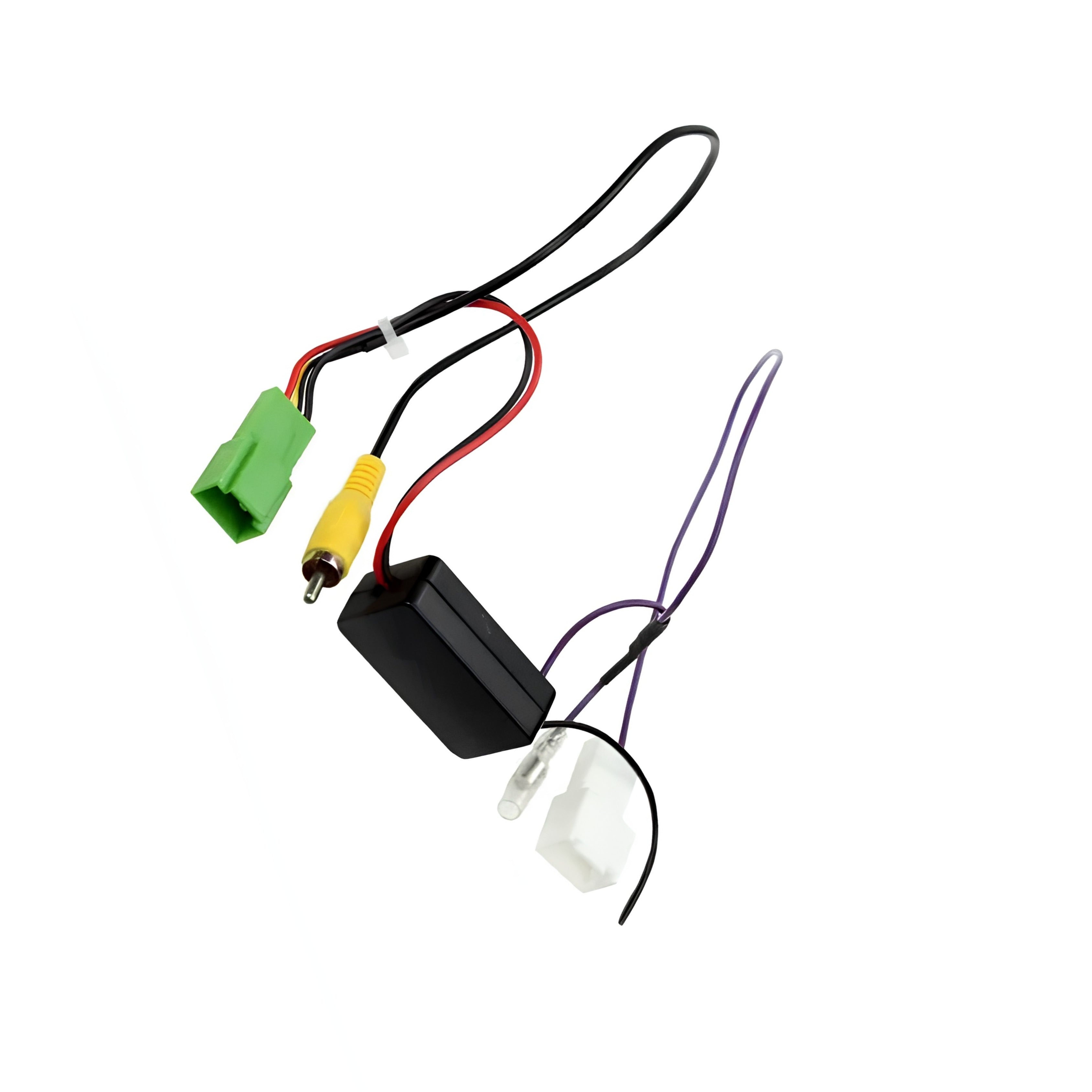

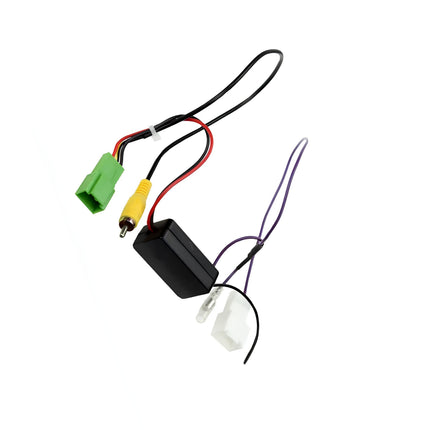

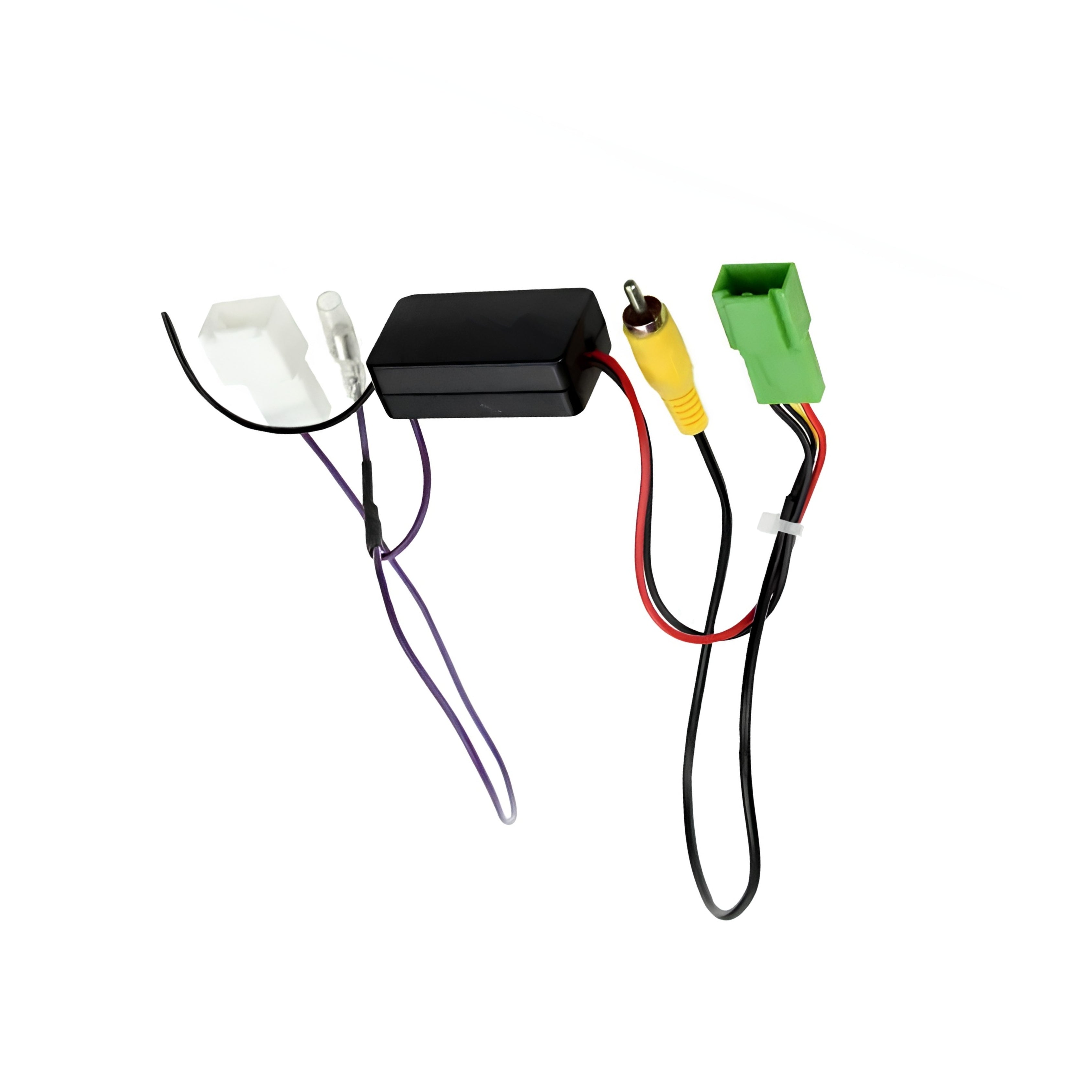

The SCSZRT1 plugs into the factory Suzuki OEM camera connector and retains the factory reverse camera for use with a compatible aftermarket infotainment system. The harness is plug and play at the factory connector for most confirmed models.
Three important compatibility notes apply. First, the vehicle must have the OEM camera connector at the factory head unit position. Not all Suzuki vehicles in the listed range will be factory fitted with a reverse camera. Second, the OEM camera power voltage must be checked before connecting to ensure the correct voltage is applied. Applying incorrect voltage may damage the factory camera, and Stinger Australia is not liable for damage caused by incorrect voltage application. Third, some later model Suzuki vehicles fitted with a Bosch or Directed factory head unit may require the connector to be re-pinned before this harness can be used. Refer to the Downloads tab on the product page for further information on re-pinning requirements.
Features and benefits
Factory OEM reverse camera retention for confirmed Suzuki models: Allows the factory OEM reverse camera to remain functional after aftermarket infotainment system installation in confirmed Suzuki models fitted with the OEM camera connector.
OEM camera connector required: The vehicle must have the OEM camera connector at the factory head unit position. Confirm this connector is present in your specific vehicle before ordering.
Camera voltage check required: The OEM camera power voltage must be checked before use to ensure the correct voltage is applied. Applying incorrect voltage may damage the factory camera. Stinger Australia is not liable for damage caused by incorrect voltage application.
Re-pinning may be required for Bosch or Directed head unit models: Some later model Suzuki vehicles fitted with a Bosch or Directed factory head unit may require the connector to be re-pinned before use. Refer to the Downloads tab on the product page for re-pinning guidance.
Technical specs
| Specification |
Detail |
| SKU |
SCSZRT1 |
| Manufacturer Part Number |
SCSZRT1 |
| Brand |
Stinger |
| Function |
Factory reverse camera retention harness |
| Plug and Play |
Yes, for most models. Re-pinning may be required for some Bosch or Directed head unit variants |
| Voltage Note |
Check OEM camera voltage before use to avoid camera damage |
| Re-Pin Note |
Some Bosch or Directed factory head unit models may require connector re-pinning, refer to Downloads tab |
Compatible with
This harness is confirmed for the following Suzuki vehicles where fitted with the OEM camera connector. Check OEM camera voltage before use. Confirm your specific connector configuration and factory head unit type before ordering.
| Make |
Model |
Variant |
Years |
| Suzuki |
Grand Vitara |
JB chassis |
2015 - 2018 |
| Suzuki |
Ignis |
MF chassis |
2017 - 2018 |
| Suzuki |
Jimny |
JB74W chassis, 3-door |
2018 - 2025 |
| Suzuki |
Jimny |
JC74W chassis, 5-door |
2024 - 2025 |
| Suzuki |
Swift |
AZ chassis |
2017 - 2023 |
| Suzuki |
Swift Sport |
AZ chassis |
2023 - 2025 |
Frequently asked questions
How do I know if my Suzuki has the OEM camera connector?
The OEM camera connector is located at the factory head unit position. Not all Suzuki vehicles in the listed range will be factory fitted with a reverse camera and OEM camera connector. Contact us before ordering if you are unsure whether your specific vehicle has this connector.
Why do I need to check the OEM camera voltage before use?
Different Suzuki models may supply different voltages to the OEM camera connector. Applying incorrect voltage to the camera may cause damage. Always confirm the OEM camera power voltage for your specific vehicle before connecting the SCSZRT1. Stinger Australia is not liable for damage caused by incorrect voltage application.
What does re-pinning the connector mean and does my vehicle require it?
Some later model Suzuki vehicles fitted with a Bosch or Directed factory head unit have the camera connector wired differently and may require the pins within the connector to be repositioned before the SCSZRT1 harness will function correctly. Refer to the Downloads tab on the product page for guidance on whether re-pinning is required for your specific vehicle variant and how to complete it.
Is professional installation recommended for the SCSZRT1?
Given the camera voltage check requirement and the potential need for connector re-pinning on some models, professional installation is strongly recommended to ensure correct identification of connector configurations and a safe, correct installation result.
