Description

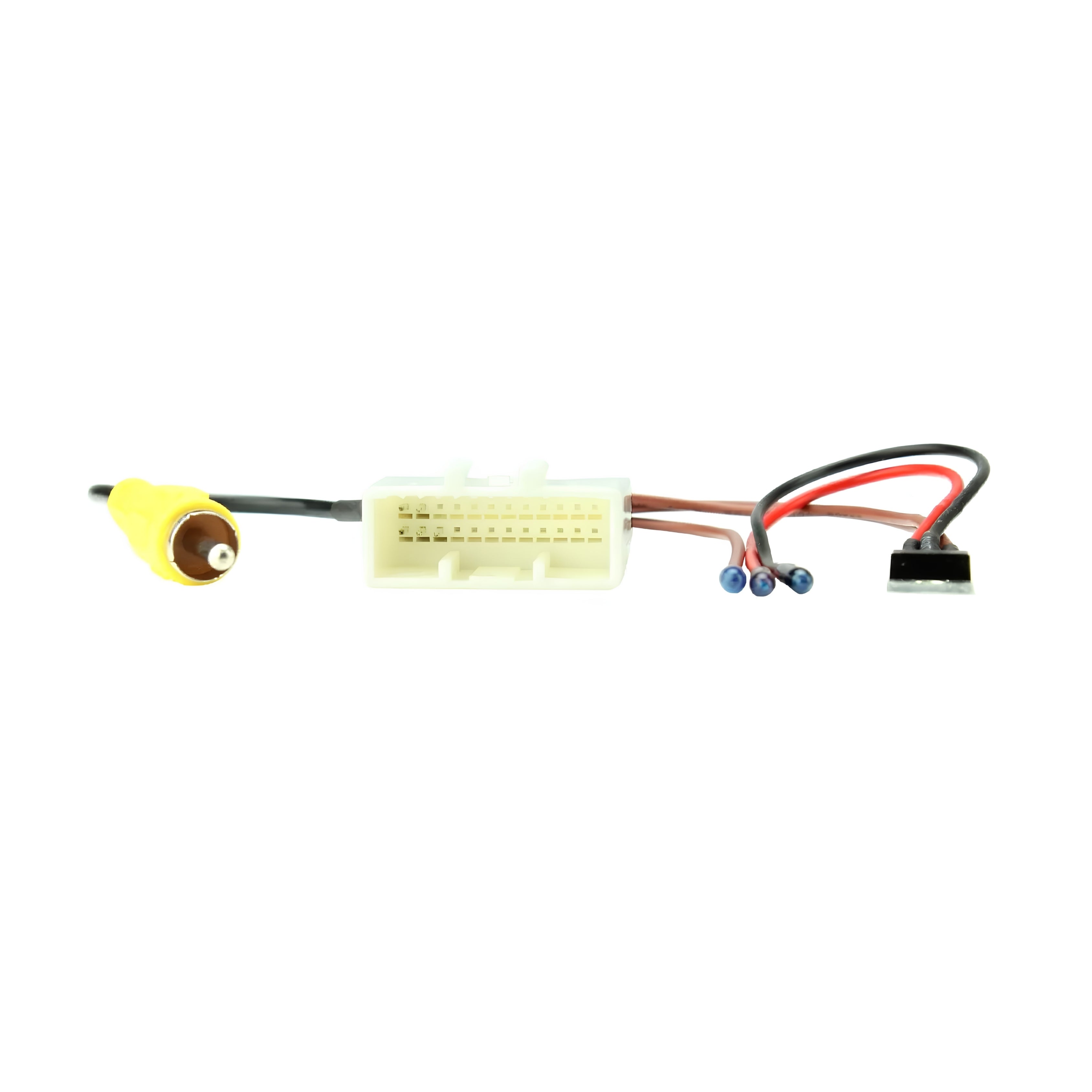

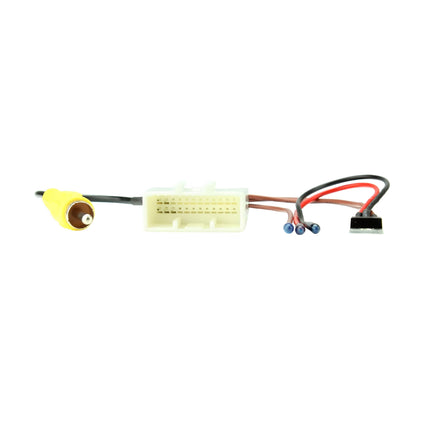

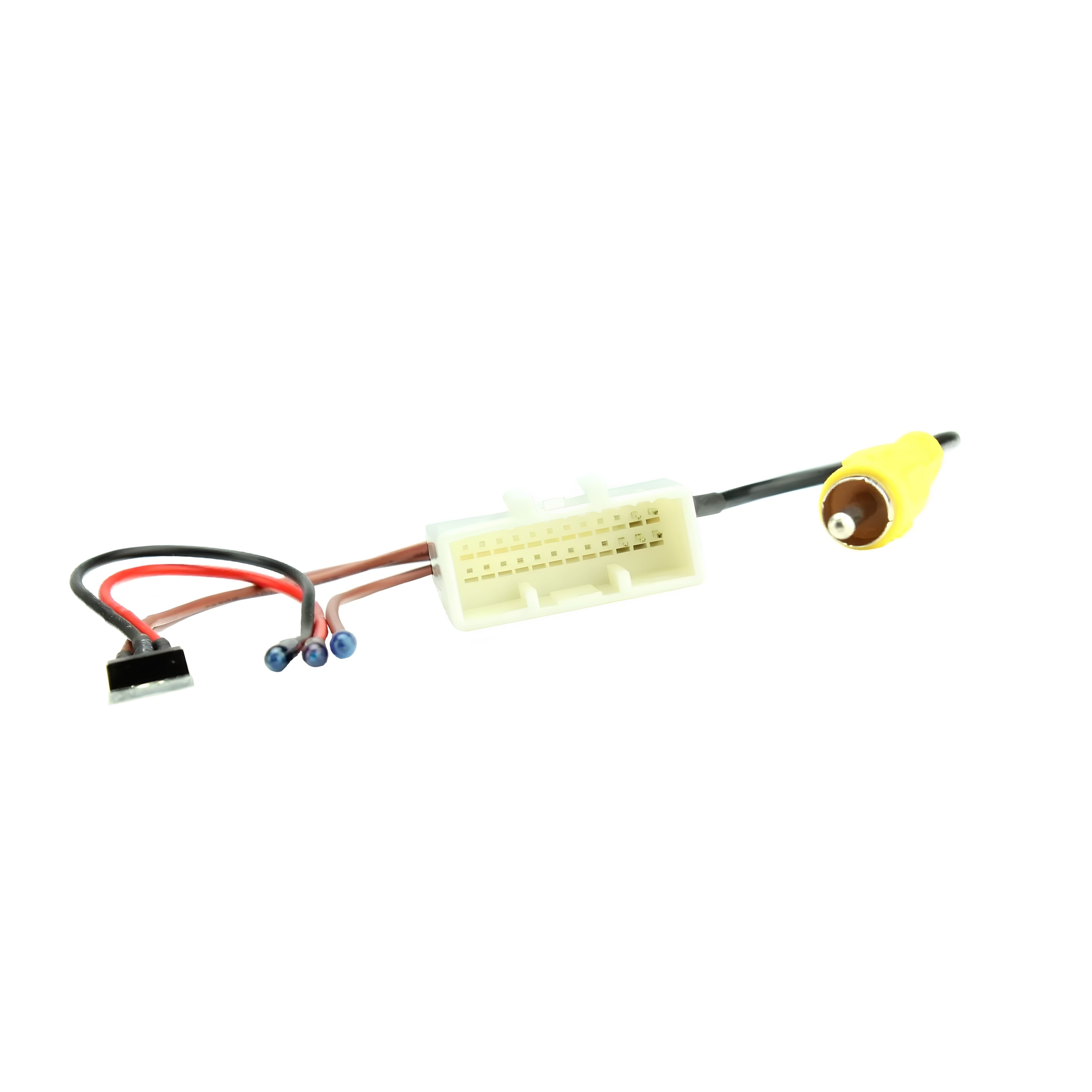

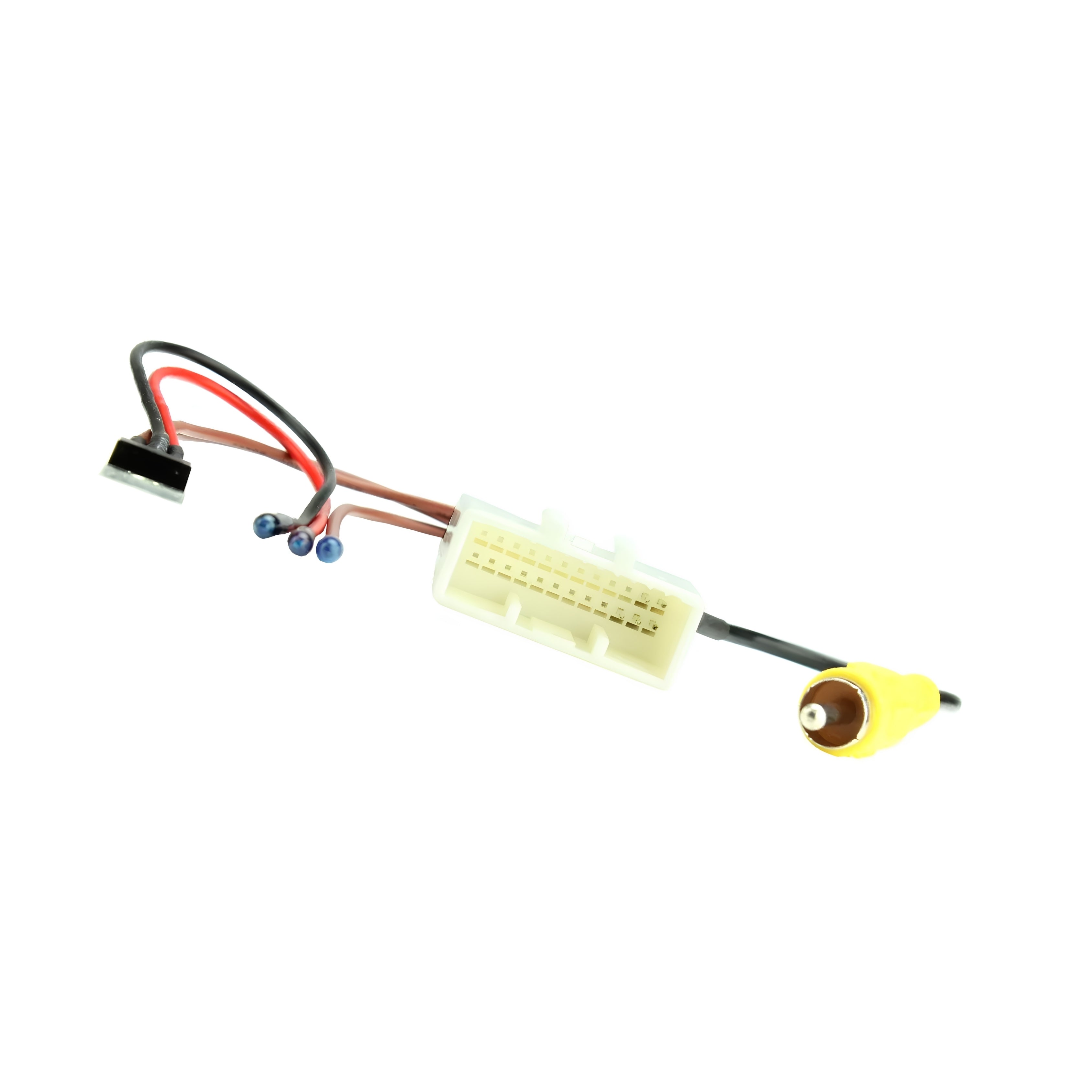

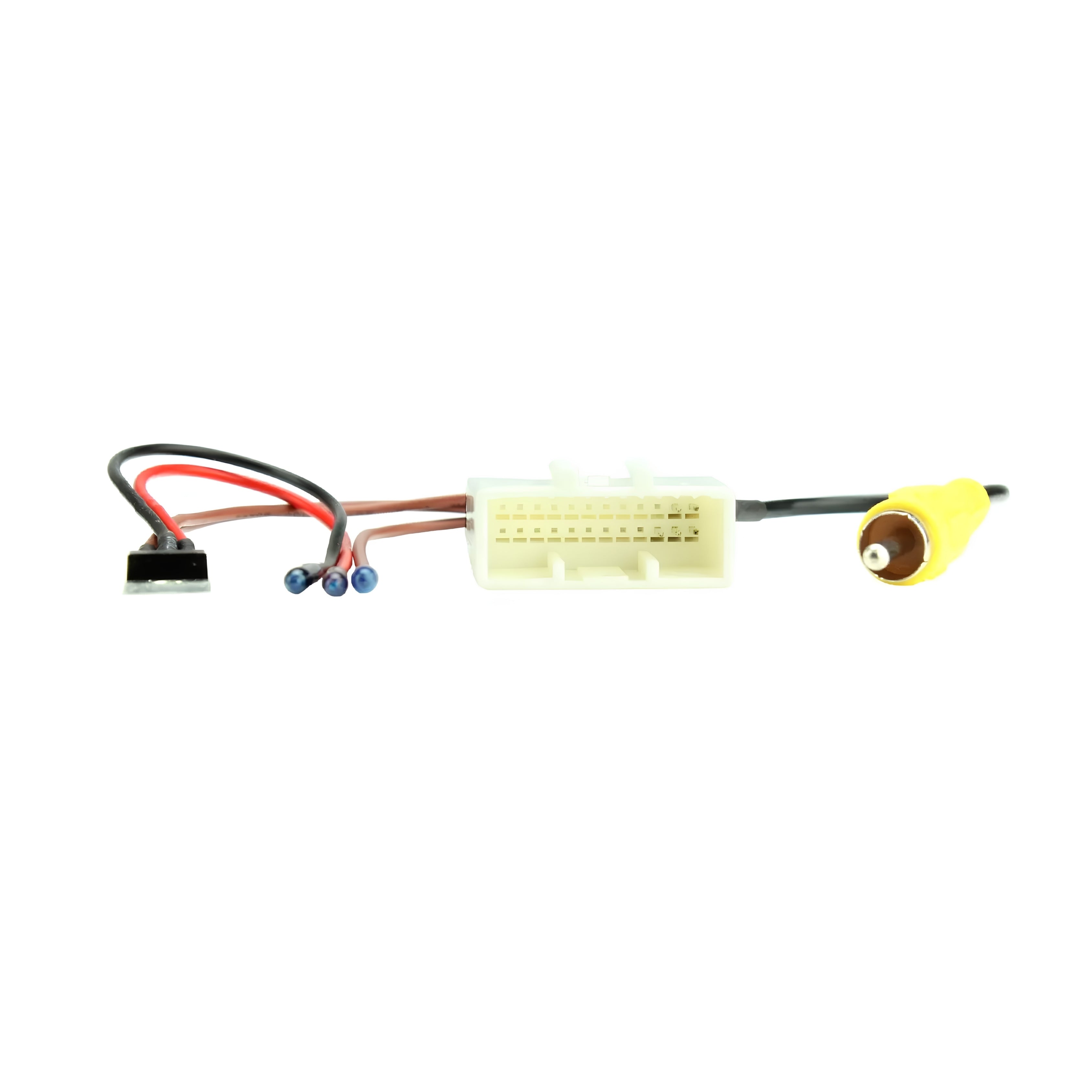

Stinger SCTYRT5 24-Pin Toyota Camera Retention Harness for Retaining Factory OEM Reverse Camera in Toyota and Subaru Vehicles with Aftermarket Head Unit
The SCTYRT5 from Stinger retains the factory OEM reverse camera in confirmed Toyota and Subaru models when replacing the factory head unit with an aftermarket unit. The harness connects to the 24-pin Toyota camera connector at the back of the factory radio and provides an RCA output to the aftermarket head unit's camera input, along with a 6V camera power adapter. Two compatibility requirements must be confirmed before ordering. The vehicle must have the 24-pin Toyota camera connector at the back of the factory radio, and the aftermarket head unit must have an RCA camera input.
Product overview
The SCTYRT5 plugs into the vehicle's camera radio harness and converts the factory Toyota 24-pin camera connector to an RCA output with 6V camera power for use with a compatible aftermarket head unit. This allows the factory reverse camera to remain functional after the factory head unit is replaced, without requiring a separate aftermarket camera installation.
Confirm both compatibility requirements before ordering. First, the vehicle must be fitted with the specific 24-pin Toyota camera connector at the back of the factory radio. Not all Toyota and Subaru models in the listed range will have this connector. Second, the chosen aftermarket head unit must have an RCA camera input. Confirm both requirements against your specific vehicle and chosen head unit before ordering.
Features and benefits
Factory OEM reverse camera retention: Allows the factory OEM reverse camera to remain functional after aftermarket head unit installation in confirmed Toyota and Subaru models, avoiding the need for a separate aftermarket reverse camera.
24-pin Toyota camera connector to RCA output: Converts the factory 24-pin Toyota camera connector to an RCA output compatible with the camera input on a standard aftermarket head unit, with a 6V camera power adapter included.
Vehicle connector requirement: The vehicle must have the specific 24-pin Toyota camera connector at the back of the factory radio. Confirm this connector is present in your specific vehicle before ordering.
Aftermarket head unit RCA input requirement: The aftermarket head unit must have an RCA camera input for this harness to function correctly. Confirm your chosen head unit has this input before ordering.
Technical specs
| Specification |
Detail |
| SKU |
SCTYRT5 |
| Manufacturer Part Number |
SCTYRT5 |
| Brand |
Stinger |
| Function |
Factory reverse camera retention harness |
| Vehicle Connector |
24-pin Toyota camera connector at back of factory radio |
| Output |
RCA camera output with 6V camera power adapter |
| Head Unit Requirement |
Aftermarket head unit must have RCA camera input |
Compatible with
This harness is confirmed for the following vehicles where fitted with the 24-pin Toyota camera connector at the back of the factory radio. Confirm the connector is present in your specific vehicle and that your chosen aftermarket head unit has an RCA camera input before ordering.
| Make |
Model |
Variant |
Years |
| Subaru |
Forester |
SJ chassis |
2015 - 2018 |
| Subaru |
Impreza (incl WRX) |
GP-GJ chassis |
2012 - 2014 |
| Subaru |
Levorg |
V1 chassis |
2016 - 2018 |
| Subaru |
XV |
GP chassis, with navigation |
2012 - 2014 |
| Toyota |
86 |
Pre-Facelift |
2012 - 2017 |
| Toyota |
86 |
Post-Facelift |
2017 - 2020 |
| Toyota |
Aurion |
XV50 Series |
2015 - 2017 |
| Toyota |
Camry |
XV50 Series |
2012 - 2017 |
| Toyota |
Corolla Hatch |
E180 Series |
2013 - 2015 |
| Toyota |
Corolla Hatch |
E180-E200 Series |
2015 - 2018 |
| Toyota |
Corolla Sedan |
E170 Series |
2014 - 2016 |
| Toyota |
Corolla Sedan |
E170 Series |
2017 - 2018 |
| Toyota |
Fortuner |
AN150-AN160 Series |
2015 - 2020 |
| Toyota |
Hiace |
H200 Series |
2005 - 2019 |
| Toyota |
Hilux |
AN10-AN20-AN30 Series |
2013 - 2015 |
| Toyota |
Hilux |
AN120-AN130 Series |
2015 - 2020 |
| Toyota |
Kluger |
XU50 Series |
2014 - 2019 |
| Toyota |
Kluger |
XU50 Series, with 360 degree camera |
2018 - 2019 |
| Toyota |
LandCruiser |
200 Series |
2013 - 2015 |
| Toyota |
LandCruiser |
200 Series |
2016 - 2021 |
| Toyota |
LandCruiser Prado |
150 Series |
2013 - 2017 |
| Toyota |
LandCruiser Prado |
150 Series, with 8 inch screen |
2017 - 2020 |
| Toyota |
RAV4 |
XA40 Series |
2014 - 2018 |
| Toyota |
Tarago |
XR50 Series |
2005 - 2017 |
| Toyota |
Tundra |
XK50 Series |
2014 - 2021 |
| Toyota |
Yaris |
XP130 Series |
2014 - 2017 |
| Toyota |
Yaris |
XP130 Series |
2018 - 2019 |
Frequently asked questions
How do I know if my vehicle has the 24-pin Toyota camera connector?
The 24-pin Toyota camera connector is a specific connector located at the back of the factory radio position. Not all Toyota and Subaru vehicles in the listed range will have this connector. Contact us before ordering if you are unsure whether your specific vehicle has this connector.
Does my aftermarket head unit need an RCA camera input?
Yes. The SCTYRT5 outputs to an RCA camera connection. The chosen aftermarket head unit must have an RCA camera input for the factory reverse camera to function correctly after installation. Confirm your head unit has this input before ordering.
Does the SCTYRT5 suit Subaru vehicles as well as Toyota?
Yes. The SCTYRT5 is confirmed for select Subaru Forester, Impreza including WRX, Levorg, and XV models in addition to the confirmed Toyota models, provided the vehicle has the 24-pin Toyota-style camera connector at the back of the factory radio.
Is professional installation recommended for the SCTYRT5?
Professional installation is recommended for those unfamiliar with Toyota factory radio removal and camera harness connections, to ensure the correct connector is identified and a clean, correct result is achieved.
