Relocate Your HEIGH10 or ELEV8 Hide-Away Module 1.5m LVDS Extension Harness
Product Overview

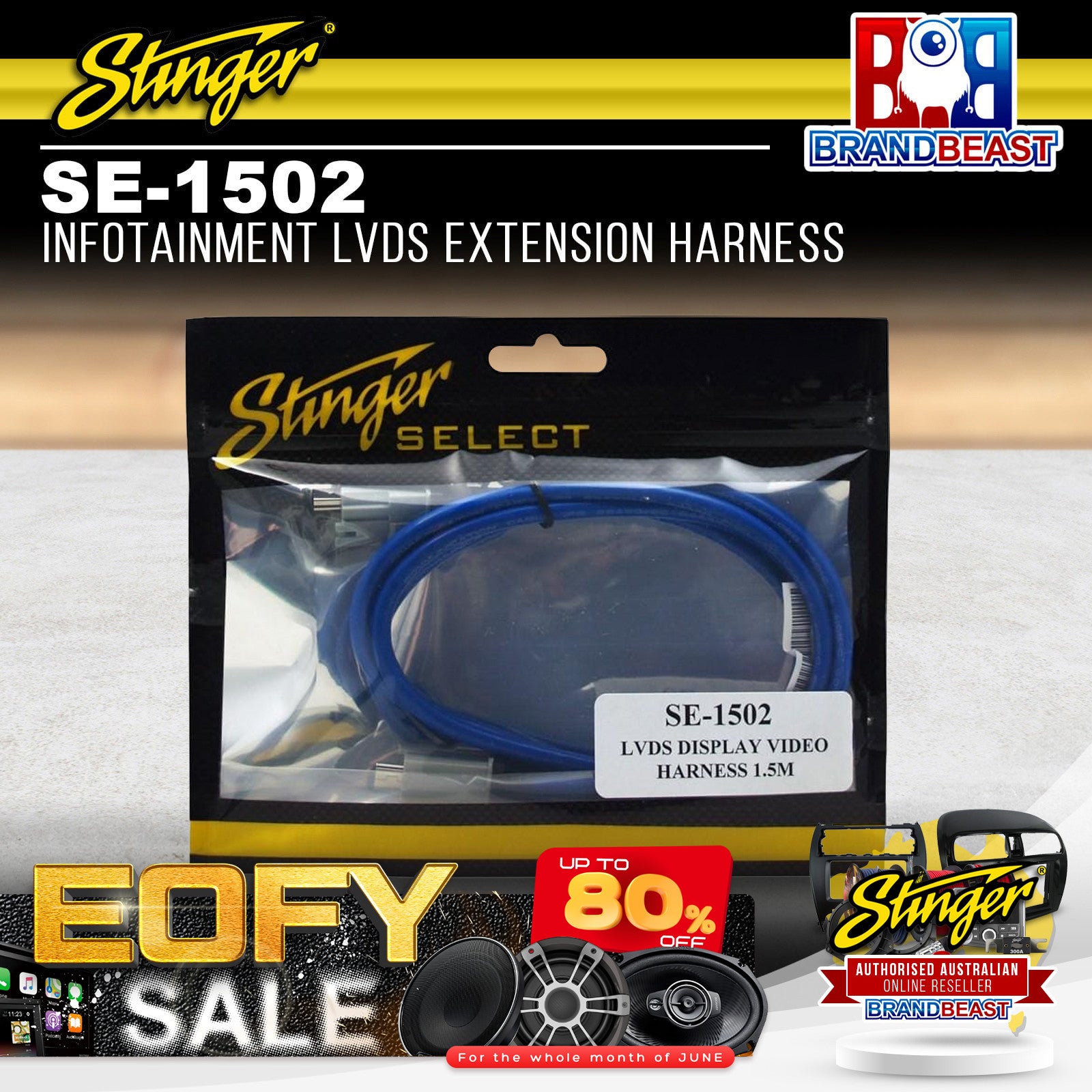

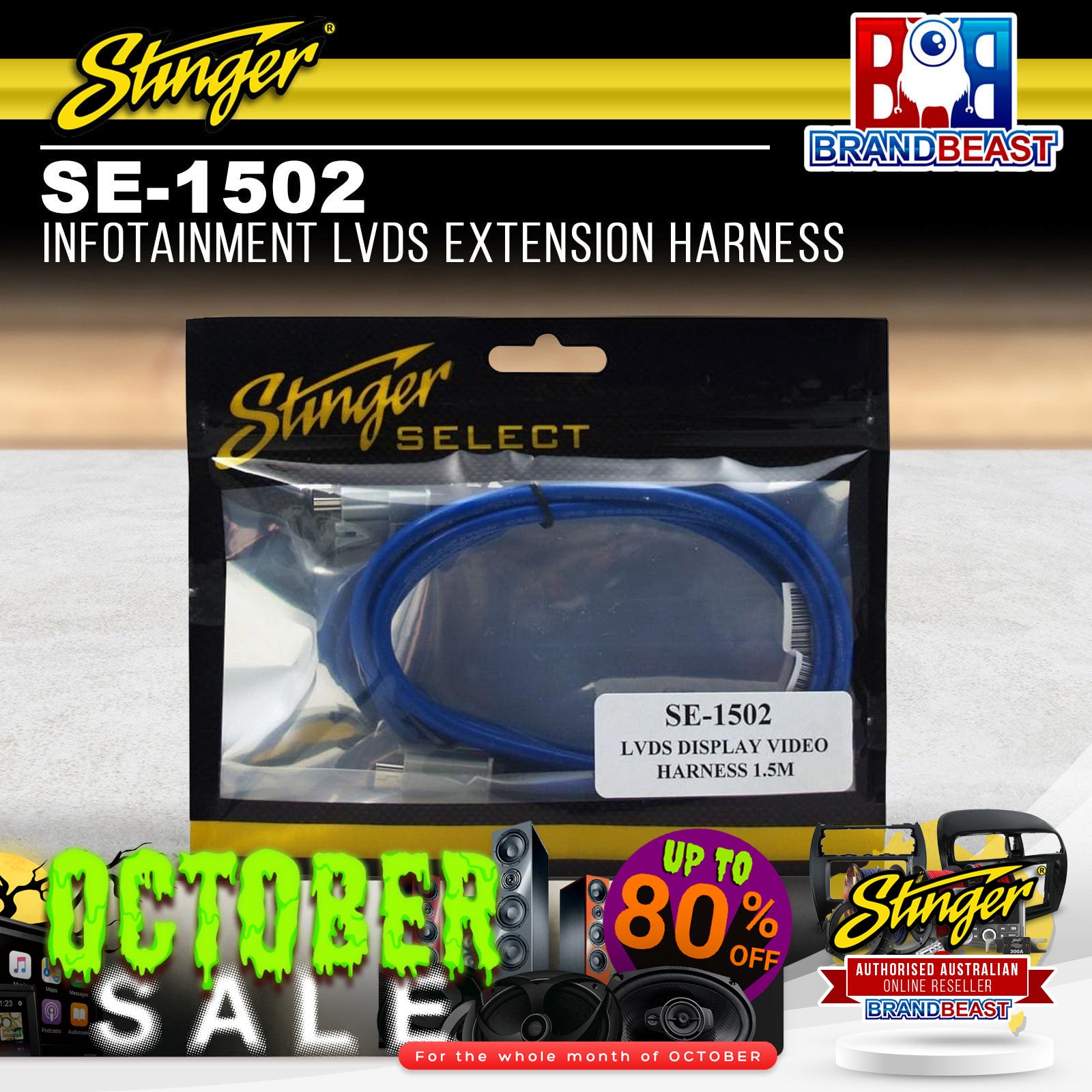

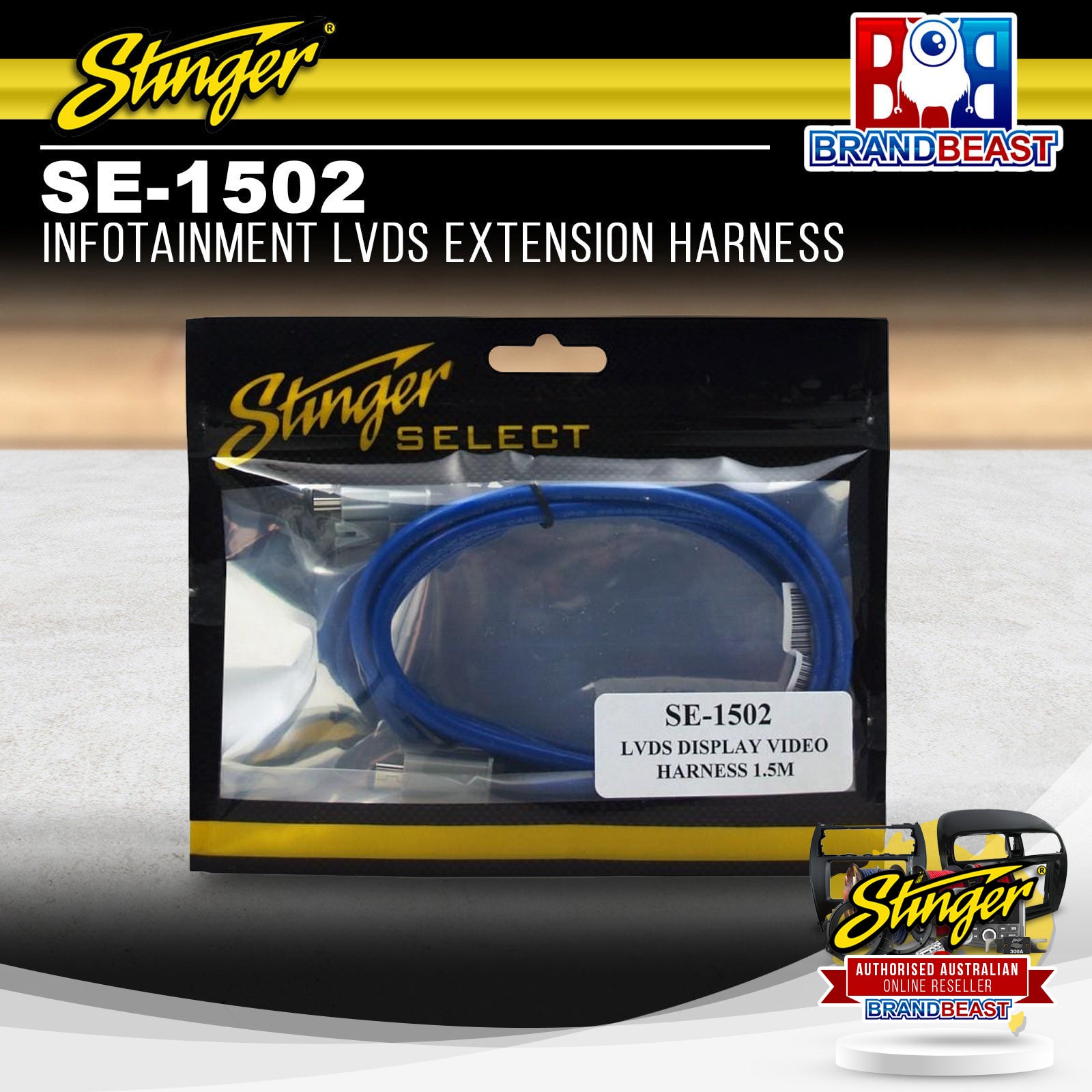

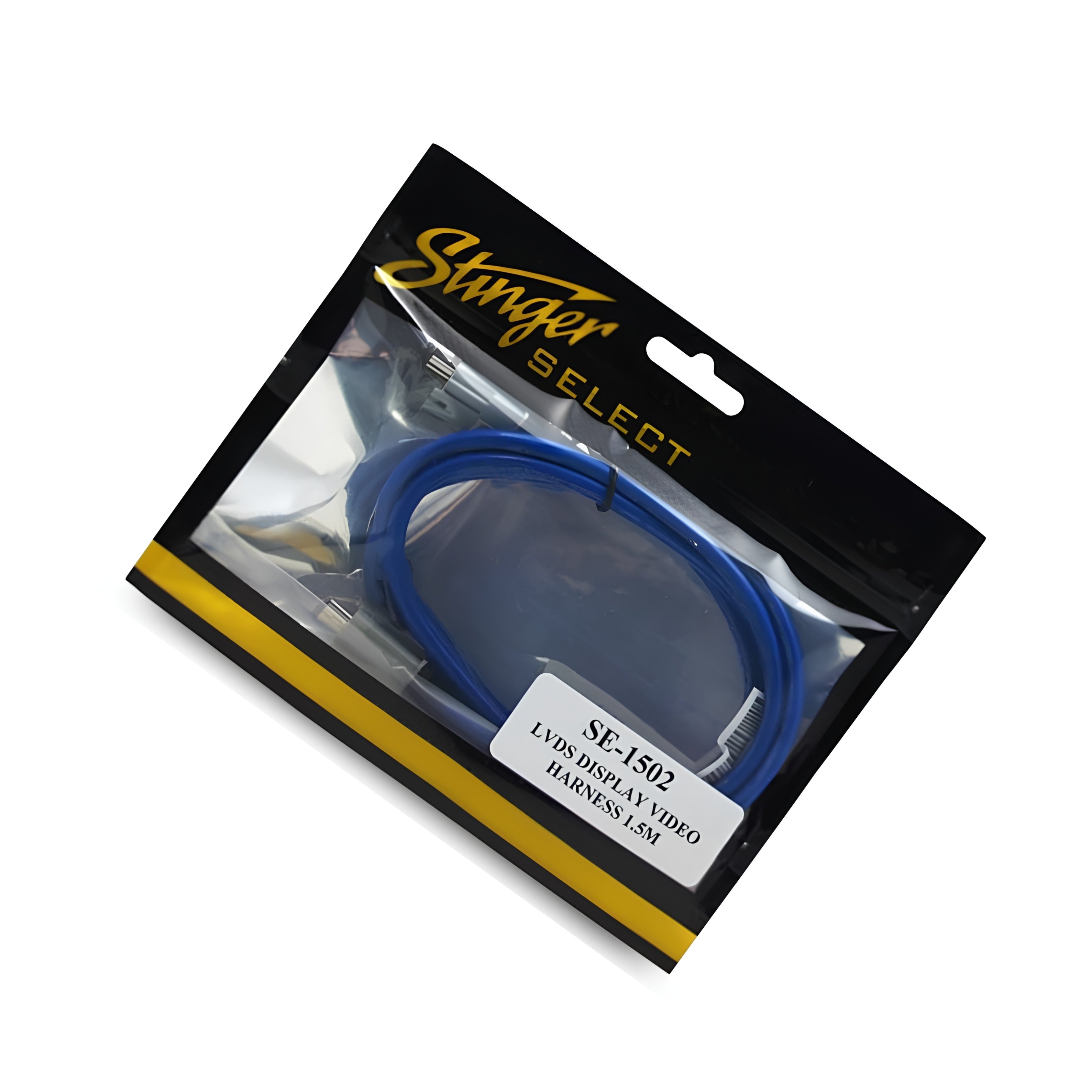

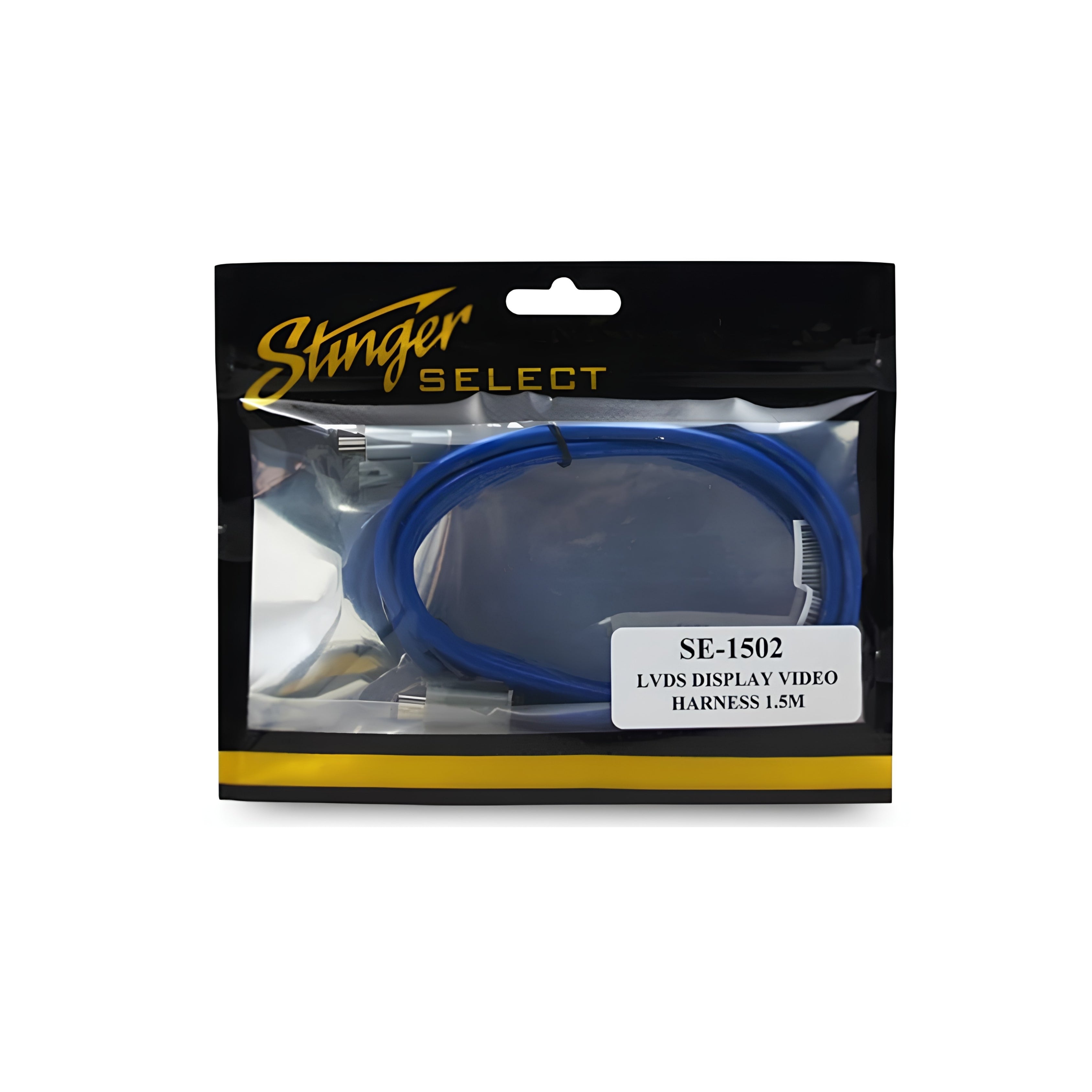

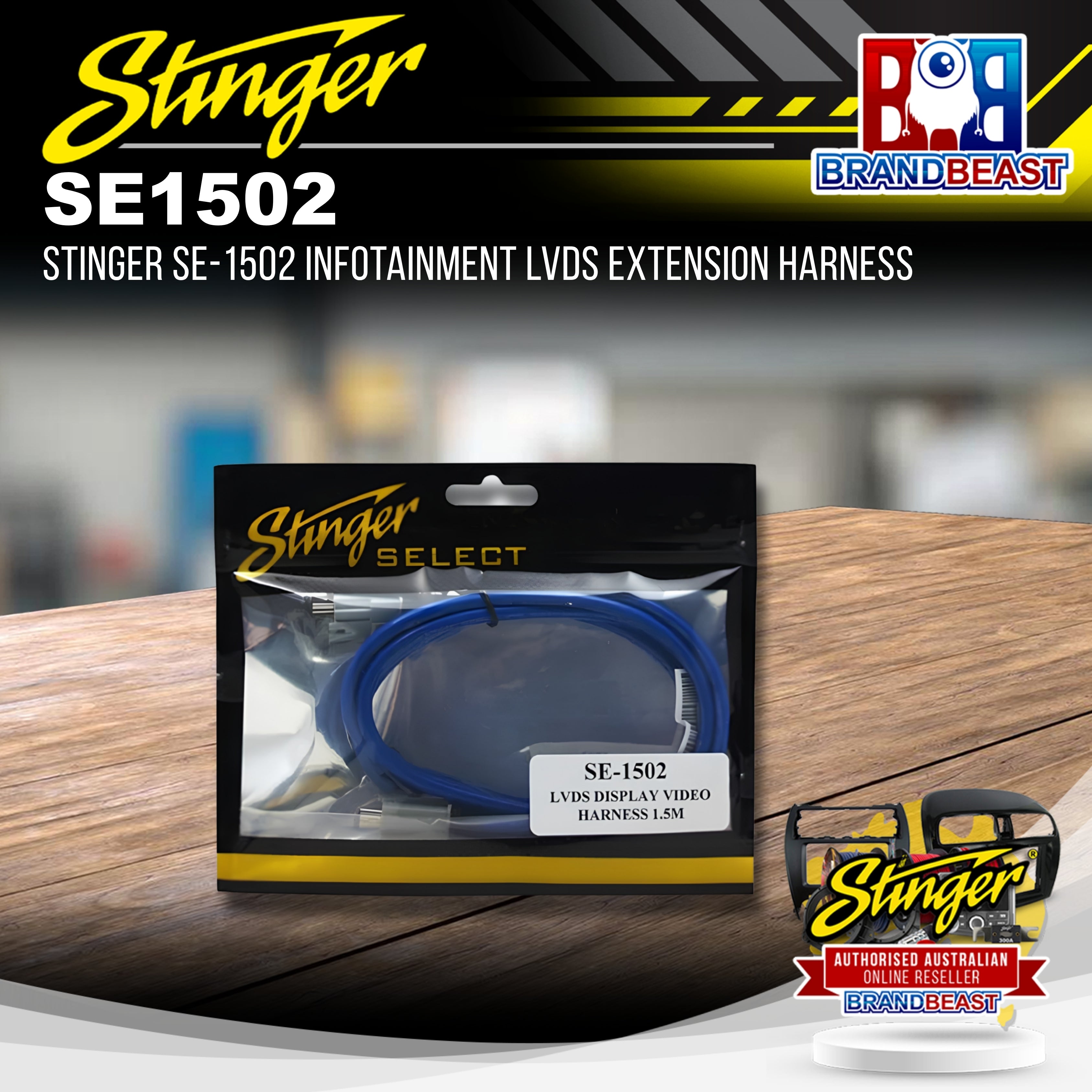

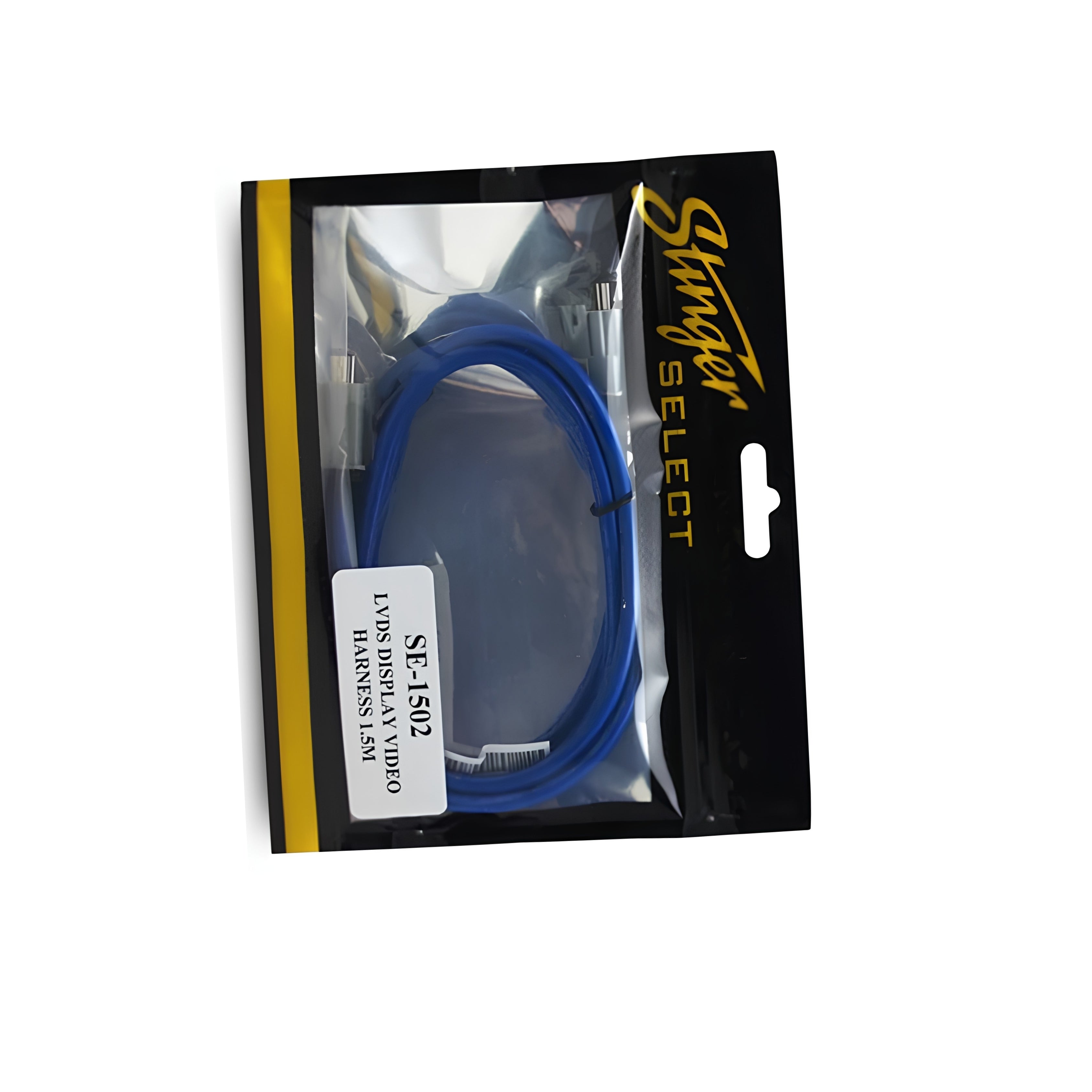

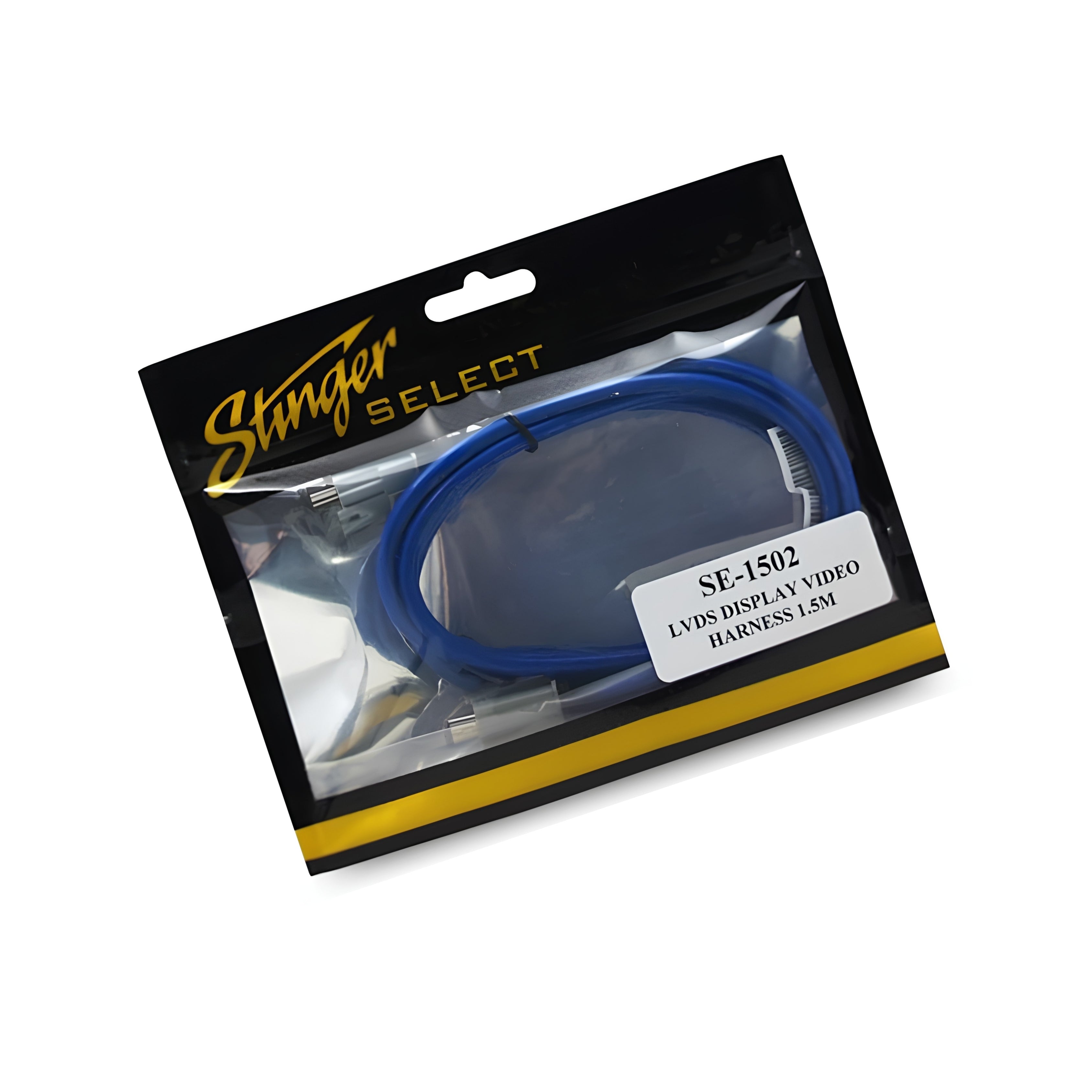

The Stinger SE-1502 is a 1.5-metre LVDS extension harness designed to extend the LVDS signal connection between the Stinger HEIGH10 (UN1810) or ELEV8 (UN1880) display and the hide-away processing module during relocation installations.
The SE-1502 is used alongside the SE-1501 8-pin display extension harness both harnesses are required when relocating the hide-away module. The SE-1502 is not a standalone solution; it must be paired with the SE-1501. The SE-1501 is sold separately. The SE-1502 is compatible with the HEIGH10 and ELEV8 only it is not a universal LVDS extension cable.
Key Specifications
- Manufacturer Part Number: SE-1502
- Function: LVDS extension harness for hide-away module relocation
- Length: 5ft / 1.5 metres
- Cable type: LVDS
- Compatible products: Stinger HEIGH10 UN1810, Stinger ELEV8 UN1880
- Companion harness required: SE-1501 8-pin harness (sold separately) — required alongside SE-1502 for full module relocation
Features & Benefits
-
Extended LVDS Signal Path — Provides 1.5 metres of additional LVDS harness length, enabling the hide-away module to be positioned further from the display in custom installations.
-
LVDS Signal Integrity — Maintains the high-bandwidth LVDS video signal over the 1.5-metre extension, ensuring display quality is not compromised during relocation.
-
HEIGH10 and ELEV8 Compatible — Confirmed for use with the Stinger HEIGH10 (UN1810) and ELEV8 (UN1880) infotainment systems only.
-
Companion to SE-1501 — Works alongside the SE-1501 8-pin display extension harness for a complete hide-away module relocation solution.
Technical Specs
| Specification |
Detail |
| Part Number |
SE-1502 |
| Brand |
Stinger |
| Function |
LVDS extension harness |
| Length |
5ft / 1.5 metres |
| Cable Type |
LVDS |
| Compatible Products |
Stinger HEIGH10 UN1810, Stinger ELEV8 UN1880 |
| Companion Harness |
SE-1501 8-pin harness required for hide-away module relocation (sold separately) |
Compatible With / Goes Well With
- Stinger HEIGH10 UN1810 infotainment system
- Stinger ELEV8 UN1880 infotainment system
- Stinger SE-1501 8-pin display extension harness (sold separately — required alongside SE-1502 when relocating hide-away module)
Frequently Asked Questions
What does the SE-1502 do?
The SE-1502 extends the LVDS video signal connection between the HEIGH10 or ELEV8 display and the hide-away module by 1.5 metres, enabling the module to be repositioned further from the display in custom installations.
Do I need any other harness alongside the SE-1502?
Yes — the SE-1501 8-pin display extension harness (sold separately) is also required when relocating the hide-away module. The SE-1502 alone is not sufficient for a full module relocation.
Which Stinger infotainment systems is the SE-1502 compatible with?
The SE-1502 is confirmed for use with the Stinger HEIGH10 (UN1810) and ELEV8 (UN1880) only. It is not compatible with other infotainment systems.
How long is the SE-1502 harness?
The SE-1502 is 1.5 metres (5 feet) in length.
What is LVDS and why is a separate harness needed?
LVDS (Low-Voltage Differential Signalling) is a high-speed data connection used to transmit the video signal between the display and the processing module in the HEIGH10 and ELEV8. It uses a different connector and signal type to the 8-pin display harness, which is why both the SE-1502 (LVDS) and the SE-1501 (8-pin) are required for a complete module relocation.
