Universal 9-Inch to 10-Inch Trapezoid Expander Adapter Installs Between Fascia and Head Unit, Matte Black ABS
Product Overview

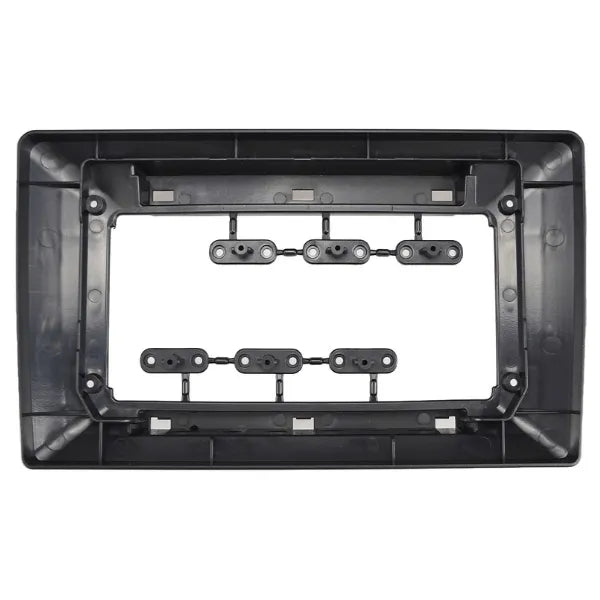

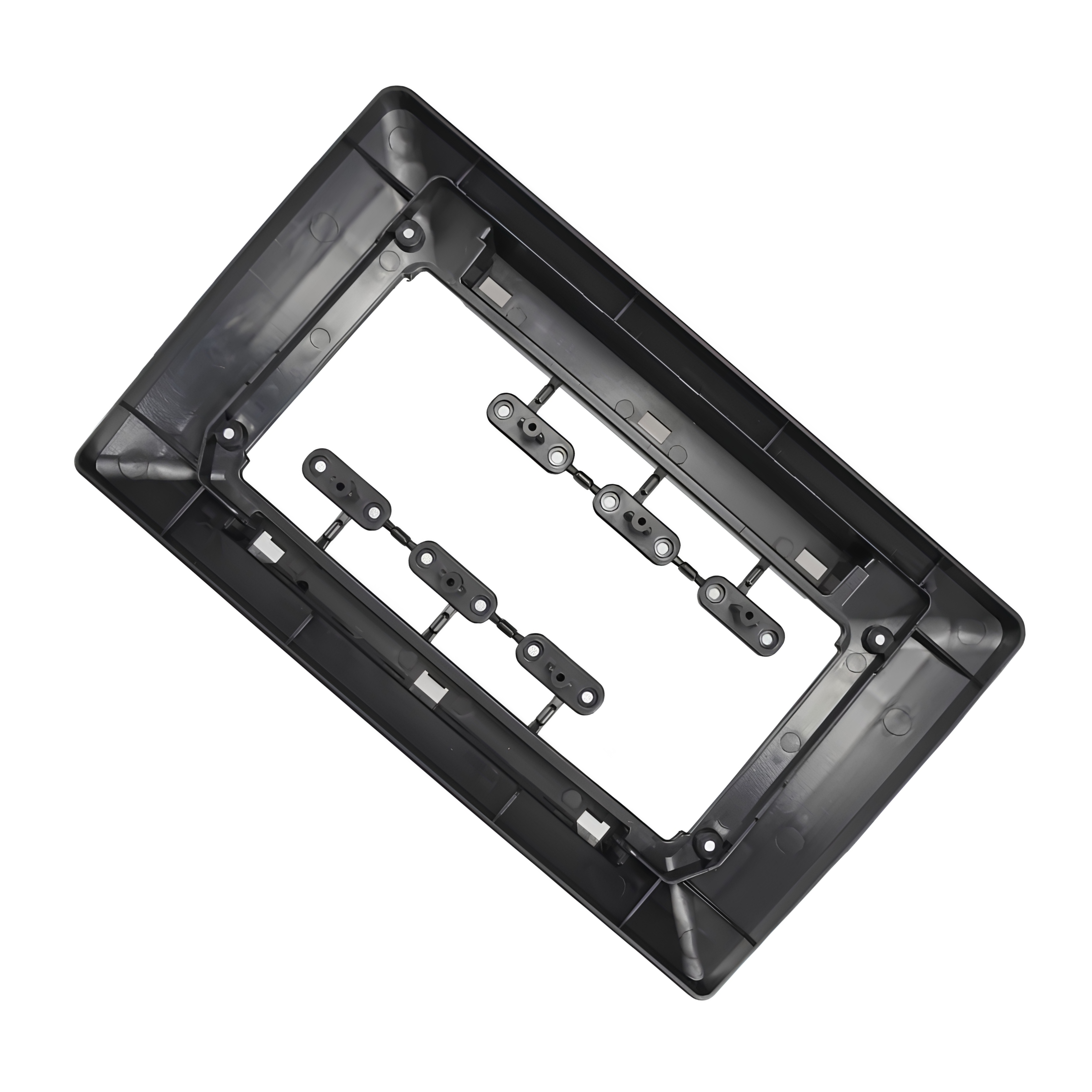

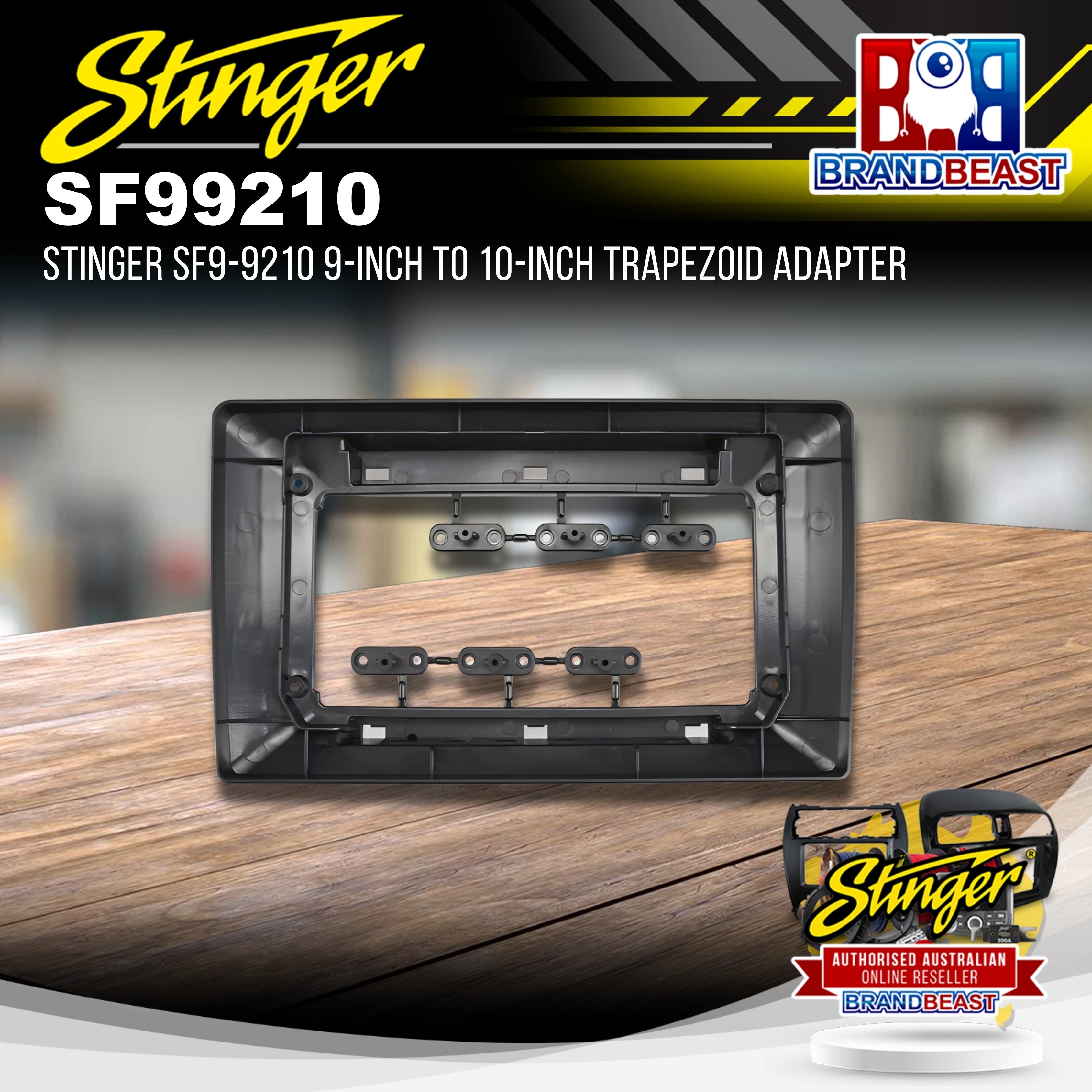

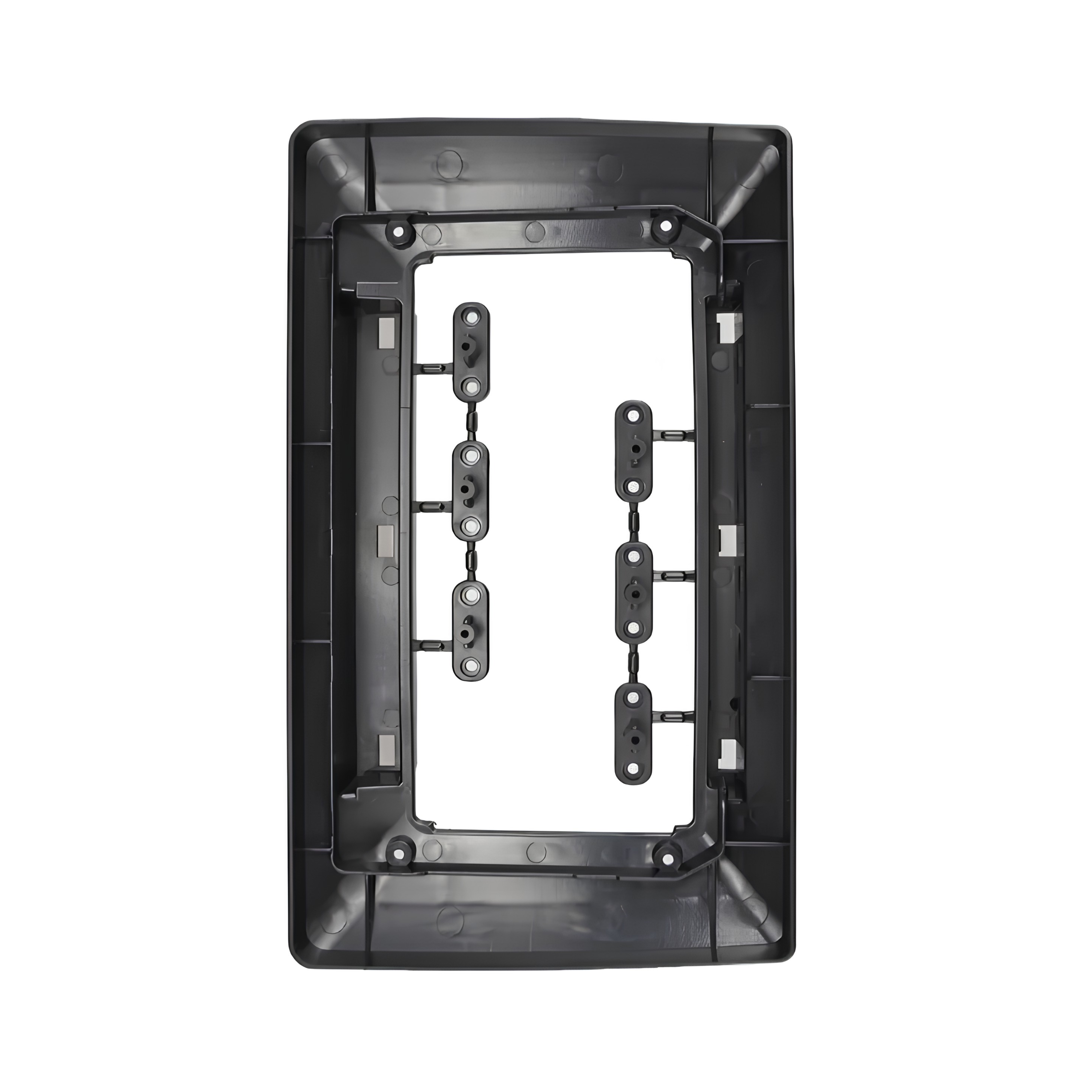

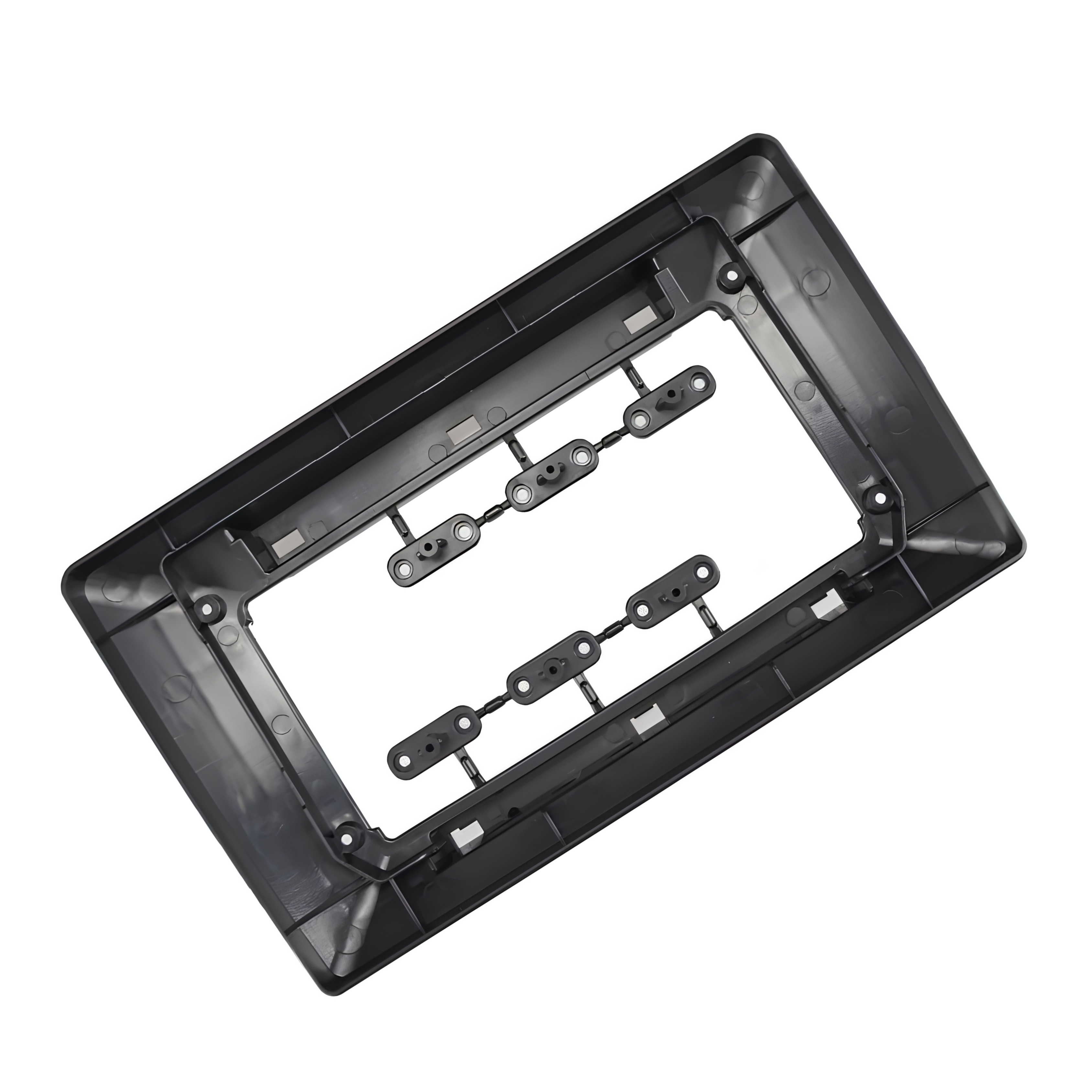

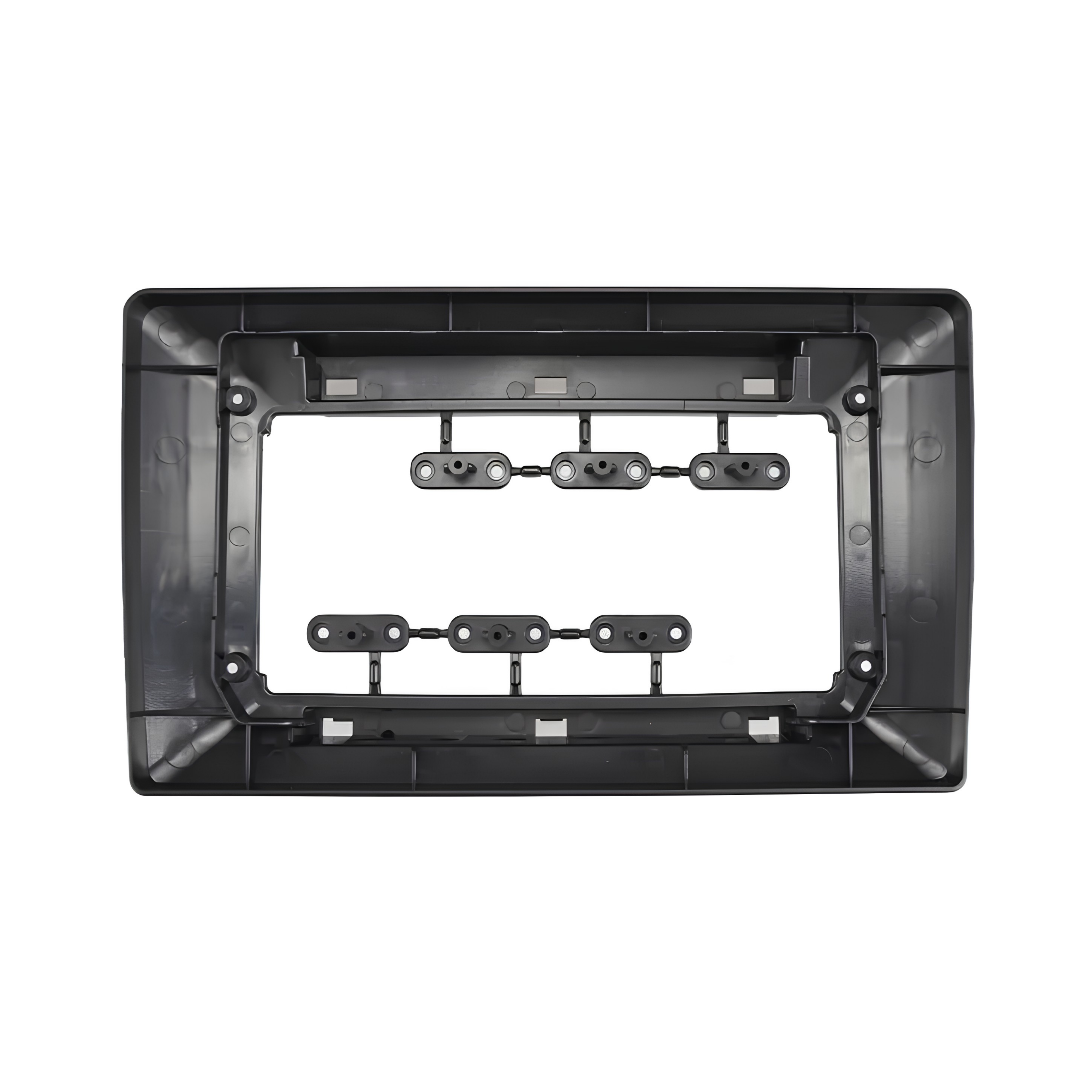

The Stinger SF9-9210 is a universal 9-inch to 10-inch trapezoid expander adapter panel — allowing a 10-inch trapezoid head unit to be installed into a 9-inch trapezoid fascia opening without requiring a dedicated 10-inch vehicle-specific fascia. It installs between the existing 9-inch fascia and the 10-inch head unit, bridging the dimensional difference between the two trapezoid sizes.
Compatible with any 9-inch trapezoid fascia kit regardless of vehicle make or model. Confirmed compatible head units: Alpine INE-AW409S-10, Alpine INE-AX809-10, and Aerpro AM10X. Matte black ABS plastic construction. No tools required, no permanent modification, fully reversible.
Key Specifications
- Part number: SF9-9210
- Brand: Stinger
- Product type: 9-inch to 10-inch trapezoid expander adapter
- Function: Expands 9-inch trapezoid fascia opening to accept 10-inch trapezoid head unit
- Compatible with: Any 9-inch trapezoid fascia kit — universal
- Confirmed compatible head units: Alpine INE-AW409S-10, Alpine INE-AX809-10, Aerpro AM10X
- Material: Injection-moulded ABS plastic
- Finish: Matte black
- Tools required: None
- Mounting: Uses existing mounting hardware
- Permanent modification: None — fully reversible
Features & Benefits
-
Expands 9-Inch Fascia to Accept 10-Inch Head Unit Without this adapter, a 10-inch trapezoid head unit physically cannot fit through a 9-inch trapezoid fascia opening — the dimensional mismatch prevents installation. The SF9-9210 bridges this gap, creating the appropriate aperture, alignment, and mounting provisions for the larger head unit within the smaller fascia.
-
Universal 9-Inch Trapezoid Fascia Compatibility Compatible with any vehicle fitted with a 9-inch trapezoid fascia kit — Toyota, Nissan, Ford, Mazda, Mitsubishi, Subaru, Suzuki, Volkswagen, Holden, and all other brands. One adapter serves the entire 9-inch trapezoid fascia range.
-
Confirmed Compatible Head Units The SF9-9210 is specifically confirmed for: Alpine INE-AW409S-10, Alpine INE-AX809-10, and Aerpro AM10X. These represent the primary 10-inch trapezoid head unit options available in the Australian aftermarket.
- Cost-Effective Screen Size Upgrade Path
-
Matte Black ABS — Professional Integration Precision-moulded in matte black ABS — fills the dimensional gap between the 9-inch fascia opening and the 10-inch head unit without exposed dashboard gaps or visible misalignment.
-
No Tools, No Permanent Modification Installs between fascia and head unit using existing mounting hardware. Fully reversible — remove the adapter and 10-inch head unit to revert to a 9-inch head unit at any time.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-9210 |
| Product Type |
9-Inch to 10-Inch Trapezoid Expander Adapter |
| Function |
Expands 9-inch trapezoid opening to accept 10-inch trapezoid head unit |
| Compatibility |
Universal — any 9-inch trapezoid fascia kit |
| Confirmed Head Units |
Alpine INE-AW409S-10, Alpine INE-AX809-10, Aerpro AM10X |
| Material |
Injection-Moulded ABS Plastic |
| Finish |
Matte Black |
| Tools Required |
None |
| Mounting |
Existing mounting hardware |
| Permanent Modification |
None — fully reversible |
Compatible With / Goes Well With
Universal fascia compatibility:
- Any vehicle fitted with a 9-inch trapezoid fascia kit
- All Stinger SF9-series 9-inch trapezoid fascias (SF9-FD02, SF9-FD04, SF9-HY01, SF9-HY02, SF9-MI01, SF9-MI02, SF9-MI03, SF9-MI04, SF9-MI05, SF9-MZ04, SF9-NI03, SF9-NI04, SF9-NI05, SF9-SB01, SF9-SZ01, SF9-SZ02, SF9-SZ03, SF9-TY01, SF9-TY13, SF9-TY14, SF9-TY15, SF9-VW03, and others)
Confirmed compatible 10-inch head units:
- Alpine INE-AW409S-10
- Alpine INE-AX809-10
- Aerpro AM10X
Not suitable for:
- Vehicles without a 9-inch trapezoid fascia already installed
- Reducing a 10-inch fascia to accept a 9-inch head unit (requires SF9-1029 reducer)
Frequently Asked Questions
Do I need the SF9-9210 if my vehicle has a 9-inch trapezoid fascia and I want to install a 10-inch head unit?
Yes — the 10-inch head unit physically cannot fit through a 9-inch fascia opening without this adapter. The SF9-9210 expands the opening to create the correct aperture, alignment, and mounting for the 10-inch unit.
Can the SF9-9210 be used in reverse to fit a 9-inch head unit into a 10-inch fascia?
No — the SF9-9210 is an expander only. For fitting a 9-inch head unit into a 10-inch fascia opening, the SF9-1029 reducer adapter is required.
Which 10-inch trapezoid head units are confirmed compatible?
The SF9-9210 is confirmed compatible with Alpine INE-AW409S-10, Alpine INE-AX809-10, and Aerpro AM10X. For other 10-inch trapezoid head units not on this list, confirm compatibility with Stinger before purchasing.
Is the SF9-9210 compatible with all vehicle makes and models?
Yes — the SF9-9210 is universal across all vehicles where a 9-inch trapezoid fascia kit is installed. The vehicle must already have a 9-inch trapezoid fascia in place; the SF9-9210 does not replace that fascia.
Can the SF9-9210 be purchased separately or does it come with certain fascia kits?
The SF9-9210 is available as a standalone purchase. Some 9-inch trapezoid fascia kits may include an expansion panel; check the fascia kit contents before ordering to avoid duplication.
