Description
Universal 9-Inch Trapezoid to Double DIN Adapter Converts Any 9-Inch Trapezoid Fascia Opening to Standard 180 × 100mm Double DIN. Matte Black, ABS Plastic, Reversible.
Product Overview

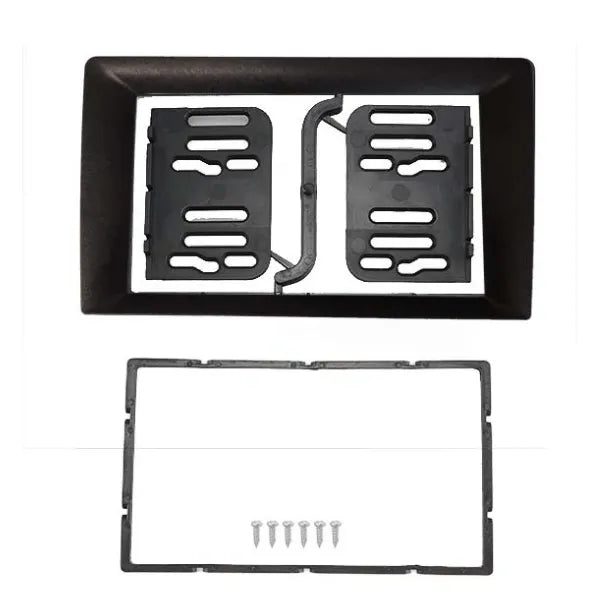

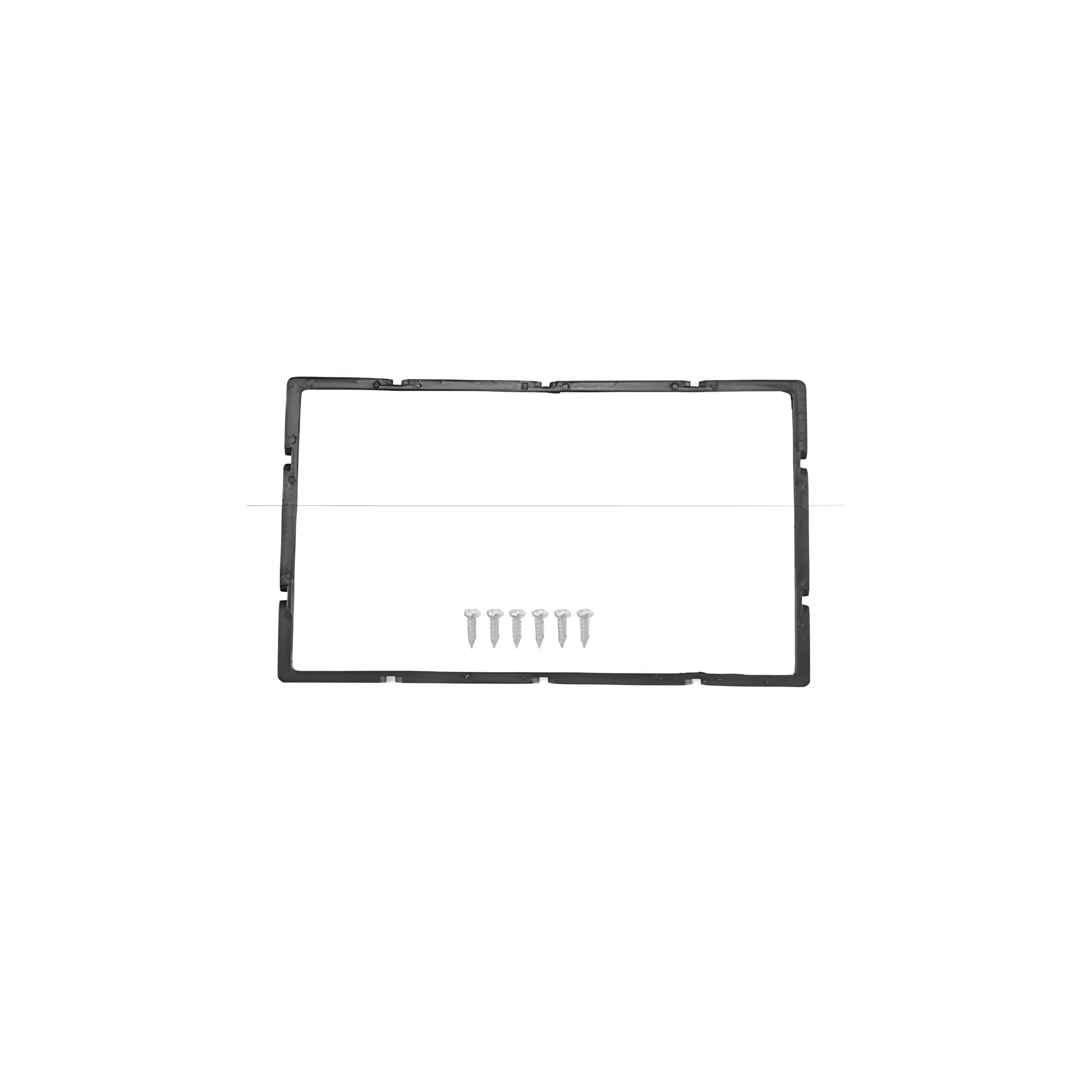

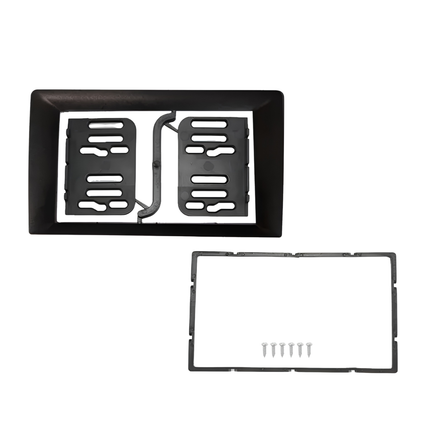

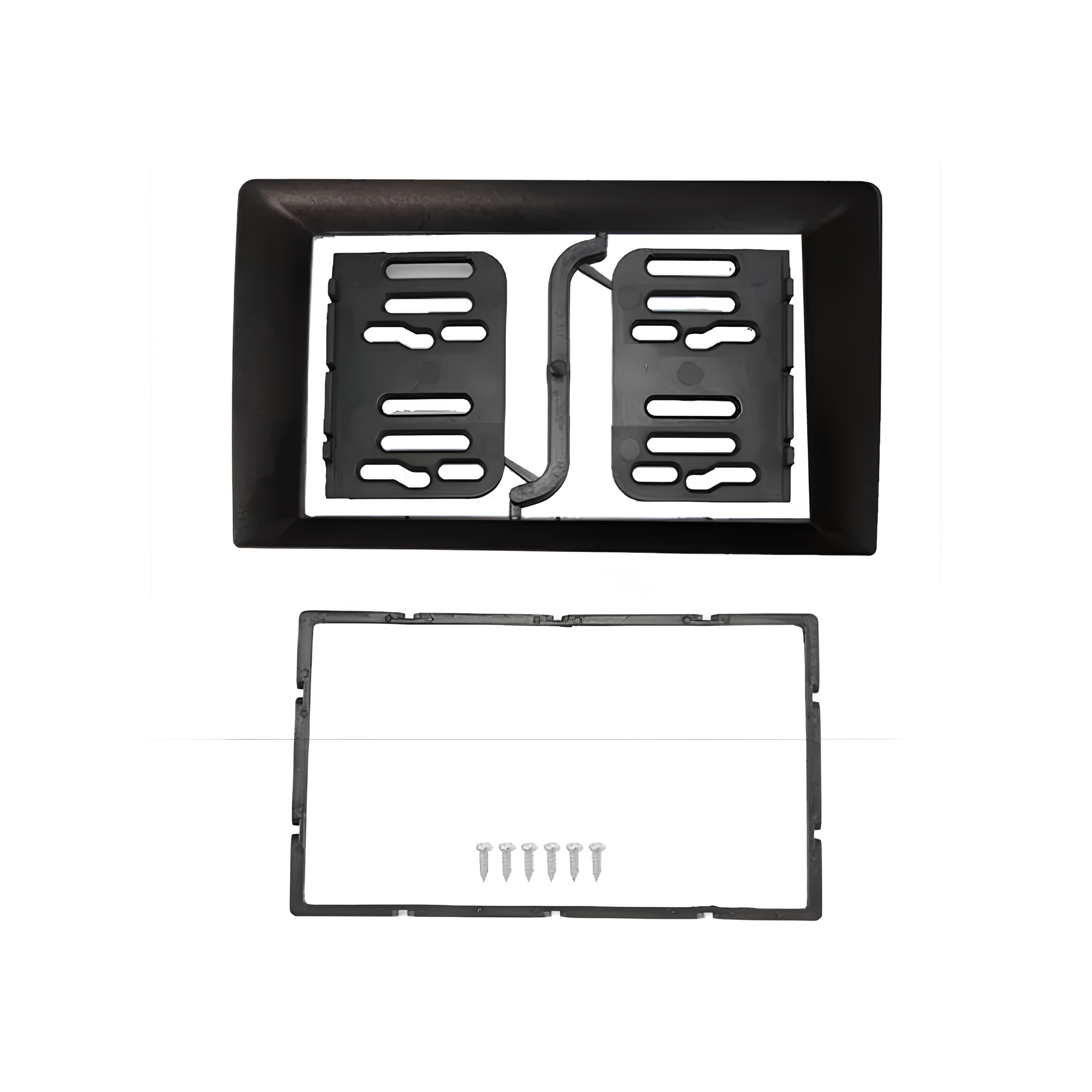

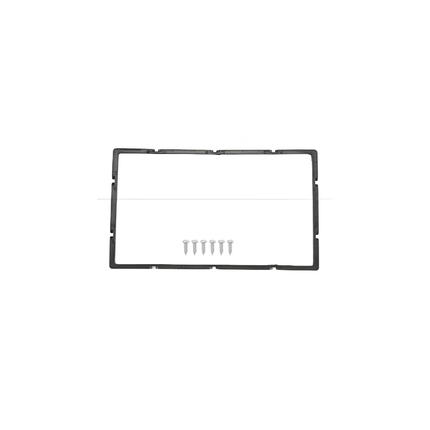

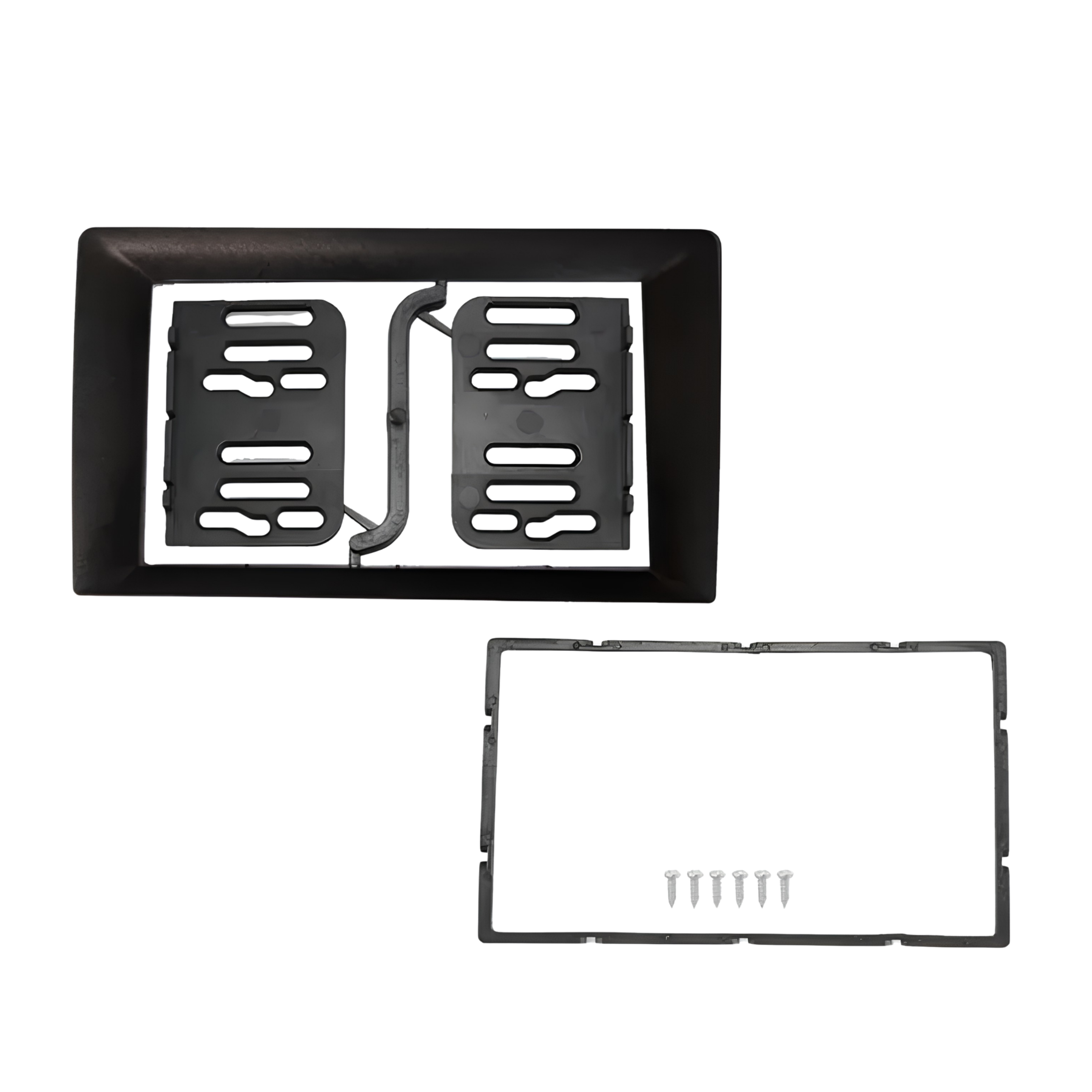

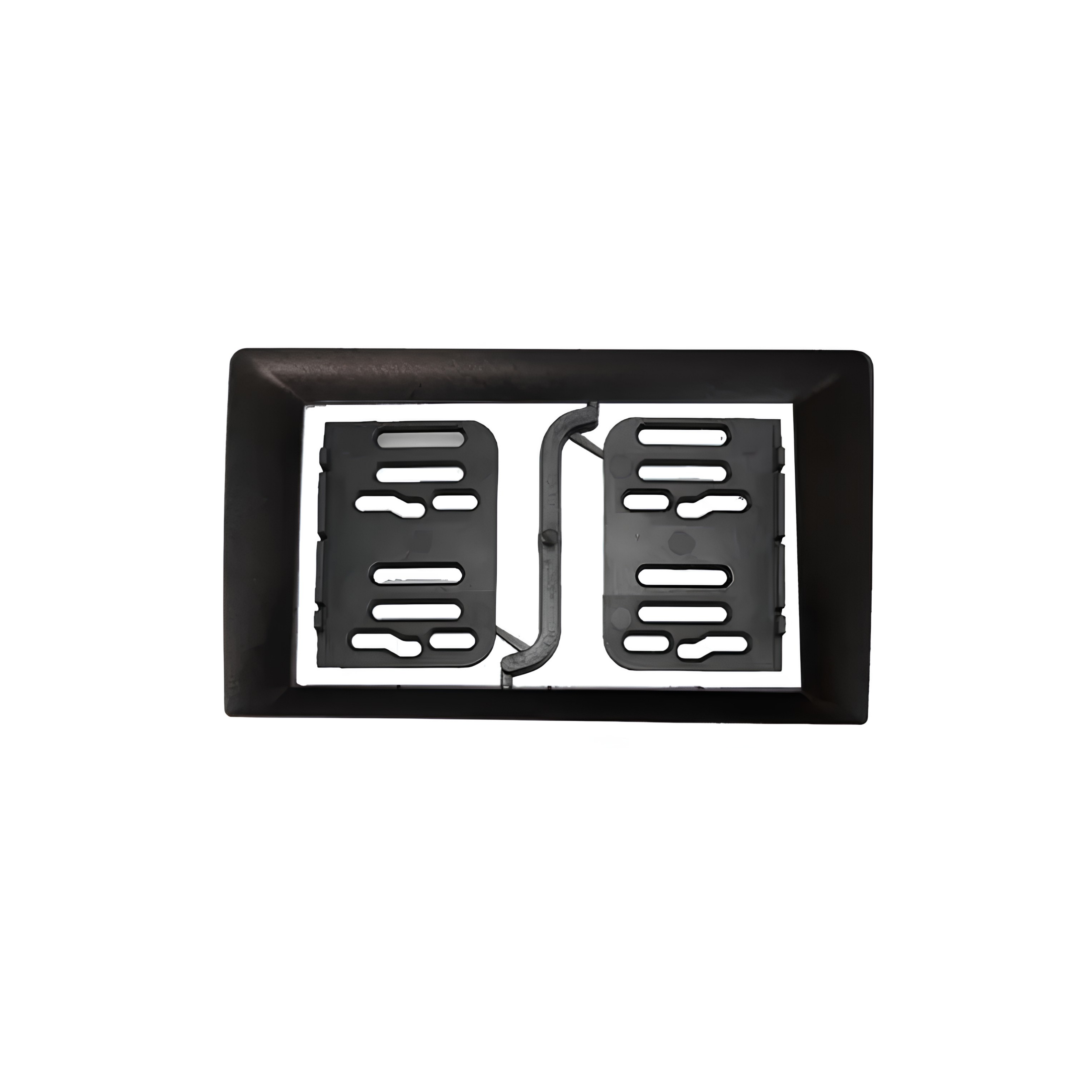

The Stinger SF9-927 is a universal format adapter trim that converts a 9-inch trapezoid fascia opening to a standard double DIN (180mm × 100mm) head unit mounting aperture. Compatible with any 9-inch trapezoid fascia kit regardless of vehicle make, model, or fascia brand a single universal SKU serves the entire 9-inch trapezoid fascia range.
The SF9-927 fills the dimensional and geometric gap between the wider-at-top trapezoid opening and the standard rectangular double DIN format, allowing a standard double DIN head unit to be installed cleanly within an existing 9-inch trapezoid fascia. No tools required; no permanent modification to the fascia. Fully reversible the adapter can be removed and a 9-inch trapezoid head unit installed in its place at any time.
Key Specifications
- Part number: SF9-927
- Brand: Stinger
- Product type: 9-inch trapezoid to double DIN format adapter
- Function: Converts 9-inch trapezoid fascia opening to 180mm × 100mm double DIN aperture
- Compatible with: Any 9-inch trapezoid fascia kit — universal
- Accommodates: Standard double DIN head units (180mm × 100mm)
- Material: Injection-moulded ABS plastic
- Finish: Matte black
- Tools required: None
- Mounting: Standard double DIN mounting (uses head unit's own sleeve, bracket, or direct mount)
- Permanent modification: None — fully reversible
Features & Benefits
-
Universal 9-Inch Trapezoid Compatibility The SF9-927 fits within any 9-inch trapezoid fascia opening regardless of vehicle, fascia brand, or year — covering Toyota, Nissan, Ford, Mazda, Mitsubishi, Subaru, Suzuki, Volkswagen, Holden, and all other vehicles where a 9-inch trapezoid fascia is installed.
-
Expands Head Unit Selection to Standard Double DIN Converts the trapezoid opening to the standard double DIN format (180mm × 100mm / ISO DIN standard) — providing access to the full double DIN head unit market from Pioneer, Kenwood, Alpine, Sony, JVC, Clarion, and other manufacturers across all price points and feature sets.
-
Reversible — No Permanent Modification The adapter installs within the trapezoid fascia without any permanent modification. To revert to a trapezoid head unit, remove the double DIN unit, extract the SF9-927, and install the trapezoid unit directly. The fascia is unchanged throughout.
-
Standard Double DIN Installation Process Once the SF9-927 is in place, the double DIN head unit mounts using its standard sleeve, bracket, or direct-mount method — the same installation method familiar to any double DIN install. No specialist tools or novel techniques required.
-
Matte Black ABS Construction The matte black finish and ABS plastic construction provide a professional, neutral appearance that blends with the majority of vehicle interior trim colours and complements both OEM and aftermarket dashboard aesthetics.
-
Single Universal SKU — Simplifies Inventory One part number covers every vehicle in the 9-inch trapezoid fascia range — reducing component complexity for installers managing multiple vehicle brands.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-927 |
| Product Type |
Format Adapter — 9-Inch Trapezoid to Double DIN |
| Function |
Converts 9-inch trapezoid opening to 180mm × 100mm double DIN |
| Compatibility |
Universal — any 9-inch trapezoid fascia kit |
| Accommodates |
Standard double DIN head units (180mm × 100mm) |
| Material |
Injection-Moulded ABS Plastic |
| Finish |
Matte Black |
| Tools Required |
None |
| Mounting Method |
Standard double DIN (sleeve, bracket, or direct mount) |
| Permanent Modification |
None — fully reversible |
Compatible With / Goes Well With
Universal compatibility:
- Any vehicle fitted with a 9-inch trapezoid fascia kit
- All Stinger SF9-series 9-inch trapezoid fascias (SF9-FD02, SF9-FD04, SF9-HY01, SF9-HY02, SF9-MI01, SF9-MI02, SF9-MI03, SF9-MI04, SF9-MI05, SF9-MZ04, SF9-NI03, SF9-NI04, SF9-NI05, SF9-SB01, SF9-SZ01, SF9-SZ02, SF9-SZ03, SF9-TY01, SF9-TY13, SF9-TY14, SF9-TY15, SF9-VW03, and others)
Compatible head units:
- All standard double DIN head units (180mm wide × 100mm tall) from Pioneer, Kenwood, Alpine, Sony, JVC, Clarion, and other major manufacturers
Not suitable for:
- Vehicles without a 9-inch trapezoid fascia already installed
- 10-inch trapezoid fascia openings
- Single DIN head units (requires an additional single-to-double DIN sleeve if fitting a single DIN unit)
Frequently Asked Questions
What vehicles is the SF9-927 compatible with?
The SF9-927 is universal — it fits within any 9-inch trapezoid fascia opening regardless of vehicle make, model, or year. The vehicle must have a 9-inch trapezoid fascia already installed. It does not work with 10-inch trapezoid fascias or without a trapezoid fascia in place.
Will the SF9-927 affect my head unit's audio quality or features?
No — the SF9-927 is a passive physical trim adapter containing no electronics. It does not intercept wiring or signals. All head unit features including Apple CarPlay, Android Auto, Bluetooth, and audio quality operate identically as with any other installation method.
Can I remove the SF9-927 later and install a trapezoid head unit?
Yes — the SF9-927 installs within the trapezoid fascia without permanent modification. Remove the double DIN unit, extract the adapter, and install a 9-inch trapezoid head unit directly. The fascia is unchanged.
Can I use the SF9-927 to install a single DIN head unit?
The SF9-927 creates a standard double DIN (180mm × 100mm) aperture. Single DIN head units can be accommodated by combining the SF9-927 with a separate universal single-to-double DIN mounting sleeve or pocket kit. Contact F.A.E. for guidance on single DIN installation requirements.
Does the SF9-927 work with 10-inch trapezoid fascias?
No — the SF9-927 is designed for 9-inch trapezoid fascia openings only. 10-inch trapezoid fascias have a different opening size and are not compatible with this adapter.
