Description
9-Inch Trapezoid Head Unit Fascia Ford Ranger 2015–2019 with Factory 4.2" Display and CD Mechanism Only. OEM-Style Integration. Fascia Panel Only.
Product Overview

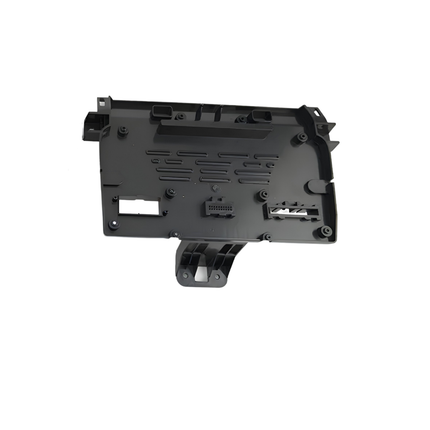

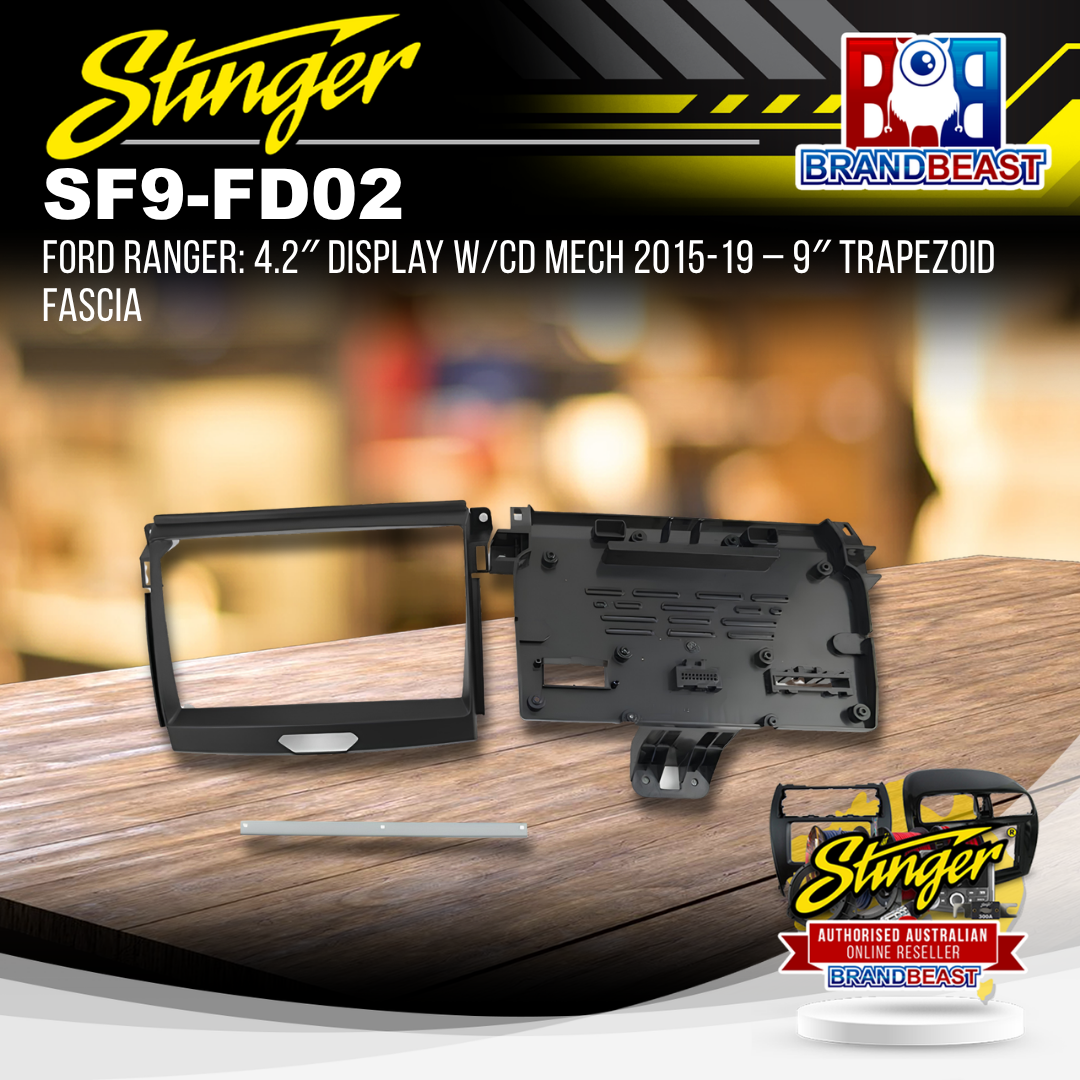

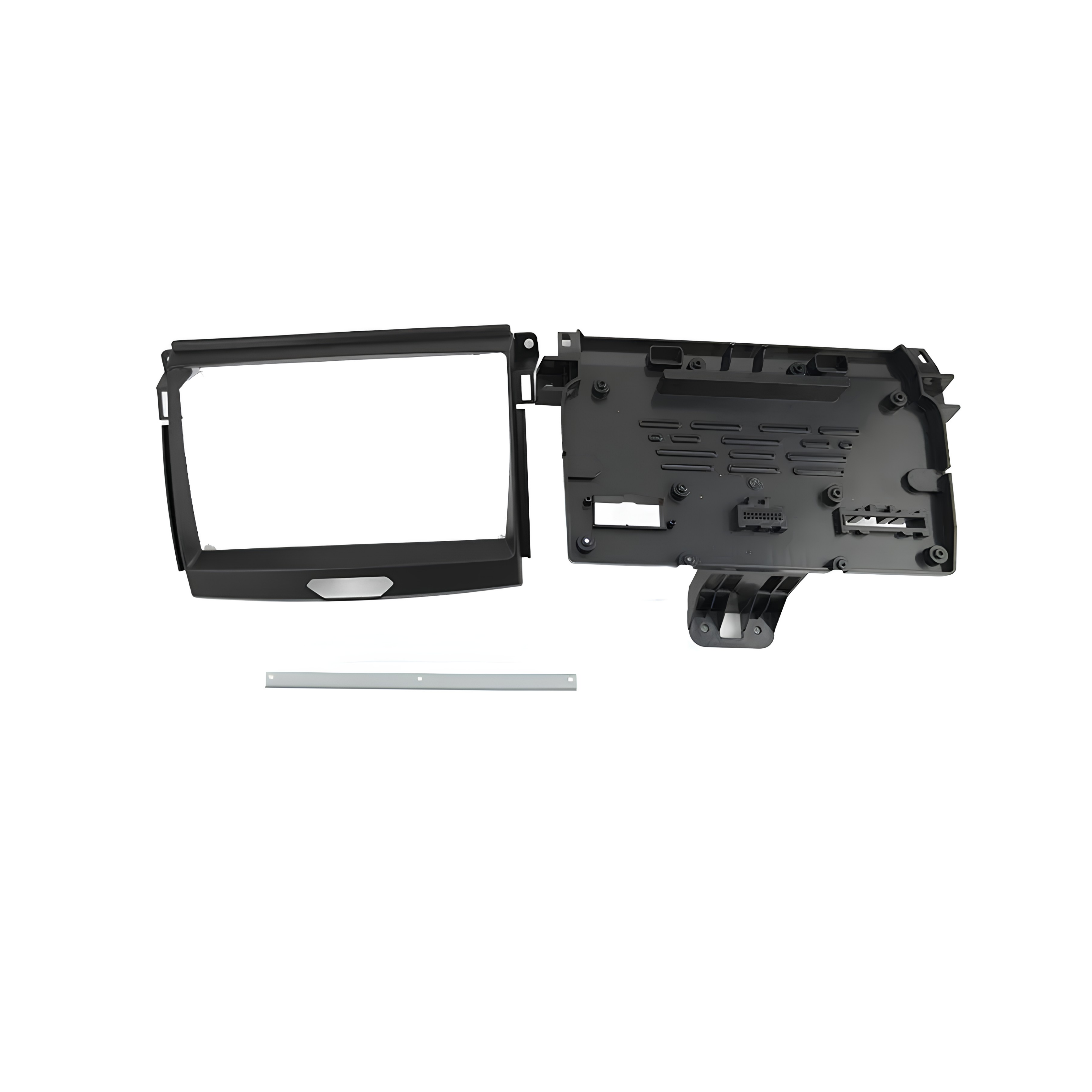

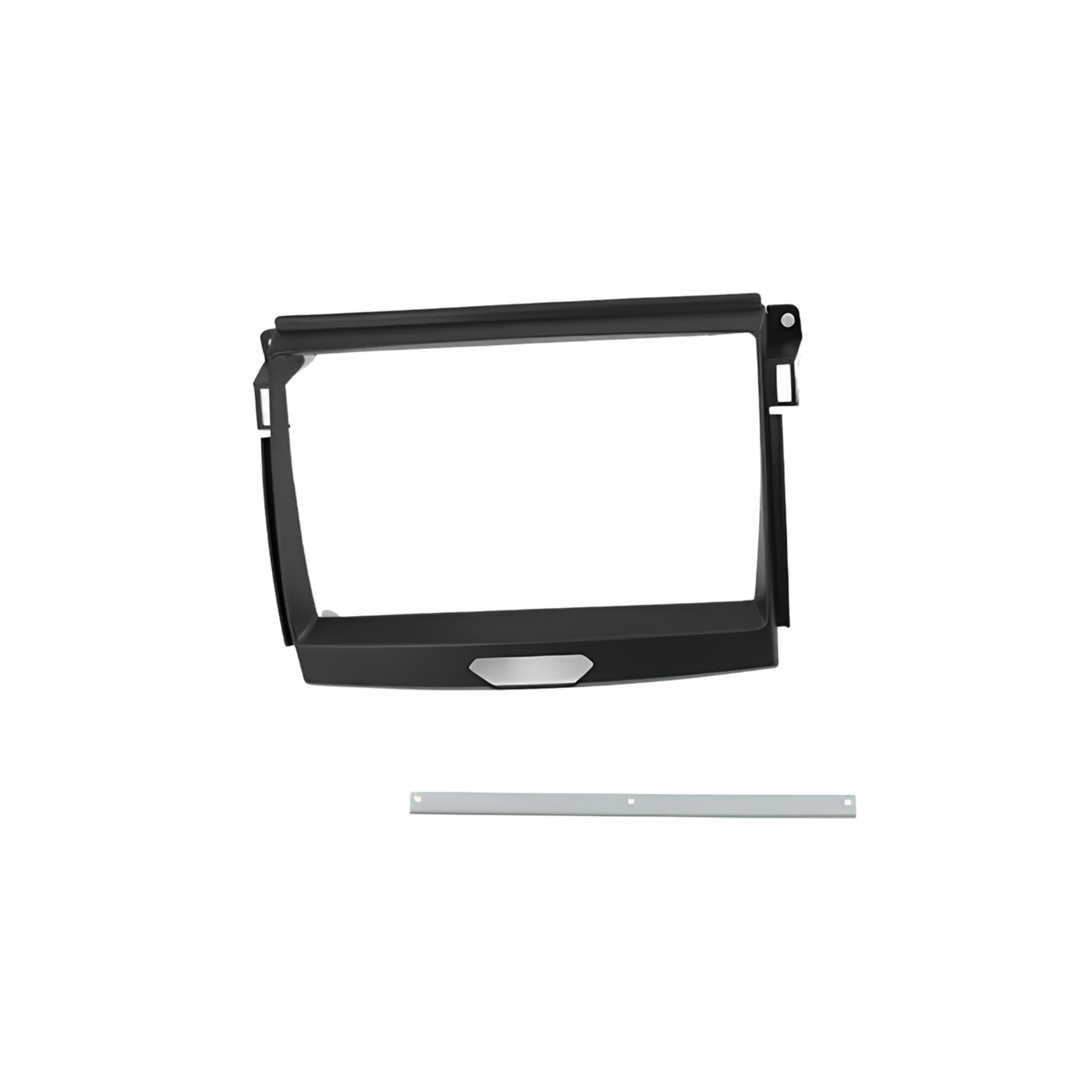

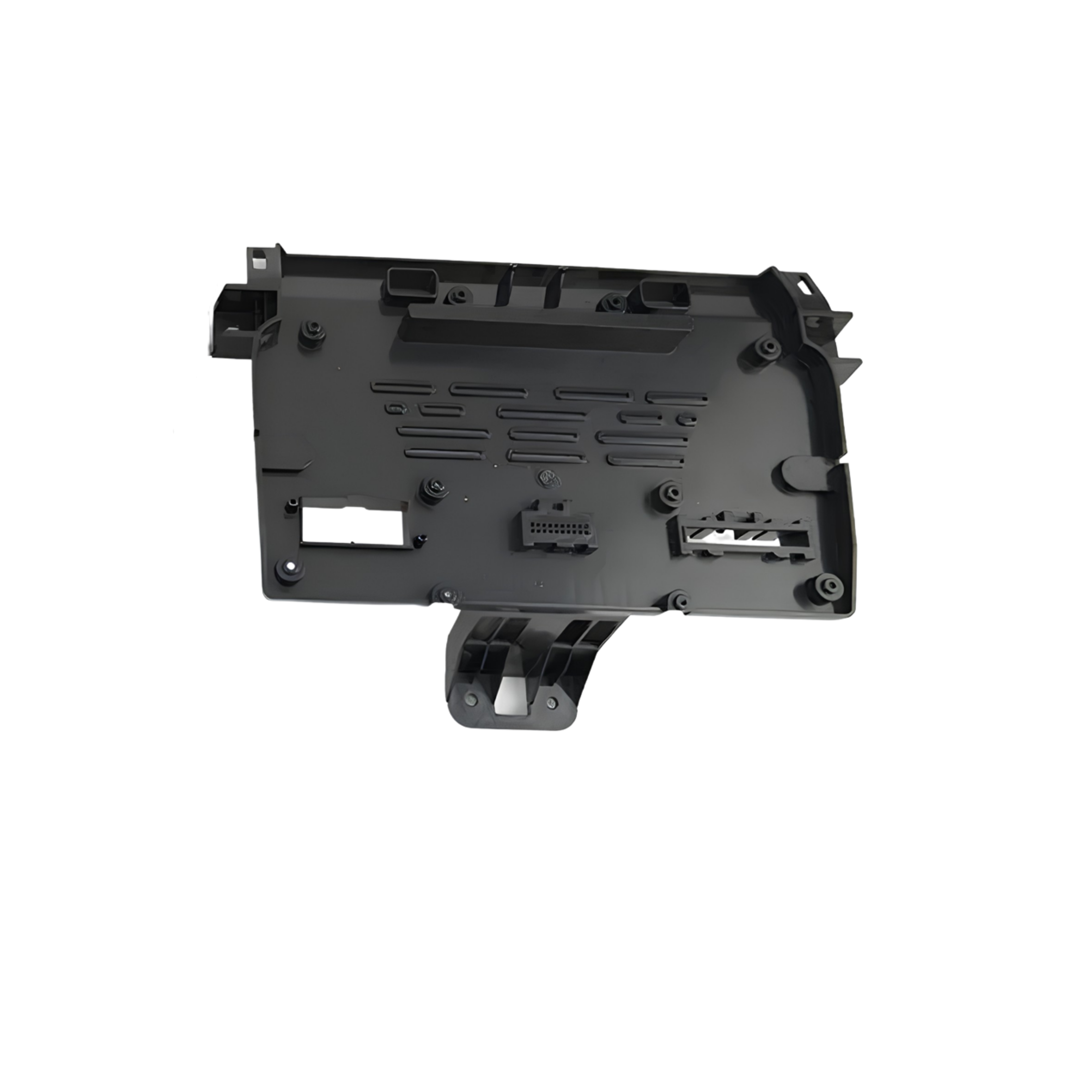

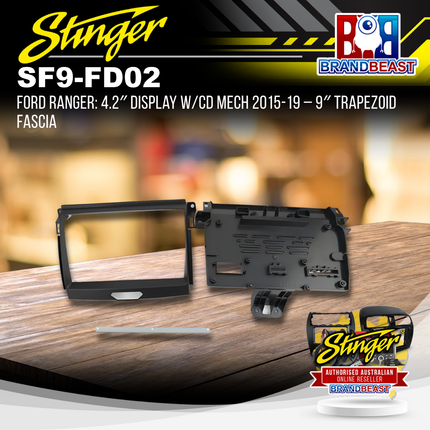

The Stinger SF9-FD02 is a vehicle-specific 9-inch trapezoid head unit fascia designed for Ford Ranger models manufactured between 2015 and 2019 that are fitted with the factory 4.2-inch display and CD mechanism configuration. The Ford Ranger was produced with multiple different factory radio setups across this production period the SF9-FD02 is compatible with the 4.2-inch display and CD mechanism variant only. Rangers with an 8-inch SYNC 3 touchscreen, basic non-display radio, or any other factory radio configuration require a different fascia solution.
Precision-moulded to match the Ranger factory dashboard finish, the SF9-FD02 delivers a clean, OEM-style appearance after installation. Compatible with 9-inch trapezoid head units from Alpine, Pioneer, Kenwood, and other manufacturers producing 9-inch trapezoid format receivers. Not compatible with 2020 and newer Ranger models, which feature a completely different dashboard design.
Key Specifications
- Part number: SF9-FD02
- Brand: Stinger
- Product type: 9-inch trapezoid head unit fascia
- Compatible head unit format: 9-inch trapezoid only (not 10-inch)
- Colour: Not specified — confirm with Stinger
- Vehicle: Ford Ranger 2015–2019
- Factory radio configuration required: 4.2-inch display with CD mechanism
- Not compatible with: 8-inch SYNC 3 Ranger, basic non-display Ranger, 2020+ Ranger
- Includes: Fascia panel only
- Wiring harness: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- SWC harness: Not included — sold separately
- Camera retention harness: Not included — sold separately
Features & Benefits
-
Factory Radio Configuration Specific — 4.2" Display with CD Mechanism The Ford Ranger 2015–2019 was produced with multiple factory radio configurations. The SF9-FD02 is engineered specifically for the 4.2-inch display with CD mechanism variant — this single factory configuration qualifier is the most critical fitment check for this product. If the factory radio has a 4.2-inch colour display with a CD slot below it, this is the correct fascia.
-
Not Compatible with SYNC 3 or 2020+ Rangers Rangers fitted with an 8-inch SYNC 3 system, basic radios without a display, or any 2020+ model with a redesigned dashboard require a different fascia. Confirm the factory radio configuration before purchasing.
-
9-Inch Trapezoid Only — Not 10-Inch The SF9-FD02 is designed for 9-inch trapezoid head units only. 10-inch trapezoid head units require a different, larger fascia. Confirm the head unit's size format before purchasing.
-
OEM-Style Dashboard Integration Precision-moulded for the Ranger factory trim — matching factory trim pieces for a cohesive interior appearance with no visible gaps or light leakage after installation.
-
Fascia Panel Only — Installer Flexibility Supplied as the fascia panel alone, allowing installers to source the correct wiring harness, SWC interface, camera retention harness, and antenna adaptor for the vehicle's specific equipment level.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-FD02 |
| Product Type |
9-Inch Trapezoid Head Unit Fascia |
| Compatible Format |
9-Inch Trapezoid (not 10-inch) |
| Colour |
Not specified — confirm with Stinger |
| Vehicle |
Ford Ranger 2015–2019 |
| Factory Radio Required |
4.2-inch display with CD mechanism |
| Not Compatible |
8-inch SYNC 3 Ranger / basic no-display Ranger / 2020+ Ranger |
| Includes |
Fascia Panel Only |
| Wiring Harness |
Not included |
| Antenna Adaptor |
Not included |
| SWC Harness |
Not included |
| Camera Retention Harness |
Not included |
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Factory Radio Required |
| Ford |
Ranger |
2015–2019 |
4.2-inch display with CD mechanism only |
Not compatible with:
- Ford Ranger 2015–2019 with 8-inch SYNC 3 system
- Ford Ranger 2015–2019 with basic radio (no display)
- Ford Ranger 2020+ (different dashboard design)
Compatible 9-inch trapezoid head units (confirm format before purchasing):
- Alpine INE-AW409S / INE-AX809 and iLX series 9-inch trapezoid models
- Pioneer DMH series 9-inch trapezoid models
- Kenwood DMX series 9-inch trapezoid models
- Sony, JVC, and other major brands producing 9-inch trapezoid format
Recommended accessories (sold separately):
- Ford Ranger 2015–2019 specific ISO wiring harness
- Steering wheel control harness (if equipped with SYNC controls)
- Camera retention harness (if equipped with reverse camera)
- Antenna adaptor for Ford Ranger
- CANbus interface adaptor (if required for SYNC integration)
Frequently Asked Questions
How do I know if my Ford Ranger has the 4.2-inch display with CD mechanism?
Check your factory radio — if it has a 4.2-inch colour display showing basic vehicle information and audio functions, with a CD slot below it, this is the correct fascia. If you have an 8-inch touchscreen (SYNC 3), a basic radio without a display screen, or any other configuration, a different fascia is required.
Is the SF9-FD02 compatible with 2020 or newer Ford Rangers?
No — the SF9-FD02 is for Ford Ranger models manufactured between 2015 and 2019 only. The 2020 and newer Ranger has a completely different dashboard configuration and requires a different fascia solution.
Can I use the SF9-FD02 with a 10-inch trapezoid head unit?
No — the SF9-FD02 is specifically designed for 9-inch trapezoid head units only. 10-inch trapezoid head units require a larger fascia panel designed for that format.
Does the SF9-FD02 include a wiring harness or installation accessories?
No — the SF9-FD02 is a fascia panel only. Wiring harnesses, antenna adaptors, SWC harnesses, and camera retention harnesses are all sold separately. Confirm the correct accessories for your specific Ranger's trim level and factory equipment before purchasing.
What accessories are needed for a complete Ranger installation?
At minimum, a Ford Ranger-specific ISO wiring harness and antenna adaptor. Depending on your Ranger's equipment, you may also need a steering wheel control harness (SYNC-equipped models), camera retention harness (reverse camera models), and potentially CANbus interface adaptors for SYNC system integration. Requirements vary by trim level and factory equipment.
