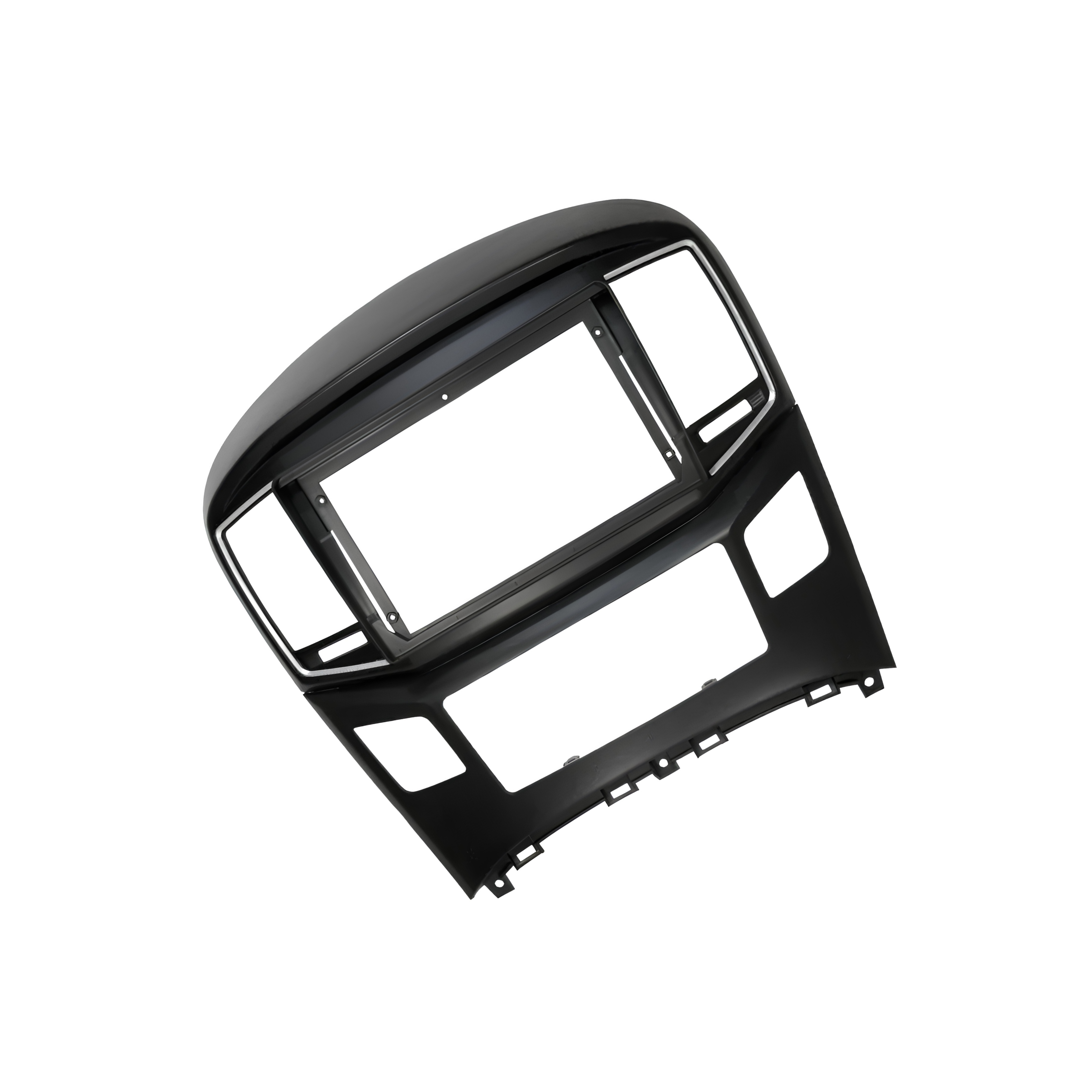

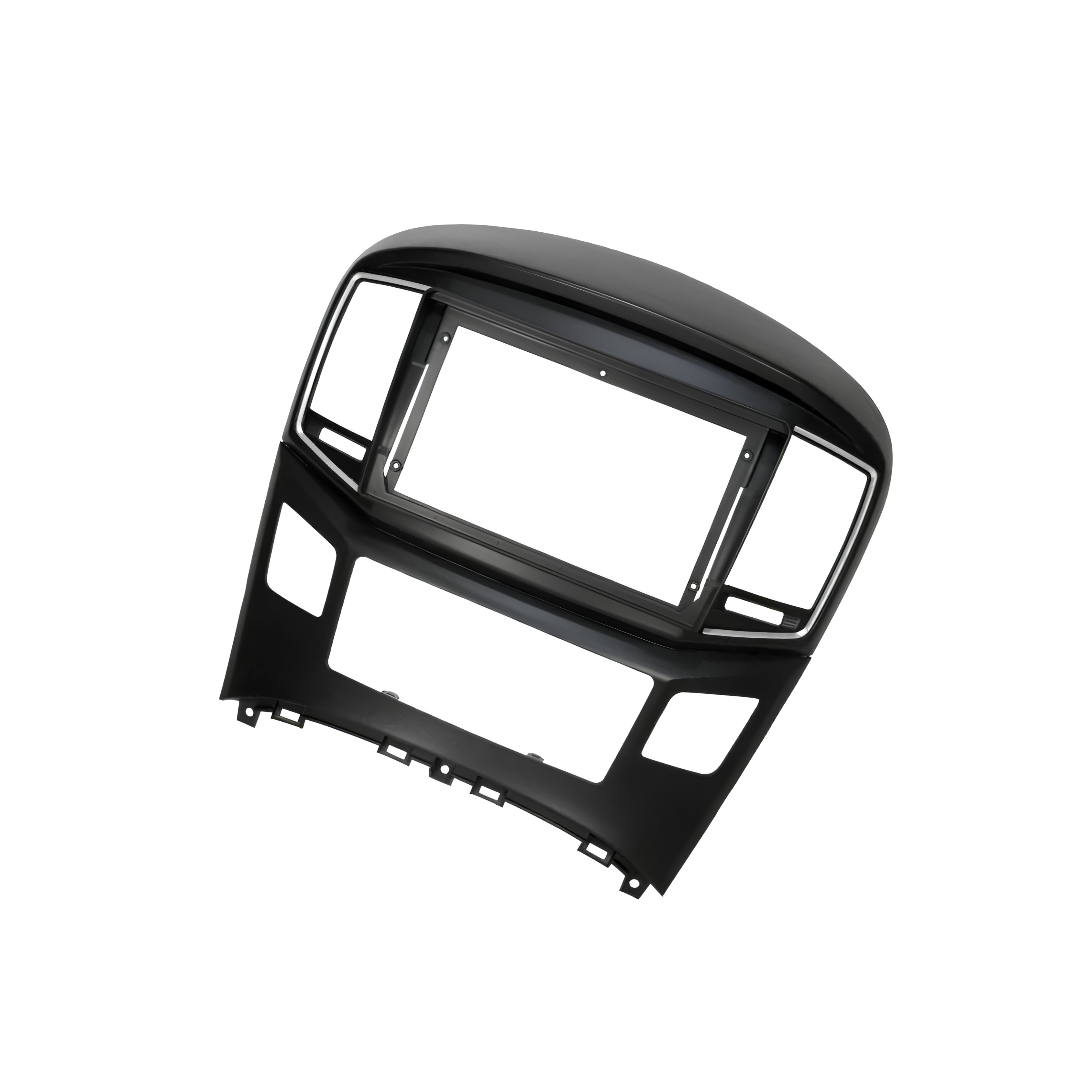

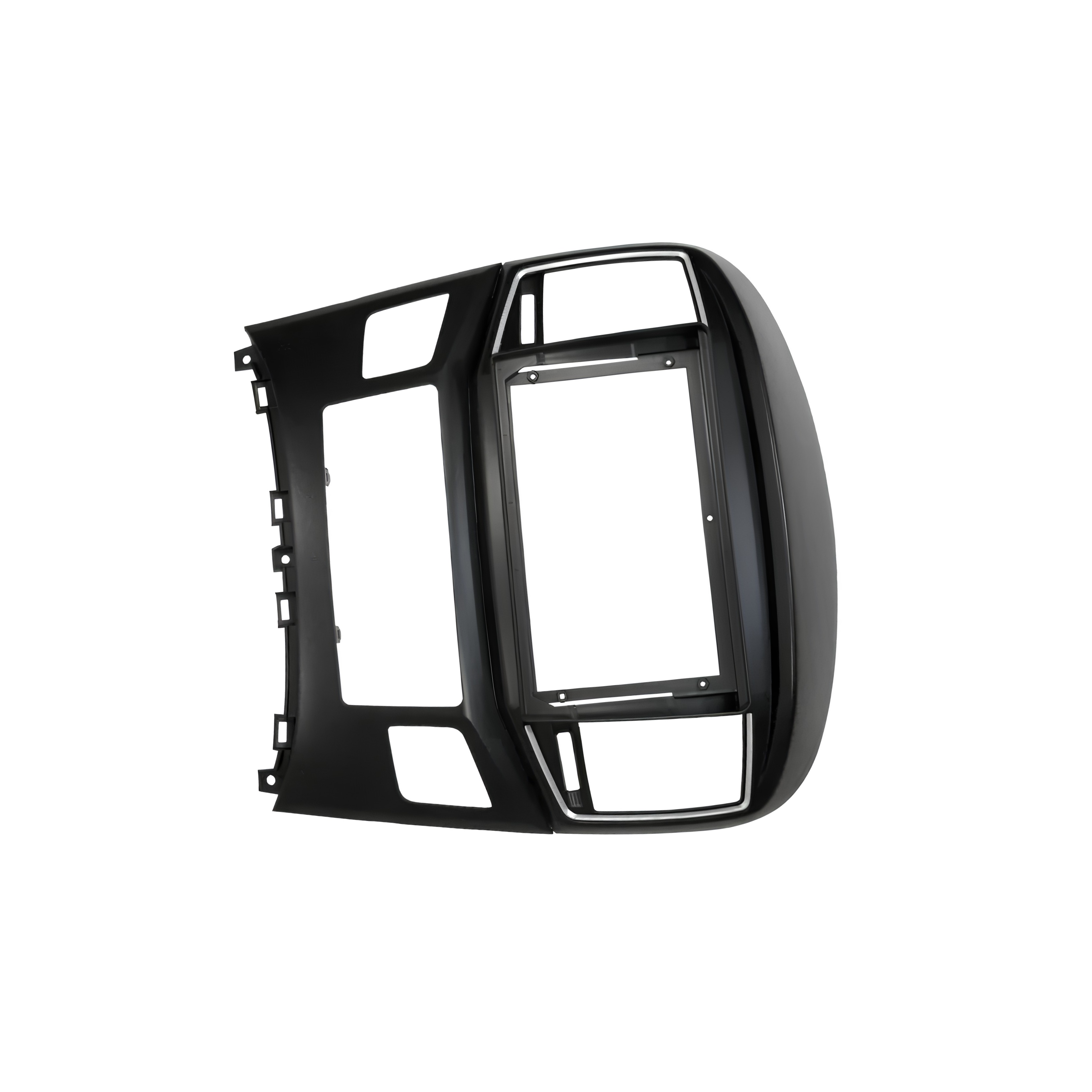

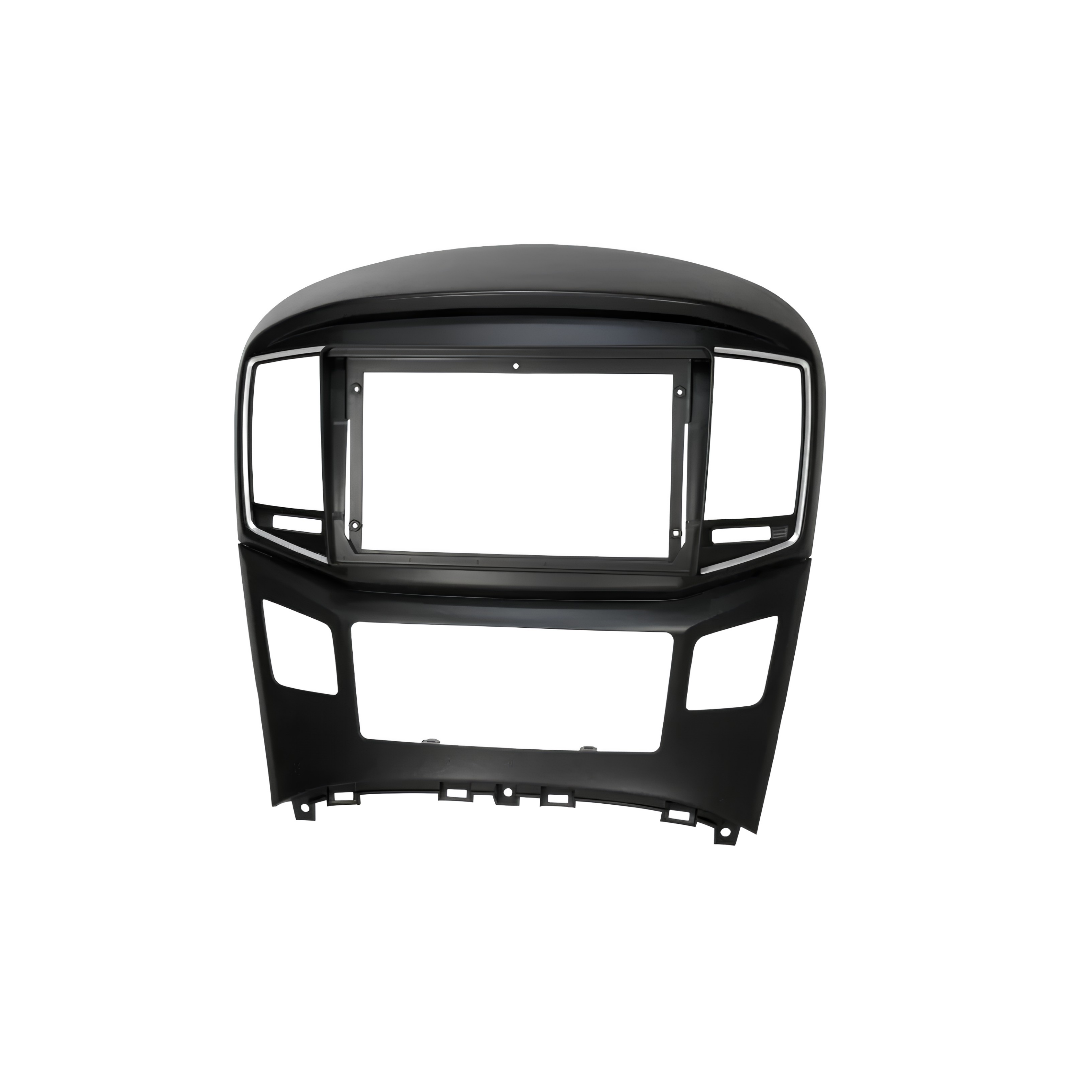

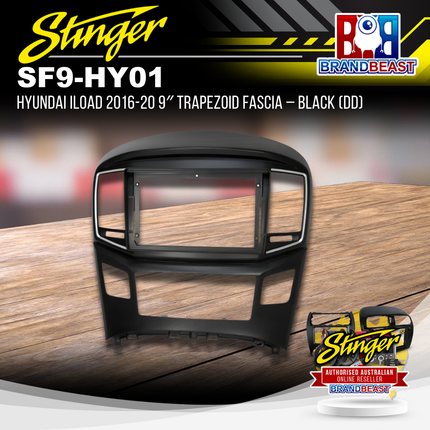

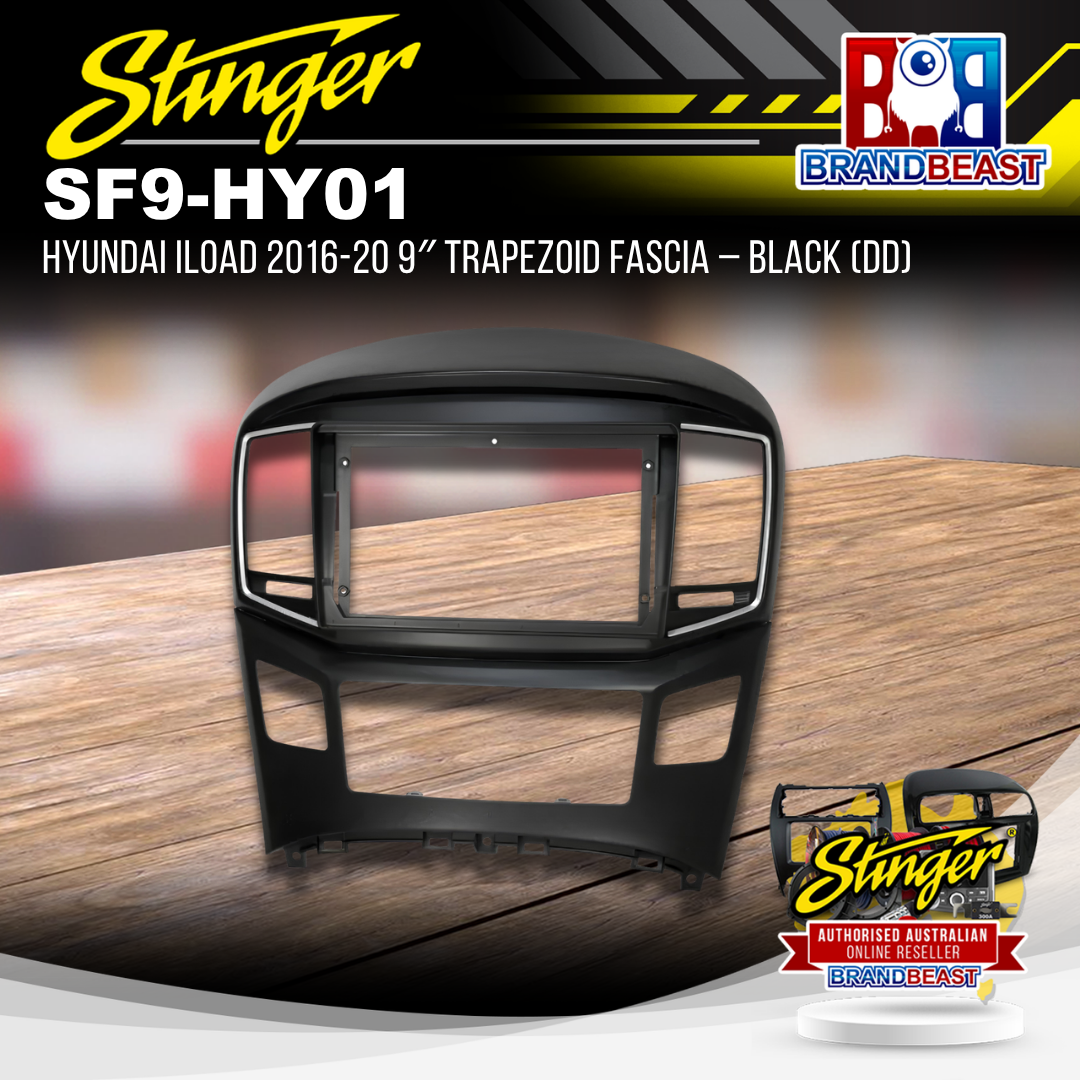

Stinger SF9-HY01 Black 9-Inch Trapezoid Fascia for Hyundai iLoad and iMax 2016–2020
The Stinger SF9-HY01 is a vehicle-specific double DIN fascia adapter designed to suit Hyundai iLoad and iMax models from 2016 to 2020. Built for 9-inch trapezoid-format head units, it provides a clean, factory-matched finish when upgrading the factory stereo. Sold as a fascia panel only.
Product overview
Replacing the factory head unit in a Hyundai iLoad or iMax often means dealing with an awkward dash opening that standard double DIN panels simply won't fill correctly. The SF9-HY01 resolves that with a purpose-built trapezoid fascia that matches the contours of the iLoad and iMax dash. The black finish blends with factory interior trim, and the panel accepts a range of popular 9-inch aftermarket head units including models from Alpine, Kenwood, Mongoose, Pioneer and Aerpro. Installation is straightforward for any experienced auto electrician or installer familiar with these vehicles.
Features and benefits
Vehicle-specific fit for Hyundai iLoad and iMax 2016–2020: Engineered specifically for iLoad and iMax dash openings from 2016 to 2020, eliminating gaps and misalignment common with generic fascias.
Trapezoid head unit format compatibility: Designed around the trapezoid head unit form factor used by several major brands, ensuring a proper face-to-frame fit without modification.
Black finish: Matches factory interior trim colour in the Hyundai iLoad and iMax, producing a clean finished result.
Broad head unit compatibility: Confirmed compatible with popular aftermarket head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro, covering a wide range of installation scenarios.
Fascia-only design: Supplied as a fascia panel, allowing installers to pair it with the specific head unit and wiring harness of their choice.
Technical specs
| Specification |
Detail |
| SKU |
SF9-HY01 |
| Brand |
Stinger |
| Colour |
Black |
| Compatible Vehicles |
Hyundai iLoad 2016–2020, Hyundai iMax 2016–2020 |
| Head Unit Format |
9" Trapezoid |
| Sold As |
Fascia panel only |
Compatible head units
The SF9-HY01 is confirmed compatible with the following 9-inch trapezoid head units:
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Kenwood |
DMX80AXS |
| Mongoose |
Q9WCA |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
Frequently asked questions
Is the SF9-HY01 compatible with both the Hyundai iLoad and iMax? Yes. The SF9-HY01 is designed to fit both the Hyundai iLoad and iMax across the 2016 to 2020 production years. Both models share the same dash configuration for this application.
Does this fascia include a wiring harness or antenna adaptor? No. The SF9-HY01 is a fascia panel only. A compatible wiring harness and antenna adaptor will need to be purchased separately to complete the installation.
Will any 9-inch head unit fit this fascia? Not necessarily. The SF9-HY01 is designed for the trapezoid head unit format. The confirmed compatible models are listed in the Compatible Head Units section above. For units not on that list, contact us before purchasing to confirm fitment.
Can I use a standard double DIN head unit with this fascia? No. This fascia is designed specifically for 9-inch trapezoid-format head units. A standard double DIN unit will not seat correctly in this panel.
Is this a genuine Stinger product? Yes. The SF9-HY01 is manufactured by Stinger and is part of their vehicle-specific fascia range for Australian-market vehicles. Contact us if you need further information.
